6D3–25

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

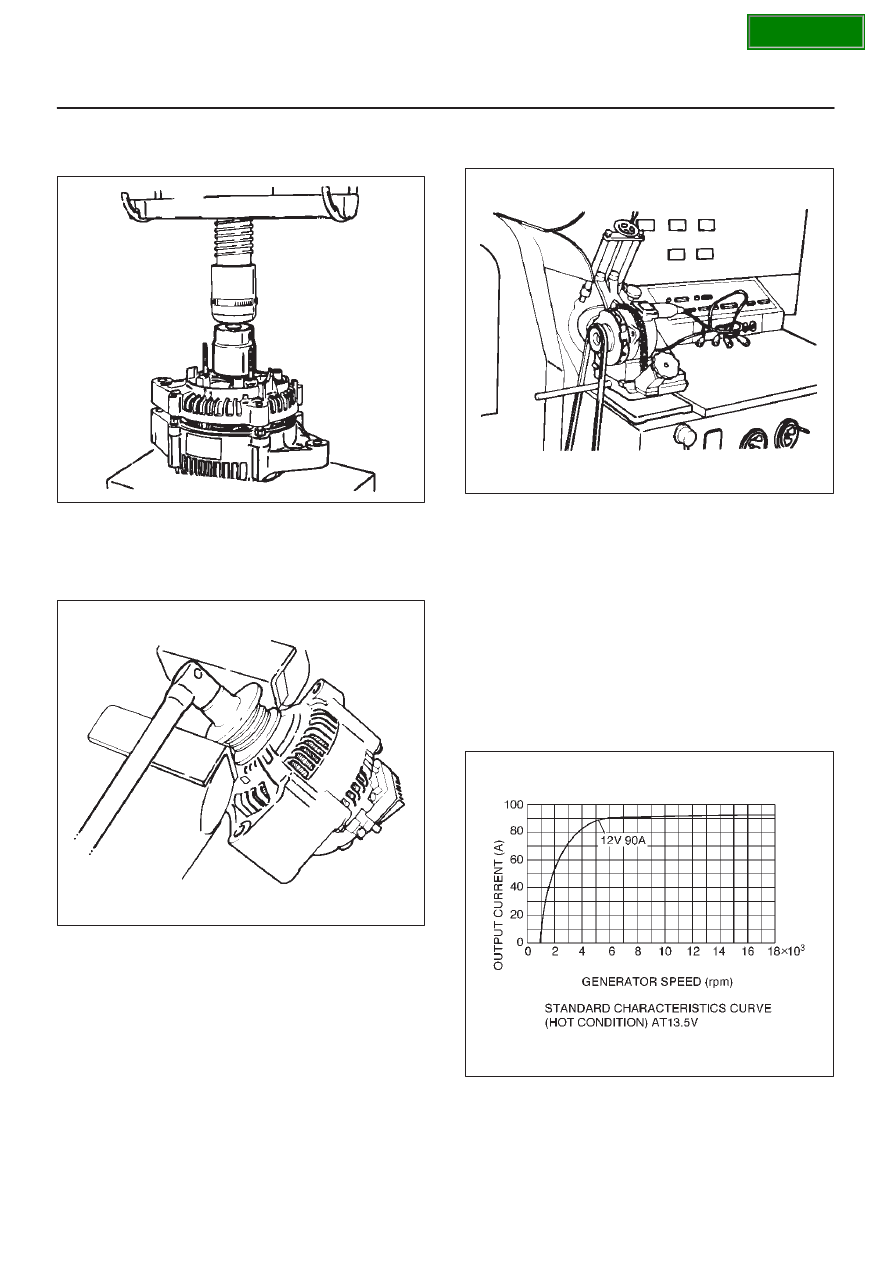

1. Using a press with a socket wrench attached,

reassemble rotor and rear end cover assembly in the
front cover.

066RS022

2. Install pulley on the rotor.

Secure the pulley directly in the vise between two
copper plates, and tighten nut to the specified torque.

Torque: 111 N·m (11.3 kg·m/82 lb ft)

066RS010

Bench Test

Conduct a bench test of the generator.

066RS023

Preparation

Remove generator from the vehicle (see “Generator
removal”).

1. Secure generator to the bench test equipment and

connect wires.
Terminal “IG” for energization
Terminal “L” for neutral (warning lamp)
Terminal “B” for output

2. Conduct the generator characteristic test.

Characteristics of generator are shown in illustration.
Repair or replace the generator if its outputs are
abnormal.

066RX001

SECTION

6D3–26 STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Main Data and Specifications

General Specifications

Battery voltage

V

12

Rated output

A

90

Direction of rotation

(as viewed from pulley side)

Clockwise

Rated rotation speed

rpm

5000

Maximum speed

rpm

18000

SECTION

6E–1

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

FRONTERA

ENGINE

3.2L ENGINE

DRIVEABILITY AND EMISSIONS

CONTENTS

Specifications

6E–5

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Tightening Specifications

6E–5

. . . . . . . . . . . . . . .

Diagrams and Schematics

6E–6

. . . . . . . . . . . . . . . .

PCM Wiring Diagram (1 of 7)

6E–6

. . . . . . . . . . . .

PCM Wiring Diagram (2 of 7)

6E–7

. . . . . . . . . . . .

PCM Wiring Diagram (3 of 7)

6E–8

. . . . . . . . . . . .

PCM Wiring Diagram (4 of 7)

6E–9

. . . . . . . . . . . .

PCM Wiring Diagram (5 of 7)

6E–10

. . . . . . . . . . . .

PCM Wiring Diagram (6 of 7)

6E–11

. . . . . . . . . . . .

PCM Wiring Diagram (7 of 7)

6E–12

. . . . . . . . . . . .

PCM Pinouts

6E–13

. . . . . . . . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Blue Connector
 – Row “F1

∼

 20”

6E–13

. . . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Blue Connector
 – Row “F20

∼

 40”

6E–14

. . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Blue Connector
 – Row “F41

∼

 60”

6E–15

. . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Blue Connector
 – Row “F61

∼

 80”

6E–16

. . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Red Connector
 – Row “S1

∼

 20”

6E–18

. . . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Red Connector
 – Row “S21

∼

 40”

6E–20

. . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Red Connector
 – Row “S41

∼

 60”

6E–22

. . . . . . . . . . . . . . . . . . . . .

PCM Pinout Table, 80-Way Red Connector
 – Row “S61

∼

 80”

6E–23

. . . . . . . . . . . . . . . . . . . . .

Component Locators

6E–25

. . . . . . . . . . . . . . . . . . .

Engine Component Locator Table

6E–26

. . . . . . . .

Undercarriage Component Locator

6E–27

. . . . . .

Undercarriage Component Locator Table

6E–27

.

Fuse and Relay Panel (Underhood
 Electrical Center)

6E–28

. . . . . . . . . . . . . . . . . . . . .

Sensors and Miscellaneous Component
 Locators

6E–29

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnosis

6E–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Strategy-Based Diagnostics

6E–32

. . . . . . . . . . . . .

Strategy-Based Diagnostics

6E–32

. . . . . . . . . . . . .

DTC Stored

6E–32

. . . . . . . . . . . . . . . . . . . . . . . . . . .

No DTC

6E–32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

No Matching Symptom

6E–32

. . . . . . . . . . . . . . . . .

Intermittents

6E–32

. . . . . . . . . . . . . . . . . . . . . . . . . .

No Trouble Found

6E–32

. . . . . . . . . . . . . . . . . . . . .

Verifying Vehicle Repair

6E–32

. . . . . . . . . . . . . . . .

General Service Information

6E–32

. . . . . . . . . . . . . .

OBD Serviceability Issues

6E–32

. . . . . . . . . . . . . .

Visual / Physical Engine Compartment
 Inspection

6E–33

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Basic Knowledge of Tools Required

6E–33

. . . . . .

Serial Data Communications

6E–33

. . . . . . . . . . . . . .

Class 2 Serial Data Communications

6E–33

. . . . .

On-Board Diagnostic (OBD)

6E–34

. . . . . . . . . . . . . .

On-Board Diagnostic Tests

6E–34

. . . . . . . . . . . . .

Comprehensive Component Monitor
 Diagnostic Operation

6E–34

. . . . . . . . . . . . . . . . . .

The Diagnostic Executive

6E–35

. . . . . . . . . . . . . . .

DTC Types

6E–36

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Decimal/Binary/Hexadecimal Conversions

6E–37

Verifying Vehicle Repair

6E–37

. . . . . . . . . . . . . . . .

Reading Diagnostic Trouble Codes Using The
 Tech 2 Scan Tool

6E–37

. . . . . . . . . . . . . . . . . . . . .

Tech 2

6E–39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tech 2 Features

6E–40

. . . . . . . . . . . . . . . . . . . . . . .

Getting Started

6E–40

. . . . . . . . . . . . . . . . . . . . . . . .

Operating Procedure (For Example)

6E–41

. . . . .

DTC Modes

6E–42

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC Information Mode

6E–42

. . . . . . . . . . . . . . . . .

Miscellaneous Test

6E–43

. . . . . . . . . . . . . . . . . . . .

Lamps Test

6E–43

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Relays Test

6E–44

. . . . . . . . . . . . . . . . . . . . . . . . . . .

EVAP Test

6E–45

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel System Test

6E–46

. . . . . . . . . . . . . . . . . . . . . .

Instruments Test

6E–48

. . . . . . . . . . . . . . . . . . . . . . .

EGR Control Test

6E–50

. . . . . . . . . . . . . . . . . . . . . .

Variable Intake Manifold Solenoid Test

6E–51

. . .

Injector Balance Test

6E–52

. . . . . . . . . . . . . . . . . . .

Plotting Snapshot Graph

6E–52

. . . . . . . . . . . . . . . . .

Plotting Graph Flow Chart (Plotting graph
 after obtaining vehicle information)

6E–53

. . . . . .

Flow Chart for Snapshot Replay (Plotting
 Graph)

6E–54

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Primary System-Based Diagnostic

6E–55

. . . . . . . . .

Primary System-Based Diagnostic

6E–55

. . . . . . .

Fuel Control Heated Oxygen Sensor

6E–55

. . . . .

HO2S Heater

6E–55

. . . . . . . . . . . . . . . . . . . . . . . . .

On-Board Diagnostic (OBD) System Check

6E–56

.

A/C Clutch Control Circuit Diagnosis

6E–59

. . . . . . .

Electronic Ignition System Diagnosis

6E–64

. . . . . . .

Visual Check of The Evaporative Emission
 Canister

6E–64

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Metering System Check

6E–64

. . . . . . . . . . . . .

Powertrain Control Module (PCM) Diagnosis

6E–64

SECTION

6E–2

6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

Multiple PCM Information Sensor DTCs Set

6E–64

Exhaust Gas Recirculation (EGR) Diagnosis

6E–68

Engine Tech 2 Data Definitions and Ranges

6E–68

Typical Scan Data Values

6E–70

. . . . . . . . . . . . . . . .

No Malfunction Indicator Lamp (MIL)

6E–75

. . . . . . .

Malfunction Indicator Lamp (MIL) “ON”
 Steady

6E–78

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

No Reduced Power Lamp (RPL)

6E–80

. . . . . . . . . .

Reduced Power Lamp (RPL) “ON” Steady

6E–84

. .

Engine Cranks But Will Not Run

6E–87

. . . . . . . . . . .

Fuel System Electrical Test

6E–94

. . . . . . . . . . . . . . .

Electric Throttle Control (ETC) System
 Check

6E–98

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel System Diagnosis

6E–102

. . . . . . . . . . . . . . . . . . .

Exhaust Gas Recirculation (EGR) System
 Check

6E–107

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manifold Absolute Pressure (MAP) Output
 Check

6E–109

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Evaporative (EVAP) Emissions Canister Purge
 Valve Check

6E–111

. . . . . . . . . . . . . . . . . . . . . . . . . . .

PCM Diagnostic Trouble Codes

6E–114

. . . . . . . . . . .

DTC P0101 MAF System Performance

6E–117

. . . .

DTC P0102 MAF Sensor Circuit  Low
 Frequency

6E–120

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0103 MAF Sensor Circuit High
 Frequency

6E–123

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0106 MAP System  Performance

6E–126

. . . .

DTC P0107 MAP Sensor Circuit Low
 Voltage

6E–129

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0108 MAP Sensor Circuit High
 Voltage

6E–132

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0112 IAT Sensor Circuit Low
 Voltage

6E–135

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0113 IAT Sensor Circuit High
 Voltage

6E–138

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0117 ECT Sensor Circuit Low
 Voltage

6E–141

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0118 ECT Sensor Circuit High
 Voltage

6E–144

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0131 HO2S Circuit Low Voltage
 Bank 1 Sensor 1

6E–147

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P0132 HO2S Circuit High Voltage
 Bank 1 Sensor 1

6E–150

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P0134 HO2S Circuit Insufficient
 Activity Bank 1 Sensor 1

6E–153

. . . . . . . . . . . . . . . . .

DTC P0135 HO2S Heater Circuit
 Bank 1 Sensor 1

6E–156

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P0151 HO2S Circuit Low Voltage
 Bank 2 Sensor 1

6E–159

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P0152 HO2S Circuit High Voltage
 Bank 2 Sensor 1

6E–162

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P0154 HO2S Circuit Insufficient
 Activity Bank 2 Sensor 1

6E–165

. . . . . . . . . . . . . . . . .

DTC P0155 HO2S Heater Circuit Open
 Bank 2 Sensor 1

6E–168

. . . . . . . . . . . . . . . . . . . . . . . .

DTC P0171 Fuel Trim System Lean Bank 1

6E–171

.

DTC P0172 Fuel Trim System Rich Bank 1

6E–175

.

DTC P0174 Fuel Trim System Lean Bank 2

6E–179

.

DTC P0175 Fuel Trim System Rich Bank 2

6E–183

.

DTC P0201 Injector 1 Control Circuit

6E–187

. . . . . .

DTC P0202 Injector 2 Control Circuit

6E–190

. . . . . .

DTC P0203 Injector 3 Control Circuit

6E–193

. . . . . .

DTC P0204 Injector 4 Control Circuit

6E–196

. . . . . .

DTC P0205 Injector 5 Control Circuit

6E–199

. . . . . .

DTC P0206 Injector 6 Control Circuit

6E–202

. . . . . .

DTC P0300 Engine Misfire Detected

6E–205

. . . . . . .

DTC P0301 Cylinder Misfire Detected

6E–209

. . . . . .

DTC P0302 Cylinder Misfire Detected

6E–211

. . . . . .

DTC P0303 Cylinder Misfire Detected

6E–213

. . . . . .

DTC P0304 Cylinder Misfire Detected

6E–215

. . . . . .

DTC P0305 Cylinder Misfire Detected

6E–217

. . . . . .

DTC P0306 Cylinder Misfire Detected

6E–219

. . . . . .

DTC P0325  ION Sensing Module/ION
 Sensing Knock Intensity Circuit Fault

6E–221

. . . . . .

DTC P0336 58X Reference Signal Circuit

6E–224

. .

DTC P0337 CKP Sensor Circuit Low
 Frequency

6E–227

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0351 Ignition 1 Control Circuit

6E–230

. . . . . . .

DTC P0352 Ignition 2 Control Circuit

6E–233

. . . . . . .

DTC P0353 Ignition 3 Control Circuit

6E–236

. . . . . . .

DTC P0354 Ignition 4 Control Circuit

6E–239

. . . . . . .

DTC P0355 Ignition 5 Control Circuit

6E–242

. . . . . . .

DTC P0356 Ignition 6 Control Circuit

6E–245

. . . . . . .

DTC P0402 EGR Pintle Crank Error

6E–248

. . . . . . .

DTC P0404 EGR Open Stuck

6E–250

. . . . . . . . . . . . .

DTC P0405 EGR Low Voltage

6E–252

. . . . . . . . . . . .

DTC P0406  EGR High Voltage

6E–255

. . . . . . . . . . .

DTC P0502 VSS Circuit Low Input

6E–258

. . . . . . . . .

DTC P0506 Idle Air Control System Low
 RPM

6E–261

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0507 Idle Air Control System High
 RPM

6E–264

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0562 System Voltage Low

6E–267

. . . . . . . . . .

DTC P0563 System Voltage High

6E–269

. . . . . . . . .

DTC P0565 Cruise Main Switch Circuit Error

6E–271

DTC P0566 Cruise Cancel Switch Circuit
 Error

6E–273

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0567 Cruise Resume Switch Circuit
 Error

6E–275

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P0571 No Brake Switch Signal

6E–277

. . . . . . .

DTC P0601 PCM Memory

6E–279

. . . . . . . . . . . . . . . .

DTC P0602 PCM Programming Error

6E–281

. . . . . .

DTC P0604 PCM RAM Error

6E–283

. . . . . . . . . . . . . .

DTC P0606 PCM Internal Performance

6E–285

. . . .

DTC P1106 MAP Sensor Circuit Intermittent
 High Voltage

6E–287

. . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P1107 MAP Circuit Intermittent Low
 Voltage

6E–289

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DTC P1111 IAT Sensor Circuit Intermittent
 High Voltage

6E–291

. . . . . . . . . . . . . . . . . . . . . . . . . . .
