4A2–34

DIFFERENTIAL (REAR)

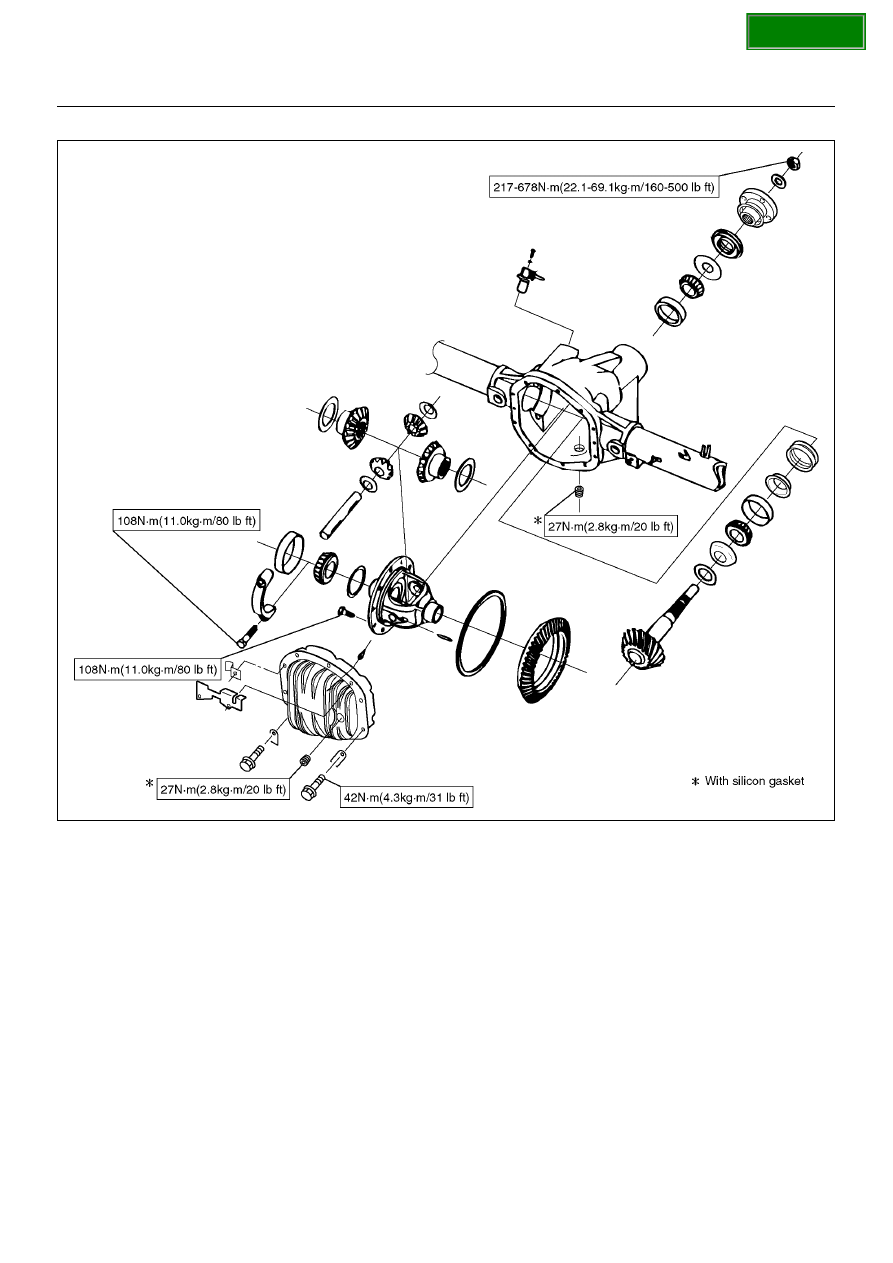

Torque Specifications

420R100002

SECTION

DIFFERENTIAL (REAR)

4A2–35

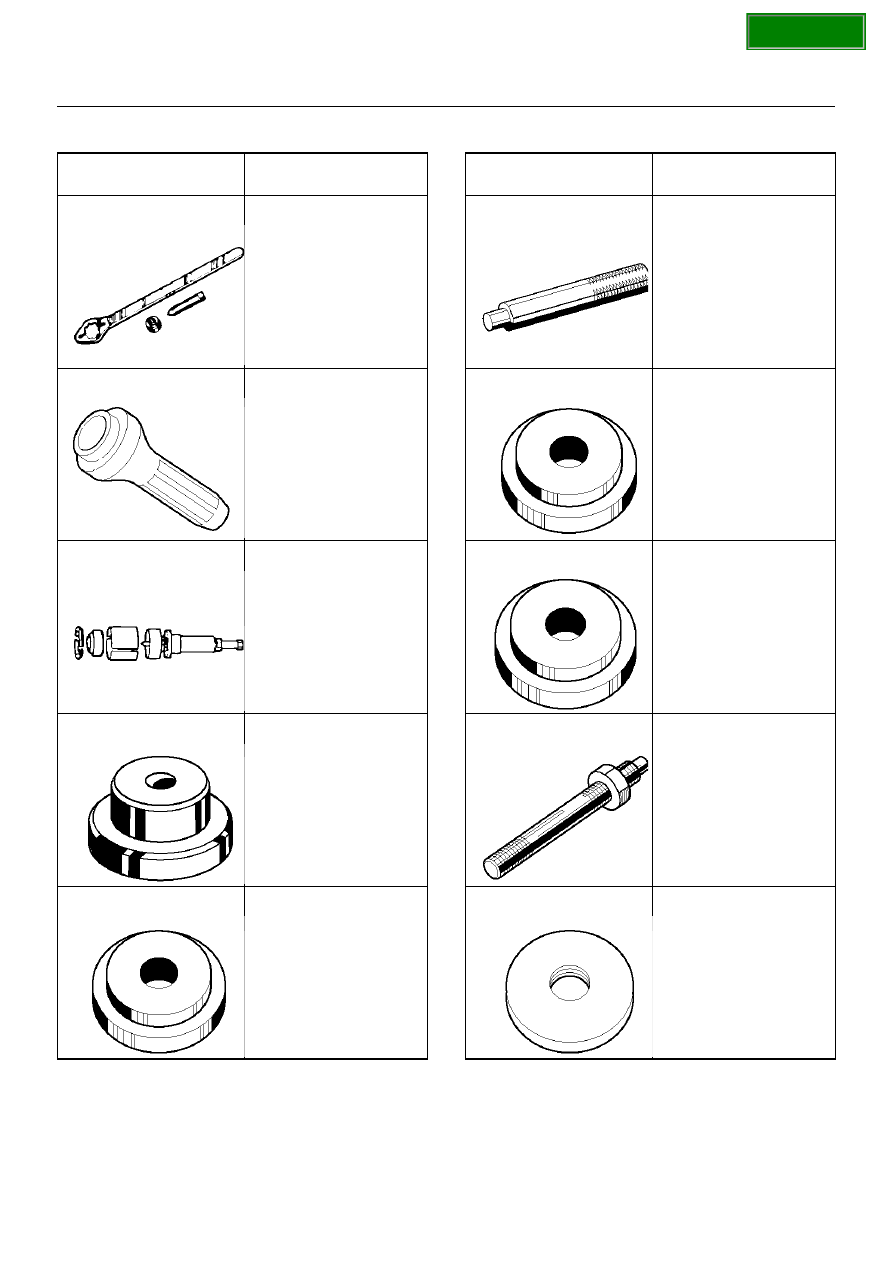

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–0133–0

(J–8614–01)

Pinion flange holder

5–8840–2165–0

(J–37263)

Installer; Pinion oil seal

5–8840–2587–0

(J–42379)

Remover; Bearing

5–8840–2585–0

(J–39830)

Adapter; Side bearing

plug

5–8840–0008–0

(J–8611–01)

Installer; Outer bearing

outer race

5–8840–0007–0

(J–8592)

Grip

5–8840–2569–0

(J–42836)

Installer; Inner bearing

outer race

5–8840–2575–0

(J–42824)

Pilot;Outer

5–8840–0127–0

(J–21777–43)

Nut & Stud

5–8840–2573–0

(J–42827)
Pilot;Inner

ILLUSTRATION

TOOL NO.

TOOL NAME

SECTION

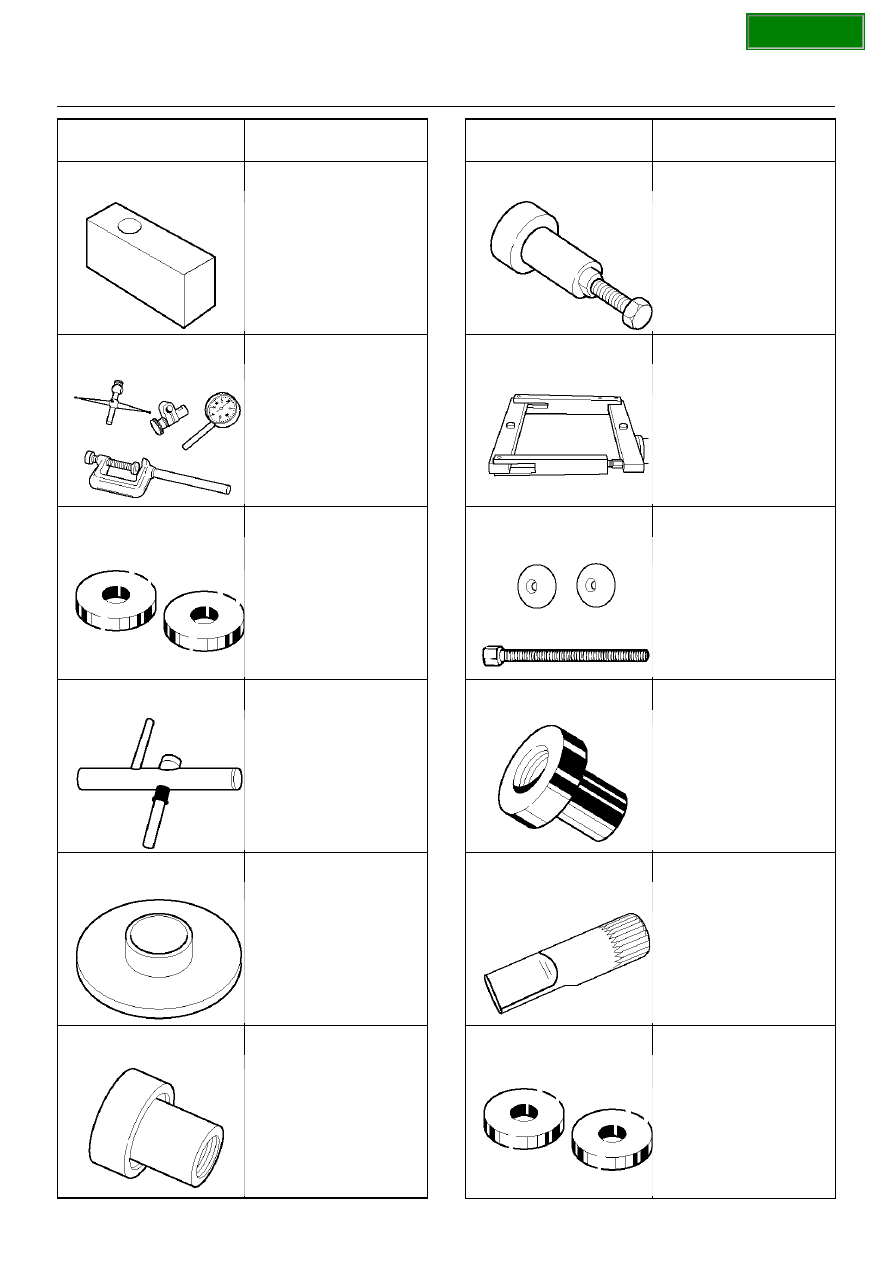

4A2–36

DIFFERENTIAL (REAR)

5–8840–2578–0

(J–39837–2)

Gauge plate

5–8840–0126–0

(J–8001)

Dial indicator

5–8840–2579–0

(J–39837–1)

Disc (2 required)

5–8840–0128–0

(J–23597–1)

Arbor

5–8840–2574–0

(J–42828)

Installer; Pinion bearing

5–8840–2580–0

(J–21784)

Installer; Side bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2323–0

(J–39602)

Remover; Outer bearing

5–8840–2581–0

(J–24385–B)

Spreader

5–8840–2586–0

(J–39858)

Clutch pack unloading

tool kit

5–8840–2582–0

(J–39834)

Limited–slip differential

(LSD) service adapter

5–8840–2583–0

(J–39824)

Holder

5–8840–2584–0

(J–39836)

Side bearing preload

master bearings

ILLUSTRATION

TOOL NO.

TOOL NAME

SECTION

4B1–1

DRIVELINE CONTROL SYSTEM

FRONTERA

DRIVELINE/AXLE

DRIVELINE CONTROL SYSTEM

CONTENTS

Service Precaution

4B1–1

. . . . . . . . . . . . . . . . . . . . . .

Shift On The Fly System

4B1–2

. . . . . . . . . . . . . . . . .

Outline of Shift on The Fly System

4B1–2

. . . . . . .

Functions of Indicator Lamp

4B1–6

. . . . . . . . . . . . .

Diagnosis

4B1–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shift On The Fly Electrical Equipment

4B1–17

. . . . . .

Axle Shaft Connection and Disconnection

4B1–17

4WD Control Unit

4B1–20

. . . . . . . . . . . . . . . . . . . . . . .

4WD Control Unit Associated Parts

4B1–20

. . . . . .

Removal

4B1–20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4B1–21

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shift On The Fly Controller

4B1–22

. . . . . . . . . . . . . . .

Shift On The Fly Controller and Associated
 Parts

4B1–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removal

4B1–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

4B1–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO

THE SRS

COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.
