Opel Frontera UE. Manual - part 1308





4A2–30

DIFFERENTIAL (REAR)

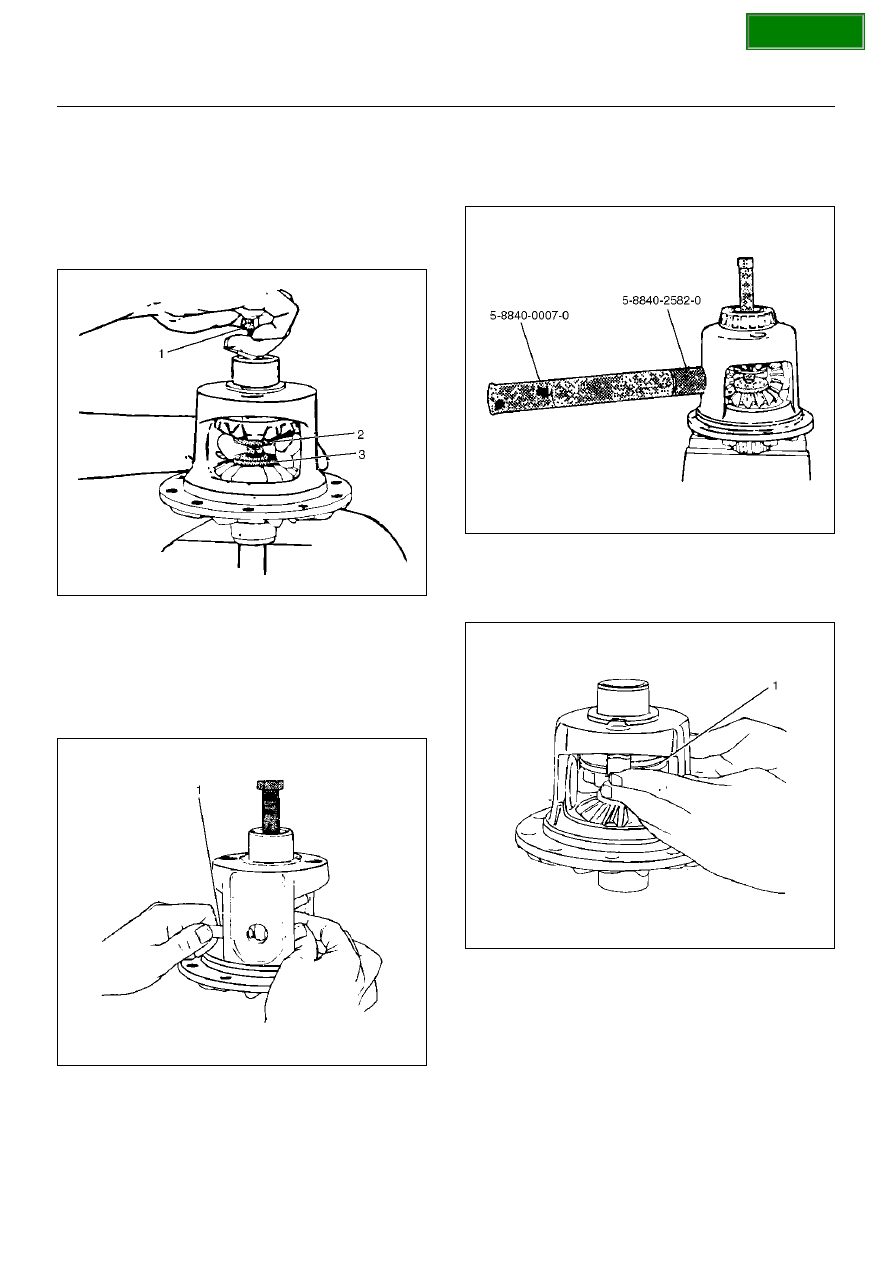

4. Assemble clutch pack unloading tool 5–8840–2586–

0.

a

Install cap(3) to the bottom differential side gear.

b

Install threaded screw cap(2) to top differential
side gear. Thread forcing screws(1) into
threaded screw cap until it becomes centered
into the bottom cap.

901RW288

c

Tighten forcing screw until tight enough to
collapse dished spacers and and allow
looseness  between side and pinion mate gears.

5. Both pinion mate gear thrust washers using a shim

stock (1) of 0.51 mm (0.020 in.) or equivalent tool to
push out washers.

425RW007

6. Relieve tension of dished spacers by loosening

forcing screw.

NOTE:

• You may have to adjust the forcing screw slightly to

allow the case to rotate.

7. Assemble LSD service adapter 5–8840–2582–0

onto long drive handle 5–8840–0007–0. Insert it into
differential shaft hole of case. Pull on handle and
rotate case until pinion mate gears can be removed.

901RW289

8. Remove pinion mate gears.

9. Hold side gear top clutch pack (1) with one hand

and remove positraction unloading tools.

425RW008

10. Remove top side gear and clutch pack.

NOTE:

• Keep the stack of plates and discs intact and in

exactly the same position while they are being
removed.

11. Remove case from holder.  Turn case with flange or

ring gear side up to allow side gear and clutch pack
to be removed from case.

SECTION

DIFFERENTIAL (REAR)

4A2–31

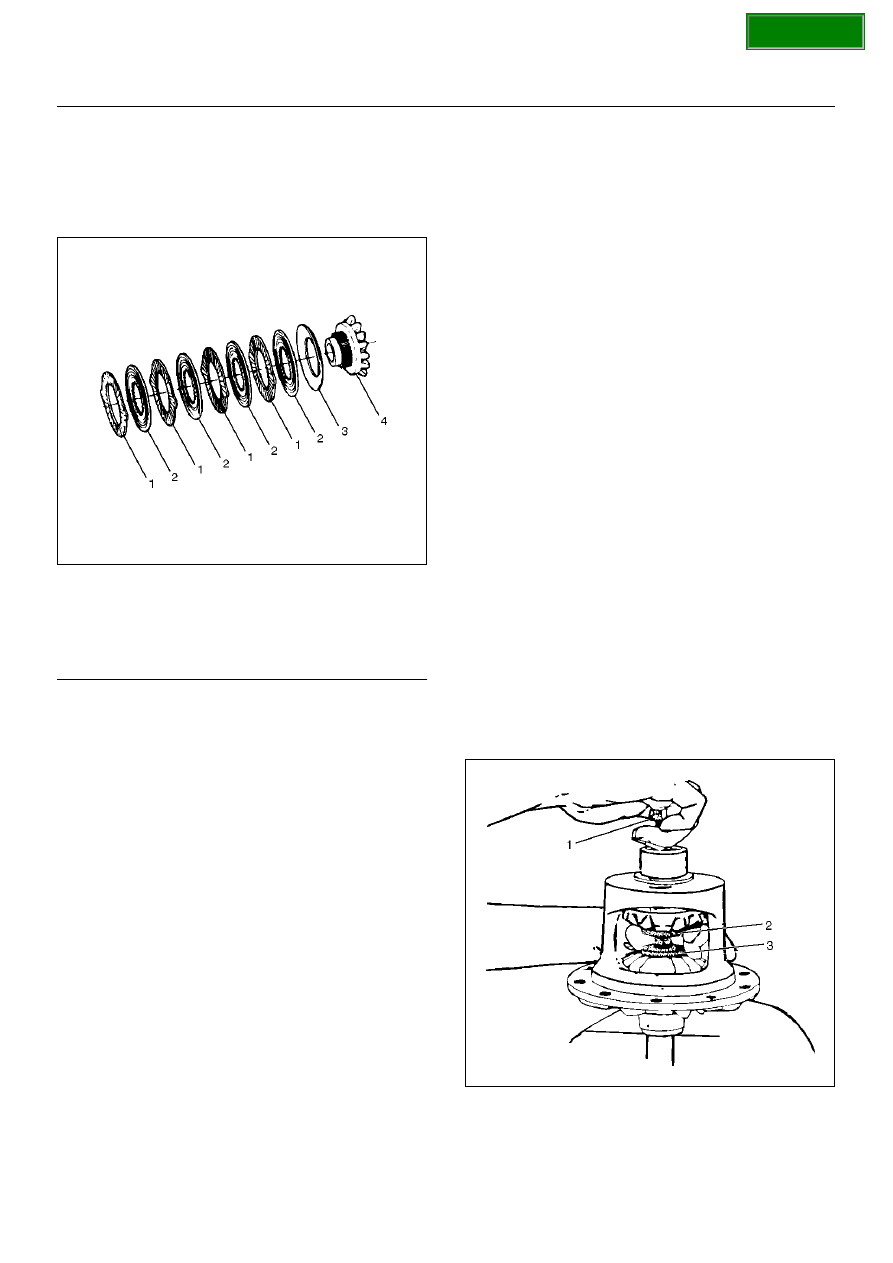

12. Remove differential plate retainer from both clutch

packs to allow separation of the plates and discs.

NOTE:

• Keep the discs and plates in the same order as they

were removed.

425RW009

Legend

EndOFCallout

Inspection and Repair

Cleaning

• All parts with solvent.

Visual Inspection

• Clean all parts with solvent.

• Plates and Discs. If any one disc or plate in either

stack shows evidence of  excessive wear or scoring,
the complete stack is to be replaced on both sides.

• Side Gears and Pinion Mate Gears. The gear teeth of

these parts should be checked for extreme wear and
possible cracks. The external teeth of the side gear,
which retain the concentric groove discs, should also
be checked for wear or cracks.

• If replacement of one gear is required due to wear,

etc., then both side gears, pinion mate gears, and
thrust washers are to be replaced.

• Differential Shaft. If excessive wear is evident, the

differential shaft should be replaced.

• Differential Plate Retainers. If wear is evident on any

one of the differential plate retainers, all  four
retainers must be replaced.

• Differential Case. If scoring, wear or metal pickup is

evident on the machined surfaces, replacement of the
case is necessary.

Reassembly

1. Lubricate thrust face of side gears, plates and discs

with the proper limited slip rear axle lubricant.

2. Assemble plates and discs in exactly in the same

position as they were removed, regardless of
whether they are new or original.

3. Install differential plate retainer to ears of plates.

NOTE:

• Make sure both retainers are completely seated on

ears of plates.

4. Install clutch pack and side gear into bottom side

gear bore. Make sure clutch pack  stays assembled
to side gear splines, and that retainers are
completely seated into pockets of case.

NOTE:

• To prevent clutch pack from falling out of case, hold

clutch pack in place by hand while repositioning case
on bench.

5. Install other side gear and clutch pack. Make sure

clutch pack stays assembled to side gear splines,
and retainers are completely seated into pockets of
case.

6. Hold clutch pack in position and assemble screw

cap(2), cap(3) and forcing screw(1). Tighten forcing
screw into bottom cap to hold both clutch packs in
position.

7. With tools assembled to case, position case on

holder 5–8840–2583–0 by aligning splines of side
gear with those of shaft. Tighten forcing screw to
compress  clutch packs in order to provide
clearance for pinion mate gears.

901RW288

8. Install pinion mate gears.

• Place the pinion mate gears into the differential

180 degrees apart.

(1) Differential Plate
(2) Differential Disc
(3) Dished Spacer
(4) Side Gear

SECTION

4A2–32

DIFFERENTIAL (REAR)

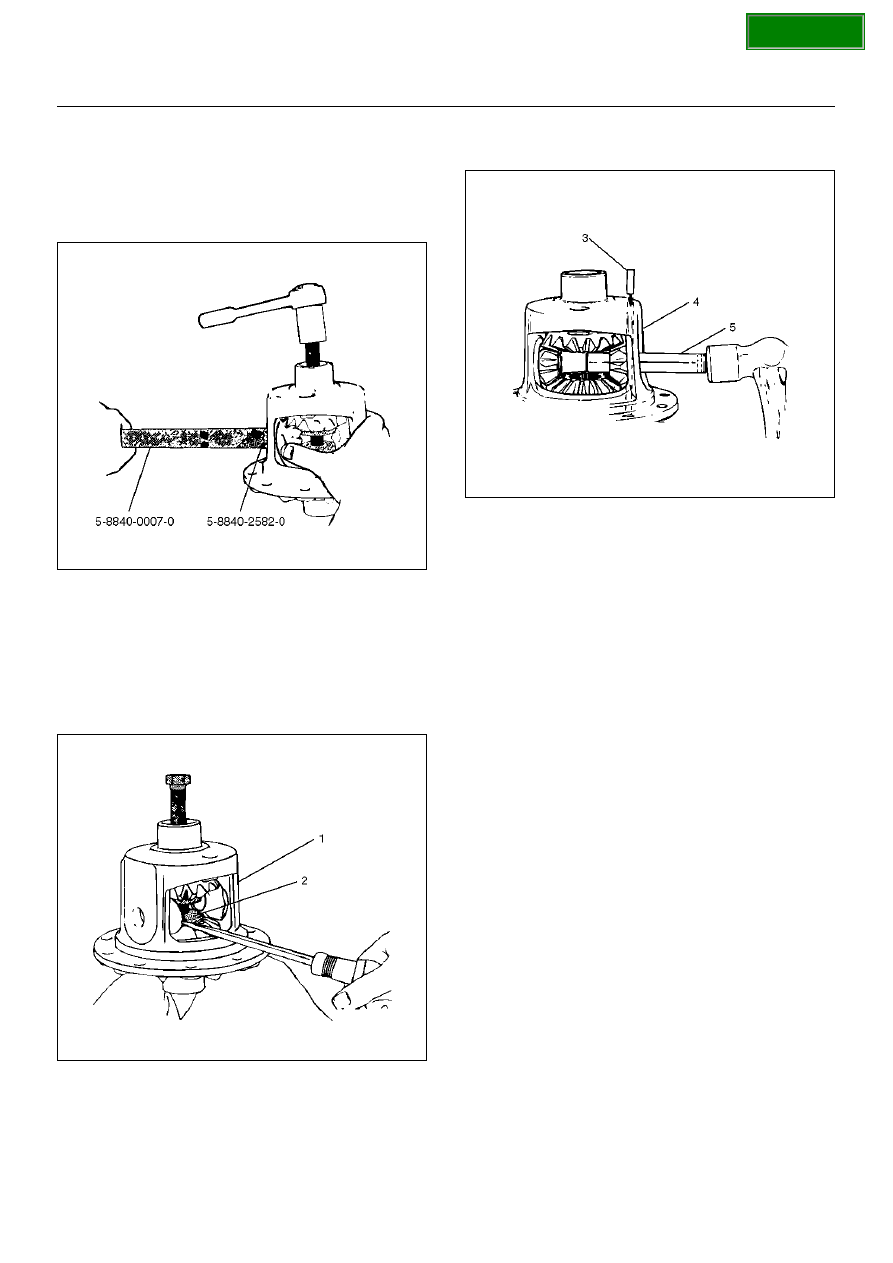

9. While holding gears in place, insert LSD service

adapter 5–8840–2582–0  with long drive handle  5–
8840–0007–0 in differential shaft hole of case. Pull
on long drive handle and rotate case, allowing
gears to turn. Make sure that holes in pinion mate
gears align with holes in case.

901RW290

• It may be necessary to adjust tension on forcing

screw to rotate case.

10. Tighten forcing screw to compress the clutch packs,

to allow installation of spherical thrust washers.

11. Lubricate spherical thrust washers (2), and

assemble into case (1). Use a small screw  driver to
push washers into place. Remove tools.

425RW012

12. Position differential shaft in case and drive in with

hammer. Be sure lock pin  hole of differential shaft
(5)  is properly aligned to allow installation of lock
pin (3).  Be sure that thrust washers and differential
pinion mate gears are aligned with the differential
case (4). Install new lock pin to proper depth using a
punch.

Stake metal of case over pin in two places, 180
degrees apart.

425RW013

SECTION

DIFFERENTIAL (REAR)

4A2–33

Main Data And Specifications

General Specifications

Rear axle

Type

Salisbury, Semi–floating

Rear axle Size

226mm (8.9 in)

Gear type

Hypoid

Gear ratio  (to 1)

4.100 (6VD1 with A/T)

4.300 (6VD1 with M/T)

Differential type

Two pinion

Lubricant Grade

GL–5: (Standard differential)

GL–5, LSD: (Limited slip differential)

Locking Differential Lubricant

80W90 GL–5

(USE Limited Slip Differential Gear Lubricant or Friction

Modifier Organic Additive)

Capacity

1.77 liter (1.87 US qt)

SECTION
