INTELLIGENT SUSPENSION

3F–35

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector from  the harness and

remove the connector from the bracket.

3. Remove the clip.

View B

450RY00005

Legend

(1) Screw
(2) Actuator
(3) Nut
(4) Bracket
(5) Nut
(6) Washer
(7) Shock Absorber

1. Remove 2 screws.
2. Disconnect the actuator.
3. Remove the nut (3).
4. Disconnect bracket.
5. Remove the nut (5).
6. Disconnect the washer.
7. Remove the shock absorber.

Refer to

 Shock Absorber in this section.

Inspection and Repair

Refer to

 shock Abosorber in this section.

Installation

1. Install the shock absorber.

Refer to

 Shock Absorber in this section.

2. Install the washer and nut (5), then tighten it to the

specified torque.
Torque: 15 N·m (11 lb ft)

3. Install the bracket and nut (3), then tighten it to the

specified torque.
Torque: 39 N·m (29 lb ft)

NOTE: Fix the lower nut with wrench not to turn and
tighten upper nut.

4. Fit the top of the shock absorber rod in the connection

part of the actuator.

NOTE:

The mating section is width fitting across flats.
If these normally fit, the distance between the
actuator lower face and the bracket upper face is
about 1 mm.

5. Install 2 screws then tighten it to the specified torque.

3 N·m (26 lb in)

6. Connect the connector to the harness and insert the

connector to the bracket.

7. Connect the actuator harness with the clip.
8. Connect the battery ground cable.

SECTION

3F–36

INTELLIGENT SUSPENSION

Rear Shock Absorber

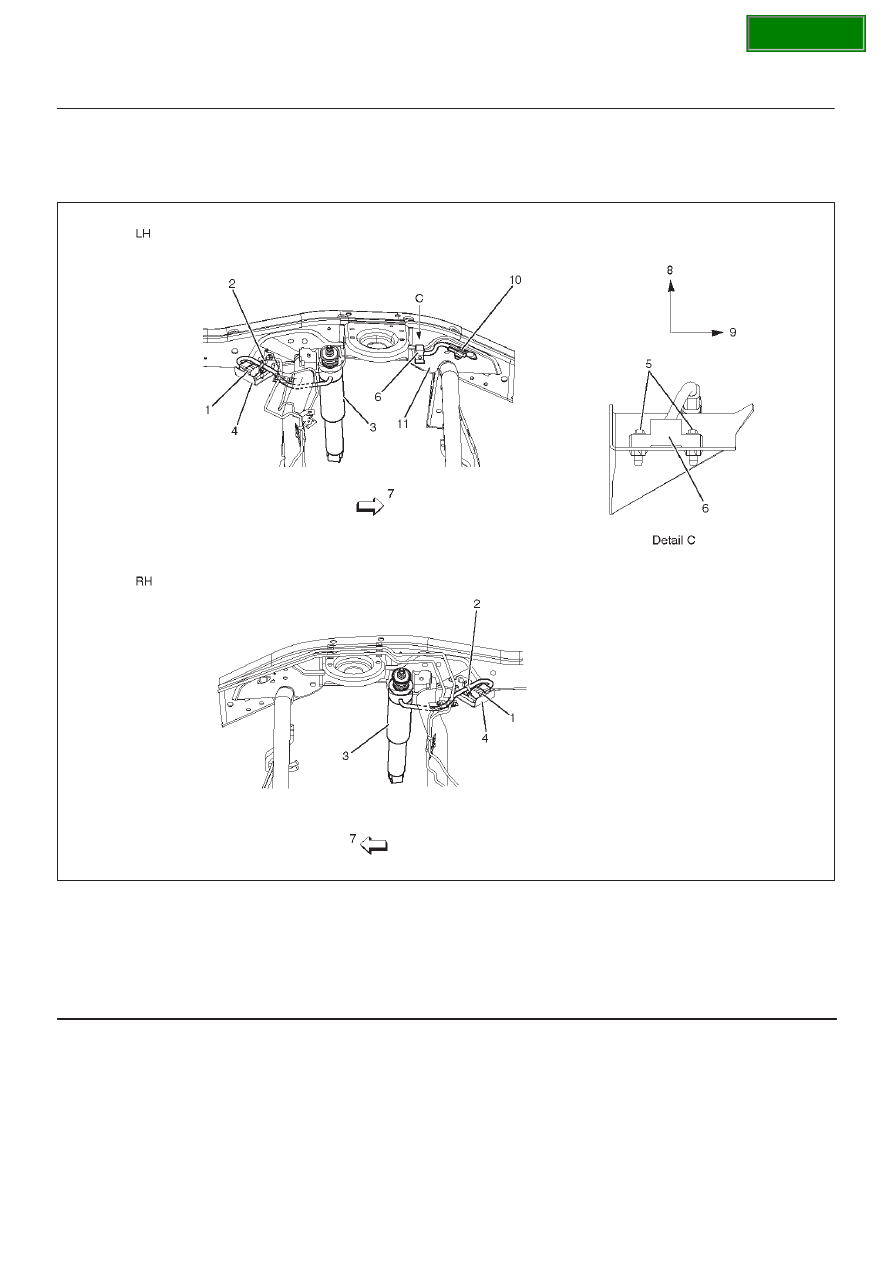

Rear Shock Absorber and Associated Parts

LH

461R100003

Legend

(1) Connector
(2) Clip
(3) Rear Shock Absorber
(4) Bracket
(5) Bolt

(6) G-Sensor
(7) Front
(8) Upper
(9) Right

(10) Connector

(11) Gusset

SECTION

INTELLIGENT SUSPENSION

3F–37

Removal

1. Disconnect the battery ground cable.
2. Disconnect the connector (1) from the harness and

remove the connector (1) from the bracket (4).

3. Remove the clip (2).
4. Remove the rear shock absorber (3).

Refer to

 Shock Absorber in this section.

5. Disconnect the connector (10) from the harness and

remove the connector (10) from the gusset (11).

6. Remove the 2 bolts (5).
7. Disconnect the G-sensor (6).

Inspection and Repair

Refer to

Shock Absorber in this section.

Installation

1. Set the G-sensor on the gusset (11).
2. Install 2 bolts (5) then tighten it to the specified torque.

Torque: 7 N·m (61 lb in)

3. Connect the connector (10) to the harness and insert

the connector (10) to the gusset (11).

4. Install the rear shock absorber (3).

Refer to

 Shock Absorber in this section.

5. Connect the connector (1) to the harness and insert

the connector (1) to the bracket (4).

6. Insert the clip (2) to the bracket (4).
7. Connect the battery ground cable.

SECTION

DIFFERENTIAL (FRONT)

4A1–1

DRIVELINE/AXLE

CONTENTS

Differential (Front) ......................................... 4A1 - 1
Differential (Rear).......................................... 4A2 - 1
Driveline Control System............................... 4B1 - 1
Driveline Control System (TOD).................... 4B2 - 1
Drive Shaft System ....................................... 4C - 1
Transfer Case ............................................... 4D1 - 1
Transfer Case (TOD) .................................... 4D2 - 1

DIFFERENTIAL (FRONT)

CONTENTS

Service Precaution......................................... 4A1 - 1

Front Drive Axle ............................................ 4A1 - 2

Diagnosis .................................................... 4A1 - 2

Pinion Shaft Oil Seal ..................................... 4A1 - 3

Pinion Shaft Oil Seal and Associated Parts 4A1 - 3
Removal ..................................................... 4A1 - 3
Inspection and Repair................................. 4A1 - 4
Installation .................................................. 4A1 - 4

Front Drive Axle Assembly............................ 4A1 - 5

Front Drive Axle Assembly

and Associated Parts ................................ 4A1 - 5

Removal ..................................................... 4A1 - 6

Installation................................................... 4A1 - 6

Differential Assembly .................................... 4A1 - 8

Disassembled View .................................... 4A1 - 8
Disassembly ............................................... 4A1 - 9
Reassembly ................................................ 4A1 - 11

Differential Cage Assembly ........................... 4A1 - 20

Disassembled View .................................... 4A1 - 20
Disassembly ............................................... 4A1 - 20
Inspection and Repair................................. 4A1 - 21
Reassembly ................................................ 4A1 - 22

Main Data and Specifications ........................ 4A1 - 24
Special Tools ................................................. 4A1 - 27

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO

THE SRS

COMPONENT AND  WIRING LOCATION VIEW

 IN

ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR  THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING, REFER
TO

THE SRS  SERVICE INFORMATION

. FAILURE TO

FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact  part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases,  or
other corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fasteners.
When you install fasteners, use the correct
tightening sequence and  specifications. Following
these instructions can help you avoid damage to
parts and systems.

SECTION
