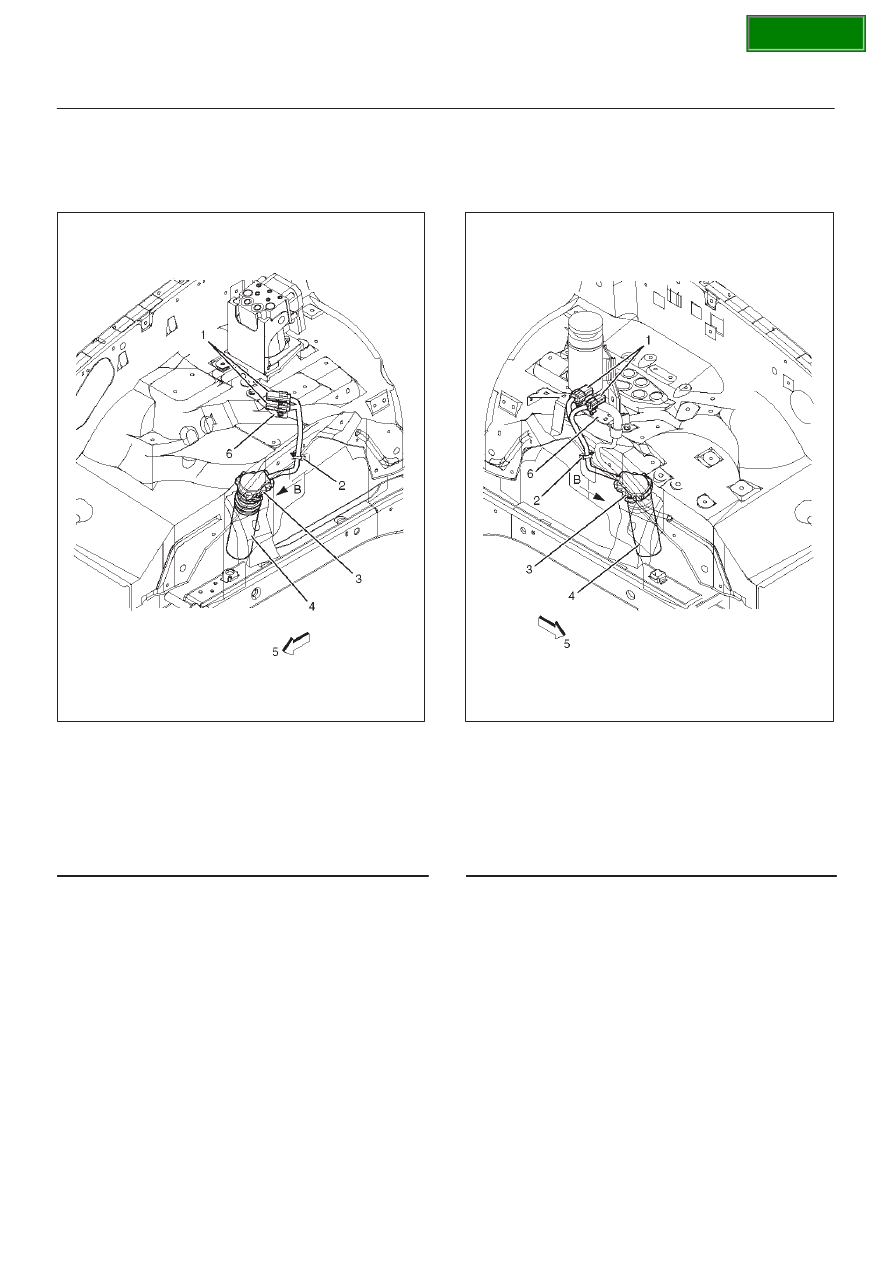

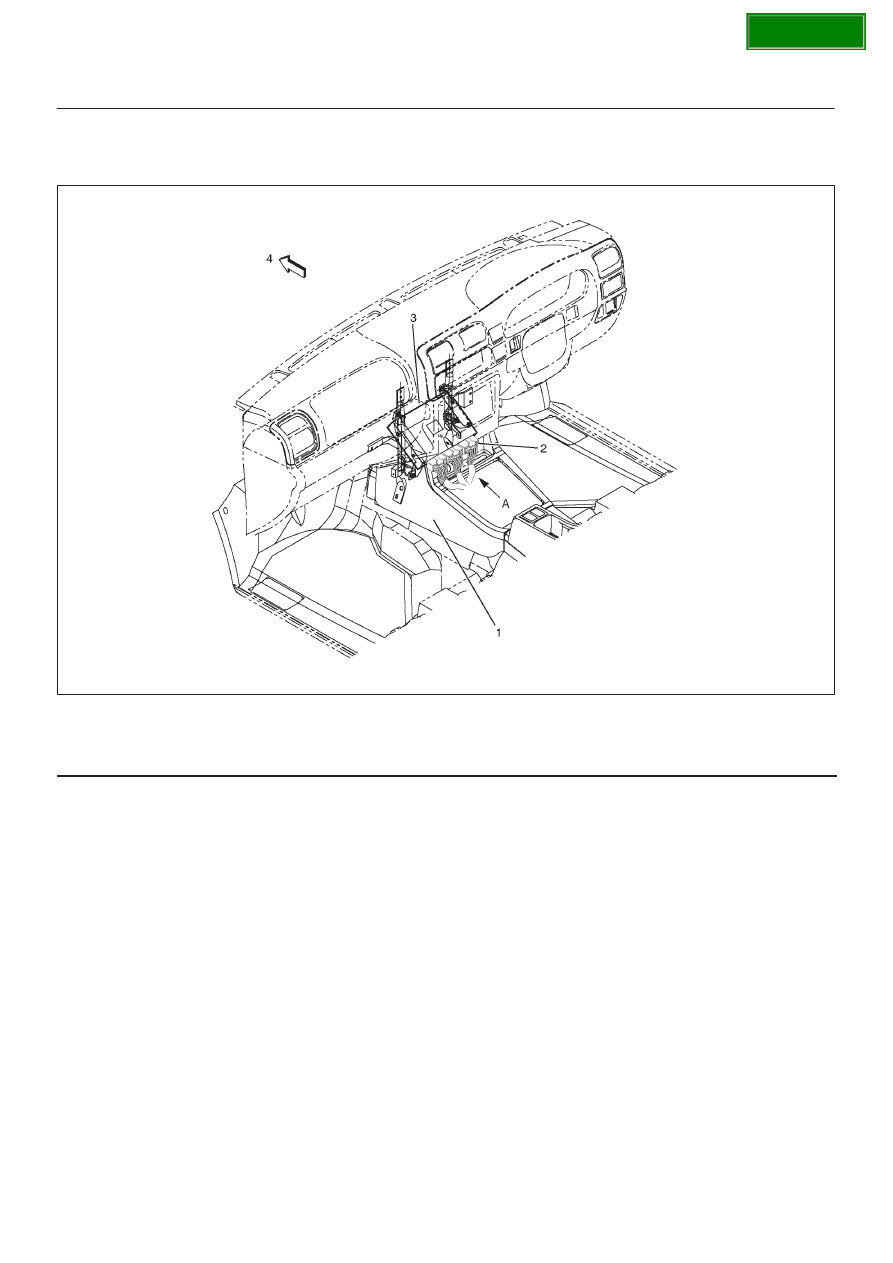

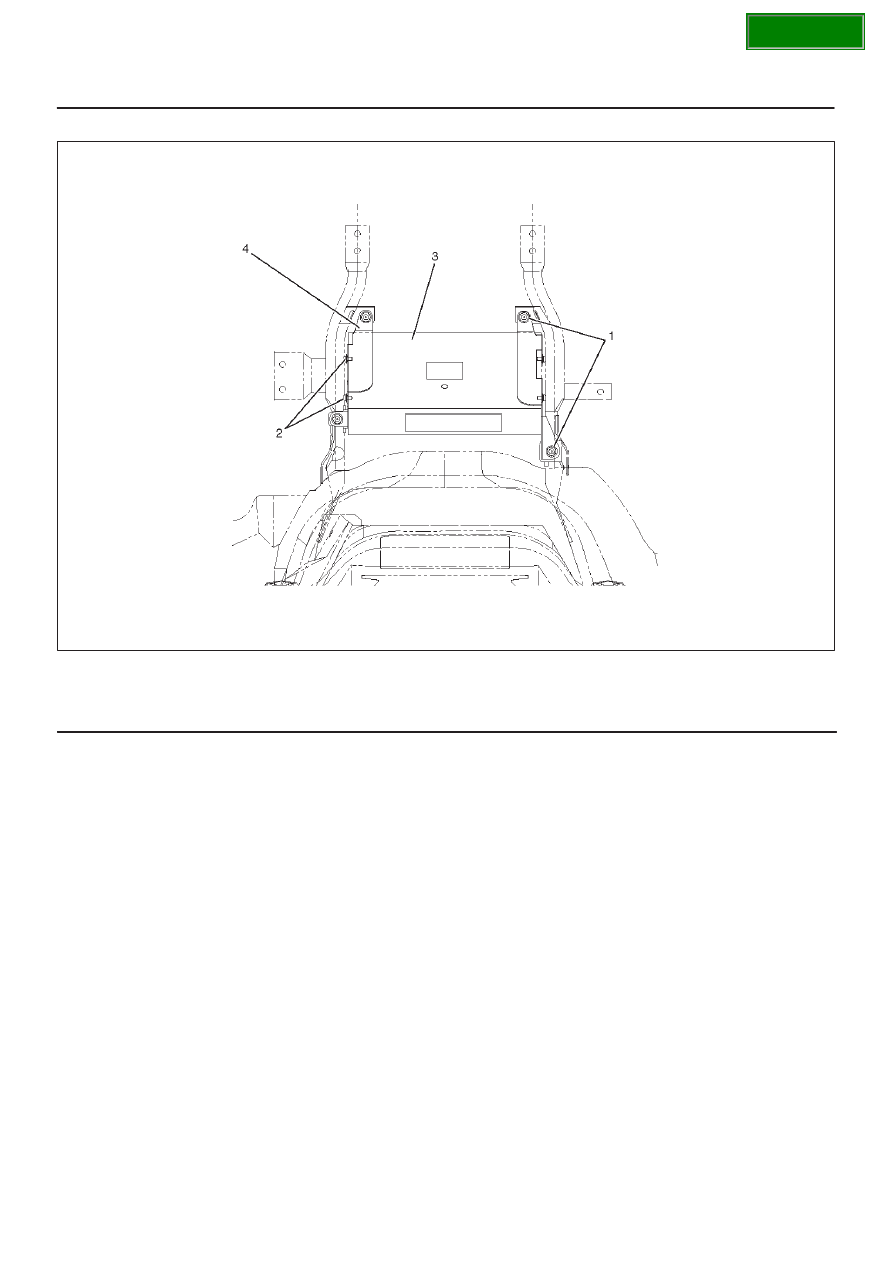

INTELLIGENT SUSPENSION 3F–31 DTC9–4 Control Unit Blown Fuse for RL Shock Absorber Step Action Value(s) Yes No 1 1. Turn off the starter switch. absorber side connector F–8 terminals 3 and 4. Is the resistance within the specified value? 6.4– 7.2 W Go to Step 2 Go to Step 3 2 1. Measure the resistance between the shock absorber side connector F–8 terminals 7 and 8. Is the resistance within the specified value? 6.4– 7.2 W Go to Step 4 Go to Step 3 3 Replace the shock absorber RL. — Go to Step 7 — 4 1. If all steps are correct, check the continuity between the control unit connector C–56 terminal 1 and Is there continuity? — Begin diagnosis again Go to Step 5 Go to Step 6 5 Repair the circuit. — Go to Step 7 — 6 Replace the control unit. — Go to Step 7 — 7 1. Reconnect all components, ensure all components are properly mounted. 2. Clear the DTC. Was this step finished? — Go to “Basic Diagnosis FLow”. Go to Step 7 |
