Opel Frontera UE. Manual - part 1283





WHEEL AND TIRE SYSTEM

3E–9

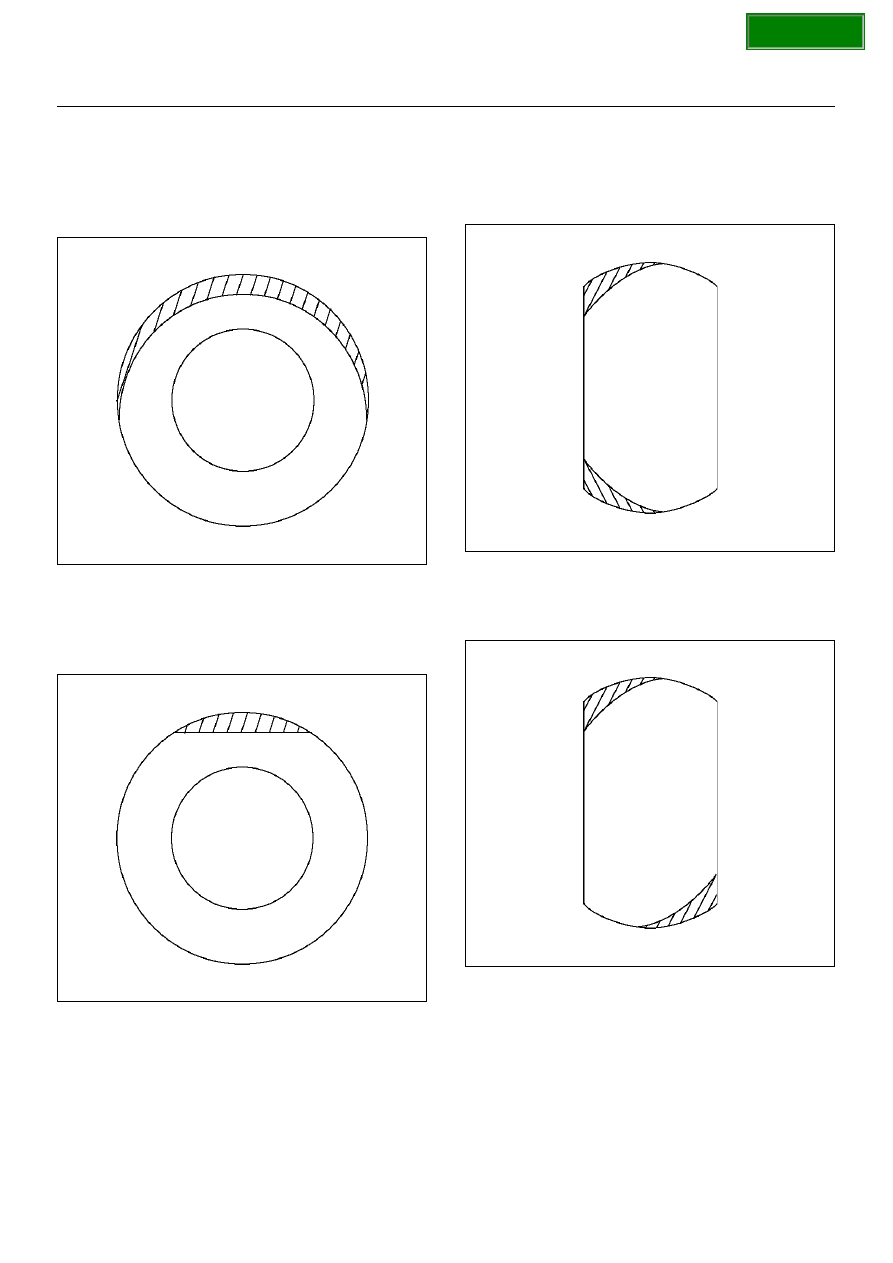

1. Tire or wheel out of round or distorted.

2. Hub or knuckle out of round or distorted.

3. Play in hub bearings or ball joint.

4. Rotating parts out of balance.

Tread wear one-sided.

480RW003

1. Rotating parts out of balance.

2. Tire or wheel out of round.

3. Hub or knuckle out of round or distorted.

Localized tread wear.

480RW004

1. Once spotty wear develops in tread due to hard

braking or abrupt starting, localized wear tends to
be promoted.

Shoulder wear (generally wear develops in outer
shoulder):

480RW005

1. Camber or toe-in incorrect.

2. Shoulder wear caused by repeated hard-cornering.

Wear in shoulders at points opposed to each other.

480RW006

SECTION

3E–10

WHEEL AND TIRE SYSTEM

1. Tire or wheel out of round or distorted.

2. Play in bearings or ball joint.

Premature wear in shoulders.

480RW007

1. Flexing of tire excessive due to under-inflation.

One sided feather edging.

480RW008

1. Wear caused by repeated hard cornering.

2. Camber or toe-in incorrect.

SECTION

WHEEL AND TIRE SYSTEM

3E–11

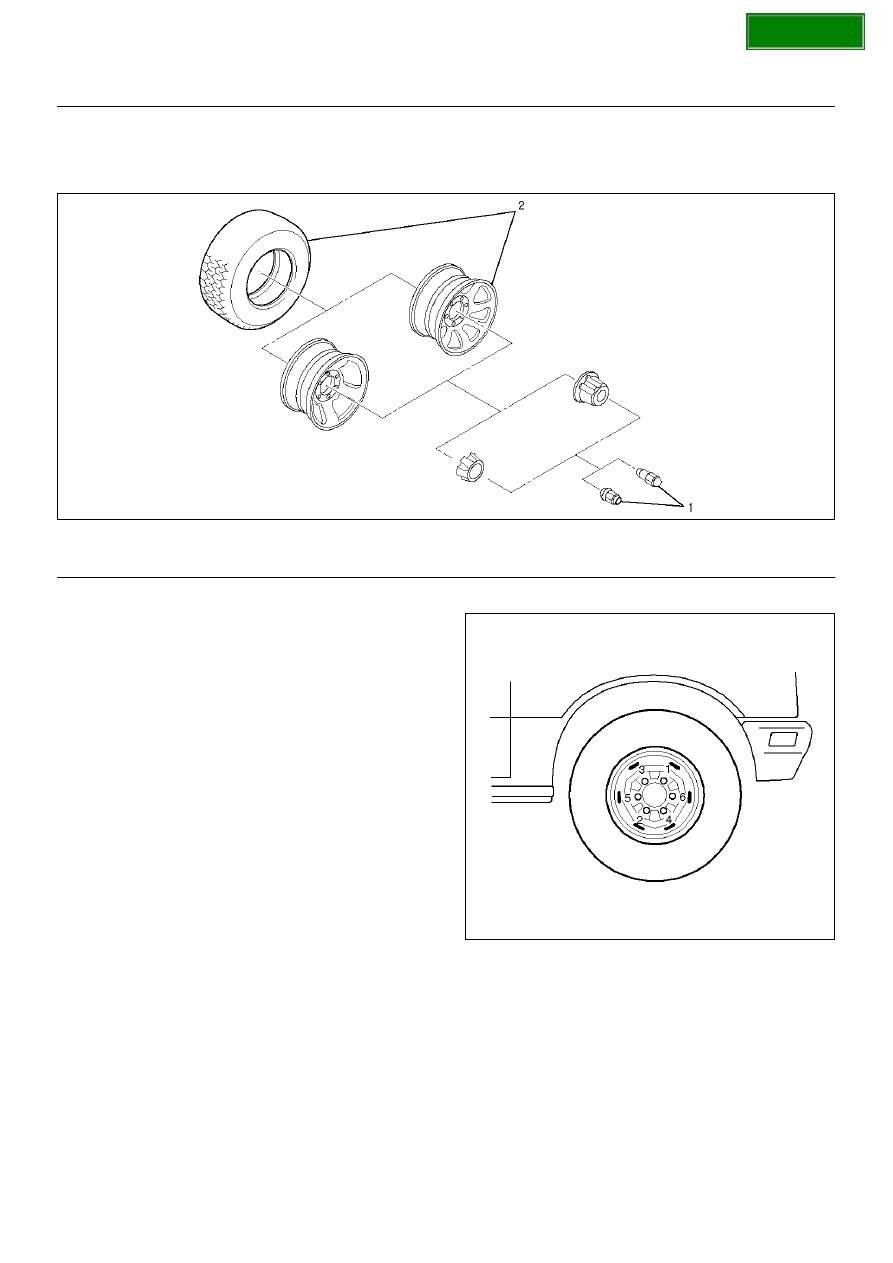

Wheel

Wheel and Associated Parts

480RX008

Legend

EndOFCallout

Removal

1. Loosen wheel lug nut by approximately 180

°

 (half a

rotation), then raise the vehicle and remove the
nuts.

2. Remove wheel and tire.

NOTE:  Never use heat to loosen a tight wheel lug nut.
The application of heat to the hub can shorten the life of
the wheel and may cause damage to wheel bearings.

Installation

1. Install wheel and tire.

2. Install wheel lug nut, and lower the vehicle. Tighten

the wheel lug nuts to the specified torque in
numerical order.

Torque: 118N·m (12.0kg·m/87 lbft)

CAUTION:  Before installing wheels,  remove any
build-up of corrosion on the wheel mounting
surface and brake disc mounting surface by
scraping and wire brushing.   Installing wheels
without good metal-to-metal contact at mounting
surfaces can cause wheel nuts to loosen,  which
can later allow a wheel to come off while the vehicle
is moving.

NOTE:  Valve caps should be on the valve stems to
keep dust and water out.

480RS020

(1) Wheel Lug Nut

(2) Wheel and Tire

SECTION

3E–12

WHEEL AND TIRE SYSTEM

Tire

Tire Replacement

When replacement is necessary, the original metric the
size should be used.   Most metric tire sizes do not have
exact corresponding alphanumeric tire sizes.   It is
recommended that new tires be installed in pairs on the
same axle.   If necessary to replace only one tire, it
should be paired with tire having the most tread, to
equalize braking traction.

CAUTION:  Do not mix different types of tires such
as radial, bias and bias-belted tires except in
emergencies,  because vehicle handling may be
seriously affected and may result in loss of control.

Tire Dismounting

Remove valve cap on valve step and deflate the tire.
Then use a tire changing machine to mount or dismount
tires.
Follow the equipment manufacturer's instruction.  Do
not use hand tools or tire lever alone to change tires as
they may  damage the tire beads or wheel rim.

Tire Mounting

Rim bead seats should be cleaned with a wire brush or
coarse steel wool to remove lubricants,  and light rust.
Before mounting a tire, the bead area should be well
lubricated with an approved tire lubricant.
After mounting, inflate the tire to 200kPa (2.0kg/cm

2

, 28

psi) so that beads are completely seated.   Inflate the air
to specified pressure and install valve cap to the stem.

WARNING:  NEVER STAND OVER TIRE WHEN
INFLATING. BEAD MAY BREAK WHEN BEAD
SNAPS OVER RIM'S SAFETY HUMP AND CAUSE
SERIOUS PERSONAL INJURY.
NEVER EXCEED 240 KPA (2.4kg/cm

2

, 35 PSI)

PRESSURE WHEN INFLATING. IF 240 KPA (2.4kg/
cm

2

, 35 PSI) PRESSURE WILL NOT SEAT BEADS,

DEFLATE, RE-LUBRICATE AND RE-INFLATE.  OVER
INFLATION MAY CAUSE THE BEAD TO BREAK AND
CAUSE SERIOUS PERSONAL INJURY.

Tire Repair

There are many different materials on the market used
to repair tires.
Manufacturers have published detailed instructions on
how and when to repair tires.   These instructions can
be obtained from the tire manufacturer if they are not
included with the repair kit.

Wheel Inspection

Damaged wheels and wheels with excessive run-out
must be replaced.
Wheel run out at rim (Base on hub Bore):

480RS012

General Balance Procedure

Deposits of mud, etc. must be cleaned from the inside of
the rim.
The tire should be inspected for the following: match
mount paint marks, bent rims, bulges, irregular tire
wear, proper wheel size and inflation pressure.   Then
balance according to the equipment manufacturer's
recommendations.
There are two types of wheel and tire balance.
Static balance is the equal distribution of weight around
the wheel.
Assemblies that are statically unbalanced cause a
bouncing action called tramp. This condition will
eventually cause uneven tire wear.

Steel

Aluminum

1– Vertical play

(AVERAGE OF EACH

SIDE):

Less than

1.5mm (0.059in)

1– Vertical play

(AVERAGE OF EACH

SIDE):

Less than

0.40 mm (0.016in)

1-Vertical play

(INDIVIDUAL);

Less than 0.55mm (0.022

in)

2– Horizontal play

(INDIVIDUAL):

Less than

1.5mm (0.059in)

2– Horizontal play

(INDIVIDUAL):

Less than

0.55 mm (0.022in)

SECTION
