REAR SUSPENSION

3D–11

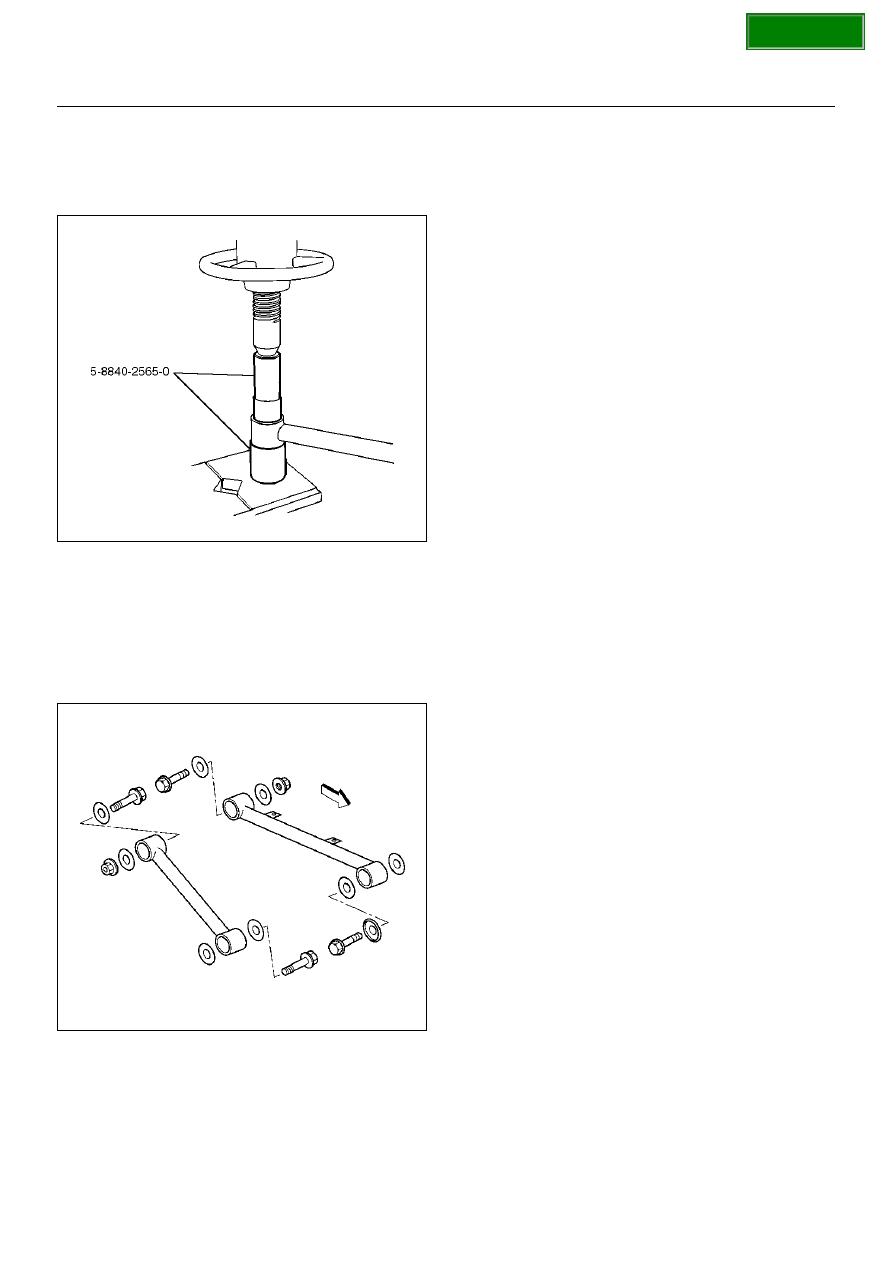

• Install the rubber bushing by using to installer 5–

8840–2565–0.

NOTE:  When mounting rubber bushings, be sure not to
use grease on bushings or any other nearby part.

901RW283

Installation

1. Install upper link.  Make sure that the upper link is in

its correct position.

NOTE:  When mounting upper link, be sure not to use
grease bushings or any other nearby part.

460RW012

2. Install bolt, nut, rubber plate and protector.  Tighten

the bolts and nuts lightly, then retighten them to the
specified torque after the vehicle is at curb height.

Torque: 137N·m (14.0kg·m/101lbft)

3. Install speed sensor cable.

4. Install fuel tank.

SECTION

3D–12

REAR SUSPENSION

Lateral Rod

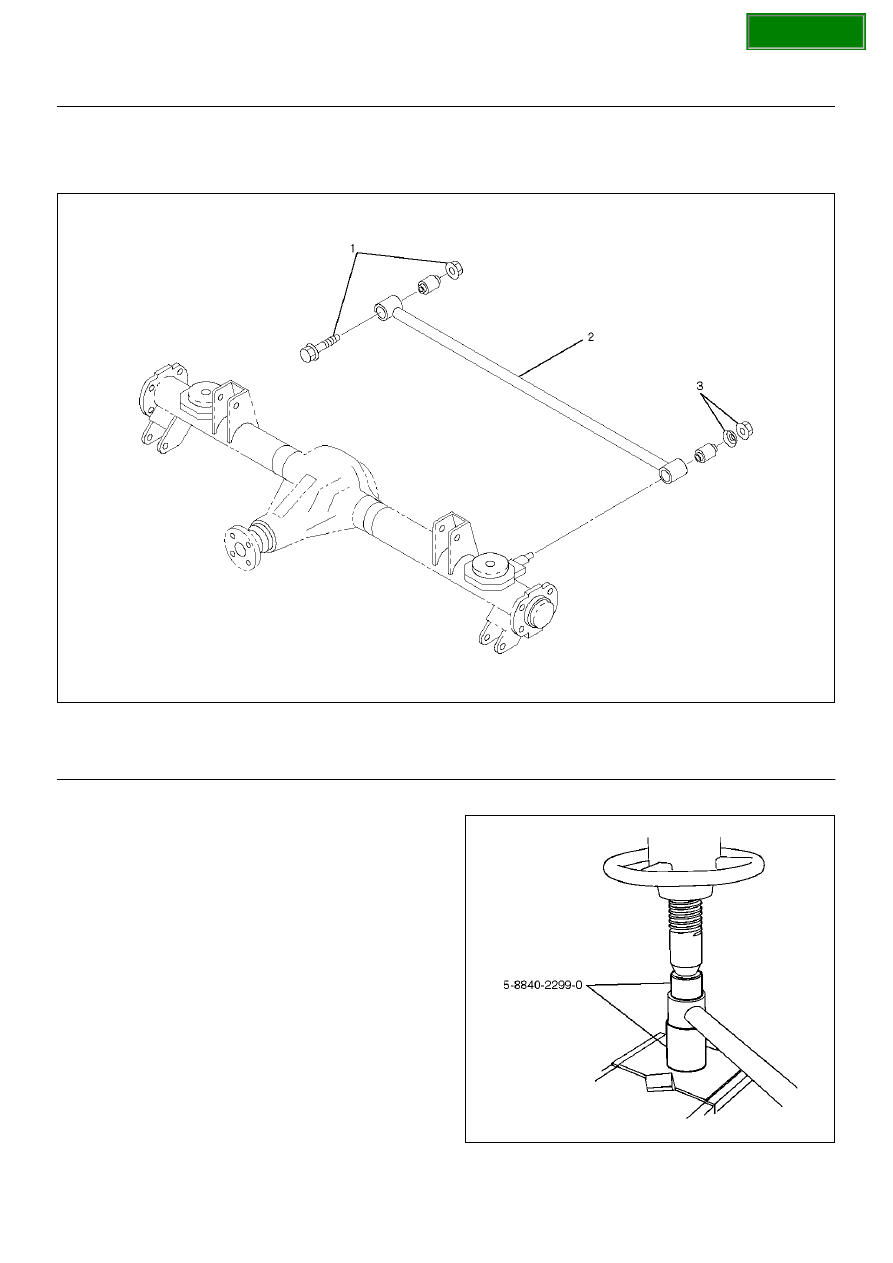

Lateral Rod and Associated Parts

460RW036

Legend

EndOFCallout

Removal

1. Remove nut and washer.

2. Remove bolt and nut.

3. Remove lateral rod.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.

1. Lateral rod

2. Rubber bushing (Frame side)

• Remove the rubber bushing (Frame side) by

using remover 5–8840–2299–0.

901RW284

(1) Bolt and Nut (Frame side)
(2) Lateral Rod

(3) Nut and Washer (Axle side)

SECTION

REAR SUSPENSION

3D–13

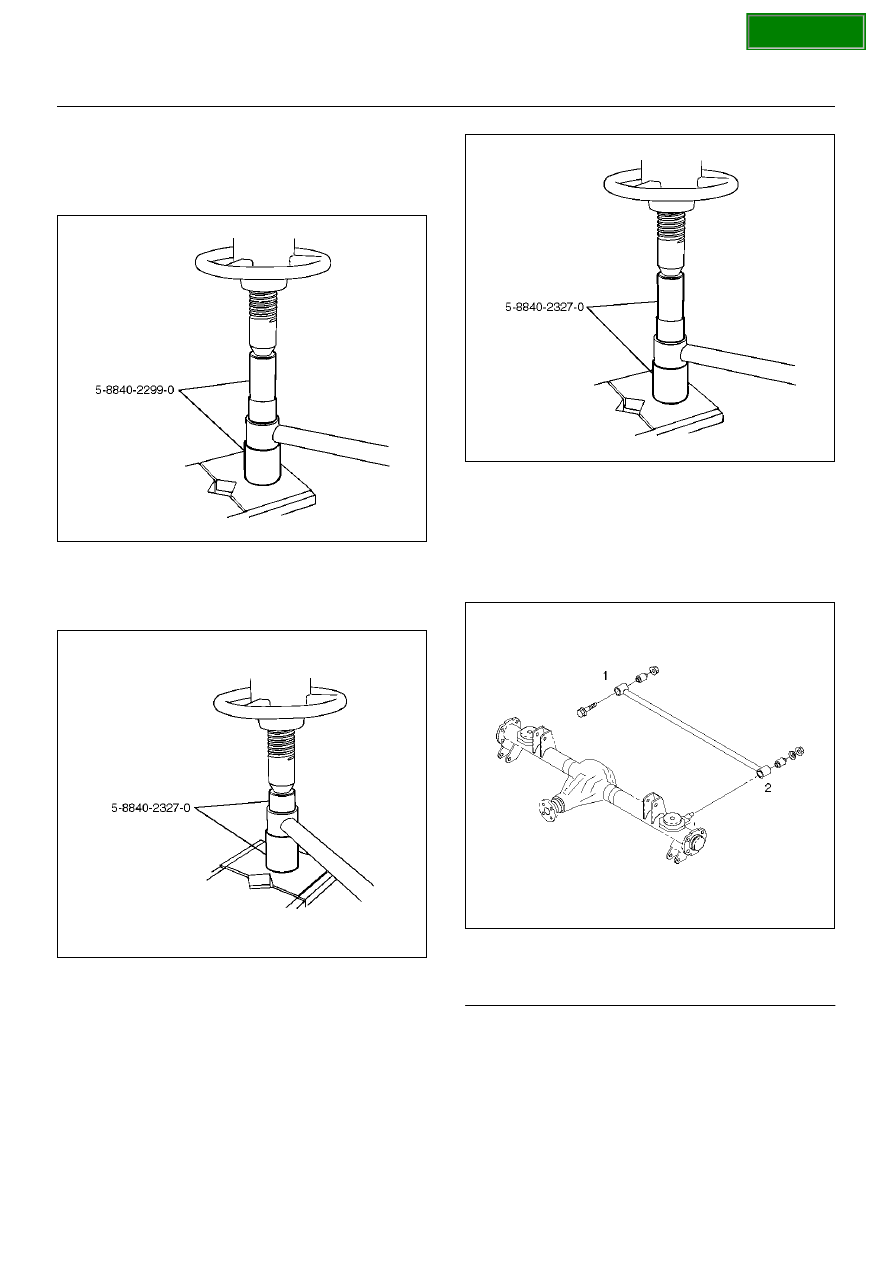

• Install the rubber bushing (Frame side) by using

Installer 5–8840–2299–0.

NOTE:  When mounting rubber bushings, do not use
grease on bushings or any other nearby parts.

901RW285

3. Rubber bushing (Axle side)

• Remove the rubber bushing (Axle side) by using

remover 5–8840–2327–0.

901RW287

• Install the rubber bushing (Axle side) by using

installer 5–8840–2327–0.

901RW286

Installation

1. Install lateral rod and make sure that the lateral rod

is in its correct position.

NOTE:  When mounting lateral rod, be sure not to use
grease on bushings or any other nearby part.

460RW035

Legend

EndOFCallout

2. Install bolt and nut (Frame side). Tighten the bolt

and nut lightly, then retighten them to the specified
torque after the vehicle is at curb height.

Torque: 137N·m (14.0kg·m/101lbft)

3. Install nut and washer (Axle side). Tighten the nut

lightly, then retighten the nut to the specified torque
after the vehicle is at curb height.

Torque: 78N·m (8.0kg·m/58lbft)

(1) Frame Side
(2) Axle Side

SECTION

3D–14

REAR SUSPENSION

Stabilizer Bar

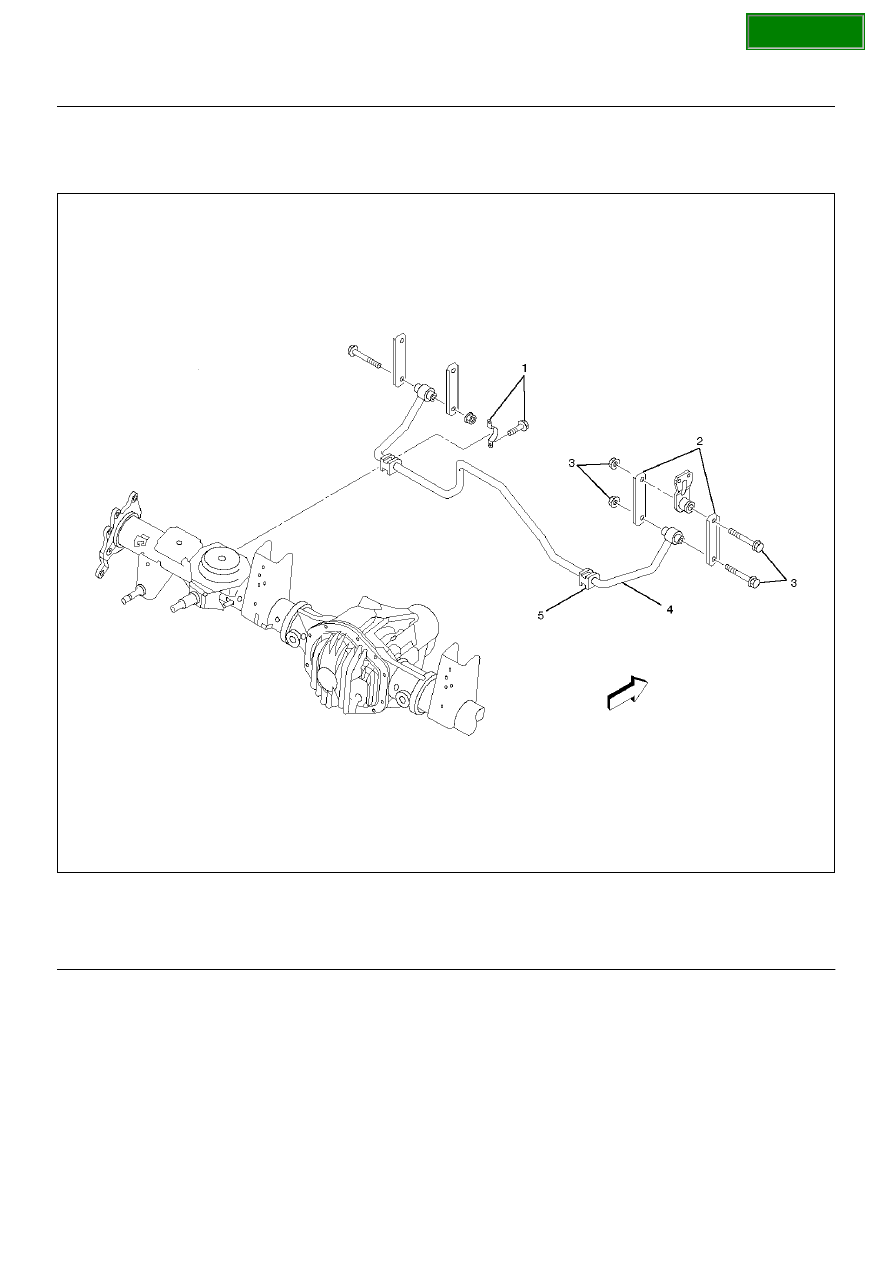

Stabilizer Bar and Associated Parts

460RW009

Legend

EndOFCallout

Removal

1. Raise the vehicle and support the frame with

suitable safety stands.

2. Remove wheel and tire assembly. Refer to

Wheel in

this section

.

3. Remove bolt and nut.

4. Remove link.

5. Remove bracket.

6. Remove rubber bushing.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
Check the following parts:

• Stabilizer bar

• Rubber bushing

• Link

(1) Bracket and Bolt
(2) Link
(3) Bolt and Nut

(4) Stabilizer Bar
(5) Rubber Bushing
