REAR SUSPENSION

3D–7

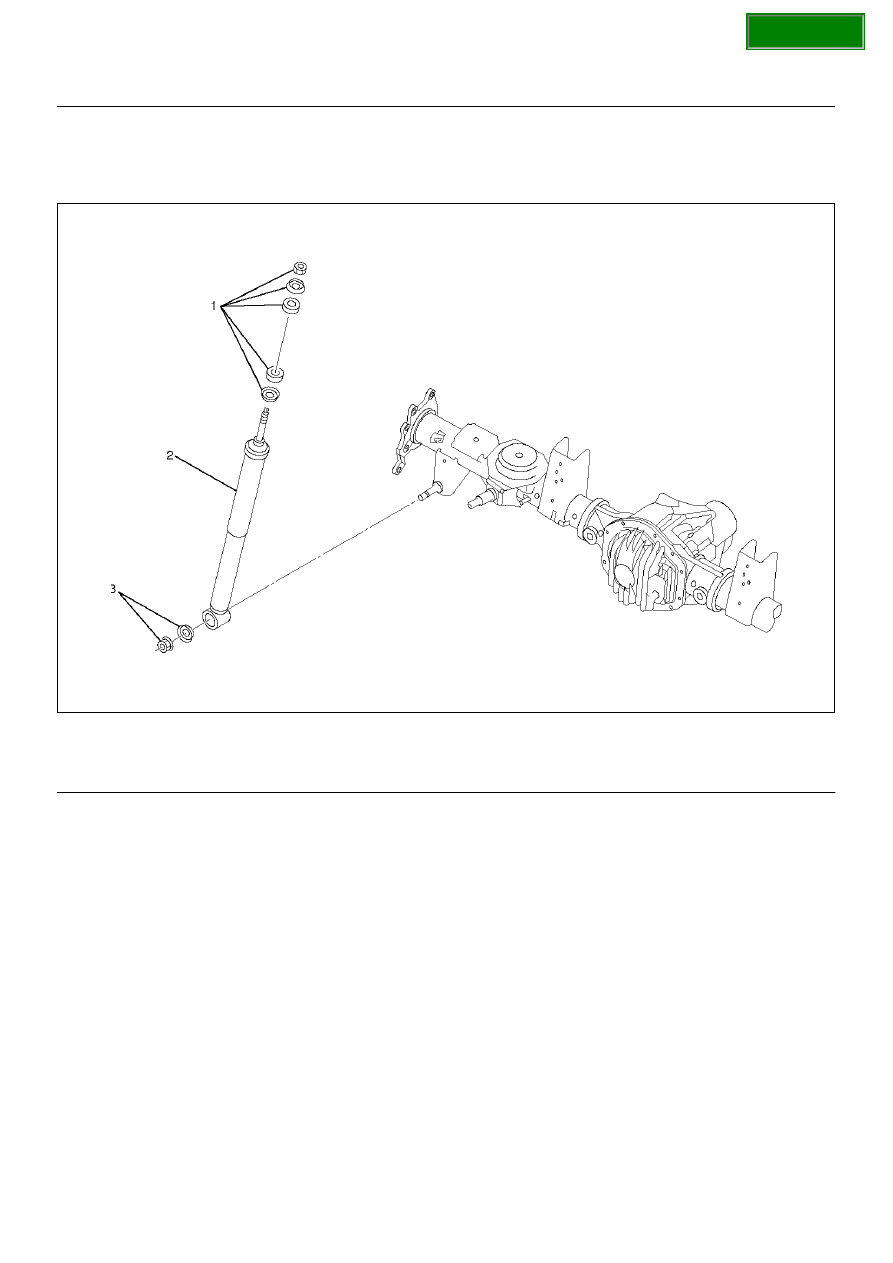

Shock Absorber

Shock Absorber and Associated Parts

461RW001

Legend

EndOFCallout

Removal

1. Remove shock absorber fixing nut, bush and washer

(upper side).

2. Remove shock absorber fixing nut and washer

(lower side).

3. Remove shock absorber.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.
Check the following parts:

• Shock absorber

• Rubber  bushing

NOTE:  When mounting rubber bushings, be sure not to
use grease on bushings or any other nearby part.

Installation

1. Install shock absorber. When mounting shock

absorber, be sure not to use grease on bushings or
any other nearby part.

2. Install nut and washer (lower side), then tighten the

nut lightly. Retighten to the bolt and nut specified
torque after the vehicle is at curb height.

Torque: 78N·m (8.0kg·m/58lbft)

3. Install nut, bush and washer (upper side), then

tighten the nut lightly. Retighten to the nut specified
torque after the vehicle is at curb height.

Torque: 20N·m (2.0kg·m/14lbft)

(1) Nut, Bush and Washer
(2) Shock Absorber

(3) Nut and Washer

SECTION

3D–8

REAR SUSPENSION

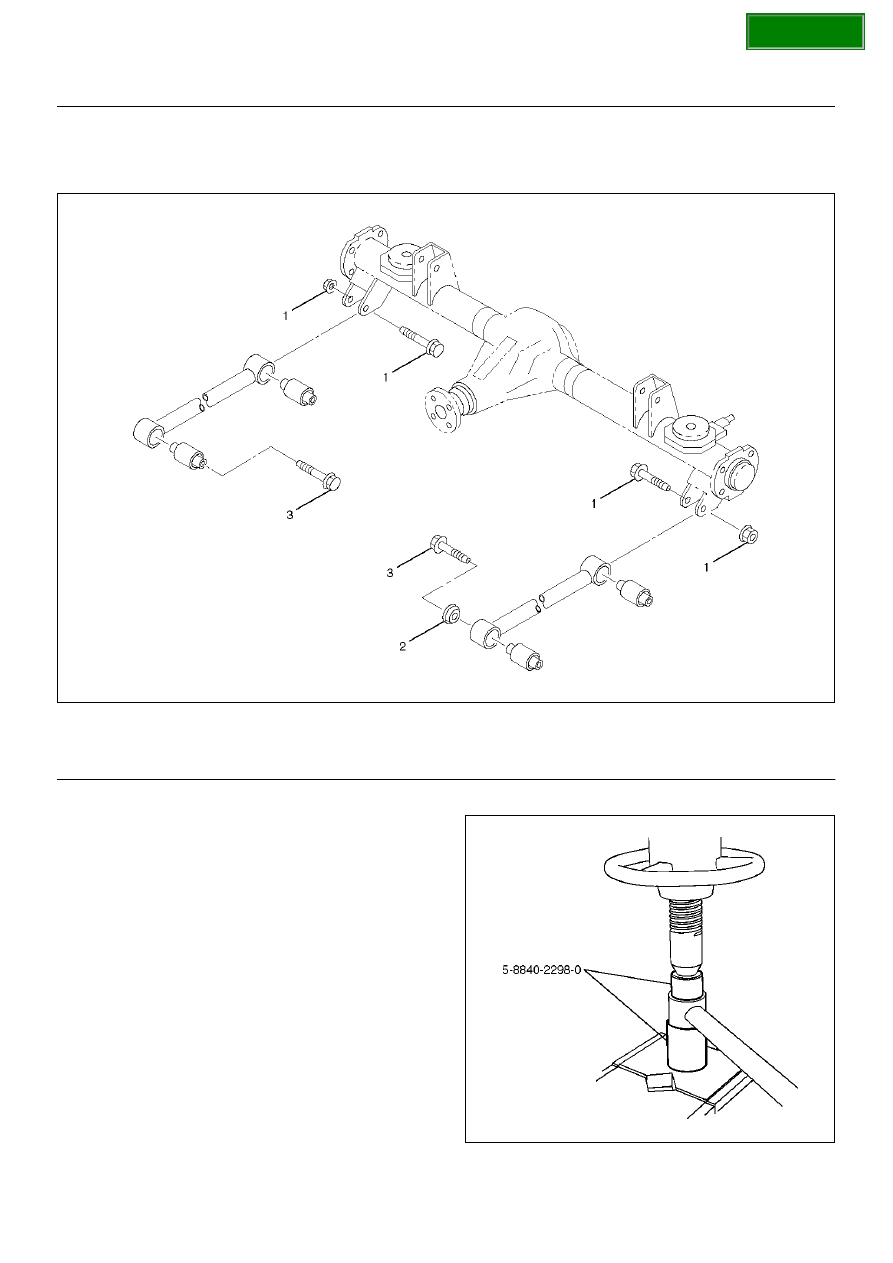

Trailing Link

Trailing Link and Associated Parts

460RW038

Legend

EndOFCallout

Removal

1. Remove the parking brake cable from the trailing

link.

2. Remove the trailing link fixing bolt, nut and protector.

3. Remove trailing link.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found through inspection.

1. Trailing link

2. Rubber bushing

• Remove the rubber bushing by using remover 5–

8840–2298–0.

901RW280

(1) Bolt and Nut (Axle side)
(2) Protector (Left side only)

(3) Bolt (Frame side)

SECTION

REAR SUSPENSION

3D–9

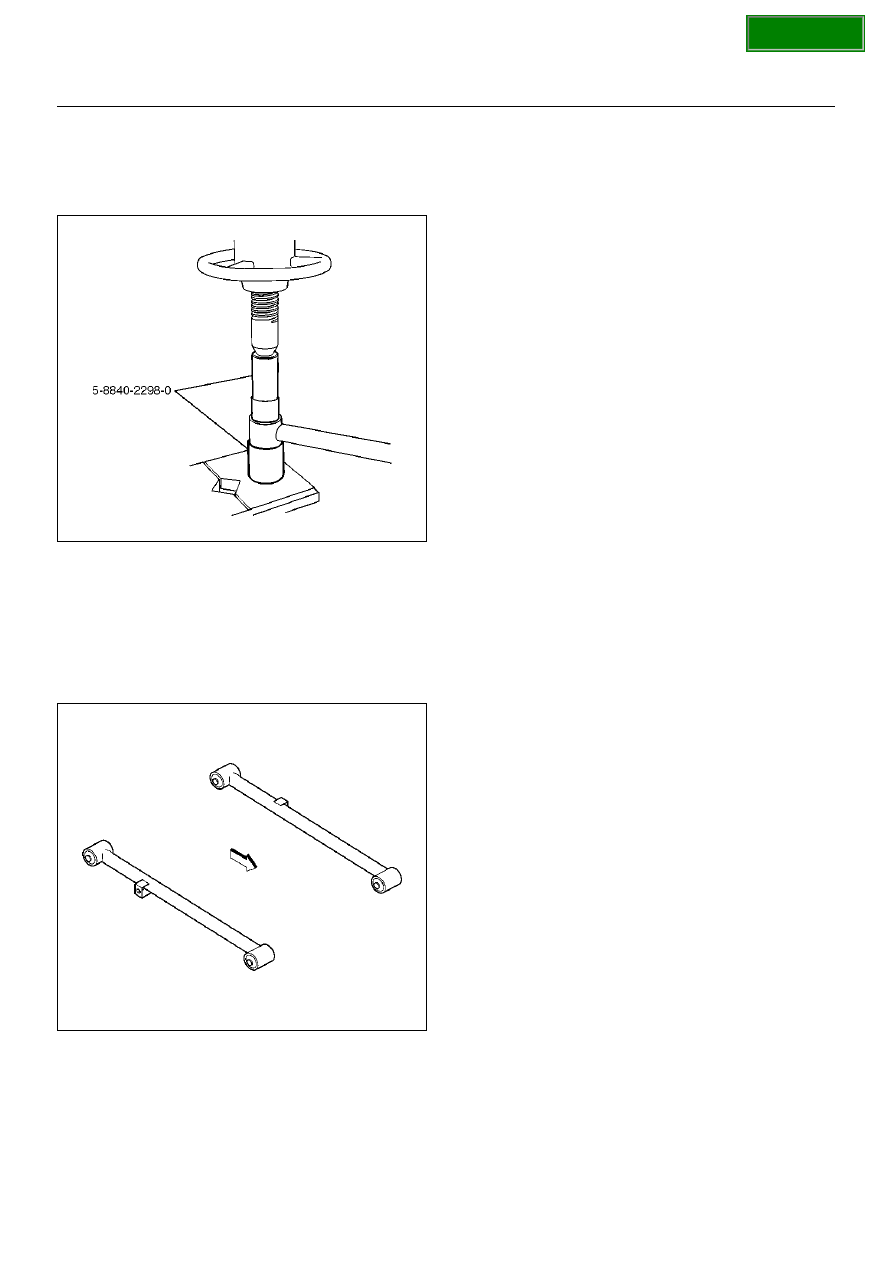

• Install the rubber bushing by using installer 5–

8840–2298–0.

NOTE:  When mounting rubber bushings, be sure not to
use grease on bushings or any other nearby part.

901RW281

Installation

1. Install trailing link. Make sure that the trailing link is

in its correct position.

NOTE:  When mounting trailing link, be sure not to use
grease on bushings or any other nearby part.

460RW011

2. Install bolt, nut and protector. Tighten the bolts and

nuts lightly, then retighten them to the specified
torque after the vehicle is at curb height.

Torque: 137N·m (14.0kg·m/101lbft)

3. Install parking brake cable.

CAUTION:  The parking brake cable should not be
overstrained or slackened.

SECTION

3D–10

REAR SUSPENSION

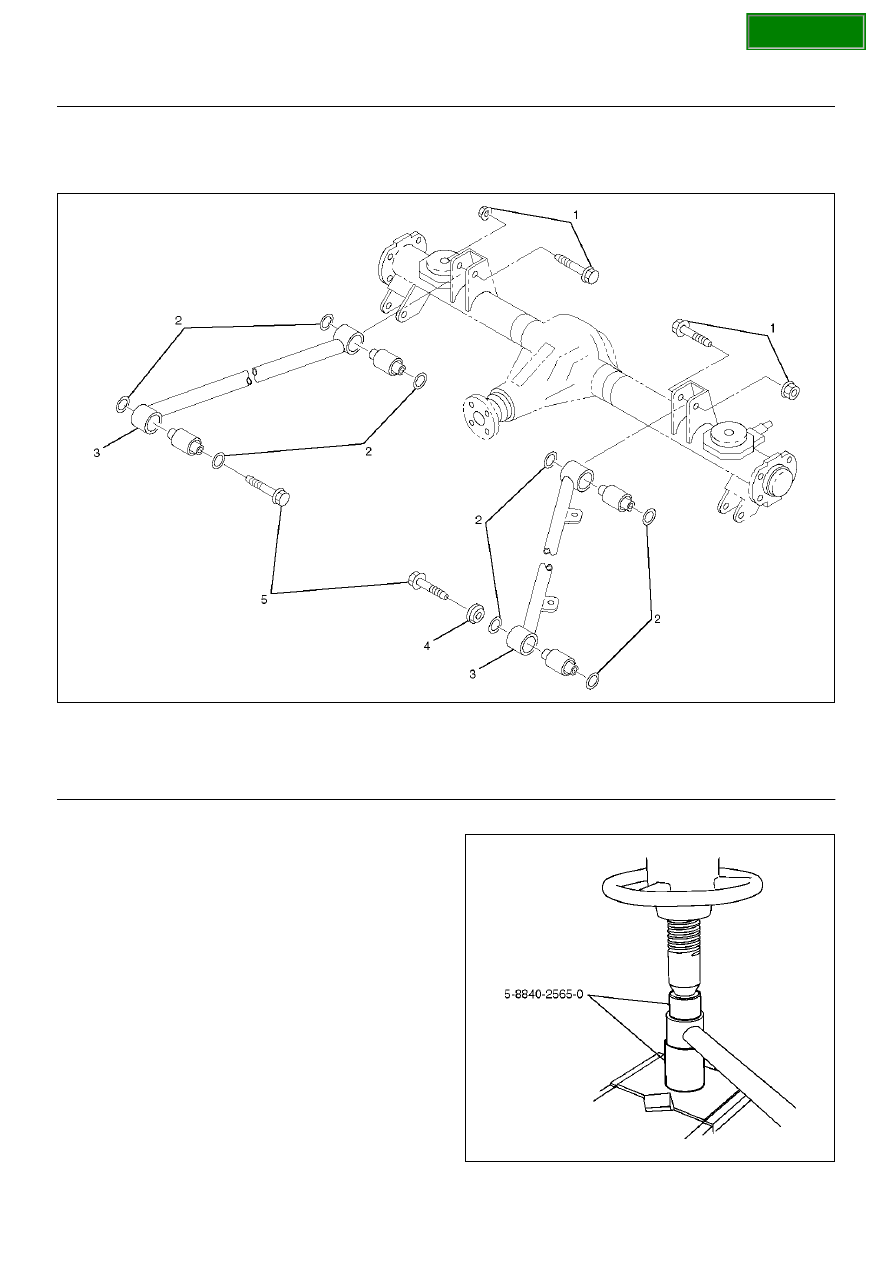

Upper Link

Upper Link and Associated Parts

460RW037-1

Legend

EndOFCallout

Removal

1. Remove fuel tank. Refer to

Engine Fuel in Engine

section

.

2. Remove the speed sensor cable from the upper link.

3. Remove bolt, nut, rubber plate and protector.

4. Remove upper link.

Inspection and Repair

Make necessary correction or parts replacement if
wear, damage, corrosion or any other abnormal
condition are found  through inspection.

1. Upper link

2. Rubber bushing

• Remove the rubber bushing by using remover 5–

8840–2565–0.

901RW282

(1) Bolt and Nut (Axle side)
(2) Rubber Plate
(3) Upper Link

(4) Protector (Left side only)
(5) Bolt (Frame side)
