Automatic Air Conditioning System
General Description
Using a variety of sensors, this automatic heater and air
conditioner accurately senses outside air temperature,
solar radiation quantity, evaporator's blowing
temperature, and interior temperature, then enters
these data to the automatic heater/air conditioner
control unit (equipped with the built-in micro-computer).
The data provided to the control unit enables to
automatically control blow temperature and blow air
quantity, turn on or off the compressor and switch the
blow port as well as switching between the fresh air
intake and interior air circulation.
Resetting the automatic function allows you to switch to
the manual control mode.
The self-diagnoisis function of the automatic air
conditioner control unit (with the built-in micro-
computer) allows the unit to access and diagnose a
failed part easier and quicker.

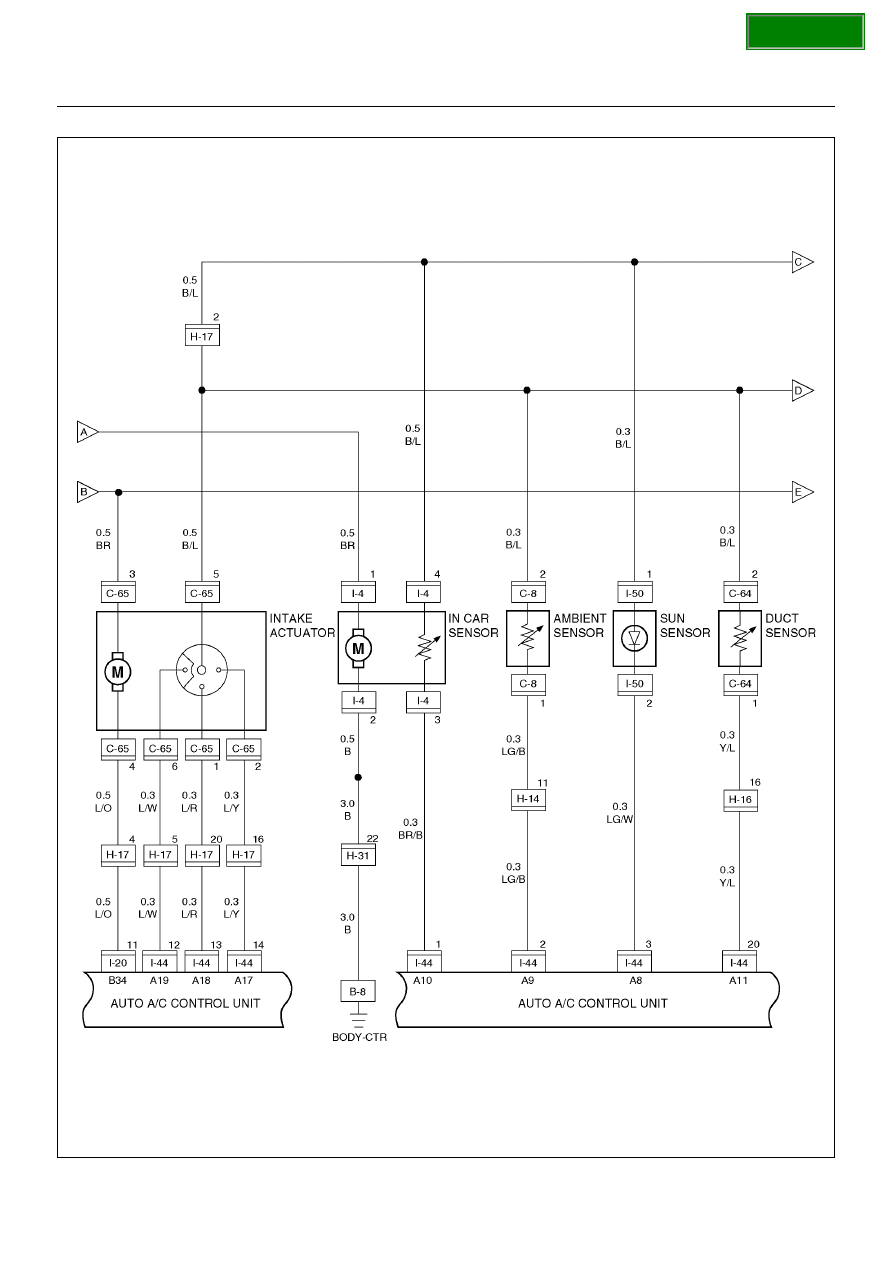

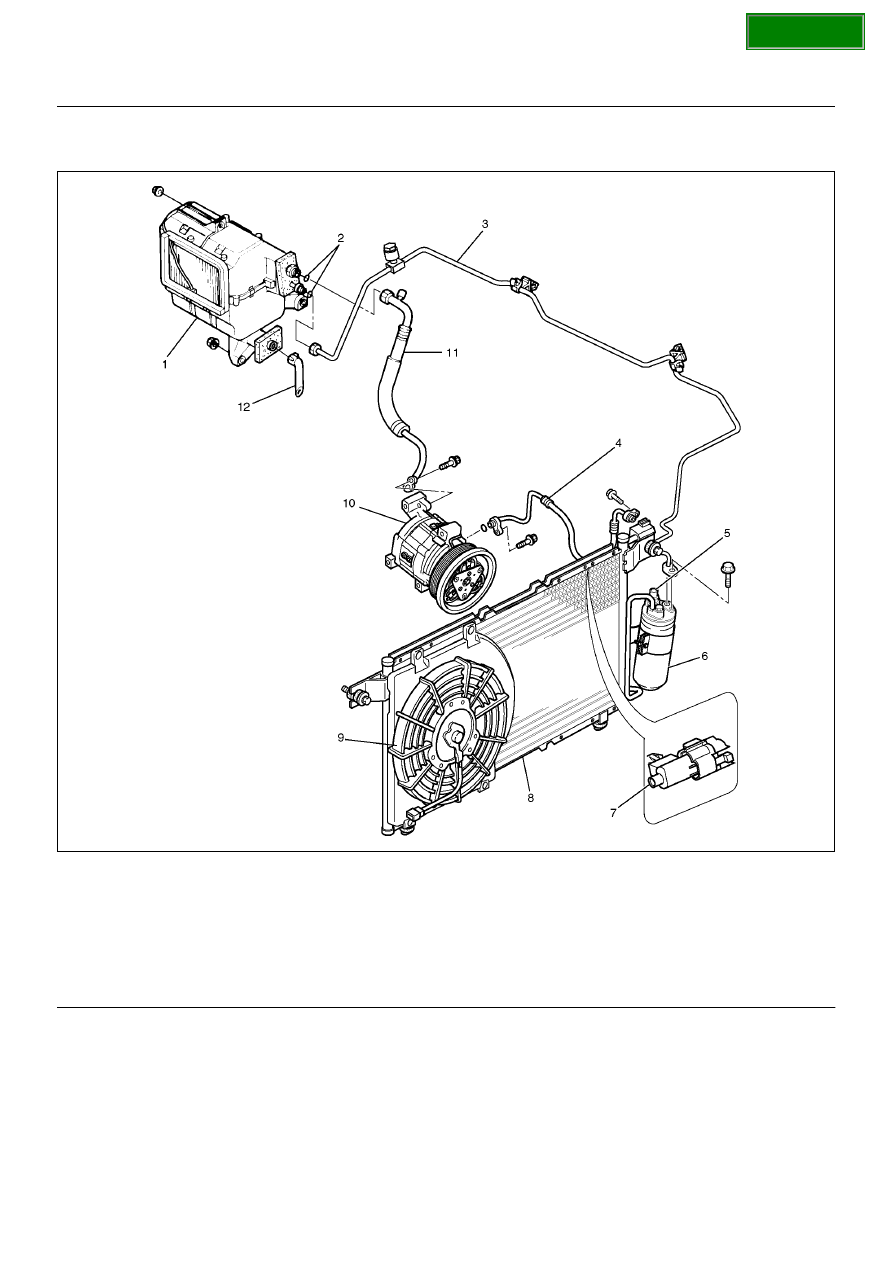

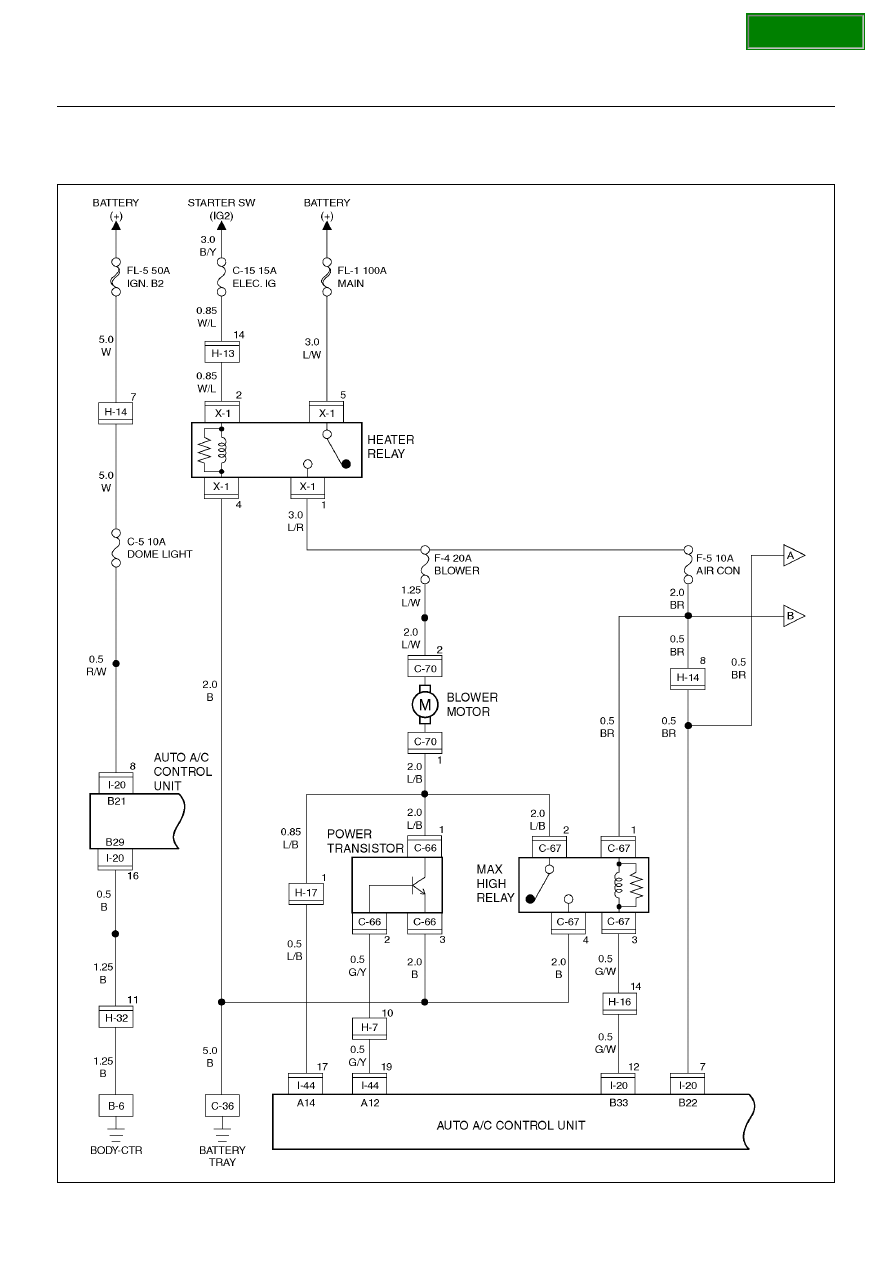

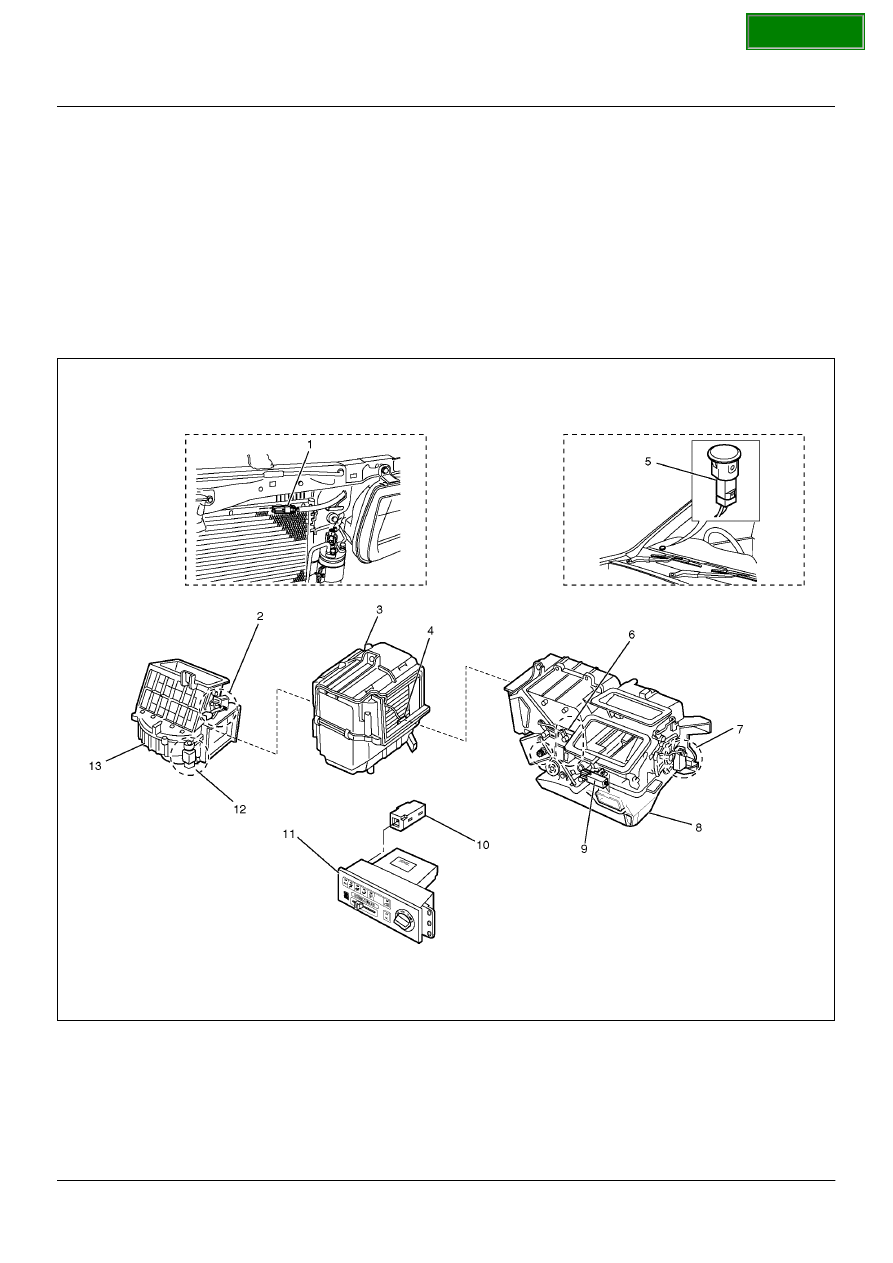

Automatic Air Conditioner Parts Configuration
865R100001
EndOFCallout
Legend
(1) Ambient Sensor
(2) Intake Actuator
(3) Evaporator Assembly
(4) Duct Sensor
(5) Sun Sensor
(6) Mix Actuator
(7) Mode Actuator
(8) Heater Unit
(9) Resistor
(10) In Car Sensor
(11) Automatic Air Conditioner Control Unit
(12) Max – High Relay
(13) Blower Unit
