HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–81

7. Evacuate and recharge with the proper amount of

refrigerant.

8. Perform the oil return operation.

9. Remove the compressor and recheck the amount of

oil.

10. Adjust the compressor oil, if necessary.

Checking and Adjusting for
Compressor Replacement

150 cc (5.0 fl.oz.) of oil is charged in compressor
(service parts). So it is necessary to drain the proper
amount of oil from the new compressor.

1. Perform oil return operation.

2. Discharge and recover the refrigerant and remove

the compressor.

3. Drain the compressor oil and measure the extracted

oil.

4. Check the compressor oil for contamination.

5. Adjust the oil level as required.

6. Evacuate, charge and perform the oil return

operation.

7. Check the system operation.

Contamination of Compressor Oil

Unlike engine oil, no cleaning agent is added to the
compressor oil. Even if the compressor runs for a long
period of time (approximately one season), the oil never
becomes contaminated as long as there is nothing
wrong with the compressor or its method of use.

Inspect the extracted oil for any of the following
conditions:

• The capacity of the oil has increased.

• The oil has changed to red.

• Foreign substances, metal powder, etc., are present

in the oil.

If any of these conditions exists, the compressor oil
is contaminated. Whenever contaminated
compressor  oil is discovered, the receiver/drier
must be replaced.

Oil Return Operation

There is close affinity between the oil and the
refrigerant. During normal operation, part of the oil
recirculates with the refrigerant in the  system. When
checking the amount of oil in the system, or replacing
any component of the system, the compressor must be
run in advance for  oil return operation. The procedure is
as follows:

1. Open all the doors and the engine hood.

2. Start the engine and air conditioning switch to “ON"

and set the fan control knob at its highest position.

3. Run the compressor for more than 20 minutes

between 800 and 1,000 rpm in order to operate the
system.

4. Stop the engine.

Replacement of Component Parts

When replacing the system component parts, supply
the following amount of oil to the component parts to be
installed.

(Collected Amount)

(Charging Amount)

more than 90 cc (3.0 fl.oz) same as collected

amount

less than 90 cc (3.0 fl.oz)

90 cc (3.0 fl.oz)

(Amount of oil drained
from used compressor)

(Draining amount of oil
from new compressor)

less than 90 cc (3.0 fl.oz)

Same as drained amount

more than 90 cc (3.0 fl.oz) 90 cc (3.0 fl.oz)

(Component parts to be
installed)

(Amount of Oil)

Evaporator

 50 cc (1.7 fl. oz.)

Condenser

30 cc (1.0 fl. oz.)

Receiver/dryer

30 cc (1.0 fl. oz.)

Refrigerant line (one
piece)

10 cc (0.3 fl. oz.)

SECTION

1A–82

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Main Data and Specifications

General Specifications

COMPRESSOR

Model

DKV-14G

Type

Vane rotary type

Number of vanes

5

Rotor diameter

64 mm (2.52 in.)

Stroke

8.75 mm (0.34 in.)

Displacement

140 cc (47.3 fl.oz.)

Maximum speed

7,000 rpm (up to 8,400 rpm)

Direction of rotation

Clockwise (Front-side view)

Lubrication system

Pressure differential type

Lubricant

HFC-134a Vane Rotary Type Compressor Oil

Be Equivalent to ZXL 200 PG

150 cc (5.0 fl.oz.)

Refrigerant

HFC-134a, 650 g (1.43 lbs.)

Shaft seal

Lip type

Weight

3.6 kg

MAGNETIC CLUTCH

Type

Electromagnetic single-plate dry clutch

Rated voltage

12 Volts D.C.

Current consumption

3.7 A

Starting torque

49 N·m (36 lb·ft)

Direction of rotation

Clockwise (Front-side view)

Weight

2.4 kg (5.3 lbs.)

SECTION

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–83

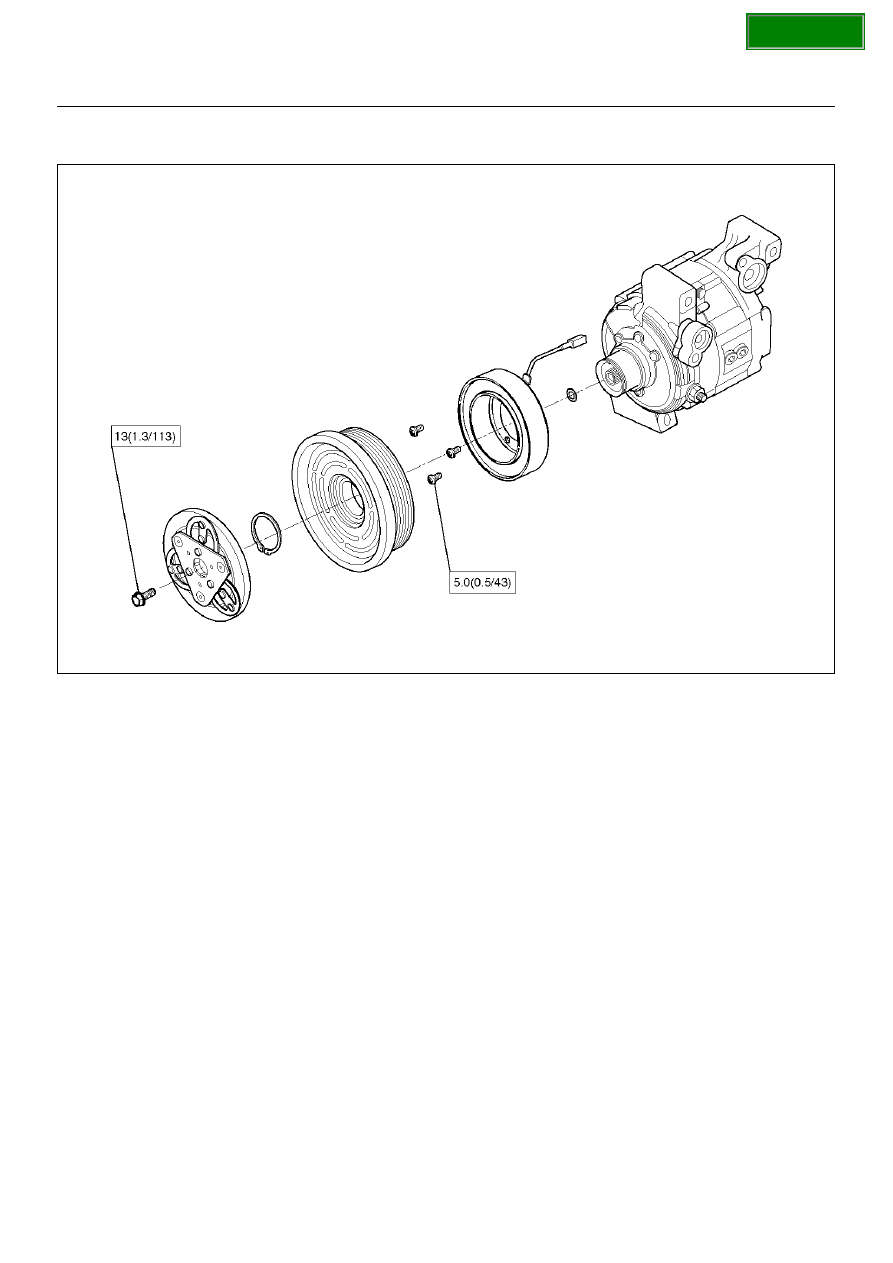

Torque Specifications

N·m (kg·m/lb in)

871RY00038

SECTION

1A–84

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

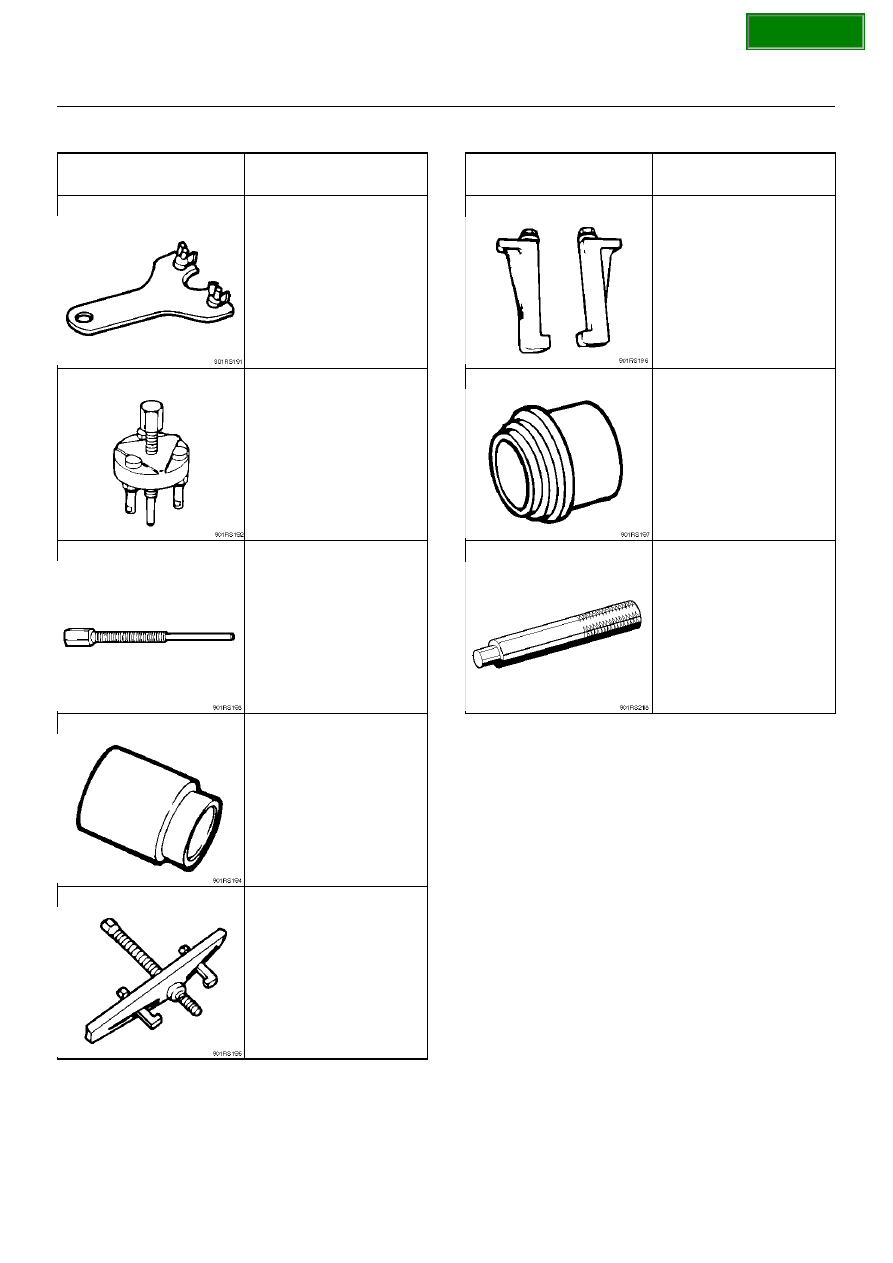

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J-33939

Drive plate holder

J-33944-A

Drive plate puller

J-33944-4

Forcing screw

J-38424

Pulley puller pilot

J-8433

Pulley puller

J-24092-2

Pulley puller leg

J-33940-A

Pulley installer

J-8092

Drive handle

ILLUSTRATION

TOOL NO.

TOOL NAME

SECTION
