HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–37

decreases as the temperature increases and the
resistance increases as the temperature decreases.

874RX008

EndOFCallout

Refrigerant Line

Restriction in the refrigerant line will be indicated by:

1. Suction line — A restricted suction line will cause

low suction pressure at the compressor, low
discharge pressure and little or no cooling.

2. Discharge line — A restriction in the discharge line

generally will cause the discharge line to leak.

3. Liquid line — A liquid line restriction will be

evidenced by low discharge and suction pressure
and insufficient cooling.

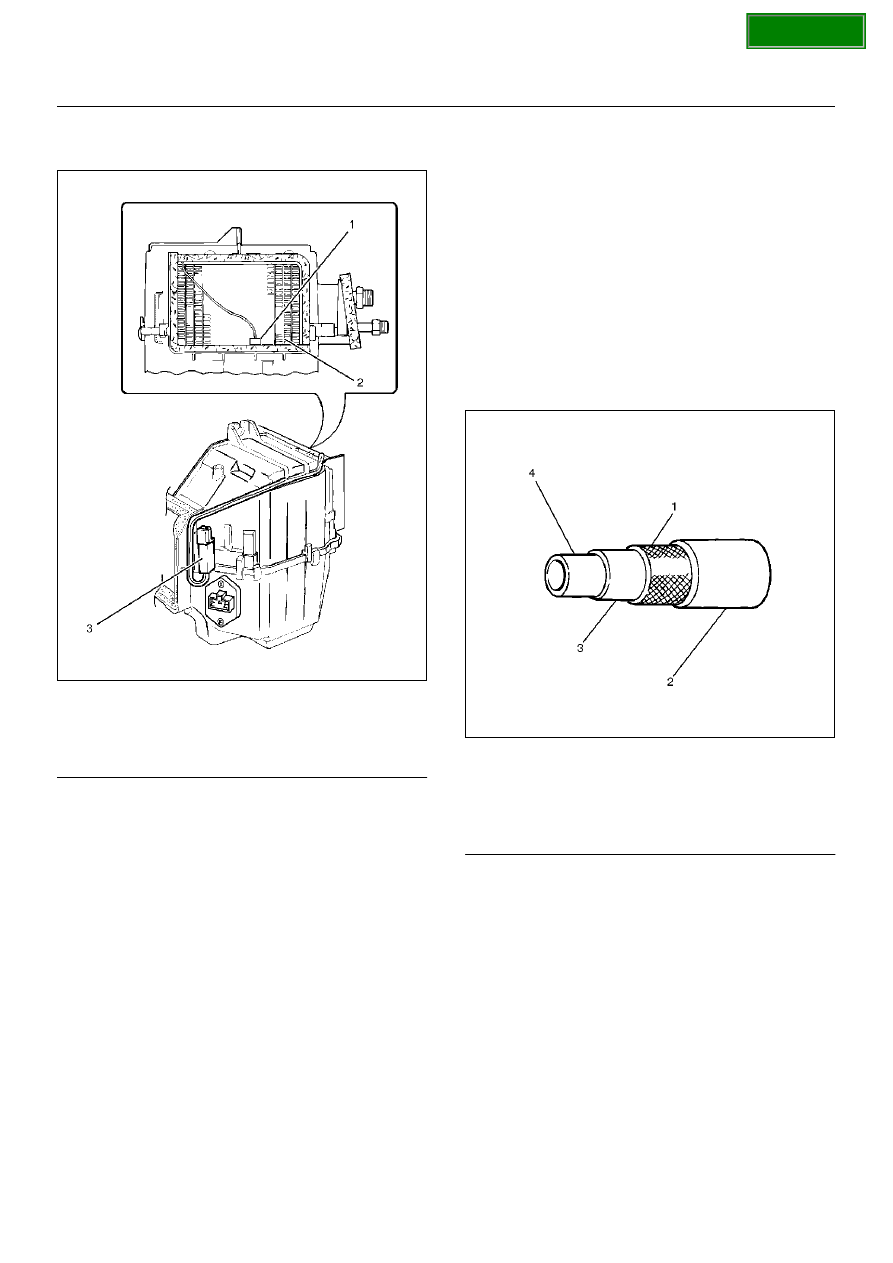

Refrigerant flexible hoses that have a low permeability
to refrigerant and moisture are used. These low
permeability hoses have a special nylon layer on the
inside.

852RS001

EndOFCallout

Legend

(1) Sensor Part
(2) Evaporator Core
(3) Thermostat Assembly

Legend

(1) Reinforcement Layer (Polyester)
(2) External Rubber Layer
(3) Internal Rubber Layer
(4) Resin Layer (Nylon)

SECTION

1A–38

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

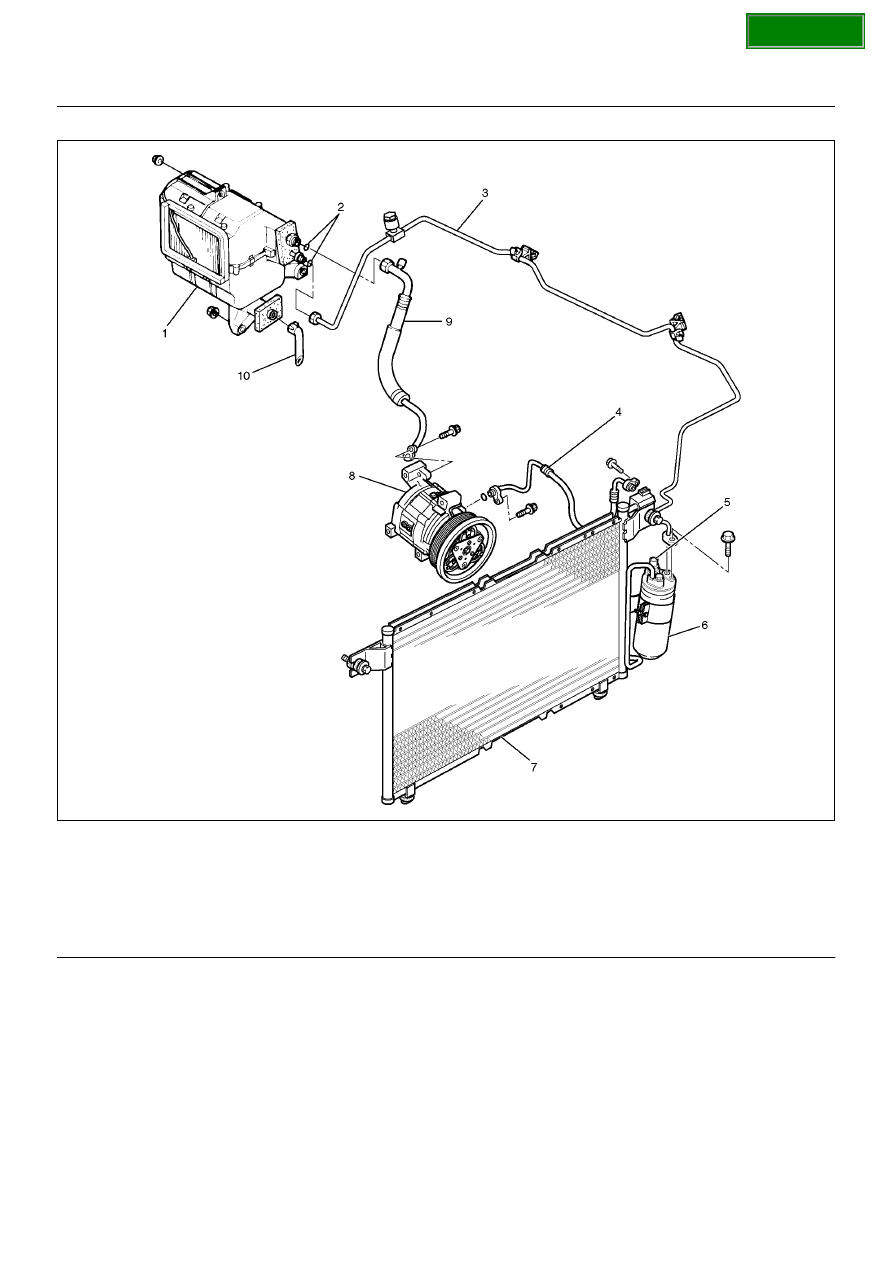

Refrigerant Line Associated Parts

852R100006

EndOFCallout

Legend

(1) Evaporator Assembly
(2) O-Ring
(3) Liquid Line (High Pressure Pipe)
(4) Discharge Line (High Pressure Hose)
(5) Pressure Switch

(6) Receiver Drier
(7) Condenser Assembly
(8) Compressor
(9) Suction Line (Low – Pressure Hose)

(10) Drain Hose

SECTION

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–39

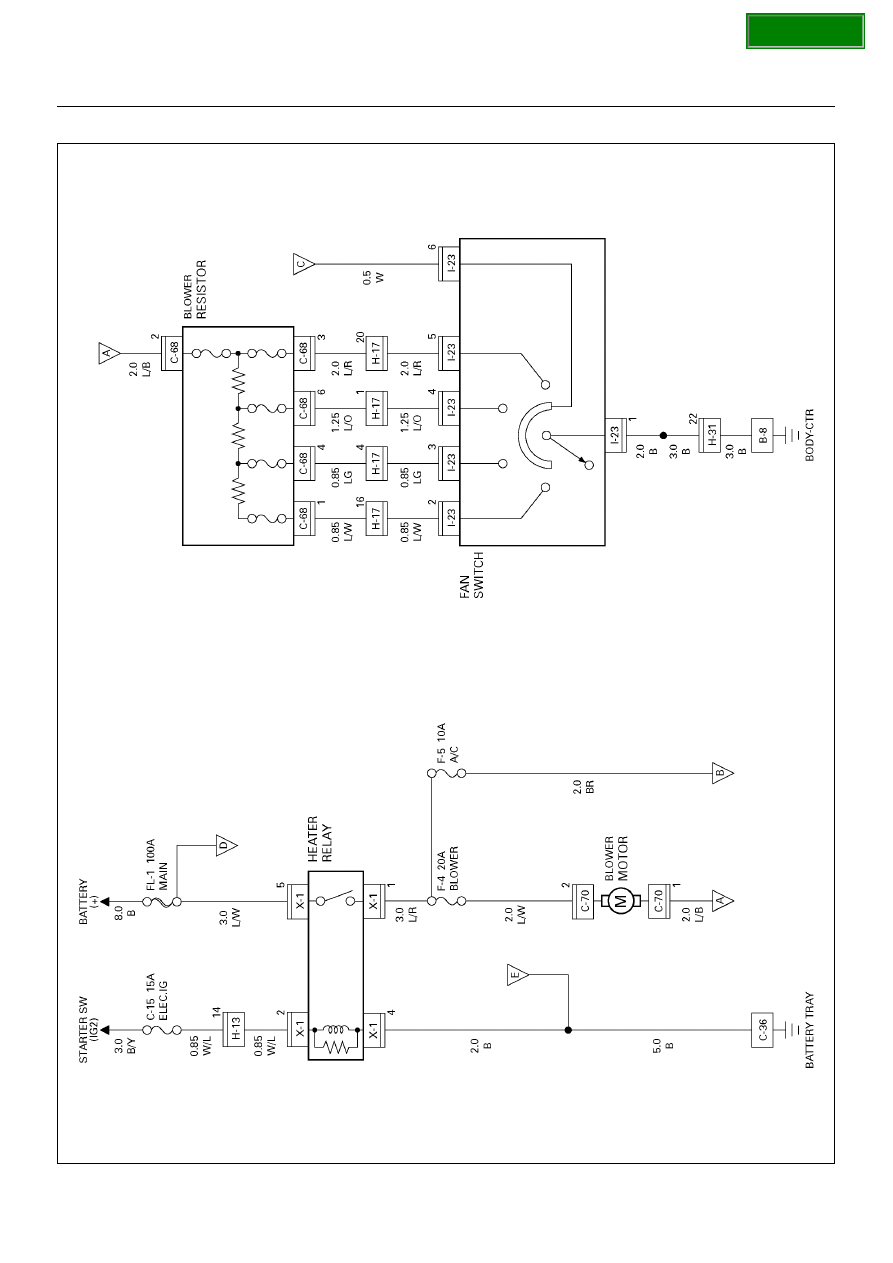

Circuit Diagram

D08R100096

SECTION

1A–40

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

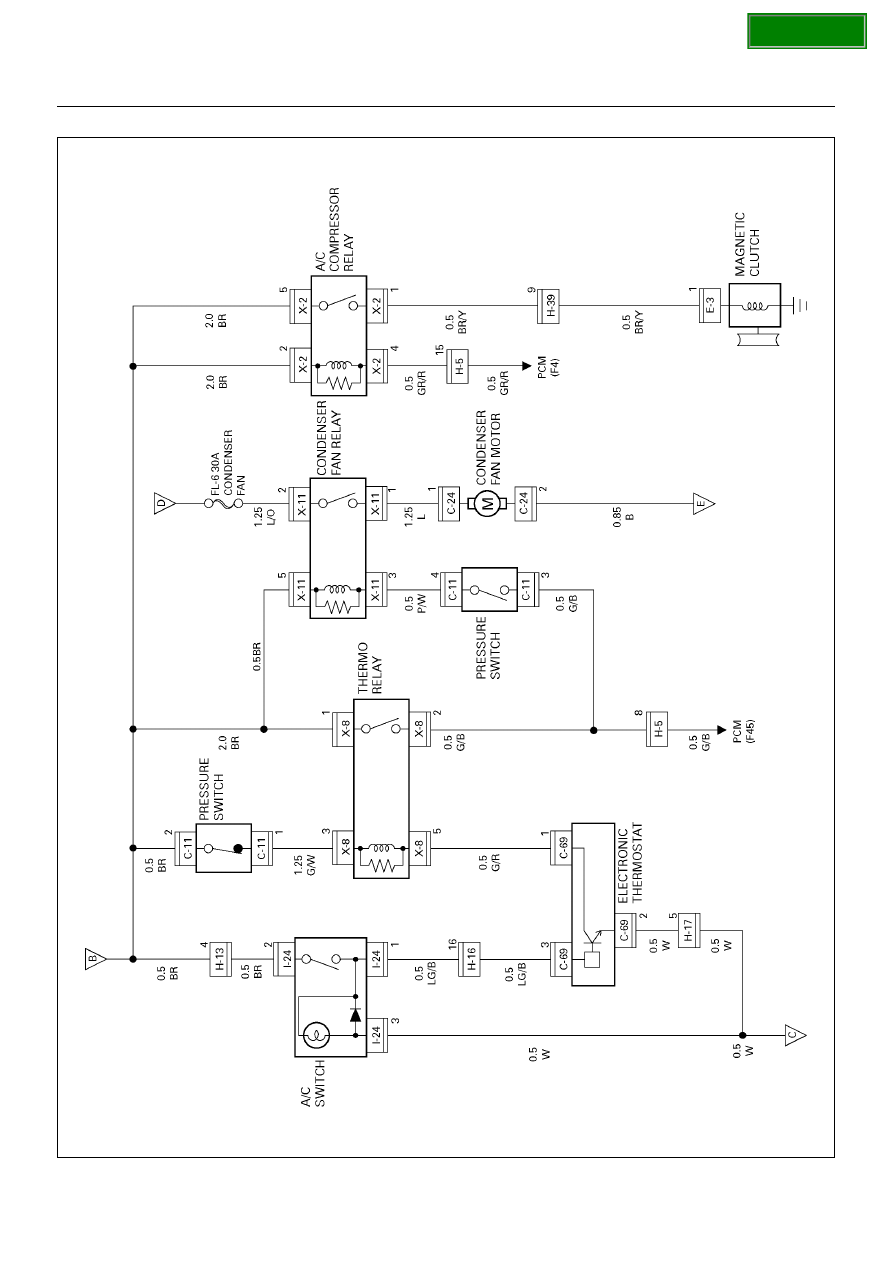

D08R100097
