CRUISE CONTROL SYSTEM

10A–5

Cruise Actuator

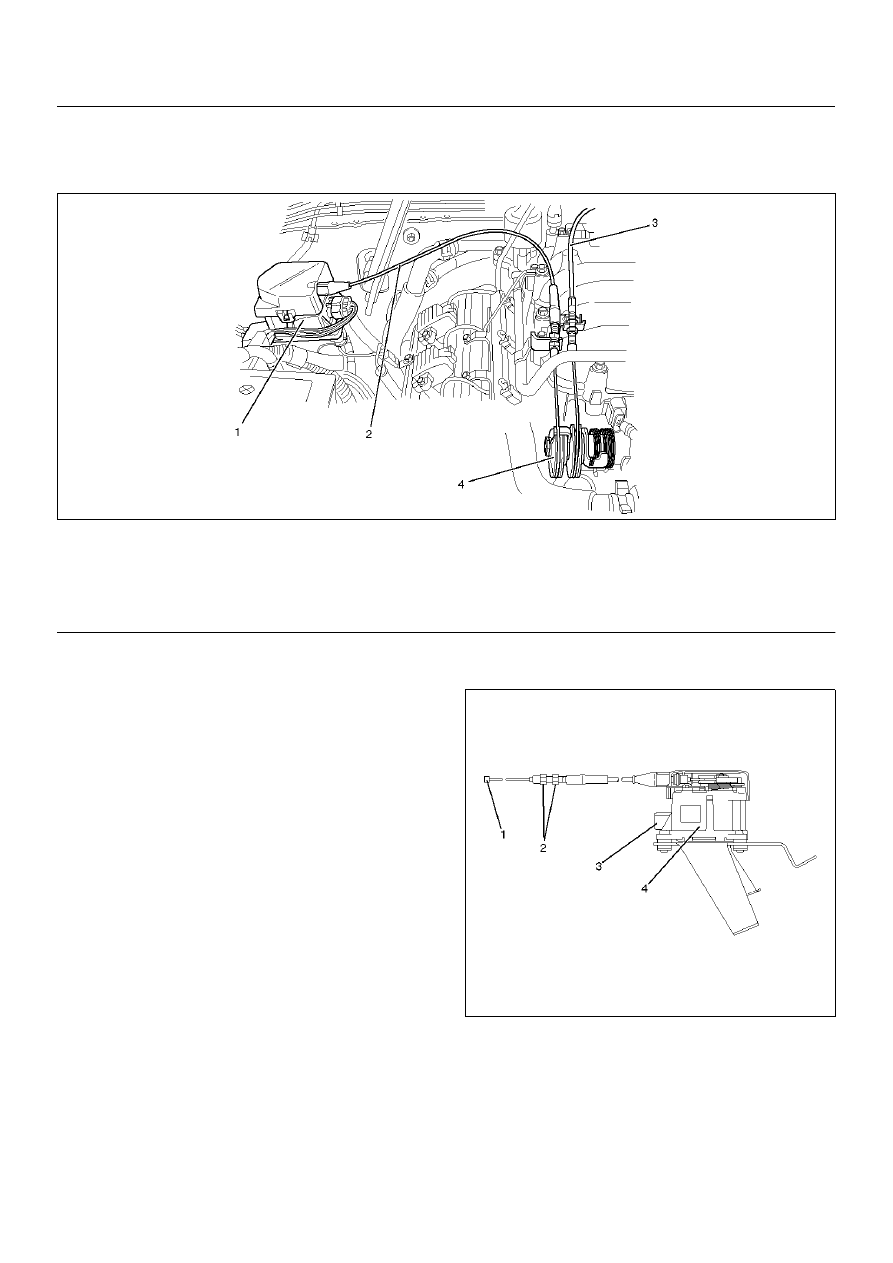

Actuator Cable Diagram

825RW093

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the cruise actuator assembly (4).

• Disconnect the connector (3).

• Remove the cable end (1) from the throttle link

(cruise control side).

• Loosen two fixing nuts (2).

• Remove three actuator assembly fixing screws.

825RW049

Installation

To install, follow the removal steps in the reverse order,
noting the following point:

1. Take care not to bend the cable excessively.

(1) Cruise Actuator Assembly
(2) Cruise Control Cable
(3) Accelerator Cable

(4) Throttle Link (Cruise Control Side)

10A–6

CRUISE CONTROL SYSTEM

Adjustment

After installing the cruise actuator, the following steps
must be carried out for cruise control cable adjustment.

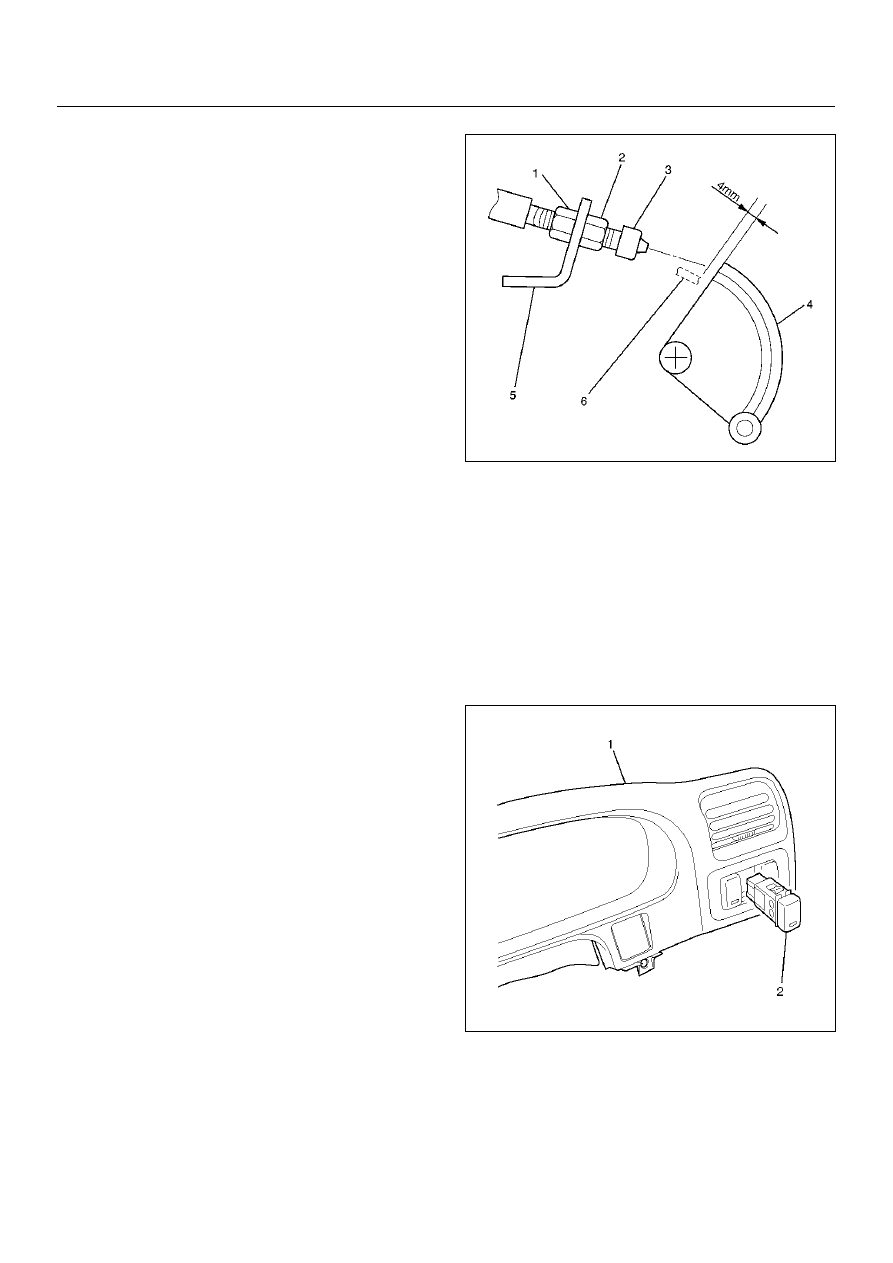

1. Install the cruise control cable end (3) to the throttle

link (4).

2. Put the screw portion of the cable in the bracket (5).

3. Put the nut (1) to the bracket and then tighten the

nut (2).

• If the distance between the throttle link (4) and

the throttle link lever (6) is out of the specified
range, loosen the nut (2) to adjust it.

035RW140

Mode Switch

Removal and Installation

Refer to Mode Switch in Automatic Transmission
section.

Cruise Control Main Switch

Removal

1. Disconnect the battery ground cable.

2. Remove the meter cluster assembly (1).

• Refer to the Instrument Panel Assembly in Body

Structure section.

3. Remove the cruise control main switch (2).

• Disconnect the switch connector.

• To remove the switch, push the lock from the back

side of the instrument panel cluster assembly.

825RX035

Installation

To install, follow the removal steps in the reverse order.

CRUISE CONTROL SYSTEM

10A–7

Cruise Control Switch (Combination Switch)

Removal and Installation

Refer to Lighting Switch (Combination Switch) in
Lighting System section.
