SUPPLEMENTAL RESTRAINT SYSTEM

9J–35

Sensing and Diagnostic Module (SDM)

Service Precautions

WARNING:  DURING SERVICE PROCEDURES, BE
VERY CAREFUL WHEN HANDLING SDM. NEVER
STRIKE OR JAR SDM.  UNDER SOME
CIRCUMSTANCES, IT COULD CAUSE
DEPLOYMENT AND RESULT IN PERSONAL INJURY
OR IMPROPER OPERATION OF THE
SUPPLEMENTAL RESTRAINT SYSTEM (SRS). SDM
MOUNTING BRACKET BOLTS MUST BE
CAREFULLY TORQUED TO ASSURE PROPER
OPERATION. NEVER POWER UP THE SRS WHEN
SDM IS NOT RIGIDLY ATTACHED TO THE VEHICLE.
THE SDM COULD BE ACTIVATED WHEN POWERED
WHILE NOT RIGIDLY ATTACHED TO THE VEHICLE
WHICH COULD CAUSE DEPLOYMENT AND RESULT
IN PERSONAL INJURY.

WARNING:  PROPER OPERATION OF THE SENSING
AND DIAGNOSTIC MODULE (SDM) REQUIRES THE
SDM TO BE RIGIDLY ATTACHED TO THE VEHICLE
STRUCTURE AND THAT THE ARROW ON THE
SENSOR BE POINTING TOWARD THE FRONT OF
THE VEHICLE.
SDM is specifically calibrated and is keyed to the SDM
location SRS wiring harness. Caution should be used to
ensure proper location of the SDM. The keying of the
SDM to its location and wiring harness connectors
should never be modified in the field.

Removal

1. Disable the SRS. (Refer to “Disable the SRS" in this

manual)

2. Remove dressing panel around the radio and

disconnect cigar lighter harness.

3. Remove the transfer sift lever knob.

4. Remove the center console.

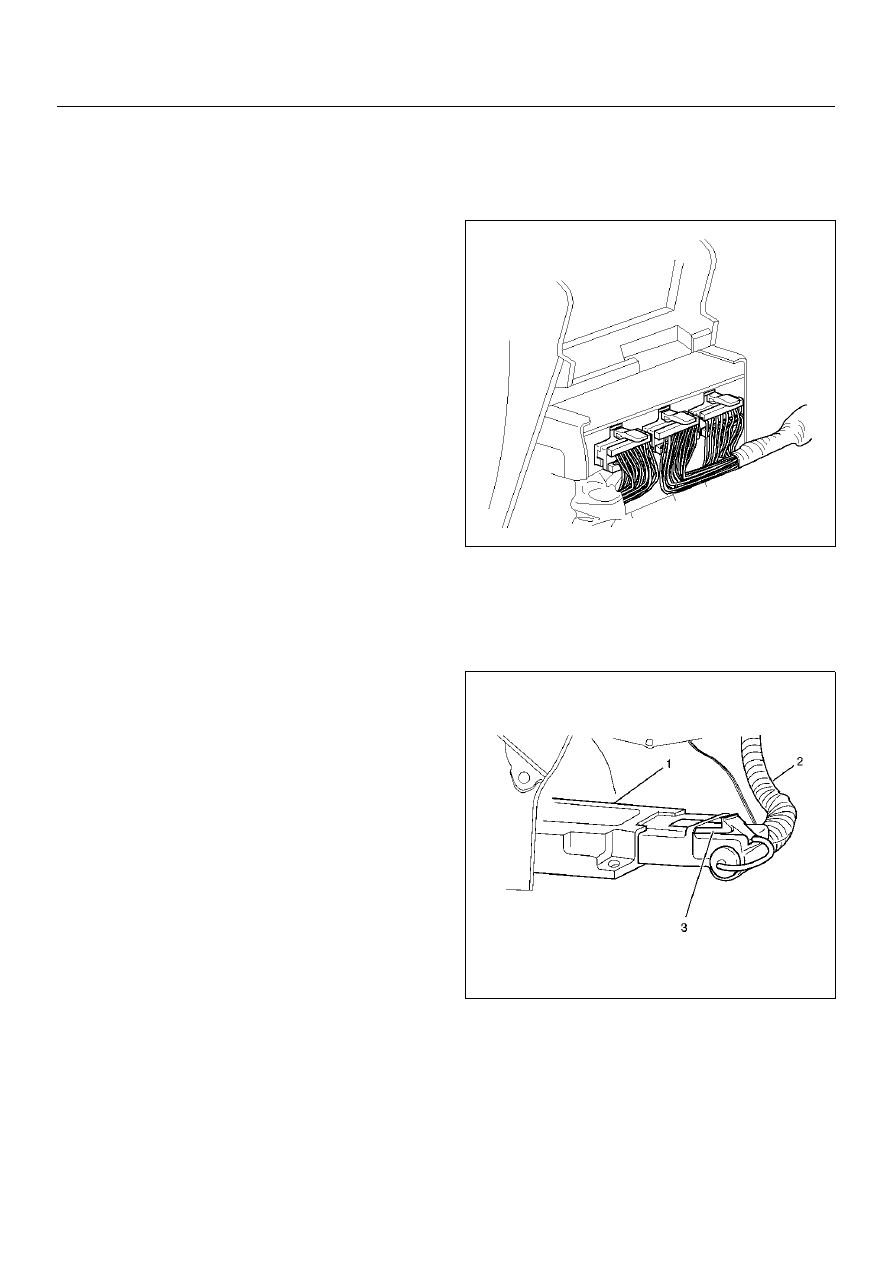

5. Remove three connector from Powertrain Control

Module (PCM).

6. Remove PCM with bracket.(Fixed four bolts)

7. Remove right side stay between instrument panel

and floor.

8. Remove driver and passenger seat.

9. Turn over carpet to rear side.

1. Remove air conditioning duct for rear seat.

(Transform the duct during removing it)

827RW023

10. Pull CPA (3) (Connector Position Assurance–red

color) out and push connector lock down to
disconnect the SDM harness connector (2).

11. Remove the three SDM fixing bolts and remove

SDM (1).

827RW044

Installation

1. Install the SDM (1) on bracket and fixing bolts and

tighten the fixing bolts to the specified torque.

Torque: 10

±±±±

 3 N·m (1.0

±

±

±

±

0.3 kg·m

////

87

±±±±

26  lbin)

1. Connect the SDM harness connector (2) and after

that, put CPA into connector (3).

9J–36

SUPPLEMENTAL RESTRAINT SYSTEM

2. Install air conditioning duct for rear seat to normal

position.

2. Return carpet normal position.

3. Install right side stay between instrument panel and

floor, tighten to the specified torque.

Torque: 10

±±±±

3 N·m (1.0

±±±±

0.3 kg·m/87

±±±±

26  lbin)

4. Install PCM with bracket and tighten to the specified

torque.

Torque: 10

±±±±

3 N·m (1.0

±±±±

0.3 kg·m/87

±±±±

26  lbin)

5. Reconnect three connector to Powertrain Control

Module (PCM).

6. Install the center console.

7. Install the transfer shift lever knob.

8. Install the dressing panel around the radio and

reconnect cigar lighter harness.

9. Enable the SRS. (Refer to “Enabling the SRS" in this

manual)

SUPPLEMENTAL RESTRAINT SYSTEM

9J–37

Driver Air Bag Assembly

Service Precautions

WARNING:  SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY-PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE:  In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

Removal

1. Disable the Supplemental Restraint System (SRS).

(Refer to “Disabling the SRS" in this section.)

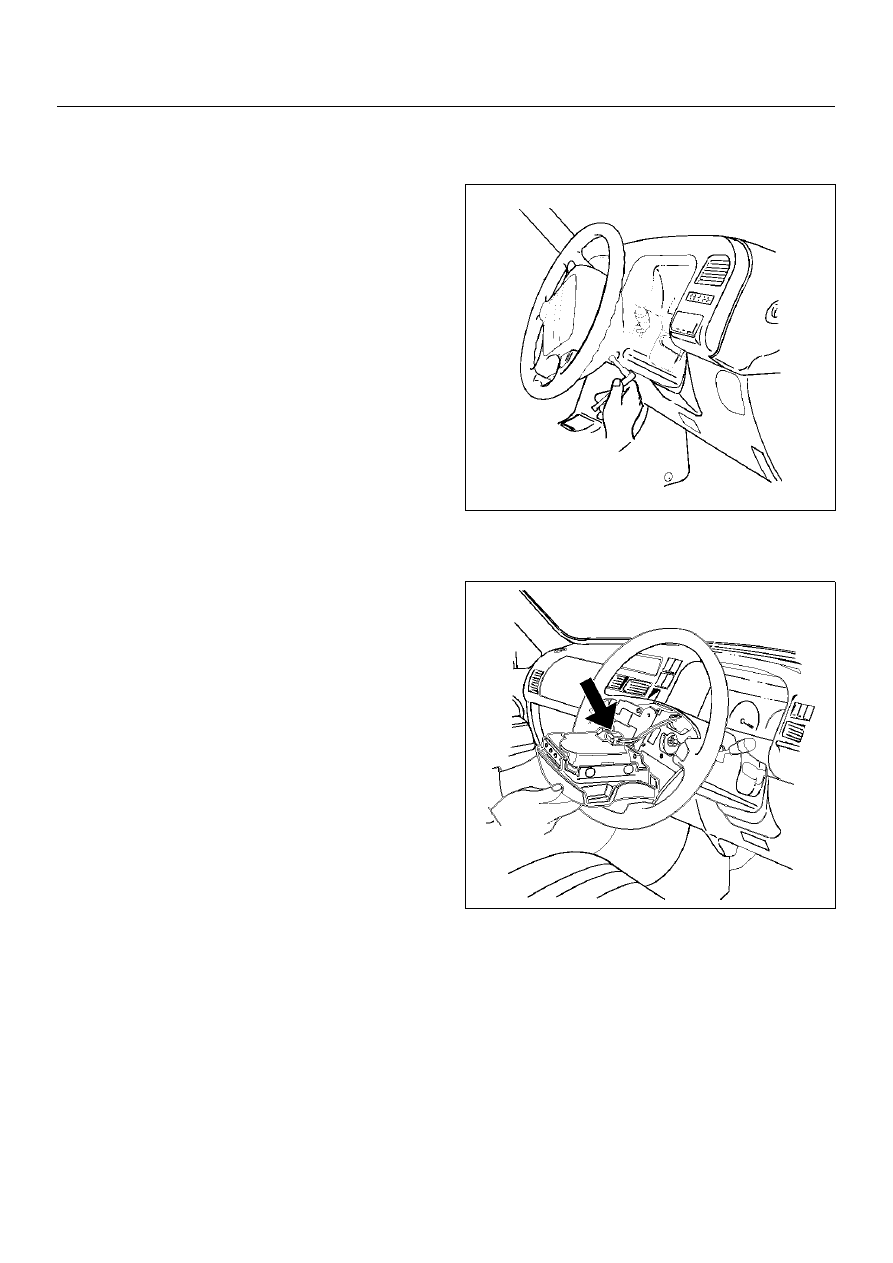

2. Remove air bag assembly from steering wheel by

removing two bolts.  Lift air bag assembly out of
steering wheel.

827RX036

3. Disconnect connector and remove air bag assembly.

4. Disconnect horn lead.

827RX035

Installation

1. Connect air bag to wiring harness connector.

NOTE:  Pass the lead wire through the tabs on the
plastic cover (wire protector) of air bag to prevent lead
wire from being pinched.

2. Connect horn lead.

3. Install air bag into steering wheel and tighten bolts

to specified sequence as shown in figure.

Torque: 8.8 N·m (0.9 kg·m

/

78 lbin)

CAUTION:  Never use the air bag assembly from
another vehicle.

9J–38

SUPPLEMENTAL RESTRAINT SYSTEM

Use only the air bag assembly for UE.

4. Enable the Supplemental Restraint System (SRS).

(Refer to “Enabling the SRS" in this section.)

Steering Wheel

Service Precautions

WARNING:  SAFETY PRECAUTIONS MUST BE
FOLLOWED WHEN HANDLING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE AIR
BAG ASSEMBLY SURFACE MAY CONTAIN A SMALL
AMOUNT OF SODIUM HYDROXIDE, A BY-PRODUCT
OF THE DEPLOYMENT REACTION, THAT IS
IRRITATING TO THE SKIN AND EYES. MOST OF THE
POWDER ON THE AIR BAG ASSEMBLY IS
HARMLESS. AS A PRECAUTION, WEAR GLOVES
AND SAFETY GLASSES WHEN HANDLING A
DEPLOYED AIR BAG ASSEMBLY, AND WASH YOUR
HANDS WITH MILD SOAP AND WATER
AFTERWARDS.

WARNING:  WHEN CARRYING A LIVE AIR BAG
ASSEMBLY, MAKE SURE THE BAG AND TRIM
COVER ARE POINTED AWAY FROM YOU. NEVER
CARRY AIR BAG ASSEMBLY BY THE WIRES OR
CONNECTOR ON THE UNDERSIDE OF MODULE. IN
THE CASE OF AN ACCIDENTAL DEPLOYMENT, THE
BAG WILL THEN DEPLOY WITH MINIMAL CHANCE
OF INJURY. WHEN PLACING A LIVE AIR BAG
ASSEMBLY ON A BENCH OR OTHER SURFACE,
ALWAYS FACE BAG AND TRIM COVER UP, AWAY
FROM THE SURFACE. NEVER REST A STEERING
COLUMN ASSEMBLY ON THE STEERING WHEEL
WITH THE AIR BAG ASSEMBLY FACE DOWN AND
COLUMN VERTICAL. THIS IS NECESSARY SO THAT
A FREE SPACE IS PROVIDED TO ALLOW THE AIR
BAG ASSEMBLY TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY COULD RESULT.

NOTE:  In the event deployment has occurred, inspect
coil assembly wire for any signs of scorching, melting or
any other damage due to excessive heat. If the coil has
been damaged, replace it.

Removal

1. Disable the SRS. (Refer to “Disabling the SRS" in

this section.)

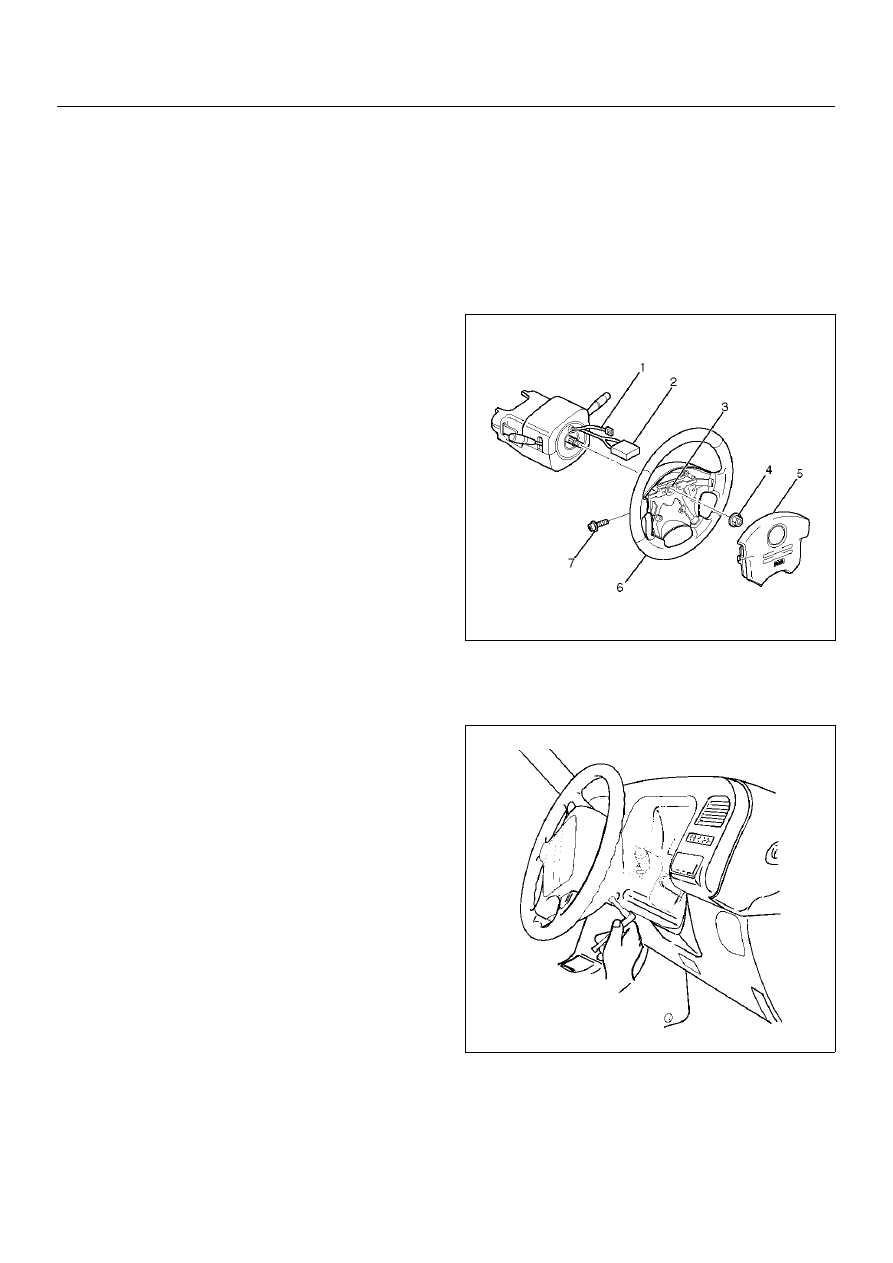

827RX034

2. Remove the air bag assembly (5) from steering

wheel (6) by removing two bolts (7). Lift air bag
assembly out of steering wheel.

827RX036
