SUPPLEMENTAL RESTRAINT SYSTEM

9J–27

Special Tools

WARNING:  TO AVOID DEPLOYMENT WHEN
TROUBLESHOOTING THE SRS, DO NOT USE
ELECTRICAL TEST EQUIPMENT  SUCH AS A
BATTERY–POWERED OR AC–POWERED
VOLTMETER, OHMMETER, ETC., OR ANY TYPE OF
ELECTRICAL EQUIPMENT OTHER THAN THAT
SPECIFIED IN THIS MANUAL.  DO NOT USE A NON
POWERED PROBE–TYPE TESTER.
INSTRUCTIONS IN THIS MANUAL MUST BE
FOLLOWED CAREFULLY, OTHERWISE PERSONAL
INJURY MAY RESULT.

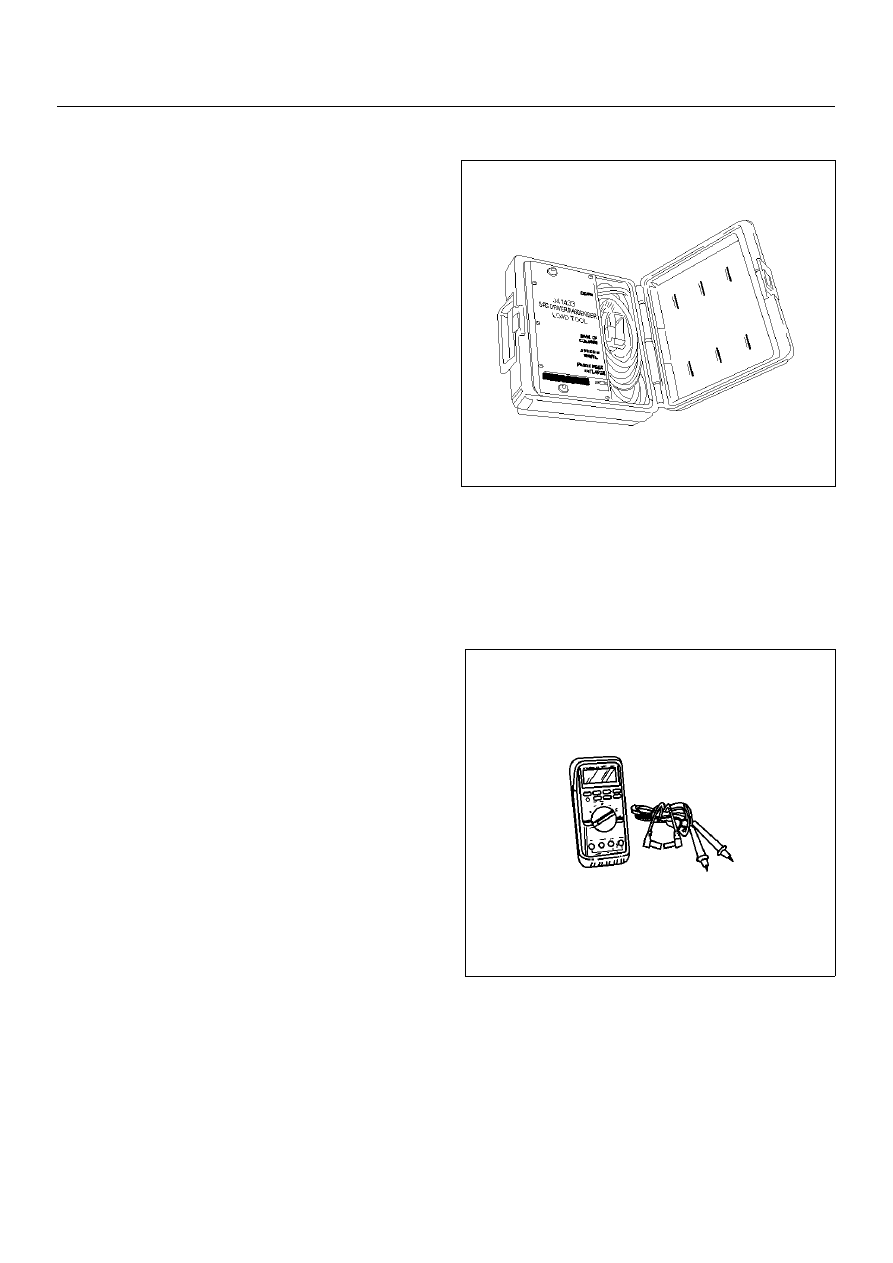

5–8840–2421–0 (J–41433) SRS Driver/
Passenger Load Tool

The Supplemental Restraint System (SRS) Driver/
Passenger Load Tool 5–8840–2421–0 is used only
when called for in this section.   It is used as a
diagnostic aid and safety device to prevent inadvertent
air bag assembly deployment.
The load tool has four yellow connectors attached to its
case.
The three small connectors are electrically functional
and serve as resistive load substitutions.
No more than two connectors are used at any time.
One of the small connectors is used to substitute  for the
load of the driver air bag assembly when it is connected
at the top of the column to the SRS coil assembly.
Another small connector is used to substitute for the
load of the driver air bag assembly and the SRS coil
assembly  when it is connected at the base of the
column to the SRS wiring harness.  The third small
connector is used to substitute for the load of the
passenger air bag assembly when connected to the
passenger air bag assembly harness connector.
By substituting the resistance of the load tool when
called for, a determination can be made as to whether
an inflator circuit component is causing system
malfunction and which component is causing the
malfunction.   The load tool should be used only when
specifically called for in the diagnostic procedures.

901RS146

5–8840–0285–0 (J–39200) DVM

The 5–8840–0285–0 Digital Multimeter (DVM) is the
preferred DVM for use in SRS diagnosis and repair.
However, 5–8840–0366–0 may be used if 5–8840–
0285–0 is not available.  No other DVMs are approved
for SRS diagnosis and repair.

901RS153

9J–28

SUPPLEMENTAL RESTRAINT SYSTEM

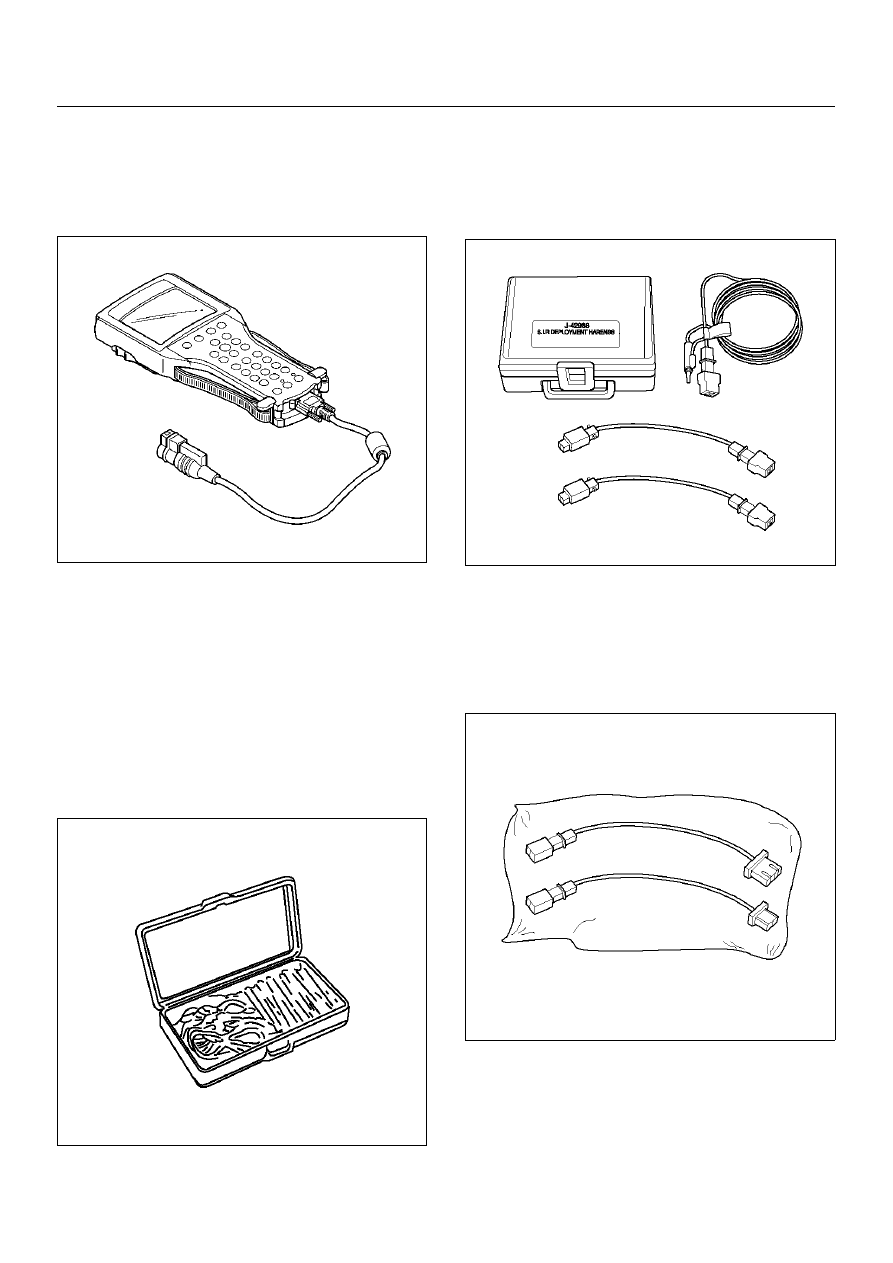

Scan Tool

The Tech 2 is used to read and clear SRS Diagnostic
Trouble Codes (DTCs).  Refer to the Tech 2 Operator's
Manual for specific information on how to use the Tech
2.

901RW176

5–8840–0385–0 (J–35616–A) Connector
Test Adapter Kit

The 5–8840–0385–0 Connector Test Adapter Kit must
be used whenever a diagnostic procedure requests
checking or probing a terminal.  Using the appropriate
adapter will ensure that no damage to the terminal will
occur from the Digital Multimeter (DVM) prove, such as
spreading or bending.  The adapter will also give an
idea of whether contact tension is sufficient, helping to
find an open or intermittent open due to poor terminal
contact.

901RS151

5–8840–2468–0 (J–42986) SRS Deployment
Tool

The 5–8840–2468–0 Supplemental Restraint System
(SRS) Deployment Tool must be used for deployment of
the undeployed air bag.

901RX046

5–8840–2429–0 (J–42987) SRS Adapter For
Load Tool

The J–42987 SRS Adapter be used for connect
previous load tool to new SRS system when inspect
SRS system harness.

901RW107

SUPPLEMENTAL RESTRAINT SYSTEM

9J–29

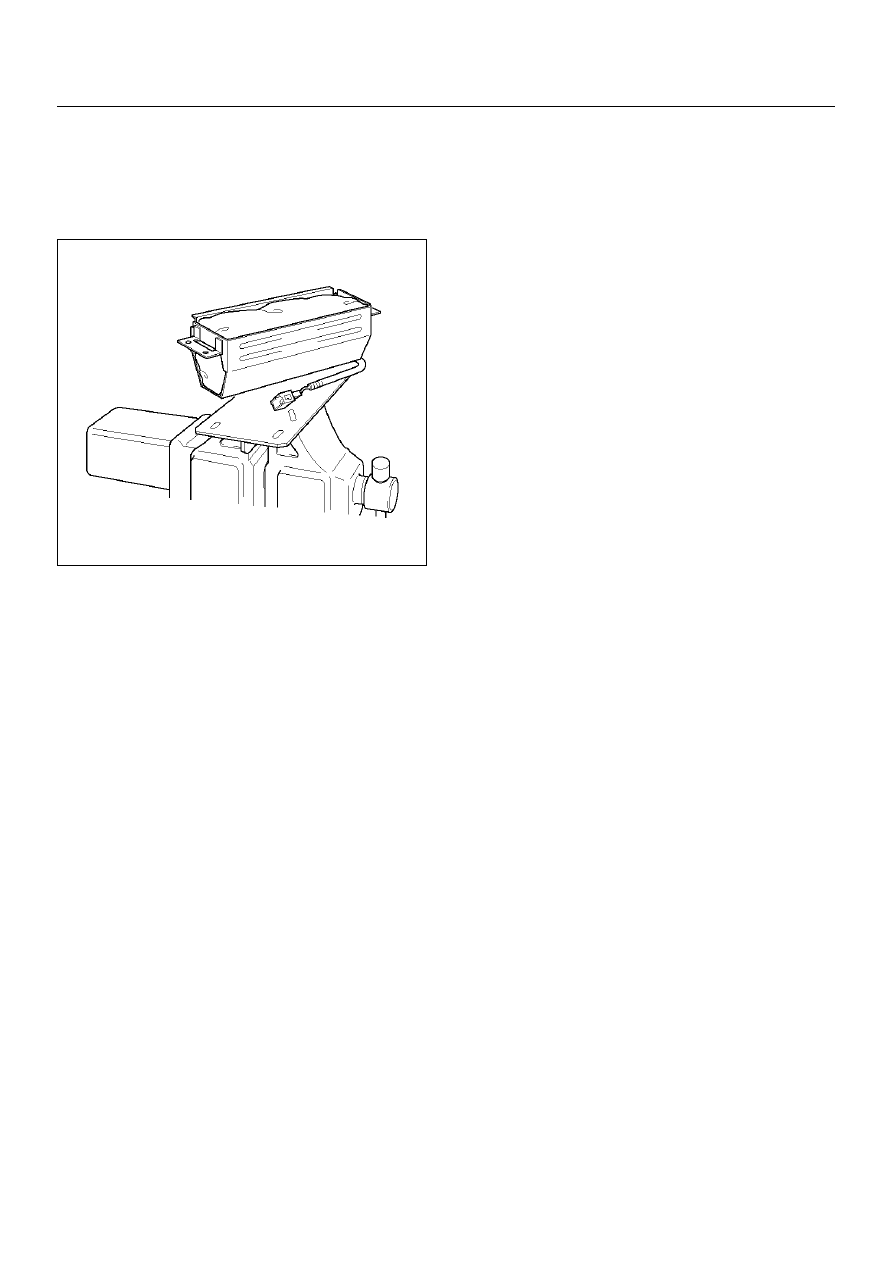

5–8840–2420–0 (J–41497) SRS Deployment
Fixture

The 5–8840–2420–0 SRS Deployment Fixture must be
used for deployment of the undeployed passenger side
air bag.

901RW088

9J–30

SUPPLEMENTAL RESTRAINT SYSTEM

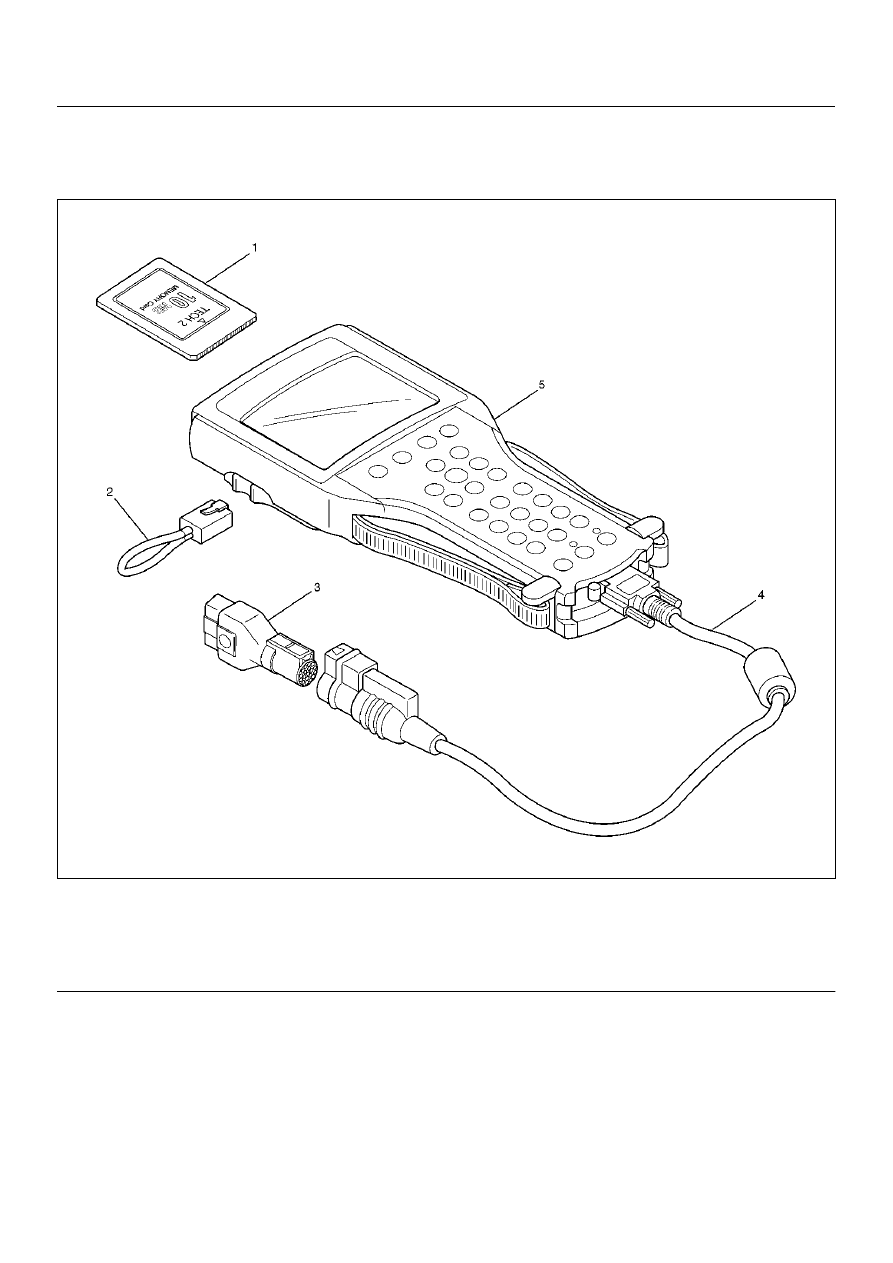

Tech 2 Scan Tool

From 1999 Vehi CROSS (VX), dealer service
departments are recommended to use Tech 2. Please
refer to Tech 2 scan tool user guide.

901RW180

Legend

EndOFCallout

Getting Started

• Before operating the Isuzu PCMCIA card with the

Tech 2, the following steps must be performed:

1. The Isuzu 98 System PCMCIA card (1) inserts into

the Tech 2 (5).

2. Connect the SAE 16/19 adapter (3) to the DLC

cable (4).

1. Connect the DLC cable to the Tech 2 (5)

3. Mark sure the vehicle ignition is off.

(1) PCMCIA Card
(2) RS 232 Loop Back Connector
(3) SAE 16/19 Adaptor

(4) Data Link Connector (DLC) Cable
(5) Tech–2
