SUPPLEMENTAL RESTRAINT SYSTEM

9J–19

WARNING: WHEN STORING A LIVE AIR BAG
ASSEMBLY OR WHEN LEAVING A LIVE AIR BAG
ASSEMBLY UNATTENDED ON A BENCH OR OTHER
SURFACE, ALWAYS FACE THE BAG UP AND AWAY
FROM THE SURFACE. THIS IS NECESSARY SO
THAT A FREE SPACE IS PROVIDED TO ALLOW THE
AIR BAG TO EXPAND IN THE UNLIKELY EVENT OF
ACCIDENTAL DEPLOYMENT. FAILURE TO FOLLOW
PROCEDURES MAY RESULT IN PERSONAL INJURY.

68. Temporarily store the air bag assembly with the bag

facing up, away from the surface upon which it rests.

Deployment Outside Vehicle (Fixing Air
Bag on Tire)

Read and understand the items of “CAUTIONS ABOUT
AIR BAG DEPLOYMENT AND DISPOSAL
PROCEDURES” and “Usage of Deployment Tool” for
safe deployment of air bag.

1. Remove air bag assembly from vehicle. Refer to air

bag assembly Removal “in this section”.

2. Inspect 5–8840–2419–0 Supplemental Restraint

System (SRS) Deployment Harness and
appropriate pigtail adapter for damage. If harness or
pigtail is damaged, discard and obtain a
replacement.

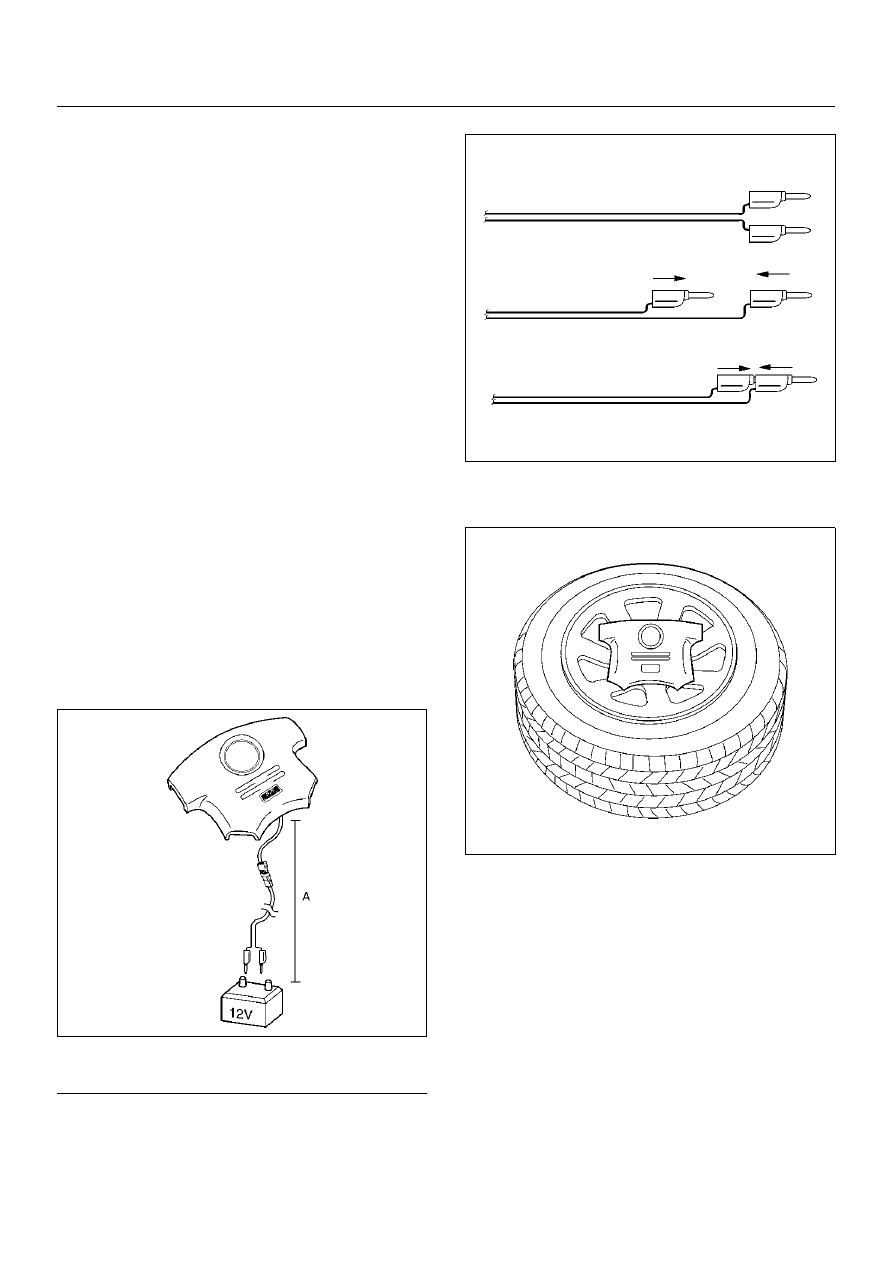

3. Extend double pole extension cord to a position far

away 10 m (33 feet) from the air bag assembly.

4. Place a power source near the extended end of

SRS air bag deployment harness. (Use of 12V
battery is recommended).

827RX040

Legend

EndOFCallout

5. Insert one of the banana plugs into the other

banana plug to short the two SRS air bag
deployment harness. Do not the harness to a power
source until deployment.

827RW055

6. Prepare four 15 inch or larger tires without wheel

and two same size tires with wheels.

827RX041

7. How to fix Driver air bag.

1. Fix the air bag with its trim cover up on a tire

with a wheel using an automobile use wire
harness, (core size: 1.3 mm

(0.05 inch)) or a

wire trebly at two or more points.

2. Connect SRS air bag assembly to the double

pole extension cord of the air bag deployment
harness.
Do not connect the deployment harness to a
power source until air bag deployment.
(If connected the SRS air bag assembly deploys
immediately)

NOTE: Ensure that the pigtail adapter is firmly seated
into the air bag assembly connector. Failure to fully seat
the connectors may leave the shorting bar located in the
air bag assembly connector functioning (shorting the
deployment circuit) and may result in non deployment of

(A) 10 m (33 feet) or more

9J–20

SUPPLEMENTAL RESTRAINT SYSTEM

the air bag assembly.

827RW054

3. Place three tires without wheel on the tire on

which air bag is fixed and a tire with a wheel on
top.
Bind the five tires with a rope so that the tires
may not collapse.

827RW053

Legend

EndOFCallout

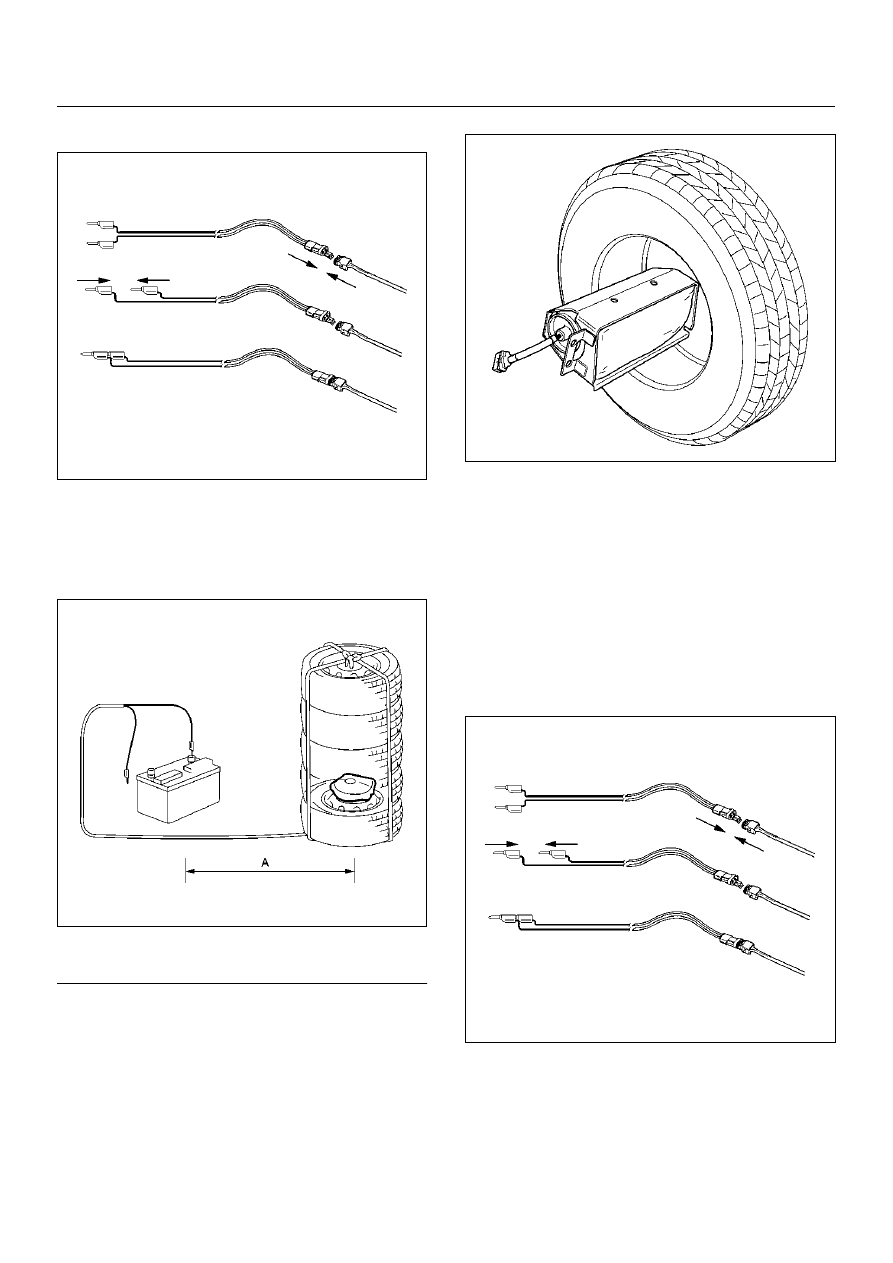

8. How to fix Passenger air bag.

1. Fix the air bag with its trim cover side fixing the

center of a tire without a wheel using an
automobile use wire harness, (core size: 1.3
mm (0.05 inch)) or a wire trebly at two or more
points.

827RW058

2. Connect Supplemental Restraint System (SRS)

air bag assembly to the deployment harness
double pole extension cord end. Be sure not to
connect the deployment harness to a power
source. (If connected the SRS air bag assembly
deploys immediately).

827RW054

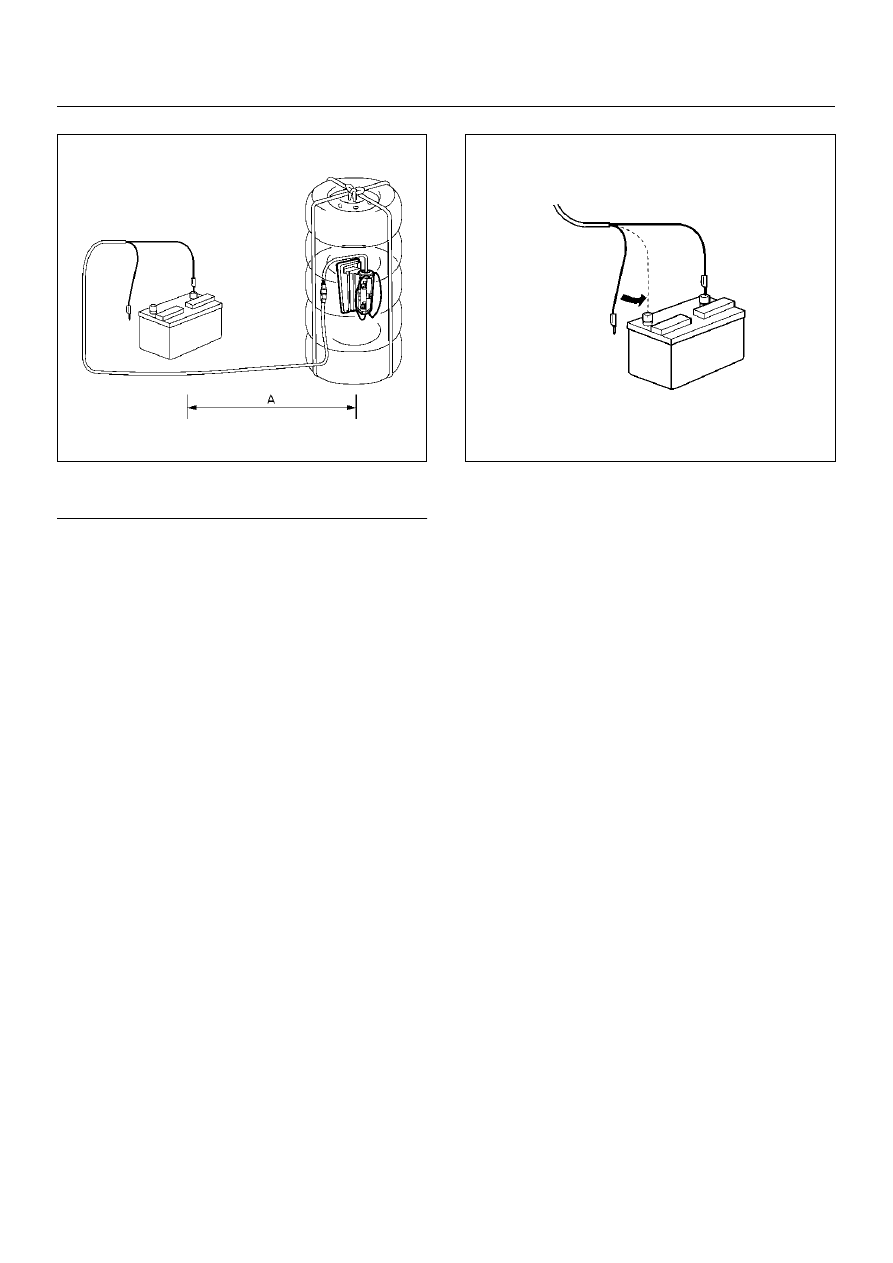

3. Put a tire without wheel on another, put the tire

on which the air bag is fixing, put a tire without a
wheel, and finally put a tire with a wheel on top.
Bind the tires with a rope so that the tires pile
may not collapse.

(A) 10 m (33 feet) or more

SUPPLEMENTAL RESTRAINT SYSTEM

9J–21

827RW050

Legend

EndOFCallout

9. Notify all people in the immediate area of your

intention to deploy the passenger air bag assembly.
The deployment will be accompanied by a
substantial noise which may startle the uninformed.

WARNING: DEPLOYED HARNESS SHALL REMAIN
SHORTED AND NOT BE CONNECTED TO A POWER
SOURCE UNTIL THE AIR BAG IS TO BE DEPLOYED.
THE AIR BAG ASSEMBLY WILL IMMEDIATELY
DEPLOY THE AIR BAG WHEN A CONNECTING THE
DEPLOYMENT HARNESS TO THE POWER SOURCE
SHOULD ALWAYS BE THE LAST STEP IN THE AIR
BAG ASSEMBLY DEPLOYMENT PROCEDURE.
FAILURE TO FOLLOW PROCEDURES IN THE
ORDER LISTED MAY RESULT IN PERSONAL
INJURY.

10. Connect the Supplemental Restraint System (SRS)

deployment harness wires to the power source to
immediately deploy the air bag assembly.
Recommended application : 12 volts minimum, 2
amps minimum. A vehicle battery is suggested.

827LW011

WARNING: SAFETY PRECAUTIONS MUST BE
OBSERVED WHEN HANDING A DEPLOYED AIR
BAG ASSEMBLY. AFTER DEPLOYMENT, THE METAL
SURFACES OF THE AIR BAG ASSEMBLY WILL BE
VERY HOT. ALLOW THE AIR BAG ASSEMBLY TO
COOL BEFORE HANDLING ANY METAL PORTION
OF IT. DO NOT PLACE THE DEPLOYED INFLATOR
MODULE NEAR ANY FLAMMABLE OBJECTS.
FAILURE TO FOLLOW PROCEDURES MAY RESULT
IN FIRE OR PERSONAL INJURY. AFTER AN AIR
BAG ASSEMBLY HAS BEEN DEPLOYED, THE
METAL CANISTER AND SURROUNDING AREAS OF
THE AIR BAG ASSEMBLY WILL BE HOT. DO NOT
TOUCH THE METAL AREAS OF THE AIR BAG
ASSEMBLY FOR ABOUT THIRTY MINUTES AFTER
DEPLOYMENT. IF THE DEPLOYED AIR BAG
ASSEMBLY MUST BE MOVED BEFORE IT IS COOL,
WEAR GLOVES AND HANDLE BY THE AIR BAG IT
SELF.

11. Disconnect the pigtail adapter from the air bag

assembly as soon after deployment as possible to
avoid damage to the pigtail adapter or SRS
deployment harness from contacting the hot air bag
assembly canister. The pigtail adapter and SRS
deployment harness are designed to be reused.
They should, however, be inspected for damage
after each deployment and replaced if necessary.

12. Dispose of the deployed air bag assembly through

normal refuse channels after it has cooled for at
least 30 minutes.

13. Wash your hands with mild soap and water

afterward.

NOTE: The remaining steps are to be followed in the
unlikely event that the air bag assembly did not deploy
after following the above procedures.

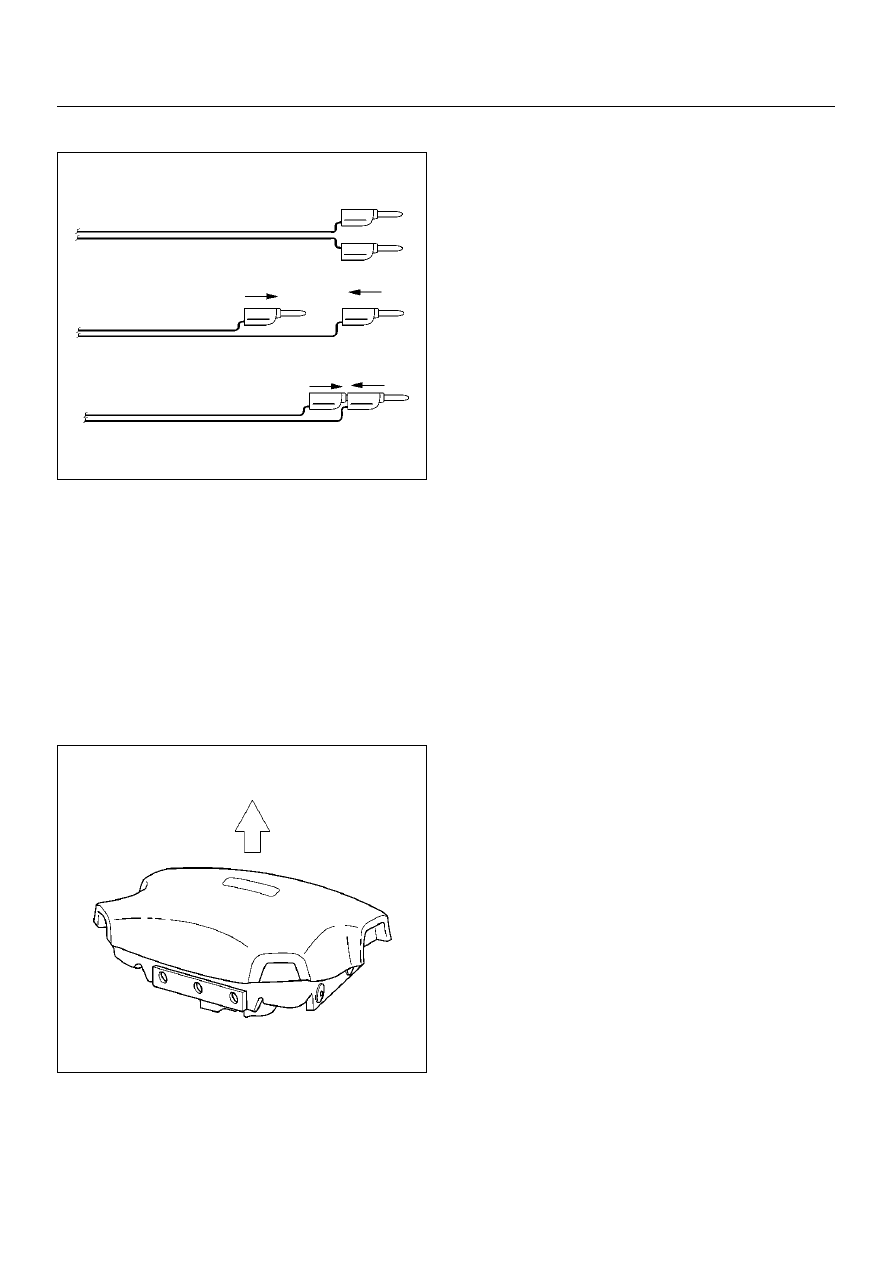

14. Ensure that the SRS deployment harness has been

disconnected from the power source and that its two
banana plugs have been shorted together by fully

(A) 10 m (33 feet) or more

9J–22

SUPPLEMENTAL RESTRAINT SYSTEM

seating one banana plug into the other.

827RW055

2. Disconnect the pigtail adapter from the air bag

assembly.

3. Temporarily store the air bag assembly with the bag

facing up, away from the surface upon which it rests.

066RW030

Deployment Inside Vehicle (Vehicle
Scrapping Procedure)

Deployment inside vehicle is proper when the vehicle is
to be destroyed or salvaged for component parts. This
includes, but is not limited to, the following situations:

1. The vehicle has completed its useful life.

2. The vehicle has been damaged beyond repair in a

non deployment type accident.

3. The vehicle has been stripped or damaged beyond

repair in a theft.

4. The vehicle will be salvaged for component parts to

be used on a vehicle with a different Vehicle
Identification Number (VIN) as opposed to being
rebuilt as same VIN. Never use SRS components
from another vehicle.

WARNING: FAILURE TO FOLLOW PROPER SRS
AIR BAG ASSEMBLY DISPOSAL PROCEDURES
CAN RESULT IN AIR BAG DEPLOYMENT WHICH
MAY CAUSE PERSONAL INJURY. UNDEPLOYED
AIR BAG ASSEMBLIES MUST NOT BE DISPOSED
OF THROUGH NORMAL REFUSE CHANNELS. THE
UNDEPLOYED AIR BAG ASSEMBLY CONTAINS
SUBSTANCES THAT CAN CAUSE SEVERE ILLNESS
OR PERSONAL INJURY IF THE SEALED
CONTAINER IS DAMAGED DURING DISPOSAL.
DISPOSAL IN ANY MANNER INCONSISTENT WITH
PROPER PROCEDURES MAY BE A VIOLATION OF
FEDERAL, STATE AND/OR LOCAL LAWS.

15. Turn ignition switch to “LOCK", remove key and put

on safety glasses.

16. Remove all loose objects from front seats.

17. Disconnect Supplemental Restraint System (SRS)

coil assembly, yellow 2–pin connector located at the
base of the steering column.

18. Cut the SRS coil assembly yellow 2–pin harness

connector from the vehicle leaving at least 16 cm
(six inches) of wire at the connector.

19. Strip 13 mm (1/2 inch) of insulation from yellow–

green and yellow–black wire lead of the connector.

20. Cut two 900 cm (30 feet) deployment wires from 0.8

(18 gauge) or thicker multi–strand wire. These

wires will be used to fabricate the driver deployment
harness.

21. Strip 13 mm (1/2 inch) of insulation from both ends

of the wires cut in the previous step.
