BODY STRUCTURE

8F–59

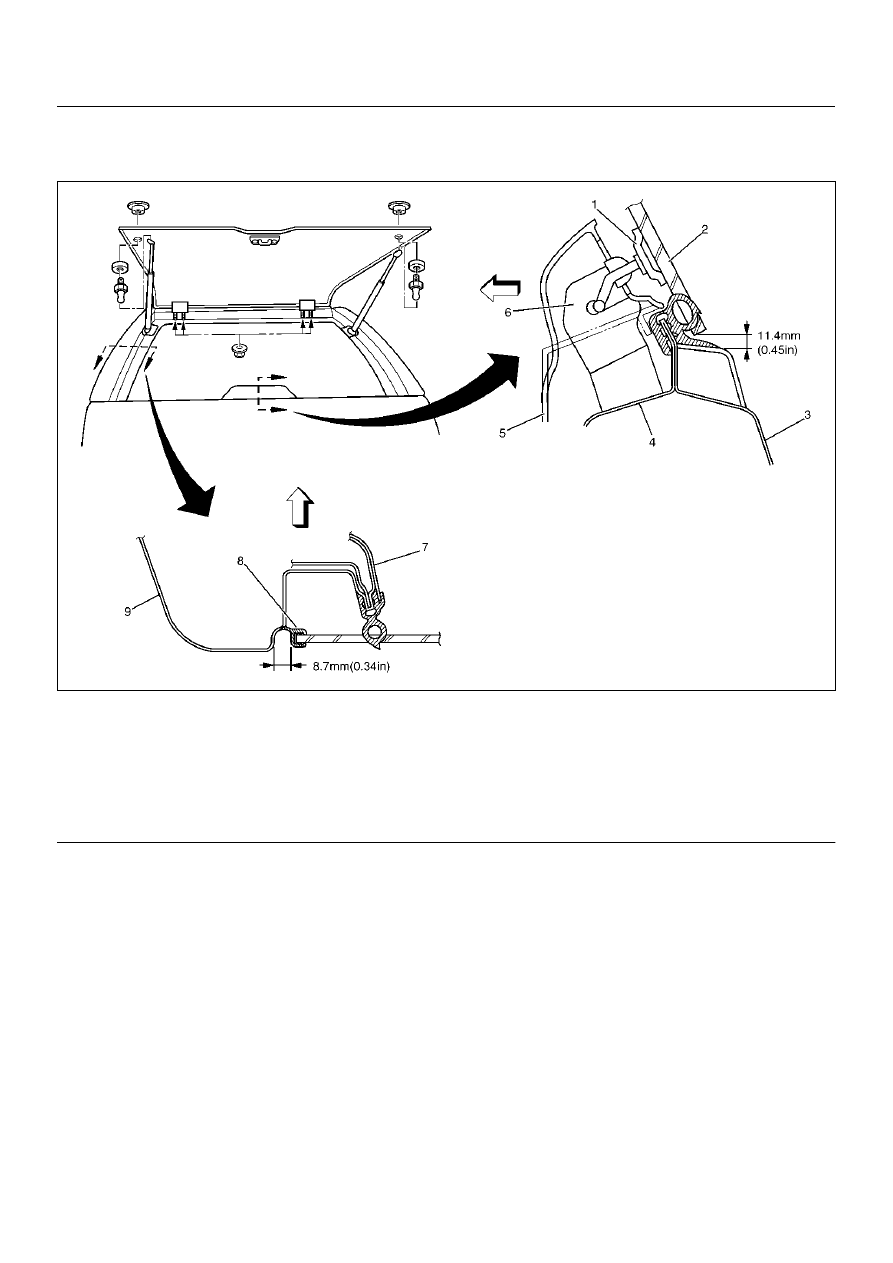

Adjustment

• Hatchgate alignment is obtained by moving

hatchgate hinges.

682RY00003

Legend

EndOFCallout

(1) Hatchgate Striker
(2) Hatchgate Glass
(3) Tailgate Outer Panel
(4) Tailgate Inner Panel
(5) Trim Cover

(6) Hatchgate Lock Assembly
(7) Quarter Trim
(8) Hatchgate Glass Seal
(9) Quarter Outer Panel

8F–60

BODY STRUCTURE

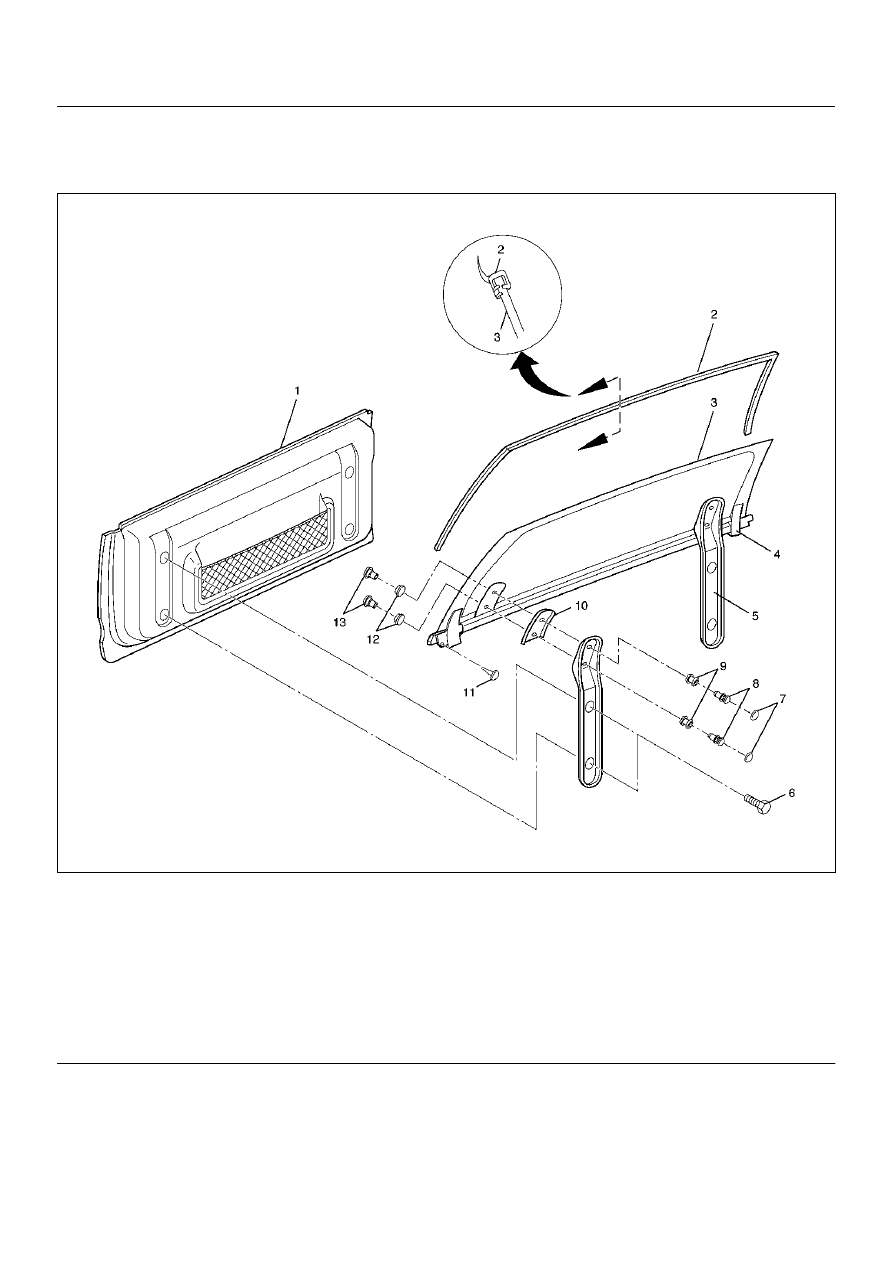

Tailgate Glass (SWB)

Parts Location

682RW011

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the spare tire.

3. Remove the rear wiper.

• Refer to Rear Wiper Arm/Blade in Wiper/Washer

System section.

4. Disconnect the rear defogger connectors (LH &

RH).

(1) Tailgate Trim Cover
(2) Tailgate Seal
(3) Tailgate Glass Assembly
(4) Tailgate Moulding
(5) Tailgate Glass Stay
(6) Bolt
(7) Cap

(8) Screw
(9) Collar

(10) Gasket
(11) Clip
(12) Grommet
(13) Nut

BODY STRUCTURE

8F–61

5. Remove the tailgate glass stays.

• Remove the two seats of two tailgate trim cover

fixing bolts.

6. Remove the tailgate glass assembly.

• Remove the two caps each on the left and right

sides, then remove the screws.

• Remove the two clips from the two ends of the

tailgate moulding, then lift the glass assembly up
and out.

• Removing and installing the glass assembly

require two persons.

7. Remove the tailgate seal.

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Tighten the tailgate glass stay fixing bolts to the

specified torque.

Torque : 19 N·m (2.0 kg·m/14 lb ft)

2. Make sure the lip is properly oriented when

installing the tailgate seal.

8F–62

BODY STRUCTURE

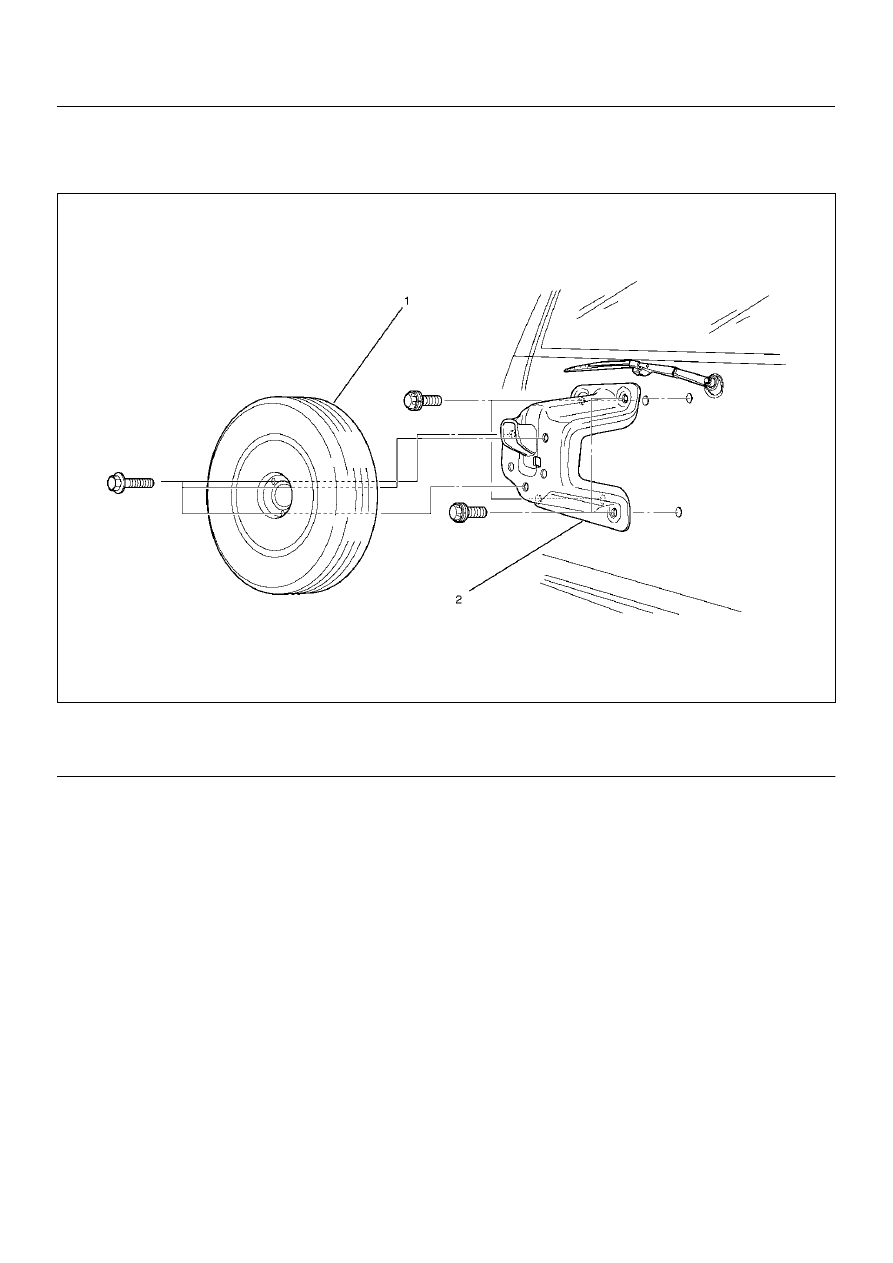

Spare Tire Carrier

Parts Location

530RX005

Legend

EndOFCallout

Removal

1. Remove the spare tire (1).

2. Remove the spare tire carrier (2) by using spare tire

carrier nut wrench 5–8840–2095–0 (J–34355).

Installation

1. Spare tire carrier.

• Tighten the carrier fixing bolts to the specified

torque.

Torque : 31 N·m (3.2 kg·m/23 lb ft)

2. Spare tire

• Tighten the spare tire fixing bolts to the specified

torque.

Torque : 118 N·m (12.0 kg·m/87 lb ft)

(1) Spare Tire
(2) Spare Tire Carrier
