Opel Frontera UE. Manual - part 1151





BODY STRUCTURE

8F–35

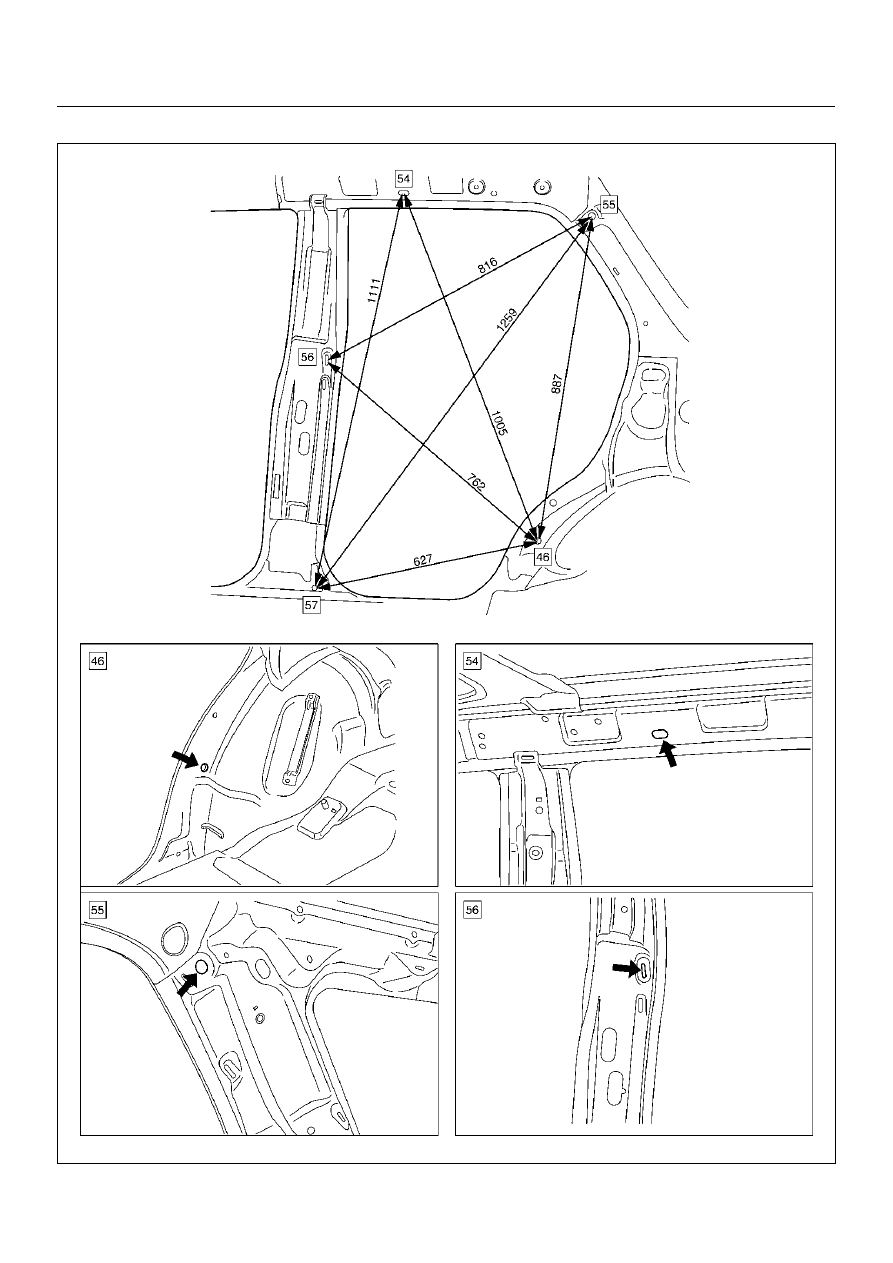

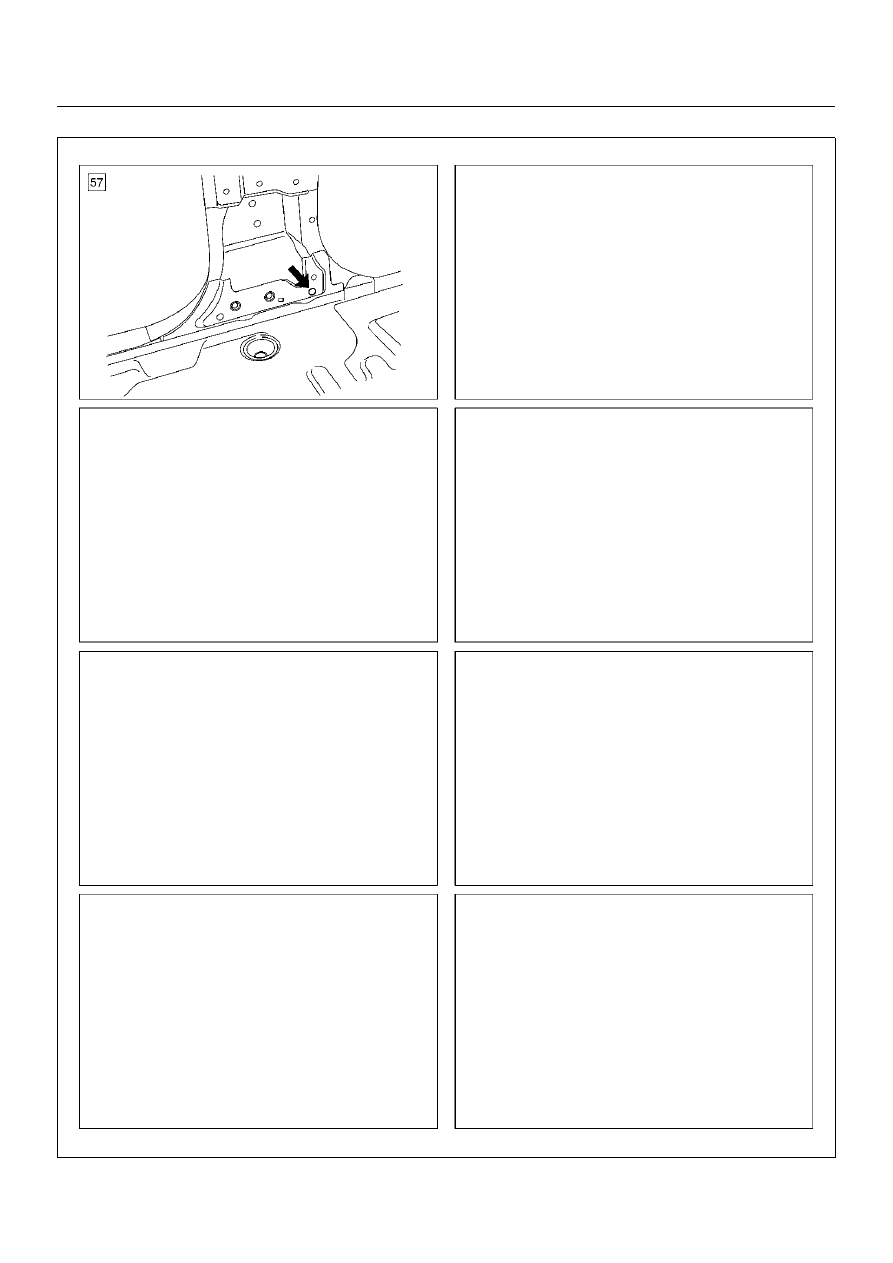

Side Body Section (Rear side)

A10RW047

8F–36

BODY STRUCTURE

A10RW048

BODY STRUCTURE

8F–37

General Description (Body)

This publication contains essential removal, installation,
adjustment and maintenance procedures.

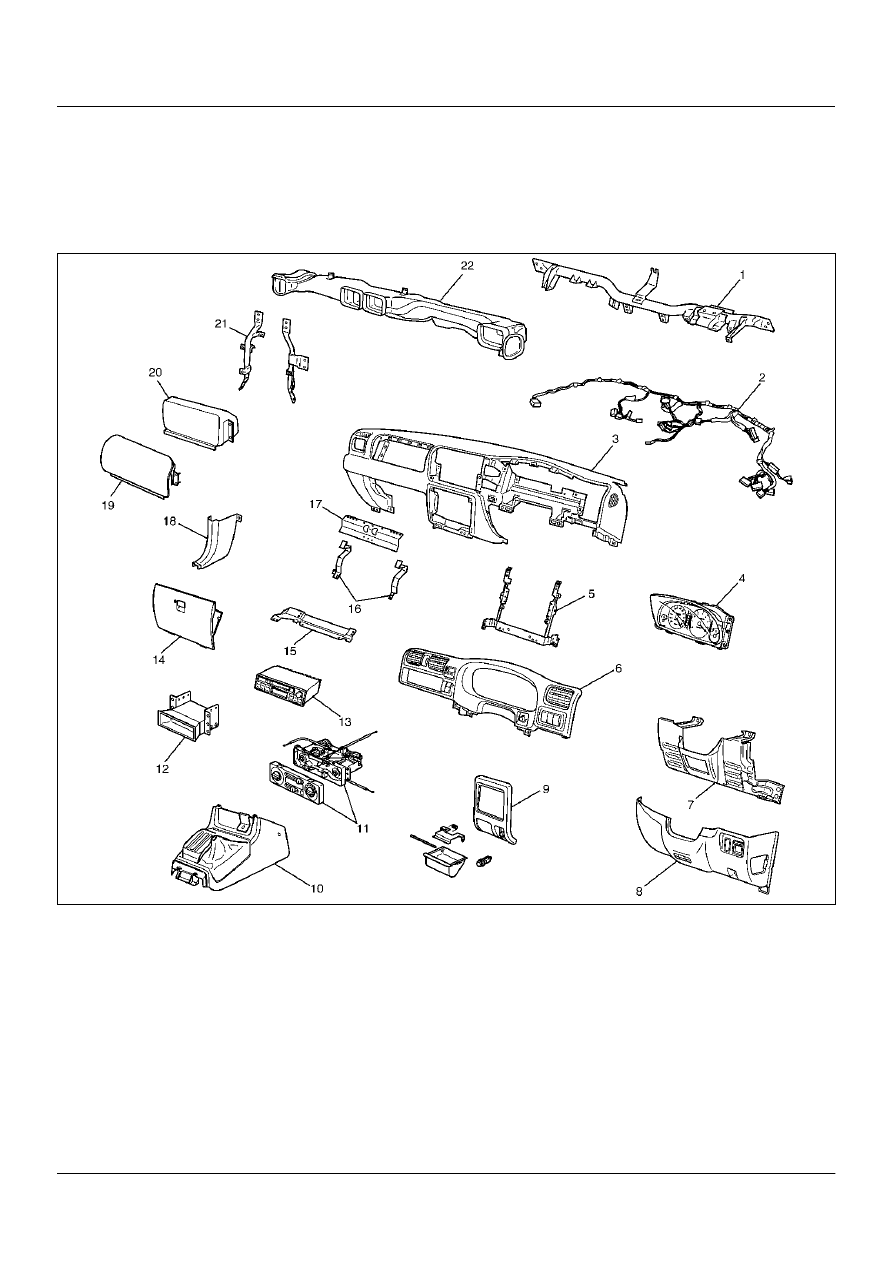

Instrument Panel Assembly

Parts Location

740RY00065

Legend

EndOFCallout

(1) Cross Beam
(2) Instrument Harness Assembly
(3) Instrument Panel Assembly
(4) Meter Assembly
(5) Instrument Panel Center Reinforcement
(6) Meter Cluster Assembly
(7) Driver knee Bolster Assembly
(8) Instrument Panel Driver Lower Cover Assembly
(9) Lower Cluster Assembly

(10) Front Console Assembly
(11) Control Lever Assembly

(12) Audio Sub Box
(13) Radio Assembly
(14) Glove Box
(15) Passenger Lower Bracket
(16) Glove Box Side Reinforcement
(17) Instrument Upper Reinforcement
(18) Dash Side Trim Panel
(19) Passenger Air Bag Cover
(20) Passenger Air Bag
(21) Instrument Panel Stay
(22) Vent Duct Assembly

8F–38

BODY STRUCTURE

Removal

CAUTION:  For precautions on installation or
removal of SRS – air bag system, refer to
Supplemental Restraint  System (SRS) – AIR BAG in
Restraint section.

1. Disconnect the battery ground cable.

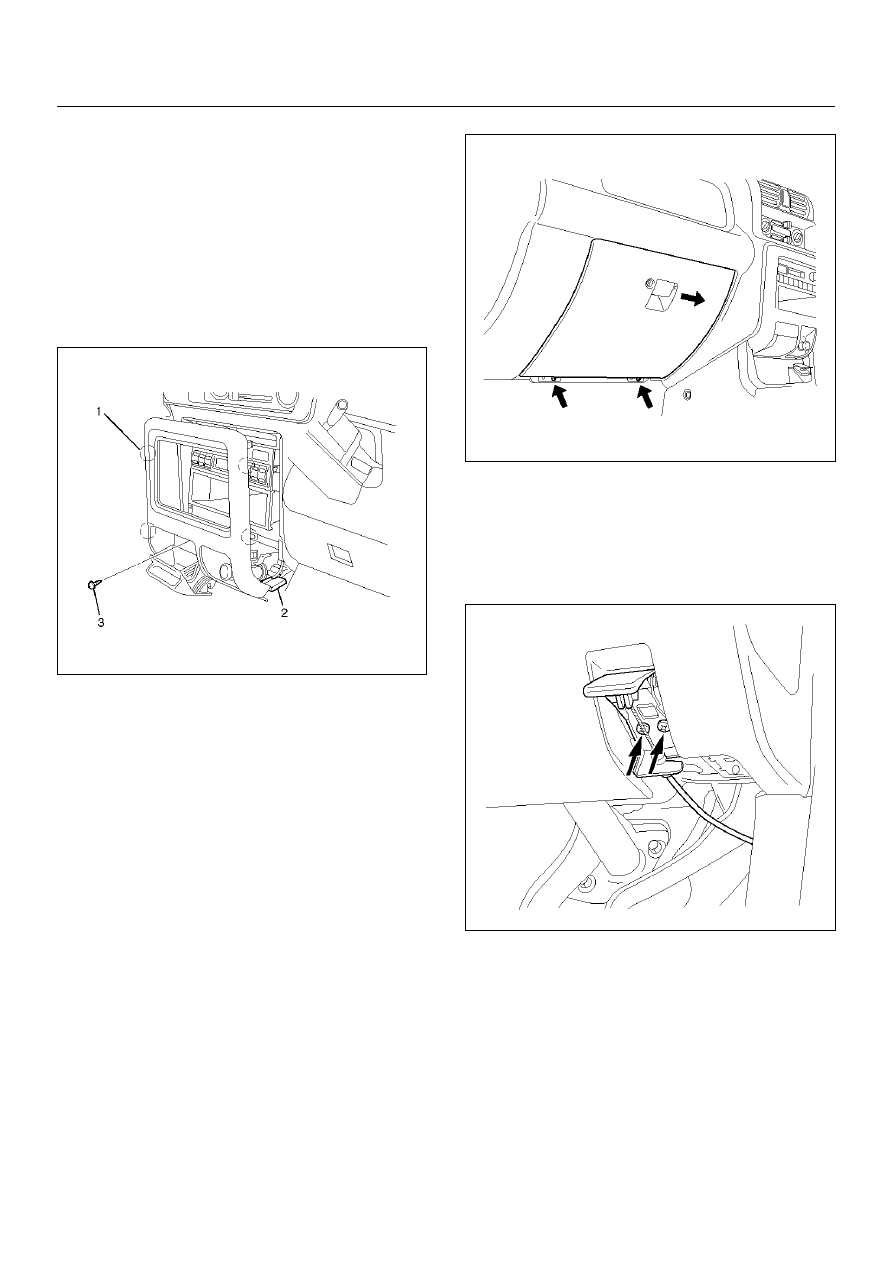

2. Remove the lower cluster assembly.

• Remove screw (3) and pull out the cluster at the

clip positions (1).

• Disconnect the cigarette lighter connectors (2).

470RW006

3. Remove the radio assembly and audio sub box.

• Refer to Radio in Entertainment section.

4. Remove the front and rear consoles.

• Refer to Consoles in Exterior/Interior Trim

section.

5. Remove the dash side trim panels.

• Remove the sill plates, then remove the trim

panels.

6. Remove the glove box.

• Remove the two fixing screws.

470RW007

7. Remove the instrument panel driver lower cover

assembly.

• Remove the engine hood opener two fixing

screws and another one fixing screw.
After four clips are pried, disconnect switch
connector and duct.

610RW023

8. Remove the meter cluster assembly.

• Remove the five fixing screws, two clips and

switch connectors.

9. Remove the meter assembly.

• Remove the four fixing screws and disconnect the

connectors.

10. Remove the driver knee bolster assembly.

• Remove the six fixing bolts and screw.

11. Remove the control lever assembly.

• Refer to Control Lever Assembly and/or Control

Cable in Heating, Ventilation and Air Conditioning
(HVAC) section.
