WIRING SYSTEM

Shift on the Fly System

General Description

The circuit consists of the starter switch, 4WD control
unit, actuator (transfer), 4WD switch, front axle vacuum
switching valve, front axle switch and 4WD indicator
(meter).
Refer to Driveline Control System (Shift on the Fly) in
Driveline/Axle.

8D–248

WIRING SYSTEM

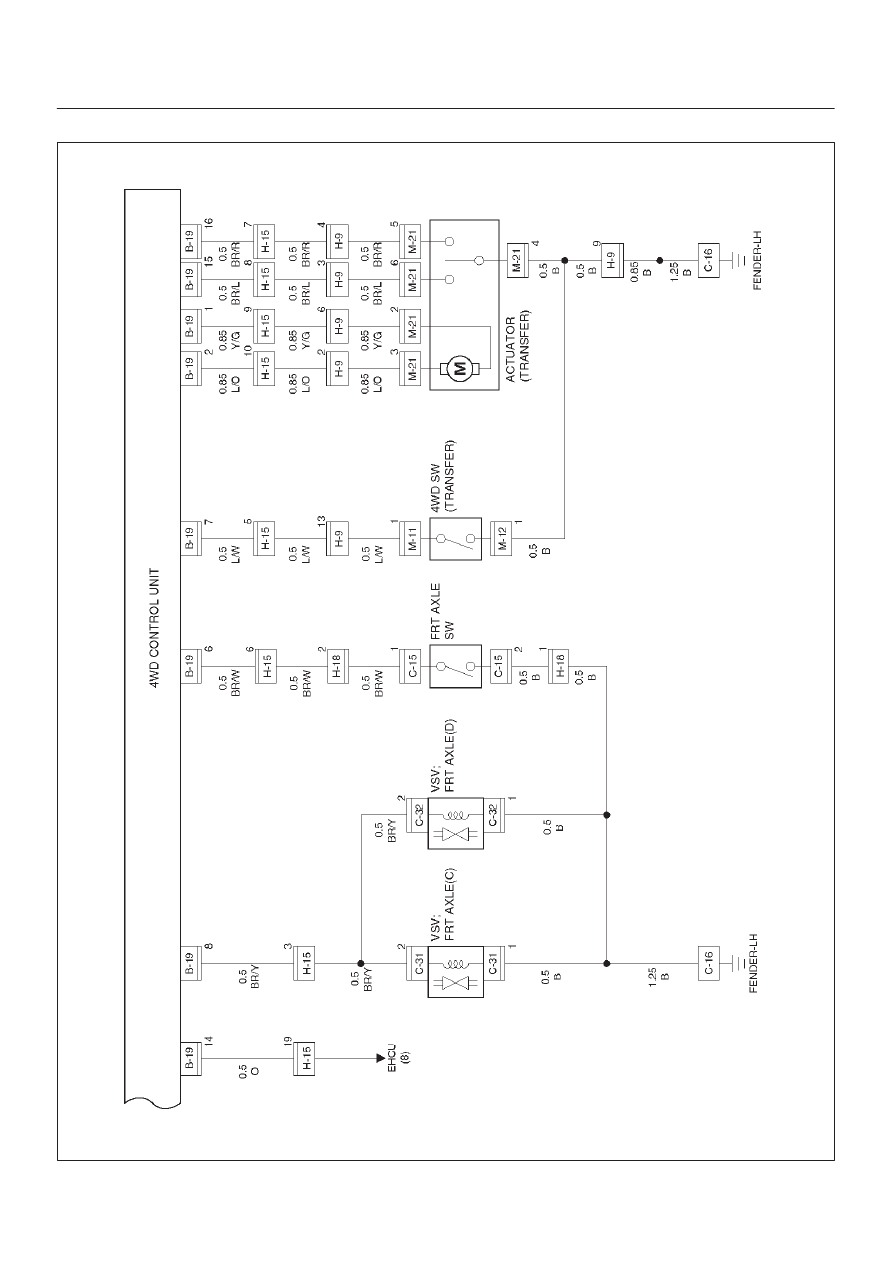

Circuit Diagram–1

D08RX272

8D–249

WIRING SYSTEM

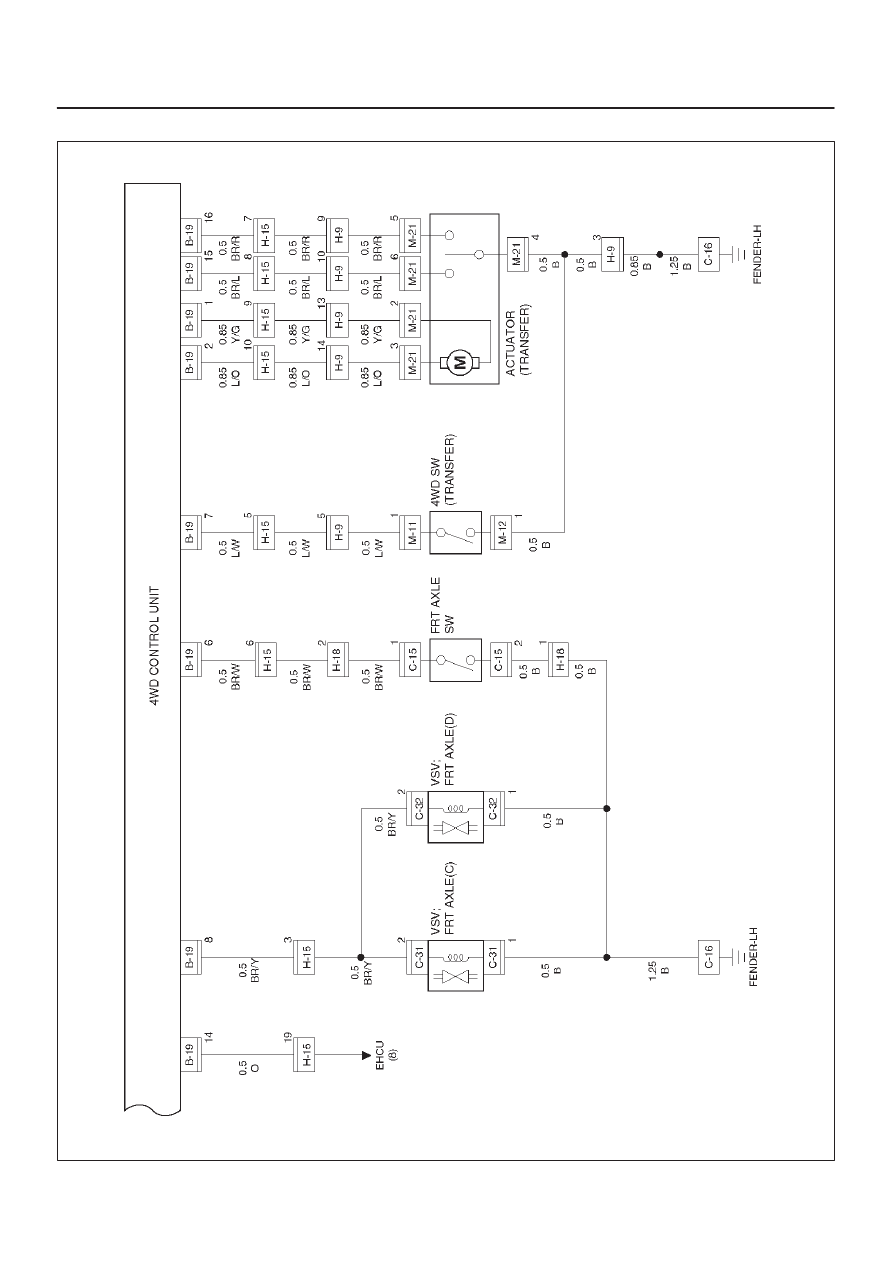

Circuit Diagram–2 (6VD1)

D08RX274

8D–250

WIRING SYSTEM

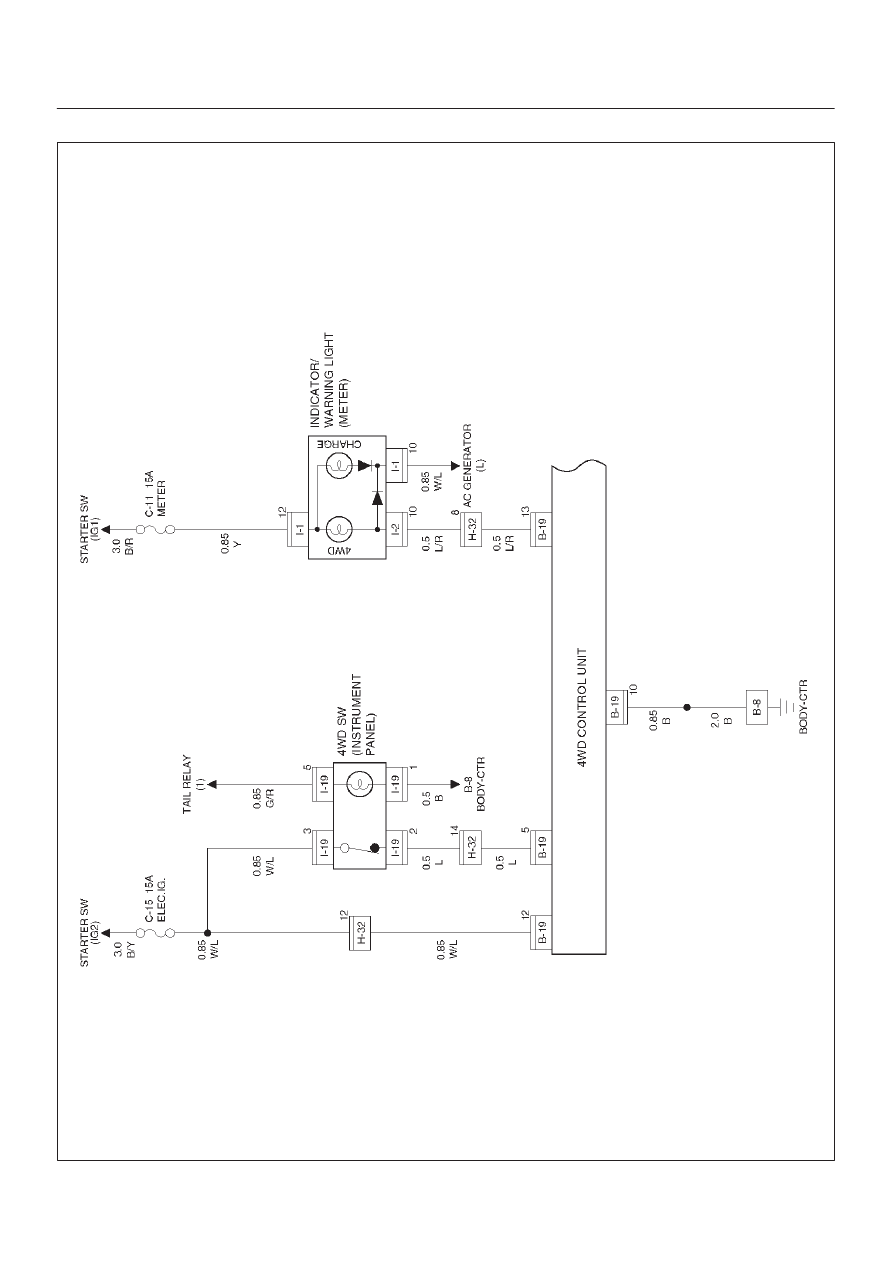

Circuit Diagram–2 (X22SE)

D08RX273
