WIRING SYSTEM

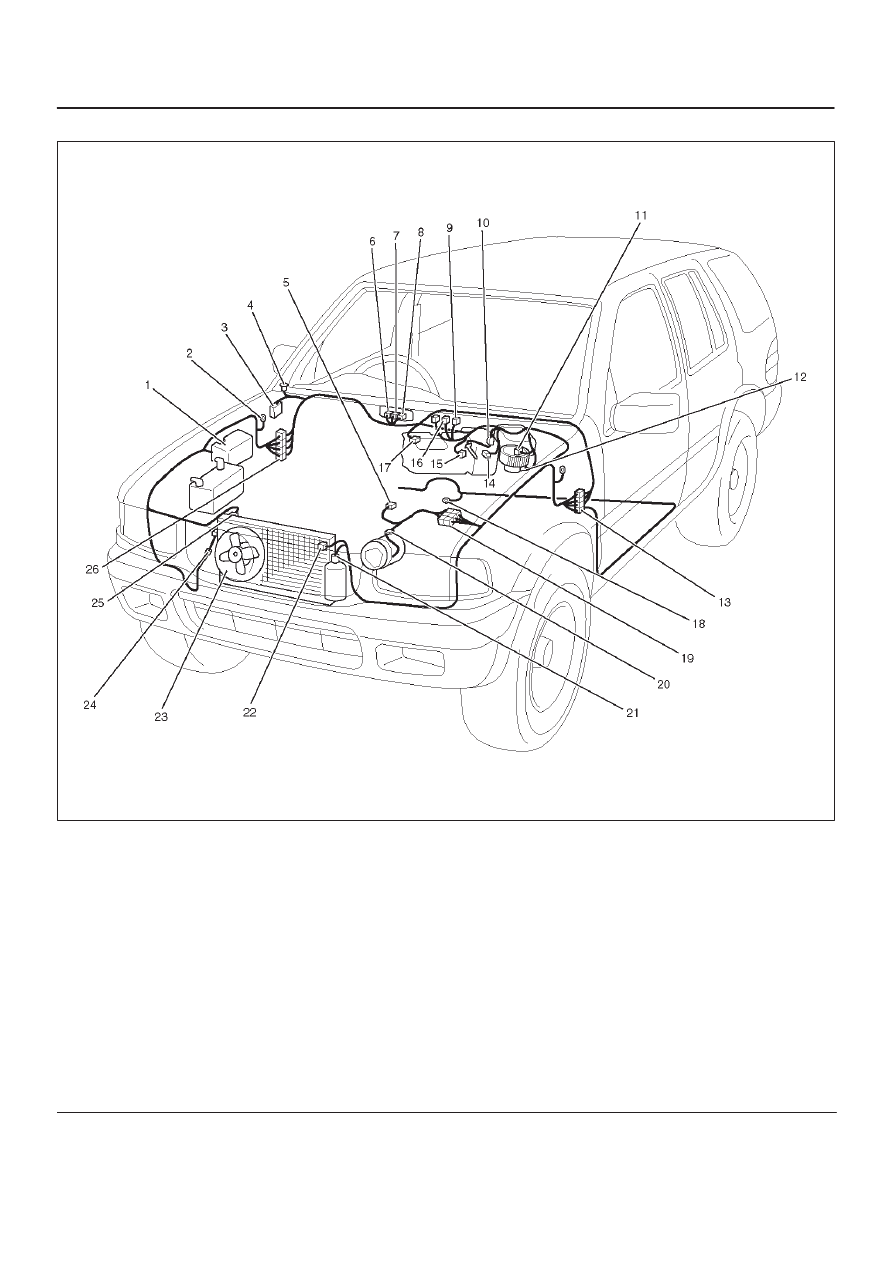

Parts Location

D08RX270

Legend

(1) Relay & Fuse Box (Engine Room)
(2) C–36
(3) Relay & Fuse Box (Instrument Panel)
(4) I–6
(5) E–19
(6) I–40
(7) I–20
(8) I–4
(9) C–45

(10) B–26

(11) B–25

(12) B–5
(13) H–15, H–16, H–17, H–31

(14) B–27
(15) B–18
(16) C–45
(17) C–48
(18) B–8
(19) H–6
(20) E–3
(21) C–11
(22) C–8
(23) Condenser Fan
(24) C–24
(25) C–7
(26) H–14, H–32

8D–240

WIRING SYSTEM

Sunroof

General Description

The circuit consists of the starter switch, sunroof switch,
sunroof control unit, limit switch, and sunroof motor.
When the sunroof switch is turned on, the battery voltage
is applied to the sunroof control unit through the circuit
breaker and the power window relay on the circuit.
Accordingly, when the sunroof switch is set to “Open” or
“Close” position, the open or close relay incorporated into
the control unit is activated to change the rotational
direction of the sunroof motor to open or close the
sunroof.
Also, the operational process (full close

→

 limit stop

→

 full

open

→

 safety stop

→

 full close) of the sunroof is

controlled by the control unit in accordance with signals
received from the sunroof switch and limit switch.

8D–241

WIRING SYSTEM

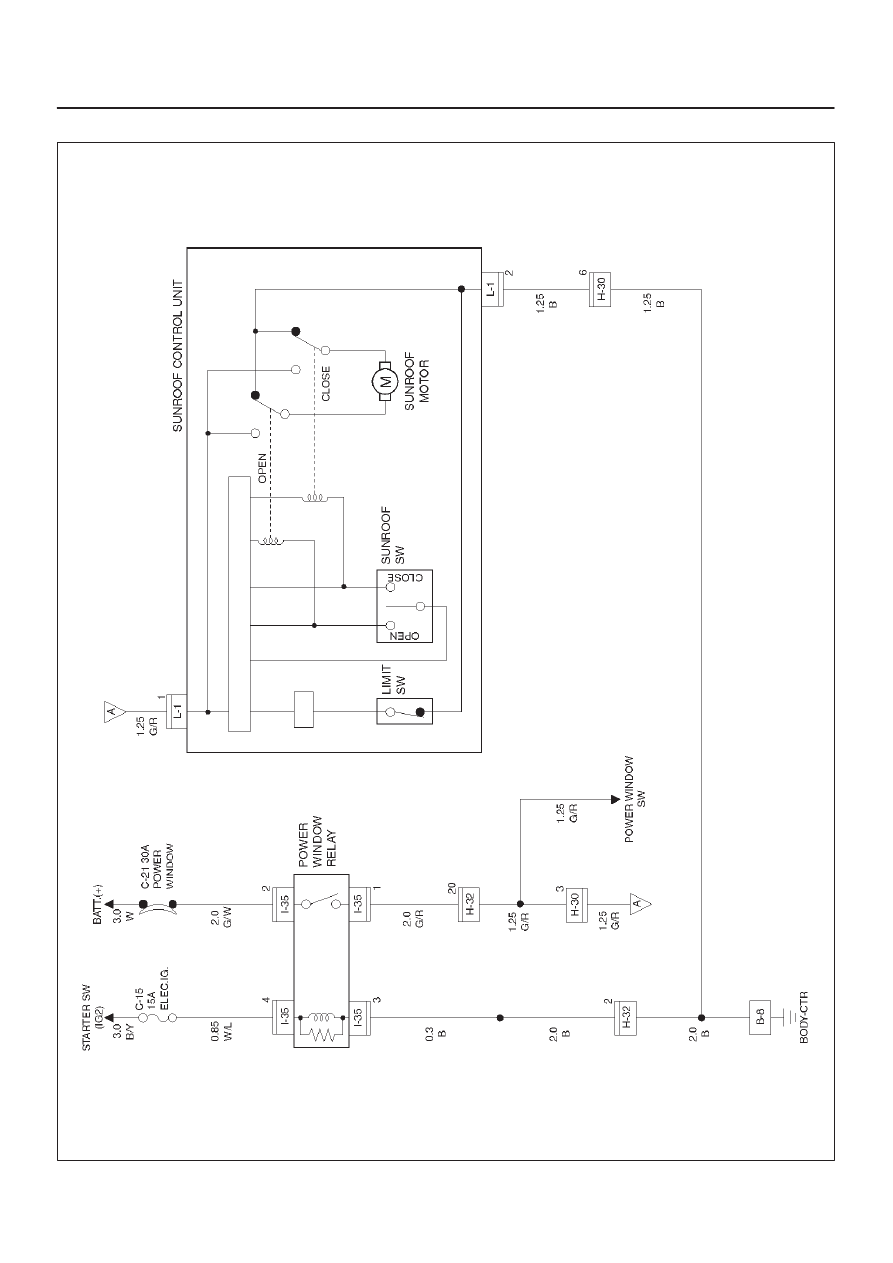

Circuit Diagram–1

D08RX269

8D–242

WIRING SYSTEM

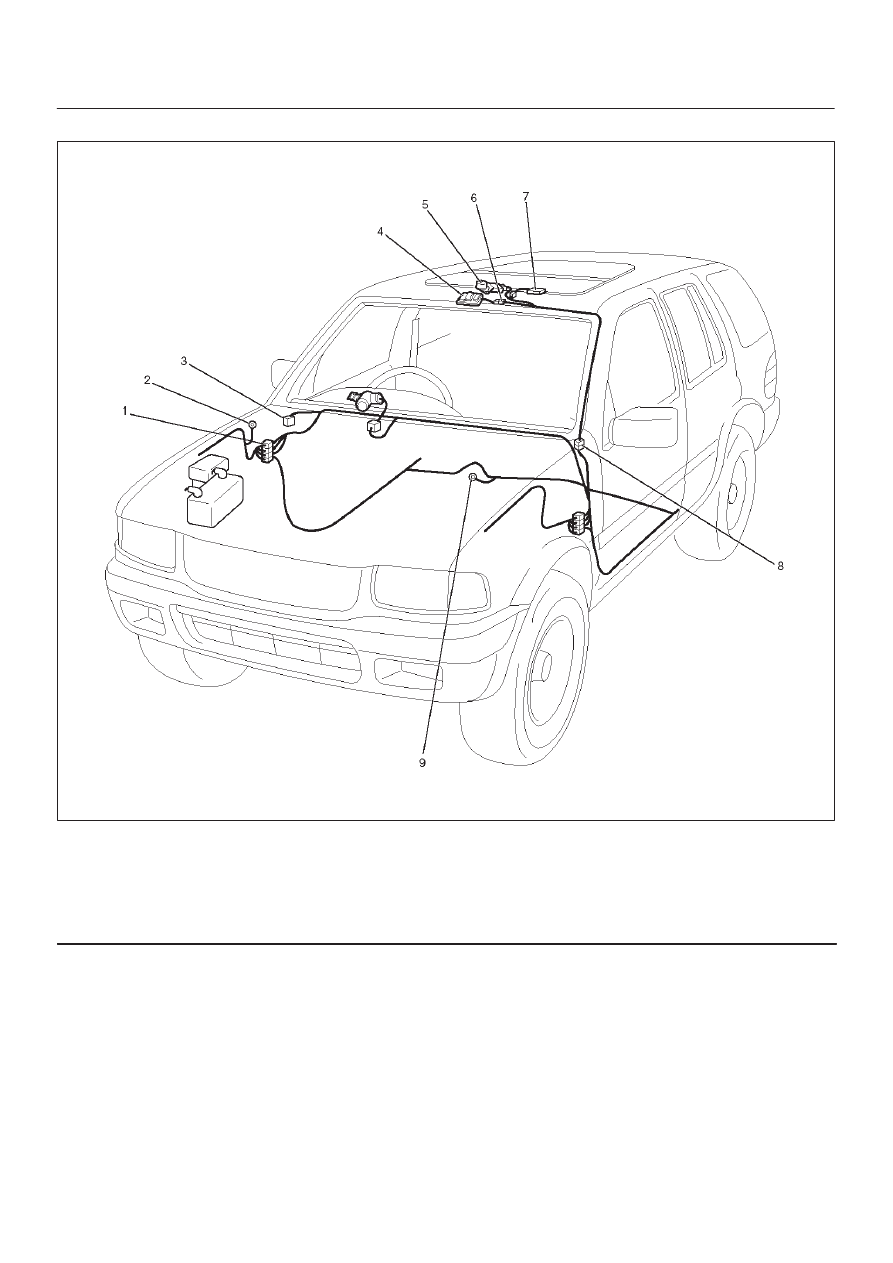

Parts Location

D08RWD23–1

Legend

(1) H–32
(2) C–36
(3) Relay & Fuse Box (Instrument Panel)
(4) Sunroof Switch

(5) Sunroof Motor
(6) L–1
(7) Sunroof Control Unit
(8) H–30
(9) B–8
