8D–199

WIRING SYSTEM

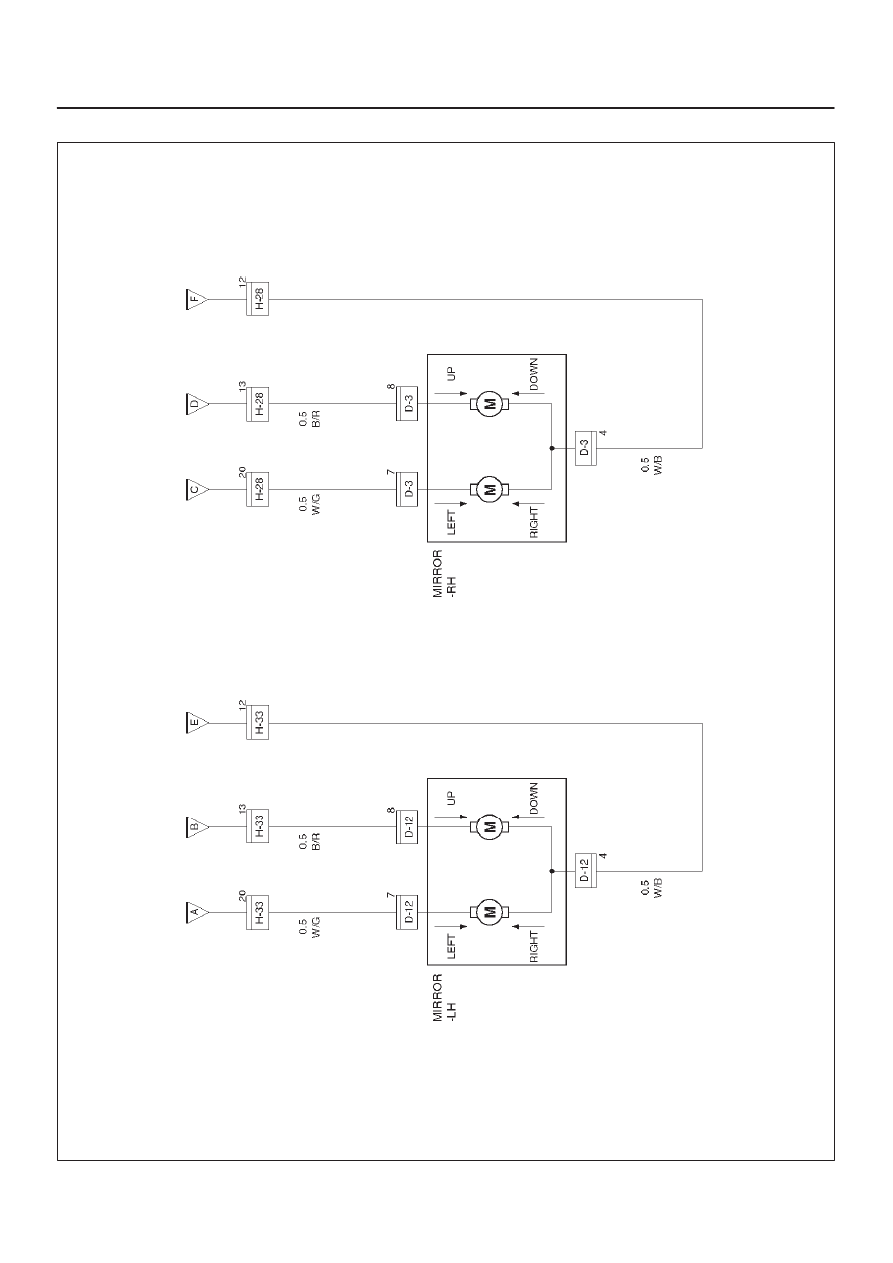

Circuit Diagram–2

D08RX247

8D–200

WIRING SYSTEM

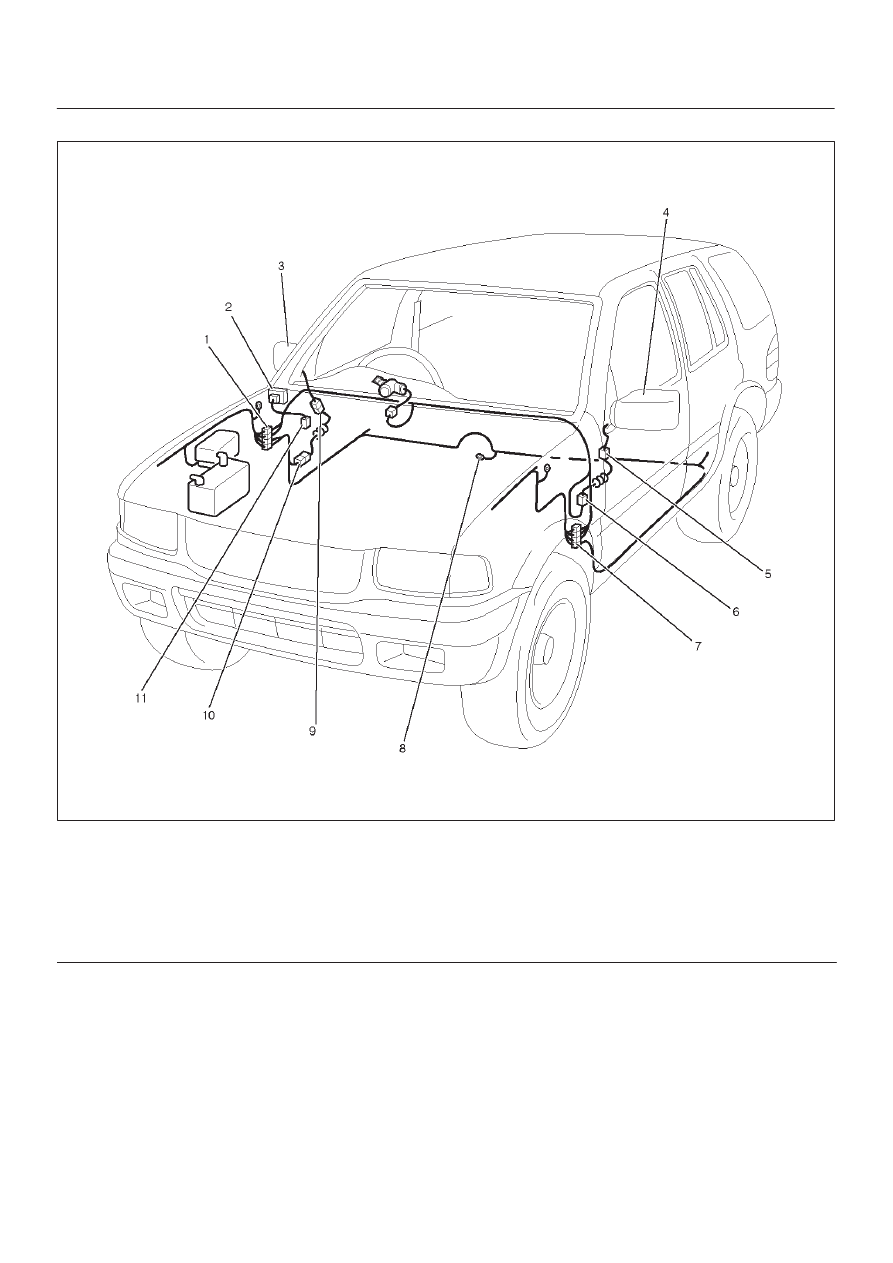

Parts Location

D08RX248

Legend

(1) H–19
(2) I–12
(3) Door Mirror – RH
(4) Door Mirror – LH
(5) D–12

(6) H–33
(7) H–31
(8) B–8
(9) D–3

(10) H–28

(11) Relay & Fuse Box (Instrument Panel)

8D–201

WIRING SYSTEM

Diagnosis

Mirrors On Both Sides Do Not Operate

Step

Action

Value(s)

Yes

No

1

Is the fuse C–2 normal?

—

Go to Step 2

Replace the

fuse

2

Is the B–8 ground securely?

—

Go to Step 3

Ground it

securely

3

Disconnect the mirror control switch connector I–12.

Is the battery voltage applied between the harness side
connector I–12 terminal 2 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the fuse C–2 and
connector I–12 terminal 2.

Is the action complete?

—

Go to Step 3

—

5

Is there continuity between the harness side connector
I–12 terminal 6 and the ground?

—

Go to Step 7

Go to Step 6

6

Repair an open circuit between connector I–12
terminal 6 and mirror.

Is the action complete?

—

Verify repair

—

7

Repair or replace the mirror control switch.

Is the action complete?

—

Verify repair

—

Mirrors On the Left (or Right) Side Does Not Operate

Step

Action

Value(s)

Yes

No

1

Disconnect the mirror control switch connector I–12
and mirror connector D–12 or D–3.

Is there continuity between the harness side connector
I–12 terminal 6 and connector D–12 or D–3 terminal 4?

—

Go to Step 3

Go to Step 2

2

Repair an open circuit between connector I–12
terminal 6 and connector D–12 or D–3 terminal 4?

Is the action complete?

—

Go to Step 1

—

3

Connect the battery positive terminal to the mirror side
connector terminal 4, and the battery negative terminal
to the mirror side connector terminal 7 or 8.

Dose the mirror operate?

—

Repair or

replace the

mirror control

switch

Replace the

mirror

Mirrors On Both Sides Operate Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

Repair or replace the door mirror control switch.

Is the action complete?

—

Verify repair

–

8D–202

WIRING SYSTEM

Mirror On Left (or Right) Sides Operate Only In The Vertical (Or Horizontal) Direction

Step

Action

Value(s)

Yes

No

1

1. Disconnect the mirror connector D–12 or D–3.
2. Connector the battery positive terminal to the mirror

connector terminal 4, and the battery negative
terminal to the mirror connector terminal 7 or 8.

Does the mirror operate?

—

Go to Step 2

Replace the

mirror

2

Is there continuity between the harness side connector
I–12 terminal 7 and connector D–12 terminal 7
(connector I–12 terminal 4 and connector D–12
terminal 8, connector I–12 terminal 8 and connector
D–3 terminal 7, connector I–12 terminal 5 and
connector D–3 terminal 8)?

—

Go to Step 4

Go to Step 3

3

Repair an open circuit between the mirror control
switch and the mirror –LH or –RH

Is the action complete?

—

Verify repair

4

Repair or replace the mirror control switch.

Is the action complete?

—

Verify repair
