Opel Frontera UE. Manual - part 1121





8D–195

WIRING SYSTEM

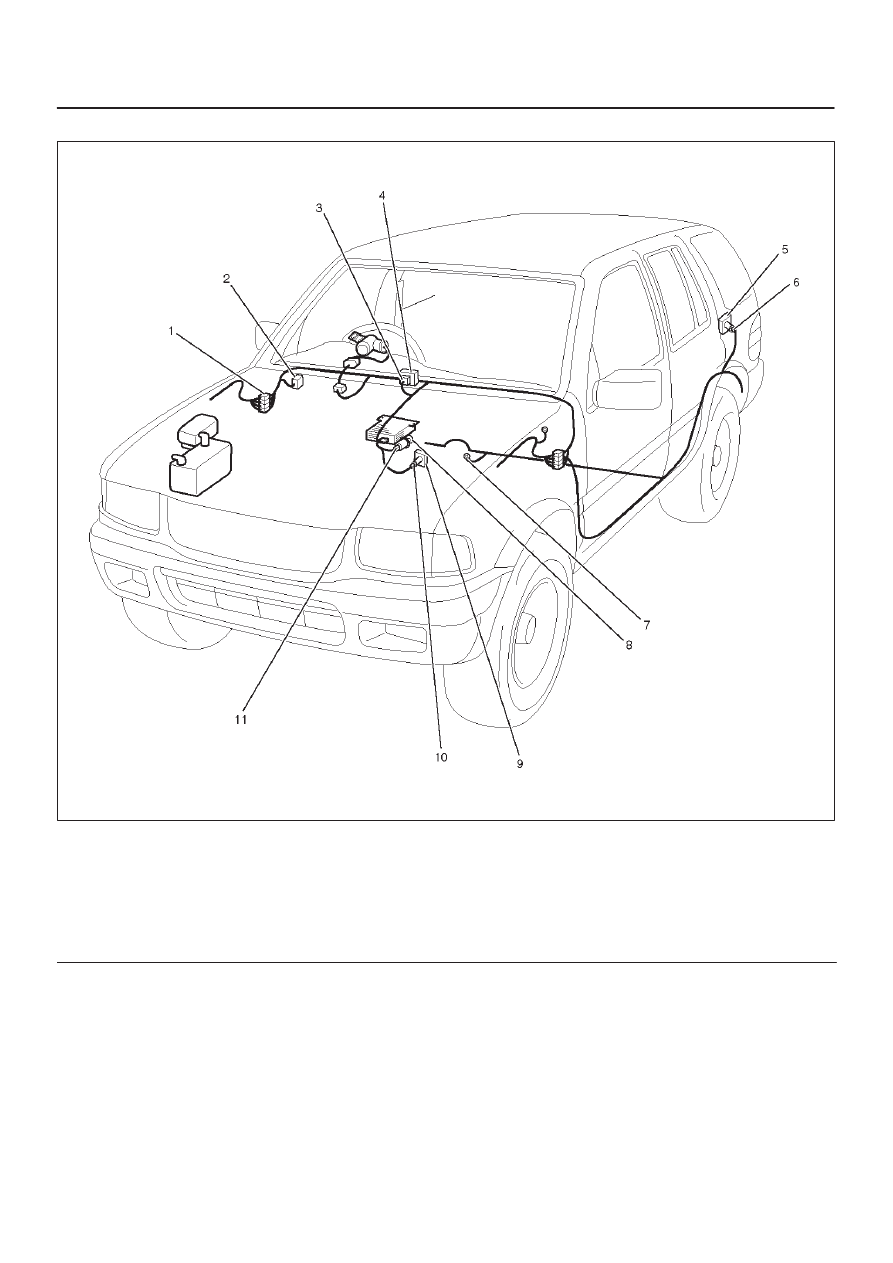

Parts Location

D08RWD08–1

Legend

(1) H–32
(2) Relay & Fuse Box (Instrument Panel)
(3) I–27
(4) Digital Clock
(5) Rear Accessory Socket

(6) B–14, B–15
(7) B–8
(8) Cigarette Lighter
(9) Front Accessory Socket

(10) I–28, I–29

(11) I–21, I–22

8D–196

WIRING SYSTEM

Diagnosis

Cigarette Lighter Does Not Work

Step

Action

Value(s)

Yes

No

1

Is the fuse C–3 normal?

Go to Step 2

Replace the

fuse

2

Is B–8 grounded securely?

Go to Step 3

Ground it

securely

3

1. Disconnect the cigarette lighter connector I–22.
2. Turn the starter switch to the ACC or ON position.

Is the battery voltage applied between harness side
connector I–22 terminal 1 and the ground?

Approx. 12V

Go to Step 5

Go to Step 4

4

Repair an open circuit between the fuse C–3 and
connector I–22 terminal 1.

Is the action complete?

Go to Step 3

5

Disconnect the cigarette lighter connector I–21.

Is there continuity between harness side connector
I–21 terminal 1 and the ground B–8?

Repair or

replace the

cigarette

lighter

assembly

Go to Step 6

6

Repair an open circuit between connector I–21
terminal 1 and the ground B–8.

Is the action complete?

Verify repair

Cigarette Lighter Does Not Spring Out After Being Heated

Step

Action

Value(s)

Yes

No

1

Repair or replace the cigarette lighter.

Is the action complete?

Verify repair

8D–197

WIRING SYSTEM

Power Door Mirror

General Description

The system consists of the starter switch, the mirror
control switch, and door mirrors on both sides.
When the mirror control switch is operated with the starter
switch at either “ACC” or “ON” position, the motor in the
door mirror (on either side) rotates to allow the horizontal
and vertical adjustment of mirror angles.

8D–198

WIRING SYSTEM

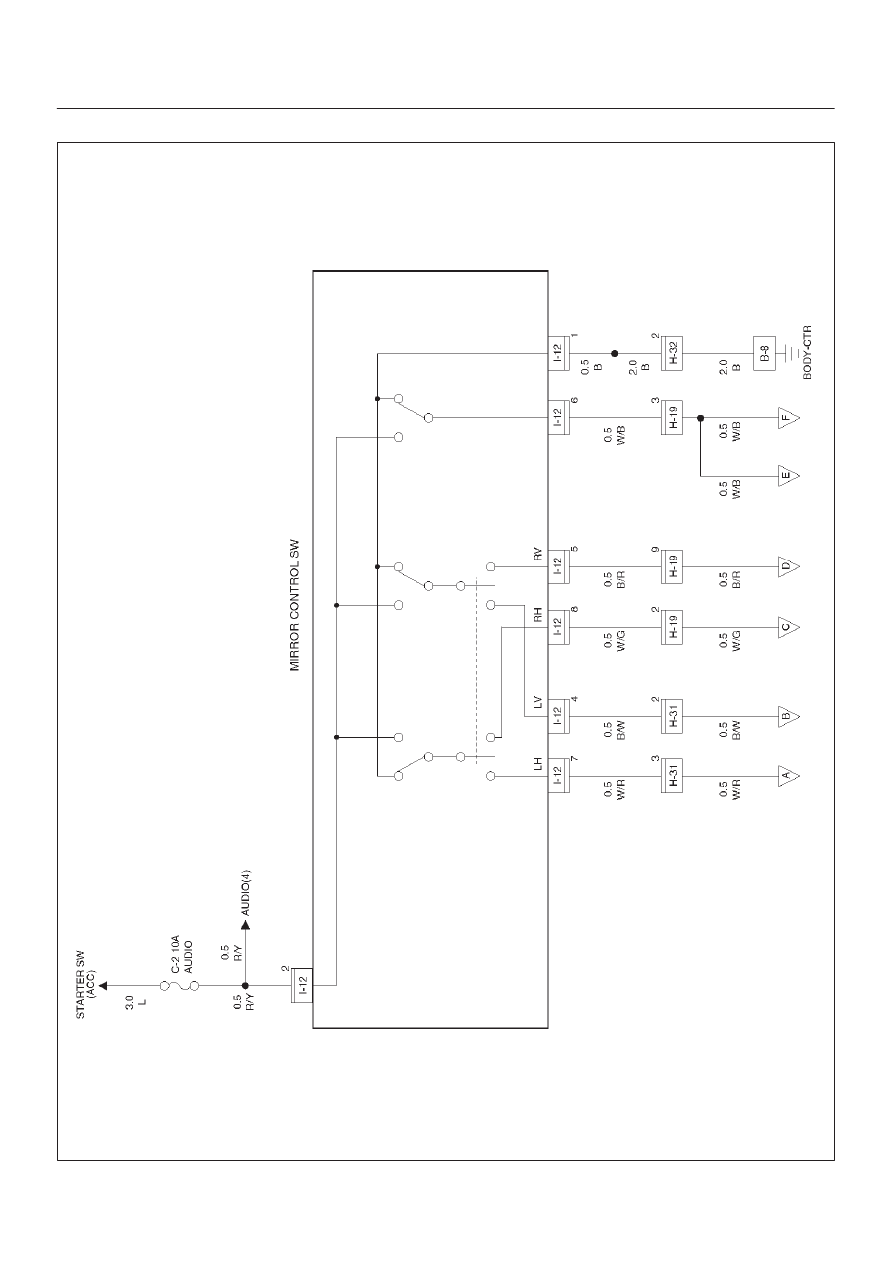

Circuit Diagram–1

D08RW246
