Opel Frontera UE. Manual - part 1069





8B–10

WIPER/WASHER SYSTEM

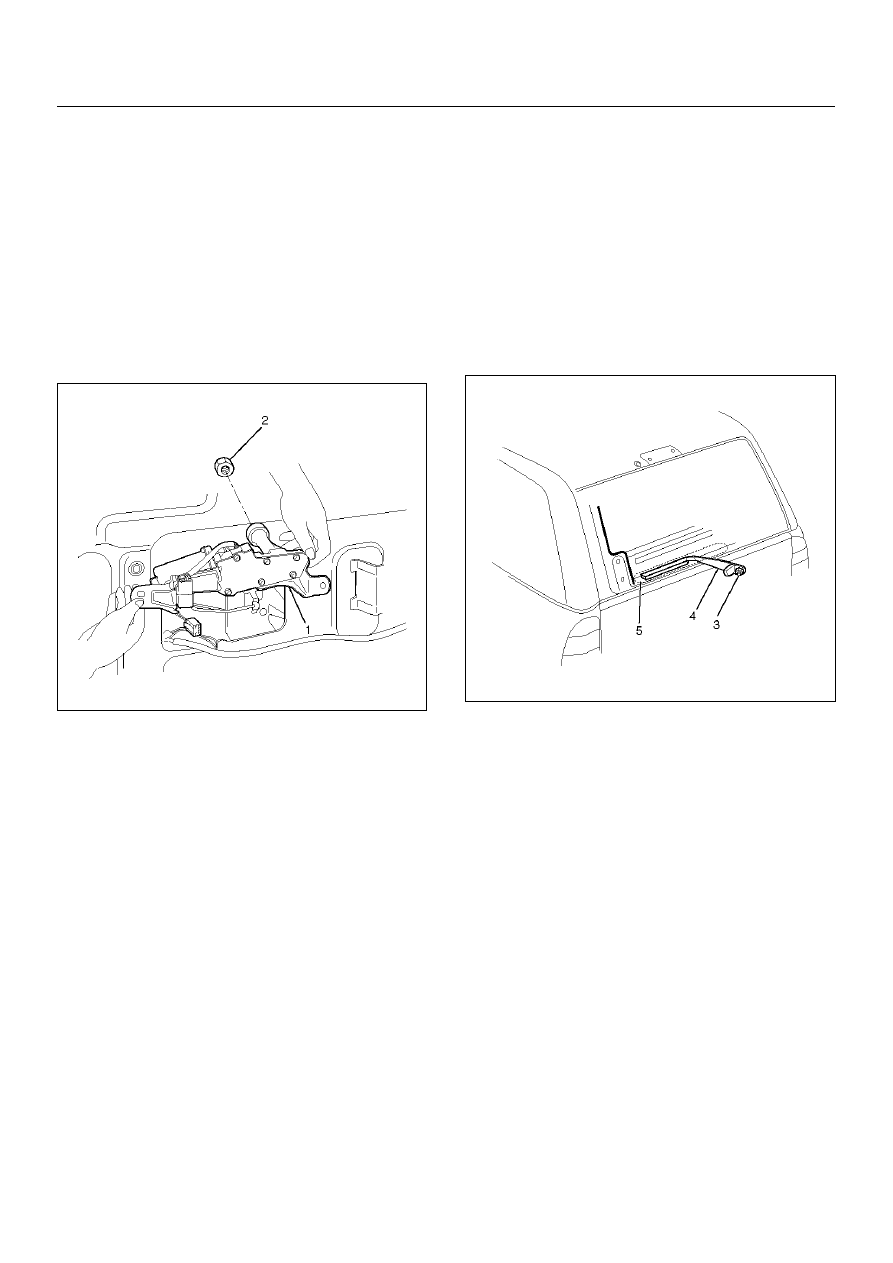

Rear Wiper Motor (2Door Model)

Removal

1. Disconnect the battery ground cable.

2. Remove the tailgate trim pad.

3. Remove the wiper arm/blade.

Refer to Rear Wiper Arm/Blade in section.

4. Remove the rear wiper motor (1).

• Disconnect the connector.

• Remove the rear wiper shaft nut and the rear

wiper motor fixing screws.

885RW001-1

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Before installing the wiper arm/blade to the motor

shaft, confirm that the motor stops at the autostop
position.

2. Install the wiper arm/blade (4) on the hatch gate as

shown in the figure.

• Wiper blade is set on defogger line (5).

885RX004-1

3. Tighten the motor shaft nut (2) to the specified

torque.

Torque:  6 N·m (0.6kg·m/52 lbin)

4. Tighten the wiper arm nut (3) to the specified

torque.

Torque:  9 N·m (0.9kg·m/78 lbin)

WIPER/WASHER SYSTEM

8B–11

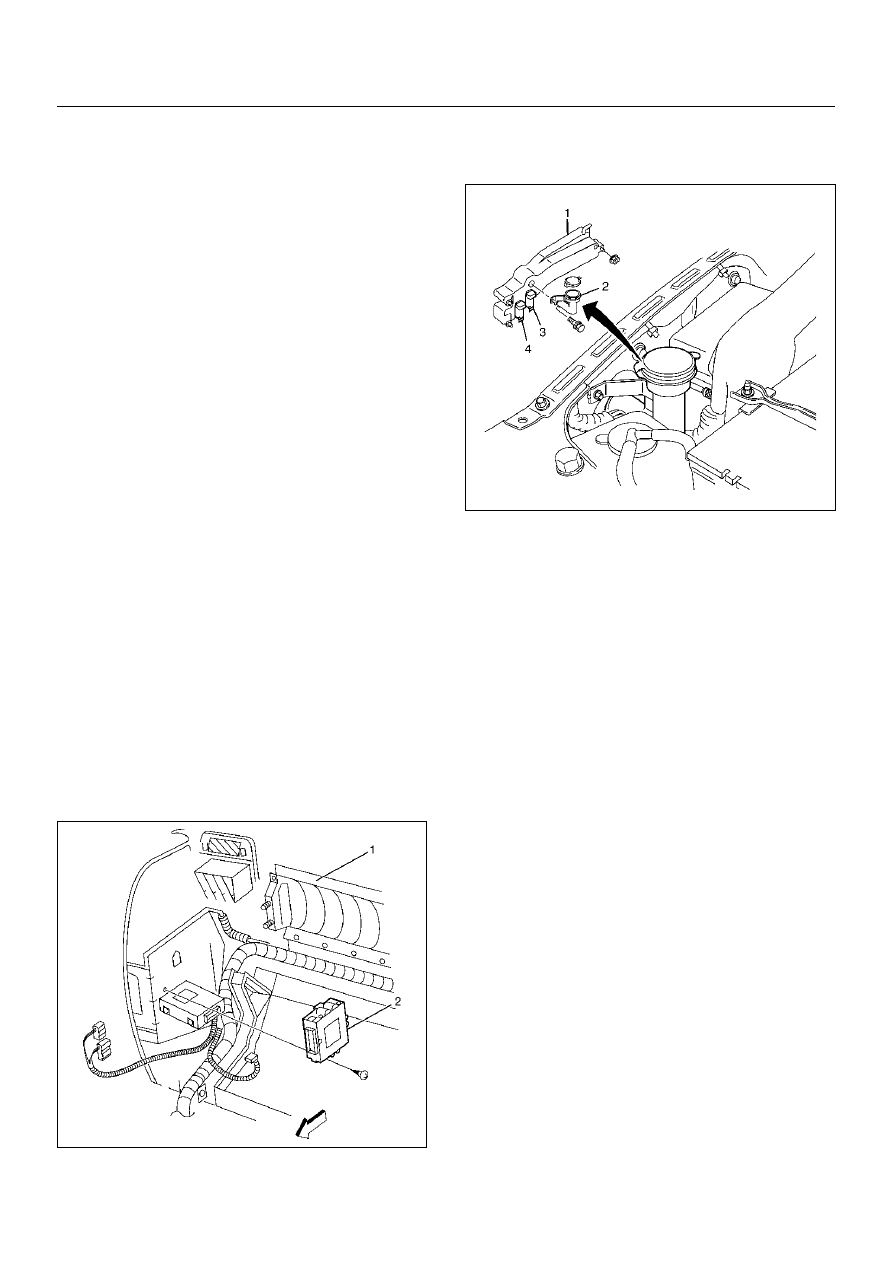

Rear Washer Motor

Removal

1. Disconnect the battery ground cable.

2. Remove the fender inner liner (right side).

3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

5. Remove the filler neck (2).

• Remove the bolt.

6. Remove the washer tank (1).

• Remove the three nuts.

7. Pull out the rear washer motor (3) from the washer

tank.

880RW028

Installation

To install, follow the removal steps in the reverse order.

Alarm and Relay Control Unit

Removal

1. Disconnect the battery ground cable.

2. Remove the instrument panel (1).

3. Remove the alarm and relay control unit (2).

• Remove the fixing screw and disconnect the

connector.

826RW039

Installation

To install, follow the removal steps in the reverse order.

8B–12

WIPER/WASHER SYSTEM

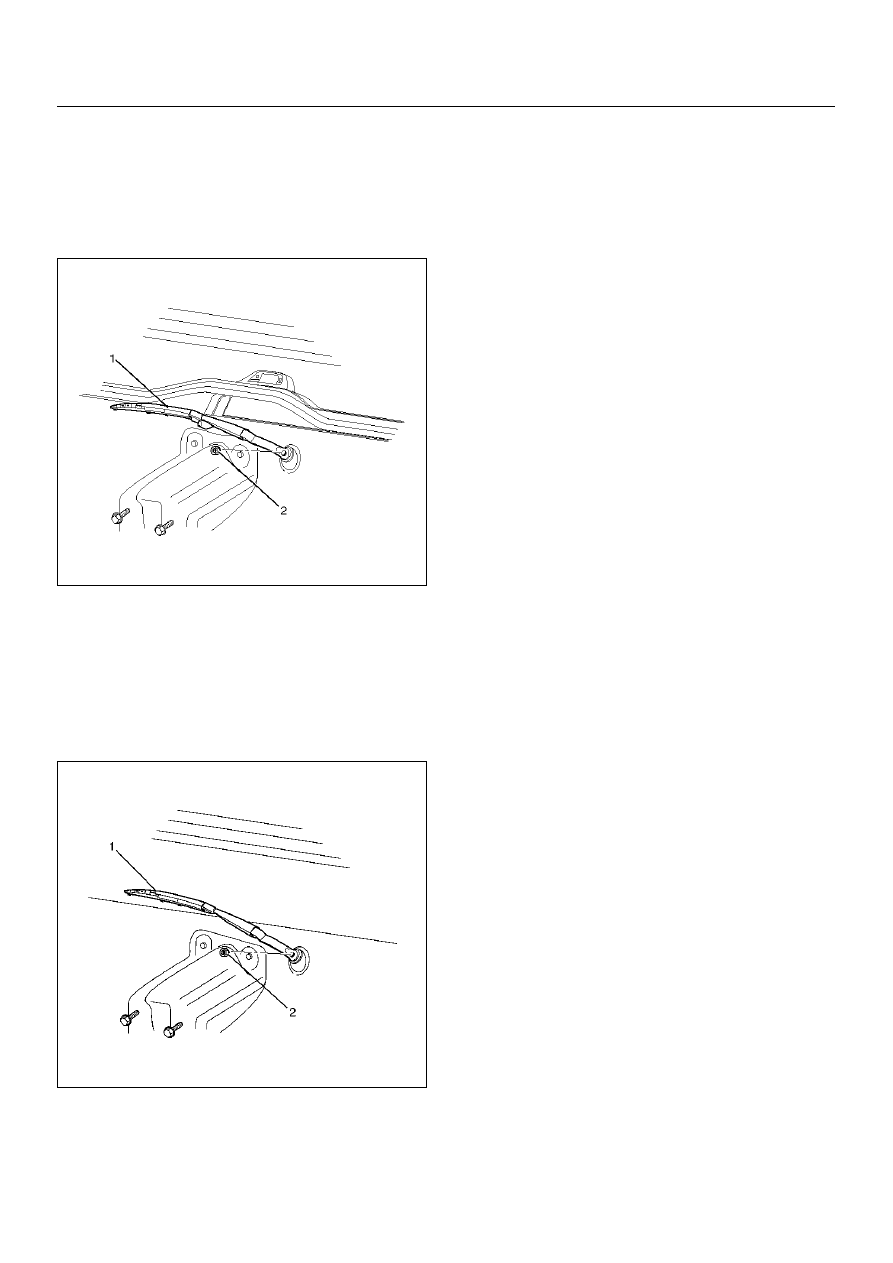

Rear Wiper Arm/Blade (4Door Model)

Removal

1. Remove the arm nut(2).

2. Remove the wiper arm/blade(1).

885RW007

Installation

Refer to Rear Wiper Motor (4door Model) in this section.

Rear Wiper Arm/Blade (2Door Model)

Removal

1. Remove the arm nut(2).

2. Remove the wiper arm/blade(1).

885RX003

Installation

Refer to Rear Wiper Motor (2door Model) in this section.

WIPER/WASHER SYSTEM

8B–13

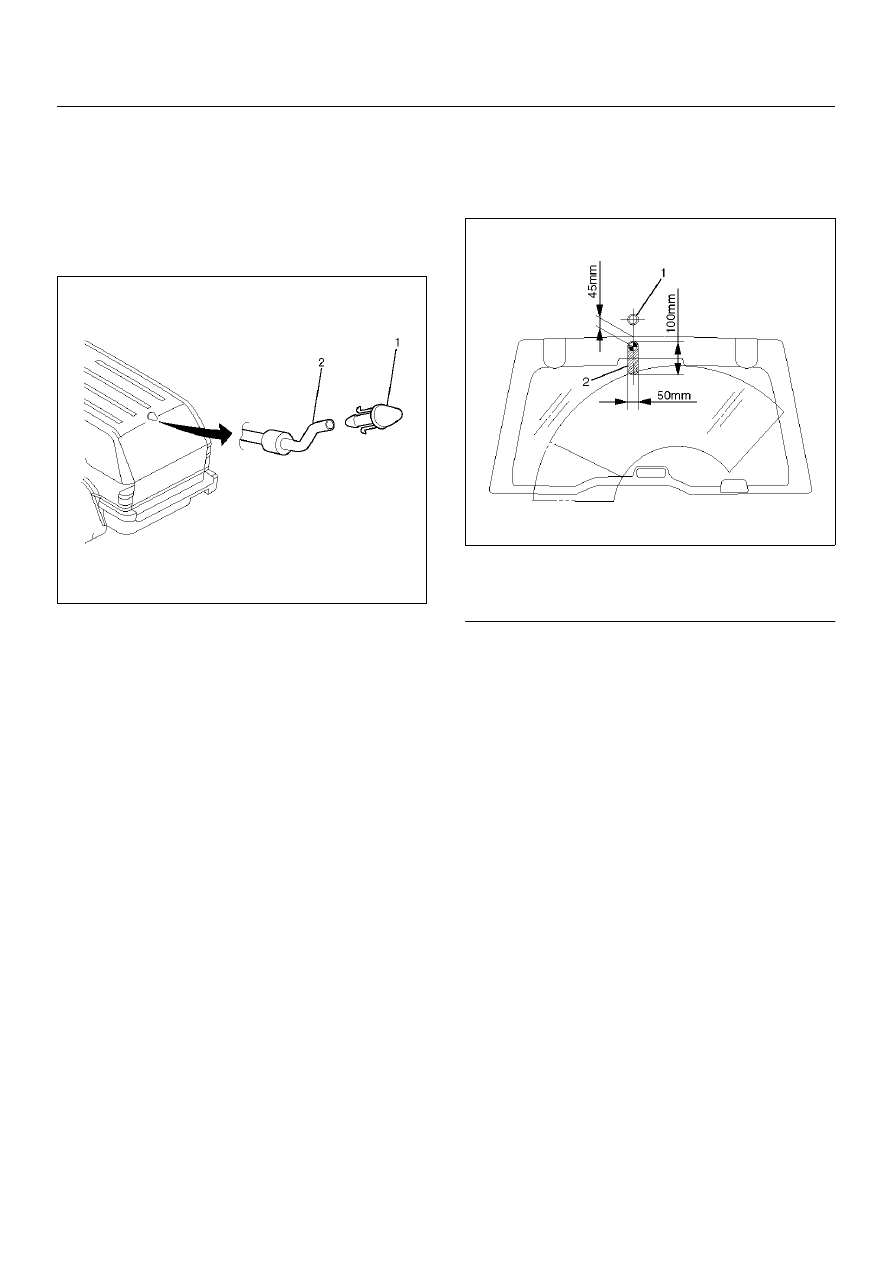

Rear Washer Nozzle (4Door Model)

Removal

1. Remove the washer nozzle(1).

• Pull out the washer nozzle from the washer hose

(2).

885RW003

Installation

To install, follow the removal steps in the reverse order.

Rear Washer Spray Pattern

885RW013

Legend

EndOFCallout

(1) Washer Nozzle
(2) Spray Target
