Opel Frontera UE. Manual - part 1067





8B–2

WIPER/WASHER SYSTEM

Windshield Wiper/Washer System

General Description

The circuit consists of the starter switch, windshield
wiper & washer switch, windshield wiper motor,
windshield  washer motor and alarm & relay control unit.
When the windshield wiper & washer switch is turned on

with the starter switch on, the battery voltage is applied
to  the wiper motor to activate the wiper.
The washer motor squirts glass cleaning fluid while the
washer switch is being pushed.  The alarm & relay
control unit relay is  used to control motion of the wiper.

Windshield Wiper And Washer Switch

Removal and Installation

Refer to  Combination Switch in Steering section.

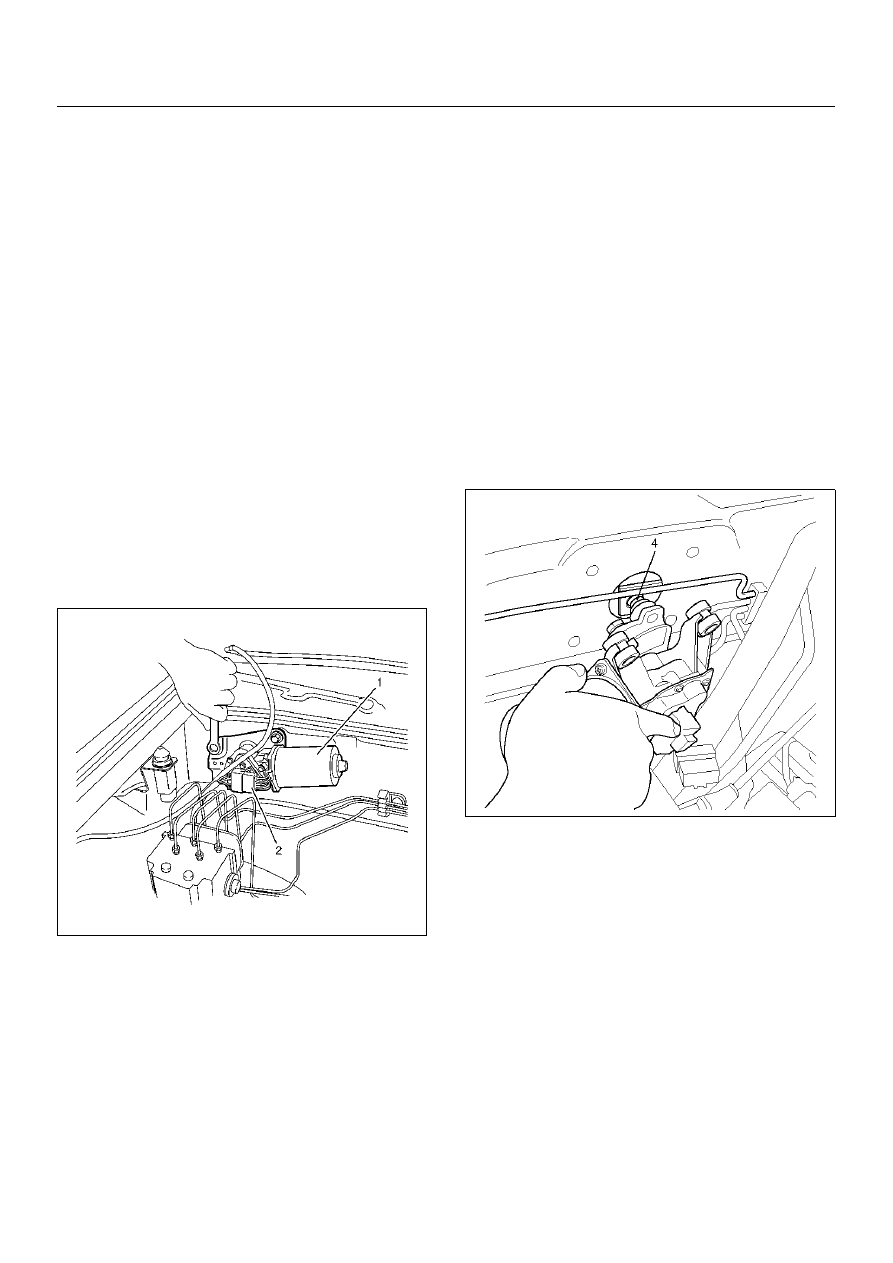

Windshield Wiper Motor

Removal

1. Disconnect the battery ground cable.

2. Disconnect the connector (2).

3. Remove 4 mounting bolts (3).

4. Remove the windshield wiper motor(1).

880RW002

5. Remove the crank arm fixing ball (4).

880RX011

Installation

To install, follow the removal steps in the reverse order.

WIPER/WASHER SYSTEM

8B–3

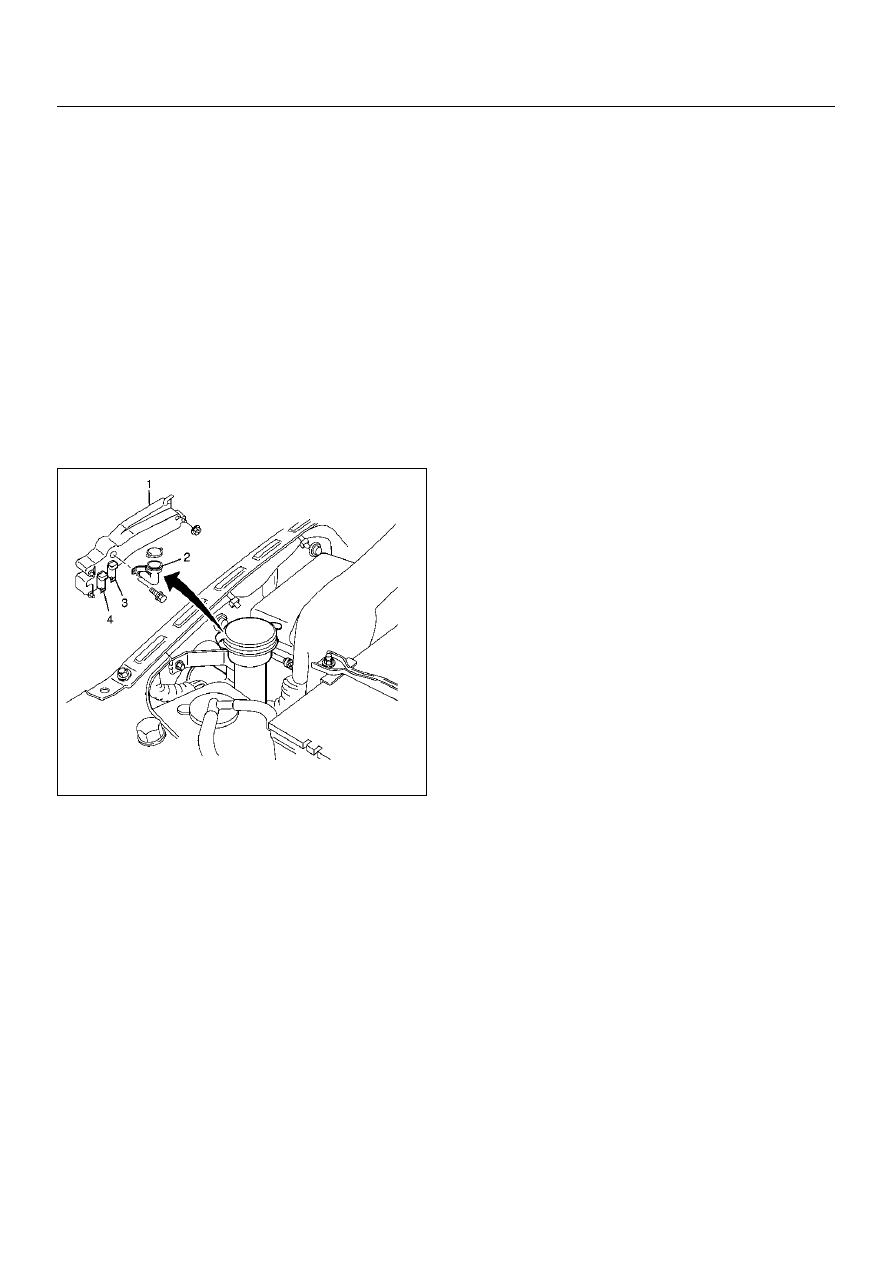

Windshield Washer Motor

Removal

1. Disconnect the battery ground cable.

2. Remove the fender inner liner (right side).

3. Disconnect the windshield washer motor connector

and the rear washer motor connector.

4. Disconnect the windshield washer hose connector

and the rear washer hose connector.

5. Remove the filler neck (2).

• Remove the bolt.

6. Remove the washer tank (1).

• Remove the three nuts.

7. Pull out the windshield washer motor (4) from the

washer tank.

880RW028

Installation

To install, follow the removal steps in the reverse order.

8B–4

WIPER/WASHER SYSTEM

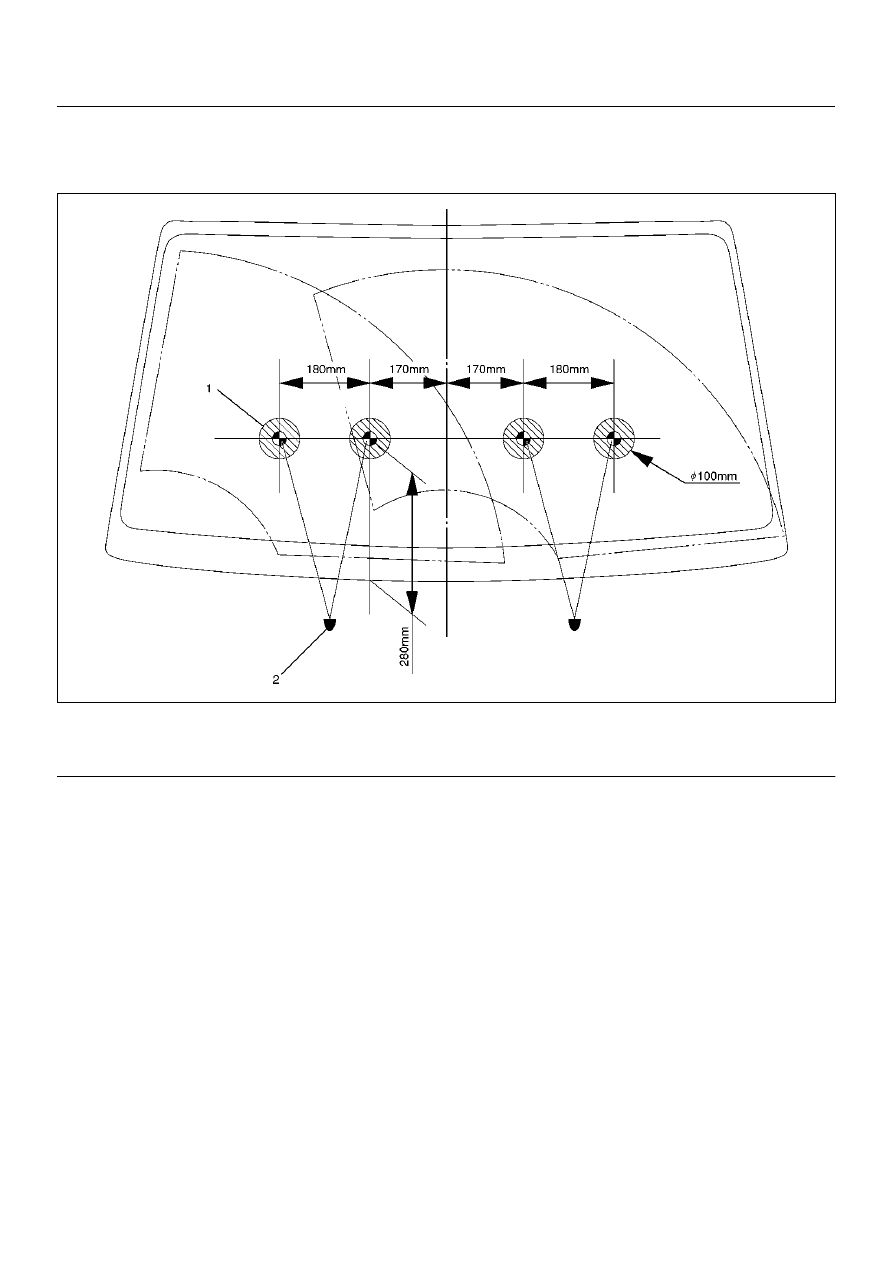

Windshield Washer Spray Pattern

880RW024

Legend

EndOFCallout

(1) Spray Target
(2) Washer Nozzle

WIPER/WASHER SYSTEM

8B–5

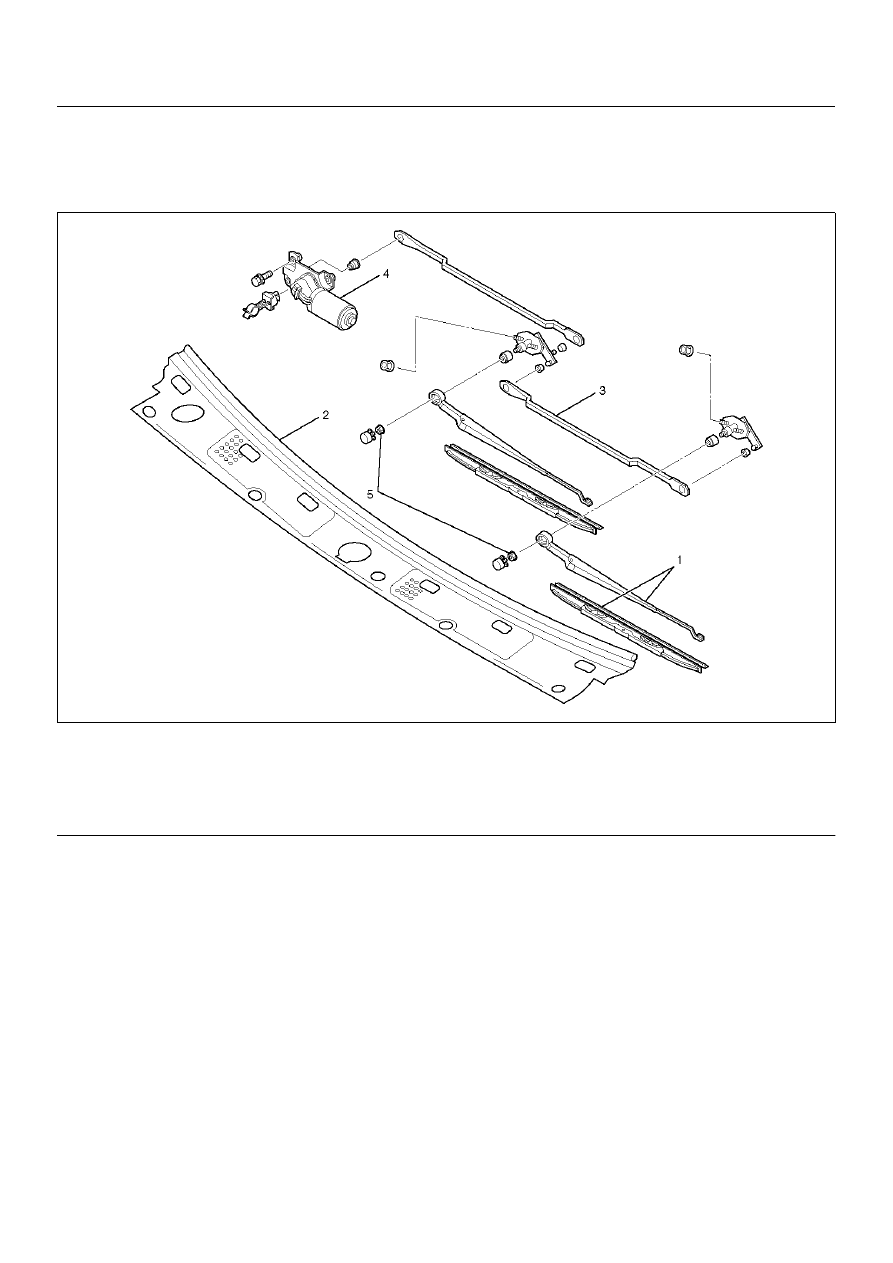

Windshield Wiper Linkage

Windshield Wiper Linkage and Associated Parts

880RW026-1

Legend

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the windshield wiper arm/blade.

3. Remove the vent cowl cover.

4. Remove the windshield wiper motor.

5. Remove the pivot assembly mounting nuts, fixing

screws.

6. Take out the windshield wiper linkage assembly

from the opening of the cowl.

Installation

To install, follow the removal steps in the reverse order.

(1) Windshield Wiper Arm/Blade
(2) Vent Cowl Cover
(3) Windshield Wiper Linkage Assembly

(4) Windshield Wiper Motor
(5) Windshield Wiper Arm Nut
