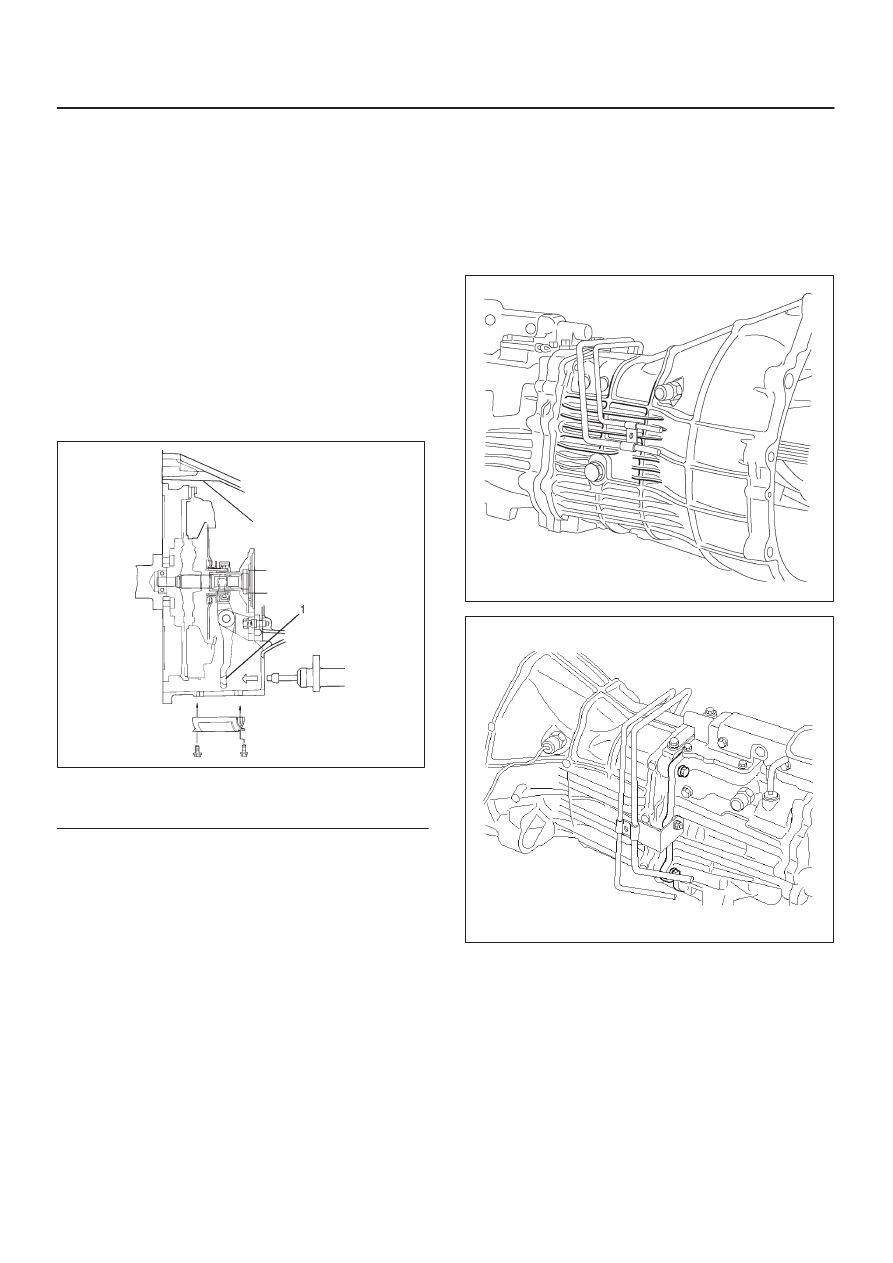

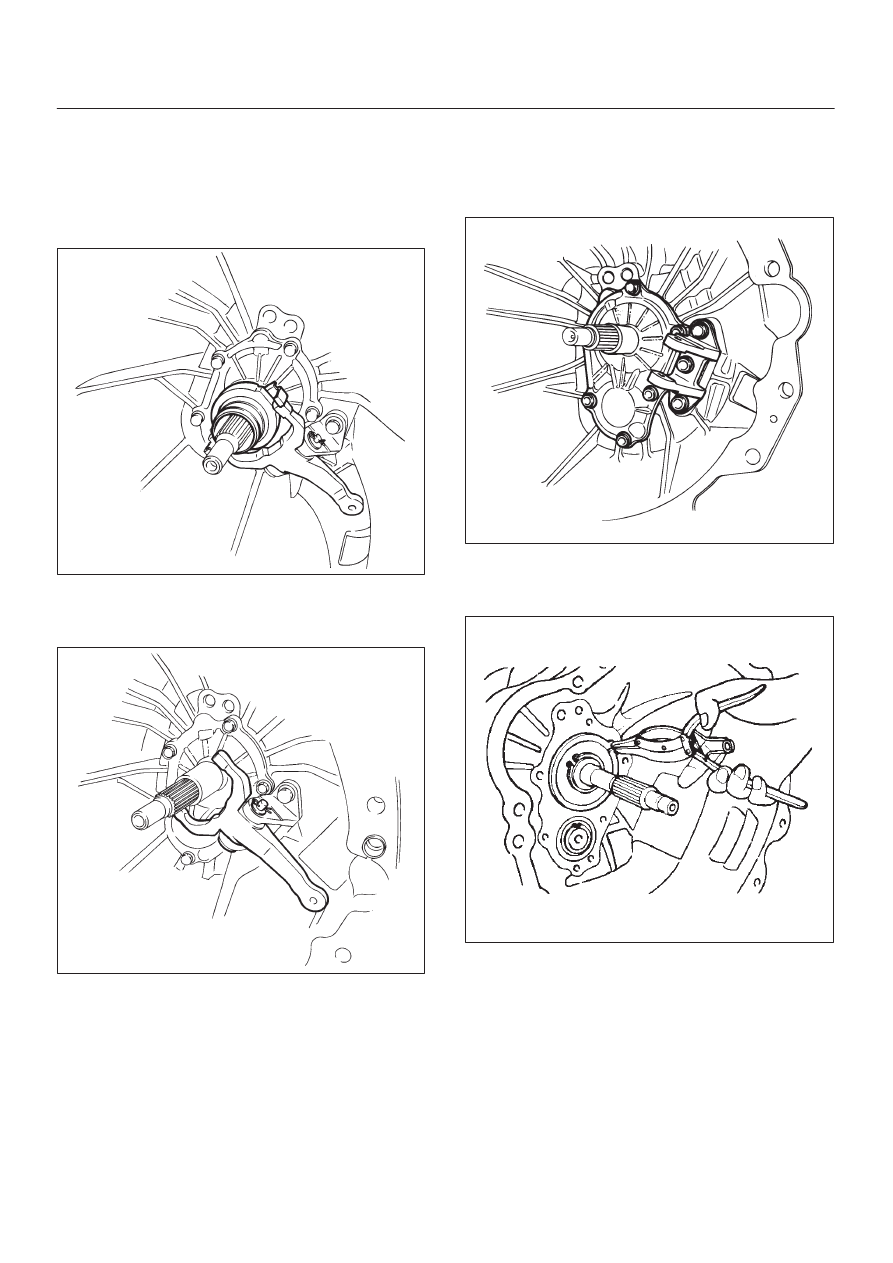

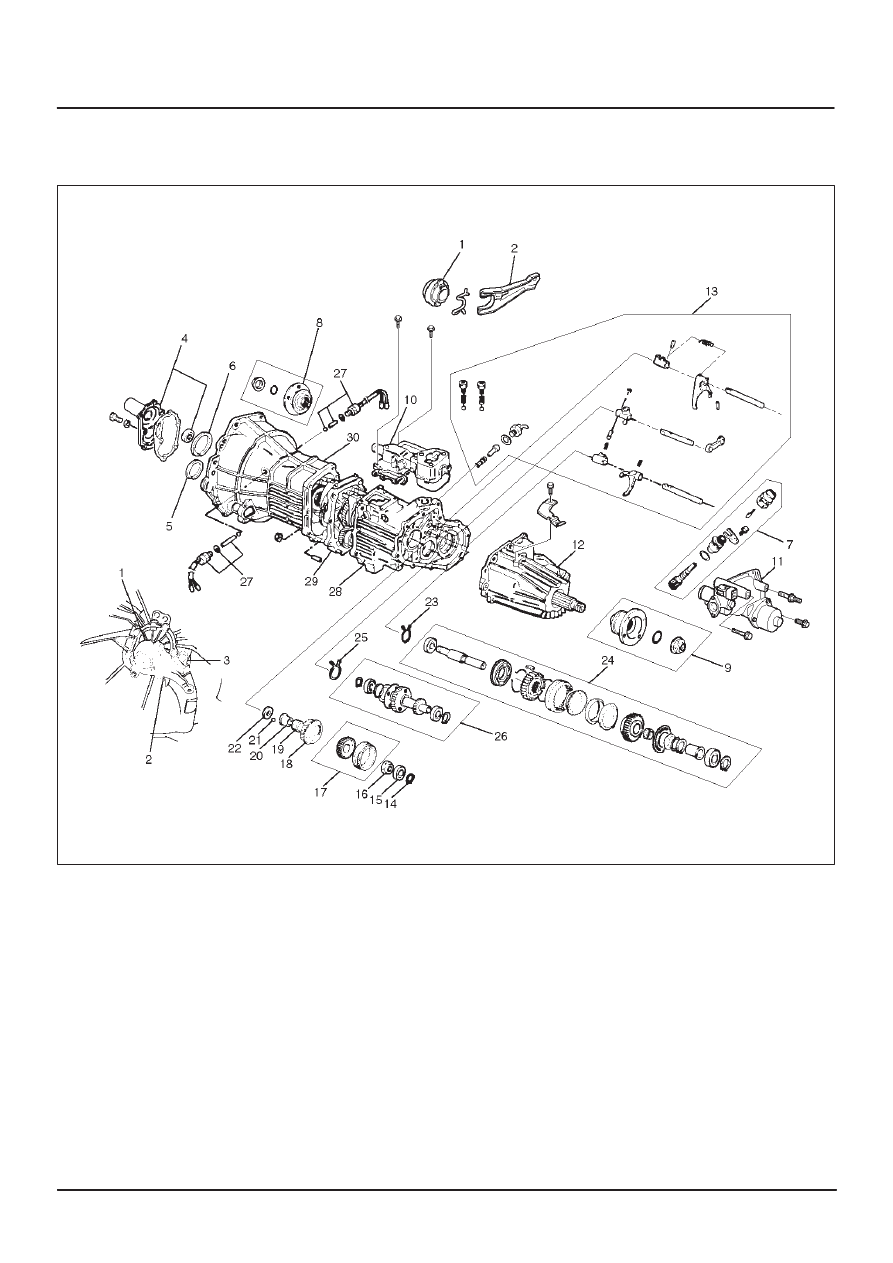

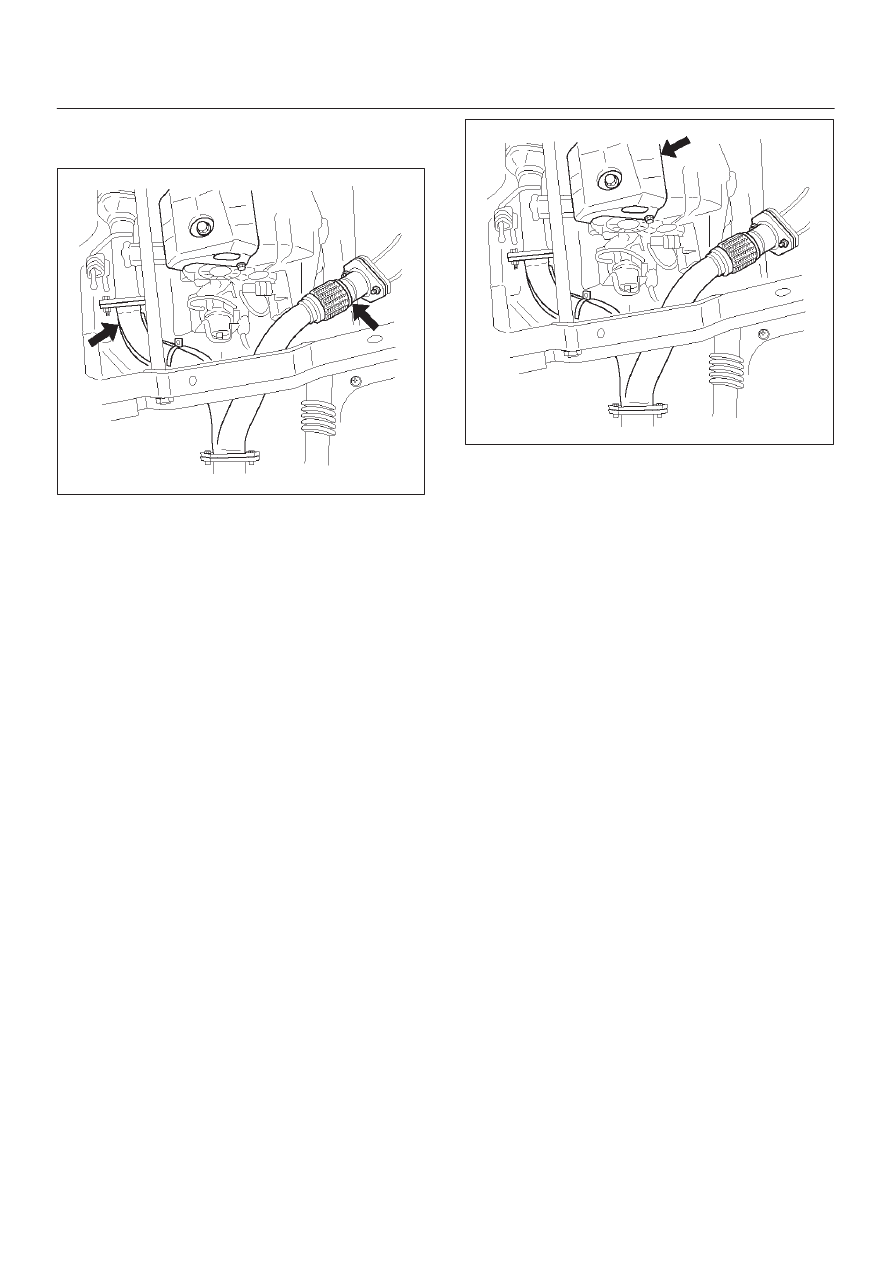

MANUAL TRANSMISSION 7B–13 12. Install flywheel under cover(17). 6VD1: 3 pieces, X22SE: 1 piece. Torque: 8 N·m (0.8 kg·m/69 lb in) 13. Install starter(16) (6VD1). Torque: 40 N·m (4.1 kg·m/30 lb ft) 14. Install third crossmember(15). Torque: 50 N·m (5.1 kg·m/37 lb ft) 15. Install engine rear mount nuts(14). Torque: 40 N·m (4.1 kg·m/30 lb ft) Remove the transmission jack from transmission 16. Apply grease to top hole portion of the shift fork. Install slave cylinder(12) and flexible hose fixing Torque: 43 N·m (4.4 kg·m/32 lb ft) 220RS007 Legend (1) Apply Grease 17. Install clutch dust covers(13) to clutch housing (6VD1). Torque: 6 N·m (0.6 kg·m/52 lb in) 18. Connect transmission harness connectors and clip. Connector: transfer switch, 2–4 actuator, car speed 19. Install bracket and transmission harness clamps(10) to the transmission case. 20. Install harness heat protector(11) (6VD1). 220RW046 220RW047 |
