TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–77

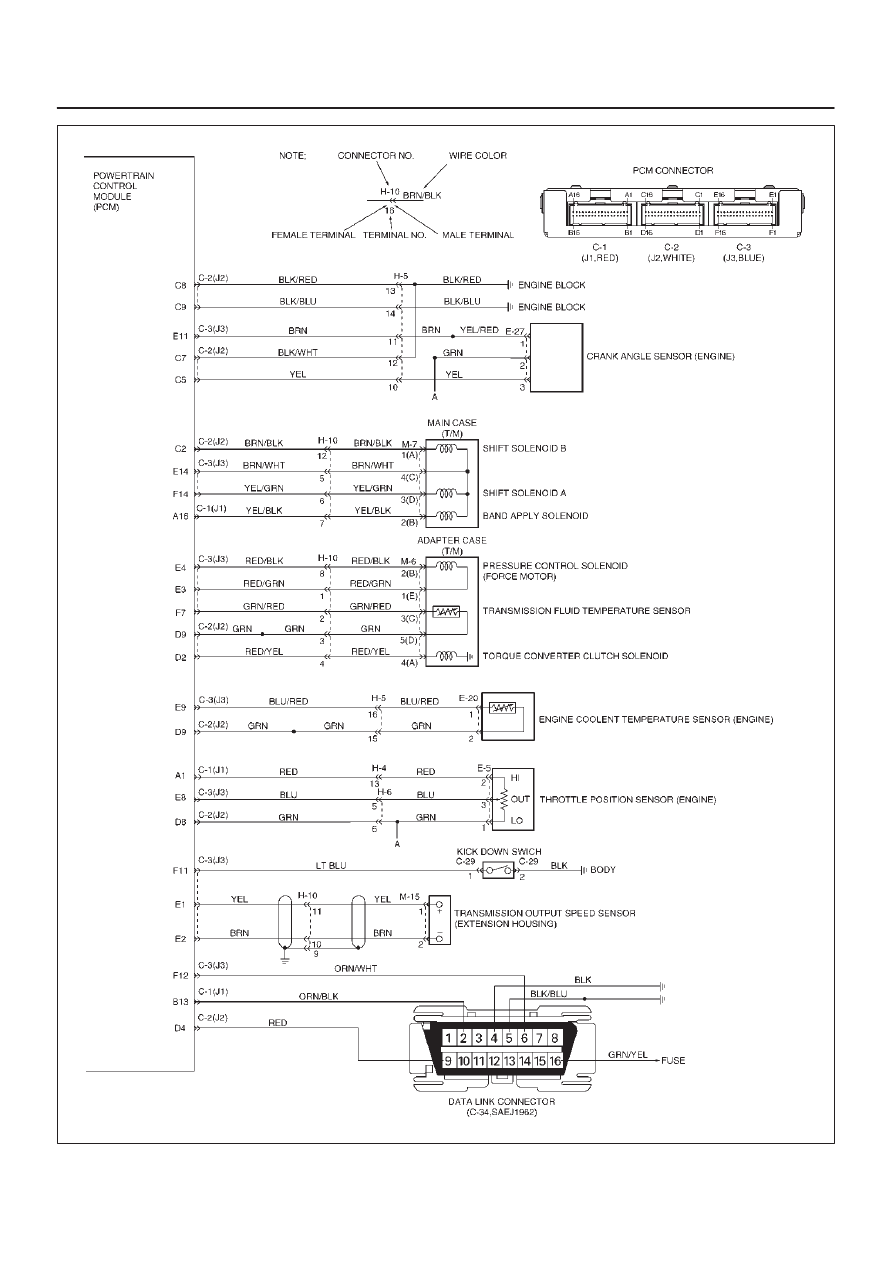

D07RY00076

7A1–78

TRANSMISSION CONTROL SYSTEM (4L30–E)

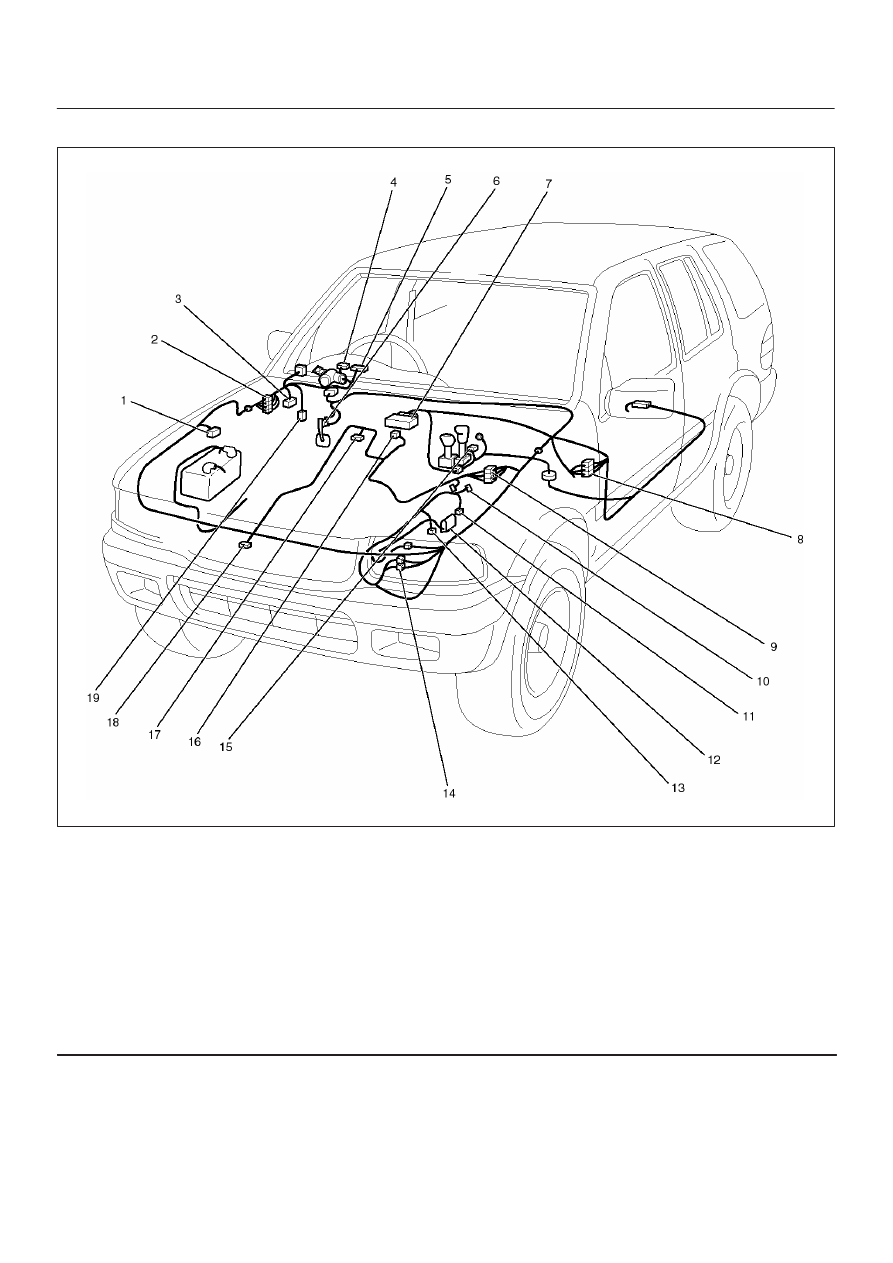

Parts Location

D07RW075

Legend

(1) Connector X-8
(2) Connector X-13, X-14
(3) Data Link Connector C-34
(4) Connector I-1
(5) Connector I-9
(6) Connector I-18
(7) Powertrain Control Module (PCM) connector

C-1 (J1), C-2 (J2), C-3 (J3)

(8) Connector H-15, H-16, H-17
(9) Connector H-4, H-5, H-6

(10) Connector M-15

(11) Connector M-7

(12) Connector M-16
(13) Connector M-6
(14) Connector H-10, H-11
(15) Connector B-24
(16) Connector E-5
(17) Connector E-20
(18) Connector E-27
(19) Connector C-29

TRANSMISSION CONTROL SYSTEM (4L30–E)

7A1–79

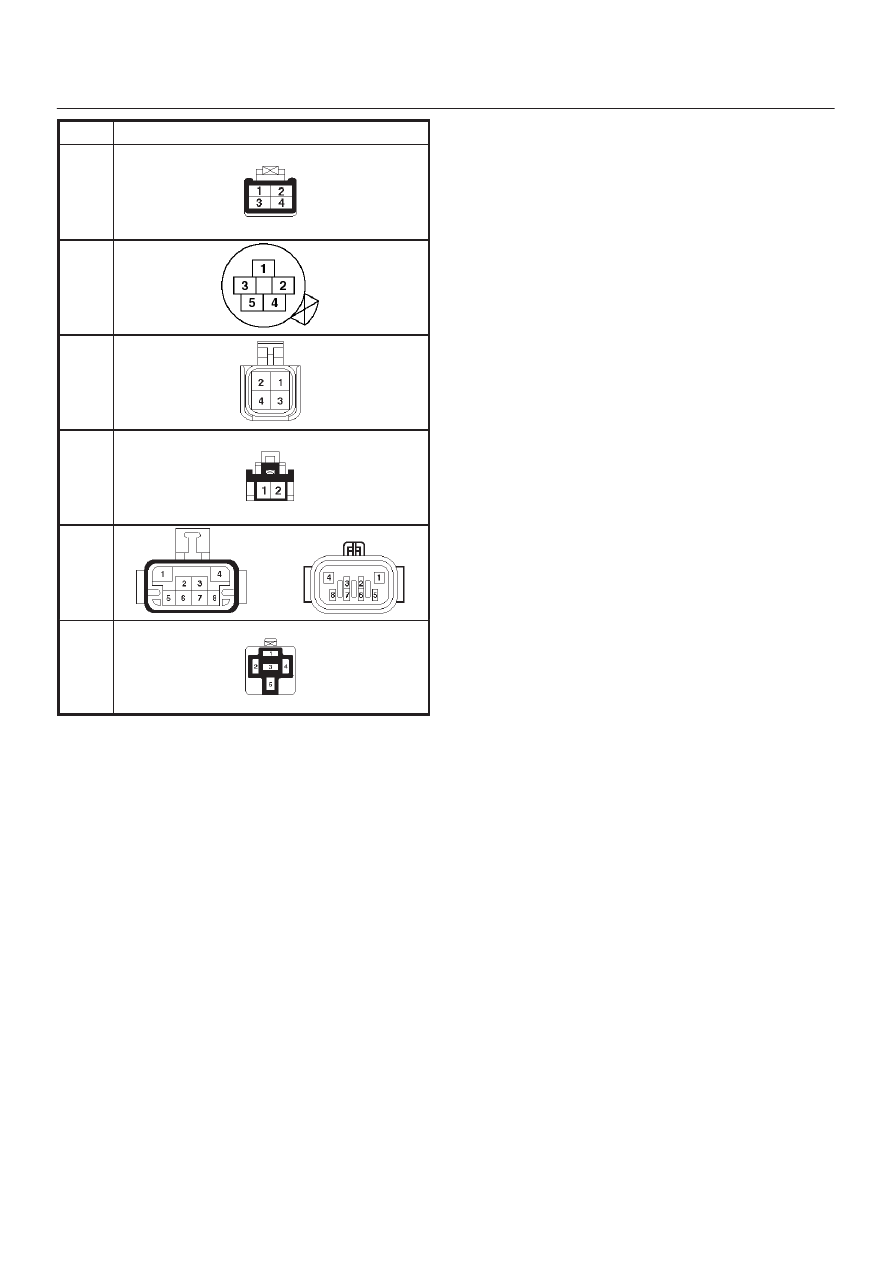

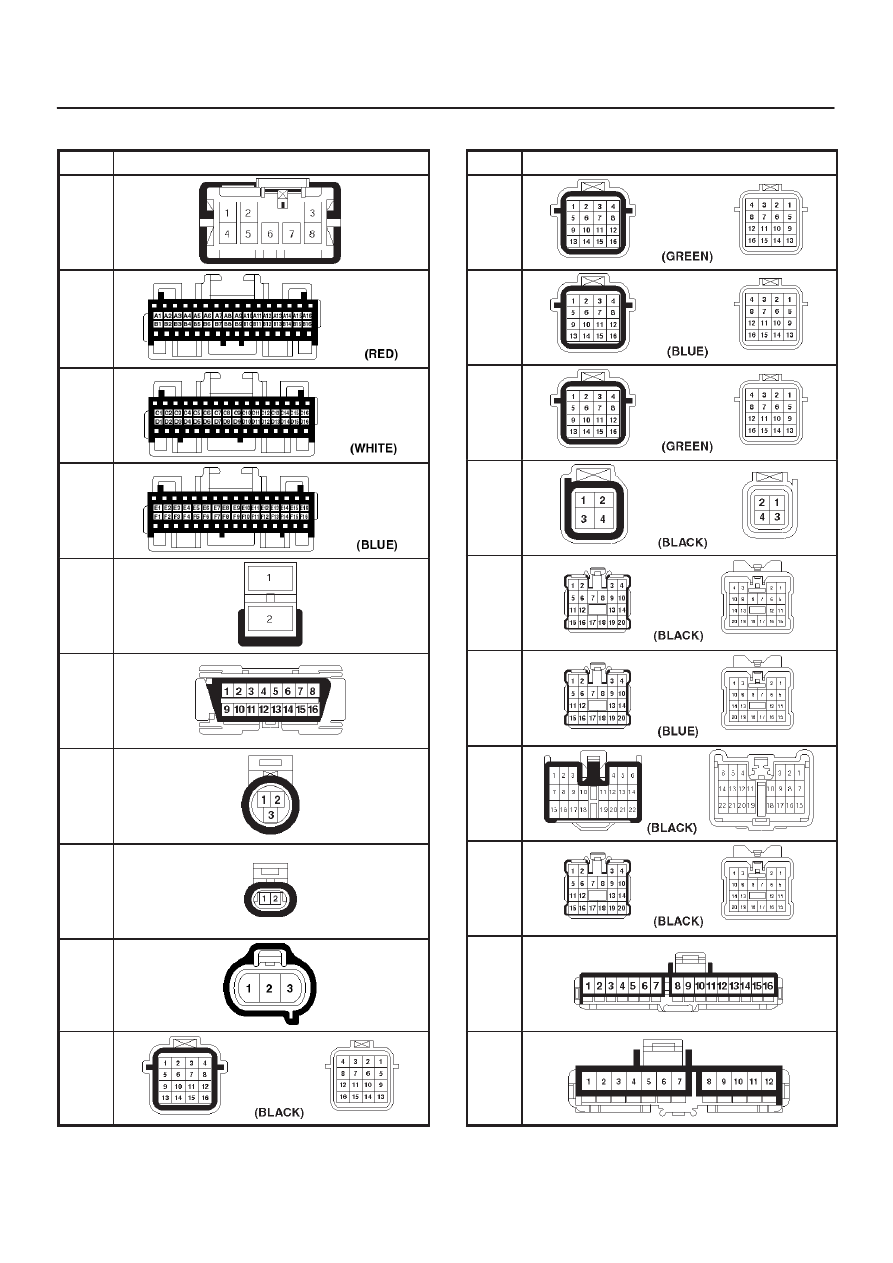

Harness Connector Faces

No.

Connector face

B-24

C-1

(J1)

C-2

(J2)

C-3

(J3)

C-29

C-34

E-5

E-20

E-27

H-4

No.

Connector face

H-5

H-6

H-10

H-11

H-14

H-15

H-16

H-17

I-1

I-9

7A1–80

TRANSMISSION CONTROL SYSTEM (4L30–E)

No.

Connector face

I-18

M-6

M-7

M-15

M-16

X-8
