4C–42
DRIVE SHAFT SYSTEM

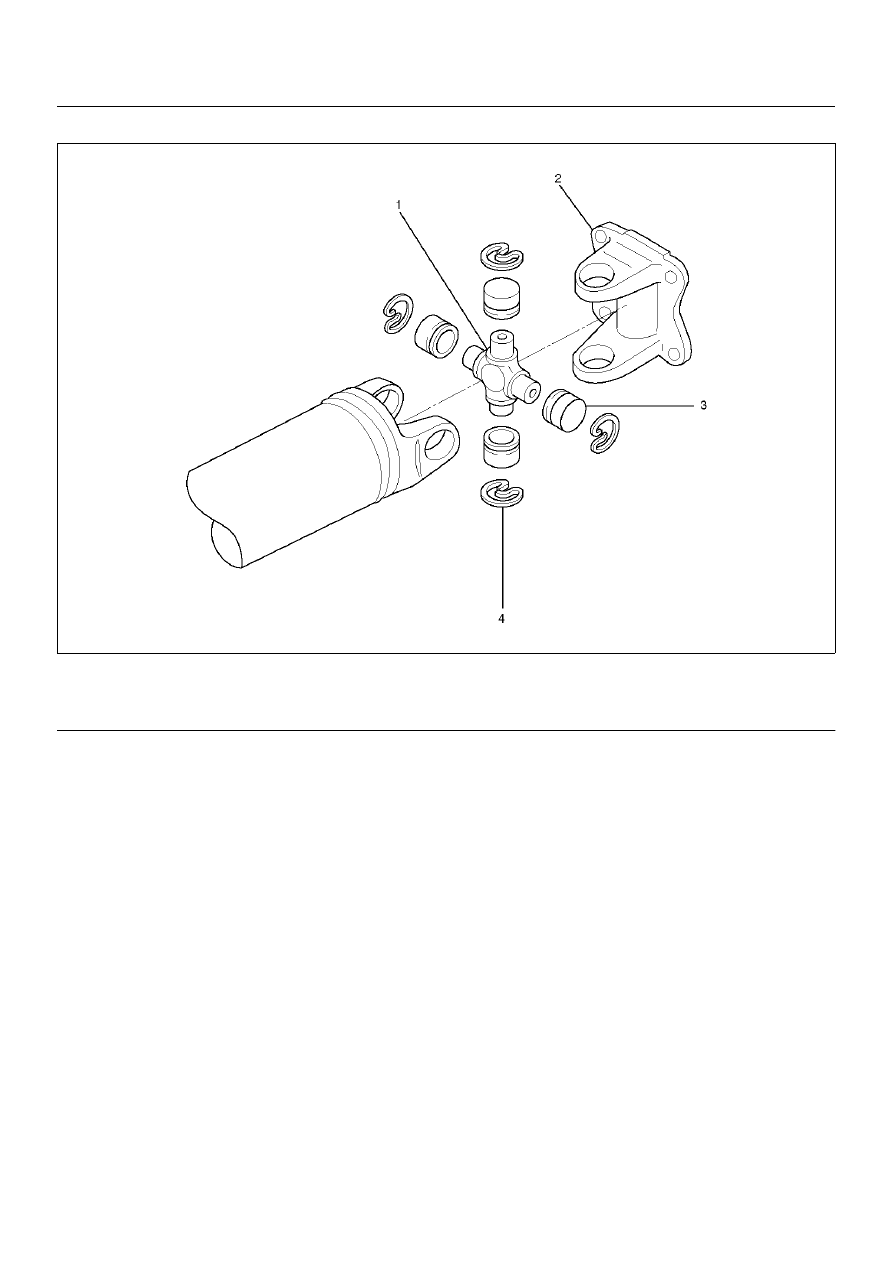

Universal Joint Disassembly
401RX022
Legend
EndOFCallout
NOTE: Aluminum is softer than steel. Care must be
taken not to remove excessive material or damage
bearing holes.
If the vehicle has aluminum tube type propeller shaft,
flange yoke, boot kit, journal kit can be replaced. If other
parts are damaged, replace propeller shaft as assembly.
(1) Spider
(2) Flange Yoke
(3) Bearing
(4) Snap Ring
