4C–22

DRIVE SHAFT SYSTEM

Main Data and Specifications

General Specifications

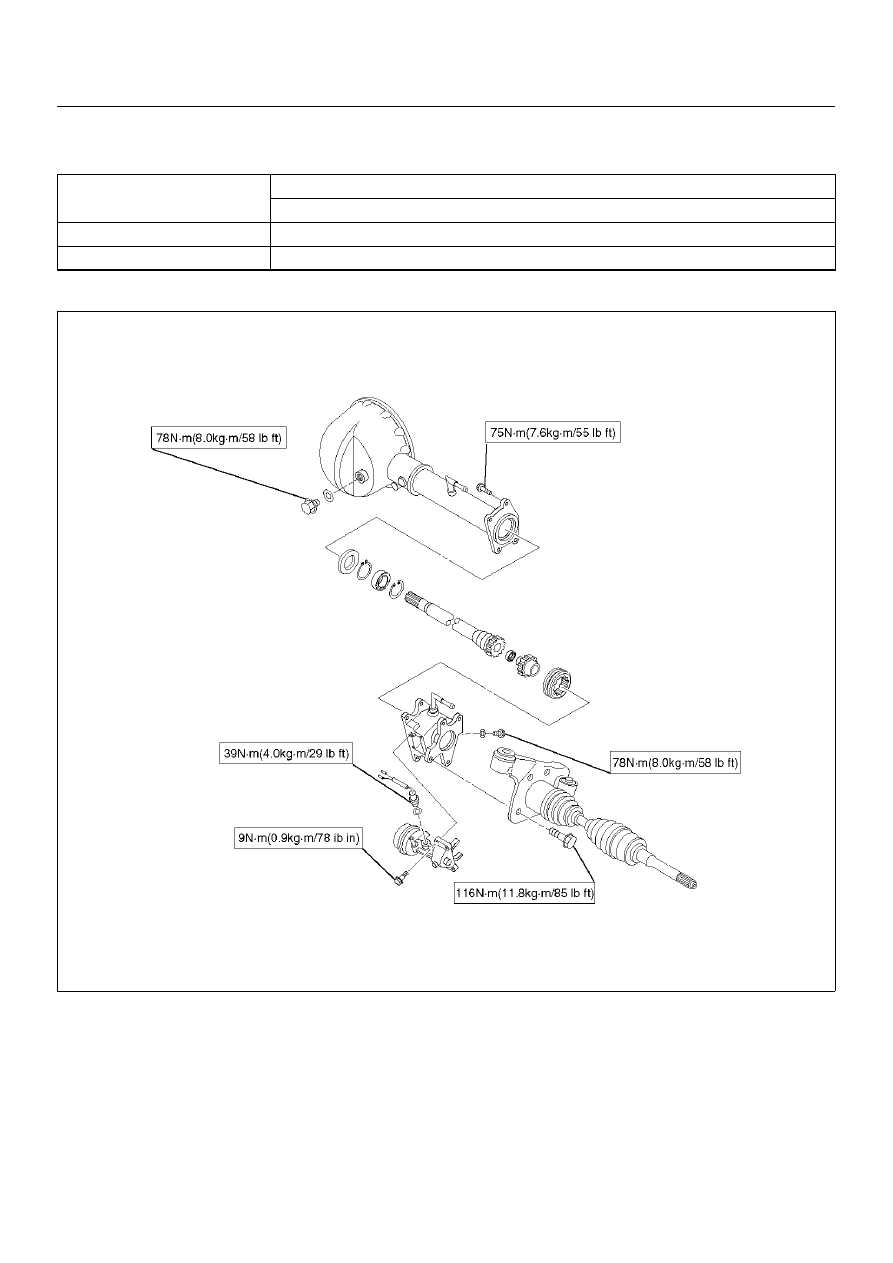

Torque Specifications

E04RX011

Front drive axle oil capacity

1.4 liter (1.48 US qt)(Differential)

0.12 liter (0.13 US qt)(Actuator Housing:Shift on the fly)

Type of lubricant

GL–5 (75W–90) Refer to chart in General Information

Axle shaft type

Constant velocity joint(Birfield joint type and double offset joint)

DRIVE SHAFT SYSTEM

4C–23

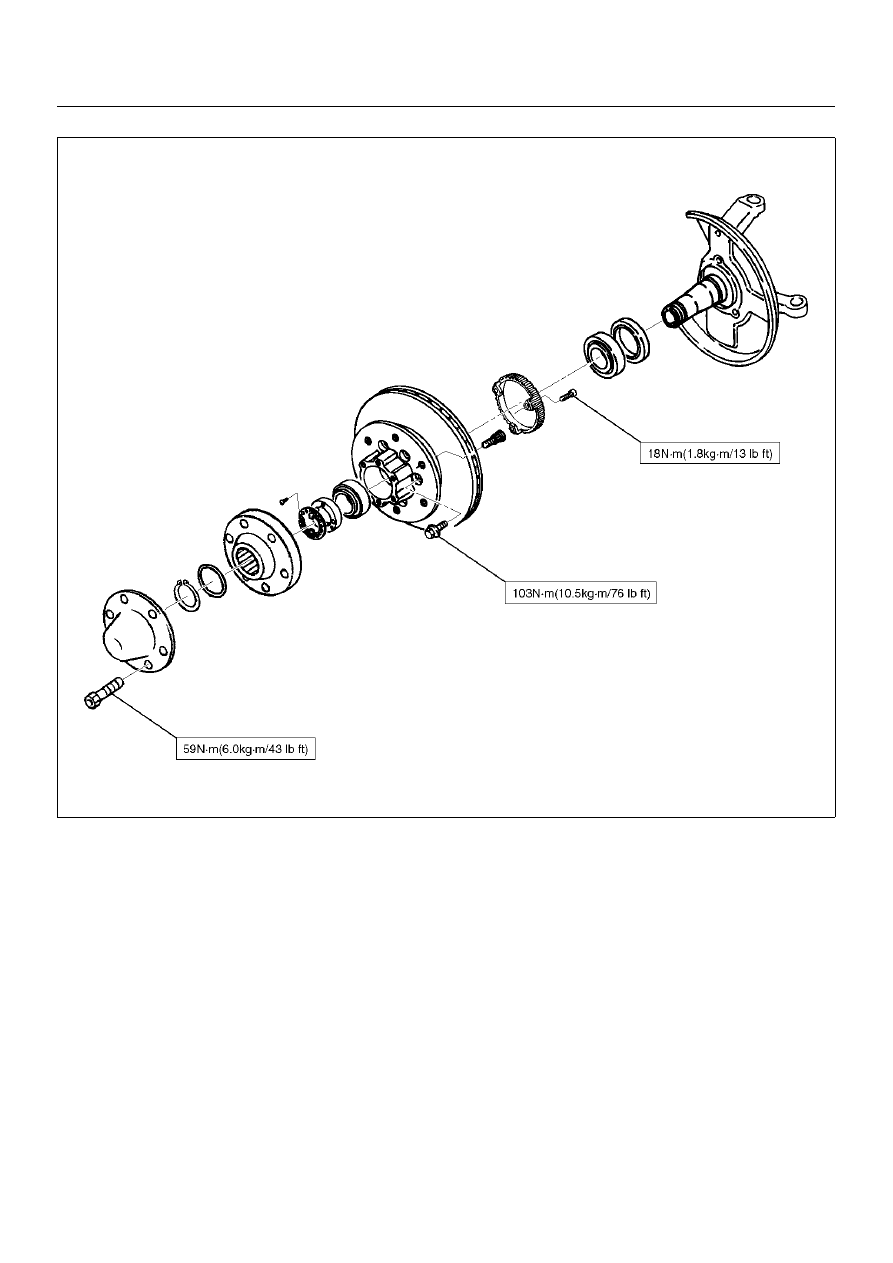

E04RX012

4C–24

DRIVE SHAFT SYSTEM

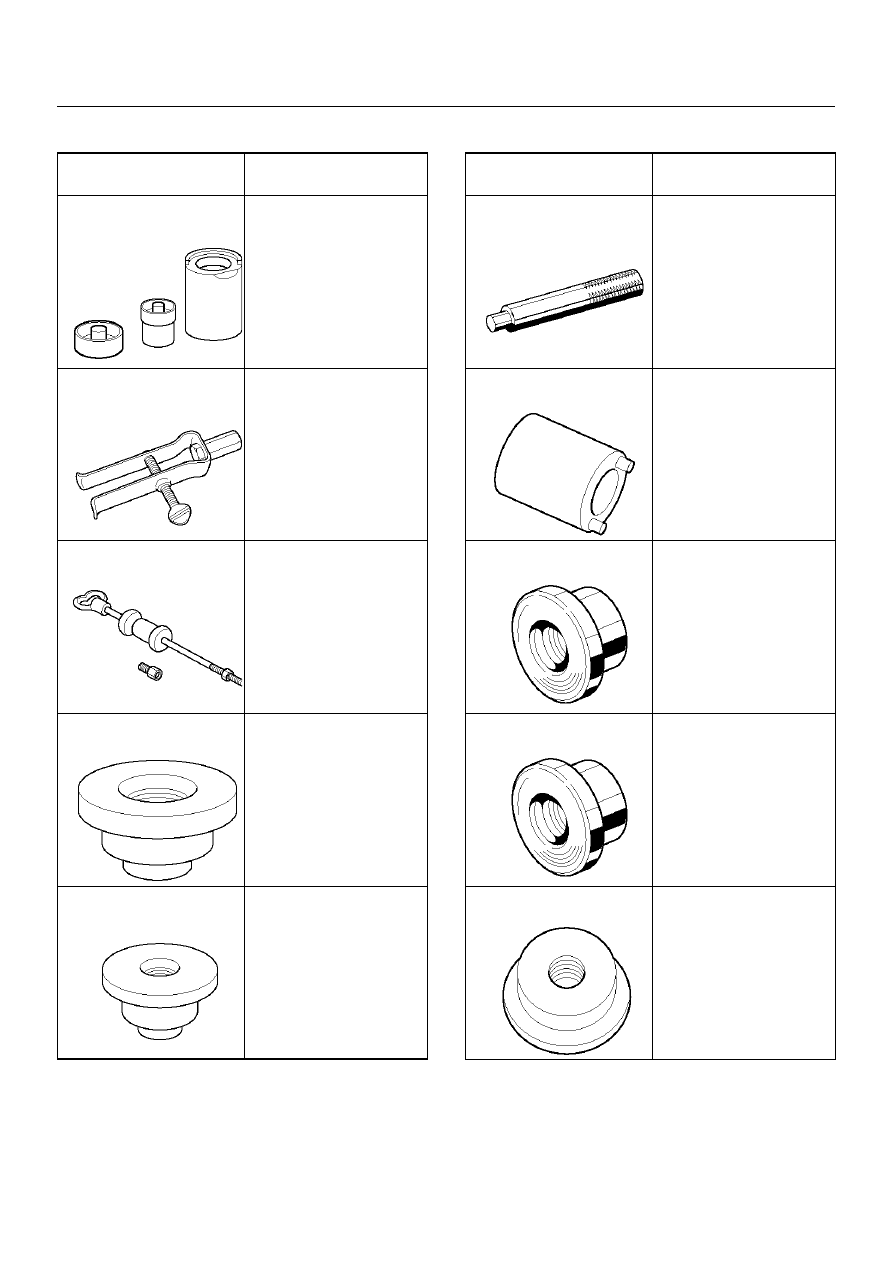

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

5–8840–2309–0

(J–39378)

Remover and Installer;

Front Axle mount bushing

5–8840–0027–0

(J– 26941)

Remover; Bearing needle

5–8840–0084–0

(J–2619–01)

Hammer; Sliding

5–8840–2407–0

(J–41693)

Installer; Oil seal

5–8840–2408–0

(J–41694)

Installer; Bearing needle

5–8840–0007–0

(J–8092)

Grip

5–8840–2117–0

(J–36827)

Wrench; Hub nut

5–8840–2119–0

(J–36829)

Installer; Inner bearing

5–8840–2118–0

(J–36828)

Installer; Outer bearing

5–8840–2120–0

(J–36830)

Installer; Oil seal

ILLUSTRATION

TOOL NO.

TOOL NAME

DRIVE SHAFT SYSTEM

4C–25

Propeller Shaft

General Description

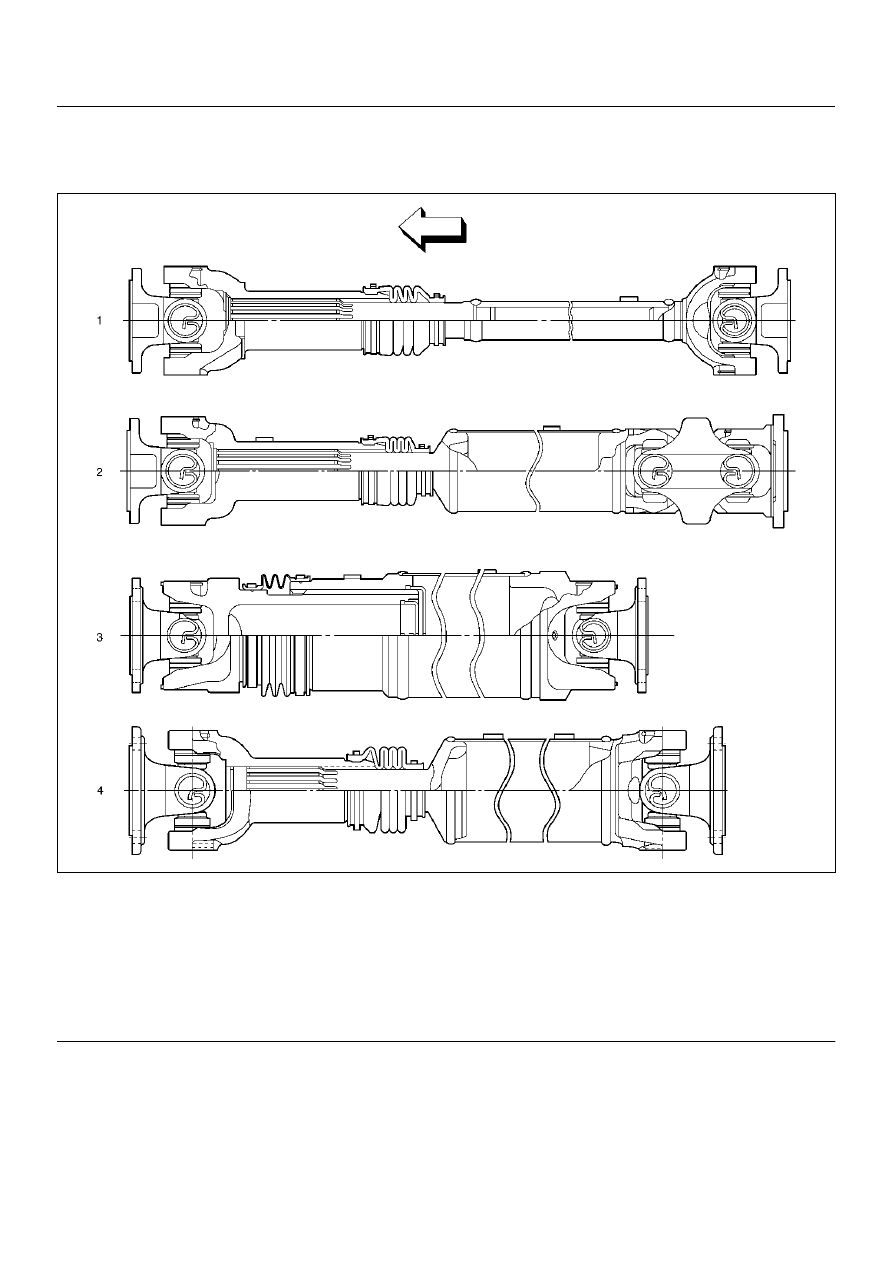

401RX026

Legend

EndOFCallout

(1) Front Propeller Shaft (for 6VD1)
(2) Front Propeller Shaft (for X22SE)
(3) Rear Propeller Shaft;

Aluminum Tube Type
(for 6VD1, M/T model)

(4) Rear Propeller Shaft;

Steel Tube Type
(for X22SE, M/T model and 6VD1, A/T model)
