Opel Frontera UE. Manual - part 91





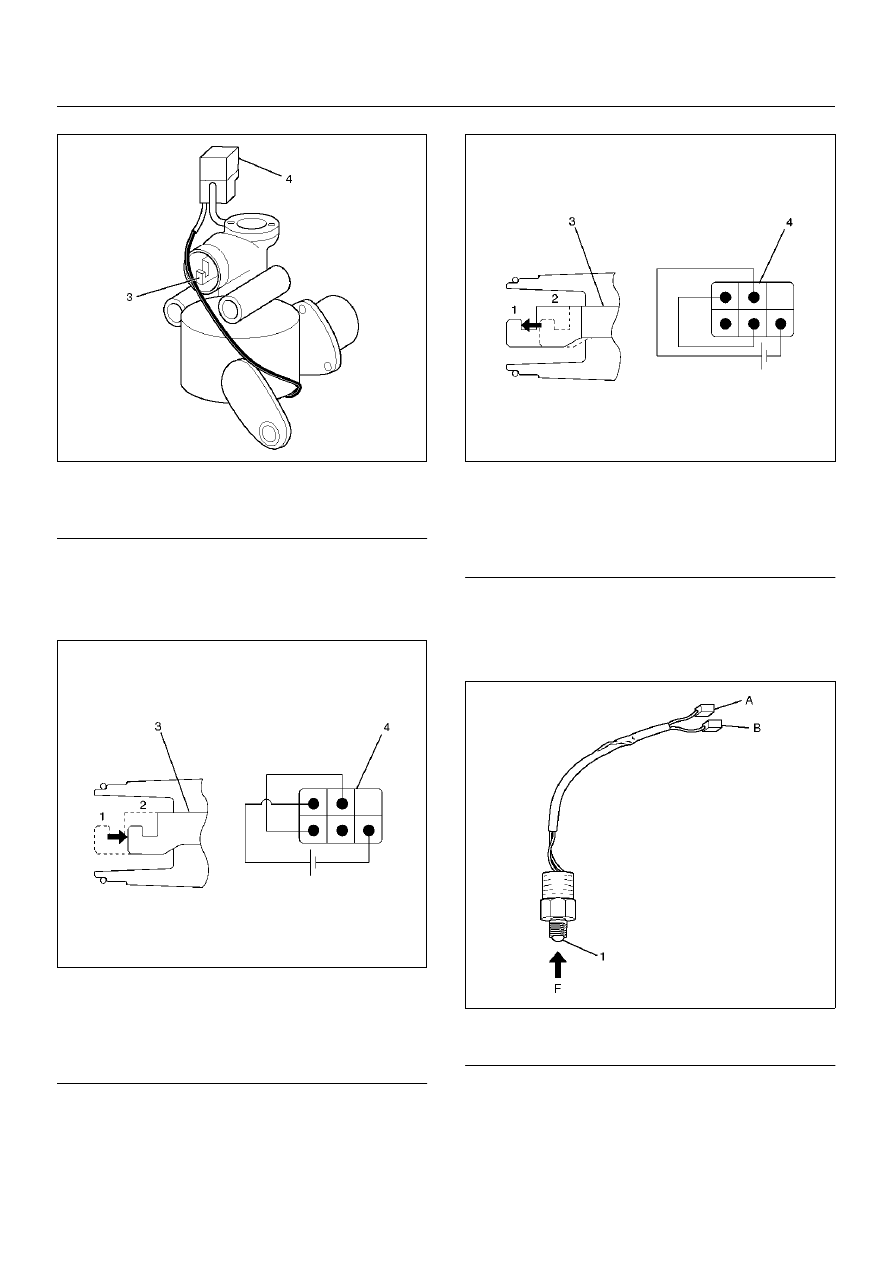

DRIVELINE CONTROL SYSTEM

4B–21

412RW037

Legend

EndOFCallout

2. Connect the terminals as shown in figure.

Shift rod of the motor actuator moves and stops
at 4WD position.

412RX001

Legend

EndOFCallout

3. Connect the terminals as shown in figure.

Shift rod of the motor actuator moves and stops
at 2WD position.

412RX002

Legend

EndOFCallout

4. If 2) and 3) fail, replace with a new motor actuator.

Transfer Position Switch

412RW040

Legend

EndOFCallout

1. With ball being free.

A–B : There is continuity.

2. With ball forced into the switch.

A–B : No continuity.

3. If 1) and 2) fail, replace with a new switch.

(3) Shift Rod
(4) Connector

(1) 2WD
(2) 4WD
(3) Shift Rod
(4) Connector

(1) 2WD
(2) 4WD
(3) Shift Rod
(4) Connector

(1) Ball

4B–22

DRIVELINE CONTROL SYSTEM

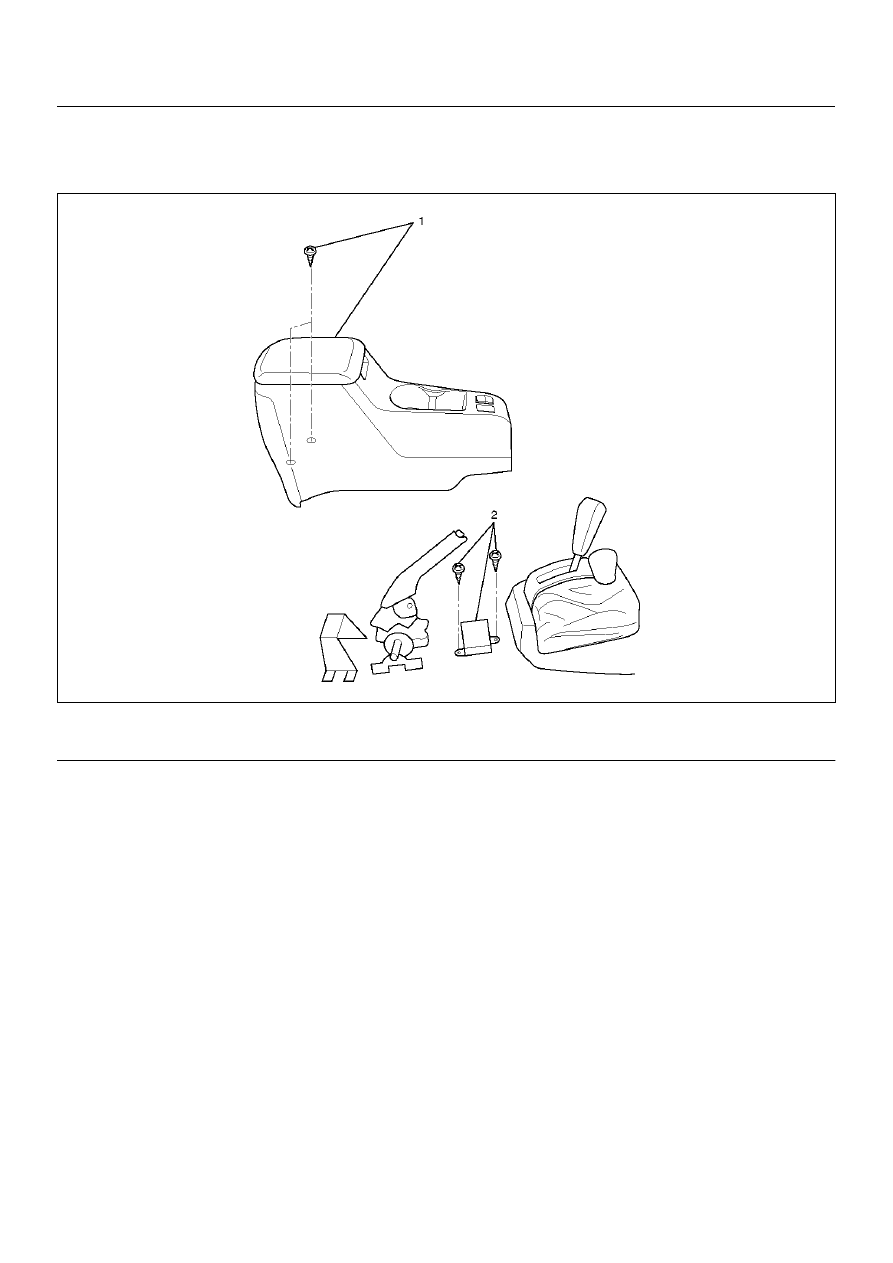

4WD Control Unit

4WD Control Unit Associated Parts

412RW042

Legend

EndOFCallout

(1) Center Console Assembly

(2) 4WD Control Unit

DRIVELINE CONTROL SYSTEM

4B–23

Removal

1. Remove center console assembly.

Refer to Interior Trim in Body and Accessories
section.

2. Remove two screws and harness connector (1) from

4WD control unit.

412RW041

Legend

EndOFCallout

Installation

1. Connect harness connector, then install 4WD

control unit.

2. Install center console assembly.

(1) Harness Connector

DRIVE SHAFT SYSTEM

4C–1

DRIVELINE/AXLE

DRIVE SHAFT SYSTEM

CONTENTS

Service Precaution......................................... 4C - 1
General Description ....................................... 4C - 2

Diagnosis .................................................... 4C - 2

Front Hub and Disc ....................................... 4C - 3

Disassembled View .................................... 4C - 3
Disassembly ............................................... 4C - 3
Inspection and Repair................................. 4C - 4
Reassembly ................................................ 4C - 5

Front Drive Shaft Joint .................................. 4C - 8

Front Drive Shaft Joints Replacement ........ 4C - 8

Front Axle Drive Shaft ................................... 4C - 9

Front Axle Drive Shaft and

Associated Parts ..................................... 4C - 9

Disassembly ............................................... 4C - 10
Inspection And Repair ................................ 4C - 11
Bushing Replacement ................................ 4C - 11
Reassembly ................................................ 4C - 11

Shift On The Fly System ............................... 4C - 14

Shift On The Fly System and

Associated Parts ..................................... 4C - 14

Disassembly ............................................... 4C - 14
Inspection And Repair ................................ 4C - 16
Reassembly ................................................ 4C - 19
Main Data and Specifications ..................... 4C - 22
Special Tools .............................................. 4C - 24

Propeller Shaft .............................................. 4C - 25

General Description .................................... 4C - 25
Universal Joint ............................................ 4C - 26
Diagnosis of Propeller Shaft and

Universal Joint......................................... 4C - 27

Front Propeller Shaft ..................................... 4C - 28

Front Propeller Shaft and

Associated Parts ..................................... 4C - 28

Removal...................................................... 4C - 28
Installation................................................... 4C - 29
Slip Joint Disassembly................................ 4C - 29
Universal Joint Disassembly

(Single Cardan Type) .............................. 4C - 30

Universal Joint Disassembly

(Double Cardan Type)............................. 4C - 32

Inspection and Repair................................. 4C - 33
Universal Joint Reassembly

(Single Cardan Type) .............................. 4C - 35

Universal Joint Reassembly

(Double Cardan Type)............................. 4C - 36

Slip Joint Reassembly ................................ 4C - 38
Main Data and Specifications ..................... 4C - 39

Rear Propeller Shaft...................................... 4C - 40

Rear Propeller Shaft and

Associated Parts ..................................... 4C - 40

Removal...................................................... 4C - 40
Installation................................................... 4C - 40
Slip Joint Disassembly................................ 4C - 41
Universal Joint Disassembly....................... 4C - 42
Inspection ................................................... 4C - 44
Universal Joint Reassembly ....................... 4C - 45
Slip Joint Reassembly ................................ 4C - 46

Main Data and Specifications ........................ 4C - 47

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.
