DRIVELINE CONTROL SYSTEM

4B–1

DRIVELINE/AXLE

DRIVELINE CONTROL SYSTEM

CONTENTS

Service Precaution......................................... 4B - 1

Shift On The Fly System ............................... 4B - 2

Outline of Shift on The Fly System ............. 4B - 2
Functions of Indicator Lamp ....................... 4B - 6
Diagnosis .................................................... 4B - 7

Shift On The Fly Vacuum Piping and

Electrical Equipment ................................ 4B - 18

Vacuum Piping Diagram ............................. 4B - 18

Actuator Assembly...................................... 4B - 18
Vacuum Tank.............................................. 4B - 18
Inspection and Repair................................. 4B - 19

4WD Control Unit .......................................... 4B - 22

4WD Control Unit Associated Parts............ 4B - 22
Removal...................................................... 4B - 23
Installation................................................... 4B - 23

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

SECTION

4B–2

DRIVELINE CONTROL SYSTEM

Shift On The Fly System

Outline of Shift on The Fly System

The shift on the fly system switches between 2 wheel
drive (2WD) and 4 wheel drive (4WD)  electrically by
driver's pressing the 4WD switch (push button type) on
instrument panel.
This system controls below operations. (Shifting
between “4H" and “4L" must be performed by transfer
control lever on the floor.)

1. Shifting the transfer front output gear (Connecting

to, and disconnecting from, front propeller shaft by
motor actuator).

2. Retrial of shifting the transfer front output gear.

3. Connecting front wheels to, and disconnecting them

from, the front axles by vacuum actuator.

4. Indicator on instrument panel.

5. 4WD out signal to other Electronic Hydraulic Control

Unit.

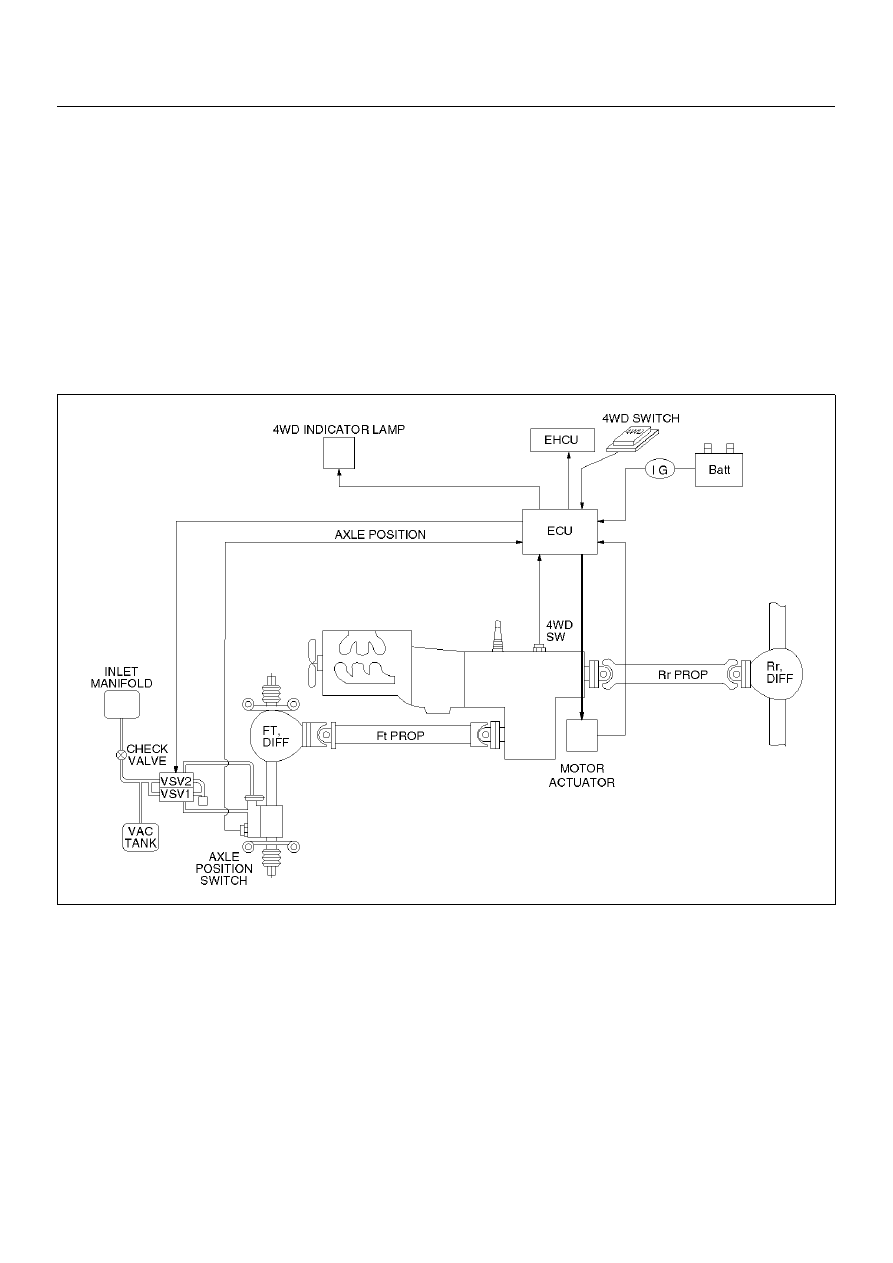

System Diagrams

412RX009

DRIVELINE CONTROL SYSTEM

4B–3

Normal Operation

The motor actuator mounted on transfer rear case is
driven by signal from 4WD switch on instrument panel.
After complete the connecting transfer front output gear
to, or disconnecting it from, front propeller shaft,

condition of the transfer position switch changes. The
vacuum solenoid valve (VSV) is driven by the signal
from transfer position switch and the vacuum actuator
connects front wheels to, or disconnect them from, front
axles.

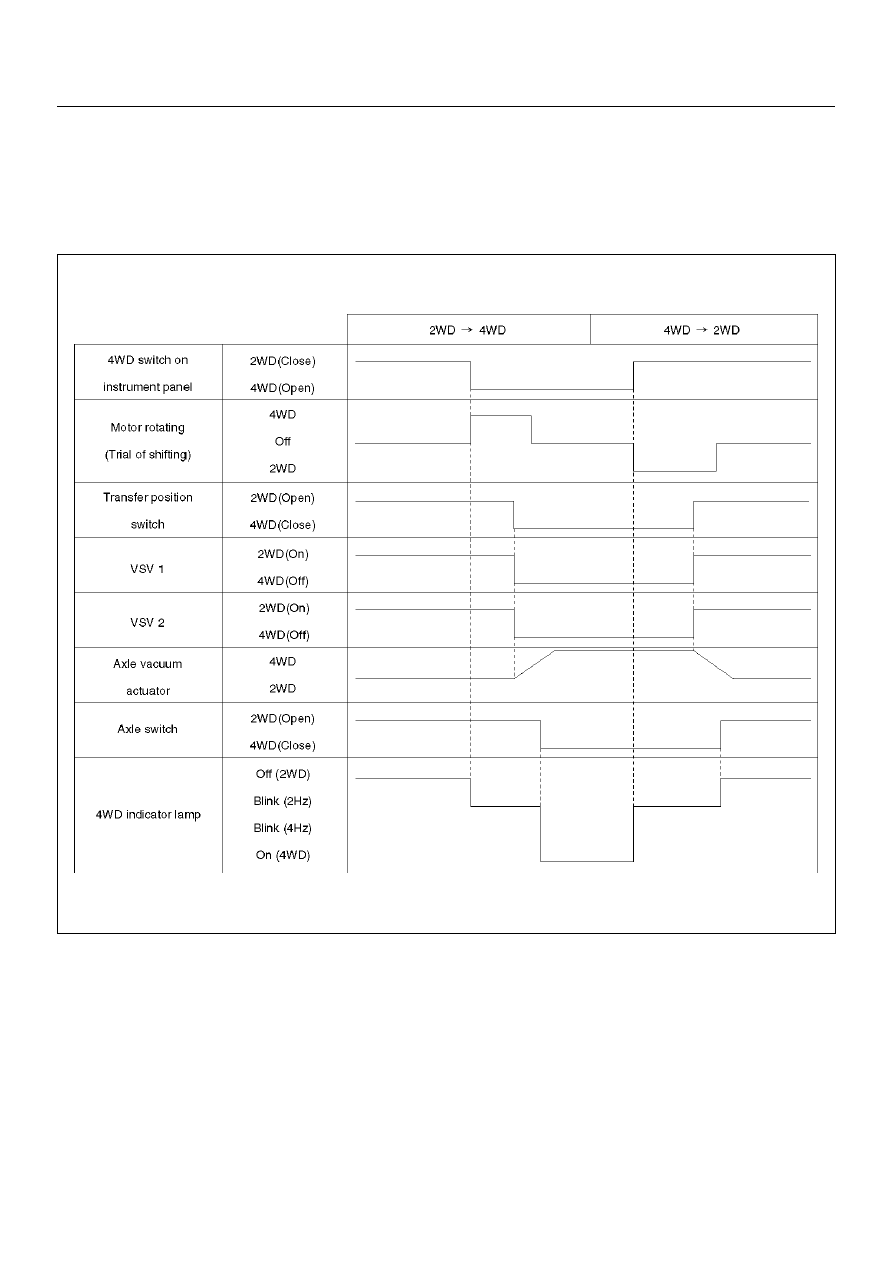

Time Chart of Shifting Under Normal Condition

F04RW002

4B–4

DRIVELINE CONTROL SYSTEM

Retrial

The motor actuator starts transfer gear shifting after
signal from 4WD switch on instrument panel has been
received.  But the shifting may be impossible in cold
weather or under high speed condition.  When 2
seconds have passed since transfer gear shifting
started and the transfer position switch dose not turn on
(the gear engagement is not completed), the motor
reverses its rotation for 1.2 seconds and tries again to
shift transfer gear.  This procedure is repeated 3 times

in maximum.  While this procedure, 4WD indicator lamp
blinks by 2 Hz.
If the transfer position switch does not turn on after
aforementioned procedure has been repeated 3 times,
the gear shifting is stopped and 4WD indicator lamp's
blinking changes from 2Hz to 4Hz to notify driver that
the gear shifting is stopped.  This blinking of indicator
lamp continues until 4WD switch is returned from 4WD
to 2WD.

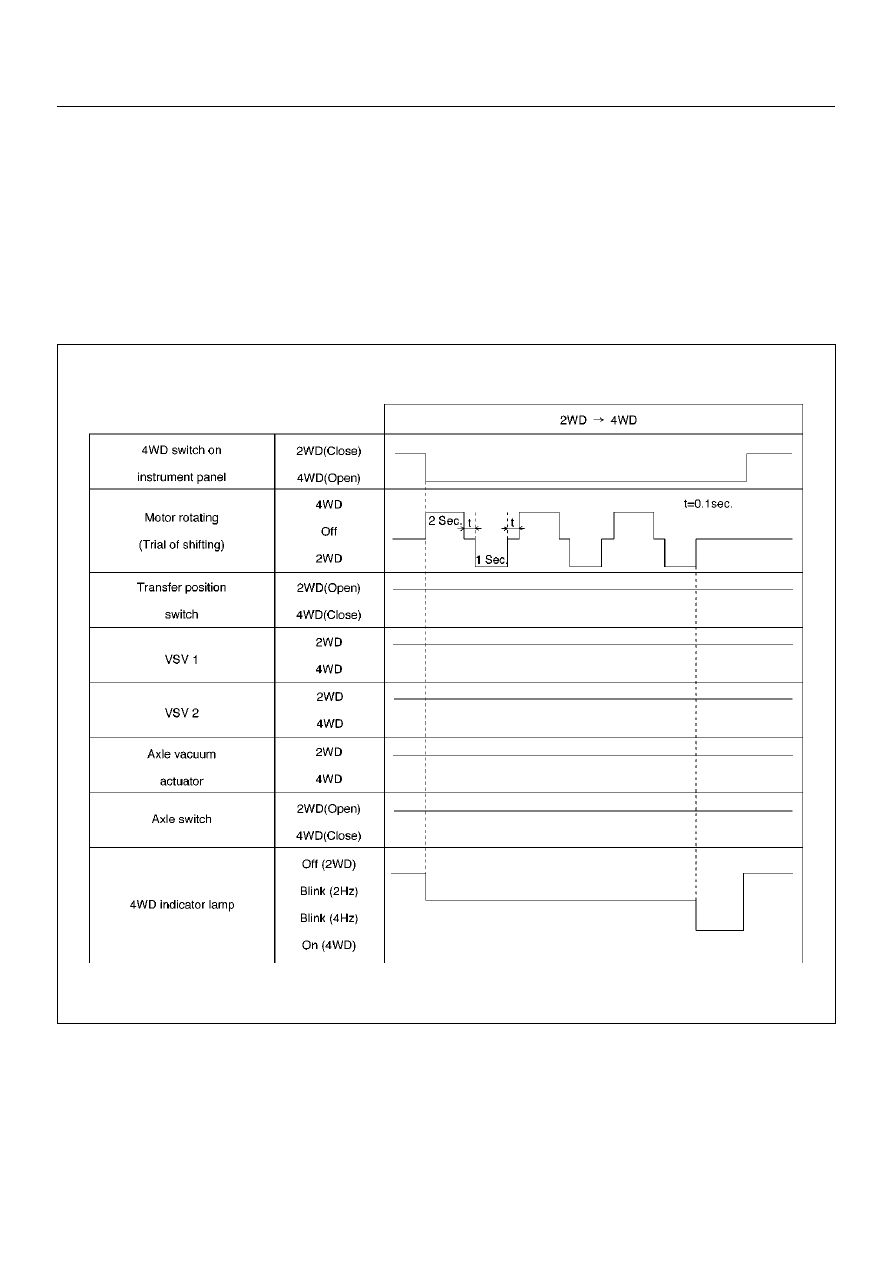

Time Chart of Shifting Under Severe Condition (retrial)

F04RX004
