Opel Frontera UE. Manual - part 43





1A–144

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

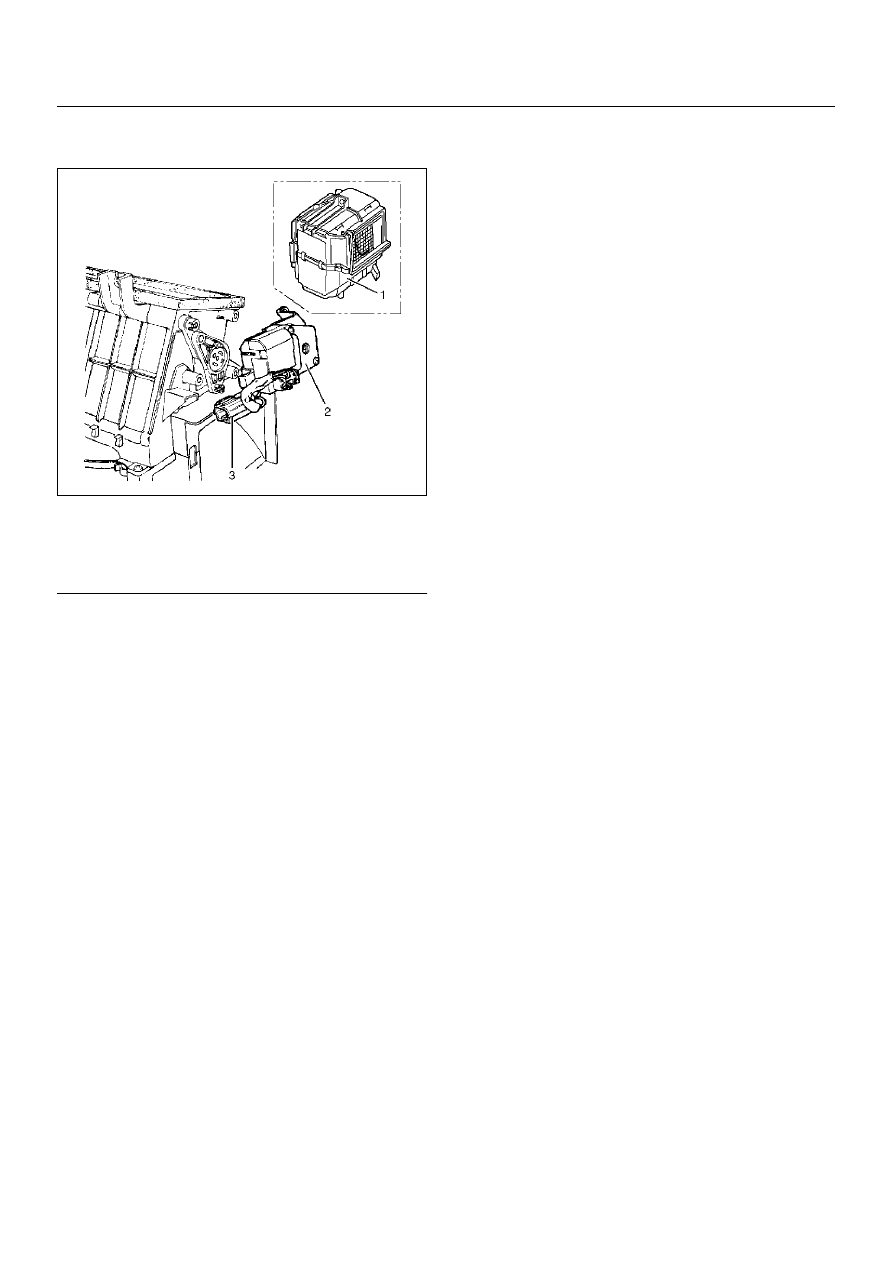

Intake Actuator

860RW034

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Remove the blower assembly.

• Refer to Blower Assembly section.

3. Disconnect the intake actuator connector.

4. Remove the intake actuator.

Installation

To install, follow the remove step in the reverse order.

Legend

(1) Evaporator Assembly
(2) Intake Actuator
(3) Intake Actuator Connector

POWER-ASSISTED STEERING SYSTEM

2A–1

STEERING

POWER-ASSISTED STEERING SYSTEM

CONTENTS

Service Precaution......................................... 2A - 2
Diagnosis ....................................................... 2A - 2
General Description ....................................... 2A - 8
Power Steering System Test ......................... 2A - 10
Maintenance .................................................. 2A - 11
Fluid Level ..................................................... 2A - 11
Bleeding The Power Steering System ........... 2A - 11
Bleeding Procedure ....................................... 2A - 11
Flushing The Power Steering System ........... 2A - 12
Steering Wheel Free Play Inspection ............ 2A - 12
Front End Alignment Inspection

and Adjustment .......................................... 2A - 12

Main Data and Specifications ........................ 2A - 16
Special Tools ................................................. 2A - 17

Power Steering Unit ...................................... 2A - 18

Power Steering Unit and Associated Parts. 2A - 18
Removal ..................................................... 2A - 18
Installation .................................................. 2A - 19
Power Steering Unit Disassembled View ... 2A - 20
Disassembly ............................................... 2A - 20
Inspection and Repair................................. 2A - 20
Reassembly ................................................ 2A - 20

Main Data and Specifications ........................ 2A - 21
Special Tools ................................................. 2A - 21

Power Steering Pump ................................... 2A - 22

Power Steering Pump and

Associated Parts ..................................... 2A - 22

Removal ..................................................... 2A - 22
Installation .................................................. 2A - 22
Power Steering Pump Disassembled View 2A - 23
Disassembly ............................................... 2A - 23
Inspection and Repair................................. 2A - 24
Reassembly ................................................ 2A - 24
Main Data and Specifications ..................... 2A - 26

Transfer Gear Assembly ............................... 2A - 27

Transfer Gear Assembly

and Associated Parts .............................. 2A - 27

Removal...................................................... 2A - 27
Inspection and Repair................................. 2A - 27
Installation................................................... 2A - 27

Supplemental Restraint System Steering

Wheel & Column........................................ 2A - 28

Service Precaution...................................... 2A - 28
SRS Connectors ......................................... 2A - 28

Inflator Module .............................................. 2A - 30

Inflator Module and Associated Parts ......... 2A - 30
Removal...................................................... 2A - 30
Inspection and Repair................................. 2A - 31
Installation................................................... 2A - 31

Steering Wheel.............................................. 2A - 32

Steering Wheel and Associated Parts ........ 2A - 32
Removal...................................................... 2A - 32
Installation................................................... 2A - 34

Combination Switch ...................................... 2A - 35

Combination Switch and Associated Parts . 2A - 35
Removal...................................................... 2A - 35
Installation................................................... 2A - 37

Lock Cylinder ................................................ 2A - 39

Lock Cylinder and Associated Parts ........... 2A - 39
Removal...................................................... 2A - 39
Installation................................................... 2A - 41
System Inspection ...................................... 2A - 42

Steering Column ........................................... 2A - 43

Steering Column and Associated Parts ...... 2A - 43
Removal...................................................... 2A - 43
Insepction ................................................... 2A - 46
Installation................................................... 2A - 47
System Inspection ...................................... 2A - 48

Supplemental Restraint System Steering

Wheel & Column and Associated Parts..... 2A - 49

Main Data and Specifications ........................ 2A - 49
Special Tools ................................................. 2A - 49

SECTION

2A–2

POWER-ASSISTED STEERING SYSTEM

Service Precaution

WARNING:  THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).   REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER  YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE
SRS COMPONENTS OR THE SRS WIRING,  REFER
TO THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT  IN
POSSIBLE AIR BAG DEPLOYMENT, PERSONAL
INJURY, OR OTHERWISE UNNEEDED SRS SYSTEM
REPAIRS.

CAUTION:  Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will  call out those fasteners that require a
replacement after removal. ISUZU will also call out
the  fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do  not
use supplemental coatings (Paints, greases, or
other corrosion inhibitors) on threaded  fasteners or

fastener joint interfaces. Generally, such coatings
adversely affect the fastener  torque and the joint
clamping force, and may damage the fastener. When
you install fasteners,  use the correct tightening
sequence and specifications. Following these
instructions can help you  avoid damage to parts
and systems.

Diagnosis

Since the problems in steering, suspension, wheels and
tires involve several systems, they must all be
considered  when diagnosing a complaint. To identify
the symptom,  always road test the vehicle first.
Proceed with the following preliminary inspections and
correct any defects which are found.

1. Inspect tires for proper pressure and uneven wear.

2. Raise vehicle on a hoist, then inspect front and rear

suspension and steering linkage for loose or
damaged parts.

3. Spin the front wheels.  Inspect for out-of-round tires,

out-of-balance tires, loose and/or rough wheel
bearings.

General Diagnosis

Condition

Possible cause

Correction

Vehicle Pulls

Mismatched or uneven tires.

Replace tire.

Tires not adequately inflated.

Adjust tire pressure.

Broken or sagging springs.

Replace spring.

Radial tire lateral force.

Replace tire.

Improper wheel alignment.

Adjust wheel alignment.

Brake dragging in one wheel.

Repair brake.

Loose, bent or broken front or rear
suspension parts.

Tighten or replace the appropriate
suspension part(s).

Faulty shock absorbers.

Replace shock absorber.

Parts in power steering valve
defective.

Replace power steering unit.

Abnormal or Excessive Tire Wear

Sagging or broken spring.

Replace spring.

Tire out of balance.

Balance or replace tire.

Improper wheel alignment.

Check front end alignment.

Faulty shock absorber.

Replace shock absorber.

Hard driving.

Replace tire.

Overloaded vehicle.

Replace tire and reduce load.

Tires not rotated periodically.

Replace or rotate tire.

Worn or loose road wheel bearings.

Replace wheel bearing.

Wobbly wheel or tires.

Replace wheel or tire.

Tires not adequately inflated.

Adjust the pressure.

Wheel Hop

Blister or bump on tire.

Replace tire.

Improper shock absorber operation.

Replace shock absorber.

POWER-ASSISTED STEERING SYSTEM

2A–3

Shimmy, Shake or Vibration

Tire or wheel out of balance.

Balance wheels or replace tire/or
wheel.

Loose wheel bearings.

Replace wheel bearing.

Worn steering linkage ball joints.

Replace ball joints.

Worn upper or lower end ball joints.

Replace ball joints.

Excessive wheel run–out.

Repair or replace wheel and/or tire.

Blister or bump on tire.

Replace tire.

Excessive loaded radial run–out of
tire/wheel assembly.

Replace tire or wheel.

Improper wheel alignment.

Check wheel alignment.

Loose or worn steering linkage.

Tighten or replace steering linkage.

Loose steering unit.

Tighten steering unit.

Tires not adequately inflated.

Adjust tire pressure.

Loose, bent or broken front or rear
suspension parts.

Tighten or replace the appropriate
suspension parts.

Faulty shock absorber.

Replace shock absorber.

Hub bearing preload misadjustment.

Adjust preload.

Parts in power steering valve
defective.

Replace power steering unit.

Hard Steering

Bind in steering linkage ball studs,
upper or lower end ball joint.

Replace ball joint.

Improper wheel alignment.

Check wheel alignment.

Tire not adequately inflated.

Inflate tires to proper pressure.

Bind in steering column or shaft.

Repair or replace.

Improper power steering system
operation.

Repair or replace.
Refer to “Power steering system

diagnosis"

Too Much Play In Steering

Wheel bearings worn.

Replace wheel bearings.

Loose steering unit or linkage.

Retighten or repair.

Worn or loose steering shaft
universal joint.

Retighten or replace steering shaft.

Worn steering linkage ball joints.

Replace ball joints.

Worn upper or lower end ball joints.

Replace ball joints.

Poor Steering Wheel Returnability

Bind in steering linkage ball joints.

Replace ball joints.

Bind in upper or lower end ball
joints.

Replace ball joints.

Bind in steering column and shaft.

Repair or replace.

Bind in steering gear.

Check and repair steering gear.

Improper wheel alignment.

Adjust wheel alignment.

Tires not adequately inflated.

Adjust tire pressure.

Loose steering wheel nut.

Retighten.

Worn wheel bearing.

Replace.

Condition

Possible cause

Correction
