1A–56

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

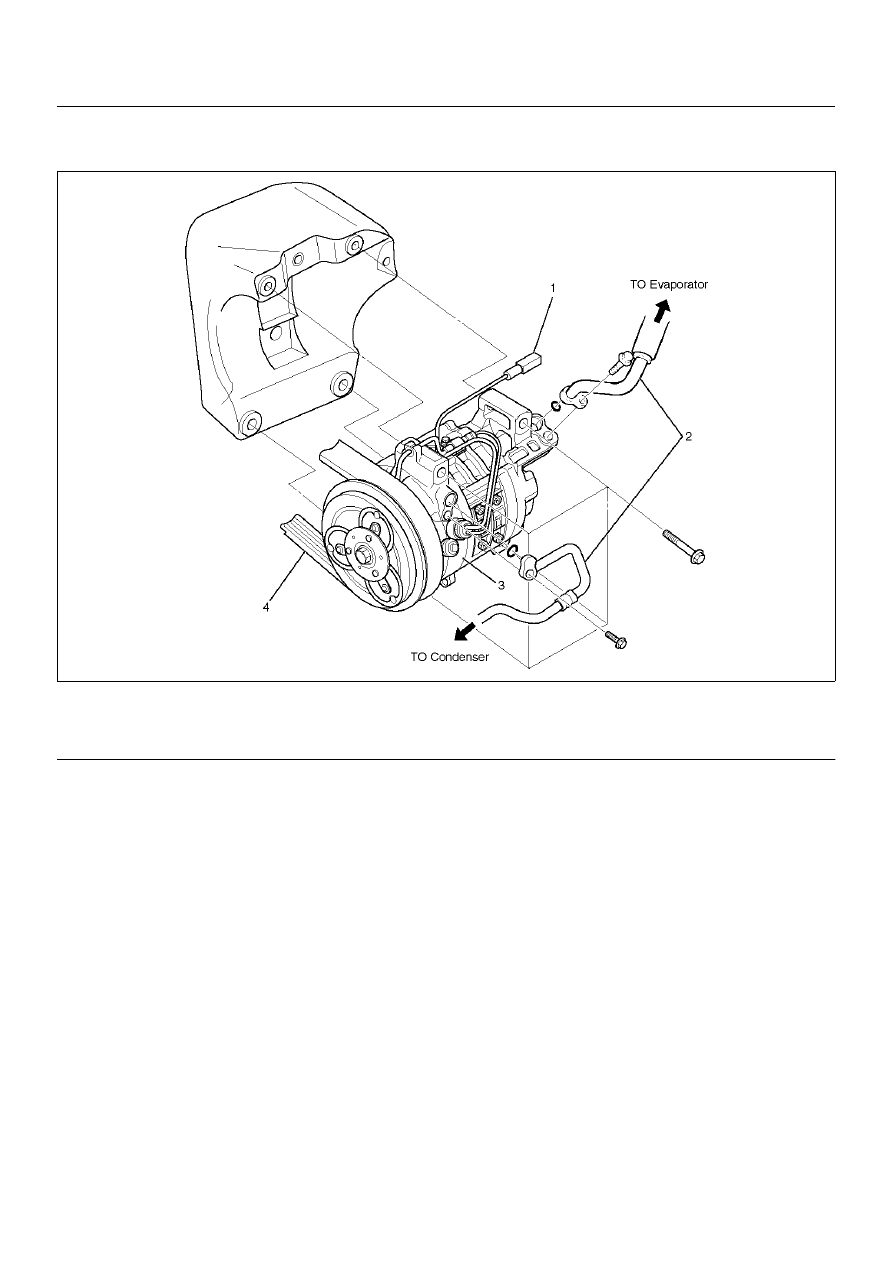

Compressor Assembly and Associated Parts (X22SE)

871RX022

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant

• Refer to Refrigerant Recovery in this section.

3. Disconnect magnetic clutch harness connector.

Legend

(1) Magnetic Harness Connector
(2) Refrigerant Line Connector

(3) Compressor
(4) Serpentine Belt

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–57

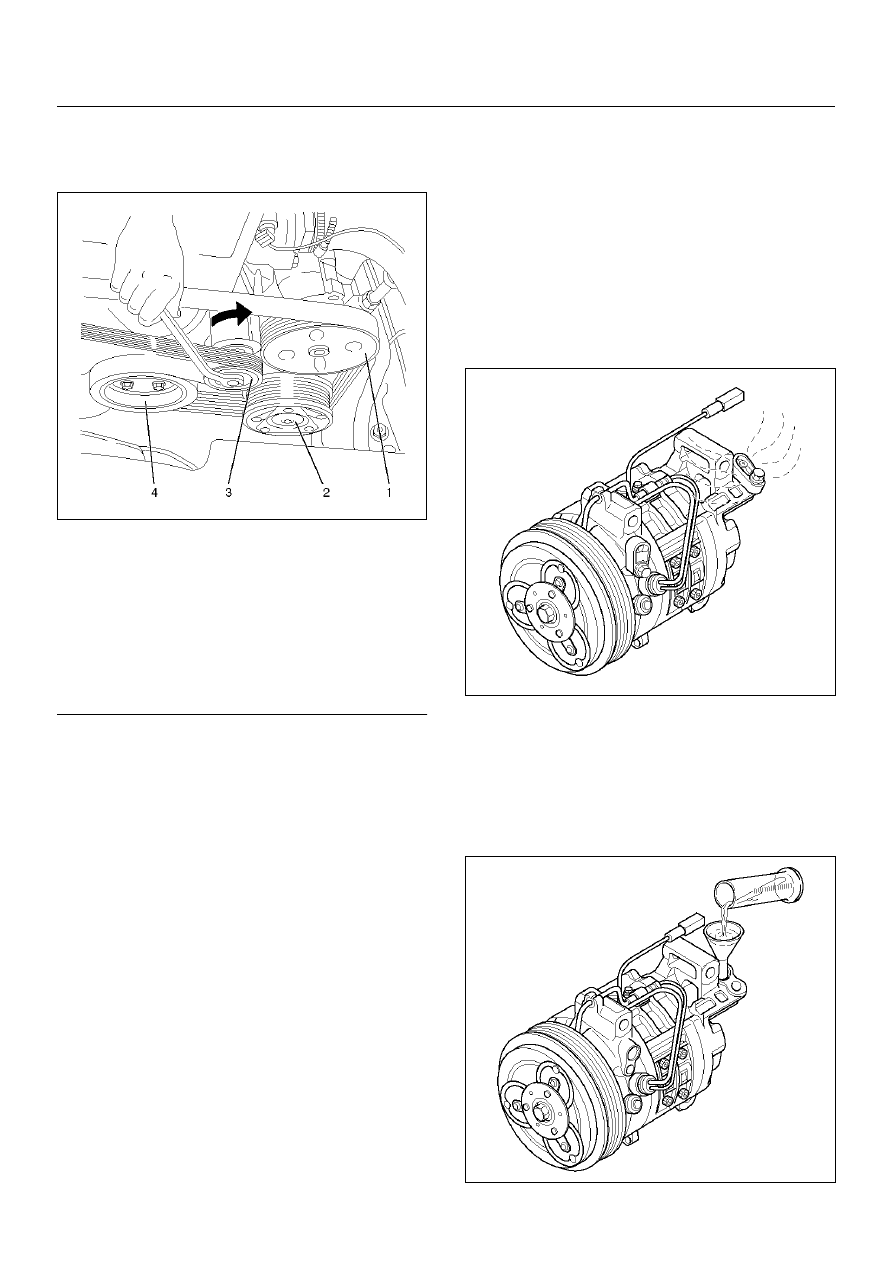

4. Remove serpentine belt.

• Move serpentine belt tensioner to loose side

using wrench then remove serpentine belt.

850RX006

EndOFCallout

5. Disconnect refrigerant line connector.

• When removing the line connector, the

connecting part should immediately be plugged
or capped to prevent foreign matter from being
mixed into the line.

6. Remove compressor.

Installation

1. Install compressor.

• Tighten the compressor fixing bolts to the

specified torque.

Torque: 19N•m (14 lb•ft)

2. Connect refrigerant line connector.

• Tighten the refrigerant line connector fixing bolts

to the specified torque.

Torque: 15N•m (11 lb•ft)

• O-rings cannot be reused. Always replace with

new ones.

• Be sure to apply new compressor oil to the

O-rings when connecting refrigerant lines.

3. Install serpentine belt.

• Move serpentine belt tensioner to loose side

using wrench, then install serpentine belt to
normal position.

4. Connect magnetic clutch harness connector.

New Compressor Installation

The new compressor is filled with 150cc (5.0fl.oz.)of
compressor oil and nitrogen gas. When mounting the
compressor on the vehicle, perform the following steps;

1. Gently release nitrogen gas from the new

compressor.
• Take care not to let the compressor oil flow out.
• Inspect O-rings and replace if necessary.

871RX008

2. Turn the compressor several times by hand and

release the compressor oil in the rotor.

3. When installing on a new system, the compressor

should installed as it is. When installing on a used
system, the compressor should be installed after
adjusting the amount of compressor oil. (Refer to
Compressor in this section)

871RX013

Legend

(1) Power Steering Oil Pump
(2) Air Conditioner Compressor
(3) Tensioner
(4) Crankshaft Pulley
(5) Power Steering Oil Pump
(6) Air Conditioner Compressor
(7) Crankshaft Pulley
(8) Generator

1A–58

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

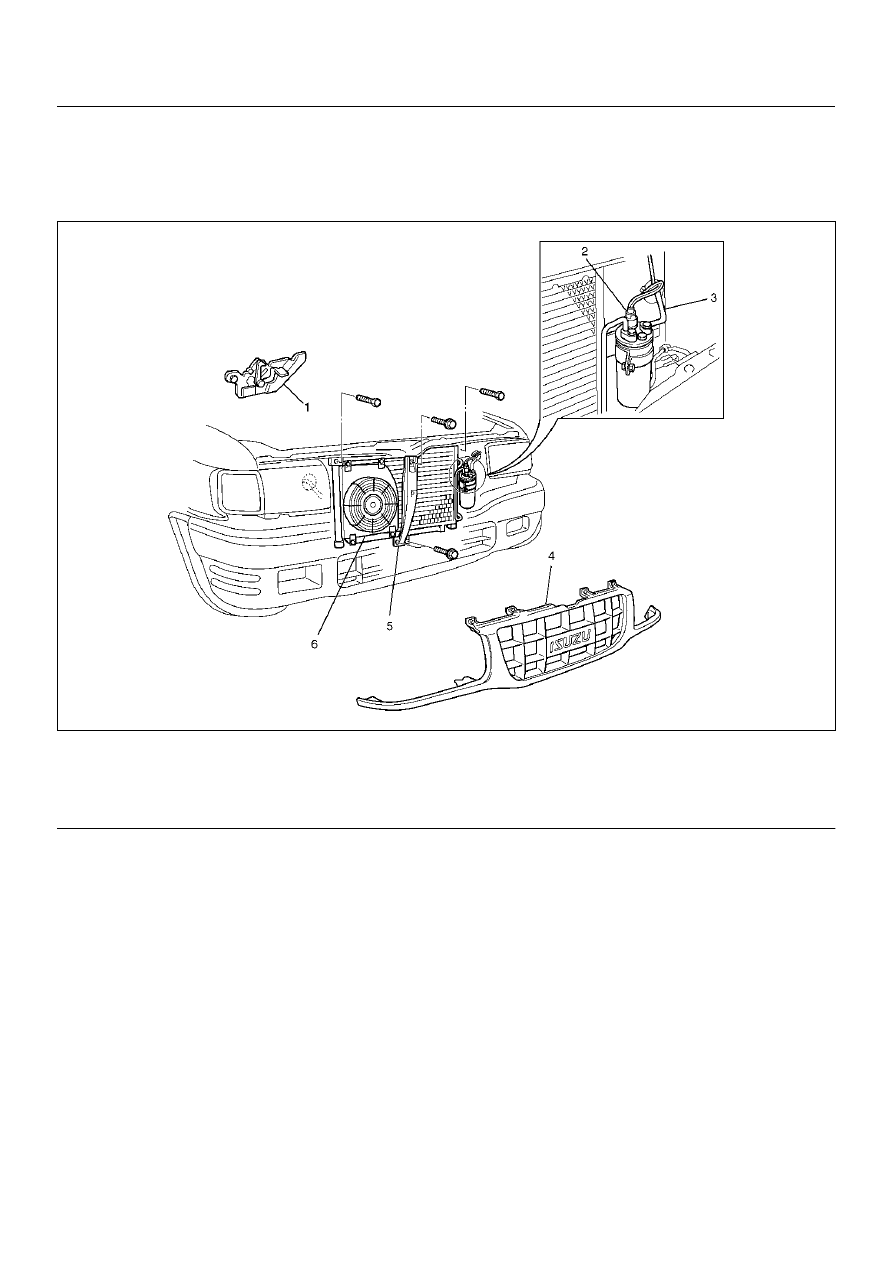

Condenser Assembly

Condenser Assembly and Associated Parts

875RW008

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant.

• Refer to Refrigerant Recovery in this section.

3. Remove radiator grille.

4. Remove engine hood front end stay.

5. Remove engine hood lock.

• Apply setting mark to the engine hood lock fixing

position before removing it.

6. Disconnect pressure switch connector.

7. Disconnect refrigerant line.

• When removing the line connector, the

connecting part should immediately be plugged
or capped to prevent foreign matter from being
mixed into the line.

8. Remove condenser assembly.

• Handle with care to prevent damaging the

condenser or radiator fin.

Installation

1. Install condenser assembly.

• If installing a new condenser, be sure to add 30cc

(1.0fl.oz.) of new compressor oil to a new one.

• Tighten the condenser fixing bolts to the specified

torque.

Torque: 6N•m (52lb in)

2. Connect refrigerant line.

• Tighten the inlet line connector fixing bolt to the

specified torque.

Legend

(1) Engine Hood Lock
(2) Pressure Switch Connector
(3) Refrigerant Line

(4) Radiator Grille
(5) Engine Hood Front End Stay
(6) Condenser Assembly

HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

1A–59

Torque: 15 N•m (11 lb ft)

• Tighten the outlet line connector fixing bolt to the

specified torque.

Torque: 6 N•m (52 lb in)

• O-rings cannot be reused. Always replace with

new ones.

• Be sure to apply new compressor oil to the

O-rings when connecting the refrigerant line.

3. Connect pressure switch connector.

4. Install engine hood lock.

5. Install engine hood front end stay.

6. Install radiator grille.

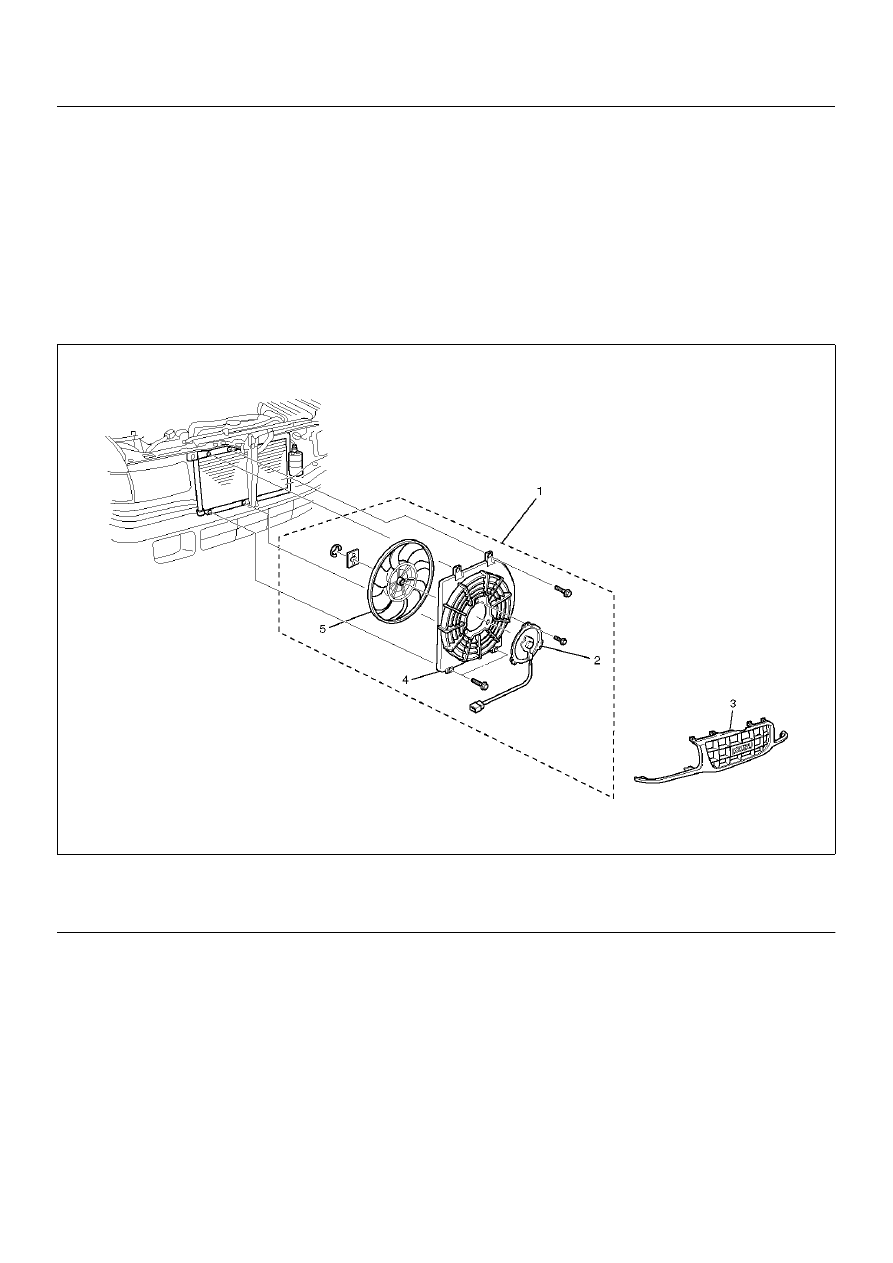

Condenser Fan Motor

Condenser Fan Motor and Associated Parts

875RW009

EndOFCallout

Removal

1. Disconnect the battery ground cable.

2. Discharge and recover refrigerant.

• Refer to Refrigerant Recovery in this section.

3. Remove radiator grille.

4. Remove condenser fan assembly.

• Disconnect the fan motor connector and remove

the 4 fixing bolts.

5. Remove shroud.

• Remove the 3 fixing nuts.

• Loosen the condenser fixing nut and disconnect

the fan motor connector from bracket.

6. Remove fan.

• Remove the fan fixing C-ring and plate.

7. Remove condenser fan motor.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Route the fan motor harness in its previous position,

and fix it securely with clip and bracket.

Legend

(1) Condenser Fan Assembly
(2) Condenser Fan Motor

(3) Radiator Grille
(4) Shroud
(5) Fan
