0A–6

GENERAL INFORMATION

2 Door Model

C00RX001

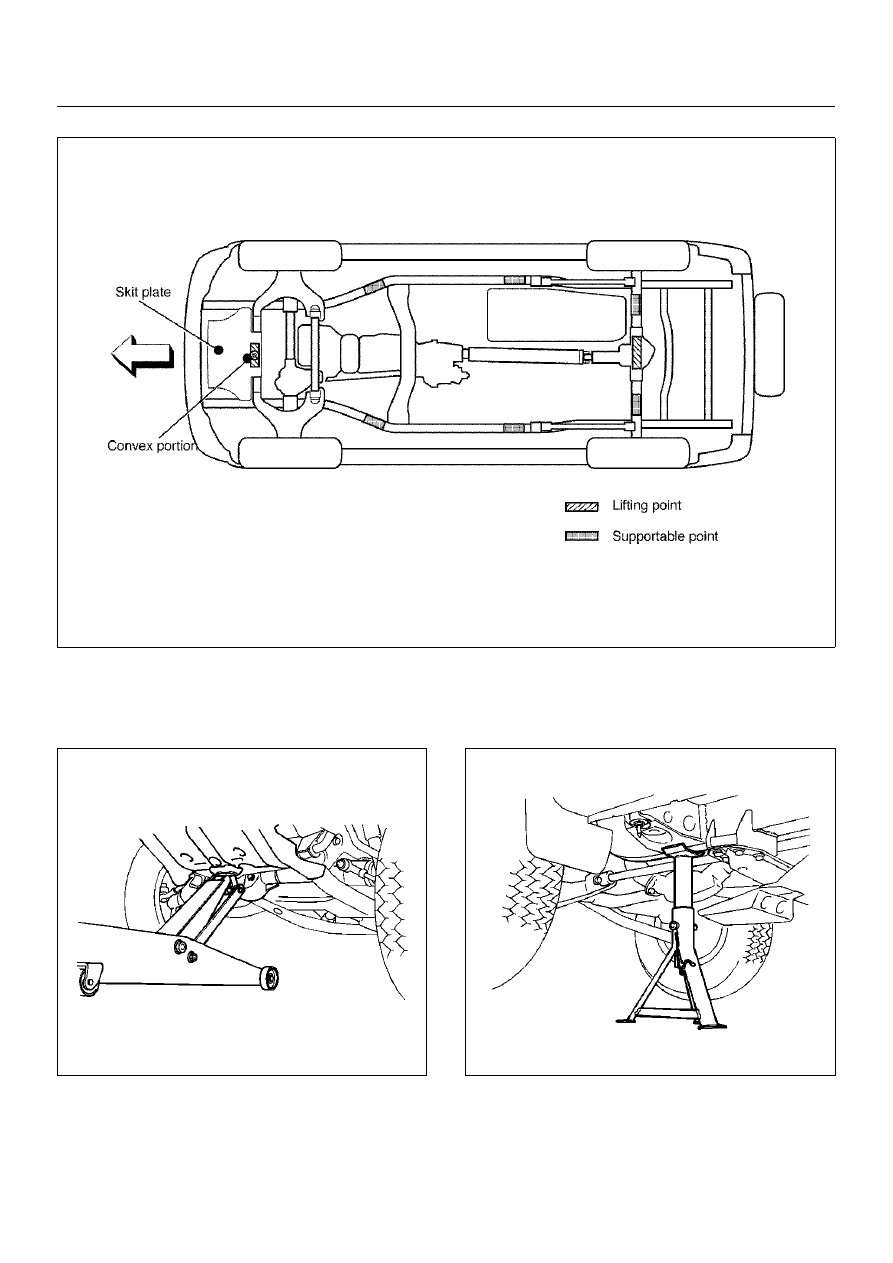

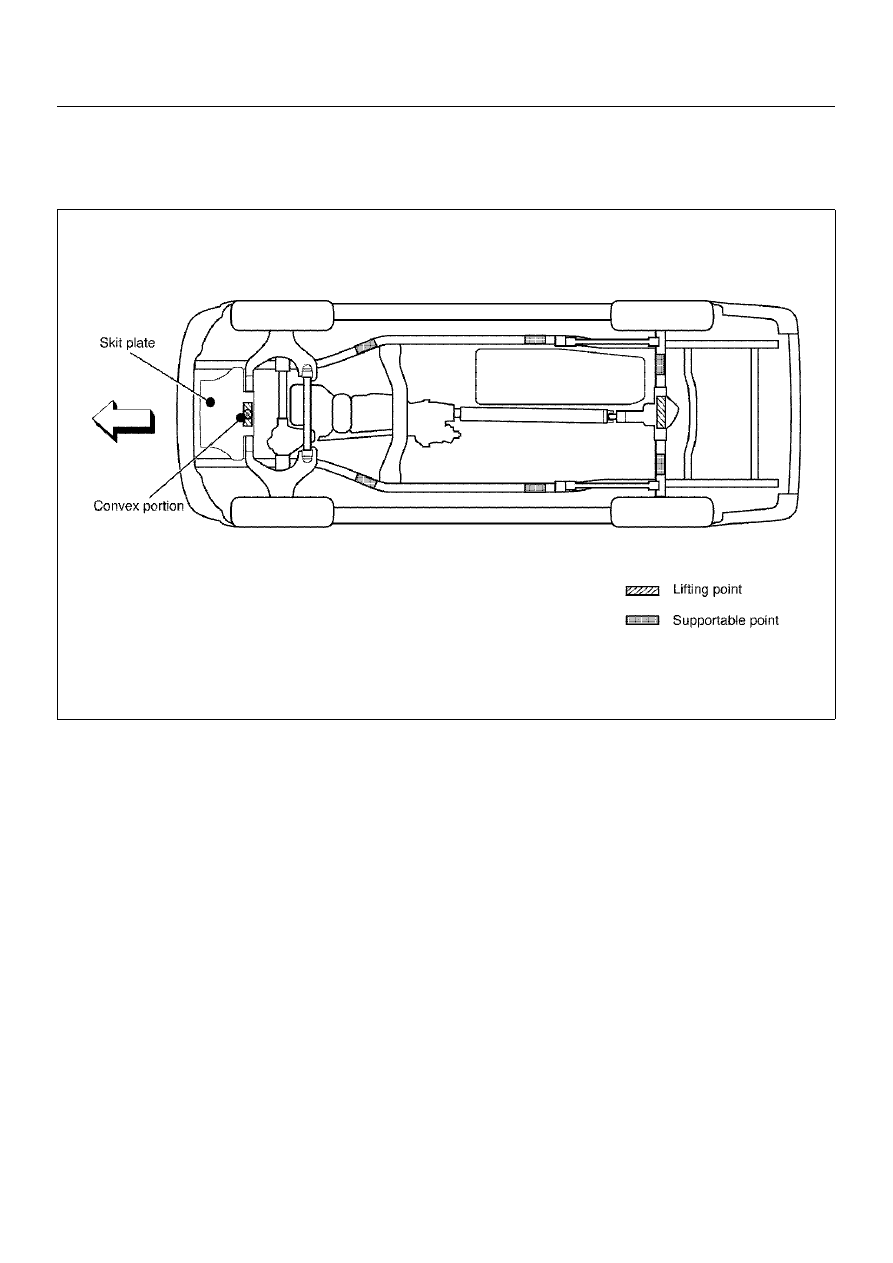

Lifting Point: Front

• When using a floor jack, lift on the Convex portion of

the skid plate.

545RS001

Supportable Point: Front

• Position the chassis stands at the bottom of the frame

sidemember, behind the front wheel.

501RS003

GENERAL INFORMATION

0A–7

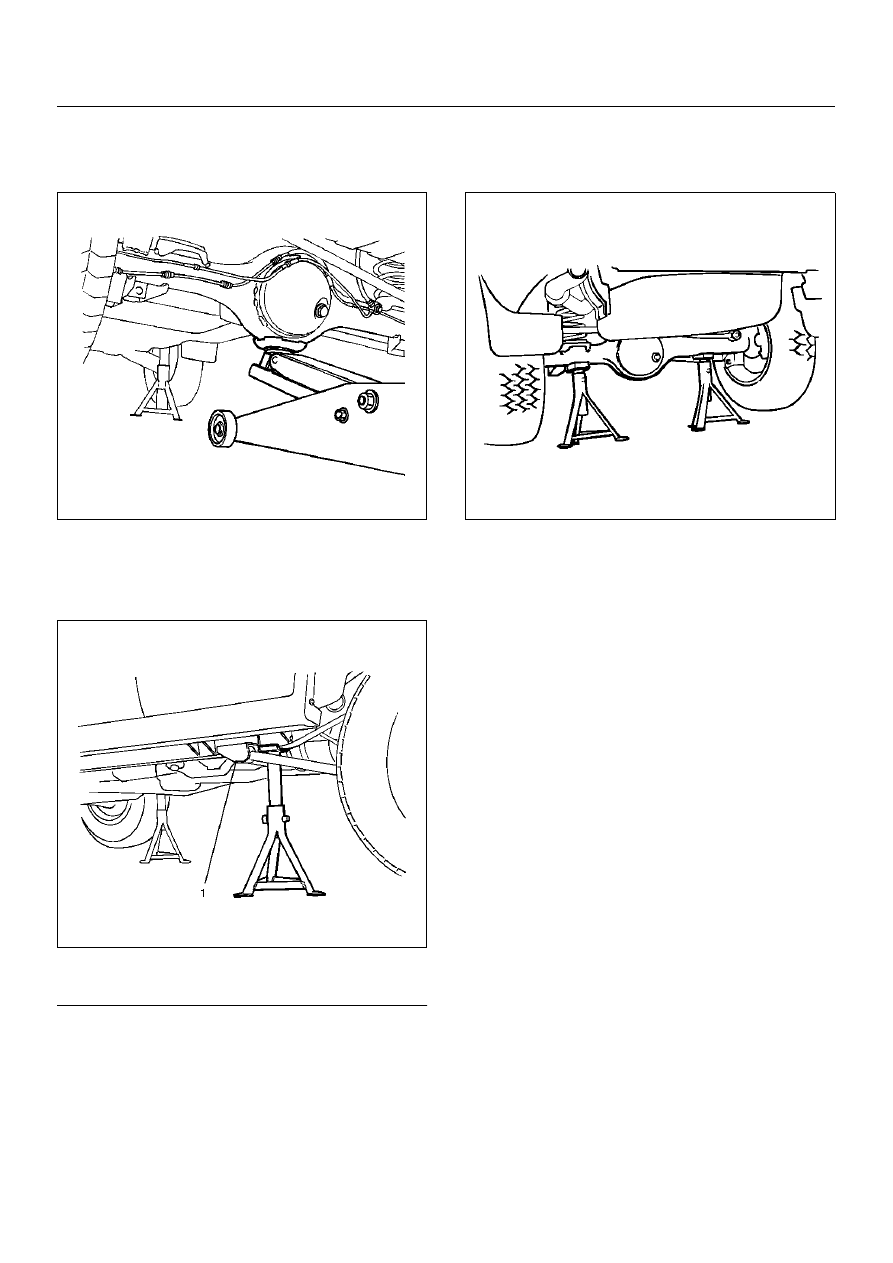

Lifting Point: Rear

• Position the floor jack at the center of the rear axle

case when lifting the vehicle.

420RS002

Supportable Point: Rear

• Position the chassis stands at the bottom of the frame

sidemember, just behind the trailing link bracket.

501RW002

Legend

EndOFCallout

Supportable Point: Rear

• Position the chassis stands at the bottom of the rear

axle case.

420RS001

(1) Trailing Link Bracket

0A–8

GENERAL INFORMATION

Standard Bolts Torque Specifications

The torque values given in the following table should be
applied where a particular torque is not specified.

The asterisk * indicates that the bolts are used for
female–threaded parts that are made of soft materials
such as casting, etc.

Strength Class

4.8

8.8

9.8

Refined

Non-Refined

Bolt
Identification

Bolt Diameter

××××

Pitch (mm)

M 6X1.0

M 8X1.25

M 10X1.25

* M10X1.5

M12X1.25

* M12X1.75

M14X1.5

* M14X2.0

M16X1.5

* M16X2.0

M18X1.5
M20X1.5
M22X1.5
M24X2.0

4 – 8 N·m (3 – 6 lb ft)

8 – 18 N·m (6 – 13 lb ft)

21 – 34 N·m (15 – 25 lb ft)
20 – 33 N·m (14 – 25 lb ft)
49 – 74 N·m (36 – 54 lb ft)
45 – 69 N·m (33 – 51 lb ft)

77 – 115 N·m (56 – 85 lb ft)
72 – 107 N·m (53 – 79 lb ft)

104 – 157 N·m (77 – 116 lb ft)
100 – 149 N·m (74 – 110 lb ft)

151 – 226 N·m (111 – 166 lb ft)
206 – 310 N·m (152 – 229 lb ft)
251 – 414 N·m (185 – 305 lb ft)
359 – 539 N·m (265 – 398 lb ft)

5 – 10 N·m (4 – 7 lb ft)

12 – 23 N·m (9 – 17 lb ft)

28 – 46 N·m (20 – 34 lb ft)
28 – 45 N·m (20 – 33 lb ft)
61 – 91 N·m (45 – 67 lb ft)
57 – 84 N·m (42 – 62 lb ft)

93 – 139 N·m (69 – 103 lb ft)

88 – 131 N·m (65 – 97 lb ft)

135 – 204 N·m (100 – 150 lb ft)

130 – 194 N·m (95 – 143 lb ft)

195 – 293 N·m (144 – 216 lb ft)
270 – 405 N·m (199 – 299 lb ft)
363 – 544 N·m (268 – 401 lb ft)
431 – 711 N·m (318 – 524 lb ft)

–

17 – 30 N·m (12 – 22 lb ft)
37 – 63 N·m (27 – 46 lb ft)
36 – 60 N·m (27 – 44 lb ft)

76 – 114 N·m (56 – 84 lb ft)
72 – 107 N·m (53 – 79 lb ft)

114 – 171 N·m (84 – 126 lb ft)
107 – 160 N·m (79 – 118 lb ft)

160 – 240 N·m (118 – 177 lb ft)
153 – 230 N·m (113 – 169 lb ft)
230 – 345 N·m (169 – 255 lb ft)
317 – 476 N·m (234 – 351 lb ft)
425 – 637 N·m (313 – 469 lb ft)
554 – 831 N·m (409 – 613 lb ft)
