GENERAL INFORMATION

0A–1

GENERAL INFORMATION

CONTENTS

General Information ....................................... 0A - 1
Meintenance and Lubrication......................... 0B - 1

GENERAL INFORMATION

CONTENTS

General Repair Instruction............................. 0A - 1
Illustration Arrows .......................................... 0A - 2
Identification................................................... 0A - 3
Lifting Instructions.......................................... 0A - 5

Standard Bolts Torque Specifications............ 0A - 8
Abbreviations Charts ..................................... 0A - 9
Service Parts Identification Plate ................... 0A - 11

General Repair Instruction

1. If a floor jack is used, the following precautions are

recommended.
Park vehicle on level ground, “block" front or rear
wheels, set jack against the recommended lifting
points (see “Lifting  Instructions" in this section),
raise vehicle and support with chassis  stands and
then perform the service operations.

2. Before performing service operations, disconnect

ground cable from the  battery to reduce the chance
of cable damage and burning due to short circuiting.

3. Use a cover on body, seats and floor to protect them

against damage and contamination.

4. Brake fluid and anti–freeze solution must be

handled with reasonable care, as they can cause
paint damage.

5. The use of proper tools and recommended essential

and available tools,  where specified, is important for
efficient and reliable performance of service repairs.

6. Use genuine Isuzu parts.

7. Used cotter pins, plastic clips, gaskets, O–rings, oil

seals, lock washers  and self–locking nuts should be
discarded and new ones should be installed,  as
normal function of the parts cannot be maintained if
these parts are reused.

8. To facilitate proper and smooth reassembly

operation, keep disassembled  parts neatly in
groups. Keeping fixing bolts and nuts separate is
very important,  as they vary in hardness and design
depending on position of installation.

9. Clean the parts before inspection or reassembly.

Also clean oil ports,  etc. using compressed air, and
make certain they are free from restrictions.

10. Lubricate rotating and sliding faces of the parts with

oil or grease before installation.

11. When necessary, use a sealer on gaskets to prevent

leakage.

12. Carefully observe all specifications for bolt and nut

torques.

13. When removing or replacing parts that require

refrigerant to be discharged  from the air
conditioning system, be sure to use the Vehicle
Refrigerant Recovery  and Recycling Equipment
(VRRRE) to recover and recycle Refrigerant–134a.

14. When a service operation is completed, make a final

check to be sure  the service has been done
properly and the problem has been corrected.

15. SUPPLEMENTAL RESTRAINT SYSTEM

The vehicle is equipped with a Supplemental
Restraint System (SRS) – Air Bags. This system is
not to be serviced without consulting the
appropriate service information.  Consult Section 9J
“SRS System" if work is to be done on the front of
the vehicle such as bumper, sheet metal, seats,
wiring, steering wheel or column.  Also review SRS
system information if any arc welding is to be done
on the vehicle. The SRS system equipped vehicle
can be identified by:

1. “AIR BAG" warning light on the instrument

cluster.

2. A Code “J" for fifth digit of Vehicle Identification

Number.

SECTION

0A–2

GENERAL INFORMATION

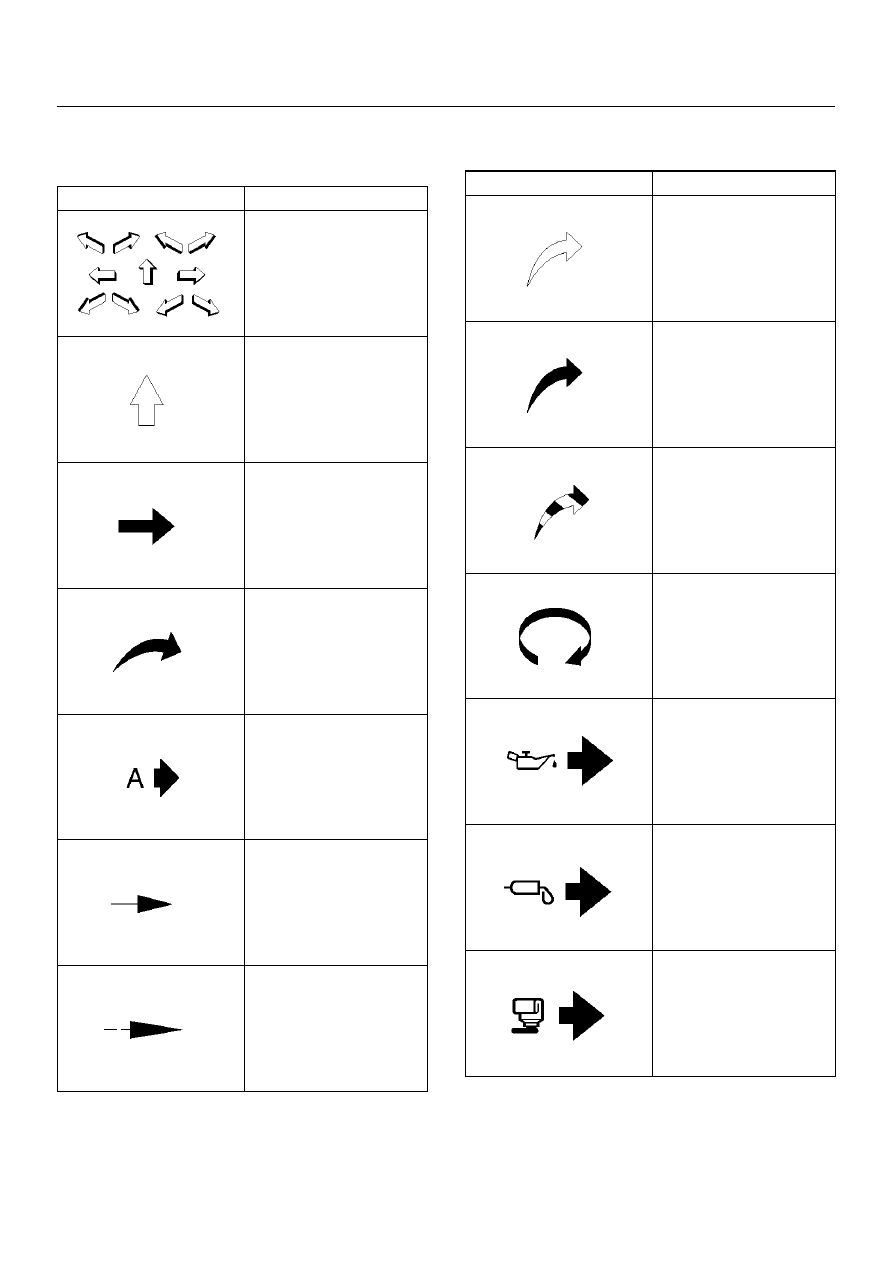

Illustration Arrows

Arrows are designed for specific purposes to aid your understanding of technical illustrations.

Arrow Type

Application

Front of vehicle

Up Side

Task Related

View Detail

View Angle

Dimension (1:2)

Sectioning (1:3)

• Ambient/Clean air flow

• Cool air flow

• Gas other than

ambient air

• Hot air flow

• Ambient air mixed with

another gas

• Can indicate

temperature change

Motion or direction

Lubrication point oil or
fluid

Lubrication point grease

Lubrication point jelly

Arrow Type

Application

GENERAL INFORMATION

0A–3

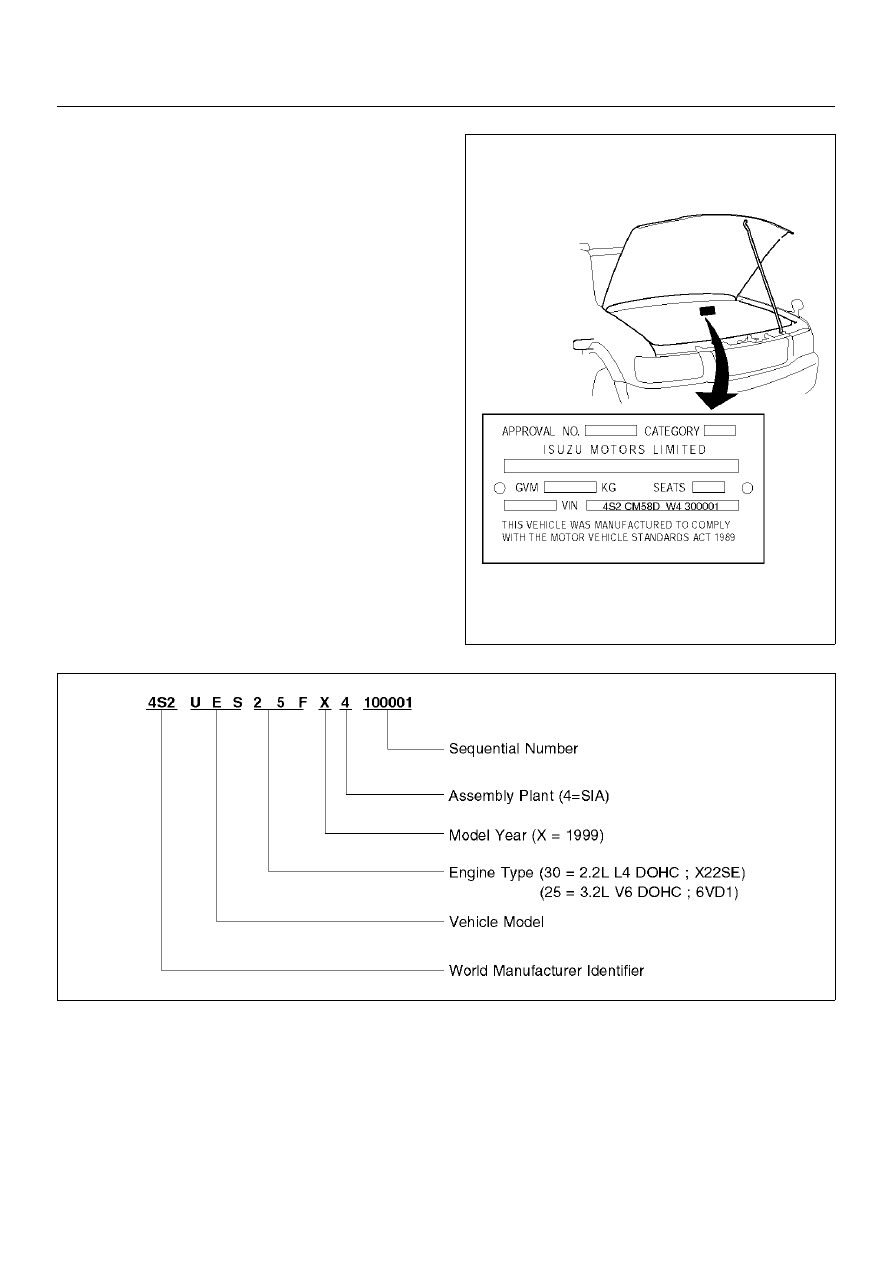

Identification

Vehicle Identification Number (VIN)

This is the legal identification of the vehicle. it is located
on the  left bottom of the windshield. It can be easily
seen through the windshield from outside the vehicle.

F00RX018

F00RX017

0A–4

GENERAL INFORMATION

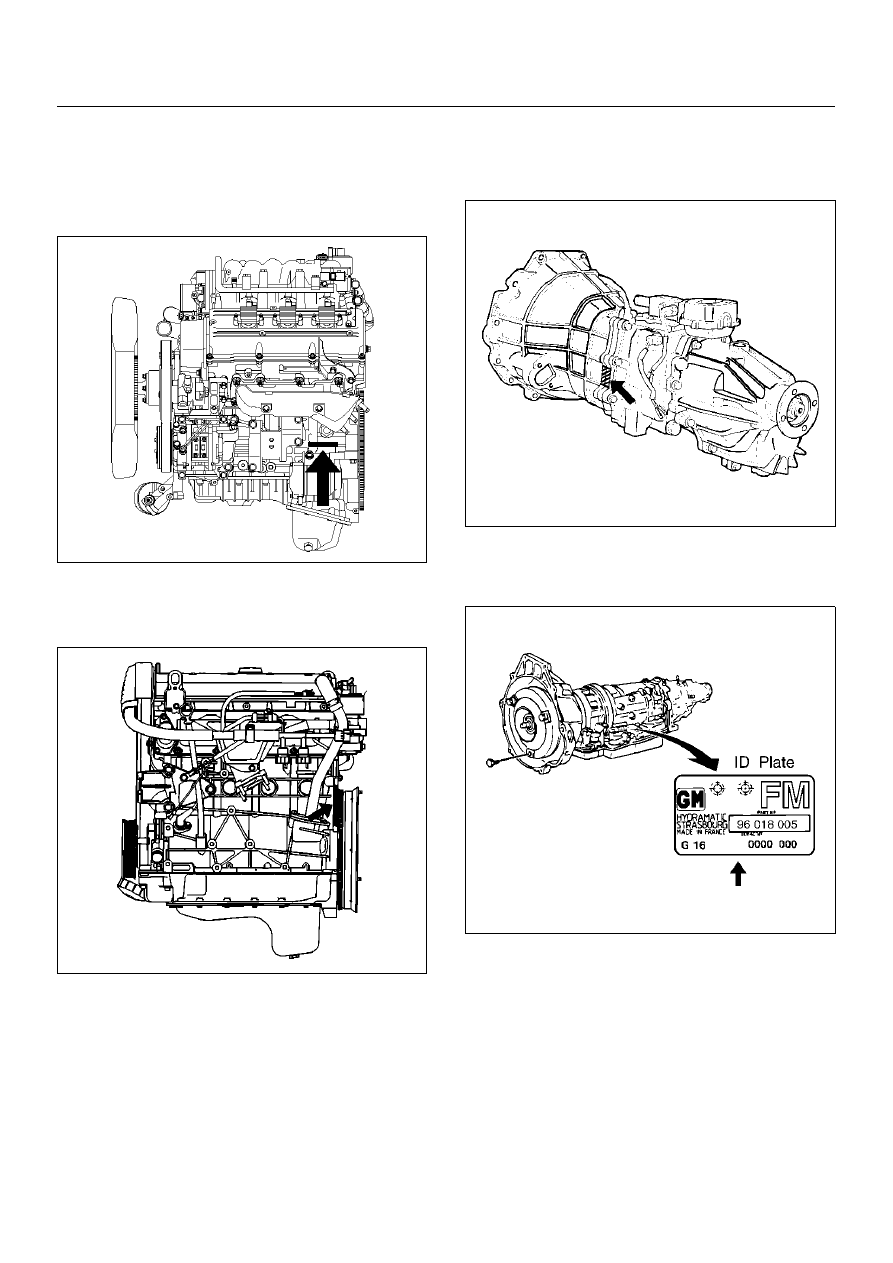

Engine Serial Number

• 6VD1 Engine
The gasoline engine serial number is stamped on the
left rear lower area of the cylinder block above the
starter.

F06RW001

• X22SE Engine
The gasoline engine serial number is stamped on the
rear end raised area of the cylinder block left side.

035RW022

Transmission Serial Number

Manual : Stamped on the left side of the transmission
intermediate plate.

220RS025

Automatic : Stamped on the identification plate, located
on the left side of the transmission above the mode
switch.

240RW019
