SEEK (Reverse or Fast

Forward) buttons

Press and hold the seek buttons

for 1.5 seconds while the compact disc is playing
to reverse or fast forward the track being played.
The compact disc plays at an increased speed
while reversing or fast forwarding. When the but-
ton is released, the compact disc returns to nor-
mal play speed.

SEEK buttons

Press the seek button

while a CD or

MP3/WMA CD is playing to return to the begin-
ning of the current track. Press the seek
button

several times to skip backward sev-

eral tracks.

Press the seek button

while a CD or

MP3/WMA CD is playing to advance one track.
Press the seek button

several times to skip

forward several tracks. If the last track on a CD is
skipped, the first track on the disc is played. If the
last track in a folder of an MP3/WMA CD is
skipped, the first track of the next folder is played.

AUX button

The AUX IN audio input jack accepts any stan-
dard analog audio input such as from a portable
cassette tape/CD player, MP3 player or a laptop
computer. Press the AUX button to play a com-
patible device plugged into the AUX IN jack.

CD EJECT button

When the

CD EJECT button is pressed

with a compact disc loaded, the compact disc
will eject and the last source will be played.

If the disc is not removed within 10 seconds, the
disc will reload.

Additional features

For additional information, refer to “iPod® player
operation with Navigation System” regarding the
iPod® player available with this system in this
section.

For additional information, refer to “USB (Univer-
sal Serial Bus) Connection Port (models with
Navigation System)” regarding the USB (Univer-
sal Serial Bus) Connection Port available with
this system in this section.

For additional information, refer to “Bluetooth®
streaming audio with Navigation System” regard-
ing the Bluetooth® audio interface available with
this system in this section.

USB (Universal Serial Bus)
CONNECTION PORT (models
without Navigation System) (if so
equipped)

Connecting a device to the USB
Connection Port

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

LHA2577

Monitor, climate, audio, phone and voice recognition systems

4-45

CAUTION

● To avoid damage and loss of function

when using a USB device, note the fol-
lowing precautions.

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

The USB connection port is located in the center
console

䊊

. Insert the USB device into the con-

nection port.

When a compatible storage device is plugged
into the connection port, compatible audio files
on the storage device can be played through the
vehicle’s audio system.

Audio file operation

MEDIA button

Place the ignition switch in the ON or ACC
position and press the MEDIA button to switch to
the USB input mode. If a CD is playing or another
audio source is plugged in through the AUX IN
jack on the radio, the MEDIA button toggles
between the three sources.

Play information

Information about the audio files being played
can be displayed on the display screen of the
vehicle’s audio system. Depending on how the
audio files are encoded, information such as
Folder, Song and Artist will be displayed.

The track number and number of total tracks in
the folder are displayed on the screen as well.

SEEK/TRACK (Reverse or

Fast Forward) buttons

Press and hold the SEEK/TRACK buttons
or

for 1.5 seconds while an audio file on

the USB device is playing to reverse or fast
forward the track being played. The track plays at
an increased speed while reversing or fast for-
warding. When the button is released, the audio
file returns to normal play speed.

SEEK/TRACK buttons

Press the SEEK/TRACK button

while an

audio file on the USB device is playing to return to
the beginning of the current track. Press the
SEEK/TRACK button

several times to skip

backward several tracks.

Press the SEEK/TRACK button

while an

audio file on the USB device is playing to ad-
vance one track. Press the SEEK/TRACK
button

several times to skip forward sev-

eral tracks. If the last track in a folder on the USB
device is skipped, the first track of the next folder
is played.

RDM (random) button

When the RDM (random) button is pressed while
an audio file on the USB device is playing, the
play pattern can be changed as follows:

All Random

→ 1 Folder Random → OFF

All Random: all tracks on the USB device will be
played randomly.

1 Folder Random: all tracks in the current folder
will be played randomly.

OFF: No random play pattern is applied. The
indicator on the display will turn off.

4-46

Monitor, climate, audio, phone and voice recognition systems

The current play pattern of the USB device is
displayed on the screen unless no pattern is
applied.

RPT (repeat) button

When the RPT (repeat) button is pressed while
an audio file on the USB device is playing, the
play pattern can be changed as follows:

1 Folder Repeat

→ 1 Track Repeat → OFF

1 Track Repeat: the current track will be re-
peated.

1 Folder Repeat: the current folder will be re-
peated.

OFF: No repeat play pattern is applied. The indi-
cator on the display will turn off.

The current play pattern of the USB device is
displayed on the screen unless no pattern is
applied.

TUNE/SCROLL knob:

If there are multiple folders with audio files on the
USB device, turn the TUNE/SCROLL knob to
change folders. Turn the knob to the left to skip
back a folder. Turn the knob to the right to skip
ahead a folder. If there is only one folder of audio
files

the

USB

device,

turning

the

TUNE/SCROLL knob in either direction will re-
turn to the first track on the USB device.

USB (Universal Serial Bus)
CONNECTION PORT (models with
Navigation System)

Connecting a device to the USB
Connection Port

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● To avoid damage and loss of function

when using a USB device, note the fol-
lowing precautions.

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.

The USB connection port is located in the center
console

䊊

. Insert the USB device into the con-

nection port.

When a compatible storage device is plugged
into the connection port, compatible audio files
on the storage device can be played through the
vehicle’s audio system.

LHA2577

Monitor, climate, audio, phone and voice recognition systems

4-47

Audio file operation

AUX button

Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
press the AUX button until the center display
changes to the USB memory mode.

If the system has been turned off while the USB
memory was playing, push the ON-OFF button to
restart the USB memory.

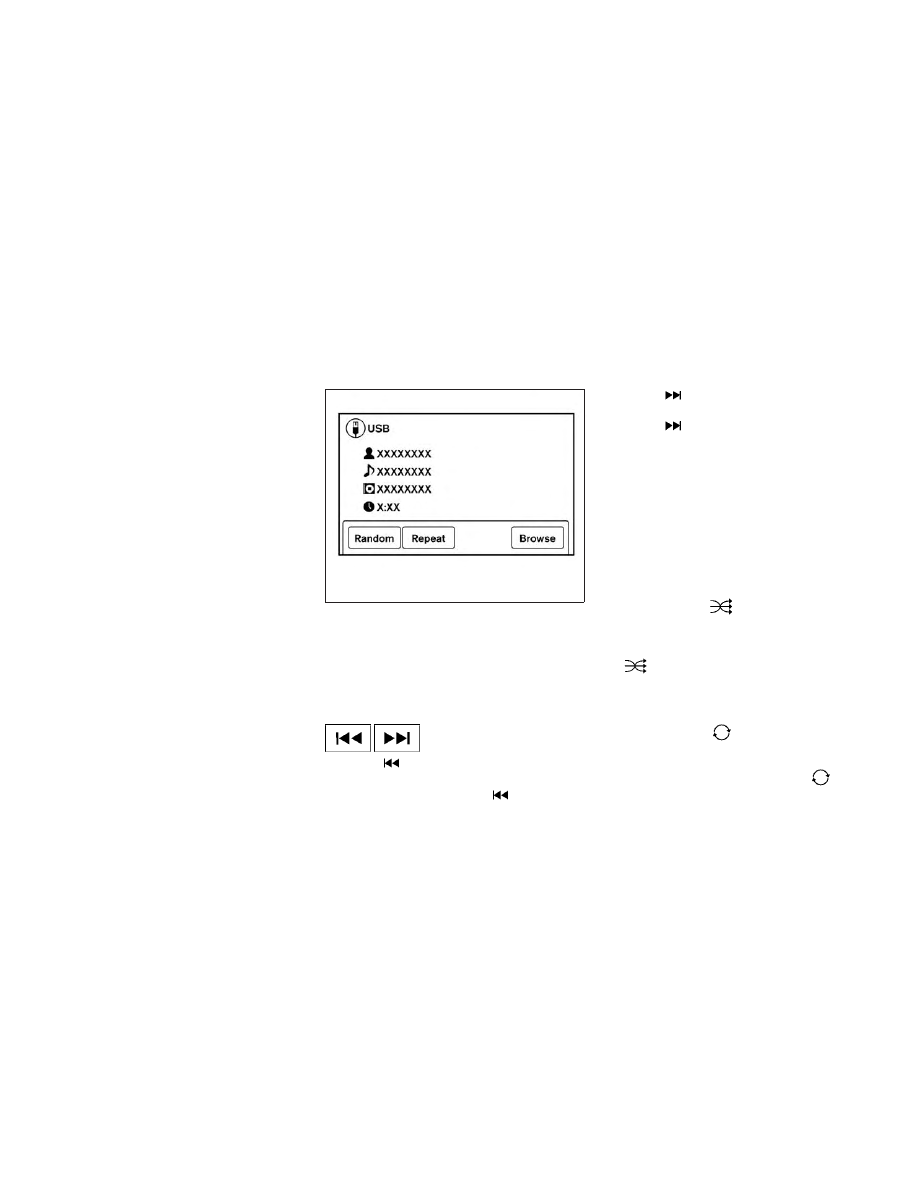

Play information

Information about the audio files being played is
shown on the display screen of the vehicle’s
audio system. Touch “Browse” to display the list
of folders and files on the USB device. Touch the
name of a song on the screen to begin playing
that song.

Seeking buttons

Press the

button while an audio file on the

USB device is playing to return to the beginning
of the current track. Press the

button sev-

eral times to skip backward several tracks.

Press the

button while an audio file on the

USB device is playing to advance one track.
Press the

button several times to skip for-

ward several tracks. If the last track in a folder on
the USB device is skipped, the first track of the
next folder is played.

Random and repeat play mode

While files on a USB device are playing, the play
pattern can be altered so that songs are repeated
or played randomly.

Random
Touch the “Random” key to apply a random play
pattern to the USB device. When the random
mode is active, the

icon is displayed to the

left of the song title or album name to denote
which random pattern is applied. To cancel Ran-
dom mode, touch the “Random” key until
no

icon is displayed.

Repeat
Touch the “Repeat” key to apply a repeat play
pattern to the USB device. When the repeat
mode is active, the

icon is displayed to the

left of the song title or album name to denote
which repeat pattern is applied. To cancel Repeat
mode, touch the “Repeat” key until no

icon

is displayed.

LHA2923

4-48

Monitor, climate, audio, phone and voice recognition systems

iPod®* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

For additional information, refer to your device
manufacturer’s owner information regarding the
proper use and care of the device.

To connect an iPod® to the vehicle so that the
iPod® can be controlled with the audio system
controls and display screen, use the USB port
located in the center console

䊊

. Connect the

iPod®-specific end of the cable to the iPod®
and the USB end of the cable to the USB port on
the vehicle. If your iPod® supports charging via a
USB connection, its battery will be charged while
connected to the vehicle with the ignition switch
in the ACC or ON position.

While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
port on the vehicle, then remove the cable from
the iPod®.

* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

Compatibility

The following models are available:

● Fifth generation iPod® (Firmware version

1.2.1 or later)

● First generation iPod Classic® (Firmware

version 1.1 or later)

● Second generation iPod Classic® (Firm-

ware version 2.0.3 or later)

● First generation iPod touch® (Firmware ver-

sion 2.1.0 or later)

● Second and third generation iPod touch®

(Firmware version 3.1.2 or later)

● First generation iPod nano® (Firmware ver-

sion 1.3.1 or later)

● Second generation iPod nano® (Firmware

version 1.1.3 or later)

LHA2577

Monitor, climate, audio, phone and voice recognition systems

4-49

● Third generation iPod nano® (Firmware ver-

sion 1.0.2 or later)

● Fourth generation iPod nano® (Firmware

version 1.0.4 or later)

● Fifth generation iPod nano® (Firmware ver-

sion 1.0.1 or later)

The iPod touch® may not respond quickly with
the system in some cases.

Make sure that the iPod® firmware is updated.

Audio main operation

Place the ignition switch to the ACC or ON
position. Then, press the MEDIA button repeat-
edly to switch to the iPod® mode.

If the audio system is turned off while the iPod® is
playing, the iPod® plays when the audio system
is turned back on.

If the audio system is off, pressing the MEDIA
button turns the audio system on and plays the
iPod®.

If the audio system is on, the audio system auto-
matically begins playing tracks from the iPod®
when it is plugged into the jack.

MEDIA button

Press the MEDIA button while the iPod® is con-
nected to show the iPod® operation menu on the
audio display. Scroll through the menu list using
the

TUNE/SCROLL

knob.

Press

the

ENTER/SETTING button to select a menu item.
Items in the iPod® menu appear on the display in
the following order:

● Now playing
● Playlists
● Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle songs

For additional information about each item, refer
to the iPod® Owner’s Manual.

SEEK/TRACK buttons

Press the SEEK/TRACK buttons

to skip backward or forward one track.

Press and hold the SEEK/TRACK buttons
or

for 1.5 seconds while a track is playing

to reverse or fast forward the track being played.
The track plays at an increased speed while
reversing or fast forwarding. When the button is
released, the track returns to normal play speed.

REPEAT (RPT)

When the RPT button is pressed while a track is
being played, the play pattern can be changed as
follows:

Repeat Off

→ 1 Track Repeat → All Repeat →

Repeat Off

1 Track Repeat: the current track will be re-
peated.

All Repeat: all songs in the current list are re-
peated.

Repeat Off: no repeat play pattern is applied.

4-50

Monitor, climate, audio, phone and voice recognition systems

RANDOM (RDM)

When the RDM button is pressed while a track is
being played, the play pattern can be changed as
follows:

Shuffle Off

→ Track Shuffle → Album Shuffle →

Shuffle Off

Track Shuffle: the tracks in the current list will be
played randomly.

Album Shuffle: the albums in the current list will
be played randomly.

Shuffle Off: no random play pattern is applied.

BACK button

When the

BACK button is pressed, it re-

turns to the previous menu.

iPod®* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)

Connecting iPod®

WARNING

Do not connect, disconnect or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

For additional information, refer to your device
manufacturer’s owner information regarding the
proper use and care of the device.

To connect an iPod® to the vehicle so that the
iPod® can be controlled with the audio system
controls and display screen, use the USB port
located in the center console

䊊

. Connect the

LHA2577

Monitor, climate, audio, phone and voice recognition systems

4-51

While connected to the vehicle, the iPod® can
only be operated by the vehicle audio controls.

To disconnect the iPod® from the vehicle, re-
move the USB end of the cable from the USB
port on the vehicle, then remove the cable from
the iPod®.

* iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

Compatibility

The following models are compatible:

● iPod® 5th Generation (firmware version

1.2.3 or later)

● iPod® Classic (firmware version 1.1.1 or

later)

● iPod® Touch (firmware version 2.0.0 or

later)*

● iPod® nano - 1st generation (firmware ver-

sion 1.3.1 or later)

● iPod® nano - 2nd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 3rd generation (firmware ver-

sion 1.1.3 or later)

● iPod® nano - 4th generation (firmware ver-

sion 1.0.4 or later)

● iPod® nano - 5th generation (firmware ver-

sion 1.0.1 or later)

* Some features of this iPod® may not be fully
functional.

Make sure that your iPod® firmware is updated to
the version indicated above.

iPod® main operation

Place the ignition switch in the ACC or ON
position. Press the AUX button repeatedly to
switch to the iPod® mode.

If the system has been turned off while the iPod®
was playing, pressing the ON-OFF button will
start the iPod®.

AUX button

When the AUX button is pressed with the system
off and the iPod® connected, the system will turn
on. If another audio source is playing and the
iPod® is connected, press the AUX button re-
peatedly until the center display changes to the
iPod® mode.

Interface

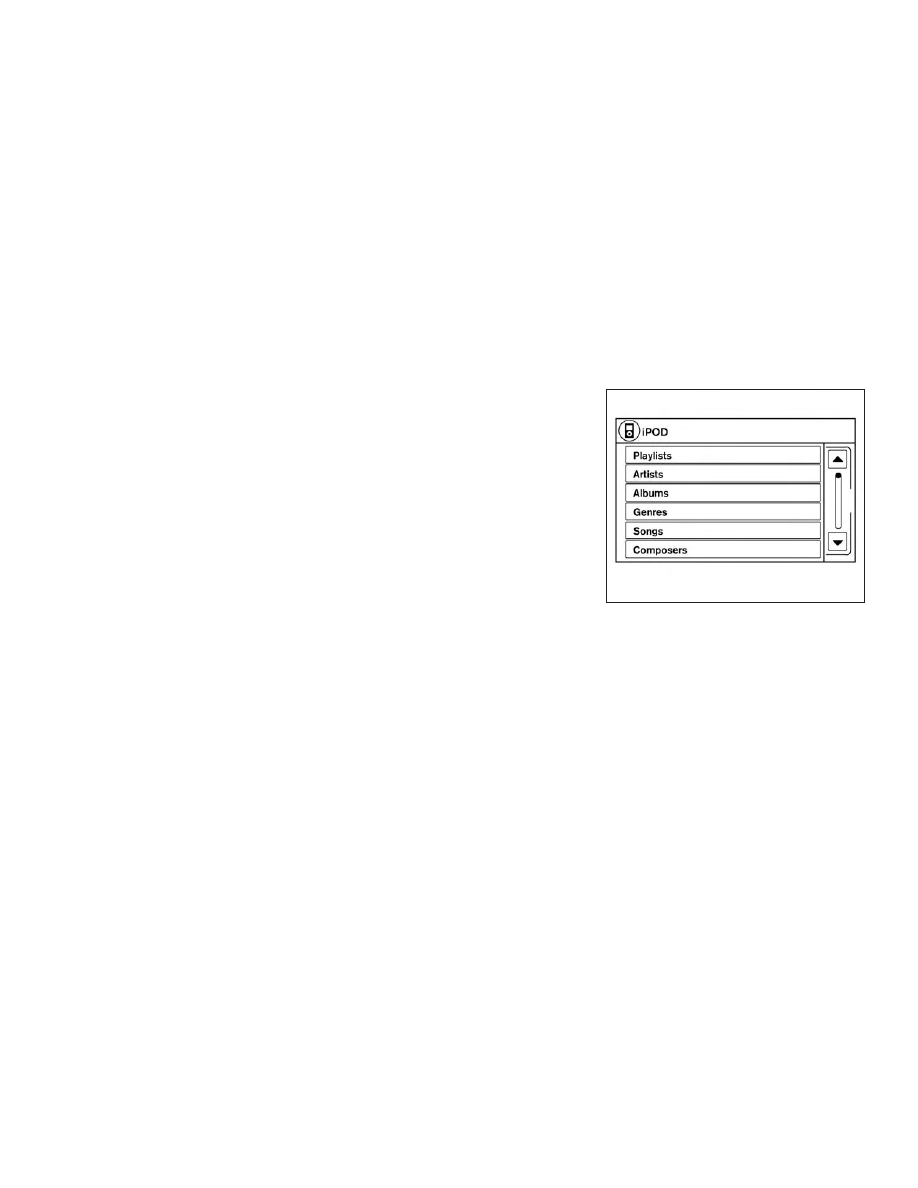

The interface for iPod® operation shown on the
vehicle’s audio system display screen is similar to
the iPod® interface. Use the touch-screen,
BACK button or the scrolling knob to navigate
the menus on the screen.

When the iPod® is playing, touch the “Menu” key
to bring up the iPod® interface.

Depending on the iPod® model, the following
items may be available on the menu list screen.
For additional information about each item, refer
to the iPod® Owner’s Manual.

● Playlists

LHA2907

4-52

Monitor, climate, audio, phone and voice recognition systems

● Artists
● Albums
● Genres
● Songs
● Composers
● Audiobooks
● Podcasts

Shuffle and repeat play mode

While the iPod® is playing, the play pattern can
be altered so that songs are repeated or played
randomly.

Shuffle
Touch the “Shuffle” key to apply a random play
pattern to the iPod®. When the Shuffle mode is
active, the text is illuminated. Touching the
“Shuffle” key once more will display the “Shuffle
songs” key. To cancel Shuffle mode, touch the
“Shuffle” key again until the text is no longer
illuminated.

Repeat
Touch the “Repeat” key to apply a repeat play
pattern to the iPod®. When the repeat mode is
active, the text is illuminated. Touching the “Re-
peat” key once more will display the “Repeat
song” key. To cancel Repeat mode, touch the
“Repeat” key again until the text is no longer
illuminated.

SEEK/TRACK buttons

Press the SEEK/TRACK buttons

to skip backward or forward one track.

Press and hold the SEEK/TRACK buttons
or

for 1.5 seconds while a track is playing

to reverse or fast forward the track being played.
The track plays at an increased speed while
reversing or fast forwarding. When the button is
released, the track returns to normal play speed.

Scrolling menus

While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first character in the name. To
activate character indexing, touch and hold the
“A-Z” key in the upper right corner of the screen.
Turn the TUNE knob to choose the number or
letter to jump to in the list and then press the
AUDIO button.

If no character is selected after 2 seconds, the
display returns to normal.

LHA2279

Monitor, climate, audio, phone and voice recognition systems

4-53

BLUETOOTH® STREAMING AUDIO
WITHOUT NAVIGATION SYSTEM (if
so equipped)

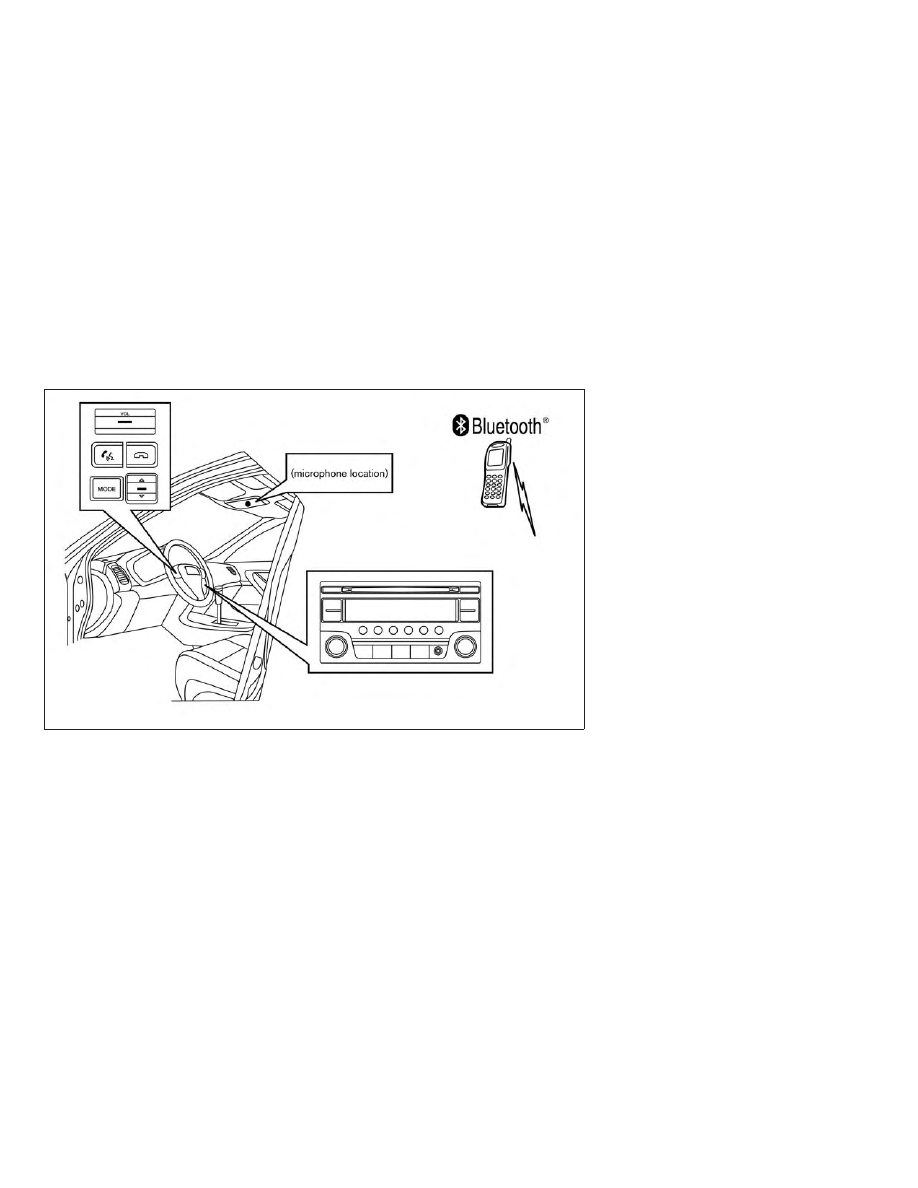

If you have a compatible Bluetooth® audio de-
vice that is capable of playing audio files, the
device can be connected to the vehicle’s audio
system so that the audio files on the device play
through the vehicle’s speakers.

Connecting Bluetooth® audio

To connect your Bluetooth® audio device to the
vehicle, follow the procedure below:

1. Press the

button. The system an-

nounces the available commands.

2. Say “Connect Phone”. The system acknowl-

edges the command and announces the
next set of available commands.

3. Say “Add Phone”. The system acknowl-

edges the command and asks you to initiate
connecting from the phone handset. The
connecting procedure of the cellular phone
varies according to each cellular phone
model. For additional information, refer to
the cellular phone Owner’s Manual.

4. When prompted for a PIN, enter “1234”

from the handset. The PIN “1234” has been
assigned by NISSAN and cannot be
changed.

Audio main operation

To switch to the Bluetooth® audio mode, press
the

MEDIA

button

repeatedly

until

the

Bluetooth® audio mode is displayed on the
screen.

Use the vehicle audio controls or the Bluetooth®
device’s controls to play, pause, skip or reverse
tracks.

BLUETOOTH® STREAMING AUDIO
WITH NAVIGATION SYSTEM

Connecting Bluetooth® audio

To connect your Bluetooth® audio device to the
vehicle, follow the procedure below:

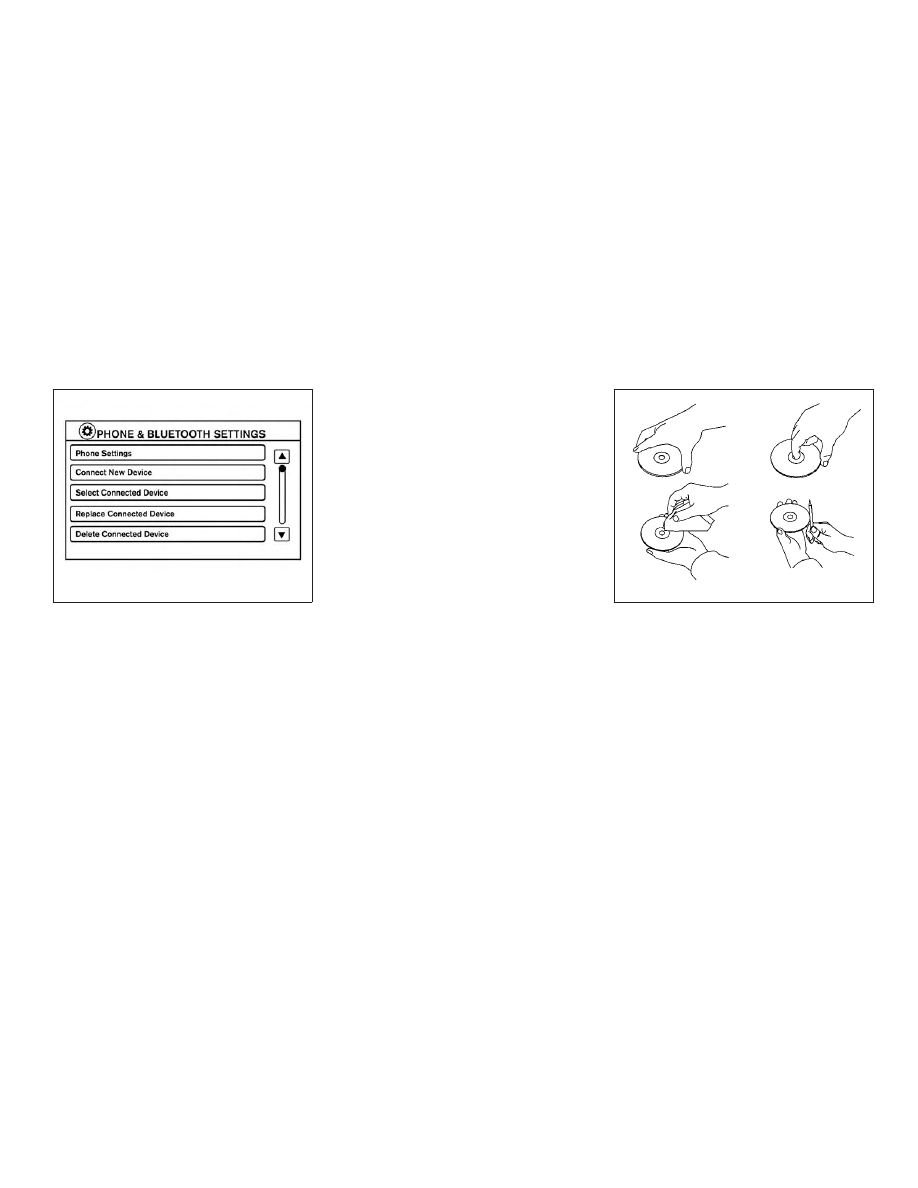

1. Press the SETUP button.

2. Touch the “Phone & Bluetooth” key.

LHA2773

4-54

Monitor, climate, audio, phone and voice recognition systems

3. Touch the “Connect New Device” key.

4. The system acknowledges the command

and asks you to initiate connecting from the
phone handset. The connecting procedure
of the cellular phone varies according to
each cellular phone model. For additional
information, refer to the cellular phone Own-
er’s Manual.

Audio main operation

To switch to the Bluetooth® audio mode, press
the AUX button repeatedly until the Bluetooth®
audio mode is displayed on the screen.

The controls for the Bluetooth® audio are dis-
played on the screen.

CD CARE AND CLEANING

● Handle a CD by its edges. Do not bend the

disc. Never touch the surface of the disc.

● Always place the discs in the storage case

when they are not being used.

● To clean a disc, wipe the surface from the

center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.

● Do not use a conventional record cleaner or

alcohol intended for industrial use.

LHA2844

LHA0049

Monitor, climate, audio, phone and voice recognition systems

4-55

● A new disc may be rough on the inner and

outer edges. Remove the rough edges by
rubbing the inner and outer edges with the
side of a pen or pencil as illustrated.

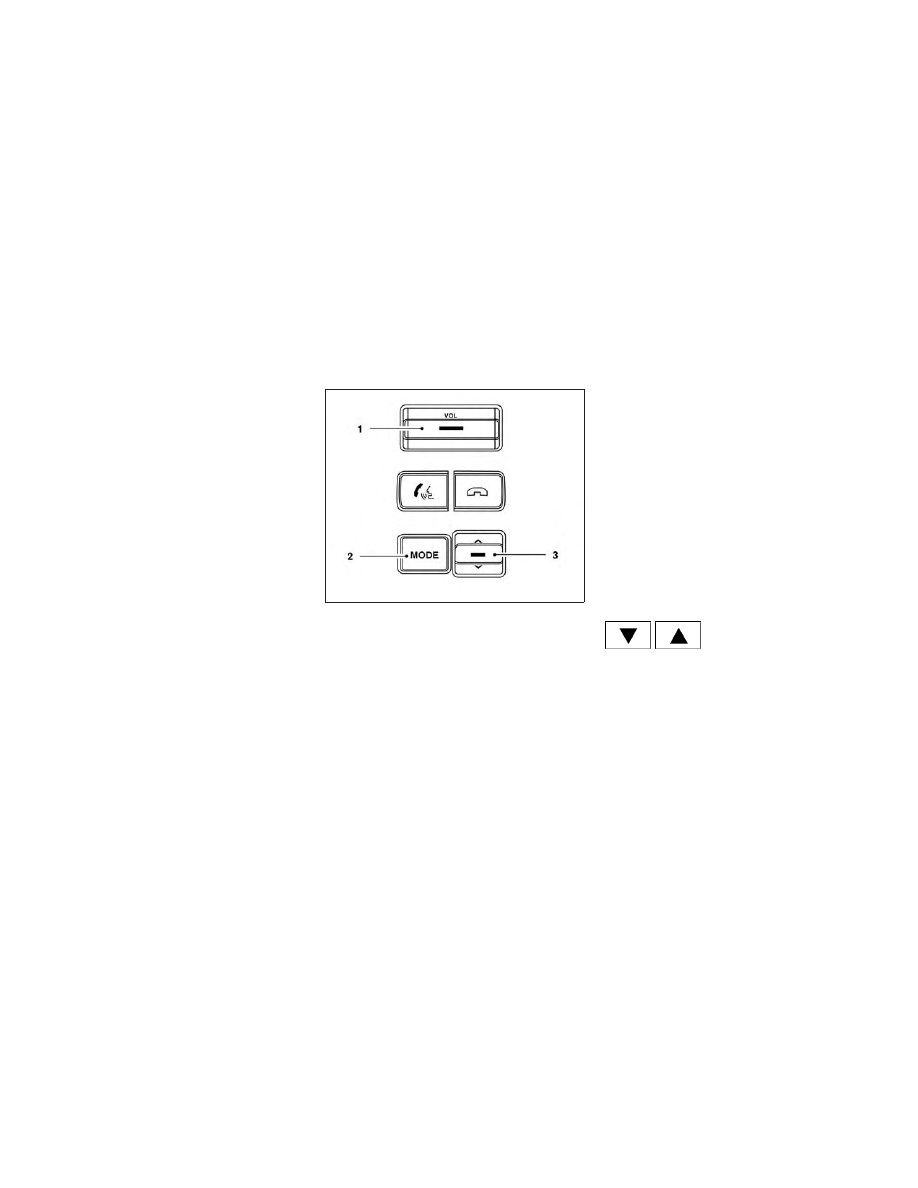

STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)

The audio system can be operated using the
controls on the steering wheel.

1. Volume control switch

2. MODE select switch

3. Tuning switch

POWER on/off switch

With the ignition switch placed in the ACC or ON
position, push the MODE switch to turn the audio
system on.

MODE select switch

Push the MODE select switch to change the
mode in the following sequence:

→ FM1 → FM2 → SXM1 → SXM2 → SXM3

→ CD → USB/iPod®* (if so equipped) →
Bluetooth® audio* (if so equipped)

→ AUX* →

* These modes are only available when compat-
ible media storage is inserted into the device or
connected to the system.

Volume control switch

Push the volume control switch up or down to
increase or decrease the volume.

Tuning switch

While the display is showing a map or audio
screen, tilt the Menu Control switch upward or
downward to select a station, track, CD or folder.
For most audio sources, tilting the switch
up/down for more than 1.5 seconds provides a
different function than a tilting up/down for less
than 1.5 seconds.

LHA2559

4-56

Monitor, climate, audio, phone and voice recognition systems

AM and FM

● Tilt up/down for less than 1.5 seconds to

increase or decrease the preset station.

● Tilt up/down for more than 1.5 seconds to

seek up or down to the next station.

iPod® (if so equipped)

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Tilt up/down for more than 1.5 seconds to

increase or decrease the folder number (if
playing compressed audio files).

● Tilt up/down for more than 1.5 seconds to

change the playing disc up or down (com-
pact disc changer, if so equipped).

USB (if so equipped)

● Tilt up/down for less than 1.5 seconds to

increase or decrease the track number.

● Tilt up/down for more than 1.5 seconds to

increase or decrease the folder number.

Bluetooth® Audio (if so equipped)

● Tilt up/down for less than 1.5 seconds to

skip ahead or back to the next song.

● Tilt up/down for more than 1.5 seconds to

reverse or fast forward the current song.

ANTENNA

The antenna cannot be shortened, but can be
removed. When you need to remove the antenna,
turn the antenna rod counterclockwise.

To install the antenna rod, turn the antenna clock-
wise. Tighten the antenna rod to specification
using a suitable tool such as an open-end
wrench. The antenna rod tightening specification
is 2.0 – 2.6 N·m (18 – 23 in-lb). Do not use pliers
to tighten the antenna as they can leave marks on
the antenna surface. The antenna rod cannot be
hand tightened to the proper specification.

CAUTION

Always properly tighten the antenna rod
during installation or the antenna rod may
break during vehicle operation.

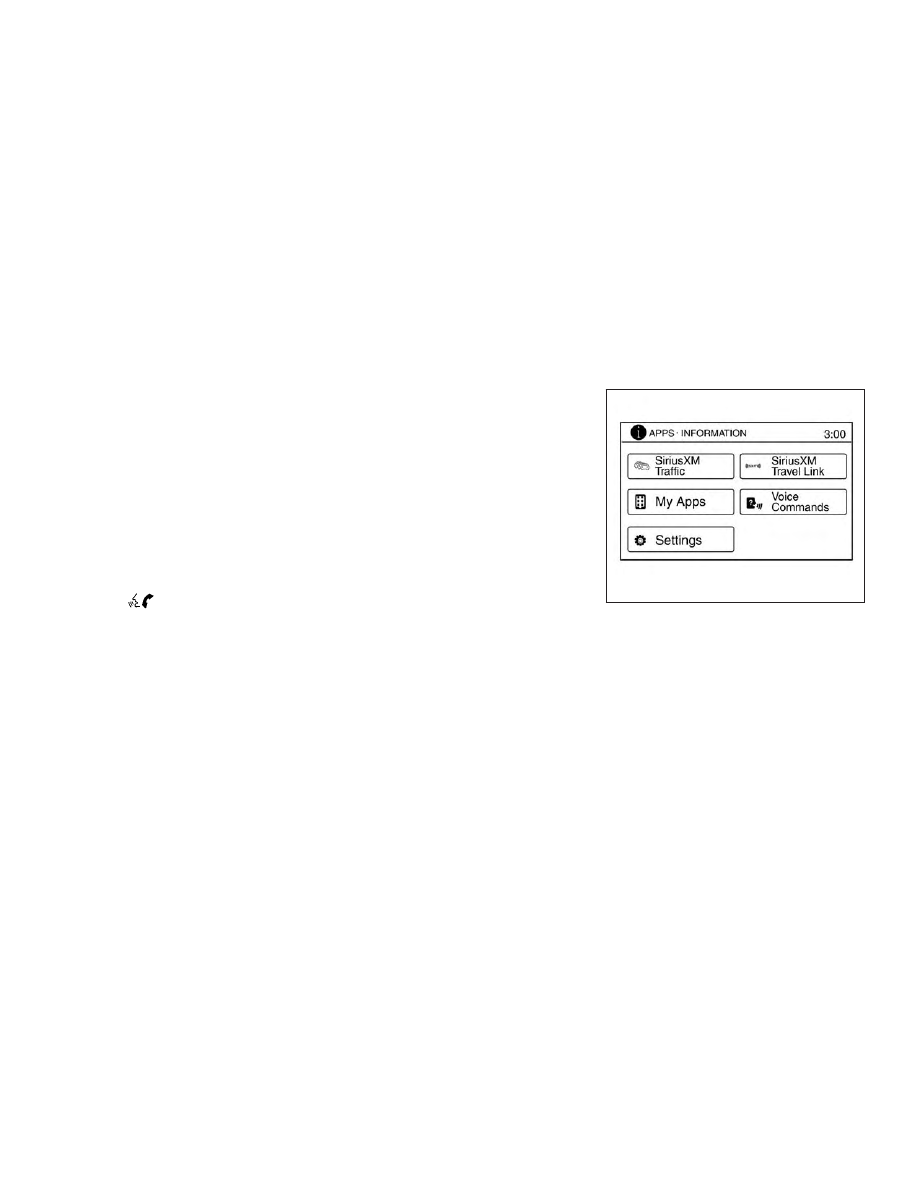

This vehicle is equipped with Smartphone Inte-
gration technology. This allows many compatible
Smartphone applications to be displayed and
easily controlled through the vehicle’s touch-
screen.

NOTE:

A compatible smartphone and registration
is required to use mobile applications or to
access connected features of certain ve-
hicle applications.

REGISTERING WITH
NISSANCONNECT

APP

To use the Smartphone Integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect

website,

www.nissanusa.com/connect/ and sign up or
create an account through the prompts on the
NissanConnect

App. Once registered, down-

load the NissanConnect

App from your com-

patible phone’s application download source and
then log into the application. If you already have
an account created through the App, please log
in.

NISSANCONNECT

WITH MOBILE

APPS (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-57

CONNECT PHONE

To use this feature, a compatible smartphone
must be connected via Bluetooth® or USB to the
vehicle. For additional information, refer to
“Bluetooth® Hands-Free Phone System with
Navigation System” regarding connecting your
phone in this section.

NOTE:

For

vehicles

with

Navigation,

Apple

iPhones must be paired via USB for Nissan-
Connect™ Apps to function.

NOTE:

For vehicles without Navigation, Apple
iPhones must be paired via Bluetooth® for
NissanConnect™ Apps to function.

NOTE:

For Android phones, NissanConnect™ Apps
REQUIRES the phone to be paired via
Bluetooth®.

APPLICATION DOWNLOAD

Once connected, the NissanConnect™ App will
search your phone to determine which compat-
ible applications are currently installed. The user
will then choose which apps they want to bring
into their vehicle from the list of apps within the
“Manage My Apps” section of the Nissan-
Connect™ App on their smartphone. The vehicle
will then download the in-vehicle interface for
each of these compatible applications. Once
downloaded, the user can access their selected
smartphone applications through the vehicle
touch-screen. For additional information, refer to
www.nissanusa.com/connect regarding applica-
tion availability.

When installing a CB, ham radio or car phone in
your vehicle, be sure to observe the following
precautions; otherwise, the new equipment may
adversely affect the engine control system and
other electronic parts.

WARNING

● A cellular phone should not be used for

any purpose while driving so full atten-
tion may be given to vehicle operation.
Some jurisdictions prohibit the use of
cellular phones while driving.

● If you must make a call while your ve-

hicle is in motion, the hands free cellu-
lar phone operational mode (if so
equipped) is highly recommended. Ex-
ercise extreme caution at all times so
full attention may be given to vehicle
operation.

● If you are unable to devote full attention

to vehicle operation while talking on
the phone, pull off the road to a safe
location and stop your vehicle.

CAR PHONE OR CB RADIO

4-58

Monitor, climate, audio, phone and voice recognition systems

CAUTION

● Keep the antenna as far away as pos-

sible

from

the

electronic

control

modules.

● Keep the antenna wire more than 8 in

(20 cm) away from the electronic control
system harnesses. Do not route the an-
tenna wire next to any harness.

● Adjust the antenna standing-wave ratio

as recommended by the manufacturer.

● Connect the ground wire from the CB

radio chassis to the body.

● For additional information, refer to a

NISSAN dealer.

● Do not ground electrical accessories di-

rectly to the battery terminal. Doing so
will bypass the variable voltage control
system and the vehicle battery may not
charge completely. Refer to “Variable
voltage control system” in the “Mainte-
nance and do-it-yourself” section in this
manual.

● Use electrical accessories with the en-

gine running to avoid discharging the
vehicle battery.

WARNING

● Use a phone after stopping your vehicle

in a safe location. If you have to use a
phone while driving, exercise extreme
caution at all times so full attention may
be given to vehicle operation.

● If you are unable to devote full attention

to vehicle operation while talking on
the phone, pull off the road to a safe
location and stop your vehicle.

CAUTION

To avoid discharging the vehicle battery,
use a phone after starting the engine.

BLUETOOTH® HANDS-FREE PHONE
SYSTEM WITHOUT NAVIGATION
SYSTEM (Type A) (if so equipped)

Monitor, climate, audio, phone and voice recognition systems

4-59

Your NISSAN is equipped with the Bluetooth®
Hands-Free Phone System. If you have a com-
patible Bluetooth® enabled cellular phone, you
can set up the wireless connection between your
cellular phone and the in-vehicle phone module.
With Bluetooth® wireless technology, you can

make or receive a hands-free telephone call with
your cellular phone in the vehicle.

Once your cellular phone is connected to the
in-vehicle phone module, no other phone con-
necting procedure is required. Your phone is
automatically connected with the in-vehicle

phone module when the ignition switch is placed
in the ON position with the previously connected
cellular phone turned on and carried in the ve-
hicle.

NOTE:

Some devices require the user to accept
connections to other Bluetooth® devices. If
your phone does not connect automatically
to the system, consult the phone’s Owner’s
Manual for details on device operation.

You can connect up to five different Bluetooth®
cellular phones to the in-vehicle phone module.
However, you can talk on only one cellular phone
at a time.

Before using the Bluetooth® Hands-Free Phone
System, refer to the following notes.

● Set up the wireless connection between a

compatible cellular phone and the in-vehicle
phone module before using the hands-free
phone system.

● Some Bluetooth® enabled cellular phones

may not be recognized or work properly.
Please visit www.nissanusa.com/bluetooth
for a recommended phone list and connect-
ing instructions.

LHA3142

4-60

Monitor, climate, audio, phone and voice recognition systems

Nissan Xterra (2015 year). Instruction - part 13
