Nissan Xterra (2015 year). Instruction

USB (Universal Serial Bus)
Connection Port

WARNING

Do not connect, disconnect, or operate the
USB device while driving. Doing so can be
a distraction. If distracted you could lose
control of your vehicle and cause an acci-
dent or serious injury.

CAUTION

● Do not force the USB device into the

USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.

● Do not grab the USB port cover (if so

equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.

● Do not leave the USB cable in a place

where it can be pulled unintentionally.
Pulling the cable may damage the port.

The vehicle is not equipped with a USB device.
USB devices should be purchased separately as
necessary.

This system cannot be used to format USB de-
vices. To format a USB device, use a personal
computer.

In some jurisdictions, the USB device for the front
seats plays only sound without images for regu-
latory reasons, even when the vehicle is parked.

This system supports various USB connection
port devices, USB hard drives and iPod® play-
ers. Some USB devices may not be supported by
this system.

● Partitioned USB devices may not play cor-

rectly.

● Some characters used in other languages

(Chinese, Japanese, etc.) may not appear
properly in the display. Using English lan-
guage characters with a USB device is rec-
ommended.

General notes for USB (if so equipped) use

● Refer to your device manufacturer’s owner

information regarding the proper use and
care of the device.

Notes for iPod® (if so equipped) use

iPod® is a trademark of Apple Inc., registered in
the U.S. and other countries.

● Improperly plugging in the iPod® may cause

a checkmark to be displayed on and off
(flickering). Always make sure that the
iPod® is connected properly.

● An iPod® nano (1st Generation) may remain

in fast forward or rewind mode if it is con-
nected during a seek operation. In this case,
please manually reset the iPod®.

● An iPod® nano (2nd Generation) will con-

tinue to fast-forward or rewind if it is discon-
nected during a seek operation.

● An incorrect song title may appear when the

Play Mode is changed while using an iPod®
nano (2nd Generation).

● Audiobooks may not play in the same order

as they appear on an iPod®.

● Large video files cause slow responses in an

iPod®. The vehicle center display may mo-
mentarily black out, but will soon recover.

● If an iPod® automatically selects large video

files while in the shuffle mode, the vehicle
center display may momentarily black out,
but will soon recover.

Monitor, climate, audio, phone and voice recognition systems

4-29

Bluetooth® streaming audio (if so
equipped)

● Some Bluetooth® audio devices may not be

recognized by the in-vehicle audio system.

● It is necessary to set up the wireless con-

nection between a compatible Bluetooth®
audio device and the in-vehicle Bluetooth®
module before using the Bluetooth® audio.

● Operating procedure of the Bluetooth® au-

dio will vary depending on the devices. Make
sure how to operate your audio device be-
fore using it with this system.

● The Bluetooth® audio may be stopped un-

der the following conditions:

● Receiving a call on the Hands-Free

Phone System.

● Checking the connection to the hands-

free phone.

● Do not place the Bluetooth® audio device in

an area surrounded by metal or far away from
the in-vehicle Bluetooth® module to prevent
tone quality degradation and wireless con-
nection disruption.

● While an audio device is connected through

the Bluetooth® wireless connection, the
battery power of the device may discharge
quicker than usual.

● This system supports the Bluetooth® Audio

Distribution Profile (A2DP, AVRCP).

BLUETOOTH® is a
trademark owned by
Bluetooth SIG, Inc.
and licensed to
Visteon and Bosch.

4-30

Monitor, climate, audio, phone and voice recognition systems

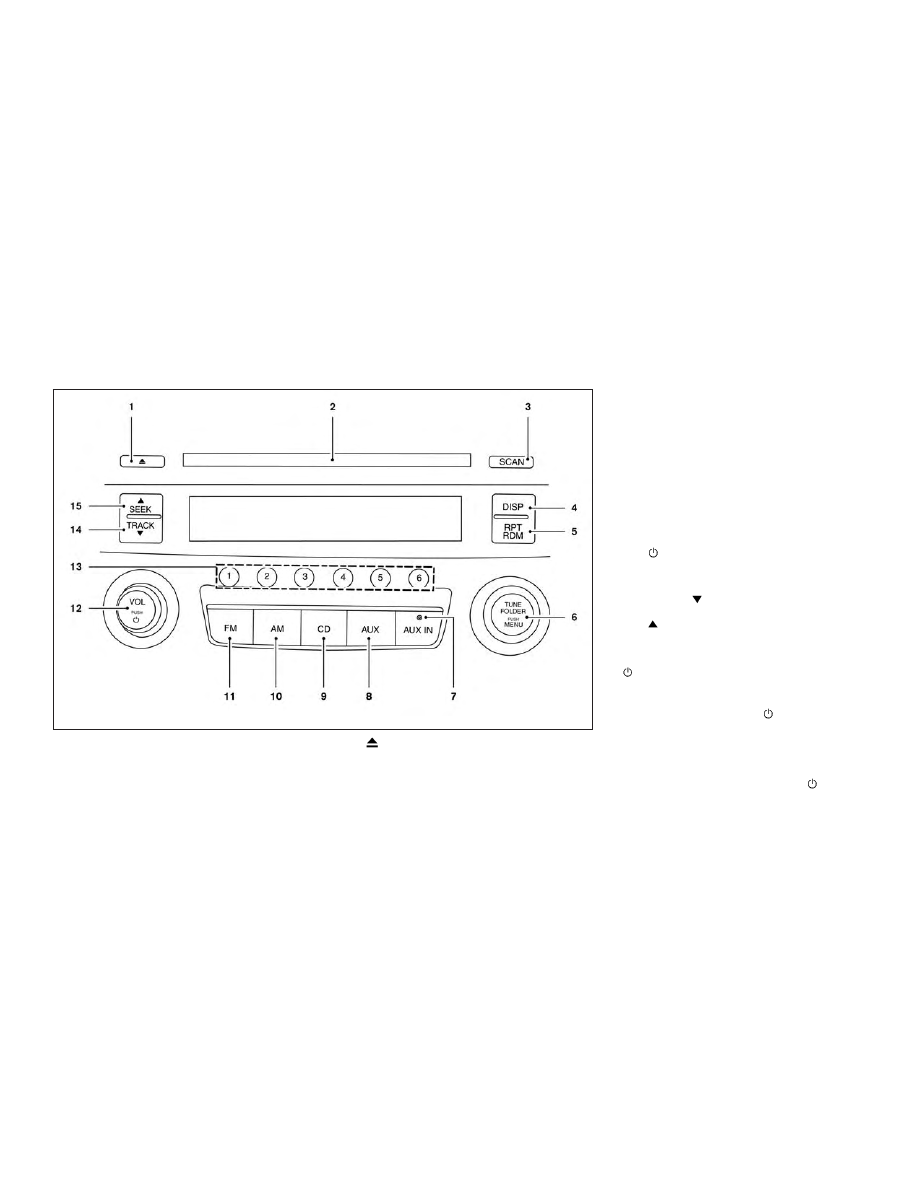

FM/AM RADIO WITH COMPACT
DISC (CD) PLAYER (if so equipped)

For additional information on all operation pre-
cautions, refer to “Audio operation precautions”
in this section.

CD eject button

2. CD insert slot

3. SCAN button

4. DISP (display) button

5. RPT (repeat) / RDM (random) button

6. MENU button / TUNE/FOLDER knob

7. AUX IN jack

8. AUX button

9. CD button

10. AM button

11. FM button

12.

(power) button / VOL (volume) knob

13. Station select (1 - 6) buttons

14. TRACK

button

15.

SEEK button

Audio main operation

(power) button / VOL (volume) knob

Place the ignition switch in the ACC or ON
position and press the

(power) button

while the system is off to call up the mode that
was playing immediately before the system was
turned off.

To turn the system off, press the

(power)

button.

Turn the VOL (volume) knob to adjust the volume.

LHA2241

Monitor, climate, audio, phone and voice recognition systems

4-31

MENU button (Bass, Treble, Balance,
Fade, Speed Sensitive Volume and Clock)

Press the MENU button to change the mode as
follows:

Bass

→ Treble → Balance → Fade → Spd. Sen.

Vol. (Speed Sensitive Volume)

→ AUX IN Volume

→ Clock → Clock Adjust

To adjust the Bass, Treble, Fade and Balance,
press the MENU button until the desired mode
appears in the display. Press the

SEEK or

TRACK

button to adjust the setting to the

desired level (-5 to +5). Balance adjusts the
sound between the right and left speakers. Fade
adjusts the sound between the front and rear
speakers.

Once you have adjusted the sound quality to the
desired level, press the MENU button repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds.

Speed Sensitive Volume (SSV) adjusts the vol-
ume of the audio system as the vehicle’s driving
speed changes. It can be set as follows:

OFF

→ LOW → MID → HIGH

DISP (display) button

Press the DISP (display) button while a CD is
playing to change the text shown in the audio
display as follows:

For CDs:

Running Time

→ Album Title: → Artist Name: →

Song Title

For MP3 CDs:

Running Time

→ Folder Title: → Album Title: →

Artist Name:

→ Song Title:

If the text information is too long to fully be dis-
played on the screen; press and hold the DISP
button for longer than 1.5 seconds to scroll
through the rest of the text.

Press the DISP (display) button while the radio is
playing to toggle the audio display between sta-
tion number and RDS.

Clock operation

To turn the clock display on or off, press the
MENU button repeatedly until “Clock” appears
on the display. Turn the TUNE/FOLDER knob to
toggle the setting (ON or OFF).

Clock set

1. Press the MENU button repeatedly until

“Adjust Clock” appears on the display.

2. Press the MENU button.

3. “Change Hour” will appear on the screen.

Turn the TUNE/FOLDER knob to adjust the
hours and then press MENU.

4. “Change Minute” will appear on the screen.

Turn the TUNE/FOLDER knob to adjust the
minutes and then press MENU.

The display will return to the regular clock display
after 10 seconds if no further adjustment is per-
formed.

FM/AM radio operation

AM and FM buttons

Press the AM button to change the band to AM.

If another audio source is playing when the AM
button is pressed, the audio source playing will
automatically be turned off and the last radio
station played will begin playing.

Press the FM button to change the band as
follows:

FM1

→ FM2 → FM1

If another audio source is playing when the FM
button is pressed, the audio source playing will
automatically be turned off and the last radio
station played will begin playing.

4-32

Monitor, climate, audio, phone and voice recognition systems

The FM stereo indicator (ST) illuminates during
FM stereo reception. When the stereo broadcast
signal is weak, the radio automatically changes
from stereo to monaural reception.

SEEK and TRACK (tuning)

buttons

Press the SEEK button

to tune from low to

high frequencies and stop at the next broadcast-
ing station.

Press the TRACK button

to tune from high

to low frequencies and stop at the next broad-
casting station.

Press and hold either button to seek at a faster
speed.

SCAN (tuning) button

Press the SCAN button. SCAN illuminates in the
display window. Scan tuning begins from low to
high frequencies. Scan tuning stops for 5 sec-
onds at each broadcasting station that has suffi-
cient signal strength. When scanning, SCAN
blinks in the display. Pressing the SCAN button
again during this 5 second period stops scan
tuning and the radio remains tuned to that station.

1 to 6 Station memory operations

Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and six stations can be set for
the AM band.

1. Choose the radio band AM, FM1 or FM2

using the AM or FM button.

2. Tune to the desired station using manual,

SEEK or SCAN tuning. Press and hold any
of the desired station memory buttons (1 –
6) until a beep sound is heard.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Compact disc (CD) player operation

Place the ignition switch in the ACC or ON
position, and carefully insert the compact disc
into the slot with the label side up. The compact
disc is automatically pulled into the slot and starts
to play.

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button

When the CD button is pressed with a compact
disc loaded and the radio playing, the radio turns
off and the last used compact disc starts to play.

SEEK and TRACK (Fast

Forward, Rewind) buttons

When the SEEK button

or TRACK

button is pressed while the compact disc is play-
ing, the compact disc plays at an increased
speed while fast forwarding or rewinding. When
the button is released, the compact disc returns
to normal play speed.

SEEK and TRACK buttons

When the

SEEK button is pressed while

the compact disc is playing, the next track follow-
ing the present one starts to play from the begin-
ning. Press the

SEEK button several times

to skip several tracks. Each time the button is
pressed, the CD advances one additional track.
The track number appears in the display window.
When the last track on the compact disc is
skipped, the first track is played.

Monitor, climate, audio, phone and voice recognition systems

4-33

When the

TRACK button is pressed, the

track being played returns to the beginning.
Press the

TRACK button several times to

skip back several tracks. Each time the button is
pressed the CD moves back one track.

RPT (repeat) /RDM (random) button

Press the RPT (repeat) /RDM (random) button
while a compact disc is playing to change the
play pattern as follows:

CD:

TRACK REPEAT

→ DISC RANDOM → DISC

REPEAT

MP3/WMA CD:

FOLDER REPEAT

→ TRACK REPEAT → DISC

RANDOM

→ FOLDER RANDOM → DISC RE-

PEAT

TRACK REPEAT: The track that is currently play-
ing will be repeated.

DISC RANDOM: The order of the tracks on the
disc will be mixed during play.

DISC REPEAT: The disc currently playing will be
repeated.

FOLDER REPEAT: The tracks in the current
folder will be repeated.

FOLDER RANDOM: The order of the tracks in
the folder will be mixed during play.

SCAN (CDs) button

Press the SCAN button for less than 1.5 seconds
to scan all tracks of the current disc for 10 sec-
onds per track. The SCAN icon is flashed during
scan mode.

The scan mode is canceled once it scans through
all tracks on the disc, or if the SCAN button is
pressed during scan mode.

CD EJECT button

When the

CD EJECT button is pressed

with a compact disc loaded, the compact disc
will eject and the last source will be played.

When the

CD EJECT button is pressed

twice with a compact disc loaded, the compact
disc will be ejected further for easier CD removal.
If the disc is not removed within 20 seconds, the
disc will reload.

AUX (Auxiliary) button

The AUX IN jack is located on the CD player. The
AUX IN audio input jack accepts any standard
analog audio input such as from a portable cas-
sette tape/CD player, MP3 player or laptop com-
puters.

Press the AUX button to play a compatible device
when it is plugged into the AUX IN jack.

Press the MENU button repeatedly until “AUX IN
Volume” appears on the screen to control the
incoming volume level of the auxiliary input de-
vice. Turn the TUNE/FOLDER knob to adjust the
level between 0 and +3.

4-34

Monitor, climate, audio, phone and voice recognition systems

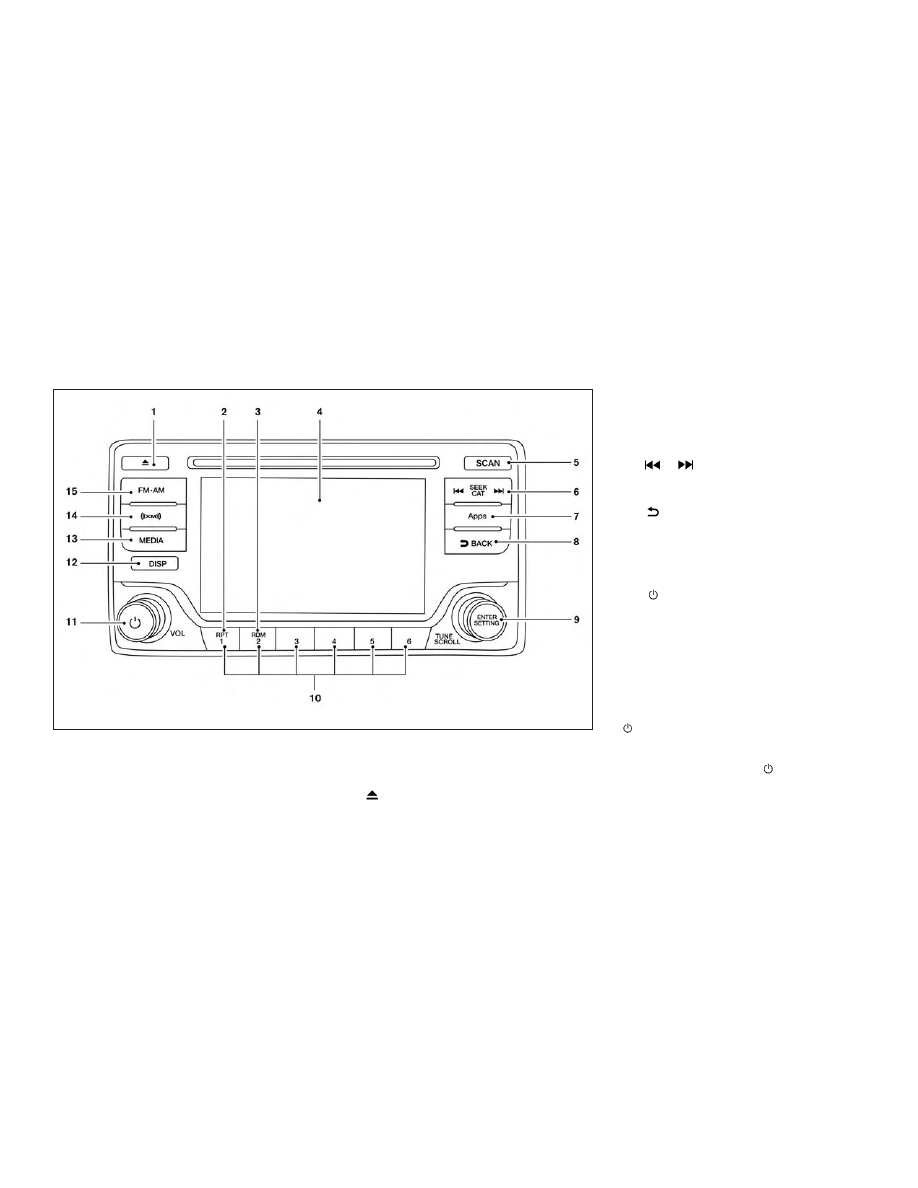

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (Type
A) (if so equipped)

For additional information, refer to, “Audio opera-
tion precautions” regarding all operation precau-
tions in this section.

CD eject button

2. RPT (repeat) button

3. RDM (random) button

4. Display screen

5. SCAN button

SEEK and CAT button

7. Apps button

BACK button

9. ENTER/SETTING button / TUNE/SCROLL

knob

10. Station select (1 - 6) buttons

11.

(power) button / VOL (volume) knob

12. DISP (display) button

13. MEDIA button

14. XM button

15. FM•AM button

Audio main operation

(power) button / VOL (volume)

Place the ignition switch in the ACC or ON
position and press the

(power) button

while the system is off to call up the mode (radio,
CD, AUX, Bluetooth® audio, USB or iPod®) that
was playing immediately before the system was
turned off.

LHA3017

Monitor, climate, audio, phone and voice recognition systems

4-35

To turn the system off, press the

(power)

button.

Turn the VOL (volume) control knob to adjust the
volume.

This vehicle may be equipped with Speed Sen-
sitive Volume. When this feature is active, the
audio volume changes as the driving speed
changes.

ENTER/SETTING button

Press the ENTER/SETTING button to show the
Settings screen on the display. Turn the
TUNE/SCROLL knob to navigate the options
and then press the ENTER/SETTING button to
make a selection.

Audio

Bluetooth

Connect phone and adjust Bluetooth® settings. For additional information, refer to the “Bluetooth® Hands-
Free Phone System Without Navigation System” in this section.

Bass

Adjusts the bass to the desired level.

Treble

Adjusts the treble to the desired level.

Balance

Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers.

Fade

Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers.

Brightness

Adjust the brightness to adjust the appearance of the display screen.

Contrast

Adjust the contrast to adjust the appearance of the display screen.

Clock adjust

Press the ENTER/SETTING button to highlight the hours or minutes and then use the TUNE/SCROLL knob to
adjust the value. Press the ENTER/SETTING button again to set the value.

On-Screen Clock

Toggles ON or OFF the clock display on the upper right corner of the display screen.

RDS Display

Toggles ON or OFF the RDS information displayed on the screen while the radio is playing.

Speed Sens Vol. (Speed Sensitive Volume)

Adjusts the speed sensitive volume function, which increases the volume of the audio system as the speed of
the vehicle increases. Set to “OFF” to disable the feature. The higher the setting, the more the volume in-
creases in relation to vehicle speed.

AUX Vol.

Choose a setting from 0 to +3 to control the boost of incoming auxiliary device volume. A setting of 0 provides
no additional boost in volume. A setting of +3 provides the greatest boost in volume.

Language Select

Select the desired language for the system from the available options.

4-36

Monitor, climate, audio, phone and voice recognition systems

Bass, treble, balance and fade can also be ad-
justed by pressing the ENTER/SETTING button
and turning the TUNE/SCROLL knob to select
the item to adjust. When the desired item is
shown on the display, turn the tuning to adjust
and then press the ENTER/SETTING button until
the display returns to the main audio screen. If the
button is not pressed for approximately 10 sec-
onds, the radio or CD display will automatically
reappear.

APPS button

Press the APPS button to launch the Smart-
phone Integration Mode. For additional informa-
tion, refer to “NissanConnect™ APP Smartphone
Integration” in this section regarding this feature.

For additional information, refer to “Bluetooth®
Hands-Free Phone system without Navigation” in
this section regarding connecting your phone.

FM/AM radio operation

FM·AM button

Press the FM·AM button to change the band as
follows:

→ FM1 → FM2 → AM

If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.

The FM stereo indicator (STEREO) is shown on
the screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.

TUNE/SCROLL knob (Tuning)

Turn the TUNE/SCROLL knob to the left or right
for manual tuning.

SEEK tuning

Press the

SEEK buttons to tune

from low to high or high to low frequencies and to
stop at the next broadcasting station.

SCAN tuning

Press the SCAN button to stop at each broad-
casting station for 5 seconds. SCAN will appear
on the screen while the radio is scan tuning.

Pressing the button again during this 5 second
period will stop SCAN tuning and the radio will
remain tuned to that station. If the SCAN button is
not pressed within 5 seconds, SCAN tuning
moves to the next station.

1 to 6 Station memory operations

Six stations can be set for the AM band. Twelve
stations can be set for the FM band (six for FM1,
six for FM2).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button.

2. Tune to the desired station using the

SEEK button or the

TRACK button.

Press and hold any of the desired station
memory buttons (1 – 6) until the preset
number is updated on the display and the
sound is briefly muted.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected, or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Compact disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

MEDIA button

With a CD loaded, press the MEDIA button until
the CD mode is displayed on the screen.

Monitor, climate, audio, phone and voice recognition systems

4-37

DISP (display) button

When the DISP button is pressed, the display
screen powers off. To power the screen back on,
press the DISP button again.

CD/MP3 display mode

While listening to an MP3/WMA CD, certain text
may be displayed on the screen if the CD has
been encoded with text information. Depending
on how the MP3/WMA CD is encoded, informa-
tion such as Artist, Song and Folder will be dis-
played.

The track number and the total number of tracks
in the current folder or on the current disc are
displayed on the screen as well.

SEEK/TRACK (Reverse or

Fast Forward) button

Press

and

hold

the

SEEK/TRACK button for 1.5 seconds while the
compact disc is playing to reverse or fast forward
the track being played. The compact disc plays at
an increased speed while reversing or fast for-
warding. When the button is released, the com-
pact disc returns to normal play speed.

SEEK/TRACK button

Press the

SEEK/TRACK button while a CD

or MP3/WMA CD is playing to return to the
beginning

the

current

track.

Press

the

SEEK/TRACK button several times to

skip backward several tracks.

Press the

SEEK/TRACK button while a CD

or MP3/WMA CD is playing to advance one
track. Press the

SEEK/TRACK button sev-

eral times to skip forward several tracks. If the last
track on a CD is skipped, the first track on the
disc is played. If the last track in a folder of an
MP3/WMA CD is skipped, the first track of the
next folder is played.

TUNE/SCROLL knob (MP3/WMA CD only)

If an MP3/WMA CD with multiple folders is play-
ing, turn the TUNE/SCROLL knob to change
folders. Turn the knob to the left to skip back a
folder. Turn the knob to the right to skip ahead a
folder.

RPT (repeat) button

When the RPT (repeat) button is pressed while a
compact disc is playing, the play pattern can be
changed as follows:

CD:

1 Track Repeat

←→ OFF

CD with MP3 or WMA:

1 Folder Repeat

→ 1 Track Repeat → OFF

1 Track Repeat: the current track will be re-
peated.

1 Folder Repeat: the current folder will be re-
peated.

OFF: No repeat play pattern is applied. The indi-
cator on the display will turn off.

The current play pattern of the CD is displayed on
the screen unless no pattern is applied.

RDM (random) button

When the RDM (random) button is pressed while
a compact disc is playing, the play pattern can be
changed as follows:

CD:

1 Disc Random

←→ OFF

CD with MP3 or WMA:

1 Disc Random

→ 1 Folder Random → OFF

1 Disc Random: all tracks on the disc will be
played randomly.

1 Folder Random: all tracks in the current folder
will be played randomly.

OFF: No random play pattern is applied. The
indicator on the display will turn off.

4-38

Monitor, climate, audio, phone and voice recognition systems

The current play pattern of the CD is displayed on
the screen unless no pattern is applied.

CD EJECT button

When the

CD EJECT button is pressed

with a compact disc loaded, the compact disc
will eject and the last source will be played.

When the

CD EJECT button is pressed

twice with a compact disc loaded, the compact
disc will be ejected further for easier CD removal.
If the disc is not removed within 20 seconds, the
disc will reload.

FM/AM/SAT RADIO WITH
COMPACT DISC (CD) PLAYER (Type
B) (if so equipped)

For additional information, refer to “Audio opera-
tion precautions” regarding all operation precau-
tions in this section.

CD eject button

2. FM-AM button

LHA2895

Monitor, climate, audio, phone and voice recognition systems

4-39

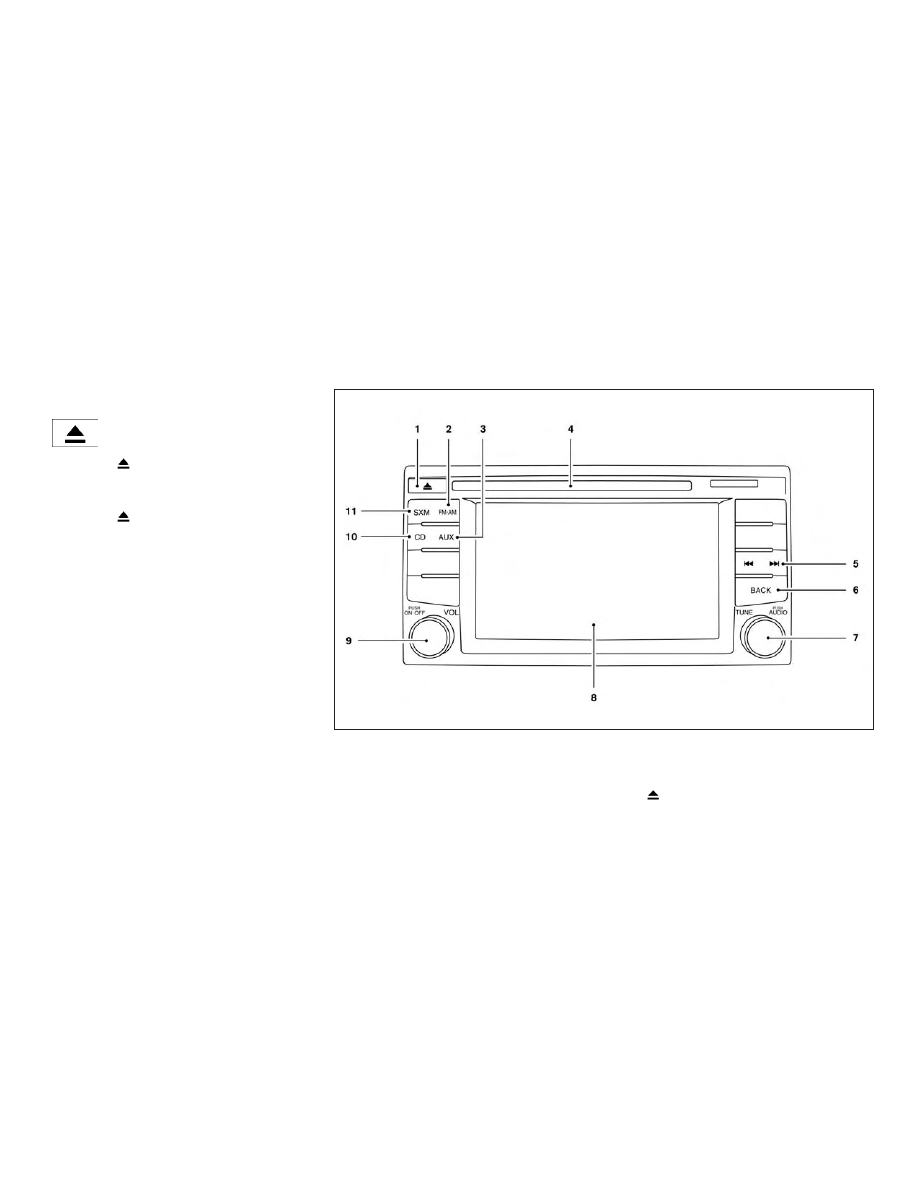

3. AUX button

4. CD insert slot

Backward seek button and

Forward seek button

6. BACK button

7. AUDIO button / TUNE knob

8. Display screen

9. ON-OFF button / VOL (volume) control

knob

10. CD button

11. SXM button*

*No satellite radio reception is available when the
SXM button is pressed to access satellite radio
stations unless optional satellite receiver and an-
tenna are installed and an SiriusXM® Satellite
Radio service subscription is active. Satellite ra-
dio is not available in Alaska, Hawaii and Guam.

Audio main operation

ON-OFF button / VOL (volume) control
knob

Place the ignition switch in the ACC or ON
position and press the ON-OFF button while the
system is off to call up the mode (radio, CD, AUX,
Bluetooth® audio, USB or iPod®) that was play-
ing immediately before the system was turned off.

To turn the system off, press the ON-OFF button.

Turn the VOL (volume) control knob to adjust the
volume.

This vehicle may be equipped with Speed Sen-
sitive Volume. When this feature is active, the
audio volume changes as the driving speed
changes.

ENTER/SETTING button

Press the AUDIO button to show the Settings
screen on the display. Turn the TUNE knob to
navigate the options and then press the AUDIO
button to make a selection.

Audio

Bass

Adjusts the bass to the desired level.

Treble

Adjusts the treble to the desired level.

Balance

Adjusts the balance to the desired level. Balance adjusts the sound level between the left and right speakers.

Fade

Adjusts the fade to the desired level. Fade adjusts the sound level between the front and rear speakers.

Speed Sens Vol. (Speed Sensitive Volume)

AUX Vol.

Choose a setting from 0 to +3 to control the boost of incoming auxiliary device volume. A setting of 0 provides
no additional boost in volume. A setting of +3 provides the greatest boost in volume.

Bass, treble, balance and fade can also be adjusted by pressing the AUDIO button and turning the TUNE knob to select the item to adjust. When the desired
item is shown on the display, turn the tuning to adjust and then press the AUDIO button until the display returns to the main audio screen. If the button is not
pressed for approximately 10 seconds, the radio or CD display will automatically reappear.

4-40

Monitor, climate, audio, phone and voice recognition systems

SXM settings

To view the SXM settings:

1. Press the [

] button.

2. Touch the “Settings” key.

3. Touch the “SXM” key.

The signal strength, activation status and other
information are displayed on the screen.

FM/AM/SAT radio operation

FM·AM button

Press the FM·AM button to change the band as
follows:

→ FM1 → FM2 → AM

If another audio source is playing when the
FM·AM button is pressed, the audio source play-
ing will automatically be turned off and the last
radio station played will begin playing.

The FM stereo indicator (ST) is shown on the
screen during FM stereo reception. When the
stereo broadcast signal is weak, the radio auto-
matically changes from stereo to monaural re-
ception.

SXM band select

Pressing the SXM button will change the band as
follows:

SXM1*

→ SXM2* → SXM3* → SXM1* (satellite,

if so equipped)

When the SXM button is pressed while the igni-
tion switch is in the ACC or ON position, the
radio will come on at the last station played.

The last station played will also come on when the
ON-OFF button is pressed to turn the radio on.

*When the SXM button is pressed, the satellite
radio mode will be skipped unless an optional
satellite receiver and antenna are installed and a
SiriusXM® Satellite Radio service subscription is
active. Satellite radio is not available in Alaska,
Hawaii and Guam.

If a compact disc is playing when the SXM button
is pressed, the compact disc will automatically be
turned off and the last radio station played will
come on.

While the radio is in SXM mode, the operation
can be controlled through the touch-screen.
Touch the “Channels” key to display a list of
channels. Touch a channel displayed on the list to
change to that channel. Touch the “Categories”
key to display a list of categories. Touch a cat-
egory displayed on the list to display options
within that category.

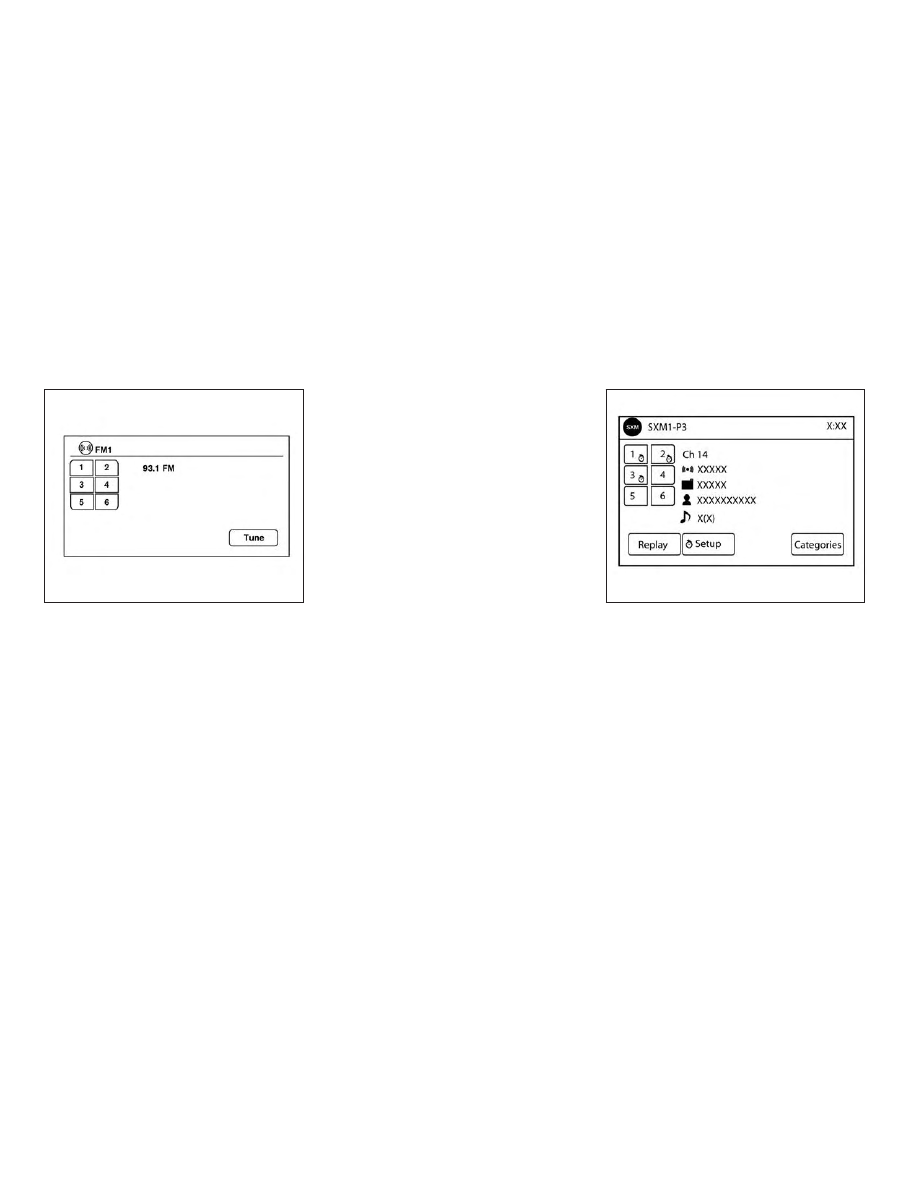

Tuning with the touch-screen

When in AM or FM mode, the radio can be tuned
using the touch-screen. To bring up the visual
tuner, touch the “Tune” key on the lower right
corner of the screen. A screen appears with a bar
running from low frequencies on the left to high
frequencies on the right. Touch the screen at the
location of the frequency you wish to tune and the
station will change to that frequency. To return to
the regular radio display screen, touch the “OK”
key.

Tuning with the TUNE knob

The radio can also be manually tuned using the
TUNE knob. When in FM or AM mode, turn the
TUNE knob to the left for lower frequencies or to
the right for higher frequencies. When in SXM
mode, turn the TUNE knob to change the chan-
nel.

SEEK tuning

When in FM or AM mode, press the seek

buttons

to tune from low to high

or high to low frequencies and to stop at the next
broadcasting station.

When

SXM

mode,

press

the

seek

buttons

to change the category.

Monitor, climate, audio, phone and voice recognition systems

4-41

1 to 6 Station memory operations

Twelve stations can be set for the FM band (6 for
FM1, 6 for FM2) and 6 stations can be set for the
AM band. Eighteen stations can be set for the
SXM band (6 for SXM1, 6 for SXM2, 6 for
SXM3).

1. Choose the radio band AM, FM1 or FM2

using the FM·AM select button or choose
the radio band SXM1, SXM2, SXM3 using
the SXM button.

2. Tune to the desired station using manual or

seek tuning. Press and hold any of the de-
sired station memory buttons (1 – 6) until a
beep sound is heard.

3. The channel indicator will then come on and

the sound will resume. Programming is now
complete.

4. Other buttons can be set in the same man-

ner.

If the battery cable is disconnected or if the fuse
opens, the radio memory will be canceled. In that
case, reset the desired stations.

Presets can also be selected by touching the
desired preset number on the screen.

Smart Favorites Preset Setup (if so
equipped)

The Smart Favorites feature allows the user to
designate presets, within the SXM1, SXM2 and
SXM3 bands, as their Smart Favorites. When any
of the Smart Favorite presets are selected, the
current track on that station will play from the
beginning of the song.

To program a Smart Favorite preset:

1. Press the SXM button.

2. Touch the “Setup” key.

LHA2899

LHA3085

4-42

Monitor, climate, audio, phone and voice recognition systems

3. Touch the “Tune Start” key to activate (ON)

or deactivate (OFF) Smart Favorites.

4. Touch the “Add Preset” key to select an

available preset.

For additional information regarding preset
memory options, refer to “1 to 6 station memory
operations” in this section.

NOTE:

• Smart Favorites will start functioning only
after the audio unit is turned on for a few
minutes.
• Tune Start is supported for music chan-
nels only.

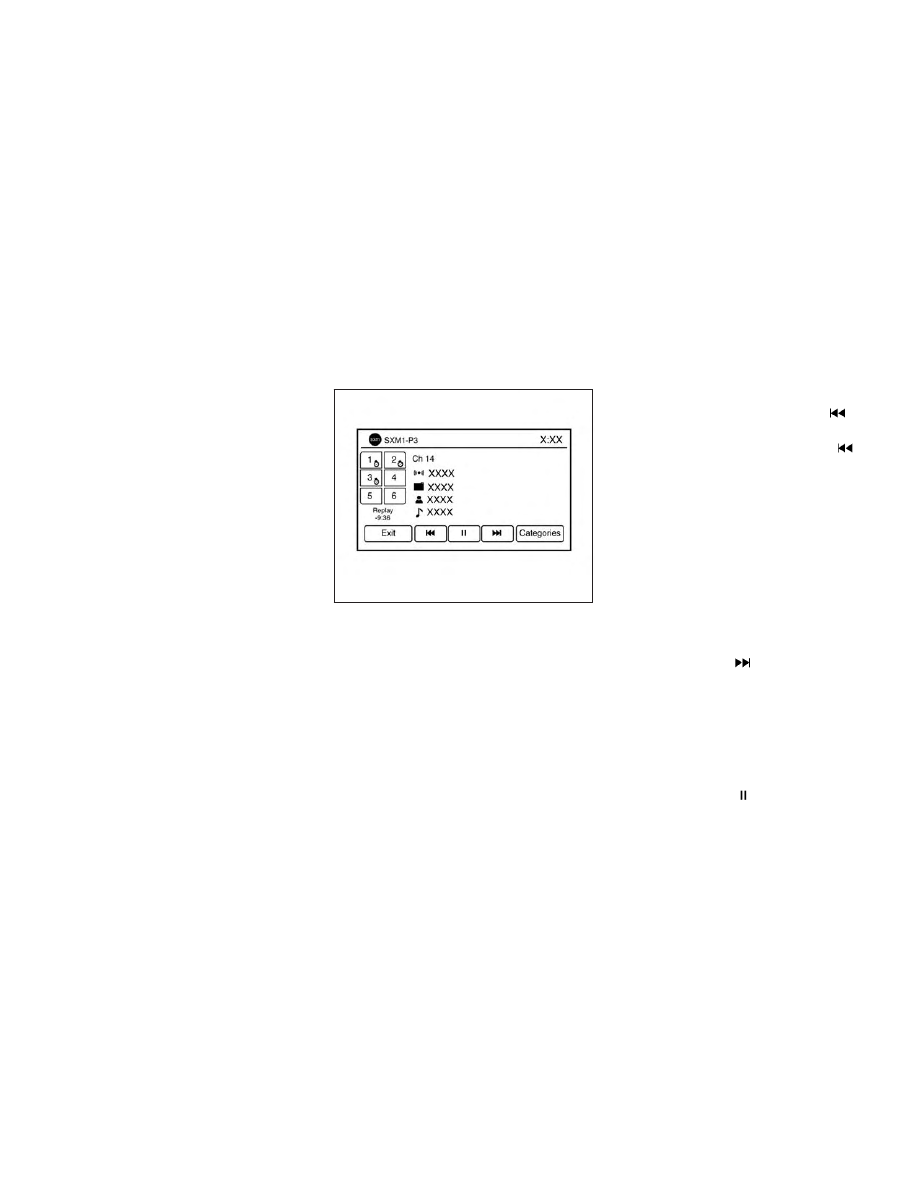

Replay Screen

The Replay Screen gives the user the ability to
replay, skip, pause or rewind the currently aired
track.

When the “Replay” key is pressed, the Replay
Screen is prompted.

REPLAY

To replay a track from the
beginning, press the
seek button. The user can
continue to press the
seek button to replay previ-
ous songs, but can only go
back as far as the system
permits. The system will
warn the user when they
cannot skip any further back
by displaying “At the End” in
the bottom left corner of the
screen.

SKIP

To skip a track, press
the

track button.

“Live” will appear in the bot-
tom left corner of the screen
indicating the difference
from play time to live audio.

PAUSE

To pause a track, press
the

pause button.

LHA3087

Monitor, climate, audio, phone and voice recognition systems

4-43

REWIND/
FAST
FORWARD

To rewind/ fast forward a
track, hold the

seek/track button.

Compact disc (CD) player operation

If the radio is already operating, it automatically
turns off and the compact disc begins to play.

CD button

When the CD button is pressed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.

When the CD button is pressed with a compact
disc loaded and the radio playing, the radio will
automatically be turned off and the compact disc
will start to play.

CD/MP3 display mode

Menu item

CD/MP3

While listening to a CD or an MP3/WMA CD, certain text may be displayed (when a CD encoded with text is
being used). Depending on how the CD or MP3/WMA CD is encoded, the text is displayed listing the artist,
album and song title. There are other keys displayed on the screen when a CD is playing:

Random

Touch the “Random” key to apply a random play pattern to the CD. If an MP3 CD is playing, touching “Ran-
dom” or alternates between Random Folder, and Random All. This text will appear on the display. To cancel
Random mode, touch the “Random” key until the key is no longer highlighted.

Repeat

Touch the “Repeat” key to apply a repeat play pattern to the CD. If an MP3 CD is playing, touching “Repeat”
alternates between repeating the current song and repeating the current folder. This text will appear on the
display. To cancel Repeat mode, touch the “Repeat” key until the key is no longer highlighted

Browse

Touch the “Browse” key to display the titles on the CD in list format. Touch the title of a song in the list to begin
playing that song. If an MP3 CD is playing, touching the “Browse” key will also list the folders on the disc. Fol-
low the procedure for selecting a song with the touch-screen to choose a folder.

4-44

Monitor, climate, audio, phone and voice recognition systems

Nissan Xterra (2015 year). Instruction - part 12
