LATCH lower anchor location

The LATCH lower anchors are located as
shown. A label is attached to the seatback
to help you locate the LATCH lower an-
chors.

Installing child restraint LATCH
lower anchor attachments

LATCH compatible child restraints include
two rigid or webbing-mounted attach-
ments that can be connected to two an-
chors located at certain seating positions
in your vehicle. With this system, you do not
have to use a vehicle seat belt to secure the
child restraint. Check your child restraint for
a label stating that it is compatible with
LATCH. This information may also be in the
instructions provided by the child restraint
manufacturer.

When installing a child restraint, carefully
read and follow the instructions in this
manual and those supplied with the child
restraint.

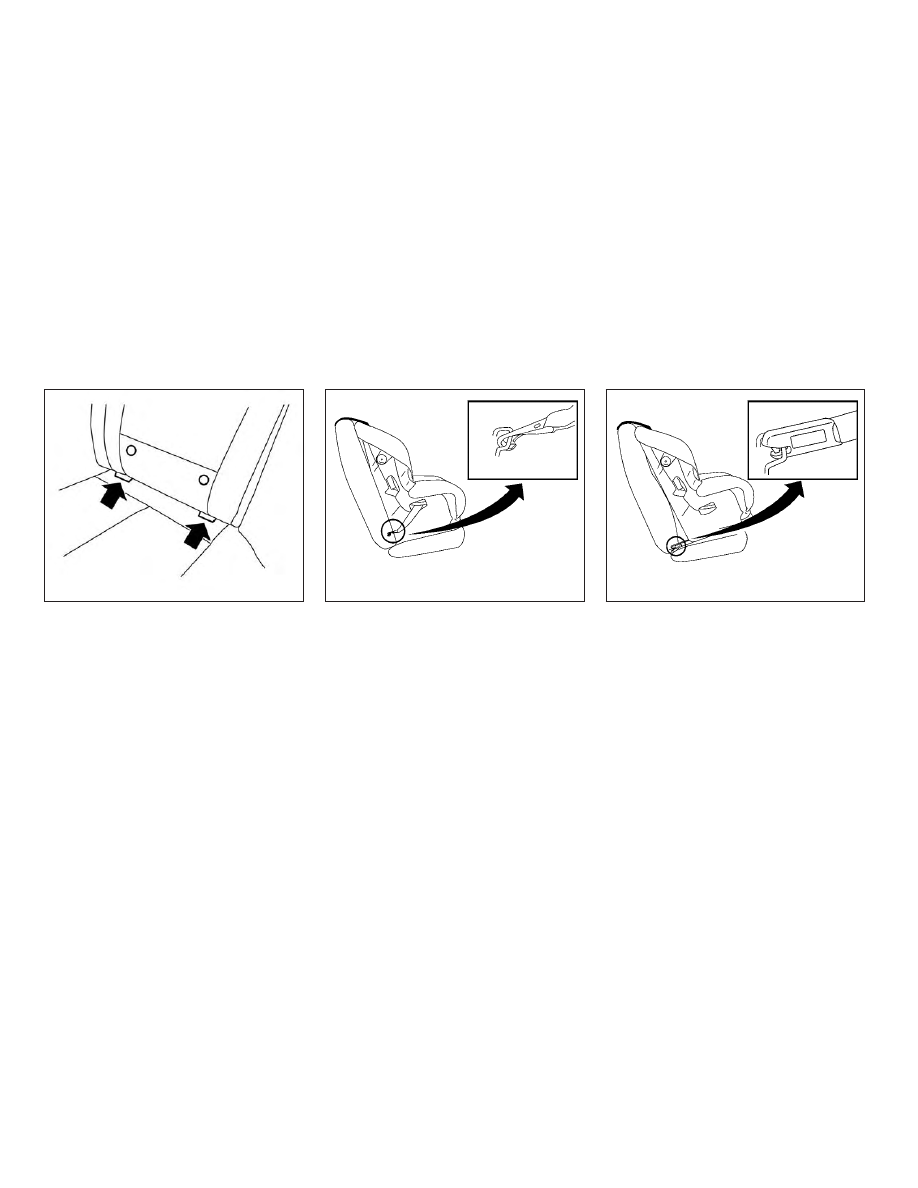

LATCH lower anchor location

LRS3036

LATCH webbing-mounted attachment

LRS0661

LATCH rigid-mounted attachment

LRS0662

1-24

Safety—Seats, seat belts and supplemental restraint system

Top tether anchor point locations

Anchor points are located on the rear par-
cel shelf

䊊

WARNING

Child restraint anchorages are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstances are
they to be used to attach adult seat
belts, or other items or equipment to
the vehicle. Doing so could damage the
child restraint anchorages. The child re-
straint will not be properly installed us-
ing the damaged anchorage, and a
child could be seriously injured or killed
in a collision.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING LATCH

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Do not use the lower anchors if the com-
bined weight of the child and the child re-
straint exceeds 65 lbs. (29.5 kg). If the com-
bined weight of the child and the child
restraint is greater than 65 lbs. (29.5 kg), use
the vehicle’s seat belt (not the lower an-
chors) to install the child restraint. Be sure
to follow the child restraint manufacturer’s
instructions for installation.

Follow these steps to install a rear-facing
child restraint using the LATCH system:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

WRS0760

Safety—Seats, seat belts and supplemental restraint system

1-25

2. Secure the child restraint anchor at-

tachments to the LATCH lower an-
chors. Check to make sure the LATCH
attachment is properly attached to the
lower anchors.

3. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your hand to com-
press the vehicle seat cushion and
seatback while tightening the webbing
of the anchor attachments.

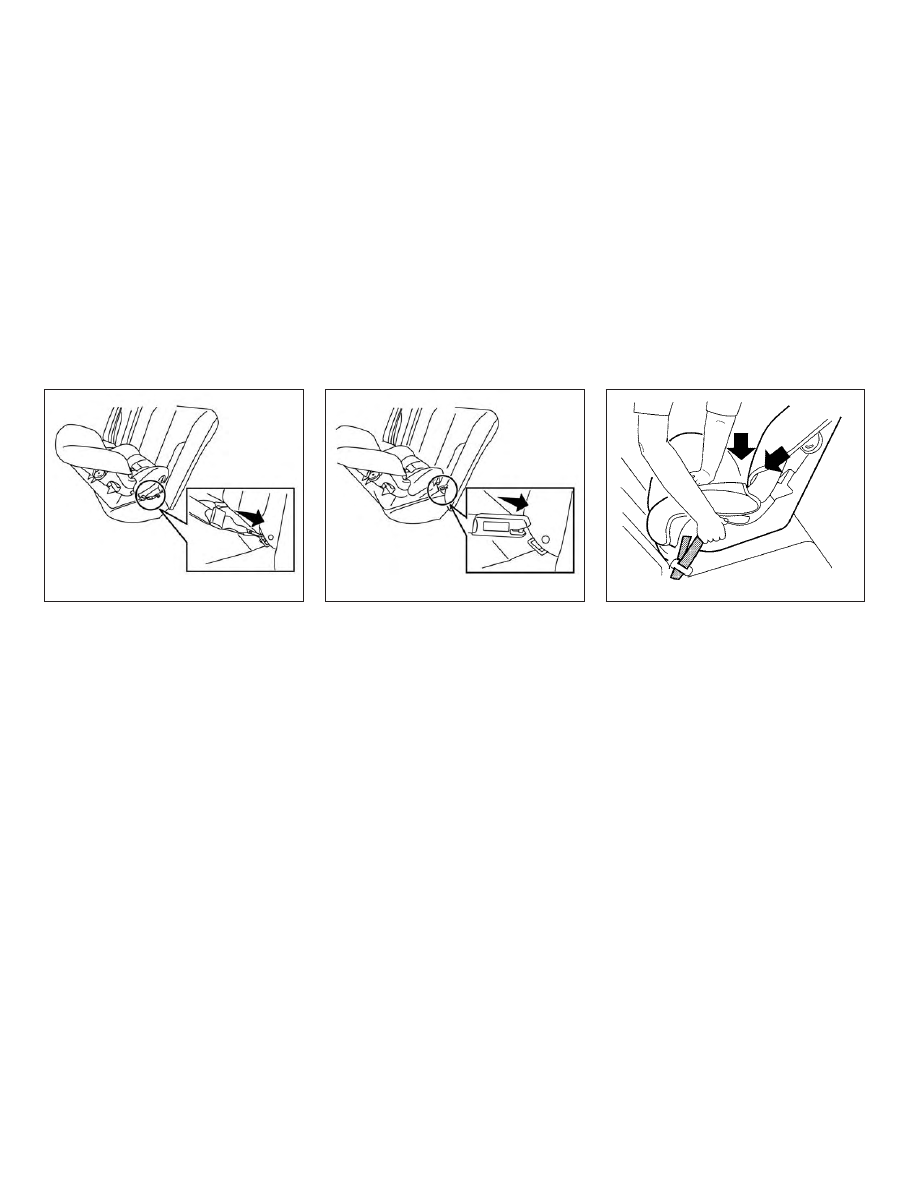

Rear-facing webbing-mounted – step 2

LRS2997

Rear-facing rigid-mounted – step 2

LRS2996

Rear-facing – step 3

LRS0673

1-26

Safety—Seats, seat belts and supplemental restraint system

4. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the LATCH attachment
path. The child restraint should not
move more than 1 inch (25 mm), from
side to side. Try to tug it forward and
check to see if the LATCH attachment
holds the restraint in place. If the re-
straint is not secure, tighten the LATCH
attachment as necessary, or put the
restraint in another seat and test it
again. You may need to try a different
child restraint or try installing by using

the vehicle seat belt (if applicable). Not
all child restraints fit in all types of ve-
hicles.

5. Check to make sure the child restraint

is properly secured prior to each use. If
the child restraint is loose, repeat
steps 1 through 4.

REAR-FACING CHILD RESTRAINT
INSTALLATION USING THE SEAT
BELTS

WARNING

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Follow these steps to install a rear-facing
child restraint using the vehicle seat belts in
the rear seats:

Rear-facing – step 4

LRS0674

Safety—Seats, seat belts and supplemental restraint system

1-27

1. Child restraints for infants must be

used in the rear-facing direction and
therefore must not be used in the
front seat. Position the child restraint
on the seat. Always follow the child re-
straint manufacturer’s instructions.

2. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

3. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to the ELR
mode when the seat belt is fully re-
tracted.

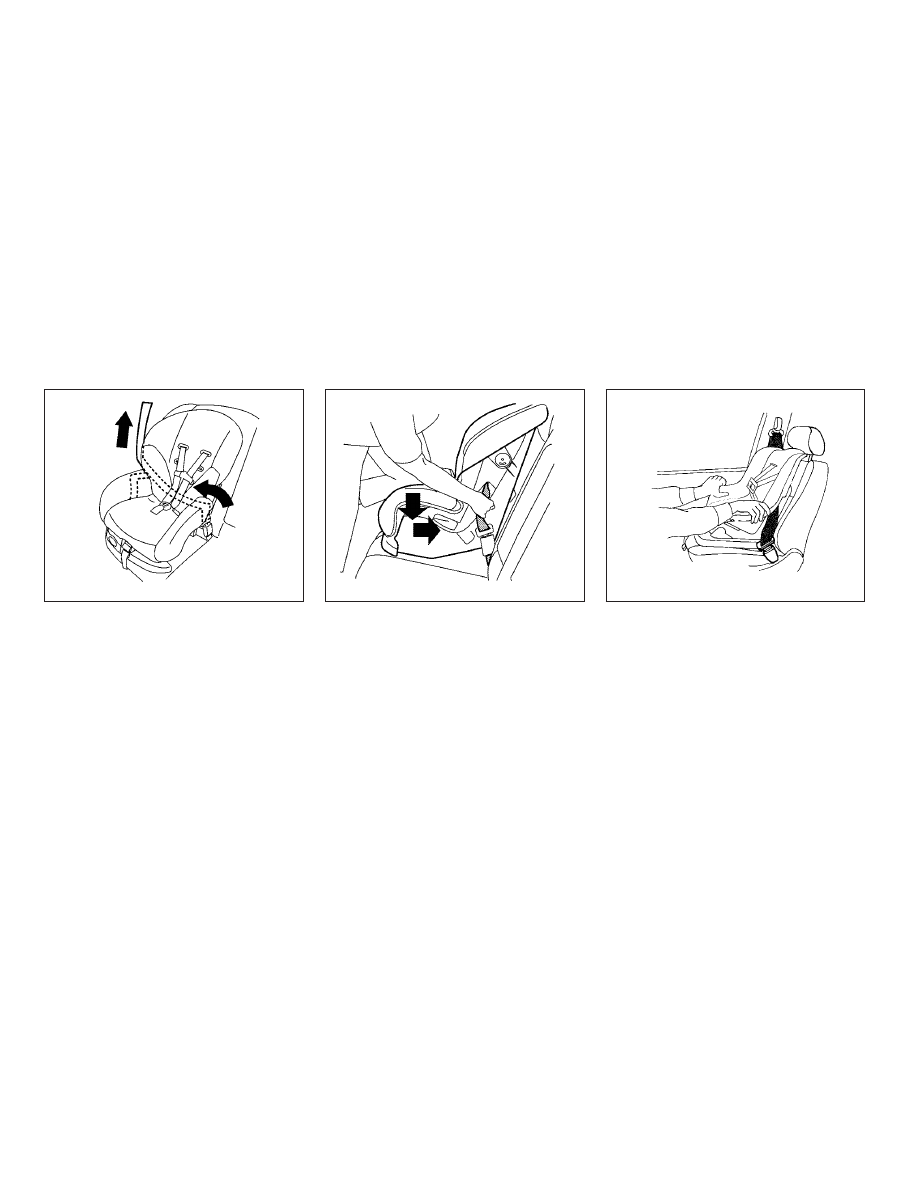

Rear-facing – step 1

WRS0256

Rear-facing – step 2

WRS0761

Rear-facing – step 3

LRS2395

1-28

Safety—Seats, seat belts and supplemental restraint system

4. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

5. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint to compress the vehicle seat
cushion and seatback while pulling up
on the seat belt.

6. After attaching the child restraint, test

it before you place the child in it. Push it
from side to side while holding the child
restraint near the seat belt path. The
child restraint should not move more
than 1 inch (25 mm), from side to side.
Try to tug it forward and check to see if
the belt holds the restraint in place. If
the restraint is not secure, tighten the
seat belt as necessary, or put the re-
straint in another seat and test it again.
You may need to try a different child
restraint. Not all child restraints fit in all
types of vehicles.

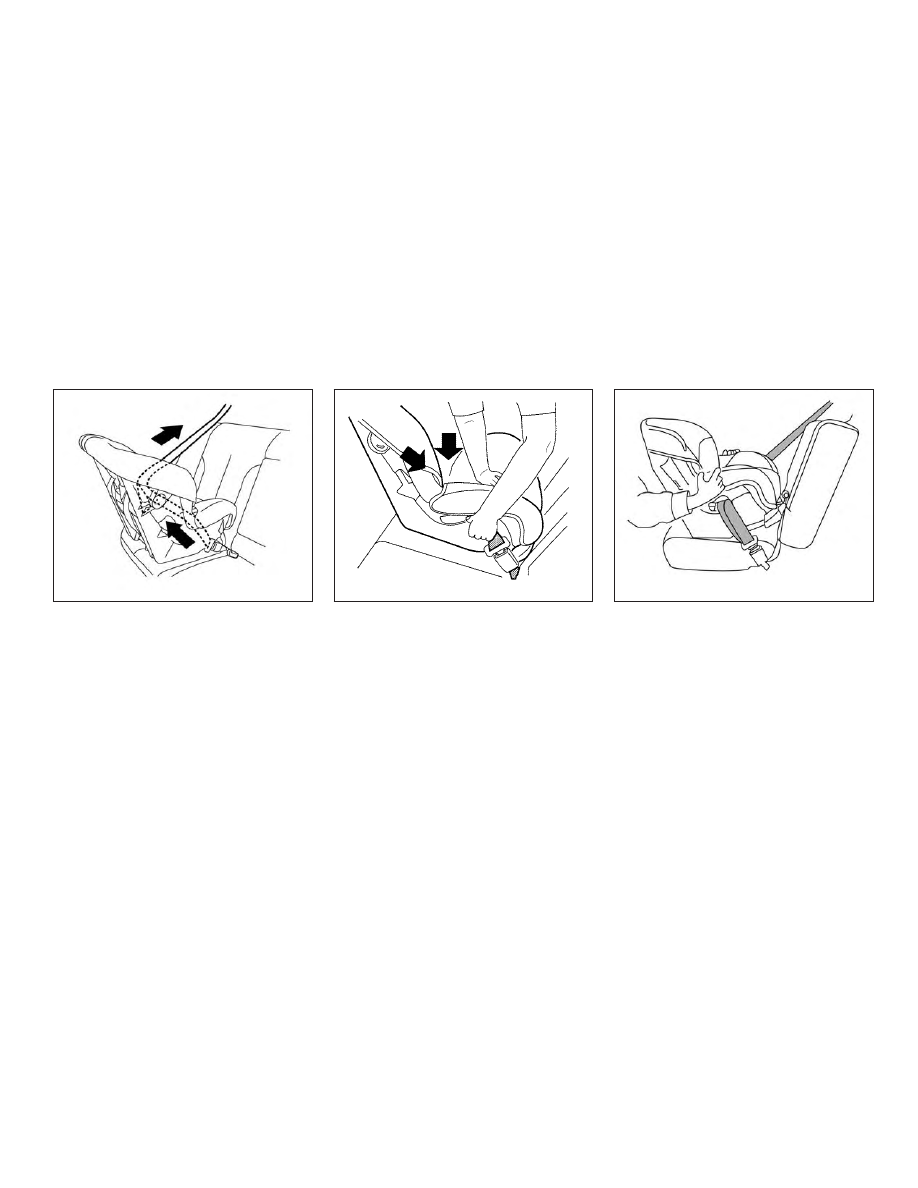

Rear-facing – step 4

LRS2396

Rear-facing – step 5

WRS0762

Rear-facing – step 6

LRS2397

Safety—Seats, seat belts and supplemental restraint system

1-29

7. Check to make sure that the child re-

straint is properly secured prior to each
use. If the seat belt is not locked, repeat
steps 3 through 6.

After the child restraint is removed and the
seat belt fully retracted, the ALR mode
(child restraint mode) is canceled.

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
LATCH

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Follow these steps to install a forward-
facing child restraint using the LATCH sys-
tem:

1. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

2. Secure the child restraint anchor at-

tachments to the LATCH lower an-
chors. Check to make sure the LATCH
attachment is properly attached to the
lower anchors.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to
the tether anchor point. For additional
information, refer to “Installing top
tether strap” in this section.

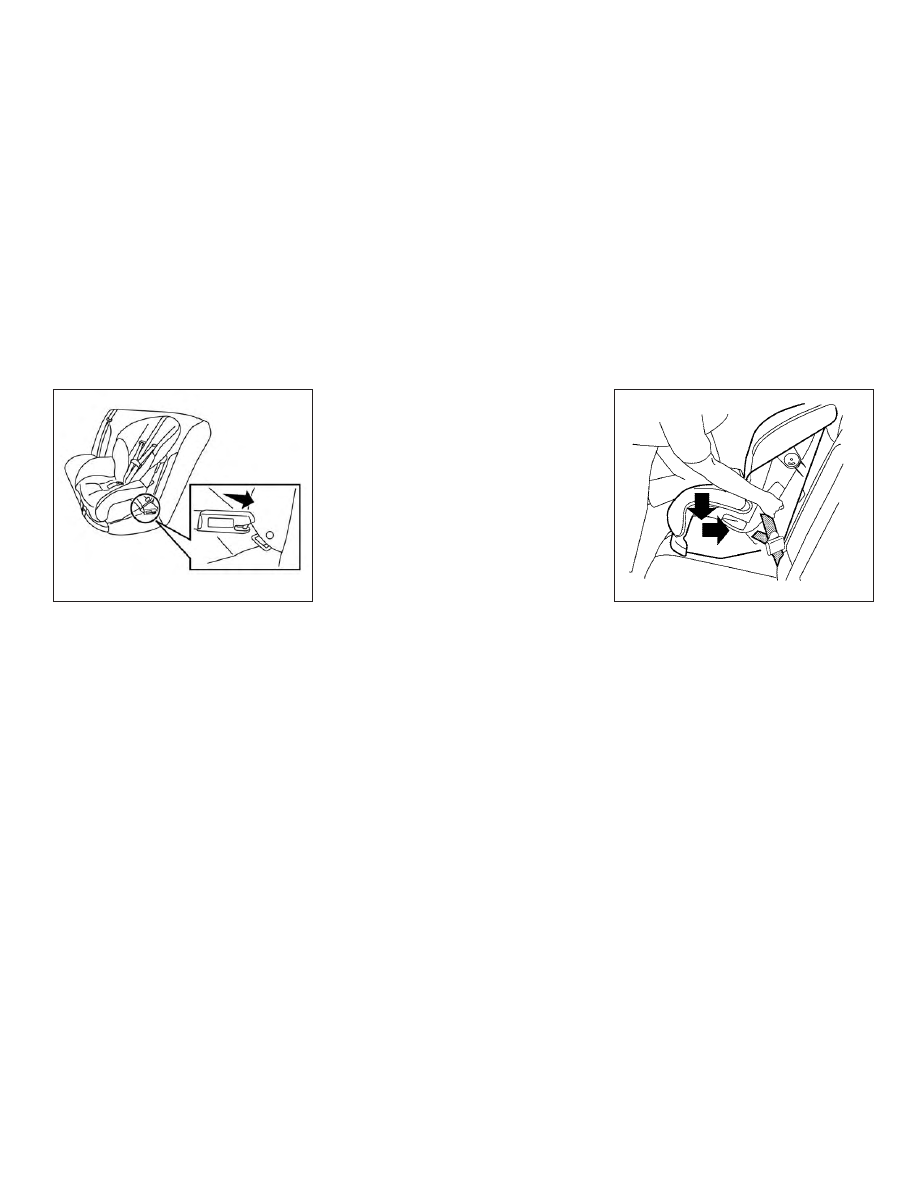

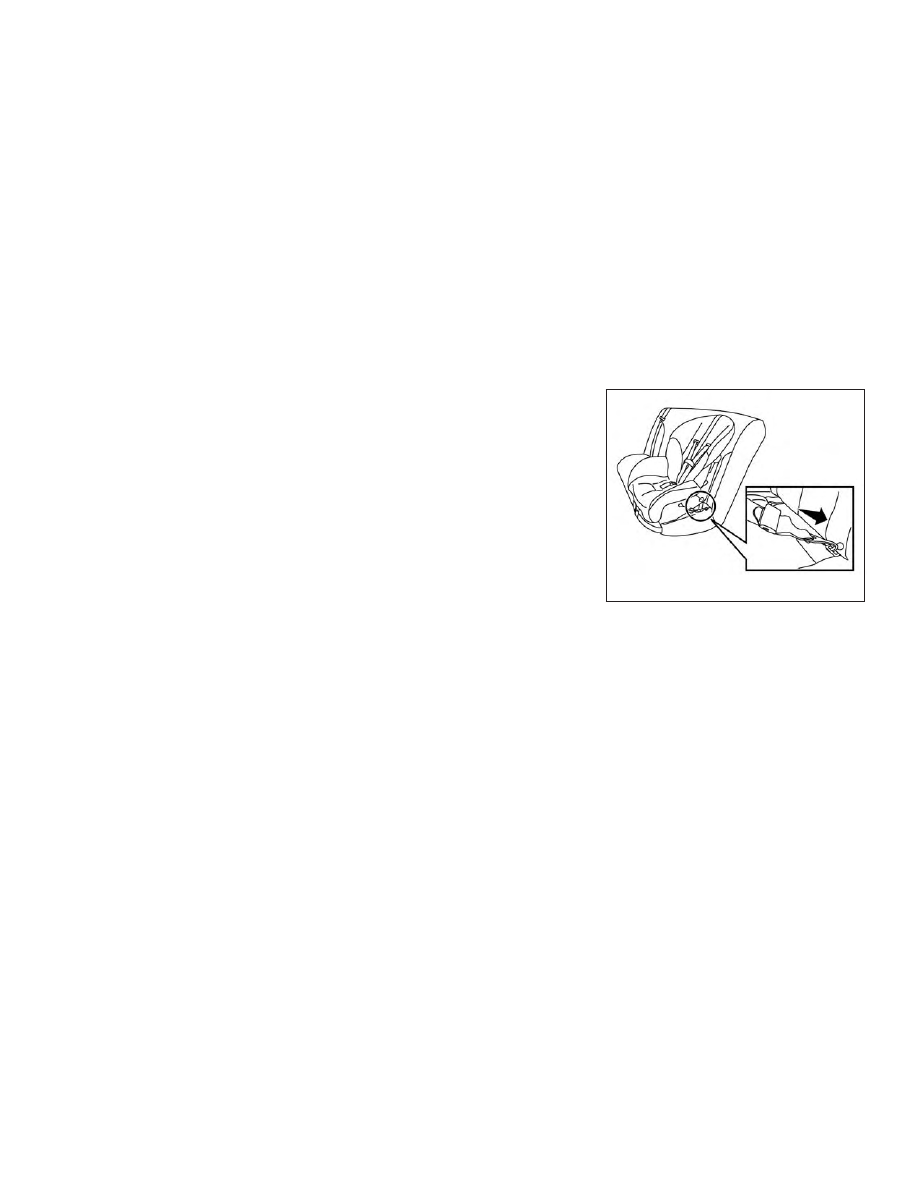

Forward-facing

webbing-mounted

–

step 2

LRS2995

1-30

Safety—Seats, seat belts and supplemental restraint system

Do not install child restraints that re-
quire the use of a top tether strap in
seating positions that do not have a
top tether anchor.

3. The back of the child restraint should

be secured against the vehicle seat-
back.

ditional information, refer to “Head
restraints/headrests” in this section.

If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
child restraint fit, try another seating
position or a different child restraint.

4. For child restraints that are equipped

with webbing-mounted attachments,
remove any additional slack from the
anchor attachments. Press downward
and rearward firmly in the center of the
child restraint with your knee to com-
press the vehicle seat cushion and
seatback while tightening the webbing
of the anchor attachments.

5. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

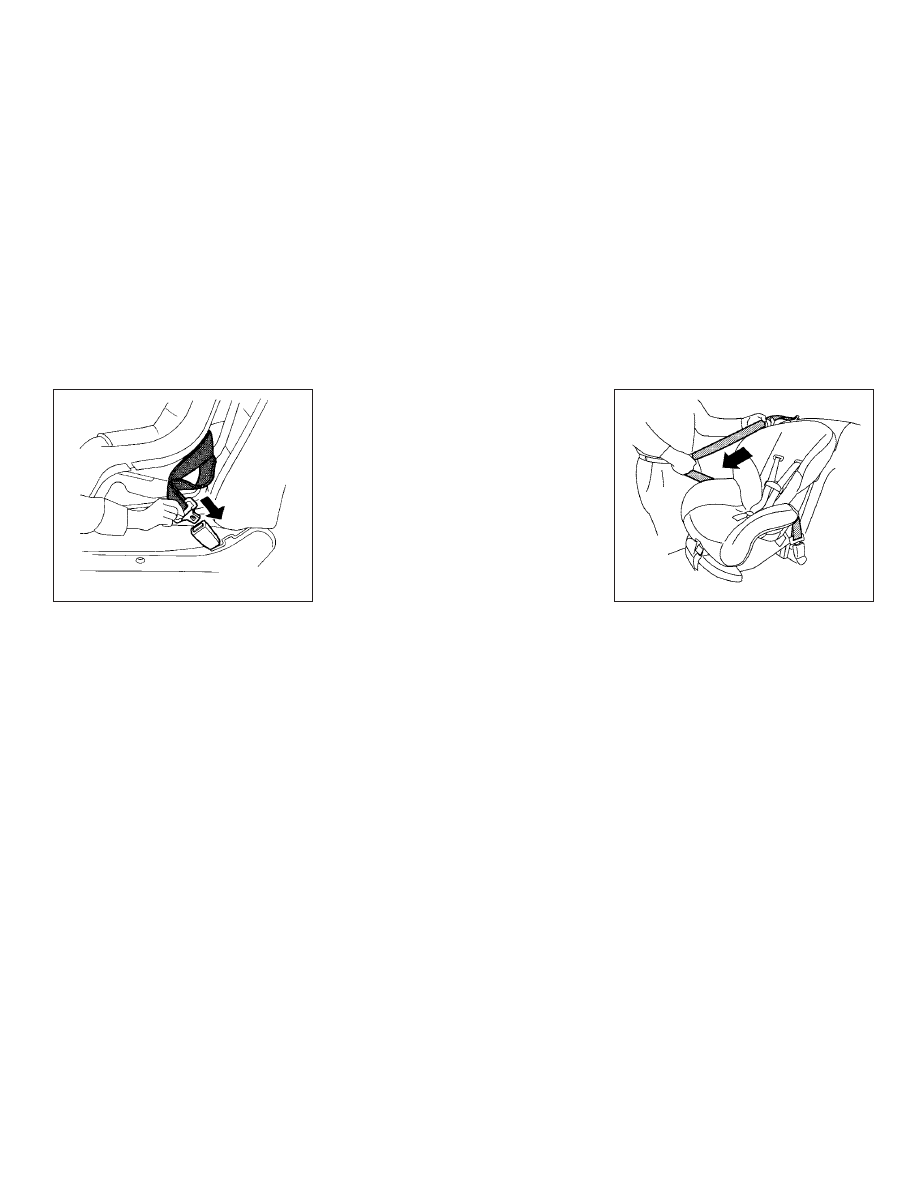

Forward-facing rigid-mounted – step 2

LRS2994

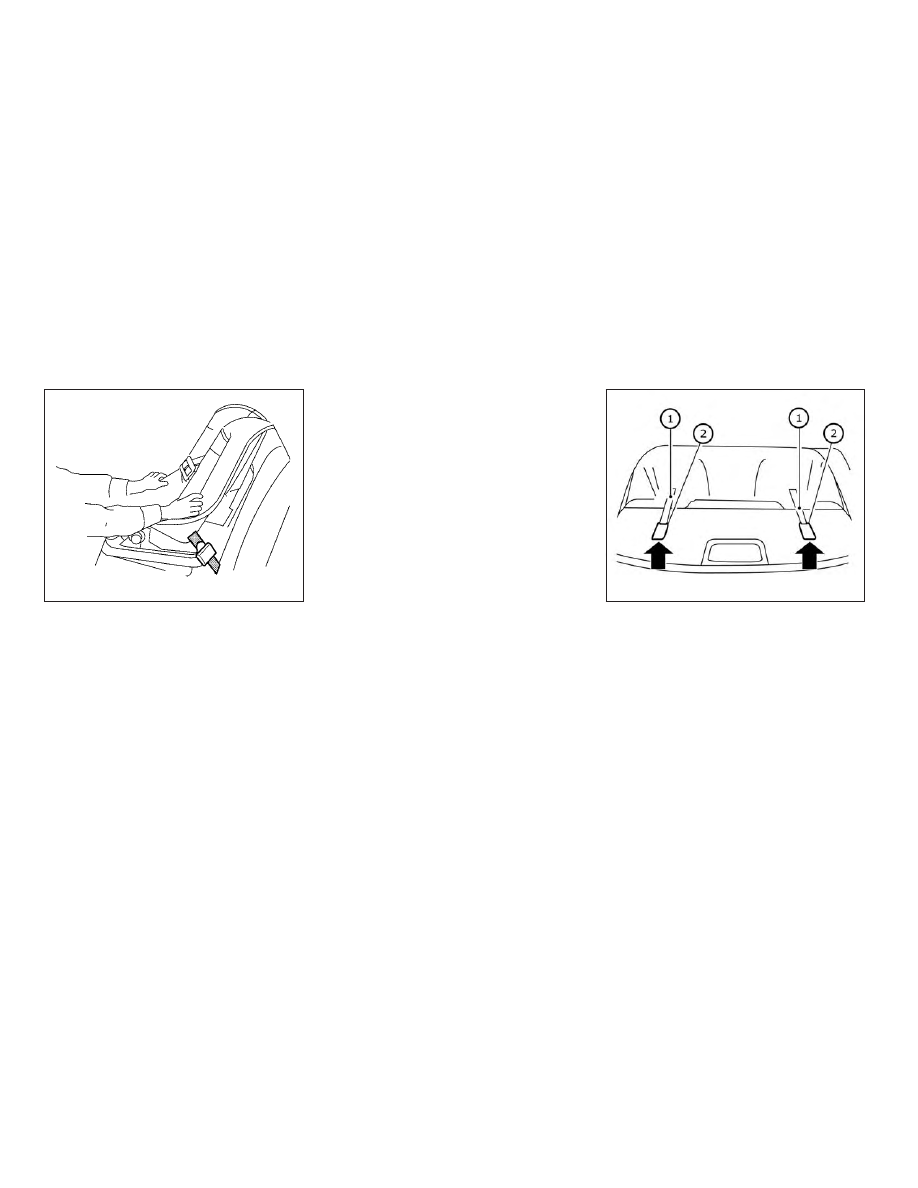

Forward-facing – step 4

LRS0671

Safety—Seats, seat belts and supplemental restraint system

1-31

6. After attaching the child restraint, test

7. Check to make sure the child restraint

is properly secured prior to each use. If
the child restraint is loose, repeat
steps 1 through 6.

䊊

Top tether strap

䊊

Anchor point

Installing top tether strap

The child restraint top tether strap must be
used when installing the child restraint with
the LATCH lower anchor attachments.

First, secure the child restraint with the
LATCH lower anchors (rear bench out-
board seating positions only).

Forward-facing – step 6

WRS0697

Rear bench seat

LRS3061

1-32

Safety—Seats, seat belts and supplemental restraint system

Rear bench seat

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest

and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional

information

for

head

restraint/headrest

adjustment,

re-

moval and installation, refer to “Head
restraints/headrests” in this section.

2. Position the top tether strap

䊊

over

the seatback.

3. Secure the tether strap to the tether

anchor point

䊊

as shown.

4. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.

WARNING

FORWARD-FACING CHILD
RESTRAINT INSTALLATION USING
THE SEAT BELTS

WARNING

The three-point seat belt with Auto-
matic Locking Retractor (ALR) must be
used when installing a child restraint.
Failure to use the ALR mode will result in
the child restraint not being properly
secured. The restraint could tip over or
be loose and cause injury to a child in a
sudden stop or collision. Also, it can
change the operation of the front pas-
senger air bag. For additional informa-
tion, refer to “Front passenger air bag
and status light” in this section.

Safety—Seats, seat belts and supplemental restraint system

1-33

For additional information, refer to all Warn-
ings and Cautions in the “Child safety” and
“Child restraints” sections of this manual
before installing a child restraint.

Follow these steps to install a forward-
facing child restraint using the vehicle seat
belt in the rear seats or in the front passen-
ger seat:

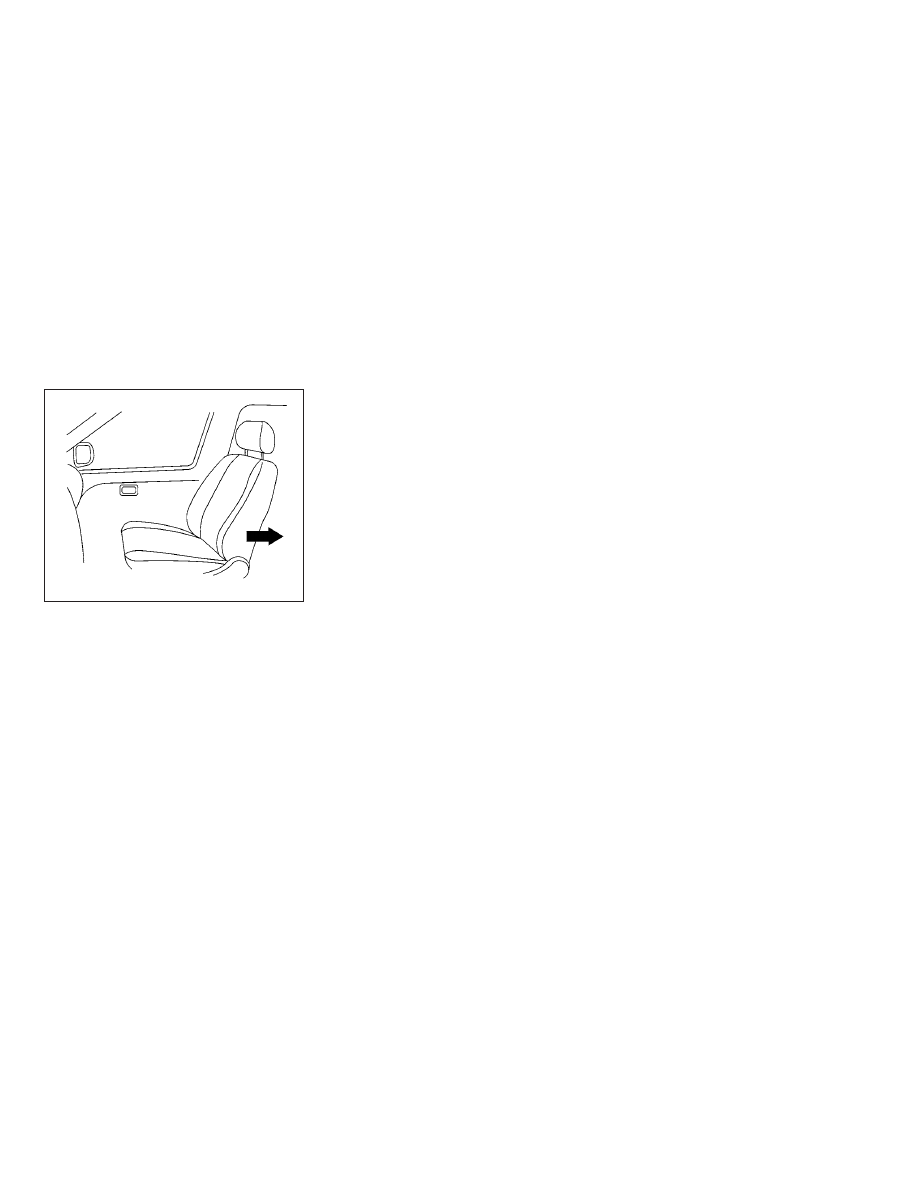

1. If you must install a child restraint in

the front seat, it should be placed in a
forward-facing direction only. Move
the seat to the rearmost position.
Child restraints for infants must be
used in the rear-facing direction and,
therefore, must not be used in the
front seat.

2. Position the child restraint on the seat.

Always follow the child restraint manu-
facturer’s instructions.

The back of the child restraint should
be secured against the vehicle seat-
back.

If necessary, adjust or remove the head
restraint/headrest to obtain the cor-
rect child restraint fit. If the head
restraint/headrest is removed, store it
in a secure place. Be sure to reinstall
the head restraint/headrest when
the child restraint is removed. For ad-
ditional information, refer to “Head
restraints/headrests” in this section for
head restraint/headrest adjustment,
removal and installation information.

If the seating position does not have
an adjustable head restraint/headrest
and it is interfering with the proper
child restraint fit, try another seating
position or a different child restraint.

Forward-facing (front passenger seat) –

step 1

WRS0699

1-34

Safety—Seats, seat belts and supplemental restraint system

3. Route the seat belt tongue through the

child restraint and insert it into the
buckle until you hear and feel the latch
engage. Be sure to follow the child re-
straint manufacturer’s instructions for
belt routing.

If the child restraint is equipped with a
top tether strap, route the top tether
strap and secure the tether strap to
the tether anchor point (rear seat in-
stallation only). For additional informa-
tion, refer to “Installing top tether strap”
in this section.

Do not install child restraints that re-
quire the use of a top tether strap in
seating positions that do not have a
top tether anchor.

4. Pull the shoulder belt until the belt is

fully extended. At this time, the seat belt
retractor is in the ALR mode (child re-
straint mode). It reverts to ELR mode
when the seat belt is fully retracted.

Forward-facing – step 3

WRS0680

Forward-facing – step 4

LRS0667

Safety—Seats, seat belts and supplemental restraint system

1-35

5. Allow the seat belt to retract. Pull up on

the shoulder belt to remove any slack
in the belt.

6. Remove any additional slack from the

seat belt; press downward and rear-
ward firmly in the center of the child
restraint with your knee to compress
the vehicle seat cushion and seatback
while pulling up on the seat belt.

7. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

8. After attaching the child restraint, test

Forward-facing – step 5

LRS0668

Forward-facing – step 6

WRS0681

Forward-facing – step 8

WRS0698

1-36

Safety—Seats, seat belts and supplemental restraint system

9. Check to make sure the child restraint

is properly secured prior to each use. If
the seat belt is not locked, repeat
steps 2 through 8.

10. If the child restraint is installed in the

front passenger seat, place the ignition
switch in the ON position. The front
passenger air bag status light
should illuminate. If this light is not illu-
minated, refer to "Front passenger air
bag and status light" in this section.
Move the child restraint to another
seating position. Have the system
checked. It is recommended that you
visit a NISSAN dealer for this service.

After the child restraint is removed and the
seat belt is fully retracted, the ALR mode
(child restraint mode) is canceled.

䊊

Top tether strap

䊊

Anchor point

Installing top tether strap

The child restraint top tether strap must be
used when installing the child restraint with
seat belts.

First, secure the child restraint with the seat
belt.

Forward-facing – step 10

WRS0475

Rear bench seat

LRS2627

Safety—Seats, seat belts and supplemental restraint system

1-37

Rear bench seat

OUTBOARD SEATING POSITIONS

1. Remove the head restraint/headrest

and store it in a secure place. Be sure to
reinstall the head restraint/headrest
when the child restraint is removed. For
additional

information

for

head

restraint/headrest

adjustment,

re-

moval and installation, refer to “Head
restraints/headrests” in this section.

2. Position the top tether strap

䊊

over

the seatback.

3. Secure the tether strap to the tether

anchor point

䊊

as shown.

4. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

CENTER SEATING POSITION

1. Position the top tether strap

䊊

over the

seatback.

2. Secure the tether strap to the tether

anchor point

䊊

as shown.

3. Tighten the tether strap according to

the manufacturer’s instructions to re-
move any slack.

If you have any questions when install-
ing a top tether strap, it is recommended
that you visit a NISSAN dealer for this
service.

WARNING

BOOSTER SEATS

For additional information on installing a
booster seat in your vehicle, follow the in-
structions outlined in this section.

Precautions on booster seats

WARNING

If a booster seat and seat belt are not
used properly, the risk of a child being
injured or killed in a sudden stop or col-
lision greatly increases:

– Make sure the shoulder portion of

the belt is away from the child’s
face and neck and the lap portion
of the belt does not cross the
stomach.

– Make sure the shoulder belt is not

behind the child or under the
child’s arm.

– A booster seat must only be in-

stalled in a seating position that
has a lap/shoulder belt.

1-38

Safety—Seats, seat belts and supplemental restraint system

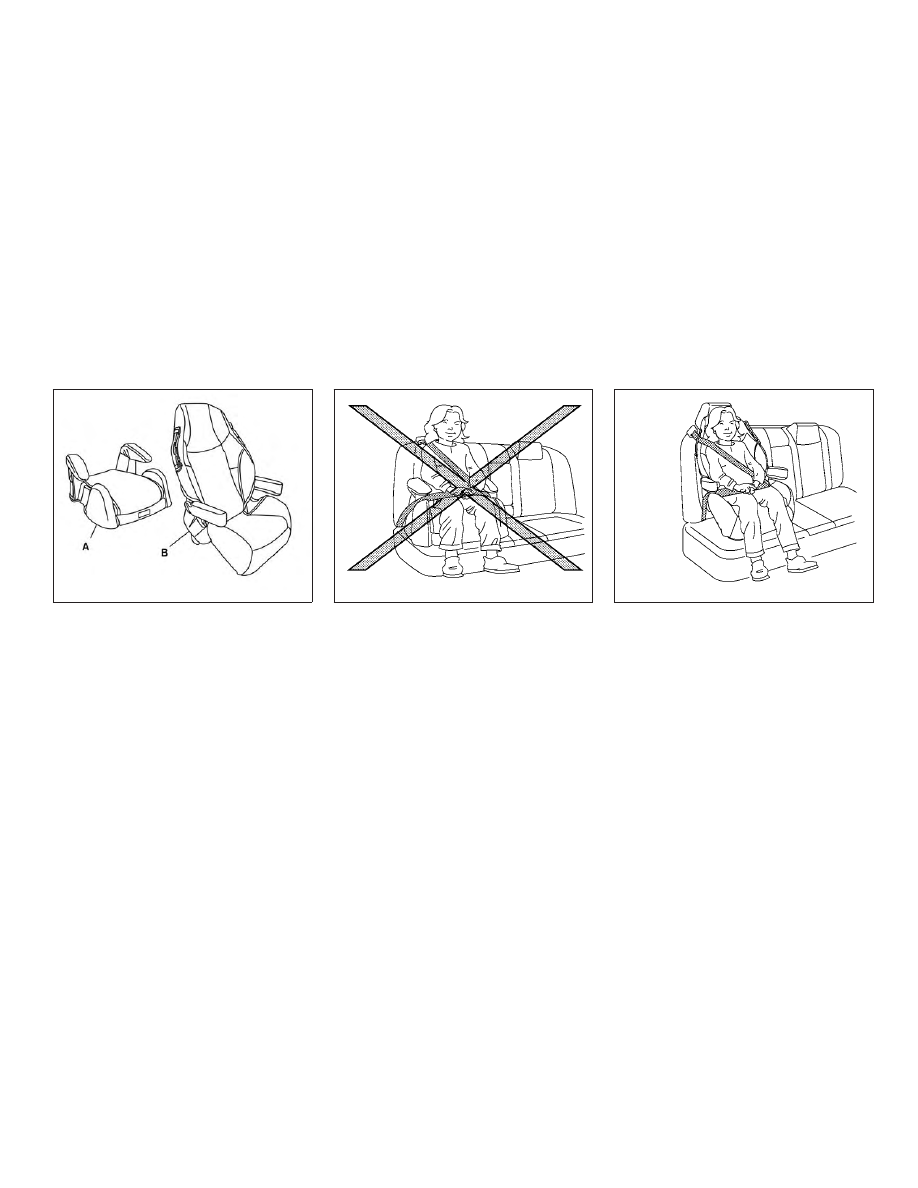

Low back booster seat

High back booster seat

Booster seats of various sizes are offered
by several manufacturers. When selecting
any booster seat, keep the following points
in mind:

∙ Choose only a booster seat with a label

certifying that it complies with Federal
Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Stan-
dard 213.

∙ Check the booster seat in your vehicle

to be sure it is compatible with the vehi-
cle’s seat and seat belt system.

∙ Make sure the child’s head will be prop-

erly supported by the booster seat or
vehicle seat. The seatback must be at
or above the center of the child’s ears.
For example, if a low back booster seat
is chosen, the vehicle seatback must be
at or above the center of the child’s ears.
If the seatback is lower than the center
of the child’s ears, a high back booster
seat should be used.

LRS2479

LRS0453

LRS0464

Safety—Seats, seat belts and supplemental restraint system

1-39

Content .. 1 2 3 4 ..
