Nissan Versa (2019 year). Instruction - part 1

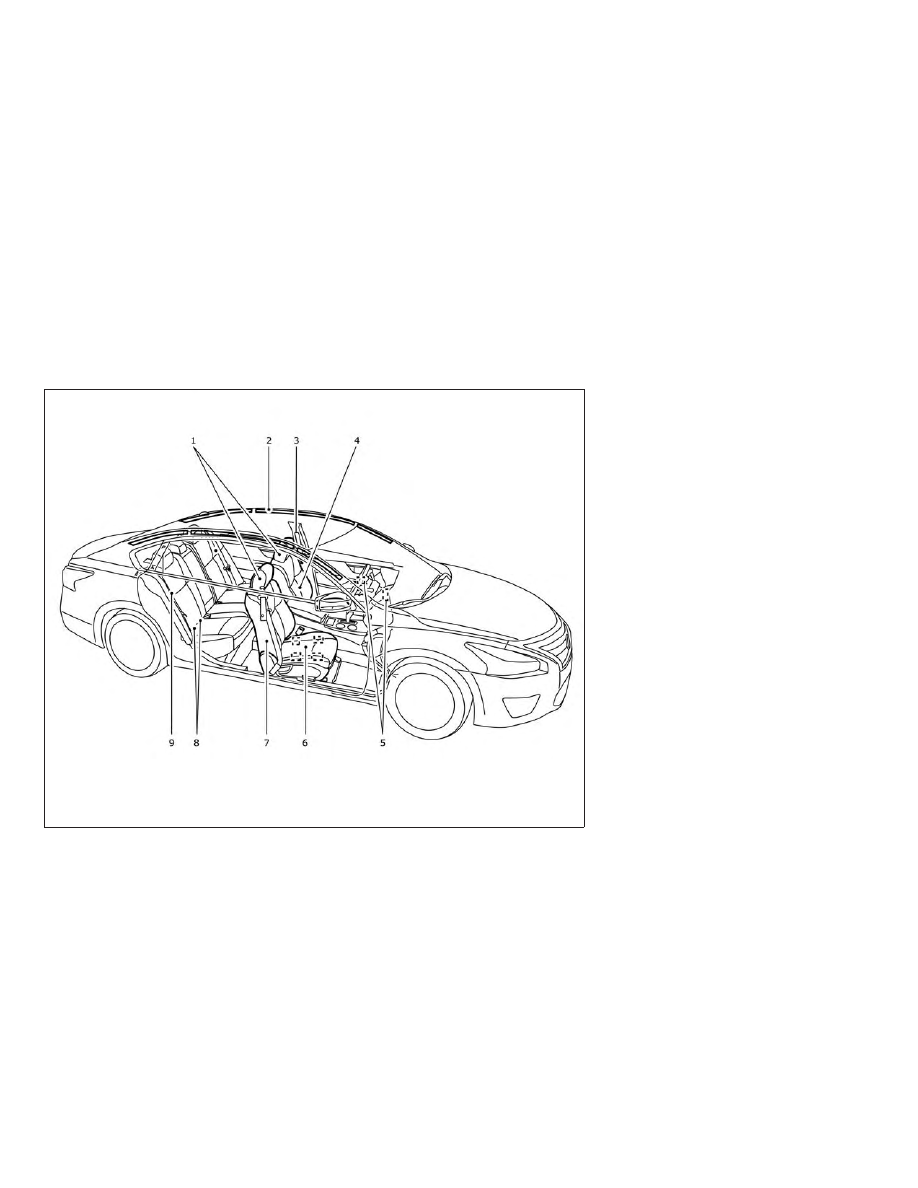

1. Head restraints/headrests (P. 1-6)

2. Roof-mounted curtain side-impact

and rollover supplemental air bag
(P. 1-42)

3. Front seat belt with pretensioner(s)

and shoulder height adjuster
(P. 1-10, 1-42)

4. Seats (P. 1-2)

5. Supplemental air bag modules

(P. 1-42)

6. Occupant classification sensor

(weight sensor) (P. 1-42)

7. Front seat-mounted side-impact

supplemental air bag (P. 1-42)

8. LATCH (Lower Anchors and Tethers

for CHildren) system (P. 1-20)

9. Rear seat belts (P. 1-10)

Refer to the page number indicated in
parentheses for operating details.

LIC3852

AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS

0-2

Illustrated table of contents

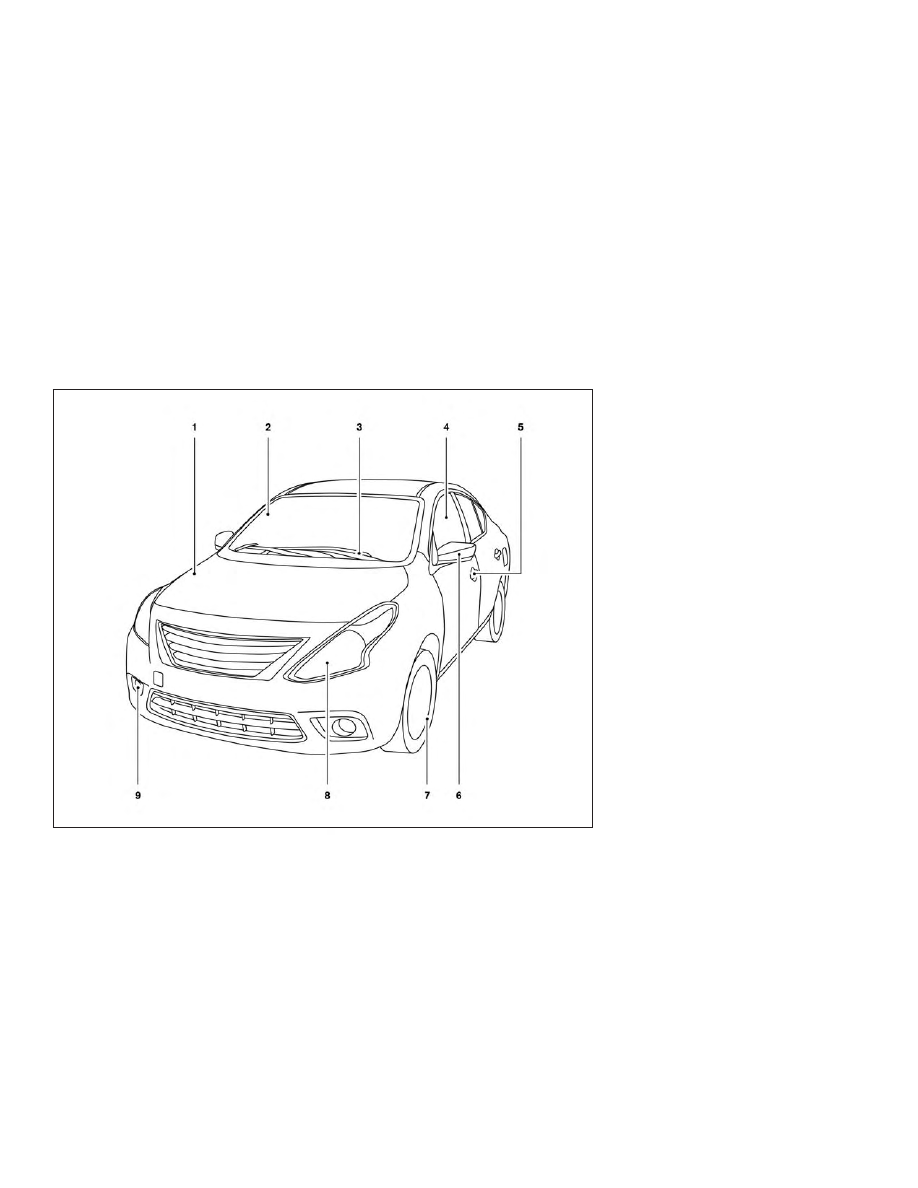

Engine hood (P. 3-27)

Windshield (P. 8-17)

Wiper and washer switch (P. 2-23)

Power windows (if so equipped)
(P. 2-32)

Door locks (P. 3-6)
Key fob (if so equipped) (P. 3-9)
Keys (P. 3-2)

Mirrors (P. 3-34)

Tire pressure (P. 8-33)
Flat tire (P. 6-2)
Tire chains (P. 8-33)

Headlight and turn signal switch
(P. 2-24)
Replacing bulbs (P. 8-26)

Fog light switch (if so equipped)
(P. 2-24)

Refer to the page number indicated in
parentheses for operating details.

LII2461

EXTERIOR FRONT

Illustrated table of contents

0-3

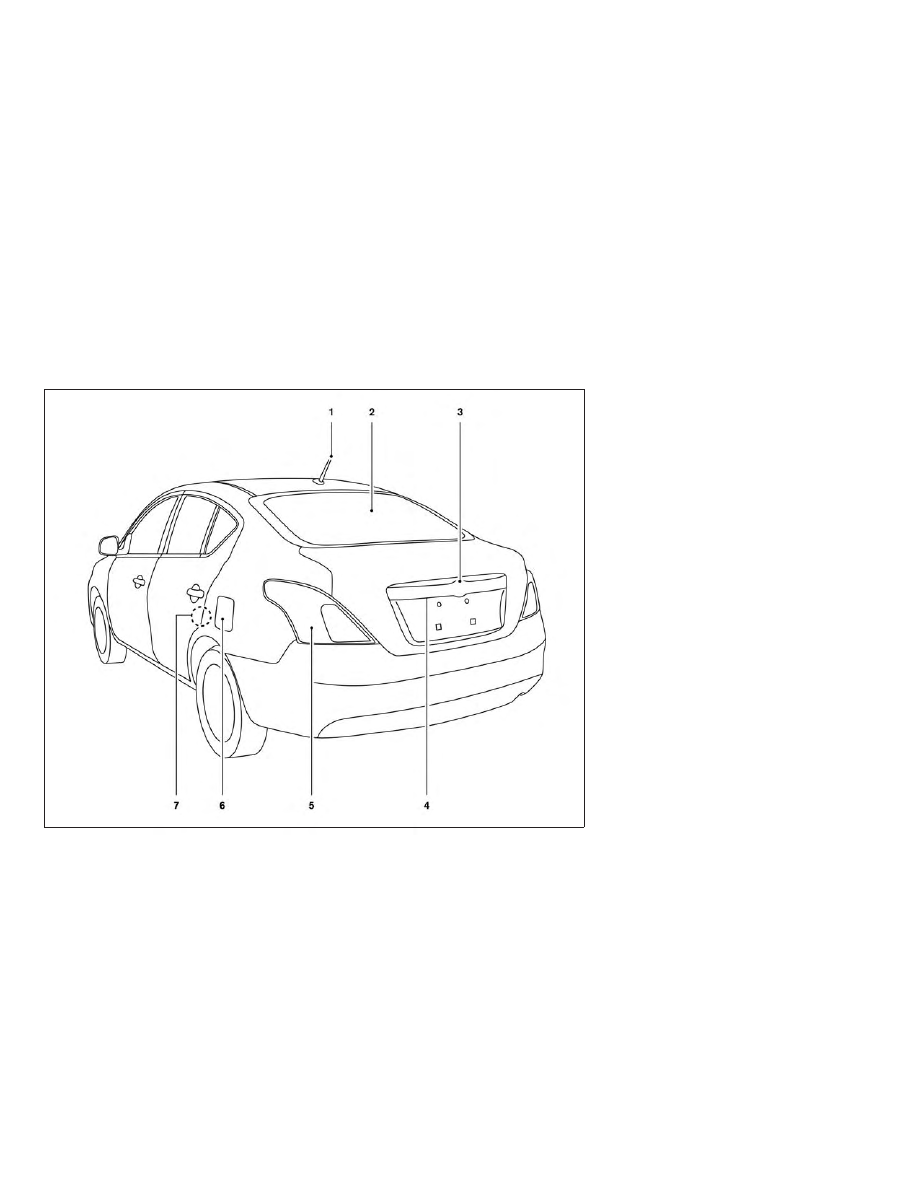

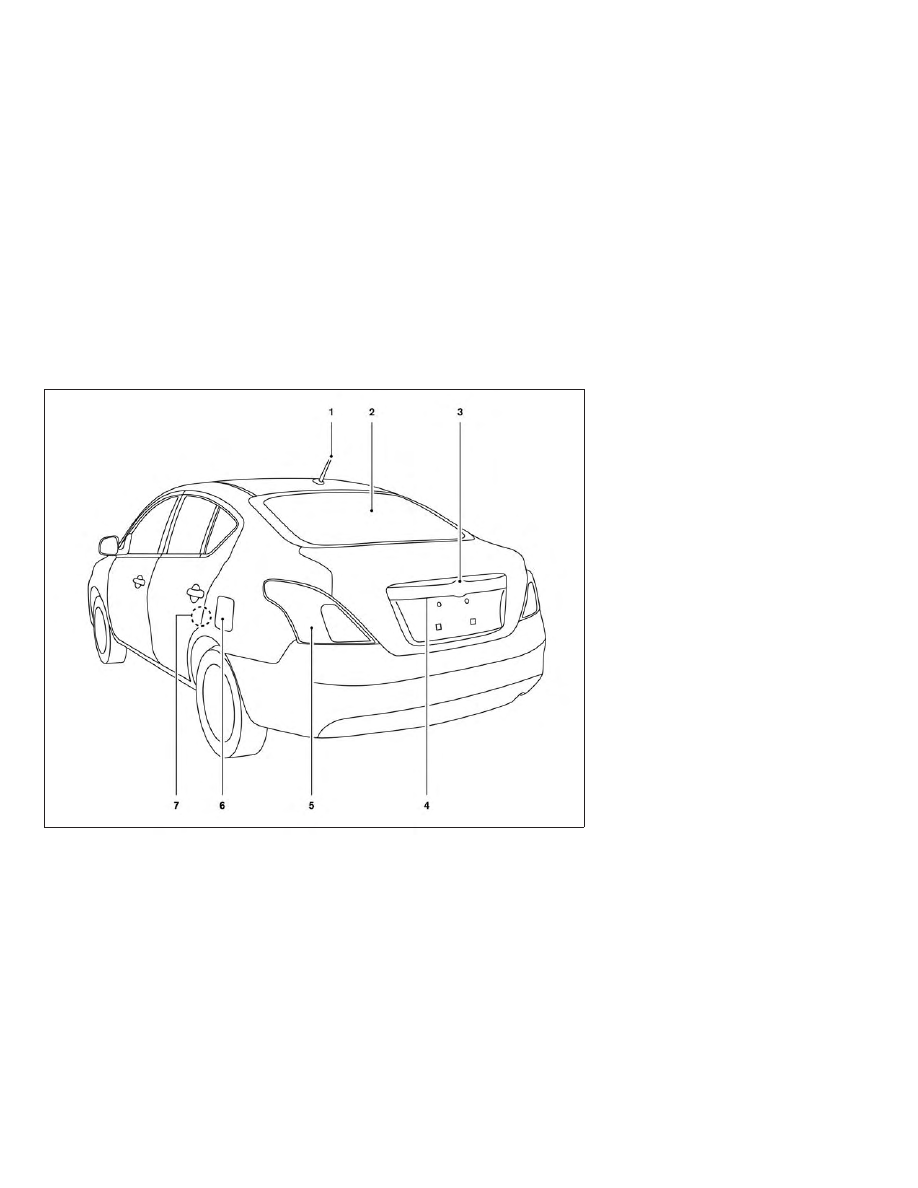

Antenna (P. 4-42)

Rear window defroster switch
(P. 2-24)

Trunk lid release (P. 3-28)

Rearview camera (P. 4-8)

Replacing bulbs (P. 8-26)

Fuel-filler door (P. 3-30)
Fuel-filler cap (P. 3-30)
Fuel recommendation (P. 10-2)

Child safety rear door locks (P. 3-6)

Refer to the page number indicated in
parentheses for operating details.

LII2462

EXTERIOR REAR

0-4

Illustrated table of contents

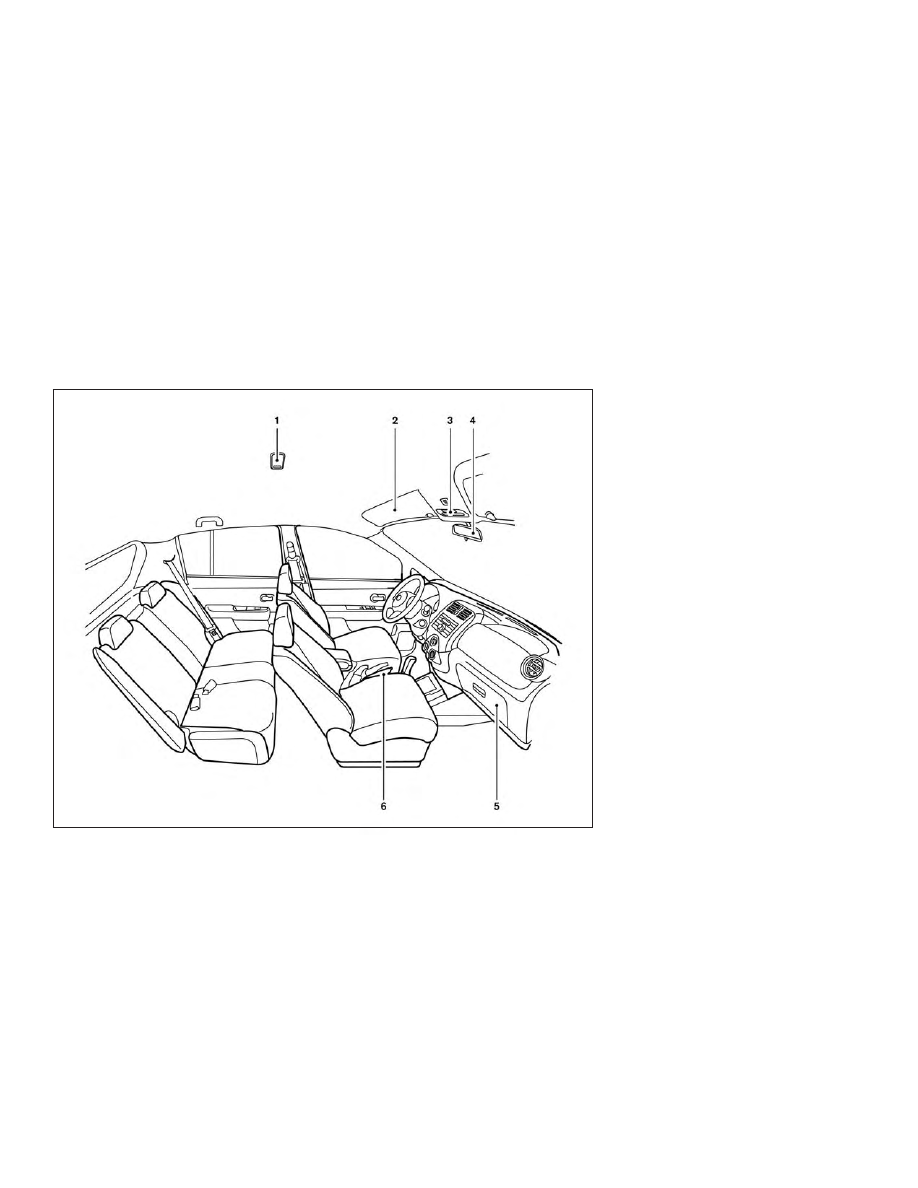

Interior light (P. 2-34)

Sun visors (P. 3-33)

Map light (P. 2-34)

Rearview mirror (P. 3-34)

Glove box (P. 2-29)

Parking brake (P. 5-23)

Refer to the page number indicated in
parentheses for operating details.

LII2463

PASSENGER COMPARTMENT

Illustrated table of contents

0-5

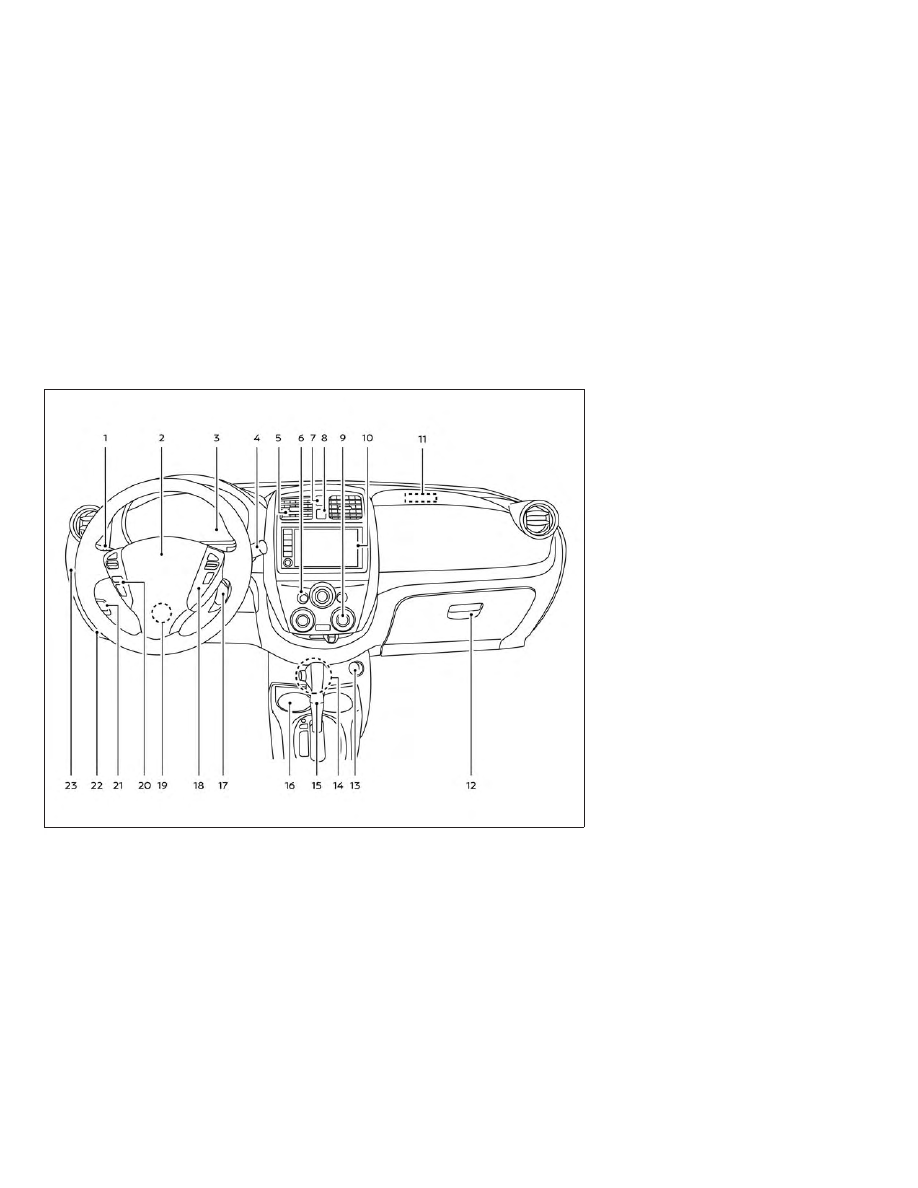

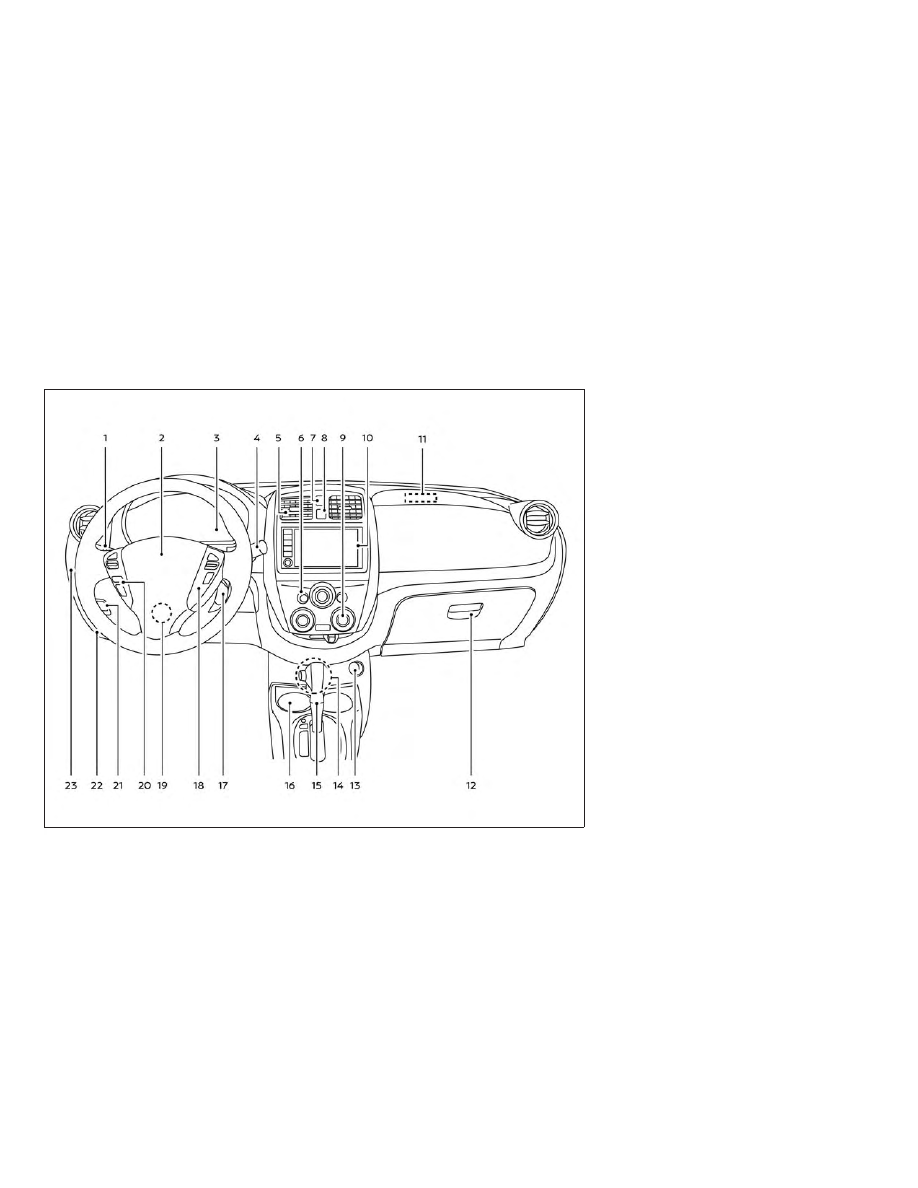

Headlight/turn signal switch/fog
light switch (if so equipped)
(P. 2-24)

Driver’s supplemental air bag
(P. 1-42)
Horn (P. 2-27)

Meters and gauges (P. 2-3)
Warning and indicator lights
(P. 2-12)

Wiper and washer switch (P. 2-23)

Vents (P. 4-14)

Rear window defroster switch
(P. 2-24)

Front passenger air bag status
light (P. 1-42)

Hazard warning flasher switch
(P. 6-2)

Climate controls (P. 4-14)

10.

Audio system (P. 4-22)

11.

Passenger’s supplemental air bag
(P. 1-42)

12.

Glove box (P. 2-29)

13.

Power outlet (P. 2-28)

14.

USB connection port and AUX IN
jack (P. 4-22)

15.

Shift lever (P. 5-16)

16.

Cup holders (P. 2-29)

LIC4000

INSTRUMENT PANEL

0-6

Illustrated table of contents

17.

Ignition switch (if so equipped)
(P. 5-9)
Push-button ignition switch
(if so equipped) (P. 5-11)

18.

Cruise control switches
(if so equipped) (P. 5-24)

19.

Tilt steering (P. 3-32)

20.

Audio control switches (P. 4-42)
Bluetooth® Hands-Free Phone
System switches (P. 4-46)

21.

Vehicle Dynamic Control (VDC) OFF
switch (P. 2-28)

22.

Fuel-filler door release lever
(P. 3-30)
Hood release lever (P. 3-27)

23.

Electronic outside rearview mirror
control switch (P. 3-34)

Refer to the page number indicated in
parentheses for operating details.

Illustrated table of contents

0-7

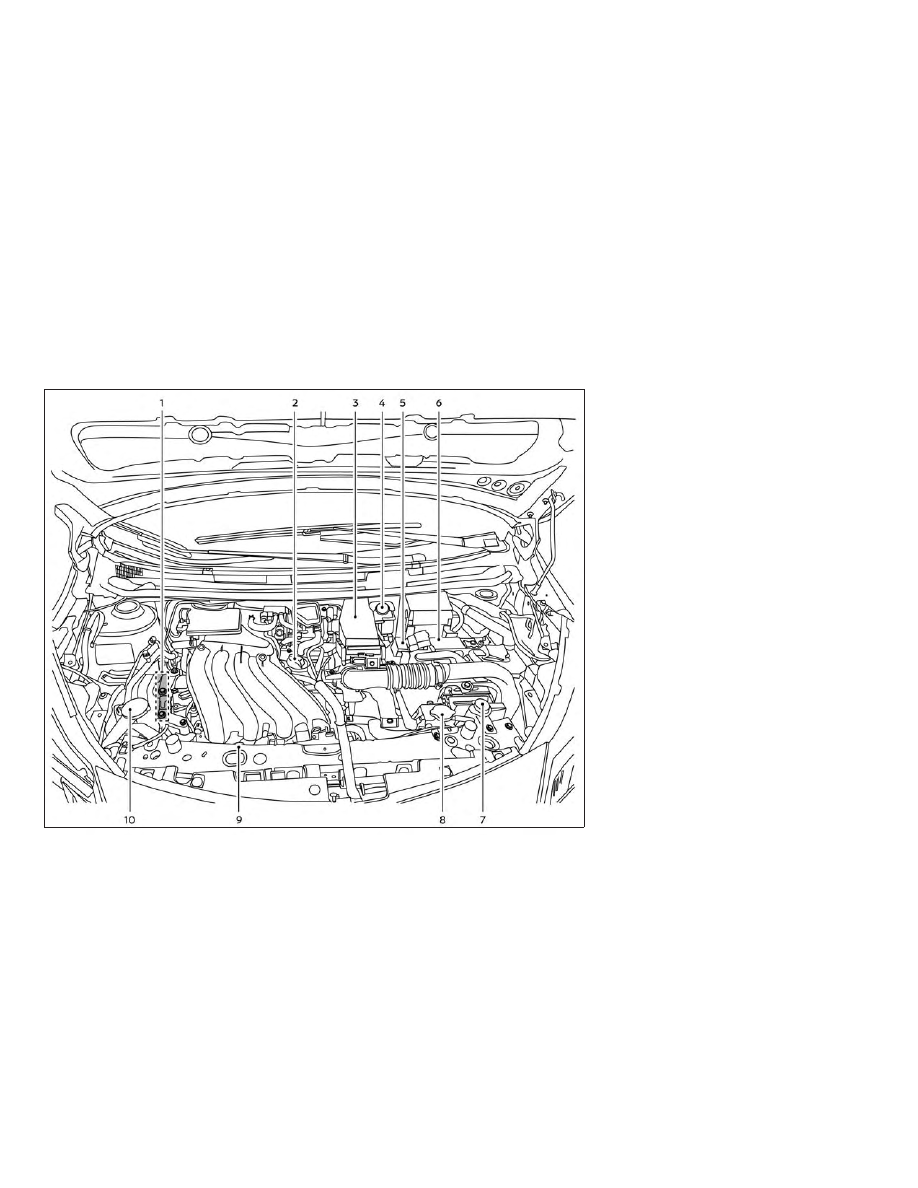

HR16DE Engine

Drive belt location (P. 8-15)

Engine oil filler cap (P. 8-7)

Air cleaner (P. 8-17)

Brake and clutch (if so equipped)
fluid reservoir (P. 8-10)

Fusible link (P. 8-19)

Battery (P. 8-13)

Engine coolant reservoir (P. 8-5)

Radiator cap (P. 8-5)

Engine oil dipstick (P. 8-7)

10.

Windshield-washer fluid reservoir
(P. 8-11)

Refer to the page number indicated in
parentheses for operating details.

LDI3231

ENGINE COMPARTMENT CHECK
LOCATIONS

0-8

Illustrated table of contents

Warning

light

Name

Page

Anti-lock Braking
System (ABS)
warning light

2-13

Brake warning
light

2-13

Charge warning
light

2-14

Door open warn-
ing light

2-14

Engine oil pres-
sure warning light

2-14

High temperature
warning light (red)
(if so equipped)

2-14

Warning

light

Name

Page

Low fuel warning
light

2-15

Low tire pressure
warning light

2-15

NISSAN Intelligent
Key® warning light
(if so equipped)

2-17

Power steering
warning light

2-17

Seat belt warning
light and chime

2-17

Shift P (Park)
warning light (if so
equipped)

2-18

Supplemental air
bag warning light

2-18

Indicator

light

Name

Page

Continuously
Variable Trans-
mission (CVT) po-
sition indicator
light

2-18

CRUISE indicator
light (if so
equipped)

2-18

Front fog light in-
dicator light (if so
equipped)

2-19

Front passenger
air bag status
light

2-19

High beam indi-
cator light (blue)

2-19

Malfunction Indi-
cator Light (MIL)

2-19

WARNING AND INDICATOR LIGHTS

Illustrated table of contents

0-9

Indicator

light

Name

Page

Overdrive OFF
indicator light (if
so equipped)

2-20

Security indicator
light (if so
equipped)

2-22

Side light and
headlight indica-
tor light (green) (if
so equipped)

2-20

Slip indicator light

2-20

Turn signal/
hazard indicator
lights

2-20

Vehicle Dynamic
Control (VDC) OFF
indicator light

2-20

0-10

Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system

Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Front manual seat adjustment . . . . . . . . . . . . . . . .1-3
Folding rear seat (if so equipped) . . . . . . . . . . . . . 1-4
Armrest (if so equipped for driver’s side
only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

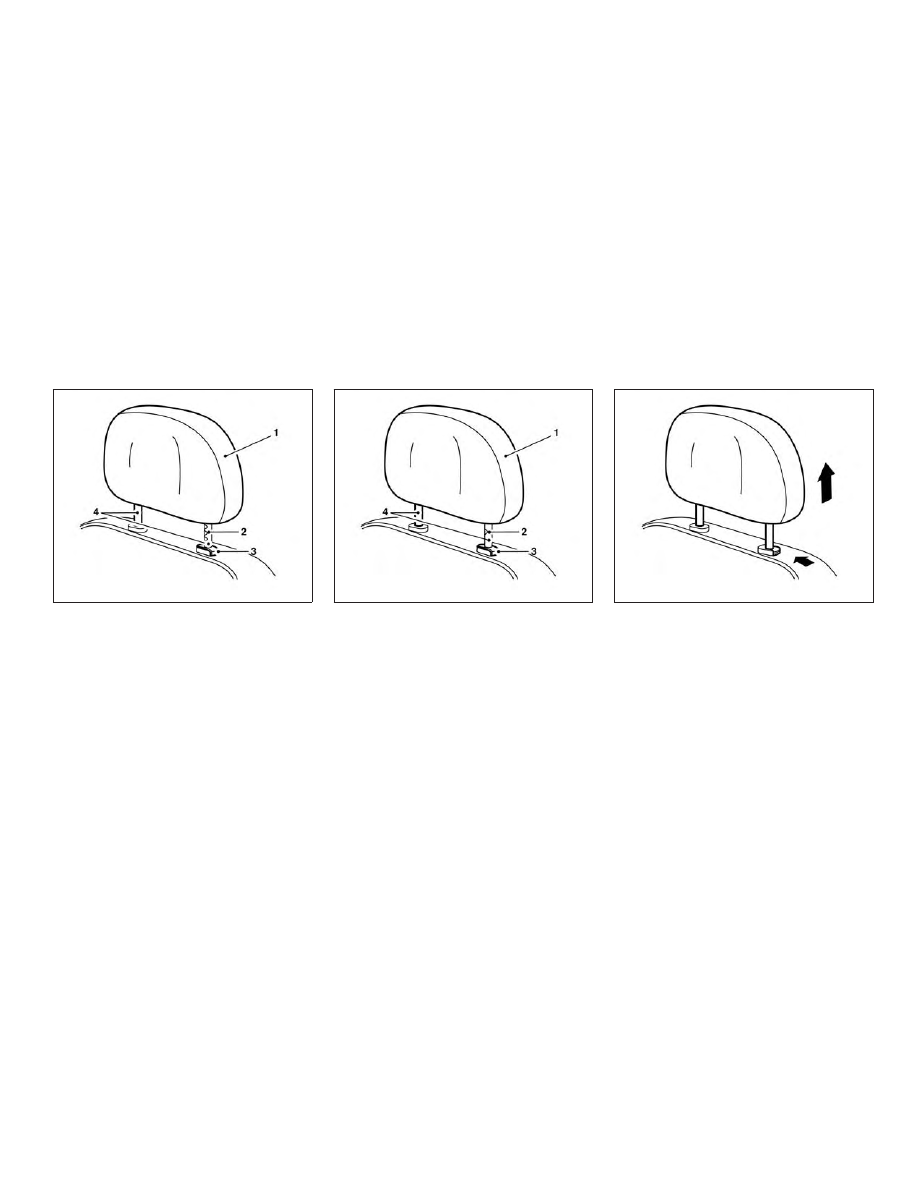

Head restraints/headrests . . . . . . . . . . . . . . . . . . . . . . 1-6

Adjustable head restraint/headrest
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Non-adjustable head restraint/
headrest components. . . . . . . . . . . . . . . . . . . . . . . . .1-7
Remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-7
Install. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10

Precautions on seat belt usage . . . . . . . . . . . . . . .1-10
Seat belt warning light. . . . . . . . . . . . . . . . . . . . . . . .1-13
Pregnant women. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13
Injured persons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13
Three-point type seat belt with
retractor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-13
Seat belt extenders. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-17

Seat belt maintenance . . . . . . . . . . . . . . . . . . . . . . . 1-17

Child safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18

Infants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
Small children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
Larger children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19

Child restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-20

Supplemental Restraint System (SRS). . . . . . . . . . . 1-42

Precautions on SRS. . . . . . . . . . . . . . . . . . . . . . . . . . 1-42
Supplemental air bag warning labels . . . . . . . . 1-60
Supplemental air bag warning light. . . . . . . . . . .1-61

WARNING

∙ Do not ride in a moving vehicle when

the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.

∙ For the most effective protection

when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.

∙ After adjustment, gently rock in the

seat to make sure it is securely locked.

∙ Do not leave children unattended in-

side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.

∙ To help avoid risk of injury or death

through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.

∙ Do not adjust the driver’s seat while

driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.

∙ The seatback should not be reclined

any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.

ARS1152

SEATS

1-2

Safety—Seats, seat belts and supplemental restraint system

CAUTION

When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.

FRONT MANUAL SEAT
ADJUSTMENT

Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.

Forward and backward

Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.

Reclining

To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.

The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shift

LRS2571

LRS2572

Safety—Seats, seat belts and supplemental restraint system

1-3

lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.

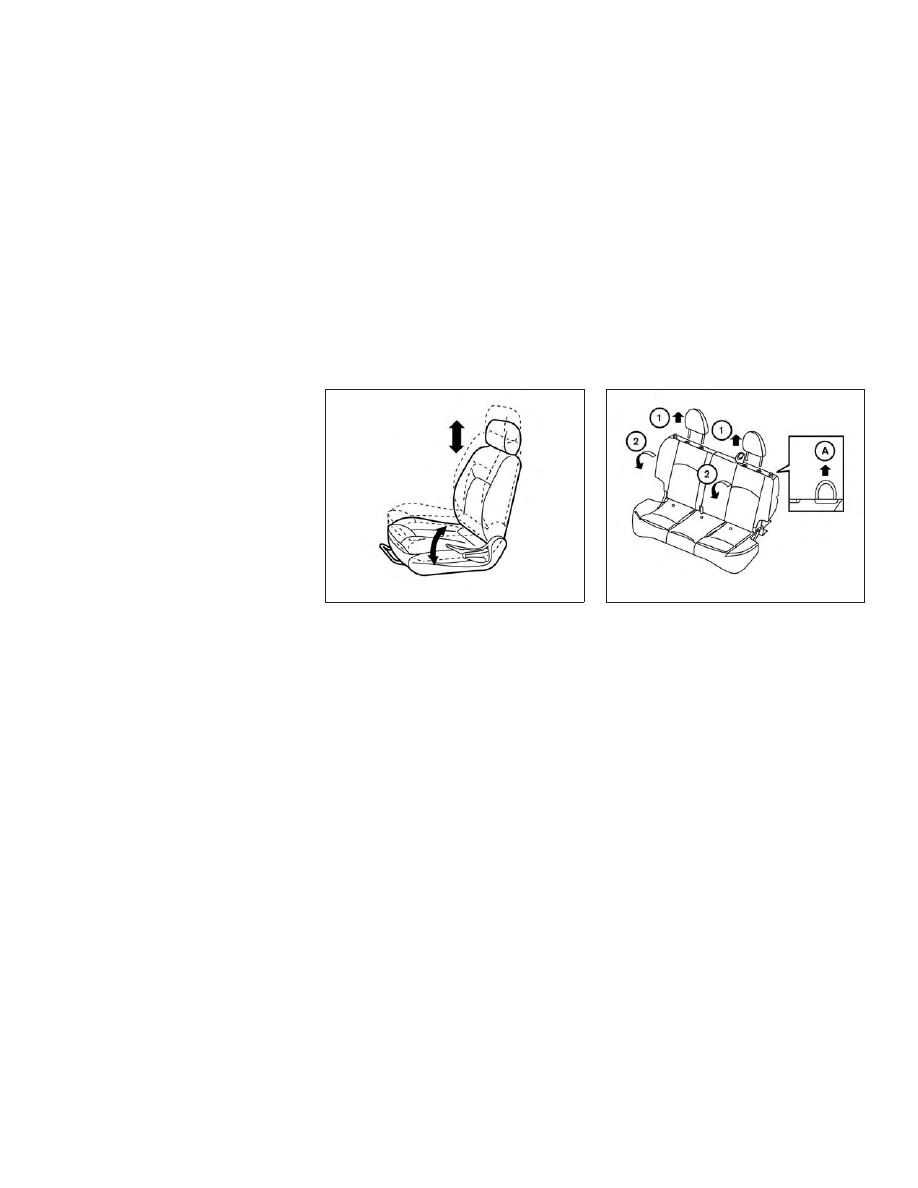

Seat lifter (if so equipped for
driver’s seat)

Pull up or push down the adjusting lever to
adjust the seat height until the desired po-
sition is achieved.

FOLDING REAR SEAT (if so
equipped)

䊊

necessary,

remove

head

restraint/headrest from the rear seat-
back.

䊊

Pull up

䊊

to fold each seatback down.

LRS2573

LRS2440

1-4

Safety—Seats, seat belts and supplemental restraint system

䊊

To return the rear seat to a seating
position, lift up on the seatback and
push it up to an upright position. Firmly
press zones

䊊

and

䊊

to lock the seat-

back in place.

䊊

necessary,

install

the

head

restraint/headrest.

WARNING

∙ Never allow anyone to ride in the

cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop.

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.

∙ When returning the seatbacks to the

upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.

∙ Closely supervise children when they

are around cars to prevent them from
playing and becoming locked in the
hatch where they could be seriously
injured. Keep the car locked, with the
rear seatback and hatch securely
latched when not in use, and prevent
children’s access to car keys.

ARMREST (if so equipped for
driver’s side only)

To use the armrest, pull it down to the rest-
ing position.

䊊

Stowed position

䊊

Resting position

LRS2441

LRS2454

Safety—Seats, seat belts and supplemental restraint system

1-5

WARNING

Head restraints/headrests supplement
the other vehicle safety systems. They
may

provide

additional

protection

against injury in certain rear end colli-
sions.

Adjustable

head

restraints/headrests must be adjusted
properly, as specified in this section.
Check the adjustment after someone
else uses the seat. Do not attach any-
thing to the head restraint/headrest
stalks

remove

the

head

restraint/headrest. Do not use the seat
if the head restraint/headrest has been
removed. If the head restraint/headrest
was removed, reinstall and properly ad-
just the head restraint/headrest before
an occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraints/headrests.

This

may

in-

crease the risk of serious injury or death
in a collision.

The illustration shows the seating positions
equipped with head restraints/headrests.

䉱 Indicates the seating position is
equipped with a head restraint.

䡲 Indicates the seating position is equipped
with a headrest.

+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).

∙ Your vehicle is equipped with a head

restraint/headrest that may be inte-
grated, adjustable or non-adjustable.

∙ Adjustable head restraints/headrests

have multiple notches along the stalk(s)
to lock them in a desired adjustment
position.

∙ The non-adjustable head restraints/

headrests have a single locking notch
to secure them to the seat frame.

∙ Proper Adjustment:

– For the adjustable type, align the

head restraint/headrest so the cen-
ter of your ear is approximately level
with

the

center

the

head

restraint/headrest.

– If your ear position is still higher than

the recommended alignment, place
the head restraint/headrest at the
highest position.

∙ If the head restraint/headrest has been

removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.

LRS2000

HEAD RESTRAINTS/HEADRESTS

1-6

Safety—Seats, seat belts and supplemental restraint system

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS

1. Removable head restraint/headrest

2. Multiple notches

3. Lock knob

4. Stalks

NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS

1. Removable head restraint/headrest

2. Single notch

3. Lock knob

4. Stalks

REMOVE

Use the following procedure to remove the
head restraint/headrest:

1. Pull the head restraint/headrest up to

the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint/headrest

from the seat.

4. Store

the

head

restraint/headrest

properly in a secure place so it is not
loose in the vehicle.

LRS2300

LRS2299

LRS2302

Safety—Seats, seat belts and supplemental restraint system

1-7

Content .. 1 2 ..
