Nissan Quest (2017 year). Instruction

8-6

Do-it-yourself

opening. Do not overfill

6. Recheck oil level with the dipstick.

It is normal to add some oil between oil
maintenance intervals or during the break-
in period, depending on the severity of
operating conditions.

CAUTION

Oil level should be checked regularly.
Operating the engine with an insuffi-
cient amount of oil can damage the
engine, and such damage is not cov-
ered by the warranty.

CHANGING ENGINE OIL AND FILTER

Vehicle set-up

1. Park the vehicle on a level surface and apply

the parking brake.

2. Start the engine and let it idle until it reaches

operating temperature.

3. Turn the engine off and wait more than 10

minutes.

4. Raise and support the vehicle using a

suitable floor jack and safety jack stands.

Place the safety jack stands under the

vehicle jack-up points.

A suitable adapter should be attached to

the jack stand saddle.

CAUTION

Make sure the correct lifting and sup-
port points are used to avoid vehicle
damage.

SDI2175

SDI2717

Engine oil and filter

1. Place a large drain pan under the drain plug

2. Remove the oil filler cap

3. Remove the drain plug with a wrench and

completely drain the oil.

CAUTION

Be careful not to burn yourself, as the
engine oil is hot.

Waste oil must be disposed of

properly.

Check your local regulations.

Perform steps 4 to 9 when the engine oil
filter change is needed.

4. Remove the plastic cover over the oil filter

location by removing the small plastic clips
as illustrated.

5. Loosen the oil filter

with an oil filter

wrench. Remove the oil filter by turning it by
hand.

6. Wipe the engine oil filter mounting surface

with a clean rag.

CAUTION

Be sure to remove any old gasket
material remaining on the mounting
surface of the engine. Failure to do so
could lead to engine damage.

7. Coat the gasket on the new filter with clean

engine oil.

8. Screw in the oil filter clockwise until a slight

resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:

11 to 15 ft-lb (14.7 to 20.5 N·m)

9. Install the plastic cover.

10. Clean and re-install the drain plug with a

new washer. Securely tighten the drain plug
with a wrench.
Drain plug tightening torque:

22 to 29 ft-lb (29 to 39 N·m)

Do not use excessive force.

11. Refill engine with recommended oil through

the oil filler opening, and install the oil filler
cap securely.

See “Capacities and recommended fluids/
lubricants” (P.10-2) for drain and refill
capacity. The drain and refill capacity
depends on the oil temperature and drain
time. Use these specifications for reference
only. Always use the dipstick to determine
the proper amount of oil in the engine.

12. Start the engine and check for leakage

around the drain plug and the oil filter.
Correct as required.

Do-it-yourself

8-7

8-8

Do-it-yourself

13. Turn the engine off and wait more than 10

minutes. Check the oil level with the dipstick.
Add engine oil if necessary.

After the operation

1. Lower the vehicle carefully to the ground.

2. Dispose of waste oil and filter properly.

WARNING

. Prolonged and repeated contact

with used engine oil may cause skin
cancer.

. Try to avoid direct skin contact with

used oil. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible.

. Keep used engine oil out of reach of

children.

CAUTION

. NISSAN recommends using Genu-

ine NISSAN CVT Fluid NS-3 (or
equivalent) ONLY in NISSAN CVTs.
Do not mix with other fluids.

. Do not use Automatic transmission

fluid (ATF) or Manual transmission
fluid in a NISSAN CVT, as it may
damage the CVT. Damage caused by
the use of fluids other than as
recommended is not covered under
NISSAN’s New Vehicle Limited War-
ranty.

. Using fluids that are not equivalent

to Genuine NISSAN CVT Fluid NS-3
may also damage the CVT. Damage
caused by the use of fluids other
than as recommended is not cov-
ered under NISSAN’s New Vehicle
Limited Warranty.

When checking or replacement is required, we
recommend a NISSAN dealer for servicing.

SDI2699

Check the fluid level in the reservoir.

The fluid level should be checked when the fluid
is cold at fluid temperatures of 32 to 86

8F (0 to

8C). The fluid level can be checked with the

level gauge which is attached to the cap. To
check the fluid level, remove the cap. The fluid
level should be between the MAX

and MIN

lines.

If the fluid is below the MIN

line, add

Genuine NISSAN E-PSF. Remove the cap and
fill through the opening.

CONTINUOUSLY VARIABLE
TRANSMISSION (CVT) FLUID

POWER STEERING FLUID

CAUTION

. Do not overfill.
. Use of a power steering fluid other

than Genuine NISSAN E-PSF will
prevent the power steering system
from operating properly.

For additional brake fluid information, see
“Capacities and recommended fluids/lubricants”
(P.10-2) of this manual.

WARNING

. Use only new fluid from a sealed

container. Old, inferior or contami-
nated fluid may damage the brake
system. The use of improper fluids
can damage the brake system and
affect the vehicle’s stopping ability.

. Clean the filler cap before removing.
. Brake fluid is poisonous and should

be stored carefully in marked con-
tainers out of the reach of children.

CAUTION

Do not spill the fluid on any painted
surfaces. This will damage the paint. If
fluid is spilled, immediately wash the
surface with water.

SDI2178

Check the fluid level in the reservoir. If the fluid is
below the MIN line

or the brake warning

light comes on, add Genuine NISSAN Super
Heavy Duty Brake Fluid or equivalent DOT 3
fluid up to the MAX line

. If fluid must be

added frequently, the system should be
checked. It is recommended you visit a NISSAN
dealer for this service.

Do-it-yourself

8-9

BRAKE FLUID

8-10

Do-it-yourself

SDI2724

Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
washer fluid warning appears on the vehicle
information display.

To fill the window washer fluid reservoir, lift the
cap and pour the window washer fluid into the
reservoir opening.

Add a washer solvent to the water for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer’s
instructions for the mixture ratio.

Refill the reservoir more frequently when driving
conditions require an increased amount of
window washer fluid.

Recommended fluid:

Genuine NISSAN Windshield Washer Concen-
trate Cleaner & Antifreeze or equivalent

CAUTION

. Do not substitute engine anti-freeze

coolant for window washer solution.
This may result in damage to the
paint.

. Do not fill the window washer

reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.

. Pre-mix washer fluid concentrates

with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.

. Keep the battery surface clean and dry.

Clean the battery with a solution of baking
soda and water.

. Make certain the terminal connections are

clean and securely tightened.

. If the vehicle is not to be used for 30 days or

longer, disconnect the negative (

í) battery

terminal cable to prevent discharging it.

NOTE:

Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-

nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)

2. Vehicle is not driven regularly and/or

only driven short distances.

In these cases, the battery may need to be
charged to maintain battery health.

WARNING

. Do not expose the battery to flames

or electrical sparks. Hydrogen gas
generated by the battery is explo-
sive. Do not allow battery fluid to

WINDOW WASHER FLUID

BATTERY

contact your skin, eyes, fabrics, or
painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately
flush with water for at least 15
minutes and seek medical attention.

. Do not operate the vehicle if the

fluid in the battery is low. Low
battery fluid can cause a higher load
on the battery which can generate
heat, reduce battery life, and in
some cases lead to an explosion.

. When working on or near a battery,

always wear suitable eye protection
and remove all jewelry.

. Battery posts, terminals and related

accessories contain lead and lead
compounds. Wash hands after
handling.

. Keep the battery out of the reach of

children.

DI0137MA

Check the fluid level in each cell. (Remove the
battery cover if it is necessary.) It should be
between the UPPER LEVEL

and LOWER

LEVEL

lines.

If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.

SDI1480C

1. Remove the cell plugs

2. Add distilled water up to the UPPER LEVEL

line.

If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition

indicates

OK and the conditions

needs more to

be added.

3. Tighten cell plugs

Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.

Do-it-yourself

8-11

8-12

Do-it-yourself

JUMP STARTING

If jump starting is necessary, see “Jump starting”
(P.6-10). If the engine does not start by jump
starting, the battery may have to be replaced. It
is recommended you visit a NISSAN dealer for
this service.

CAUTION

. Do not ground accessories directly

to the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.

. Use electrical accessories with the

engine running to avoid discharging
the vehicle battery.

The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.

JVM0172X

Drive belt auto-tensioner

Alternator

Air conditioner compressor

Crankshaft pulley

WARNING

Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belt. The engine could rotate unexpect-
edly.

1. Visually inspect the belt for signs of unusual

wear, cuts, fraying or looseness. If the belt is
in poor condition or loose, have it replaced
or adjusted. It is recommended you visit a

VARIABLE VOLTAGE CONTROL
SYSTEM

DRIVE BELT

NISSAN dealer for this service.

2. Have the belt condition checked regularly.

WARNING

Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.

CAUTION

Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.

SDI2020

REPLACING SPARK PLUGS

If replacement is required, it is recommended
you visit a NISSAN dealer for this service.

Iridium-tipped spark plugs

It is not necessary to replace the platinum-
tipped spark plugs as frequently as the conven-
tional type spark plugs since they will last much
longer. Follow the maintenance schedule shown
in the “9. Maintenance and schedules” section,
but do not reuse them by cleaning or regapping.

Always replace spark plugs with recom-
mended or equivalent ones.

Do-it-yourself

8-13

SPARK PLUGS

8-14

Do-it-yourself

SDI2180

Pull the tabs

and pull out the cover

The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “9. Maintenance and sche-
dules” section. When replacing the filter, wipe
the inside of the air cleaner housing and the
cover with a damp cloth.

WARNING

. Operating the engine with the air

cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops
flame if the engine backfires. If it

isn’t there, and the engine backfires,
you could be burned. Do not drive
with the air cleaner removed, and be
careful when working on the engine
with the air cleaner removed.

. Never pour fuel into the throttle

body or attempt to start the engine
with the air cleaner removed. Doing
so could result in serious injury.

CLEANING

If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.

Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.

Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild detergent.
Then rinse the blade with clear water. If your
windshield is still not clear after cleaning the
blades and using the wiper, replace the blades.

CAUTION

Worn windshield wiper blades can
damage the windshield and impair
driver vision.

AIR CLEANER

WINDSHIELD WIPER BLADES

REPLACING

CAUTION

. After wiper blade replacement, re-

turn the wiper arm to its original
position; otherwise it may be da-
maged when the hood is opened.

. Make sure the wiper blades contact

the glass; otherwise the arm may be
damaged from wind pressure.

SDI2694

Type A (if so equipped)

Replace the wiper blades if they are worn.

1. Pull the wiper arm.When lifting the wiper

arm, lift the driver’s side first, then the
passenger’s side. Otherwise, the wiper
blades may be scratched and may
cause damage.

2. Release the lock tab

and then move the

wiper blade

as illustrated.

3. Remove the wiper blade.

4. Insert the new wiper blade onto the wiper

arm until it clicks into place.

It is recommended you visit a NISSAN dealer for
wiper blade rubber replacement.

Do-it-yourself

8-15

8-16

Do-it-yourself

SDI1649

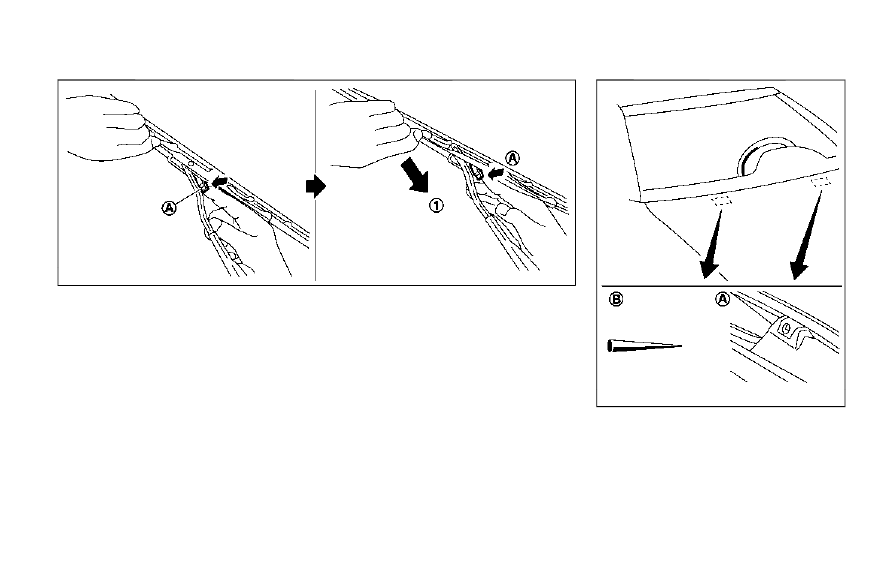

Type B (if so equipped)

Replace the wiper blades if they are worn.

1. Lift the wiper arm away from the windshield.

When lifting the wiper arm, lift the
driver’s side first, then the passenger’s
side. Otherwise, the wiper blades may
be scratched and may cause damage.

2. Push and hold the release tab

, and then

move the wiper blade down the wiper arm to
remove

3. Remove the wiper blade.

4. Insert the new wiper blade onto the wiper

arm until it clicks into place.

It is recommended you visit a NISSAN dealer for

wiper blade rubber replacement.

SDI2693

WASHER NOZZLE

Be careful not to clog the washer nozzle

This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin

. Be

careful not to damage the nozzle.

It is recommended you visit a NISSAN dealer if
checking or replacement is required.

If the brakes do not operate properly, it is
recommended you have the brakes checked by
a NISSAN dealer.

SELF-ADJUSTING BRAKES

Your vehicle is equipped with self-adjusting
brakes.

The disc-type brakes self-adjust every time the
brake pedal is applied.

WARNING

Have your brake system checked if the
brake pedal height does not return to
normal. It is recommended you visit a
NISSAN dealer for this service.

BRAKE PAD WEAR WARNING

The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.

Under some driving or climate conditions,

occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise during
light to moderate stops is normal and does not
affect the function or performance of the brake
system.

Proper brake inspection intervals should
be followed. For additional information, see the
maintenance schedule shown in the “9. Main-
tenance and schedules” section.

Do-it-yourself

8-17

REAR WINDOW WIPER BLADE

BRAKES

8-18

Do-it-yourself

SDI2181

ENGINE COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

1. Be sure the ignition switch and the headlight

switch are turned off.

2. Open the engine hood.

3. Remove the fuse/fusible link holder cover by

pushing the tab

4. Remove the fuse with the fuse puller located

in the passenger compartment fuse box.

SDI1754

5. If the fuse is open

, replace it with a new

fuse

. Spare fuses are stored in the

passenger compartment fuse box.

6. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

Fusible links

If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.

FUSES

JVM0187X

PASSENGER COMPARTMENT

WARNING

Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or electronic con-
trol units or cause a fire.

If any electrical equipment does not operate,
check for an open fuse.

1. Be sure the ignition switch and the headlight

switch are turned off.

2. Pull to remove the fuse box cover

3. Remove the fuse with the fuse puller

4. If the fuse is open, replace it with a new fuse.

5. If a new fuse also opens, have the electrical

system checked and repaired. It is recom-
mended you visit a NISSAN dealer for this
service.

SDI2704

Extended storage fuse switch

To reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.

If the extended storage fuse switch is not
pushed in (switched on), the “SHIPPING MODE
ON, PUSH STORAGE FUSE” warning may
appear on the vehicle information display. See
“Vehicle information display” (P.2-19).

If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.

Do-it-yourself

8-19

8-20

Do-it-yourself

NOTE:

If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.

How to remove the extended storage fuse
switch:

1. To remove the extended storage fuse switch,

be sure the ignition switch is in the OFF or
LOCK position.

2. Be sure the headlight switch is in the OFF

position.

3. Remove the fuse box cover.

4. Pinch the locking tabs

found on each

side of the storage fuse switch.

5. Pull the storage fuse switch straight out from

the fuse box

CAUTION

Be careful not to allow children to
swallow the battery and removed parts.

SDI2451

Replace the battery as follows:

1. Remove the mechanical key from the key.

2. Insert a small screwdriver into the slit of the

corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.

INTELLIGENT KEY BATTERY
REPLACEMENT

3. Replace the battery with a new one.

Recommended battery:

CR2025 or equivalent

Do not touch the internal circuit and

electric terminals as doing so could
cause a malfunction.

Hold the battery by the edges. Holding

the battery across the contact points will
seriously deplete the storage capacity.

Make sure that the

+ side faces the

bottom case.

SDI2452

4. Align the tips of the upper and lower parts

, and then push them together

until it

is securely closed.

5. Operate the buttons to check its operation.

If you need assistance with replacement, it is
recommended you visit a NISSAN dealer for this
service.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-

ence received, including interference that
may cause undesired operation.

Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.

For Canada:

This device complies with Industry Canada
licence-exempt RSS standard(s). Opera-
tion subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.

Do-it-yourself

8-21

Nissan Quest (2017 year). Instruction - part 28
