Nissan Quest (2017 year). Instruction

3-12

Pre-driving checks and adjustments

The power sliding door system can be operated
when all of following conditions are satisfied.
. The vehicle is stopped.
. Battery voltage is normal.
. The sliding door is unlocked.
. The fuel-filler door is closed (for driver’s side

only).

When the ignition switch is in the "ON" position,
the system can be operated in the above and
following conditions.
. Shift lever is set in the “P” (Park) position.
If the conditions are interrupted when the power
sliding door is being operated, the operation
could be stopped. In this case, meet the
conditions above and the power sliding door
operation will return to normal.

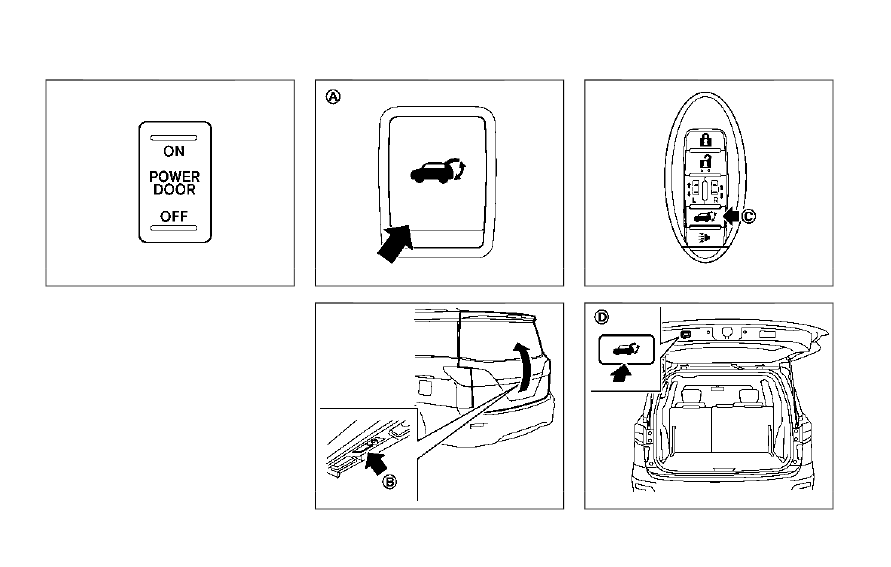

You can also switch the power liftgate between
power and manual operation using the power
door main switch. (See “Liftgate” (P.3-26).)

SPA2846

Instrument panel

Driver’s side sliding door switch

Passenger’s side sliding door switch

OPERATING SLIDING DOOR SWITCH

To operate the sliding doors with the sliding
door switches, turn on the power door main
switch.
. When the sliding door is fully closed, push

and hold the sliding door switch on the
instrument panel for about 1 second. The
sliding door will automatically open to the
fully opened position.

. When the sliding door is fully opened, push

and hold the sliding door switch on the
instrument panel for about 1 second. The

sliding door will automatically close to the
fully closed position.

. If the sliding door switch is pushed while the

sliding door is being operated automatically,
the door will start moving in the reverse
direction and stop at the fully opened or
closed position.

. The sliding doors can be opened by the

instrument panel switch

even if

the sliding door is locked or the power door
main switch is in the OFF position.

OPERATING THE POWER SLIDING
DOOR WITH THE INTELLIGENT KEY (if
so equipped)

The sliding doors can also be opened and
closed by pushing the button on the Intelligent
Key. (See “Intelligent Key system” (P.3-13).)

Sliding door one-touch unlock/open
function (if so equipped)

The sliding doors can be unlocked and opened
with a one-touch unlock/open operation. When
closed, the sliding door will not lock automati-
cally. To lock the sliding doors, manually lock the
inside knob before closing the sliding door or
push the LOCK button on the Intelligent Key
after the door is closed. See “Remote keyless
entry system” (P.3-21).

OPERATING SLIDING DOOR BY
POWER ASSIST

To operate, pull the inside or outside door
handle until you hear the buzzer, the door will
automatically open or close.

If the door handle is operated while the sliding
door is moving, the door will reverse directions
and stop at either the full open or closed
position.

SLIDING DOOR AUTO REVERSE
FUNCTION

If an obstacle is detected while the power
sliding door is being operated, the door will
reverse directions and return to the full open or
full closed position.

If you touch the sensor of the sliding door while
the sliding door is closing automatically, the door
will start moving in the reverse direction and
stop at the fully opened position.

WARNING

. Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should con-
tact the electric medical equipment
manufacturer for the possible influ-
ences before use.

. The Intelligent Key transmits radio

w a v e s w h e n t h e b u t t o n s a r e
pushed. The FAA advises that radio
waves may affect aircraft navigation
and communication systems. Do not
operate the Intelligent Key while on
an airplane. Make sure the buttons
are not operated unintentionally
when the unit is stored for a flight.

The Intelligent Key system can operate all the
door locks (including the liftgate) using the
remote keyless function or pushing the request
switch on the vehicle without taking the key out
from a pocket or purse. The operating environ-
ment and/or conditions may affect the Intelligent
Key system operation.

Be sure to read the following before using the
Intelligent Key system.

CAUTION

. Be sure to carry the Intelligent Key

with you when operating the vehi-
cle.

. Never leave the Intelligent Key in

the vehicle when you leave the
vehicle.

The Intelligent Key is always communicating with
the vehicle as it receives radio waves. The
Intelligent Key system transmits weak radio
signals. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
. When operating near a location where

strong radio signals are transmitted, such
as a TV tower, power station and broad-
casting station.

. When in possession of wireless equipment,

such as a cellular telephone, transceiver,
and CB radio.

. When the Intelligent Key is in contact with or

covered by metallic materials.

. When any type of radio wave remote control

is used nearby.

. When the Intelligent Key is placed near an

electric appliance such as a personal

Pre-driving checks and adjustments

3-13

INTELLIGENT KEY SYSTEM

3-14

Pre-driving checks and adjustments

computer.

. When the vehicle is parked near a parking

meter.

In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.

Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately 2 years. If the battery is dis-
charged, replace it with a new one.

Since the Intelligent Key is continuously receiv-
ing radio signals, if the key is left near equipment
which transmits strong radio signals such as
from a TV and personal computer, the battery life
may become shorter.

For information regarding replacement of a
battery, see “Intelligent Key battery replacement”
(P.8-20).

As many as 4 Intelligent Keys can be registered
and used with one vehicle. For information about
the purchase and use of additional Intelligent
Keys, contact a NISSAN dealer.

CAUTION

. Do not allow the Intelligent Key,

which contains electrical compo-
nents, to come into contact with

water or salt water. This could affect
the system function.

. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key

sharply against another object.

. Do not change or modify the Intel-

ligent Key.

. Wetting may damage the Intelligent

Key. If the Intelligent Key gets wet,
immediately wipe until it is comple-
tely dry.

. If the outside temperature is below

8F (í108C), the battery of the

Intelligent Key may not function
properly.

. Do not place the Intelligent Key for

an extended period in an area where
temperatures exceed 140

8F (608C).

. Do not attach the Intelligent Key

with a key holder that contains a
magnet.

. Do not place the Intelligent Key near

equipment that produces a mag-
netic field, such as a TV, audio
equipment, personal computer or
cellular phone.

If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that
Intelligent Key from the vehicle. This may prevent
the unauthorized use of the Intelligent Key to
operate the vehicle. For information regarding
the erasing procedure, it is recommended that
you contact a NISSAN dealer.

The Intelligent Key function can be disabled. For
information about disabling the Intelligent Key
function, it is recommended that you contact a
NISSAN dealer.

SPA2074

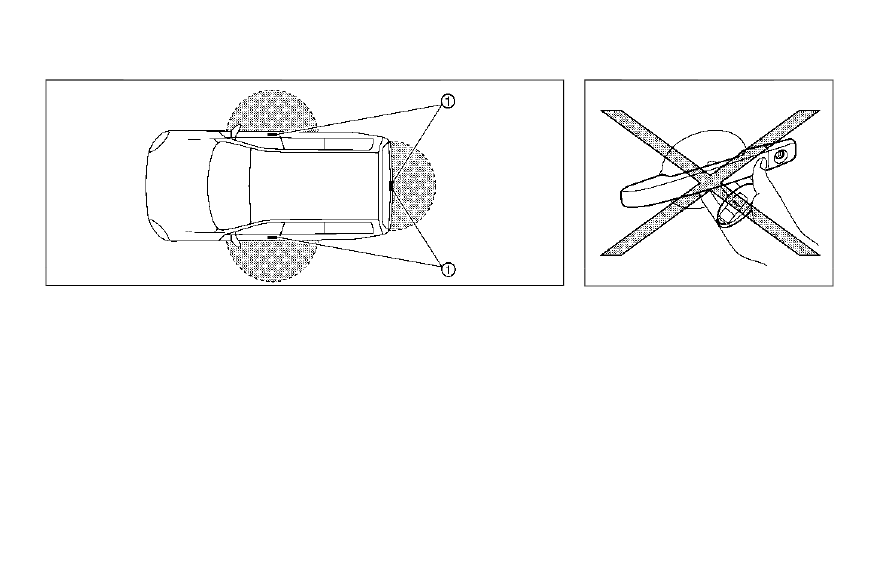

INTELLIGENT KEY OPERATING
RANGE

The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch

When the Intelligent Key battery is discharged or
strong radio signals are present near the
operating location, the Intelligent Key system’s
operating range becomes narrower, and the
Intelligent Key may not function properly.

The operating range is within 31.50 in (80 cm)
from each request switch

If the Intelligent Key is too close to the door
glass, handle or rear bumper the request

switches may not function.

When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors including the
liftgate.

SPA2407

DOOR LOCKS/UNLOCKS PRECAU-
TION

. Do not push the door handle request switch

with the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system
to have difficulty recognizing that the In-
telligent Key is outside the vehicle.

. After locking with the door handle request

switch, verify the doors are securely locked
by testing them.

. To prevent the Intelligent Key from being left

inside the vehicle, make sure you carry the
key with you and then lock the doors.

Pre-driving checks and adjustments

3-15

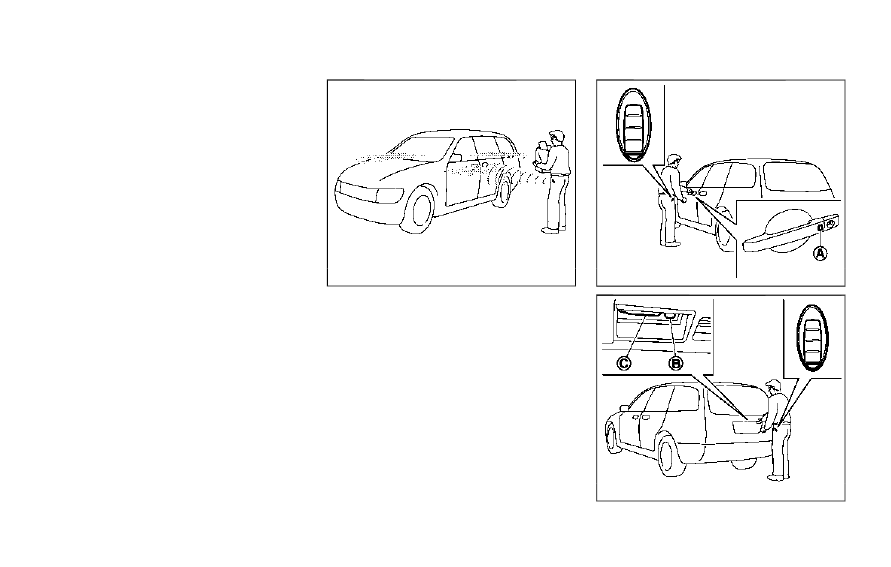

When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch

or the liftgate request

switch

within the range of operation.

When you lock or unlock the doors or the
liftgate, the hazard indicator will flash and the
horn (or the outside chime) will sound as a
confirmation. For details, see “Setting hazard
indicator and horn mode” (P.3-23).

Locking doors

1. Move the shift lever to the P (Park) position,

push the ignition switch to the OFF position
and make sure you carry the Intelligent Key
with you.*1

2. Close all the doors and the liftgate.*2

3. Push the door handle request switch

liftgate request switch

while carrying

the Intelligent Key with you.*3

4. All the doors and the liftgate will lock.

5. The hazard indicator flashes twice and the

outside chime sounds twice.

*1:

Doors will lock with the Intelligent Key while the
ignition switch is in the ACC or ON position.

*2:

Doors will not lock with the Intelligent Key while
any door (including the liftgate) is open.

*3:

Doors will not lock by pushing the door handle
request switch with the Intelligent Key inside the
vehicle.

However, when an Intelligent Key is inside the
vehicle, doors can be locked with another
registered Intelligent Key.

CAUTION

. After locking the doors using the

request switch, make sure that the
doors have been securely locked by
operating the door handles.

. When locking the doors using the

request switch, make sure to have
the Intelligent Key in your posses-
sion before operating the request
switch to prevent the Intelligent Key
from being left in the vehicle.

. The request switch is operational

only when the Intelligent Key has
been detected by the Intelligent Key
system.

Lockout protection:

To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent Key
system.

When the driver’s side door is open, the doors
are locked, and then the Intelligent Key is put
inside the vehicle and all the doors are closed;

the lock will automatically unlock and the door
buzzer sounds.

NOTE:

The doors may not lock when the Intelli-
gent Key is in the same hand that is
operating the request switch to lock the
door. Put the Intelligent Key in a purse,
pocket or your other hand.

CAUTION

The lockout protection may not function
under the following conditions:

. When the Intelligent Key is placed

on top of the instrument panel.

. When the Intelligent Key is placed

inside the glove box or a storage
bin.

. When the Intelligent Key is placed

inside the door pockets.

. When the Intelligent Key is placed

inside or near metallic materials.

Pre-driving checks and adjustments

3-17

3-18

Pre-driving checks and adjustments

Unlocking doors

1. Push the door handle request switch

the liftgate request switch

once while

carrying the Intelligent Key with you.

2. The hazard indicator flashes once and the

outside chime sounds once. The corre-
sponding door or the liftgate will unlock.

3. Push the request switch again within 1

minute.

4. The hazard indicator flashes once and the

outside chime sounds once again. All the
doors and the liftgate will unlock.

Automatic relock:

All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the request switch while
the doors are locked. If during this 1-minute time
period, the request switch is pushed, all doors
will be locked automatically after another 1
minute.
. Opening any door (including the liftgate)
. Pushing the ignition switch

Power liftgate open (if so equipped)

1. Carry the Intelligent Key.

2. Push the power liftgate opener switch

3. The liftgate will unlock and automatically

open.

4. The hazard indicator flashes 4 times and the

outside chime sounds.

To close the liftgate, push the power liftgate
button on the key, or power liftgate switch on the
instrument panel or lower part of the liftgate.
(See “Liftgate” (P.3-26).)

SPA2856

Sliding door one-touch unlock/open
function (if so equipped)

When the sliding door one-touch switch

pushed once while the Intelligent Key is carried,
the sliding door will be unlocked and will fully
open automatically. All other doors, if already
locked, will remain locked. If the sliding door is
already unlocked, the sliding door will open
automatically. To close the sliding door, push the
sliding door one-touch switch

once. When

the sliding door is closed, it will remain unlock so
be sure to lock the vehicle. When closed, the
sliding door will not lock automatically. To lock
the sliding door, manually lock the inside knob
before closing the sliding door or push the

LOCK button on the Intelligent Key after the
door is closed. (See “Remote keyless entry
system” (P.3-21).)

BATTERY SAVER SYSTEM

When all the following conditions are met for a
period of time, the battery saver system will cut
off the power supply to prevent battery dis-
charge.
. The ignition switch is in the ACC position,

and

. All doors are closed, and
. The shift lever is in the P (Park) position.

WARNING SIGNALS

To help prevent the vehicle from moving
unexpectedly by erroneous operation of the
Intelligent Key listed on the following chart or
to help prevent the vehicle from being stolen,
chime or beep sounds inside and outside the
vehicle and a warning displays in the vehicle
information display.

When a chime or beep sounds or the warning
displays, be sure to check the vehicle and
Intelligent Key.

See “Troubleshooting guide” (P.3-20) and
“Vehicle information display” (P.2-19).

Pre-driving checks and adjustments

3-19

3-20

Pre-driving checks and adjustments

TROUBLESHOOTING GUIDE

Symptom

Possible cause

Action to take

When pushing the ignition switch
to stop the engine

The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously.

The shift lever is not in the P (Park)
position.

Shift the shift lever to the P (Park) position.

When shifting the shift lever to the
P (Park) position.

The inside warning chime sounds continuously.

The ignition switch is in the ACC or ON
position.

Push the ignition switch to the OFF posi-
tion.

When opening the driver’s door
to get out of the vehicle

The inside warning chime sounds continuously.

The ignition switch is in the ACC
position.

Push the ignition switch to the OFF posi-
tion.

When closing the door after get-
ting out of the vehicle

The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for a few
seconds.

The ignition switch is in the ACC or ON
position.

Push the ignition switch to the OFF posi-
tion.

The SHIFT P warning appears on the display
and the outside chime sounds continuously.

The ignition switch is in the ACC or OFF
position and the shift lever is not in the P
(Park) position.

Move the shift lever to the P (Park) position
and push the ignition switch to the OFF
position.

When closing the door with the
inside lock knob turned to LOCK

The outside chime sounds for a few seconds
and all the doors unlock.

The Intelligent Key is inside the vehicle
or cargo area.

Carry the Intelligent Key with you.

When pushing the request switch
or the LOCK

button on the

Intelligent Key to lock the door

The outside chime sounds for a few seconds.

The Intelligent Key is inside the vehicle
or cargo area.

Carry the Intelligent Key with you.

A door is not closed securely.

Close the door securely.

When pushing the ignition switch
to start the engine

The Intelligent Key battery indicator appears on
the display.

The battery charge is low.

Replace the battery with a new one. (See
“Intelligent Key battery replacement” (P.8-
20).)

The NO KEY warning appears on the display
and the inside warning chime sounds for a few
seconds.

The Intelligent Key is not in the vehicle.

Carry the Intelligent Key with you.

When pushing the ignition switch

The Intelligent Key system warning light in the
meter illuminates in yellow.

It warns of a malfunction with the
Intelligent Key system.

It is recommended that you contact a
NISSAN dealer.

WARNING

The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that radio waves may
affect aircraft navigation and commu-
nication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
for a flight.

It is possible to lock/unlock all doors and the
liftgate, activate the panic alarm and operate the
sliding doors/liftgate (if so equipped) by pushing
the buttons on the Intelligent Key from outside
the vehicle.

Before locking the doors, make sure the
Intelligent Key is not left in the vehicle.

The LOCK/UNLOCK button on the Intelligent
Key can operate at a distance of approximately
33 ft (10 m) from the vehicle. (The effective
distance depends upon the conditions around
the vehicle.) As many as 4 Intelligent Keys can
be used with one vehicle. For information
concerning the purchase and use of additional
Intelligent Keys, contact a NISSAN dealer.

The lock and unlock buttons will not operate
when:
. the distance between the Intelligent Key and

the vehicle is over 33 ft (10 m).

. the Intelligent Key battery is discharged.
After locking with the remote keyless entry
function, pull the door handle to make sure the
doors are securely locked.

The LOCK/UNLOCK operating range varies
depending on the environment. To securely
operate the lock and unlock buttons, approach
the vehicle to about 3 ft (1 m) from the door.

SPA2252-D

Type A (if so equipped)

SPA2849

Type B (if so equipped)

Pre-driving checks and adjustments

3-21

REMOTE KEYLESS ENTRY SYSTEM

3-22

Pre-driving checks and adjustments

SPA2850

Type C (if so equipped)

LOCK button

UNLOCK button

Power sliding door button (passenger’s side)

Power sliding door button (driver’s side)

Power liftgate button

PANIC button

if so equipped

HOW TO USE REMOTE KEYLESS
ENTRY SYSTEM

Locking doors

1. Move the shift lever to the P (Park) position

and push the ignition switch to the OFF
position. Make sure you carry the Intelligent
Key with you.*

2. Close all the doors and liftgate.

3. Push the LOCK

button

4. All the doors and the liftgate will lock.

5. The hazard indicator flashes twice and the

horn chirps once.

Doors will lock while the ignition switch is in the
ACC or ON position.

Unlocking doors

1. Push the UNLOCK

button

once.

2. The hazard indicator flashes once. The

driver’s door will unlock.

3. Push the UNLOCK

button

again

within 1 minute.

4. The hazard indicator flashes once again. All

the doors and the liftgate will unlock.

All doors will be locked automatically unless one
of the following operations is performed within 1
minute after pushing the UNLOCK

button

while the doors are locked. If during this 1-

minute time period, the UNLOCK

button

is pushed, all doors will be locked automatically
after another 1 minute.

. Opening any door (including the liftgate)
. Pushing the ignition switch

Opening windows (if so equipped)

The UNLOCK

button

operation also

allows you to open the window that is equipped
with the automatic open/close function. (See
“Power windows” (P.2-52).)

To open the windows, push the door UNLOCK

button

for about 3 seconds after the

door is unlocked.

To stop opening, release the UNLOCK
button

Windows cannot be closed using the button on
the Intelligent Key.

If the window open operation is stopped in mid-
operation while pushing the UNLOCK
button

, release and push the UNLOCK

button

again until the window opens

completely.

The door windows can be opened or closed by
turning the mechanical key in a door lock. (See
“Doors” (P.3-5).)

Opening/closing power sliding door (if
so equipped)

To open/close the sliding door, push the power
sliding door button

on the Intelligent

Key for about 1 second. The power sliding door
will automatically open/close.

If the power sliding door button

pushed while the sliding door is being opened or
closed, the sliding door will reverse.

Opening/closing liftgate (if so equipped)

To open/close the liftgate, push the power
liftgate

button

on the Intelligent Key

for more than 1 second.

The liftgate will automatically open/close.

The hazard indicator flashes 4 times and the
outside chime sounds for approximately 3
seconds.

If the power liftgate

button

is pushed

while the liftgate is being opened or closed, the
liftgate will reverse.

Using panic alarm

If you are near your vehicle and feel threatened,
you can activate the alarm according to the
following procedure to call attention.

1. Push the PANIC

button

for more

than 1 second.

2. The theft warning alarm will sound and the

headlights will flash for 25 seconds.

3. The panic alarm stops under either of the

following conditions.

It has run for 25 seconds, or

Any of the buttons is pushed. (Note: the

PANIC

button

should be

pushed for more than 1 second.)

Setting hazard indicator and horn mode

This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.

In hazard indicator and horn mode, when the
LOCK

button

is pushed, the hazard

indicator flashes twice and the horn chirps once.
When the UNLOCK

button

is pushed,

the hazard indicator flashes once.

If horns are not necessary, the system can be
switched to the hazard indicator mode.

In hazard indicator mode, when the LOCK
button

is pushed, the hazard indicator

flashes twice. When the UNLOCK

button

is pushed, neither the hazard indicator nor

the horn operates.

Pre-driving checks and adjustments

3-23

3-24

Pre-driving checks and adjustments

Hazard indicator and horn mode:

DOOR LOCK

DOOR UNLOCK

Intelligent Key system

(Using door handle or liftgate request

switch)

HAZARD - twice
OUTSIDE CHIME - twice

HAZARD - once
OUTSIDE CHIME - once

Remote keyless entry system

(Using

button)

HAZARD - twice
HORN - once

HAZARD - once
HORN - none

Hazard indicator mode:

DOOR LOCK

DOOR UNLOCK

Intelligent Key system

(Using door handle or liftgate request

switch)

HAZARD - twice
OUTSIDE CHIME - none

HAZARD - none
OUTSIDE CHIME - none

Remote keyless entry system

(Using

button)

HAZARD - twice
HORN - none

HAZARD - none
HORN - none

Switching procedure:

Push the LOCK

and UNLOCK

buttons simultaneously for more than 2 seconds
to switch the mode from one to the other.

When pushing the buttons to set the hazard
indicator mode, the hazard indicator flashes 3
times.

When pushing the buttons to set the hazard
indicator and horn mode, the hazard indicator
flashes once and the horn chirps once.

SPA2858

When opening the hood:

1. Pull the hood lock release handle

located below the instrument panel; the
hood will then spring up slightly.

2. Locate the lever

in between the hood

and grille and push the lever sideways with
your fingertips.

3. Raise the hood

4. Remove the support rod

and insert it

into the slot

Hold the coated part

when removing or

resetting the support rod. Avoid direct
contact with the metal parts, as they may
be hot immediately after the engine has

been stopped.

When closing the hood:

1. While supporting the hood, return the

support rod to its original position.

2. Slowly lower the hood to about 8 to 12 in

(20 to 30 cm) above the hood lock, then let
it drop.

3. Make sure it is securely latched.

WARNING

. Make sure the hood is completely

closed and latched before driving.
Failure to do so could cause the

hood to fly open and result in an
accident.

. If you see steam or smoke coming

from the engine compartment, to
avoid injury do not open the hood.

Pre-driving checks and adjustments

3-25

HOOD

3-26

Pre-driving checks and adjustments

WARNING

. Always be sure the liftgate has been

closed securely to prevent it from
opening while driving.

. Do not drive with the liftgate open.

This could allow dangerous exhaust
gases to be drawn into the vehicle.
See “Exhaust gas (carbon monox-
ide)” (P.5-2) of this manual.

. Do not leave children unattended

inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.

. Always be sure that hands and feet

are clear of the gate frame to avoid
injury while closing the liftgate.

SPA2881

OPERATING MANUAL LIFTGATE

To open the liftgate, unlock it and push the
liftgate opener switch

. Pull up the liftgate to

open.

The liftgate can be unlocked by:
. pushing the unlock button

on the

Intelligent Key twice.

. pushing the liftgate request switch while

carrying the Intelligent Key.

. pushing the door handle request switch

twice while carrying the Intelligent Key.

. pushing the power door lock switch to the

unlock position.

. inserting the mechanical key into the driver’s

door key cylinder and turning it to the rear of
the vehicle twice.

To close the liftgate, pull down until it securely
locks.

OPERATING POWER LIFTGATE (if so
equipped)

The power liftgate system can be operated
when all of following conditions are satisfied.
. The vehicle is stopped.
. Battery voltage is normal.
. The liftgate is unlocked.
. The shift lever is in the P (Park) position.
If the conditions are interrupted when the power
liftgate is being operated, the operation may
stop. In this case, if the conditions above are met
the power liftgate operation will return to normal.

LIFTGATE

Nissan Quest (2017 year). Instruction - part 11
