Touch-screen operation

Menu Item

Result

Selecting the item

Touch an item to select. To select the “Phone” key, touch the “Phone” key on the screen. Touch the “

” key to

return to the previous screen.

Adjusting the item

Touch the “+” key or the “

⫺” key to adjust the settings of an item. Touch the up arrow to scroll up the page one

item at a time. Touch the down arrow to scroll down the page one item at a time.

Inputting characters

Touch the number key. There are some options available when inputting characters.

123

Touch to manually enter numbers.

Completes the character input.

4-6

Monitor, climate, audio, phone and voice recognition systems

Touch-screen maintenance

If you clean the display screen, use a dry,
soft cloth. If additional cleaning is neces-
sary, use a small amount of neutral deter-
gent with a soft cloth. Never spray the
screen with water or detergent. Dampen
the cloth first and then wipe the screen.

LHA4706

LHA4700

Monitor, climate, audio, phone and voice recognition systems

4-7

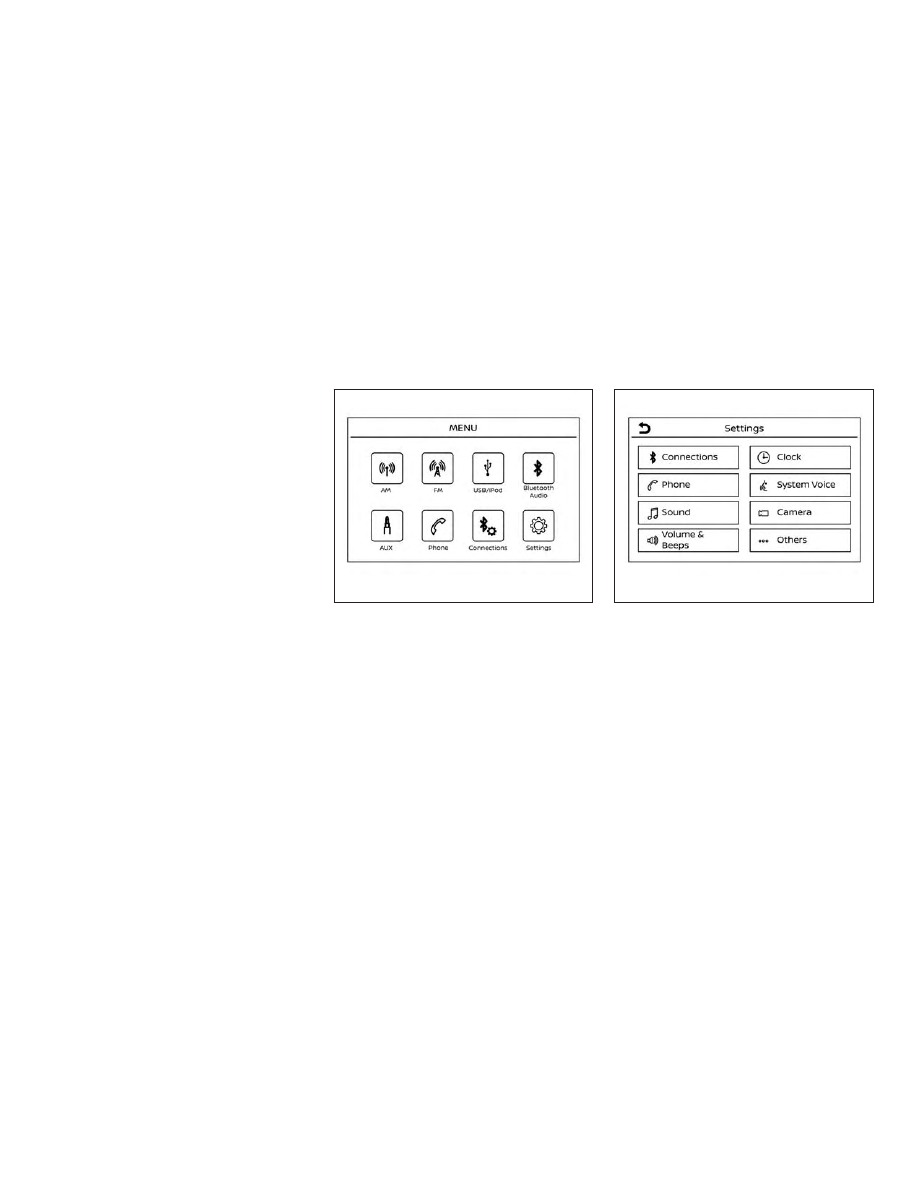

HOW TO USE THE

BUTTON

To select and/or adjust several functions,
features and modes that are available for
your vehicle:

1. Press the

MENU button.

2. Touch the “Settings” key.

3. Touch the desired item.

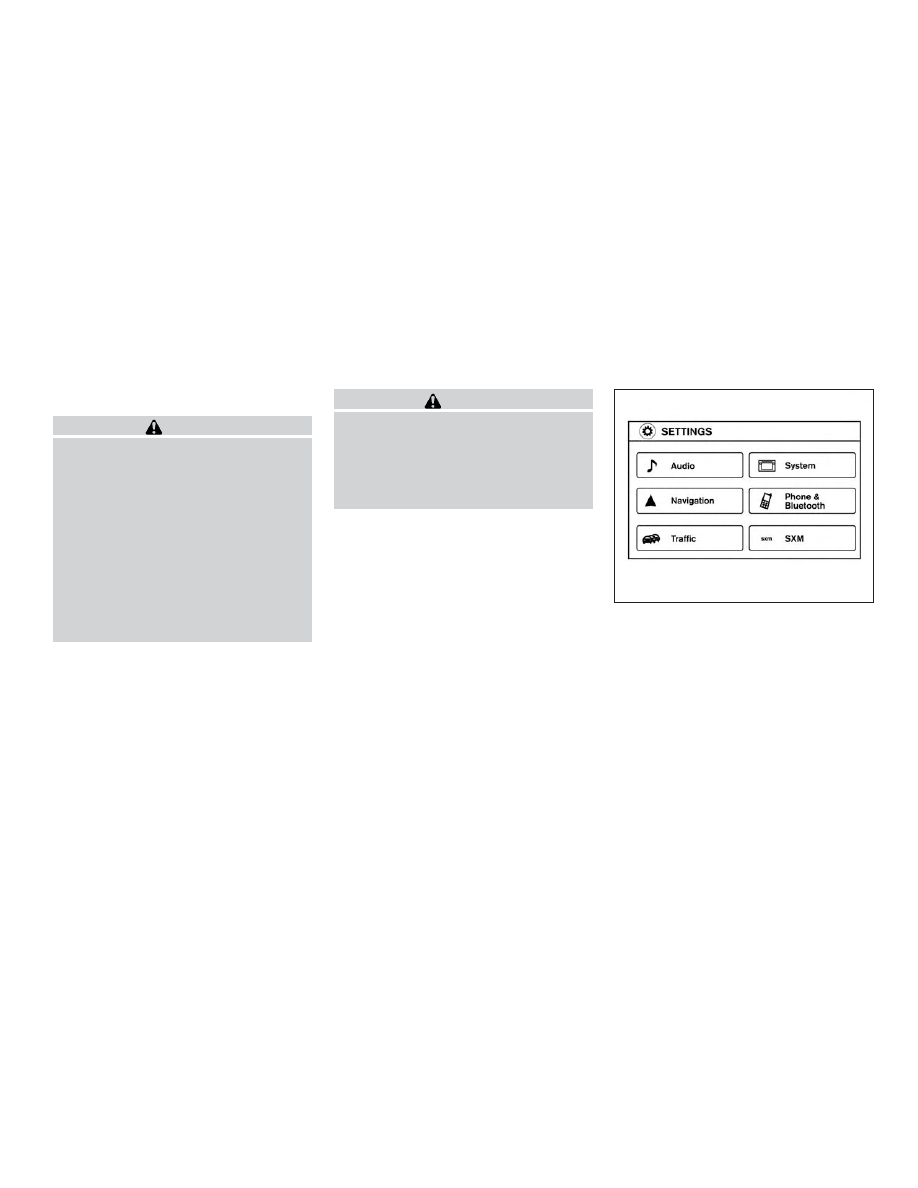

Menu item

Result

Settings

Touch to change the following steps.

Connections

Touch this key to select either Bluetooth® phone, Bluetooth® audio or USB audio options. For additional
information, refer to “USB connections screen” and “Bluetooth® connections screen” in this section.

Phone

For additional information, refer to “Bluetooth® Hands-Free Phone System without Navigation System” in
this section.

Sound

For additional information, refer to “Audio system” in this section.

Volume & Beeps

For additional information, refer to “Volume & beeps” in this section.

Clock

Touch this key to adjust clock settings.

On-screen Clock

Touch to toggle ON or OFF the clock display on the upper right corner of the display screen.

Clock Format

Touch to set the clock to 12 hours or 24 hours formats.

Daylight Savings Time

Touch to adjusts the daylight saving time to ON or OFF.

Set Clock Manually

Touch to adjust the clock manually; then touch to change between AM and PM, the hour and the
minutes.

System Voice

For additional information, refer to “Settings” in this section.

Camera

Touch this key to change the camera settings.

Others

Touch this key to select and/or adjust various functions of this system. A screen with additional options
will appear.

Display

Touch this key to adjust the appearance of the display. For additional information, refer to “Adjusting the
screen” in this section.

Language

Touch this key to change the language on the display.

OSS Licenses

Touch this key to display software licensing information.

Return All Settings To Default

Touch this key to return all settings to default and to clear the memory.

4-8

Monitor, climate, audio, phone and voice recognition systems

(brightness control) BUTTON

To change the display brightness, press
the

button. Pressing the button again

will change the display to the day or the
night display.

Press and hold the

button for more

than 2 seconds to turn the display off. Press
and hold the button again to turn the dis-
play on.

HOW TO USE THE VOL (volume)
KNOB / PUSH

(power)

BUTTON

Press the PUSH

(power) button to

turn audio function on and off. Turn the VOL
(volume) knob to adjust audio volume.

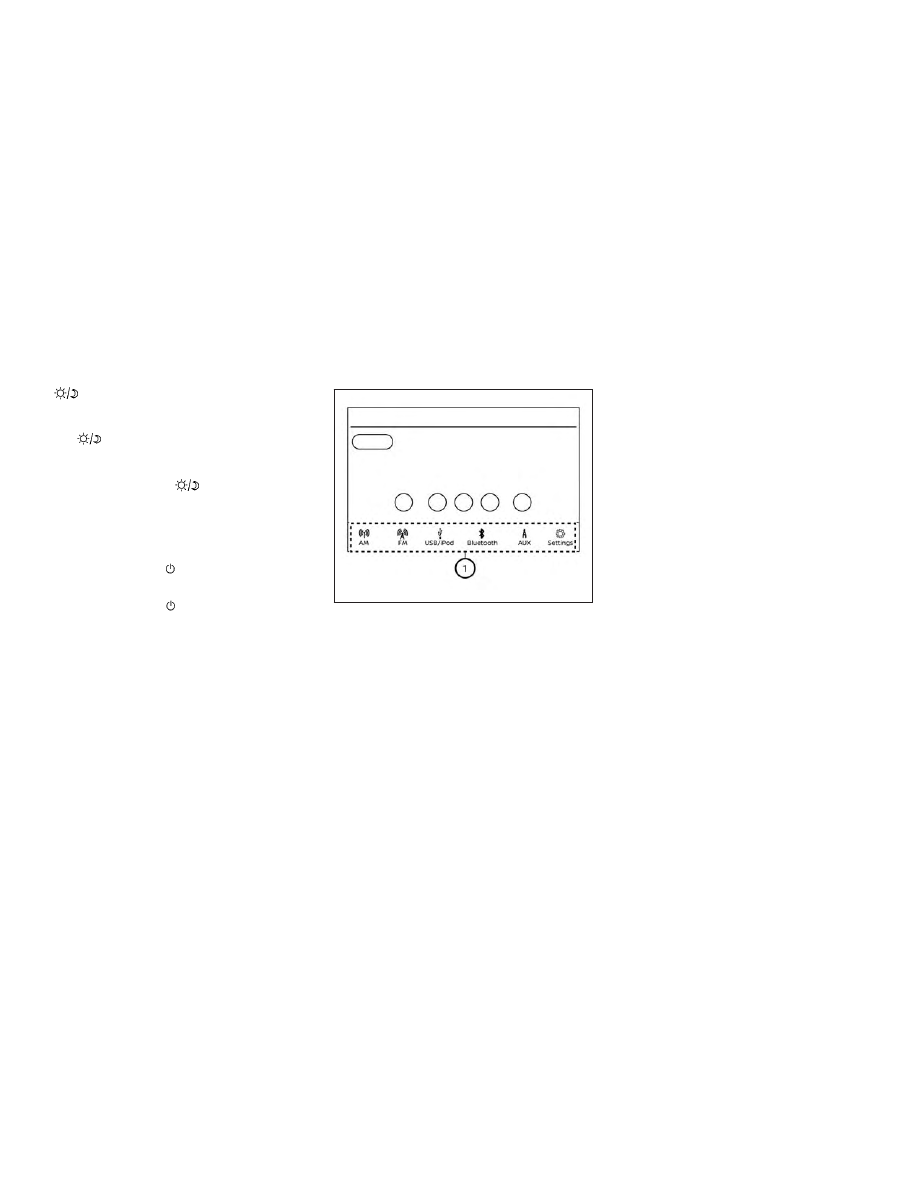

SELECTING MENU FROM LAUNCH
BAR

Various system functions can be accessed
by touching the items on the Launch Bar

䊊

which is displayed on most of the main

menu screens (the Launch Bar does not
appear on some screens such as settings
screens, camera screens, etc.)

Touch the keys on the Launch Bar to dis-
play the corresponding menu screens.

The following menu items are available on
the Launch Bar:

∙ AM

∙ FM

∙ USB/iPod

∙ Bluetooth

∙ AUX

∙ Settings

LHA4707

Monitor, climate, audio, phone and voice recognition systems

4-9

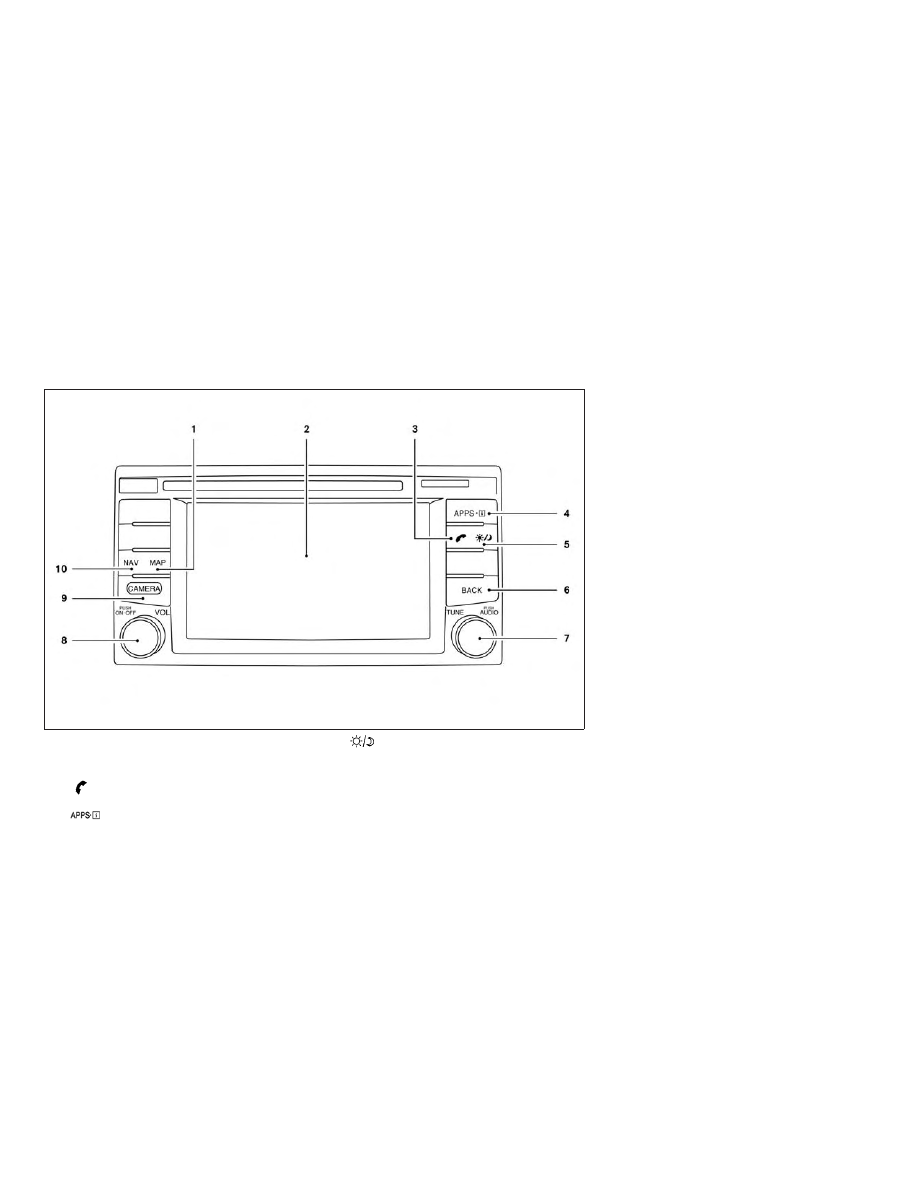

1. MAP button*

2. Display screen

button**

button

(brightness control) button

6. BACK button

7. ENTER/AUDIO button / TUNE knob

8. ON-OFF button/VOL (volume) control

knob

9. CAMERA button

10. NAV button*

* For additional information, refer to the
separate NissanConnect® Owner’s Manual
regarding the Navigation system control
buttons.

** For additional information, refer to the
“Bluetooth® Hands-Free Phone System
with Navigation System” in this section.

When you use this system, make sure the
engine is running.

If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and
the engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.

LHA3138

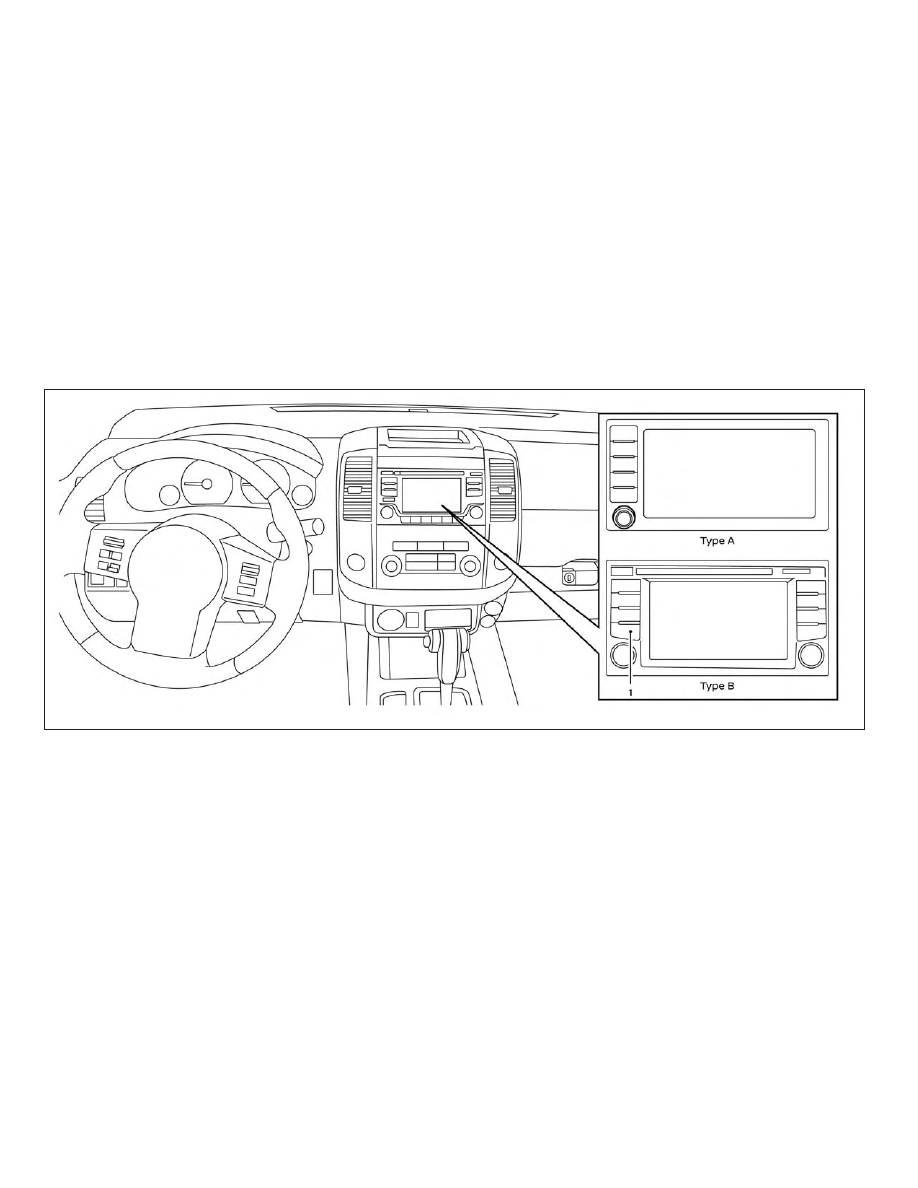

CONTROL PANEL BUTTONS —
MODELS WITH NAVIGATION SYSTEM
(if so equipped)

4-10

Monitor, climate, audio, phone and voice recognition systems

HOW TO USE THE TOUCH-SCREEN

CAUTION

∙ The glass display screen may break if

it is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.

∙ To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

∙ Do not splash any liquid such as water

or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.

To help ensure safe driving, some functions
cannot be operated while driving.

The on-screen functions that are not avail-
able while driving will be grayed out or
muted.

Park the vehicle in a safe location and then
operate the navigation system.

WARNING

∙ ALWAYS give your full attention to

driving.

∙ Avoid using vehicle features that

could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.

LHA3748

Monitor, climate, audio, phone and voice recognition systems

4-11

Touch-screen operation

Menu Item

Result

Selecting the item

Touch an item to select . To select the “Audio” key, touch the “Audio” key on the screen. Press the BACK button to
return to the previous screen.

Adjusting the item

Touch the “+” key or the “

⫺” key to adjust the settings of an item. Touch the down arrow to scroll down the page.

Touch the up arrow to scroll up the page.

Inputting characters

Touch the letter or number key. There are some options available when inputting characters.

123/ABC

Changes the available character set to numbers.

Space

Inserts a space.

Delete

Deletes the last inputted character with one touch. Touch and hold the “Delete” key to delete all of the
characters.

Completes the character input.

4-12

Monitor, climate, audio, phone and voice recognition systems

Touch-screen maintenance

HOW TO USE THE BACK BUTTON

Press the BACK button to return to the pre-
vious screen.

HOW TO USE THE

BUTTON

For additional information, refer to the
separate NissanConnect® Owner’s Manual
regarding the “SiriusXM® Travel Link” and
“SiriusXM® Traffic” features.

For

additional

information,

refer

“NissanConnect® Mobile Apps” in this sec-
tion.

For additional information, refer to “NISSAN
Voice Recognition System” in this section.

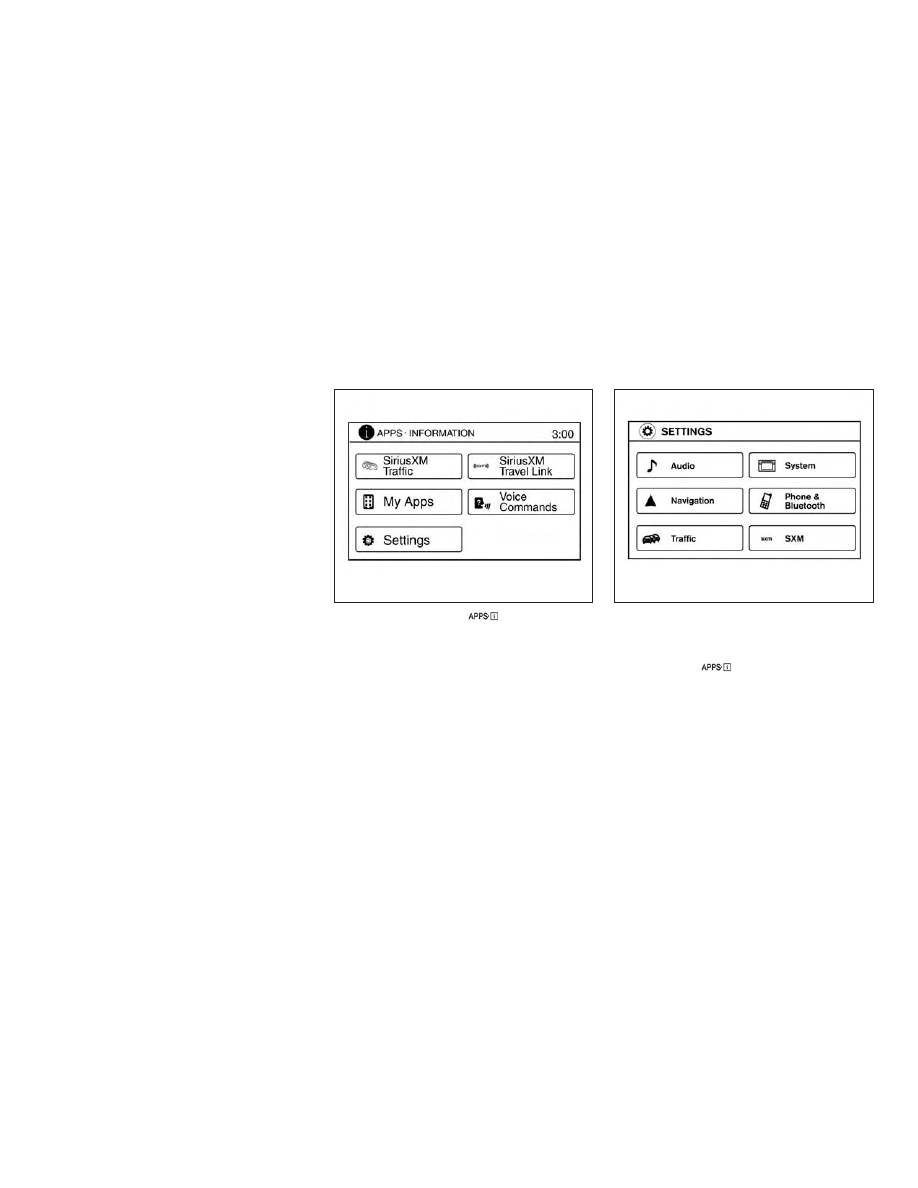

To select and/or adjust several functions,
features and modes that are available for
your vehicle:

1. Press the [

] button.

2. Touch the “Settings” key.

3. Touch the desired item.

LHA2773

LHA3748

Monitor, climate, audio, phone and voice recognition systems

4-13

Menu item

Result

Audio

For additional information, refer to “Audio system” in this section.

Navigation

For additional information, refer to the separate NissanConnect® Owner’s Manual.

Phone & Bluetooth

For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System” in this section.

System

Touch this key to select and/or adjust various functions of this system. A screen with additional options will appear.

Display

Touch this key to adjust the appearance of the display.

Brightness

Adjusts the brightness of the display.

Display Mode

Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are suited for
the respective times of day while “Auto” controls the display automatically.

Scroll Direc-
tion

Adjusts the direction of the menu scroll. Choose to either move up or down.

Clock/Date

Touch this key to adjust the time and date.

Time Format

The clock can be set to 12 hours or 24 hours.

Date Format

Select from two possible formats for displaying the day, month, and year.

Clock Mode

Adjust the mode for the clock. “Auto” uses the system’s GPS to automatically maintain the time. “Manual” allows you to
set the clock using the “Set Clock Manually” key. Select a time zone using the “Time Zone” key.

Set Clock
Manually

Adjust the clock manually, Touch the “+” or “-” keys to adjust the hours, minutes, day, month and year up or down. “Clock
Mode” must be set to manual for this option to be available.

Daylight Sav-
ings Time

Adjusts the daylight savings time on or off.

Time Zone

Choose the applicable time zone from the list.

Language

Touch this key to change the language on the display.

Camera Settings

Touch this key to change the camera settings.

Display Mode

Touch this key to select the touch-screen display mode (day, night, or automatic).

Brightness

Adjust touch-screen brightness.

Contrast

Adjust touch-screen contrast.

Color

Adjust touch-screen color.

4-14

Monitor, climate, audio, phone and voice recognition systems

Menu item

Result

Temperature Unit

Touch this key to change the temperature unit being displayed (Fahrenheit or Celsius).

Touchscreen click

Toggles the touch-screen click feature on or off. When activated a click sound will be heard every time a key on the
screen is touched.

System Beeps

Toggle the system beep tones feature on or off. When activated, a beep sound will be heard when a pop-up message

appears on the screen or a button on the unit (such as the

button) is pressed and held for 2 seconds.

Return to Factory Settings/
Clear Memory

Touch this key to return all settings to default and to clear the memory.

Software Licenses

Touch this key to display software licensing information.

Minimize Voice Feedback

Touch this key to turn ON or OFF the control voice feedback.

System Software Version

Touch this key to display software version information.

Traffic

Touch this key display the traffic settings. For additional information, refer to the separate NissanConnect® Owner’s
Manual.

SXM

Touch this key to display SXM status information. For additional information, refer to the “Audio System” in this section.

BUTTON

To change the display brightness, press
the

button. Pressing the button again

will change the display to auto or night
display mode.
If no operation is performed within 5 sec-
onds, the display will return to the previous
display.

Press and hold the

button for more

than 2 seconds to turn the display off. Press
the button again to turn the display on.

HOW TO USE THE ON-OFF
BUTTON/VOL (volume) CONTROL
KNOB

Press the ON-OFF button to turn audio
function on and off. Turn the volume con-
trol knob to adjust audio volume.

HOW TO USE THE CAMERA
BUTTON

For additional information, refer to “Rear-
View Monitor” in this section.

Monitor, climate, audio, phone and voice recognition systems

4-15

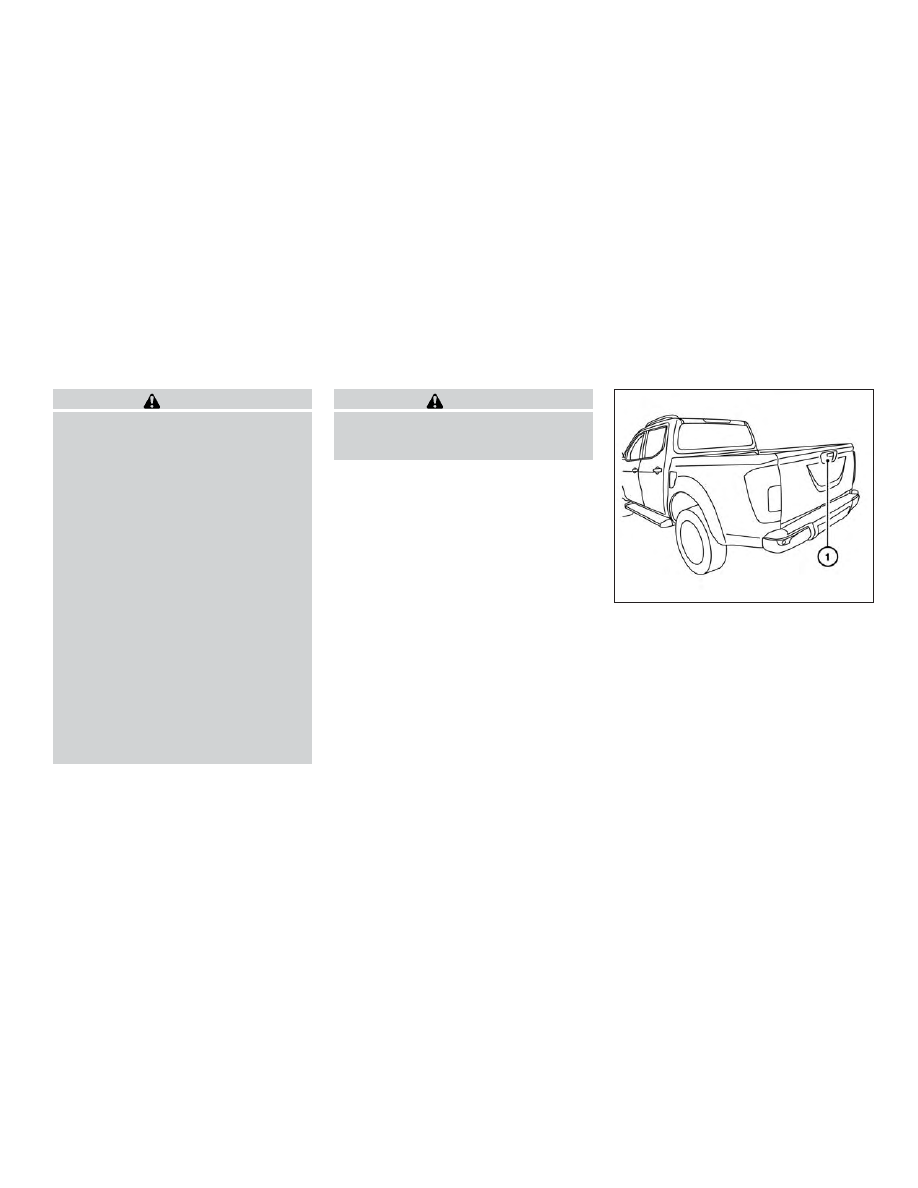

1. CAMERA button (if so equipped)

LHA4818

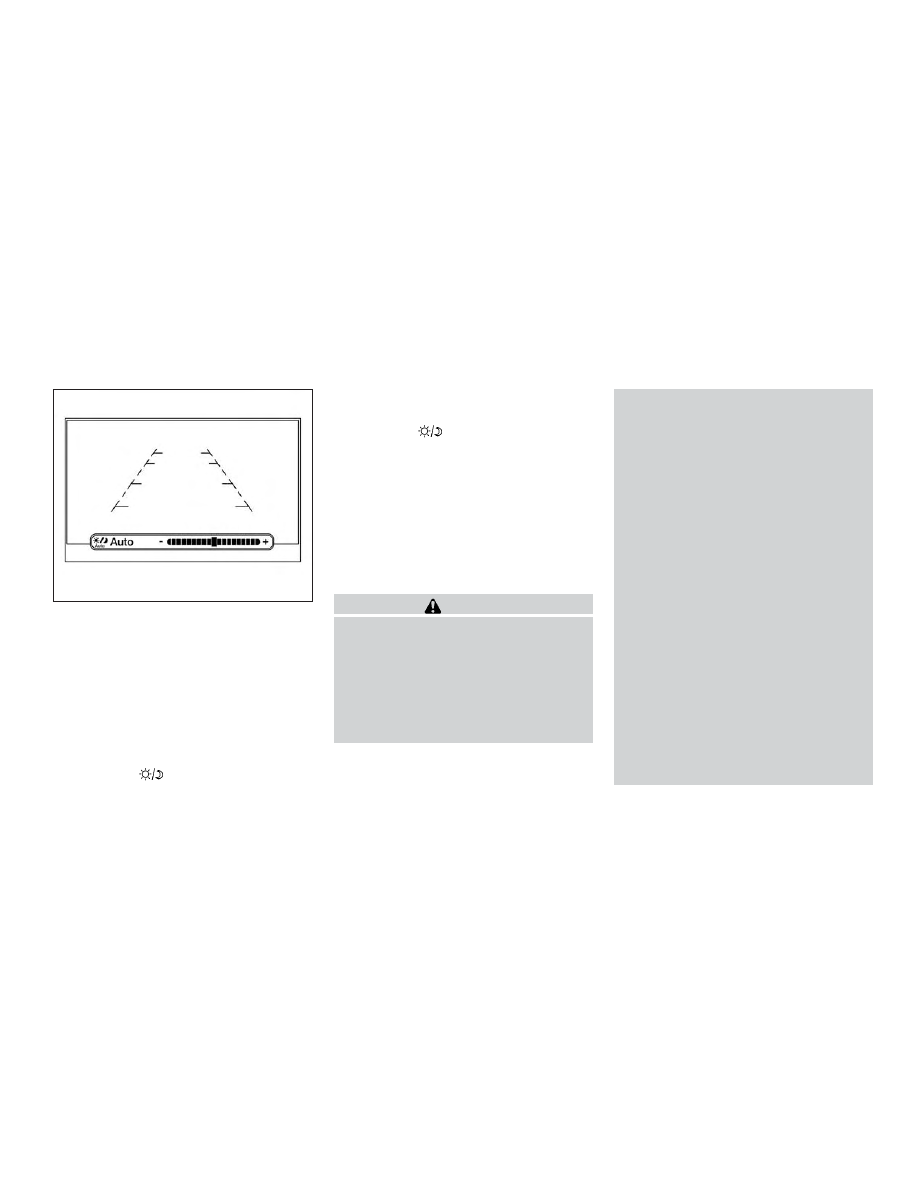

REARVIEW MONITOR

4-16

Monitor, climate, audio, phone and voice recognition systems

WARNING

∙ Failure to follow the warnings and in-

structions for proper use of the Rear-
View Monitor system could result in
serious injury or death.

∙ RearView Monitor is a convenience

feature and is not a substitute for
proper backing. Always turn and look
out the windows and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.

∙ The system is designed as an aid to

the driver in showing large stationary
objects directly behind the vehicle, to
help avoid damaging the vehicle.

∙ The distance guide line and the ve-

hicle width line should be used as a
reference only when the vehicle is on a
level paved surface. The distance
viewed on the monitor is for reference
only and may be different than the
actual distance between the vehicle
and displayed objects.

CAUTION

Do not scratch the camera lens when
cleaning dirt or snow from the front of
the camera.

The RearView Monitor system automati-
cally shows a rear view of the vehicle when
the shift lever is shifted into the R (Reverse)
position. Press the CAMERA button (if so
equipped) while in the R (Reverse) position
to cycle through guideline options. The ra-
dio can still be heard while the RearView
Monitor is active.

To display the rear view, the RearView Moni-
tor system uses a camera located next to
the tailgate handle

䊊

REARVIEW MONITOR SYSTEM
OPERATION

With the ignition switch in the ON position,
move the shift lever to the R (Reverse) po-
sition to operate the RearView Monitor.

LHA3671

Monitor, climate, audio, phone and voice recognition systems

4-17

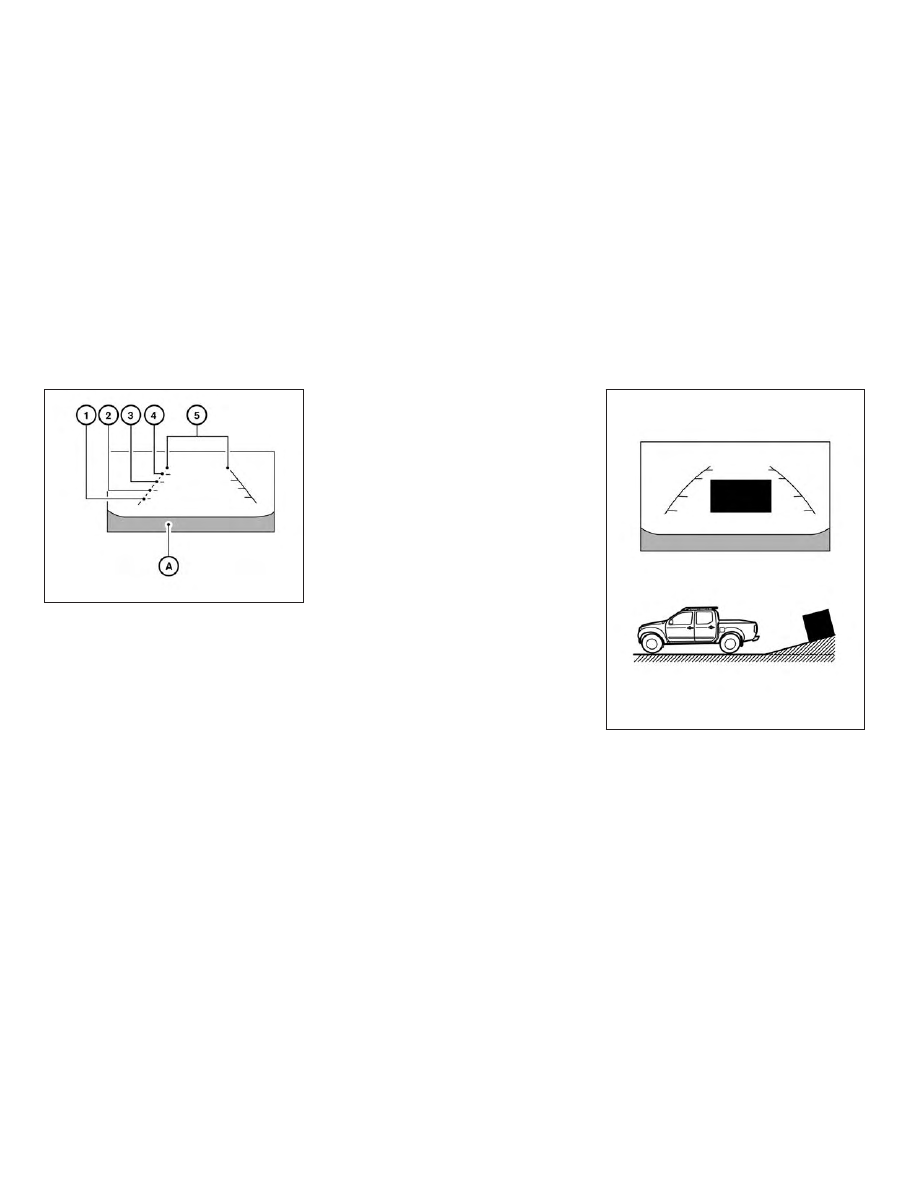

HOW TO READ THE DISPLAYED
LINES

Guiding lines which indicate the vehicle
width and distances to objects with refer-
ence to the vehicle body line

䊊

are dis-

played on the monitor.

Distance guide lines

Indicate distances from the vehicle body.

∙ Red line

䊊

: approx. 0.5 m (1.5 ft)

∙ Yellow line

䊊

: approx. 1 m (3 ft)

∙ Green line

䊊

: approx. 2 m (7 ft)

∙ Green line

䊊

: approx. 3 m (10 ft) (if so

equipped)

Vehicle width guide lines

䊊

Indicate the vehicle width when backing
up.

DIFFERENCE BETWEEN PREDICTED
AND ACTUAL DISTANCES

The displayed guidelines and their loca-
tions on the ground are for approximate
reference only. Objects on uphill or downhill
surfaces or projecting objects will be actu-
ally located at distances different from
those displayed in the monitor relative to
the guidelines (refer to illustrations). When
in doubt, turn around and view the objects
as you are backing up, or park and exit the
vehicle to view the positioning of objects
behind the vehicle.

Backing up on a steep uphill

When backing up the vehicle up a hill, the
distance guide lines and the vehicle width
guide lines are shown closer than the actual
distance. Note that any object on the hill is
further than it appears on the monitor.

LHA2944

LHA3672

4-18

Monitor, climate, audio, phone and voice recognition systems

Backing up on a steep downhill

When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown farther than
the actual distance. Note that any object

on the hill is closer than it appears on the
monitor.

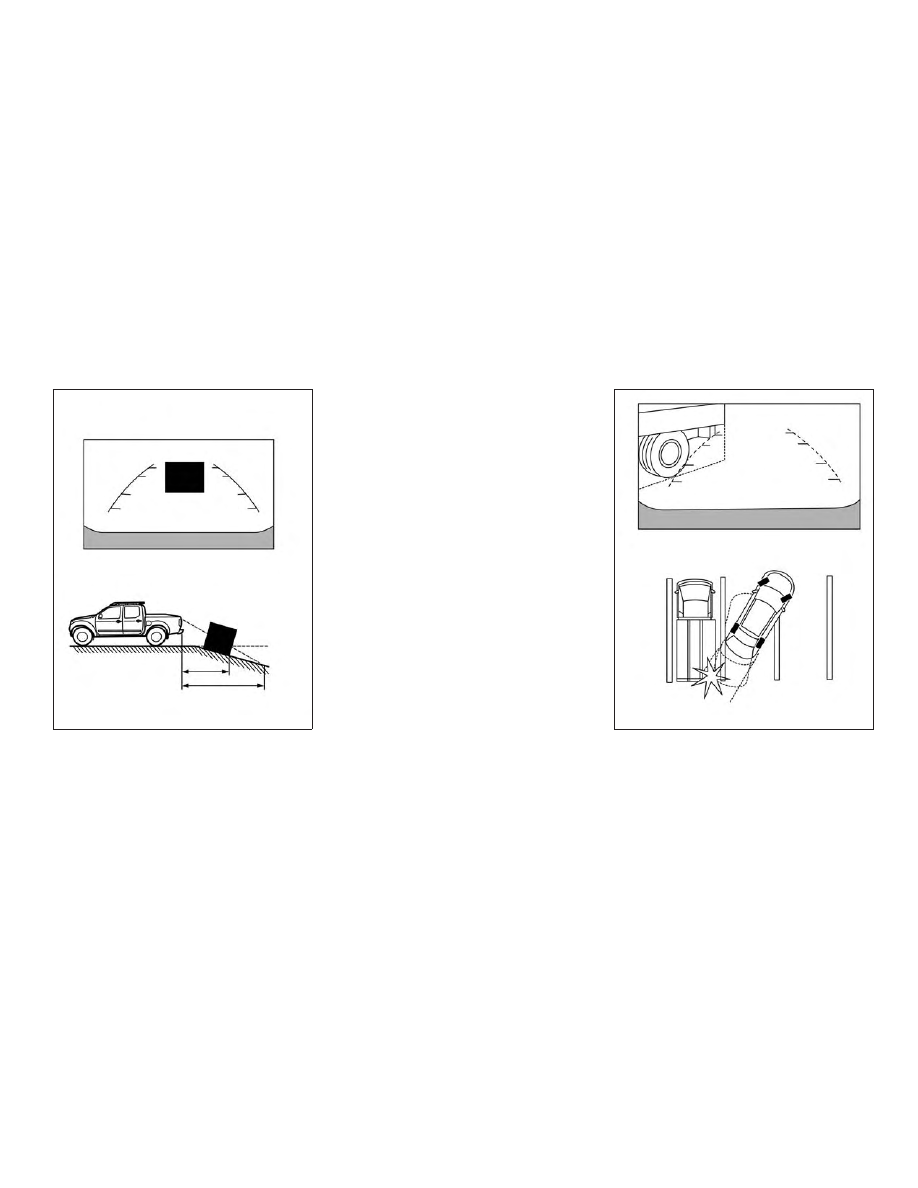

Backing up near a projecting
object

The vehicle may seem to nearly clear the
object in the display. However, the vehicle
may hit the object if it projects over the
actual backing up course.

LHA3673

LHA4513

Monitor, climate, audio, phone and voice recognition systems

4-19

Backing up behind a projecting
object

The position

䊊

is shown farther than the

position

䊊

in the display. However, the po-

sition

䊊

is actually at the same distance as

the position

䊊

. The vehicle may hit the

object when backing up to the position

䊊

if the object projects over the actual back-
ing up course.

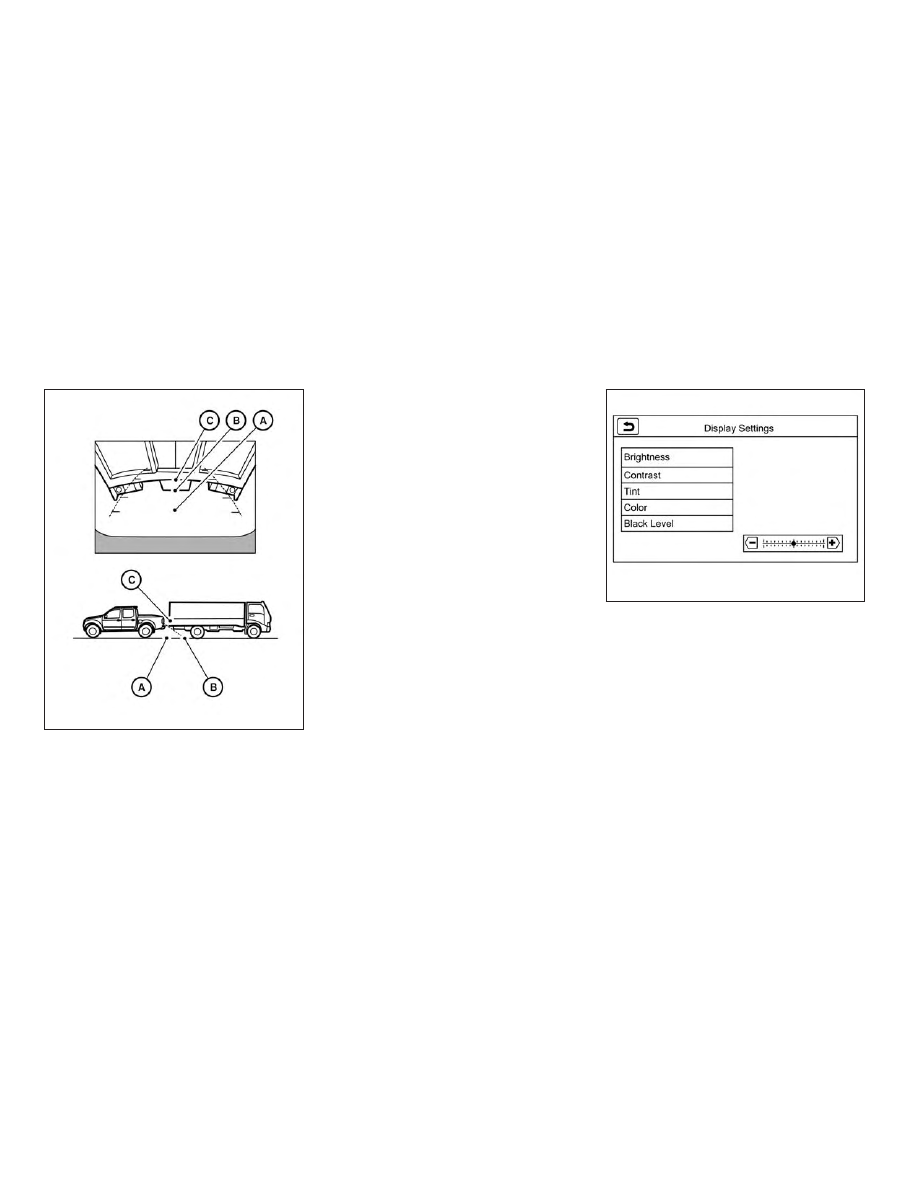

ADJUSTING THE SCREEN

The procedure for adjusting the display
settings of the screen differs depending on
the type of screen present on the vehicle.

For vehicles without Navigation System

1. While on the main menu screen, touch

the “Settings” key.

2. Touch the “Camera” key.

3. Touch the “Brightness”, “Contrast”, “Tint”

“Color”, or “Black Level” key.

LHA3674

Models without Navigation System

LHA3522

4-20

Monitor, climate, audio, phone and voice recognition systems

4. Adjust the item by touching the “+” or “-”

key on the touch-screen display.

∙ Do not adjust the display settings of the

RearView Monitor while the vehicle is
moving.

For vehicles with Navigation System

1. Firmly apply the brake and place the

shift lever in R (Reverse)

2. Press the

button on the control

panel.

3. The screen will display the Night set-

tings.

4. Turn the TUNE knob to adjust the set-

ting up or down.

5. Press the

button again to access

the Auto settings.

6. Turn the TUNE knob to adjust the set-

ting up or down.

∙ Do not adjust the display settings of the

RearView Monitor while the vehicle is
moving.

REARVIEW MONITOR SYSTEM
LIMITATIONS

WARNING

Listed below are the system limitations
for RearView Monitor. Failure to operate
the vehicle in accordance with these
system limitations could result in seri-
ous injury or death.

∙ The system cannot completely elimi-

nate blind spots and may not show
every object.

∙ Underneath the bumper and the cor-

ner areas of the bumper cannot be
viewed on the RearView Monitor be-
cause of its monitoring range limita-
tion. The system will not show small
objects below the bumper, and may
not show objects close to the bumper
or on the ground.

∙ Objects viewed in the RearView Moni-

tor differ from actual distance be-
cause a wide-angle lens is used.

∙ Objects in the RearView Monitor will

appear visually opposite compared to
when viewed in the rearview and out-
side mirrors.

∙ Use the displayed lines as a reference.

The lines are highly affected by the
number of occupants, fuel level, ve-
hicle position, road conditions and
road grade.

∙ Make sure that the tailgate is securely

closed when backing up.

∙ Do not put anything on the rearview

camera. The rearview camera is in-
stalled on the tailgate.

Models with Navigation System

LHA3679

Monitor, climate, audio, phone and voice recognition systems

4-21

Content .. 11 12 13 14 ..
