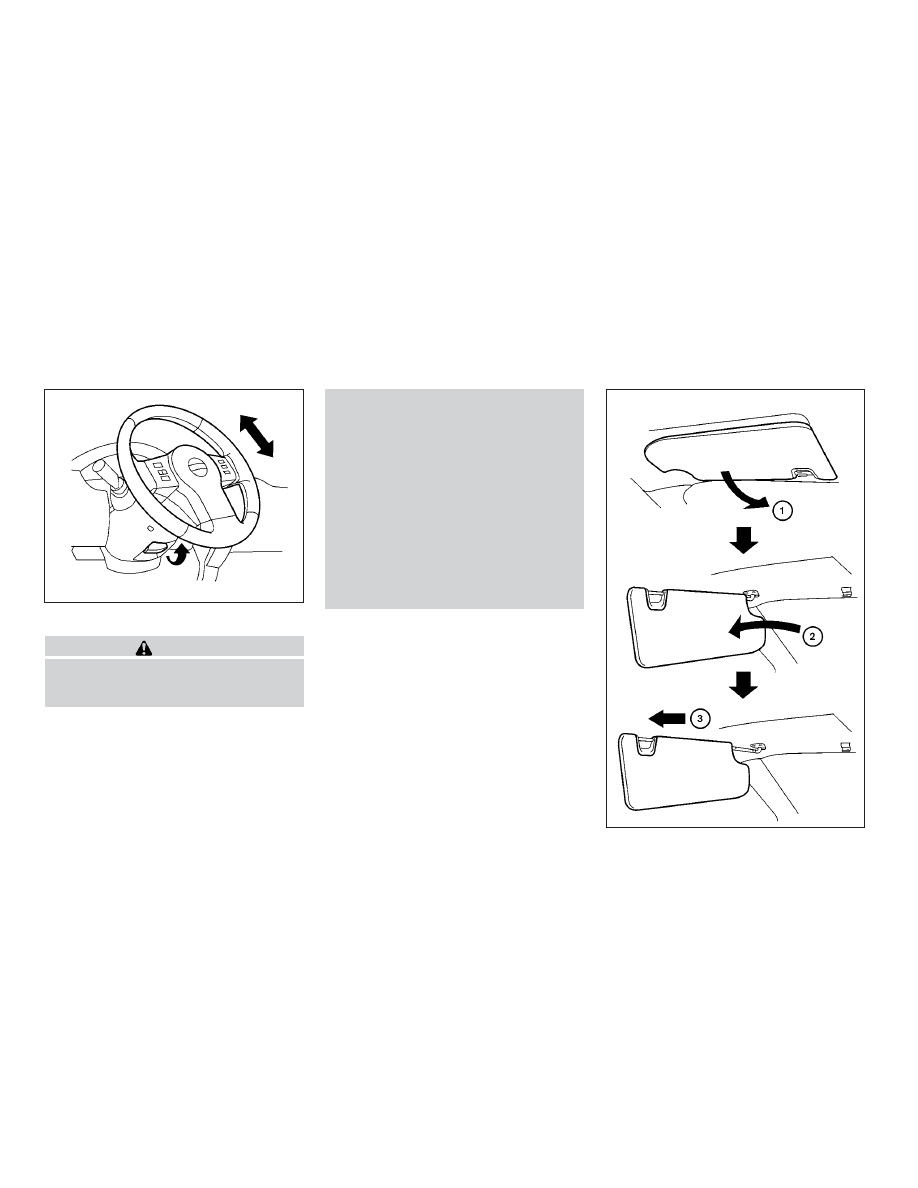

TILT OPERATION (if so equipped)

WARNING

∙ Do not adjust the steering wheel while

driving. You could lose control of your
vehicle and cause an accident.

∙ Do not adjust the steering wheel any

closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.

Pull the lock lever toward the driver and
hold it to adjust the steering wheel up or
down to the desired position.

Release the lock lever to lock the steering
wheel in place.

LPD0304

WPD0344

STEERING WHEEL

SUN VISORS

3-14

Pre-driving checks and adjustments

1. To block glare from the front, swing

down

䊊

the main sun visor.

2. To block glare from the side, remove

the main sun visor from the center
mount and swing the visor to the side

䊊

3. To extend

䊊

the sun visor, slide in or

out as needed (if so equipped).

CAUTION

∙ Do not store the sun visor before re-

turning the extension to its original
position.

∙ Do not pull the extension sun visor

forcedly downward.

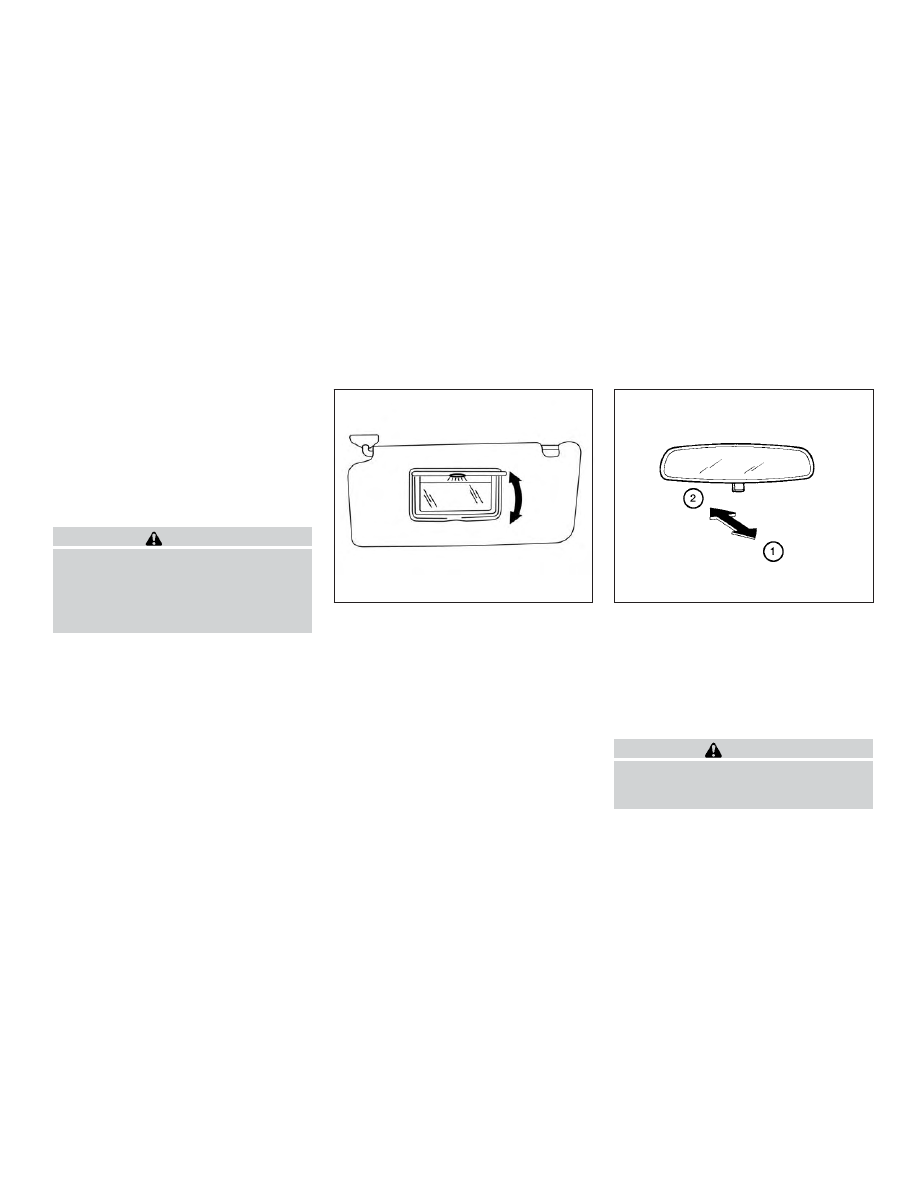

VANITY MIRRORS (if so equipped)

To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated and
turn on when the mirror cover is open.

MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)

Use the night position

䊊

to reduce glare

from the headlights of vehicles behind you
at night.

Use the day position

䊊

when driving in

daylight hours.

WARNING

Use the night position only when neces-
sary, because it reduces rear view
clarity.

LPD2573

WPD0126

MIRRORS

Pre-driving checks and adjustments

3-15

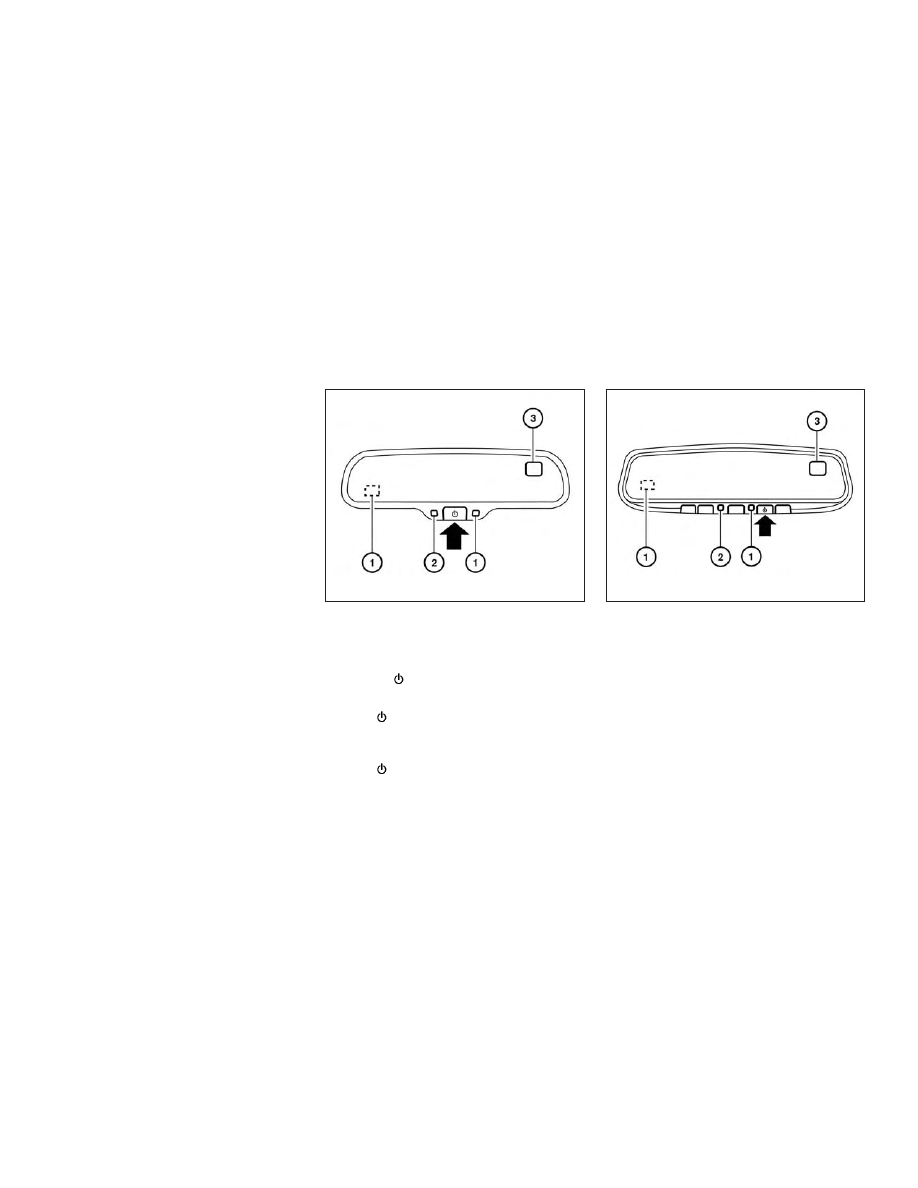

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)

The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare sensor

䊊

is activated

when the ignition switch is in the ON posi-
tion.

The indicator light

䊊

will illuminate when

the automatic anti-glare sensor feature is
operating.

NOTE:

Do not hang any objects over the sen-
sors or apply glass cleaner to the sen-
sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration.

The indicator light will illuminate when the
automatic anti-glare feature is operating.

With the ignition switch in the ON position,
press the

button as described:

∙ To turn off the anti-glare feature, press

the

button. The indicator light will

turn off.

∙ To turn on the anti-glare feature, press

the

button again. The indicator

light will turn on.

For information on HomeLink® Universal
Transceiver (if so equipped) operation, refer
to the “HomeLink® Universal Transceiver” in
the “Instruments and controls” section of
this manual.
For additional information about the com-
pass

䊊

and compass features, refer to

“Compass and outside temperature dis-
play” in the “Instruments and controls” sec-
tion of this manual.

Type A (if so equipped)

LPD2505

Type B (if so equipped)

LPD2504

3-16

Pre-driving checks and adjustments

OUTSIDE MIRRORS

WARNING

∙ Objects viewed in the outside mirror

on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.

∙ Do not adjust the mirrors while driv-

ing. You could lose control of your ve-
hicle and cause an accident.

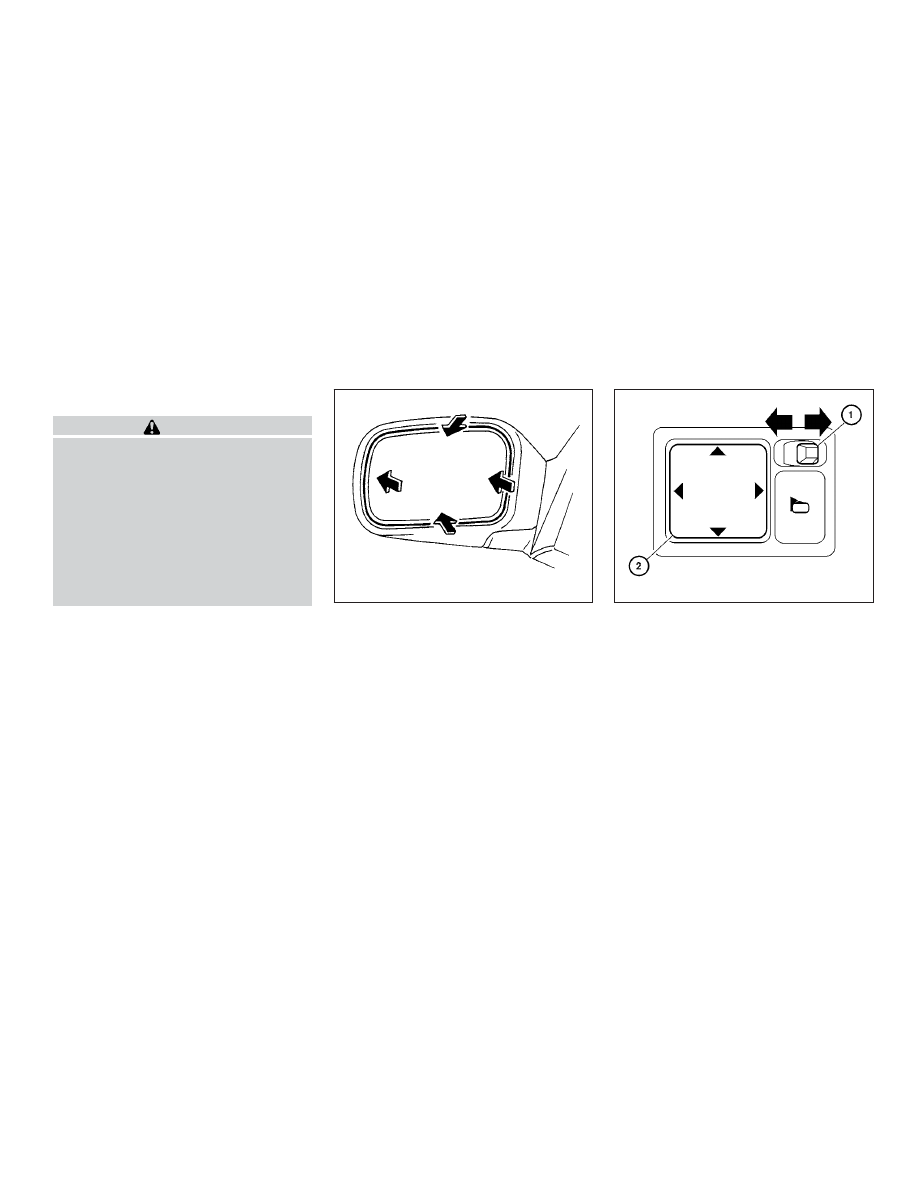

Manual control type (if so
equipped)

The outside mirrors can be moved in any
direction for a better rear view.

Electric control type (if so
equipped)

The outside mirror remote control will op-
erate only when the ignition switch is
placed in the ACC or ON position.

Move the small switch

䊊

to select the right

or left mirror. Move the large switch

䊊

adjust each mirror to the desired position.
Move the small switch

䊊

to the center

(neutral) position to prevent accidentally
moving the mirror.

WPD0170

LPD0237

Pre-driving checks and adjustments

3-17

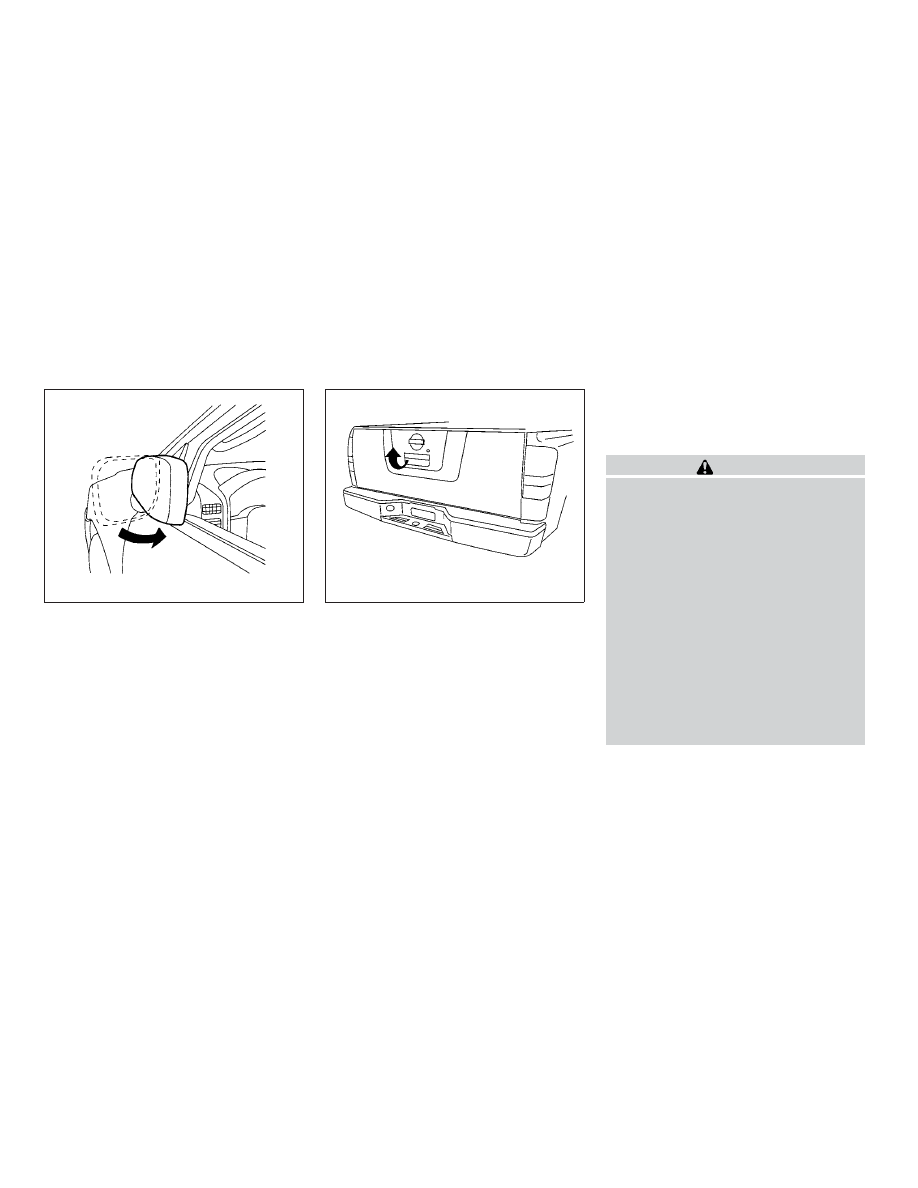

Foldable outside mirrors

Pull the outside mirror toward the door to
fold it.

Heated mirrors (if so equipped)

Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window or outside mirror defroster
switch (if so equipped)” in the “Instruments
and controls” section of this manual.

TAILGATE

Opening the tailgate

Pull the tailgate handle upward and lower
the tailgate. The support cables hold the
tailgate open.

When closing the tailgate, make sure the
latches are securely locked.

Do not drive the vehicle with the tailgate
down, unless equipped with NISSAN’s
Bed Extender (accessory) or equivalent
in the extended position.

For additional information on proper truck
box loading, refer to “Vehicle loading infor-
mation” in the “Technical and consumer in-
formation” section of this manual.

WARNING

∙ Never allow anyone to ride in the

cargo area or on the rear seat when it
is in the folded position. Use of these
areas by passengers without proper
restraints could result in serious injury
or death in an accident or sudden
stop.

∙ It is extremely dangerous to ride in a

cargo area inside a vehicle. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.

∙ Do not allow people to ride in any area

of your vehicle that is not equipped
with seats and seat belts.

∙ Be sure everyone in your vehicle is in a

seat and using a seat belt properly.

LPD0259

LPD0270

TRUCK BOX

3-18

Pre-driving checks and adjustments

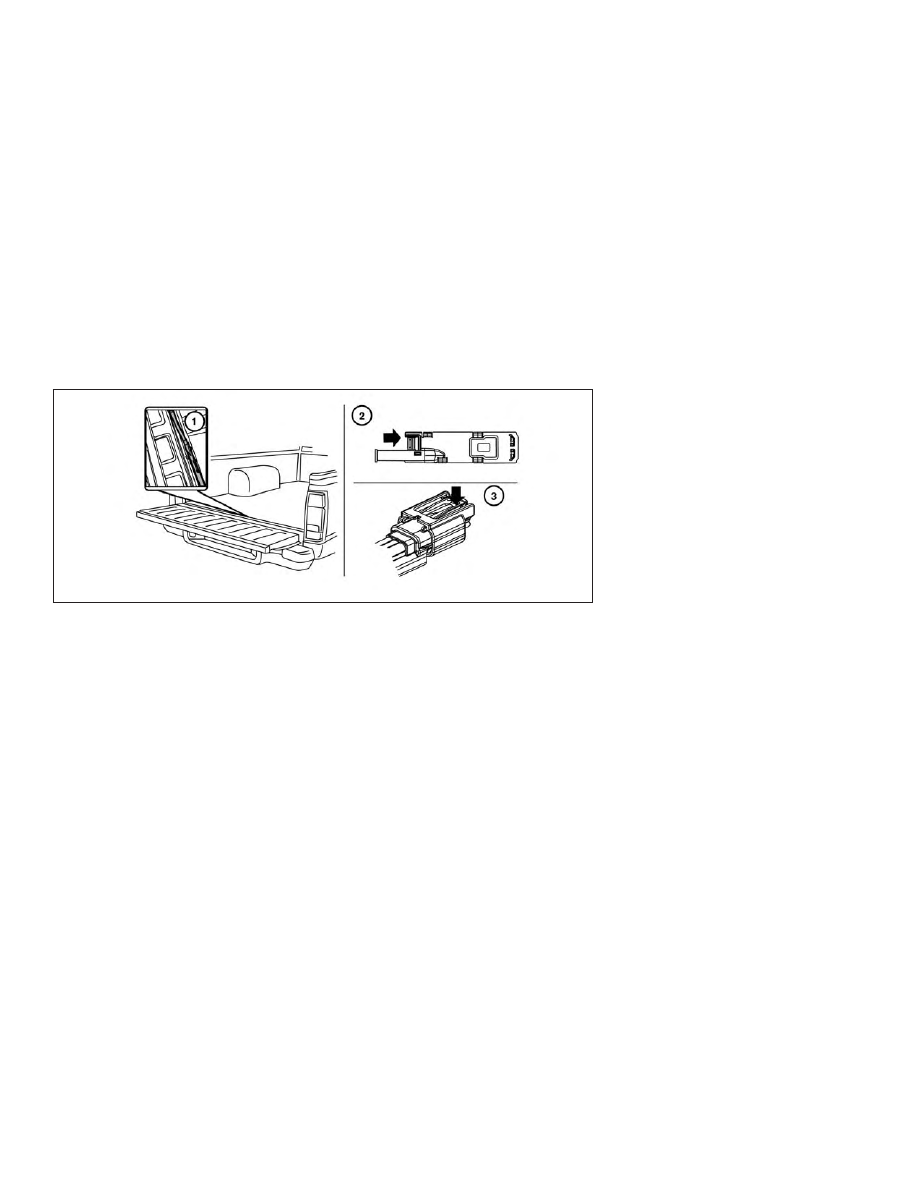

Disconnecting the rear camera (if
so equipped)

Before removing the tailgate disconnect
the rear camera by performing the follow-
ing:

1. Open the tailgate to access the rear

camera connector bracket

䊊

located

on the rear sill.

2. Remove the connector bracket

䊊

from the sill by pressing the locking tab
inward, in the direction shown, while
pulling the bracket apart.

3. Disconnect the chassis wiring harness

䊊

by pressing inward on the locking

tab, in the direction shown, while pulling
the connectors apart. Hold the con-
nector firmly to prevent the connector
in the chassis harness from falling into
the sill.

4. Take the chassis plug and bracket from

the glove box and connect them to the
chassis wiring harness to avoid con-
tamination to the terminals which will
lead to malfunction of the rear camera.

5. Insert the bracket back into the sill.

6. Take the tailgate plug from the glove

box and connect it to the tailgate wir-
ing harness to avoid contamination
which will lead to malfunction of the
rear camera.

7. Remove the tailgate. For additional in-

formation, refer to “Removing the tail-
gate” in this section.

LPD2097

Pre-driving checks and adjustments

3-19

Removing the tailgate

1. Release the tailgate support cables.

CAUTION

∙ The tailgate is heavy. Two people

should remove or install it. Be careful
not to drop it during removal.

∙ After releasing the support cables, do

not let the tailgate rest on the
bumper.

2. Hold the tailgate at a 15 degree angle.

3. Pull the tailgate out from the right side

hinge.

4. Slide the tailgate out of the left side

hinge.

Installing the tailgate

1. Insert the tailgate into the left side

hinge.

2. Hold the tailgate at a 15 degree angle

and insert into the right side hinge.

3. Continue to hold the tailgate at a 15

degree angle and attach the tailgate
support cables.

4. Close the tailgate securely.

LPD2208

3-20

Pre-driving checks and adjustments

Connecting the rear camera (if so
equipped)

Before closing the tailgate reconnect the
rear camera by performing the following:

1. After attaching the rear tailgate to the

truck, keep the tailgate open and check
that the tailgate harness is not hanging
below the tailgate.

2. Remove the connector bracket

䊊

from the sill by pressing the locking tab
inward, in the direction shown, while
pulling the bracket apart.

3. Disconnect

the

chassis

plug

and

bracket from the chassis wiring har-
ness

䊊

. Keep the connector and

bracket in a safe place such as the
glove box.

4. Disconnect the tailgate plug from the

tailgate wiring harness. Keep the tail-
gate plug in a safe place such as the
glove box.

5. Connect the tailgate wiring harness to

the chassis wiring harness.

6. Securely fix the rear camera connector

bracket

䊊

to the rear sill.

7. Close the tailgate securely.

LPD2097

Pre-driving checks and adjustments

3-21

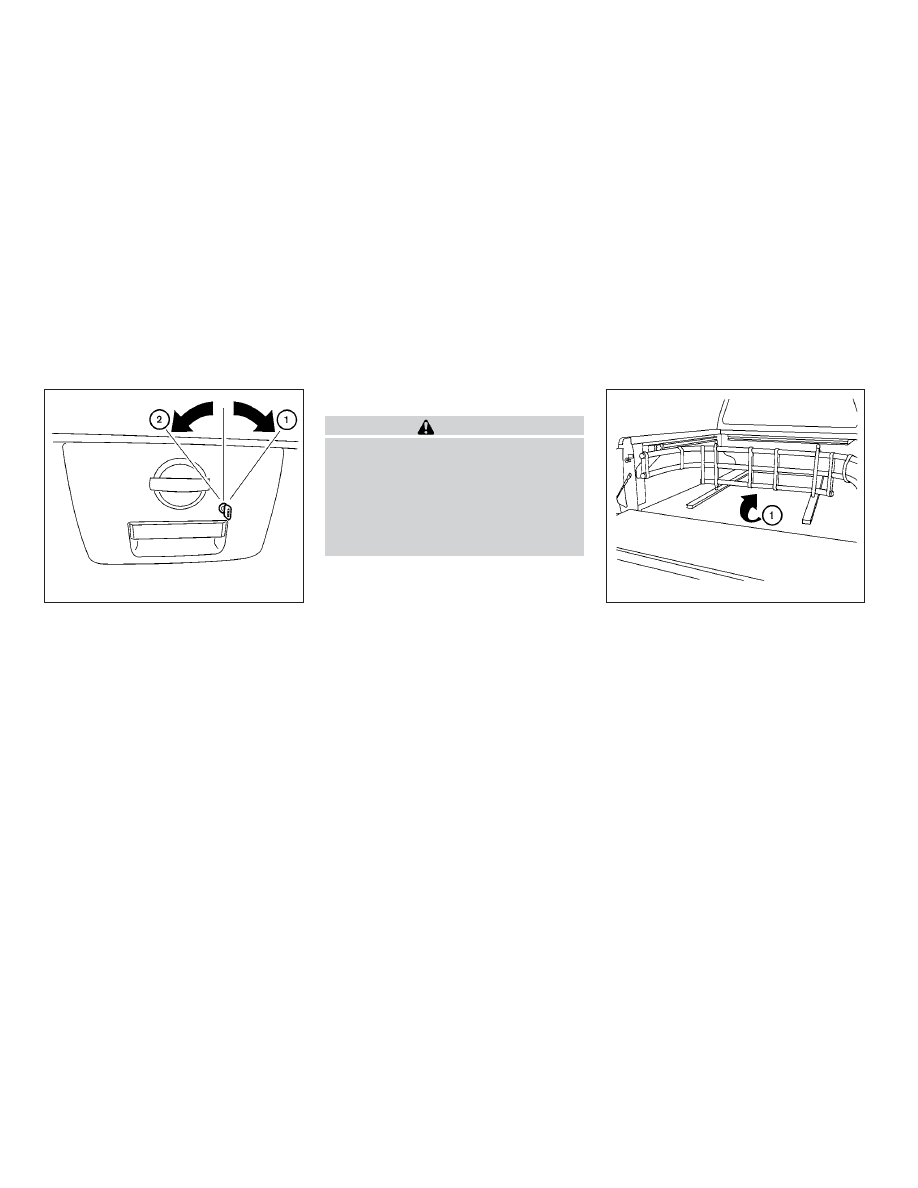

Locking the tailgate

To lock the tailgate, turn the key toward the
passenger side of the vehicle

䊊

. To unlock,

turn the key toward the driver side

䊊

BED EXTENDER (if so equipped)

CAUTION

∙ Do not overload the bed extender.

Maximum load on the open tailgate is
200 lbs. (890N).

∙ Evenly distribute and properly secure

all cargo.

∙ Do not use the bed extender or tail-

gate to secure cargo.

Positioning the bed extender

To use the bed extender in the inward po-
sition perform the following:

1. Rotate the bed extender

䊊

toward the

cab of the truck.

2. If necessary, remove tethers from the

tailgate latch.

3. Tighten the knobs to secure the ex-

tender into the desired position.

4. Close the tailgate.

LPD0272

LPD0480

3-22

Pre-driving checks and adjustments

5. Place cargo inside the bed extender in

the truck bed.

6. Properly secure the cargo.

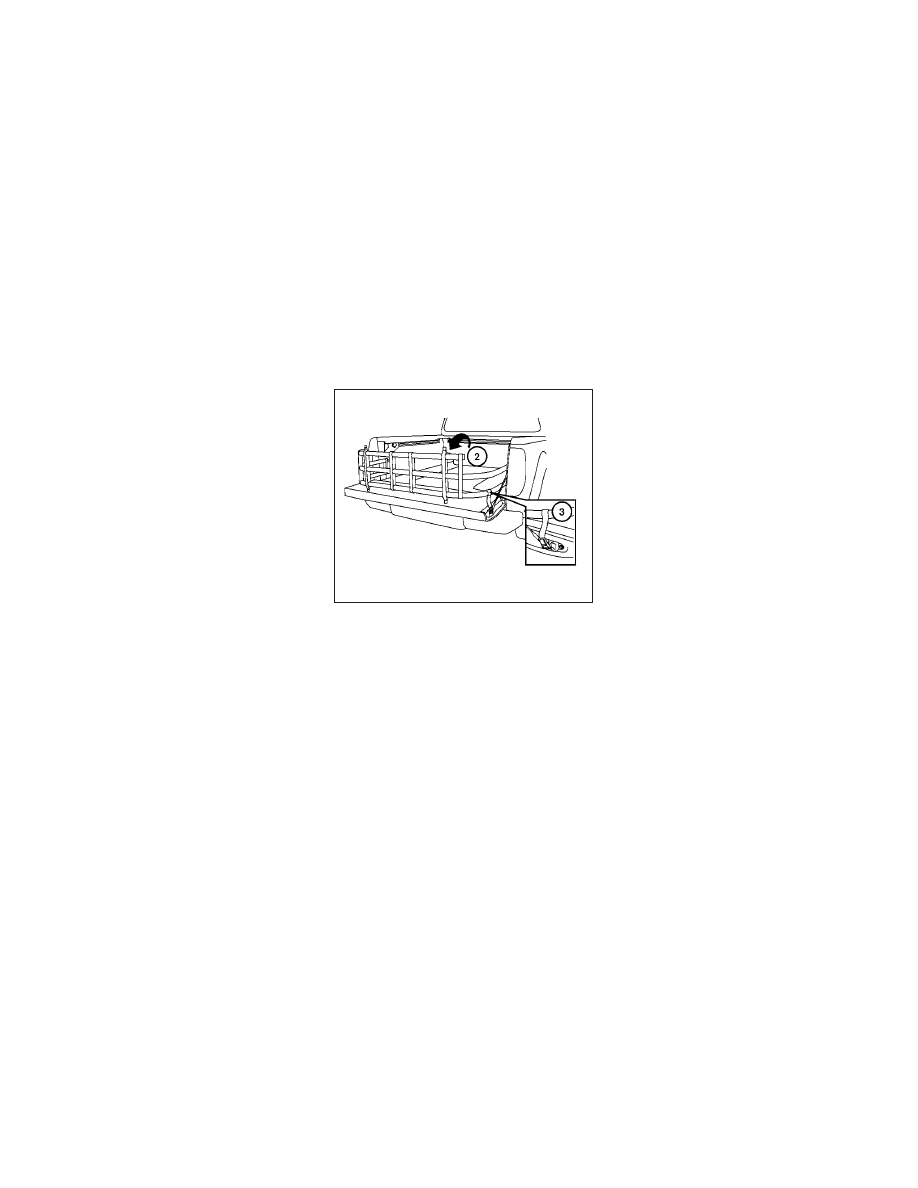

To use the bed extender in the outward
position perform the following:

1. Open the tailgate.

2. Rotate the bed extender

䊊

away from

the cab of the truck until the extender
sits on the tailgate.

3. Lock the buckles

䊊

into the tailgate

latch on both sides.

The bed extender can be adjusted in the
outward position by moving the extender
along the rail.

NOTE:

Use care when rotating extender, buck-
les may come in contact with the truck
bed railing.

Removing and installing the bed
extender

To remove or install the bed extender per-
form the following:

1. Open the tailgate.

2. Rotate the bed extender into a vertical

position and lift straight up (to remove)
or lower straight down (to install).

To store the bed extender in the front of the
truck when not in use perform the follow-
ing:

1. Position the sliding brackets past the

center of the wheel well.

2. Re-install the extender into the brack-

ets (see above).

3. Rotate the extender to the inward po-

sition.

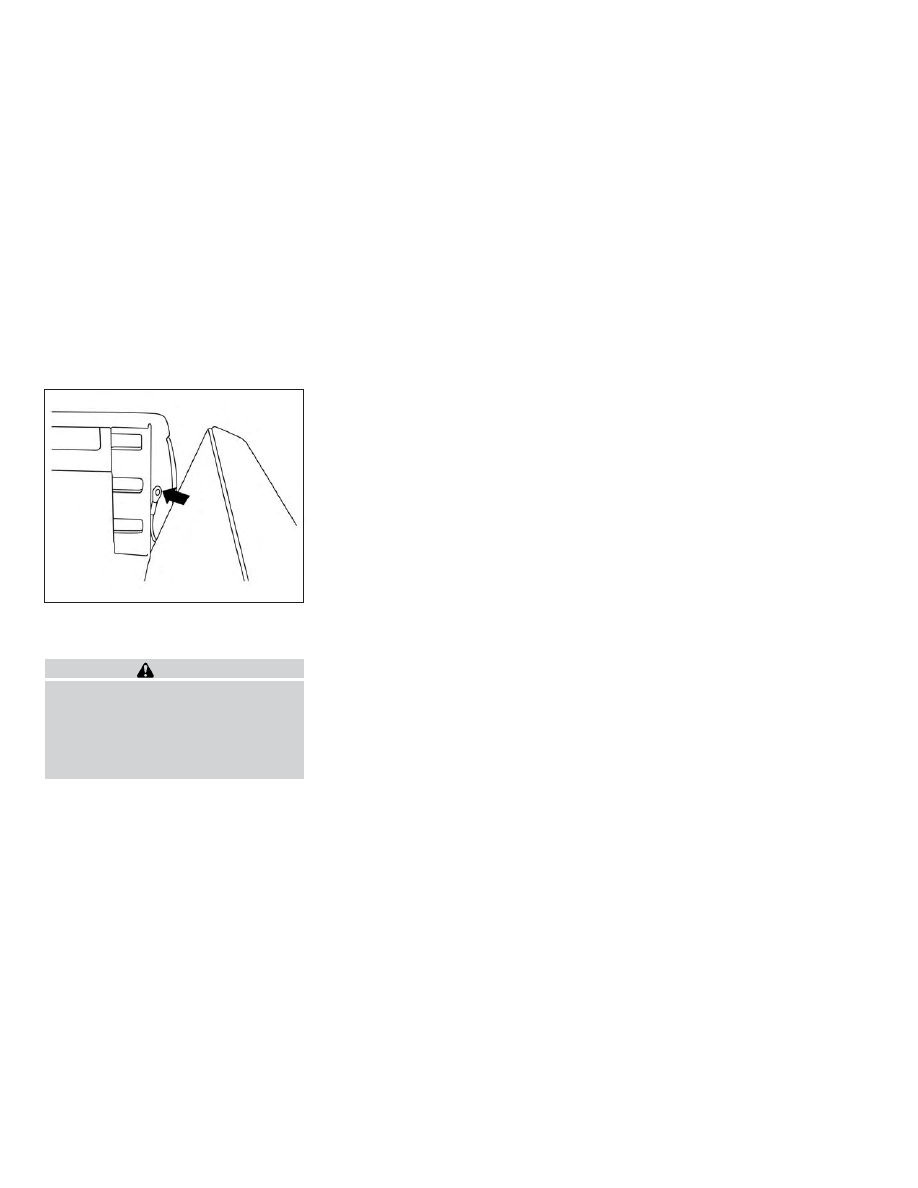

4. Push the brackets forward until the ex-

tender comes in contact with the front
wall of the truck box.

LPD0479

Pre-driving checks and adjustments

3-23

TIE DOWN HOOKS (if so equipped)

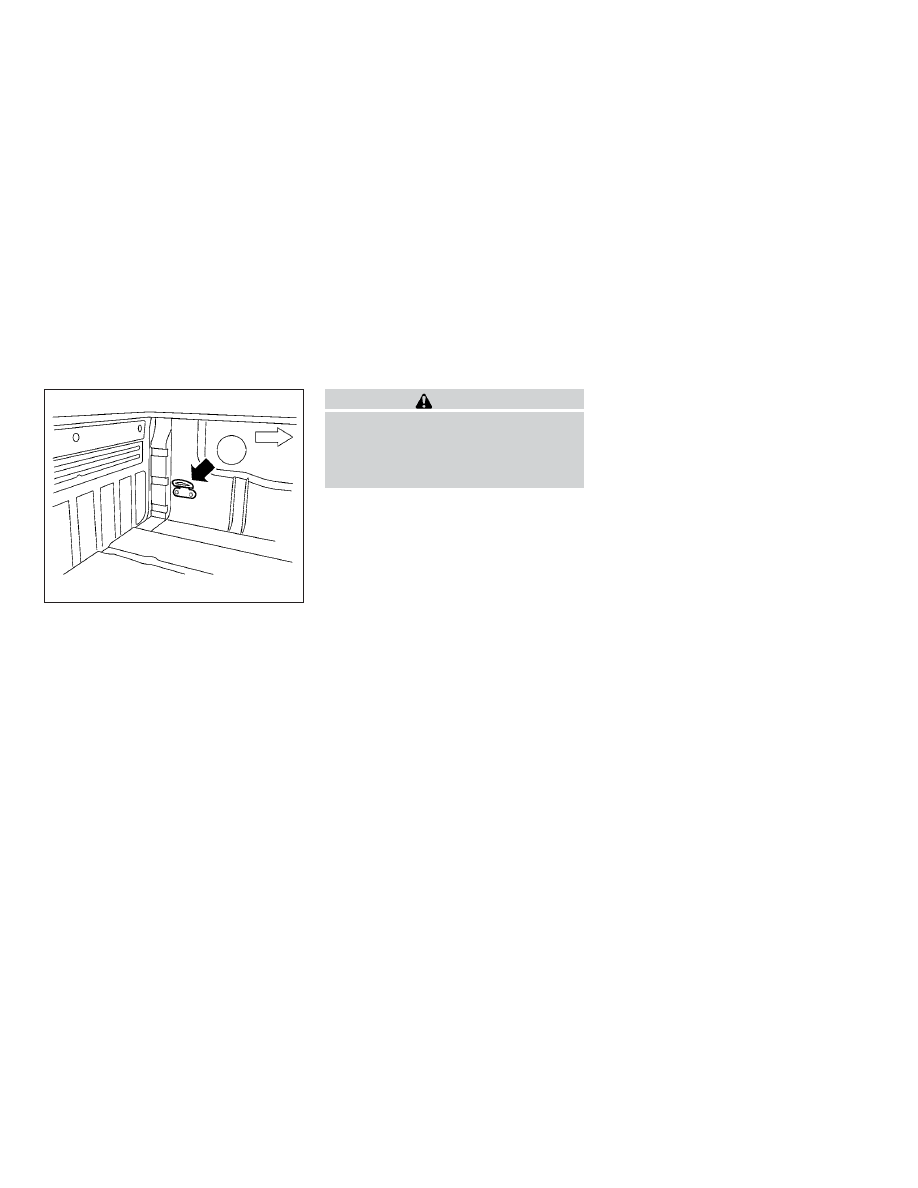

For your convenience, tie down hooks are
placed at each corner of the truck box.
These may be used to help secure cargo
loaded into the truck box.

∙ The weight of the cargo load must be

evenly distributed over both the front
and the rear axles.

∙ All cargo should be securely fastened

with ropes or straps to prevent it from
shifting or sliding within the vehicle.

WARNING

∙ Properly secure all cargo with ropes or

straps to help prevent it from sliding
or shifting. In a sudden stop or colli-
sion, unsecured cargo could cause
personal injury.

LTI0102

3-24

Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and
voice recognition systems

Control panel buttons — models without
Navigation System (if so equipped) . . . . . . . . . . . . . . 4-4

How to use the touch-screen. . . . . . . . . . . . . . . . . 4-5
How to use the

MENU button . . . . . . . . . . . 4-8

(brightness control) button . . . . . . . . . . . . . 4-9

How to use the VOL (volume) knob /
PUSH

(power) button . . . . . . . . . . . . . . . . . . . 4-9

Selecting menu from launch bar . . . . . . . . . . . . . 4-9

Control panel buttons — models with
Navigation System (if so equipped) . . . . . . . . . . . . . 4-10

How to use the touch-screen. . . . . . . . . . . . . . . . .4-11
How to use the BACK button . . . . . . . . . . . . . . . . 4-13
How to use the

button. . . . . . . . . . . . . . . . 4-13

button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15

How to use the ON-OFF button/VOL
(volume) control knob . . . . . . . . . . . . . . . . . . . . . . . 4-15
How to use the CAMERA button . . . . . . . . . . . . . 4-15

RearView Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16

RearView Monitor system operation . . . . . . . . . 4-17
How to read the displayed lines. . . . . . . . . . . . . . 4-18
Difference between predicted and
actual distances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18
Adjusting the screen . . . . . . . . . . . . . . . . . . . . . . . . 4-20

RearView Monitor system limitations . . . . . . . . 4-21
System maintenance. . . . . . . . . . . . . . . . . . . . . . . . 4-22

Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Heater and air conditioner (manual)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Heater operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26
Air conditioner operation . . . . . . . . . . . . . . . . . . . . 4-27
Air flow charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

Heater and air conditioner (automatic)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

Automatic operation . . . . . . . . . . . . . . . . . . . . . . . . 4-35
Manual operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-36
Operating tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

Servicing air conditioner . . . . . . . . . . . . . . . . . . . . . . . . 4-37
Audio system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37

Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-37
FM radio reception . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
AM radio reception . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38
Satellite radio reception (if so equipped) . . . . . 4-38
Audio operation precautions . . . . . . . . . . . . . . . . 4-39
FM/AM radio (if so equipped) . . . . . . . . . . . . . . . . 4-46

NissanConnect® Mobile Apps (if so equipped). . . 4-77

Registering with NissanConnect®
Mobile Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
Connect Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-77
Application download . . . . . . . . . . . . . . . . . . . . . . . 4-77

Siri® Eyes Free (models without Navigation
System) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 4-78

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-78
Operating Siri® Eyes Free . . . . . . . . . . . . . . . . . . . . 4-78
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . .4-80

Siri® Eyes Free (models with Navigation
System) (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 4-81

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
Siri® Activation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-81
Operating Siri® Eyes Free . . . . . . . . . . . . . . . . . . . . 4-82
Changing Siri® Eyes Free settings . . . . . . . . . . . . 4-82
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . 4-83

Car phone or CB radio . . . . . . . . . . . . . . . . . . . . . . . . . .4-84
Bluetooth® Hands-Free Phone System
without Navigation System (if so equipped) . . . . . 4-85

During a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-95
Ending a call. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Text messaging (if so equipped) . . . . . . . . . . . . . 4-96
Bluetooth® connections screen . . . . . . . . . . . . 4-100
Phone and text message settings . . . . . . . . . . 4-101

Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) . . . . . . . . . . . . 4-103

Bluetooth® settings . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Phone settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-111
Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . 4-112

NISSAN Voice Recognition System
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113

WARNING

∙ Positioning of the heating or air con-

ditioning controls and display con-
trols should not be done while driving
in order that full attention may be
given to the driving operation.

∙ Do not disassemble or modify this

system. If you do, it may result in acci-
dents, fire, or electrical shock.

∙ Do not use this system if you notice

any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.

∙ In case you notice any foreign object

in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system imme-
diately. Ignoring such conditions may
lead to accidents, fire or electrical
shock. It is recommended that you
visit a NISSAN dealer for servicing.

MENU button

button*

3. Display screen

(brightness control) button

5. VOL

(volume)

knob

PUSH

(power) button

* For additional information regarding the
Bluetooth® Hands-Free Phone System
control button, refer to “Bluetooth® Hands-

LHA4680

CONTROL PANEL BUTTONS —
MODELS WITHOUT NAVIGATION
SYSTEM (if so equipped)

4-4

Monitor, climate, audio, phone and voice recognition systems

Free Phone System without Navigation
System” in this section.

When you use this system, make sure the
engine is running.

If you use the system with the engine not
running for a long time, it will discharge
the battery, and the engine will not start.

Reference symbols:

“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.

HOW TO USE THE TOUCH-SCREEN

CAUTION

∙ The glass display screen may break if

it is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.

∙ To clean the display, never use a rough

cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.

∙ Do not splash any liquid such as water

or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction.

To help ensure safe driving, some functions
cannot be operated while driving.

The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.

WARNING

∙ ALWAYS give your full attention to

driving.

∙ Avoid using vehicle features that

could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.

LHA4700

Monitor, climate, audio, phone and voice recognition systems

4-5

Content .. 10 11 12 13 ..
