Nissan Armada (2019 year). Instruction - part 13





SPA2815

LOOSE FUEL CAP warning

The LOOSE FUEL CAP warning appears on
the vehicle information display when the
fuel-filler cap is not tightened correctly
after the vehicle has been refueled. It may
take a few driving trips for the warning to
be displayed.

To turn off the warning, perform the
following:

1.

Remove and install the fuel-filler cap
as soon as possible. (See “Fuel-filler
cap” (P.3-27).)

2.

Tighten the fuel-filler cap until it clicks.

3. Push the

switch

on the right

side of the combination meter panel

for longer than 1 second to turn off the
LOOSE FUEL CAP warning after tigh-
tening the fuel cap.

WARNING

Do not adjust the steering wheel

while driving. You could lose con-
trol of your vehicle and cause an
accident.

Do not adjust the steering wheel

any closer to you than is neces-
sary for proper steering opera-
tion and comfort. The driver’s air
bag inflates with great force. If
you are unrestrained, leaning for-
ward, sitting sideways or out of
position in any way, you are at
greater risk of injury or death in a
crash. You may also receive ser-
ious or fatal injuries from the air
bag if you are up against it when
it inflates. Always sit back against
the seatback and as far away as
practical from the steering wheel.
Always use the seat belts.

Pre-driving checks and adjustments

3-29

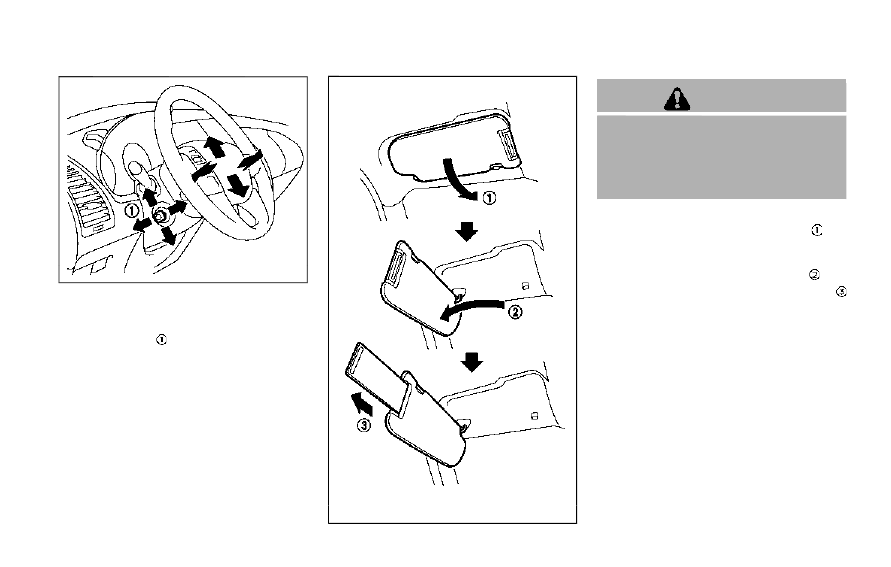

TILT/TELESCOPIC STEERING

3-30

Pre-driving checks and adjustments

SPA2754

ELECTRIC OPERATION

Tilt or telescopic operation

Move the lever

to adjust the steering

wheel up or down, forward or rearward to
the desired position.

Entry/Exit function operation (if so
equipped):

The automatic drive positioner system
will make the steering wheel move up
automatically when the driver’s door is
opened with the ignition switch in the
LOCK position. This lets the driver get into
and out of the seat more easily.

For more information, see “Automatic
drive positioner” (P.3-40).

SIC3451

CAUTION

Do not store the main sun visor

before storing the extension sun
visor.

Do not pull the extension sun

visor forcedly downward.

1.

To block out glare from the front,
swing down the main sun visor

.

2.

To block glare from the side, remove
the main sun visor from the center
mount and swing it to the side

.

3.

Draw out the extension sun visor
from the main sun visor to block from
further glare.

SUN VISORS

SPA2447

INSIDE MIRROR

Adjust the height and the angle of the
inside mirror to the desired position.

SPA2143

Manual anti-glare type (if so
equipped)

The night position

will reduce glare

from the headlights of vehicles behind
you at night.

Use the day position

when driving in

daylight hours.

WARNING

Use the night position only when
necessary, because it reduces rear
view clarity.

SPA2450-A

Automatic anti-glare type (if so
equipped)

The inside mirror is designed so that it
automatically changes reflection accord-
ing to the intensity of the headlights of
the following vehicle.

The anti-glare system will be automati-
cally turned on when the ignition switch is
placed in the ON position.

When the anti-glare system is turned on,
the indicator light

will illuminate and

excessive glare from the headlights of the
vehicle behind you will be reduced.

Push the “

*” switch

to make the inside

rearview mirror operate normally. The

Pre-driving checks and adjustments

3-31

MIRRORS

3-32

Pre-driving checks and adjustments

indicator light will turn off. Push the “I”
switch

to turn the system on.

Do not allow any object to cover the
sensors

or apply glass cleaner on

them. Doing so will reduce the sensitiv-
ity of the sensor, resulting in improper
operation.

For the HomeLink® Universal Transceiver
operation, see “HomeLink® Universal
Transceiver (Type A)” (P.2-71).

Intelligent Rear View Mirror (if so
equipped)

WARNING

Failure to follow the warnings and
instructions for proper use of the
Intelligent Rear View Mirror could
result in serious injury or death.
The Intelligent Rear View Mirror is

a convenience feature but it is not
a substitute for proper vehicle
operation. The system has areas
where objects cannot be viewed.
Check the blind spot of the In-
telligent Rear View Mirror before
vehicle operation. The driver is
always responsible for safe driv-
ing.

Do not disassemble or modify the

Intelligent Rear View Mirror, the
camera unit or wirings. If you do,
it may result in accidents or fire.
In case you notice smoke or smell
coming from the Intelligent Rear
View Mirror, stop using the sys-
tem immediately. It is recom-
mended that you see a NISSAN
dealer for servicing.

Do not operate the Intelligent

Rear View Mirror while driving.
Doing so can be a distraction
and it could lose control of your
vehicle and cause an accident or
serious injury.

Do not gaze into the Intelligent

Rear View Mirror display during
driving. It may cause a distraction
and it could lose control of your
vehicle and cause an accident or
serious injury.

Do not put a cigarette or flames

to the Intelligent Rear View Mir-
ror, the camera unit or wirings. It
may cause a fire.

Be sure to adjust the Intelligent

Rear View Mirror before driving.
Switch the system to the conven-
tional rearview mirror mode and
be properly seated on the driver’s

seat. Then adjust the mirror so as
to see the rear window properly.
Driving without adjusting the mir-
ror may cause difficulty in watch-
ing the display at Intelligent Rear
View Mirror mode (camera view
mode) due to the reflection from
the surface of the mirror.

If the Intelligent Rear View Mirror

malfunctions, immediately switch
the system to the conventional
rearview mirror mode.

When strong light (for example,

sunlight or high beams from fol-
lowing vehicles) enters the cam-
era, a light beam or a glaring light
may appear on the monitor
screen of the Intelligent Rear
View Mirror. In that case, switch
the system to the conventional
rearview mirror mode appropri-
ately.

If dirt, rain or snow accumulates

on the exterior glass surface cov-
ering the camera, the Intelligent
Rear View Mirror may not display
objects clearly. Use of the rear
window wiper/washer may im-
prove visibility, but if not, switch
the Intelligent Rear View Mirror to
the conventional rearview mirror
mode until a time the glass cov-

ering the camera can be cleaned.

JVP0515X

MENU button

Left button

Right button

Mode select lever

HomeLink® buttons (1-3)

Components:

Intelligent Rear View Mirror provides a
clear rearview from a camera located on
the rear of the vehicle. Intelligent Rear
View Mirror has two modes: conventional
rearview mirror mode and Intelligent Rear
View Mirror mode (camera view mode).
You can switch these two modes by the
mode select lever

.

For the operation of the HomeLink®
buttons

, see “HomeLink® Universal

Transceiver (Type B)” (P.2-75).

Pre-driving checks and adjustments

3-33

3-34

Pre-driving checks and adjustments

JVP0489X

How to change the mode:

The mode can be switched when the
ignition switch is in the ON position.
. Pull the mode select lever

to switch

to the Intelligent Rear View Mirror
mode (camera view mode).

. Push the mode select lever

to

switch to the conventional rearview
mirror mode.

JVP0506X

How to make settings of Intelligent Rear
View Mirror:

You can choose display settings of the
Intelligent Rear View Mirror such as
brightness, camera angle, textual indica-
tion ON or OFF and language.

When the Intelligent Rear View Mirror
mode is on, setting menu can be selected
by pushing the MENU button

. Each time

the MENU button

is pushed, the setting

menu will change as follows:

MENU (initial screen)

?BRIGHTNESS ?

DOWN/UP

? ROTATION ? INDICATION

? DIMMING MIRROR ? LANGUAGE ?
MENU (initial screen)

NOTE:

To switch the image quality adjust-

ment items with the MENU button

,

push the button within 5 seconds
after completing the adjustment of
the previous item. If 5 seconds or
more pass, the monitor will return to
MENU (initial screen).

When one of the HomeLink® buttons

is pushed, the monitor will display
the HomeLink® screen.

JVP0507X

BRIGHTNESS

The brightness of the display screen can
be adjusted.
. Push the left button

to dim the

screen.

. Push the right button

to brighten

the screen.

JVP0508X

DOWN/UP

The vertical camera angle of the display
screen can be adjusted.
. Push the left button

to down the

camera angle.

. Push the right button

to up the

camera angle.

JVP0510X

ROTATION

The camera angle of the display screen
can be rotated.
. Push the left button

to rotate the

camera angle to the left.

. Push the right button

to rotate the

camera angle to the right.

Pre-driving checks and adjustments

3-35

3-36

Pre-driving checks and adjustments

JVP0511X

INDICATION

The textual indication can be turned on or
off on the Intelligent Rear View Mirror
display screen.
. Push the right button

to disable the

textual indication on the display
screen.

. Push the left button

to enable the

textual indication on the display
screen.

JVP0514X

DIMMING MIRROR

The mirror is designed so that it auto-
matically changes reflection according to
the intensity of the headlights of the
following vehicle. You can enable or
disable the automatic anti-glare mode.
. Push the left button

to enable the

automatic anti-glare mode.

. Push the right button

to disable the

automatic anti-glare mode.

JVP0512X

LANGUAGE

The language of the textual indication
can be selected on the Intelligent Rear
View Mirror display screen.

Select the language by using the

or

button. You can select either English or
French. The language setting will be
retained even if the engine is restarted.

Intelligent Rear View Mirror system
precautions:

NOTE:

Long-term use of this system in

stopping engine may cause battery
to be discharged.

Do not attach an antenna of wireless

device near the Intelligent Rear View
Mirror. Electric wave from wireless
device may cause disturbed image
in Intelligent Rear View Mirror.

Do not push buttons excessively or

operating the lever roughly may
cause a system failure or the Intelli-
gent Rear View Mirror itself to drop.

Never turn the body of Intelligent

Rear View Mirror by 90° or more. It
may damage the Intelligent Rear
View Mirror.

Do not apply strong shocks to the

body of Intelligent Rear View Mirror.
It may cause a system failure.

Do not apply heavy load to the

camera and camera-cover on the
rear of the vehicle. It may cause the
camera to be removed or may cause
a system failure.

If it is difficult to see the Intelligent

Rear View Mirror display screen be-
cause of a strong external light,
switch the mode to the conventional
rearview mirror mode for better use.

Close the sunshade (if so equipped)

when the Intelligent Rear View Mir-
ror display screen is unclear due to
strong external light.

JVP0559X

Flicker image (example)

When LED headlights are viewed on

the Intelligent Rear View Mirror dis-
play, the images may flicker. This is
normal.

Due to diffused reflection from ex-

ternal environment, images on the
screen may flicker. This is not a
malfunction.

A quick movement of a thing may

not be able to display on the camera
view screen. This is not a malfunc-
tion.

Turn on the headlights at twilight or

in a tunnel, etc.

The Intelligent Rear View Mirror

mode (camera view mode) display
is different from the conventional
rearview mirror. Objects in the dis-
play may differ from actual distance.
Do not solely rely on the Intelligent
Rear View Mirror. Always rely on
your own operation to avoid acci-
dents.

If the brightness of the camera view

display is adjusted to excessive
bright level, it may cause an eye-
strain in the driving. Adjust the
brightness properly.

Use the rear window wiper when it

rains. If the camera view image is
still unclear when the rear window
wiper is in operation, check the
deterioration of the rear window
wiper blade.

When using the rear window wiper,

images on the screen may flicker.
This is not a malfunction.

Defog the rear window with defros-

ter when rear window is fogged. Use
the conventional rearview mirror
mode until the rear window is fully
defogged.

The display of the Intelligent Rear

View Mirror may become hot. This is
not a malfunction.

Pre-driving checks and adjustments

3-37

3-38

Pre-driving checks and adjustments

The color of an object in the distance

or in the dark may be difficult to be
recognized. This is not a malfunc-
tion.

System maintenance (Intelligent Rear
View Mirror):
. Always keep the mirror and camera

area of the rear window clean.

. Clean the mirror and the camera lens

with a dry soft cloth.

. When clean the camera area of the

rear window, using a soft cloth dam-
pend with water and a few neutral
detergent. And after, the dry it up with
dry soft cloth.

. If the image on the Intelligent Rear

View Mirror display screen is still un-
clear even after cleaning the camera
area of the rear window, an oil film
may be adhering to the rear window
glass. Clean the rear window glass
with an oil film remover.

. Never use alcohol, benzine, thinner, or

any similar material to clean the
mirror or camera lens. It will cause a
discoloration, deterioration or a sys-
tem malfunction.

. Do not attach a sticker (including

transparent material) on the camera
area of the rear window.

OUTSIDE MIRRORS

WARNING

Objects viewed in the outside

mirror on the passenger side are
closer than they appear. Be care-
ful when moving to the right.
Using only this mirror could cause
an accident. Use the inside mirror
or glance over your shoulder to
properly judge distances to other
objects.

Do not adjust the mirrors while

driving. You could lose control of
your vehicle and cause an acci-
dent.

SPA2739

Adjusting outside mirrors

The outside mirror control switch is
located on the driver’s door armrest.

The outside mirror will operate only when
the ignition switch is in the ACC or ON
position.

Move the switch right or left to select the
right or left side mirror

, then adjust

using the control switch

.

Defrosting outside mirrors (if so
equipped)

The outside mirrors will be heated when
the rear window defroster switch is
operated. (See “Rear window and outside
mirror defroster switch” (P.2-36).)

SPA2738

Power foldable outside mirrors

CAUTION

Do not touch the mirrors while

they are moving. Your hand may
be pinched, and the mirror may
malfunction.

Do not drive with the mirrors

stored. You will be unable to see
behind the vehicle.

If the mirrors were folded or

unfolded by hand, there is a
chance that the mirror will move
forward or backward during driv-

ing. If the mirrors were folded or
unfolded by hand, be sure to
adjust them again electrically be-
fore driving.

The outside mirror remote control oper-
ates when the ignition switch is in the
ACC or ON position.

To fold the outside mirrors, push the
outside mirror folding switch to the
“CLOSE” position

. To unfold, push to

the “OPEN” position

.

If mirrors are manually operated or
bumped, the mirror body can become
loose at the pivot point. To correct
electronic mirror operation, cycle the
mirrors by pushing “CLOSE” until comple-
tely closed, then push “OPEN” until the
mirrors are in the open position.

Reverse tilt-down feature (if so
equipped)

When backing up the vehicle, the right
and left outside mirrors will turn down-
ward automatically to provide better rear
visibility.

1.

Place the ignition switch in the ON
position.

2.

Move the shift lever to the R (Reverse)
position.

Pre-driving checks and adjustments

3-39

3-40

Pre-driving checks and adjustments

3. Choose the right or left outside mirror

by operating the outside mirror con-
trol switch.

4. The outside mirror surfaces move

downward.

When one of the following conditions has
occurred, the outside mirror surfaces will
return to their original positions.
. The shift lever is moved to any posi-

tion other than R (Reverse).

. The outside mirror control switch is

set to the center position.

. The ignition switch is placed in the

OFF position.

Automatic anti-glare (if so
equipped)

The outside rearview mirrors are de-
signed so that its automatically change
reflection according to the intensity of
the headlights of the vehicle following
you.

The anti-glare system will be automati-
cally turned on when the ignition switch is
placed in the ON position.

SIC4448

VANITY MIRROR

To use the front vanity mirror, pull down
the sun visor and pull up the cover.

JVP0247X

SET/memory switches

The automatic drive positioner system
has three features:
. Entry/exit function

. Memory storage

. Setting memory function

ENTRY/EXIT FUNCTION

This system is designed so that the
driver’s seat and steering column will
automatically move when the automatic
transmission shift lever is in the P (Park)
position. This allows the driver to get into
and out of the driver’s seat more easily.

The driver’s seat will slide backward and
the steering wheel will move up when the
driver’s door is opened with the ignition

AUTOMATIC DRIVE POSITIONER (if
so equipped)

switch in the LOCK position.

The driver’s seat and steering wheel will
return to the previous positions when the
ignition switch is pushed to the ACC
position.

The driver’s seat will not return to the
previous positions if the seat or steering
adjusting switch is operated when the
seat is at the exit position.

Cancel or activate entry/exit func-
tion

The shift lever must be in the P (Park)
position with the ignition switch in the
OFF position.

The entry/exit function can be activated
or canceled by pressing and holding the
SET switch for more than 10 seconds.

The entry/exit function can also be acti-
vated or canceled if the “Lift Steering
Wheel on Exit” key or “Slide Driver Seat
Back on Exit” key is turned to ON or OFF in
the Vehicle settings on the center display.
(See NissanConnect® Owner’s Manual.)

Initialize entry/exit function

If the battery cable is disconnected, or if
the fuse opens, the entry/exit function
will not work though this function was set
on before. In such a case, after connect-
ing the battery or replacing with a new
fuse, open and close the driver’s door
more than two times after the ignition
switch is turned from the ON position to
the LOCK position. The entry/exit func-
tion will be activated.

MEMORY STORAGE

Two positions for the driver’s seat, steer-
ing column and outside mirrors can be
stored in the automatic drive positioner
memory. Follow these procedures to use
the memory system.

1.

Move the shift lever to the P (Park)
position.

2.

Adjust the driver’s seat, steering col-
umn and outside mirrors to the de-
sired positions by manually operating
each adjusting switch. For additional
information, see “Seats” (P.1-3) and
“Tilt/telescopic steering” (P.3-29) and
“Outside mirrors” (P.3-38).

3. Push the SET switch and, within 5

seconds, push the memory switch (1
or 2) fully for at least 1 second.

The indicator light for the pushed
memory switch will stay on for ap-

proximately 5 seconds after pushing
the switch.

When the memory is stored in the
memory switch (1 or 2), a buzzer will
sound.

If memory is stored in the same
memory switch, the previous memory
will be deleted.

Linking Intelligent Key to a stored
memory position

The Intelligent Key can be linked to a
stored memory position with the follow-
ing procedure.

1.

Follow the steps for storing a memory
position.

2.

While the indicator light for the mem-
ory switch being set is illuminated for
5 seconds, push the

button on the

Intelligent Key. If the indicator light
blinks, the Intelligent Key is linked to
that memory setting.

Push the ignition switch to the OFF
position, and then push the

button

on the Intelligent Key. The driver’s seat,
steering wheel and outside mirrors will
move to the memorized position.

Pre-driving checks and adjustments

3-41

3-42

Pre-driving checks and adjustments

Confirming memory storage

. Push the ignition switch to the ON

position and push the SET switch. If
the main memory has not been
stored, the indicator light will come
on for approximately 0.5 second.
When the memory has stored in posi-
tion, the indicator light will stay on for
approximately 5 seconds.

. If the battery cable is disconnected, or

if the fuse opens, the memory will be
canceled. In this case, reset the de-
sired position using the previous pro-
cedure.

. If optional Intelligent Keys are added

to your vehicle, the memory storage
procedure to switch 1 or 2 and linking
Intelligent Key procedure to a stored
memory position should be per-
formed again for each Intelligent Key.
For additional Intelligent Key informa-
tion, see “Keys” (P.3-2).

Selecting the memorized position

1.

Move the shift lever to the P (Park)
position.

2.

Use one of the following methods to
move the driver’s seat, the outside
mirrors and the steering wheel.

.

Push the memory switch (1 or 2)

fully for at least 1 second.

The driver’s seat, steering column and
outside mirrors will move to the
memorized position or to the exit
position when the entry/exit function
is set to active with the indicator light
flashing, and then the light will stay on
for approximately 5 seconds.

SETTING MEMORY FUNCTION

The status of the following settings can
be linked to the Intelligent Key and the
memorized settings can be available for
each Intelligent Key.
. Air conditioner system

. Navigation system (if so equipped)

. Audio system
To use the memory function, lock the
doors with the Intelligent Key that is
linked to the settings.

To enable the memorized settings:

1.

Carry the Intelligent Key that is linked
to the settings, and unlock the doors
by pushing the driver’s door handle
request switch or “UNLOCK”

but-

ton on the Intelligent Key.

2.

Place the ignition switch in the ON
position. “Connection with the key has
been done” will be displayed on the
screen and the memorized settings
are available (only when a new Intel-
ligent Key is used).

SYSTEM OPERATION

The automatic drive positioner system
will not work or will stop operating under
the following conditions:
. When the vehicle speed is above 0

MPH (0 km/h) or 4 MPH (7 km/h) for
some limited functions such linking an
Intelligent Key to the vehicle when the
power source is turned on from off or
during the Exit function.

. When any of the memory switches are

pushed while the automatic drive
positioner is operating.

. When the adjusting switch for the

driver’s seat and steering column is
turned on while the automatic drive
positioner is operating.

. When the seat has already been

moved to the memorized position.

. When no seat position is stored in the

memory switch.

. When the shift lever is moved from the

P (Park) position to any other position.

4 Monitor, heater, air conditioner, audio,

phone and voice recognition systems

NissanConnect® Owner’s Manual .................................... 4-2
Safety note ........................................................................................ 4-2
RearView Monitor (if so equipped) ................................. 4-3

RearView Monitor system operation ..................... 4-4
How to read the displayed lines ................................ 4-4
Difference between predictive and

actual distances ...................................................................... 4-4
How to park with predictive course lines .......... 4-6
Sonar indicator ........................................................................ 4-7
Adjusting the screen ........................................................... 4-7
Predictive course line settings .................................... 4-8
RearView Monitor system limitations.................... 4-8
System maintenance .......................................................... 4-9

Intelligent Around View Monitor (if

so equipped) .................................................................................. 4-10

Intelligent Around View Monitor

system operation ................................................................ 4-11
How to adjust the screen view ................................ 4-19
Intelligent Around View Monitor settings ....... 4-19
Intelligent Around View Monitor

system limitations .............................................................. 4-21
System maintenance ....................................................... 4-23

Camera aiding sonar function (models with

Intelligent Around View Monitor) .................................. 4-24

Sonar system operation ................................................ 4-25

Turning on and off the sonar function .......... 4-25
Sonar system limitations ........................................... 4-26
System temporarily unavailable ........................... 4-27
System maintenance .................................................... 4-27

Moving Object Detection (MOD) ................................... 4-28

MOD system operation ................................................ 4-29
Turning on and off the MOD system ............... 4-30
MOD system limitations .............................................. 4-31
System maintenance .................................................... 4-32

Ventilators ...................................................................................... 4-33

Center ventilators ............................................................ 4-33
Side ventilators .................................................................. 4-33
Rear ventilators.................................................................. 4-33

Heater and air conditioner ................................................ 4-34

Automatic air conditioner ......................................... 4-35
Rear automatic air conditioning system ....... 4-38
Operating tips ..................................................................... 4-42
Linking Intelligent Key (if so equipped)........... 4-42
In-cabin microfilter .......................................................... 4-42
Servicing air conditioner............................................. 4-42

Antenna ............................................................................................ 4-42

Window antenna ............................................................... 4-42
Satellite antenna ............................................................... 4-43

Car phone or CB radio ......................................................... 4-43

4-2

Monitor, heater, air conditioner, audio, phone and voice recognition systems

For models with NissanConnect® with
Navigation (if so equipped) and Services
(if so equipped), refer to the NissanCon-
nect® Owner’s Manual regarding the fol-
lowing information.
. Audio system

. Bluetooth® Hands-Free Phone

. NissanConnect® Services

. SiriusXM Traffic

TM

. SiriusXM® Travel Link

. SiriusXM® Satellite Radio

. Navigation system

. Voice Recognition System

. Information and settings viewable on

NissanConnect®

WARNING

Do not disassemble or modify

this system. If you do, it may
result in accidents, fire, or electric
shock.

Do not use this system if you

notice any abnormality, such as
a frozen screen or lack of sound.
Continued use of the system may
result in accident, fire or electric
shock.

In case you notice any foreign

object in the system hardware,
spill liquid on it, or notice smoke
or smell coming from it, stop
using the system immediately. It
is recommended you visit a
NISSAN dealer for servicing.
Ignoring such conditions may
lead to accidents, fire, or electric
shock.

Park the vehicle in a safe location

and apply the parking brake to
view the images on the front
center display screen.

CAUTION

Do not use the system when the
engine is not running for extended
periods of time to prevent battery
discharge.

Do not attempt to operate the system in
extreme temperature conditions [below
−4°F (−20°C) and above 158°F (70°C)].
Operating this system under these con-
ditions may result in system malfunc-
tions.

NISSANCONNECT® OWNER’S MANUAL

SAFETY NOTE















Content   ..  11  12  13  14   ..
