Nissan Armada (2019 year). Instruction

JVI1639X

P r e s s a n d r e l e a s e t h e d e s i r e d
HomeLink® button. The indicator light
flashes in orange and “TRAINING” is
displayed on the mirror.

Position the end of your hand-held
transmitter 1 to 3 in (2 to 8 cm) away
from the HomeLink® button. For some
devices, it may have better commu-
nication when the hand-held trans-
mitter is positioned 6 to 12 in (15 to 30
cm) away from the HomeLink® button.

3. While the indicator light is flashing in

orange, press and hold the hand-held
transmitter button. DO NOT release
until the HomeLink® indicator light
changes from orange to green and

“TRAINED” is displayed on the mirror.
When the indicator light illuminates in
green, the hand-held transmitter but-
ton may be released.

NOTE:
Some devices to be programmed
may require you to replace the Step
3 with the cycling procedure noted
in “Programming HomeLink® for Ca-
nadian customers and gate open-
ers” (P.2-78).

4. Press and hold the programmed

HomeLink® button and observe the
indicator light.

If the indicator light remains green

(solid/continuous), programming is
complete and your device should
activate when the HomeLink® but-
ton is pressed and released.

If the indicator light rapidly flashes

in green, press and hold the pro-
grammed HomeLink® button for 2
seconds. Repeat the “press/hold/
release” sequence up to three times
to complete the programming pro-
cess. If the device operates, the
programming is complete. If the
device still does not operate, con-
tinue with Steps 5-7 for the device
being programmed to HomeLink®.
A second person may make the
following steps easier. Use a ladder

or other device. Do not stand on
your vehicle to perform the next
steps.

5. At the garage door opener motor in

the garage, locate the “Learn,” “Smart”
or “Program” button (the name and
color of the button may vary by
manufacturer but it is usually located
near where the hanging antenna wire
is attached to the unit). If there is
difficulty locating the button, refer-
ence the garage door opener’s man-
ual.

6. Firmly press and then release the

“Learn,” “Smart” or “Program” button.

NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.

Return to the vehicle and firmly press
and hold the programmed HomeLink®
button for 2 seconds and release.
Repeat the “press/hold/release” se-
quence up to three times to complete
the programming process. Then your
device should operate when the
HomeLink® button is pressed and
released.

8. If you have any questions or are

having difficulty programming your
HomeLink® buttons, refer to the

Instruments and controls

2-77

2-78

Instruments and controls

H o m e L i n k ® w e b

s i t e a t :

w w w .

homelink.com/nissan or call 1-800-
355-3515.

PROGRAMMING HomeLink® FOR
CANADIAN CUSTOMERS AND GATE
OPENERS

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink® to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are de-
signed to “time-out” in the same manner.

If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
“Programming HomeLink®” procedures,
replace “Programming HomeLink®” Step
3 with the following:

NOTE:

When programming a garage door
opener, etc., unplug the device during
the “cycling” process to prevent possi-
ble damage to the device components.

Step 3: While the HomeLink® indicator
light is flashing in orange, press and
release (“cycling”) the hand-held transmit-
ter button every 2 seconds. Continue to
press and release the hand-held trans-
mitter button until the HomeLink® indi-

cator light changes from orange to green.
When the indicator light illuminates in
green, hand-held transmitter button may
be released.

Proceed with “Programming HomeLink®”
step 4 to complete.

Remember to plug the device back in
when programming is completed.

OPERATING THE HomeLink® UNI-
VERSAL TRANSCEIVER

The HomeLink® Universal Transceiver,
after it is programmed, can be used to
activate the programmed device. To op-
erate, firmly press the appropriate pro-
g r a m m e d H o m e L i n k ® b u t t o n . T h e
indicator light will illuminate in green with
three parenthesis

on the mirror

while the signal is being transmitted.

PROGRAMMING TROUBLESHOOT-
ING

If the HomeLink® does not quickly learn
the hand-held transmitter information:
. replace the hand-held transmitter

batteries with new batteries.

. position the hand-held transmitter

with its battery area facing away from
the HomeLink® button.

. press and hold the HomeLink® button

and hand-held transmitter button in
each step without interruption.

. position the hand-held transmitter 1

to 3 in (2 to 8 cm) away from the
HomeLink® button. Hold the transmit-
ter in that position for up to 15
seconds. If HomeLink® is not pro-
grammed within that time, try holding
the transmitter in another position -
for example, 6 to 12 in (15 to 30 cm)
away, keeping the HomeLink® button
in view at all times.

If you have any questions or are having
difficulty programming your HomeLink®
buttons, refer to the HomeLink® web site
at: www.homelink.com/nissan or 1-800-
355-3515.

CLEARING THE PROGRAMMED IN-
FORMATION

The following procedure clears the pro-
grammed information from three but-
tons. Individual buttons cannot be
cleared. However, individual buttons can
be reprogrammed, see “Reprogramming
a single HomeLink® button” (P.2-79).

To clear all programming

P r e s s a n d h o l d t h e t w o o u t e r
HomeLink® buttons until the indicator
light begins to flash in green and
“CLEARED” is displayed on the mirror,
in approximately 10 seconds. Do not
hold for longer than 20 seconds.

Release both buttons.

HomeLink® is now in the programming
mode and can be programmed at any
time beginning with “Programming
HomeLink®” - Step 1.

REPROGRAMMING A SINGLE
HomeLink® BUTTON

To reprogram a HomeLink® button, com-
plete the following.

Press and hold the desired HomeLink®
button. DO NOT release the button.

The indicator light will illuminate in
green, and after 20 seconds it will
begin to flash in orange and “TRAIN-
ING” is displayed on the mirror.

3. Release the HomeLink® button and

p r o c e e d

w i t h

“ P r o g r a m m i n g

HomeLink®” — Step 3.

For questions or comments, contact
HomeLink® at: www.homelink.com/
nissan or 1-800-355-3515.

The HomeLink® button has now been
reprogrammed. The new device can be
activated by pressing the HomeLink®
button that was just programmed. This
procedure will not affect any other pro-
grammed HomeLink® buttons.

If a new device is not programmed to the
HomeLink® button, it will revert to the
previously stored programming.

USING THE GARAGE DOOR TWO-
WAY COMMUNICATION

HomeLink® has the function of commu-
nicating with garage door opener sys-
tems. If your garage door openers are
c o m p a t i b l e

w i t h

H o m e L i n k ® ,

t h e

HomeLink® can:
. receive and display “closing” or “open-

ing” status from your garage door
opener.

. recall and display the garage door

being “closed” or “opened”.

HomeLink® can receive the status from a
garage door opener at a range up to 820
ft (250 m), but it varies depending on the
environment. You may need to reduce
vehicle speed to successfully receive the
garage door opener communication.

Programming two-way communi-
cation

After programming a new HomeLink®
button, proceed with “Programming
HomeLink®” Step 6 to enable two-way
communication. If the garage door status
indicator appears on the left side on the
mirror when pressing the programmed
HomeLink® button, the two-way commu-
nication programming is complete.

JVI1640X

Using two-way communication

Press and hold the HomeLink® buttons (1
and 2) simultaneously for 2 seconds to
recall and display the last recorded gar-
age door status communicated to
HomeLink®. HomeLink® will display the
last recorded status for 3 seconds.

If two-way communication programming
is successful, HomeLink® will display the
status of your garage door opener with
the status indicator

, which changes

depending on the status. The garage
door opener status indicator shows the
garage door opener status as follows:

Flashing in orange – Closing

Instruments and controls

2-79

2-80

Instruments and controls

Flashing in orange – Opening

Illuminating in green – Closed

Illuminating in green – Opened

The status indicator stops to flash after
an open/close signal is received or no
signal is received within 30 seconds from
the garage door opener.

IF YOUR VEHICLE IS STOLEN

If your vehicle is stolen, you should
change the codes of any non-rolling code
device that has been programmed into
HomeLink®. Consult the Owner’s Manual
of each device or call the manufacturer or
dealer of those devices for additional
information.

When your vehicle is recovered, you will
need to reprogram the HomeLink® Uni-
versal Transceiver with your new trans-
mitter information.

FCC Notice:

For USA:

This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference,
and (2) this device must accept any
interference received, including inter-
ference that may cause undesired op-
eration.

NOTE:

Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment.

For Canada:

This device complies with Industry Ca-
nada licence-exempt RSS standard(s).
Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.

3-2

Pre-driving checks and adjustments

A key number plate is supplied with your
keys. Record the key number and keep it
in a safe place (such as your wallet), not in
the vehicle. If you lose your keys, it is
recommended you visit a NISSAN dealer
for duplicates by using the key number.
NISSAN does not record any key numbers
so it is very important to keep track of
your key number plate.

A key number is only necessary when you
have lost all keys and do not have one to
duplicate from. If you still have a key, it
can be duplicated without knowing the
key number.

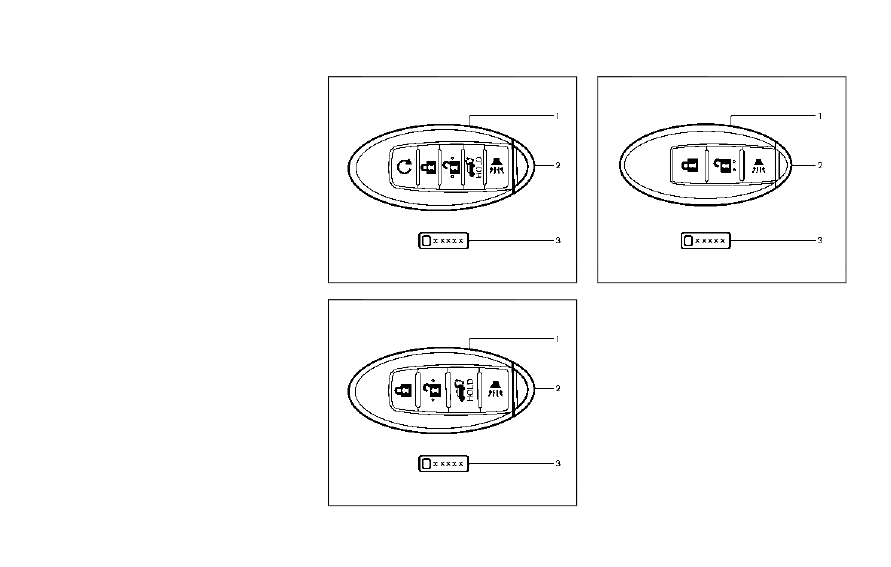

JVP0155X

Type A (if so equipped)

SPA2717

Type B (if so equipped)

SPA2406

Type C (if so equipped)

Intelligent Key (2)

Mechanical key (inside Intelligent Key) (2)

Key number plate (1)

INTELLIGENT KEY

Your vehicle can only be driven with the
Intelligent Keys which are registered to
your vehicle’s Intelligent Key system com-
ponents and NISSAN Vehicle Immobilizer
System components. As many as 4 In-
telligent Keys can be registered and used
with one vehicle. The new keys must be
registered by a NISSAN dealer prior to use
with the Intelligent Key system and
NISSAN Vehicle Immobilizer System of
your vehicle. Since the registration pro-
cess requires erasing all memory in the

KEYS

Intelligent Key components when regis-
tering new keys, be sure to take all
Intelligent Keys that you have to the
NISSAN dealer.

CAUTION

. Be sure to carry the Intelligent

Key with you when driving. The
Intelligent Key is a precision de-
vice with a built-in transmitter. To
avoid damaging it, please note
the following.

— The Intelligent Key is water

resistant; however, wetting
may damage the Intelligent
Key. If the Intelligent Key gets
wet, immediately wipe until it
is completely dry.

— Do not bend, drop or strike it

against another object.

— If the outside temperature is

below 14°F (−10°C), the battery
of the Intelligent Key may not
function properly.

— Do not place the Intelligent

Key for an extended period in
a place where temperatures
exceed 140°F (60°C).

— Do not change or modify the

Intelligent Key.

— Do not use a magnet key

holder.

— Do not place the Intelligent

Key near an electric appliance
such as a television set or
personal computer.

— Do not allow the Intelligent

Key to come into contact with
water or salt water, and do
not wash it in a washing
machine. This could affect
the system function.

. If an Intelligent Key is lost or

stolen, NISSAN recommends
erasing the ID code of that Intel-
ligent Key. This will prevent the
Intelligent Key from unauthorized
use to unlock the vehicle. For
information regarding the eras-
ing procedure, it is recommended
you visit a NISSAN dealer.

SPA2033

Mechanical key

To remove the mechanical key, release
the lock knob at the back of the Intelli-
gent Key.

To install the mechanical key, firmly insert
it into the Intelligent Key until the lock
knob returns to the lock position.

Use the mechanical key to lock or unlock
the doors and the glove box.

See “Doors” (P.3-4) and “Storage” (P.2-54).

Pre-driving checks and adjustments

3-3

3-4

Pre-driving checks and adjustments

CAUTION

Always carry the mechanical key
installed in the Intelligent Key.

VALET HAND-OFF

When you have to leave a key with a valet,
give them the Intelligent Key itself and
keep the mechanical key with you to
protect your belongings.

To prevent the glove box from being
opened during valet hand-off, follow the
procedures below.

Remove the mechanical key from the
Intelligent Key.

Lock the glove box with the mechan-
ical key.

3. Hand the Intelligent Key to the valet,

keeping the mechanical key in your
pocket or bag for insertion into the
Intelligent Key when you retrieve your
vehicle.

See “Storage” (P.2-54).

WARNING

. Always have the doors locked

while driving. Along with the use
of seat belts, this provides great-
er safety in the event of an
accident by helping to prevent
persons from being thrown from
the vehicle. This also helps keep
children and others from unin-
tentionally opening the doors,
and will help keep out intruders.

. Before opening any door, always

look for and avoid oncoming
traffic.

. To help avoid risk of injury or

death through unintended opera-
tion of the vehicle and or its
systems, including entrapment
in windows or inadvertent door
lock activation, do not leave chil-
dren, people who require the
assistance of others or pets un-
attended in your vehicle. Addi-
tionally, the temperature inside a
closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury
or death to people and pets.

SPA2457B

LOCKING WITH MECHANICAL KEY

The power door lock system allows you to
lock or unlock all doors simultaneously
using the mechanical key.
. Turning the driver’s door key cylinder

to the front of the vehicle

will lock all

doors.

. Turning the driver’s door key cylinder

once to the rear of the vehicle

will

unlock the driver’s door. After return-
ing the key to the neutral position

turning it to the rear again within 5
seconds will unlock all doors.

. You can switch the lock system to the

mode that allows you to open all the
doors when the key is turned once.

DOORS

(See NissanConnect® Owner’s Man-
ual.)

OPENING AND CLOSING WINDOWS
WITH THE MECHANICAL KEY

The driver’s door key operation also
allows you to open and close all door
windows.

To open the windows, turn the driver’s
door key cylinder to the rear of the vehicle
for longer than 1 second. The door is
unlocked and the window keeps opening
while turning the key.

This function can also be performed by
pushing and holding the door UNLOCK
button of the Intelligent Key. (See “Re-
mote keyless entry system” (P.3-15).)

To close the windows, turn the driver’s
door key cylinder to the front of the
vehicle for longer than 1 second. The
door is locked and the window keeps
closing while turning the key.

SPA2744

LOCKING WITH INSIDE LOCK KNOB

To lock the door individually, move the
inside lock knob to the lock position

To unlock, move the inside lock knob to
the unlock position

Be sure not to leave the Intelligent Key
inside the vehicle.

JVP0319X

LOCKING WITH POWER DOOR LOCK
SWITCH

Operating the power door lock switch will
lock or unlock all the doors. The switches
are located on the driver’s and front
passenger’s door armrests.

To lock the doors, push the power door
lock switch to the lock position

Be sure not to leave the Intelligent Key
inside the vehicle.

To unlock the doors including the fuel-
filler door, push the power door lock
switch to the unlock position

Pre-driving checks and adjustments

3-5

3-6

Pre-driving checks and adjustments

Lockout protection

When the power door lock switch (driver
or front passenger) is moved to the lock
position with any door open, all doors will
lock and unlock automatically. With the
Intelligent Key left in the vehicle and any
door open, all doors will unlock automa-
tically and a chime will sound after the
door is closed.

These functions help to prevent the
Intelligent Key from being accidentally
locked inside the vehicle.

AUTOMATIC DOOR LOCKS

. All doors lock automatically when the

vehicle speed reaches 15 MPH (24
km/h).

. All doors unlock automatically when

the ignition switch is placed in the OFF
position.

The automatic unlock function can be
deactivated or activated. To deactivate
or activate the automatic door unlock
system, perform the following procedure:

Close all doors.

Place the ignition switch in the ON
position.

3. Within 20 seconds of performing Step

2, push and hold the power door lock
switch to the

position (UNLOCK)

for more than 5 seconds.

4. When activated, the hazard indicator

will flash twice. When deactivated, the
hazard indicator will flash once.

5. The ignition switch must be placed in

the OFF and ON position again be-
tween each setting change.

When the automatic door unlock system
is deactivated, the doors do not unlock
when the ignition switch is placed in the
OFF position. To unlock the door manu-
ally, use the inside lock knob or the power
door lock switch (driver’s or front passen-
ger’s side).

SPA2745

CHILD SAFETY REAR DOOR LOCK

Child safety rear door locks help prevent
doors from being opened accidentally,
especially when small children are in the
vehicle.

When the levers are in the lock position

, the rear doors can be opened only

from the outside.

To disengage, move the levers to the
unlock position

WARNING

. Radio waves could adversely af-

fect electric medical equipment.
Those who use a pacemaker
should contact the electric med-
ical equipment manufacturer for
the possible influences before
use.

. The Intelligent Key transmits

radio waves when the buttons
are pushed. The FAA advises that
the radio waves may affect air-
craft navigation and communica-
tion systems. Do not operate the
Intelligent Key while on an air-
plane. Make sure the buttons are
not operated unintentionally
when the unit is stored during a
flight.

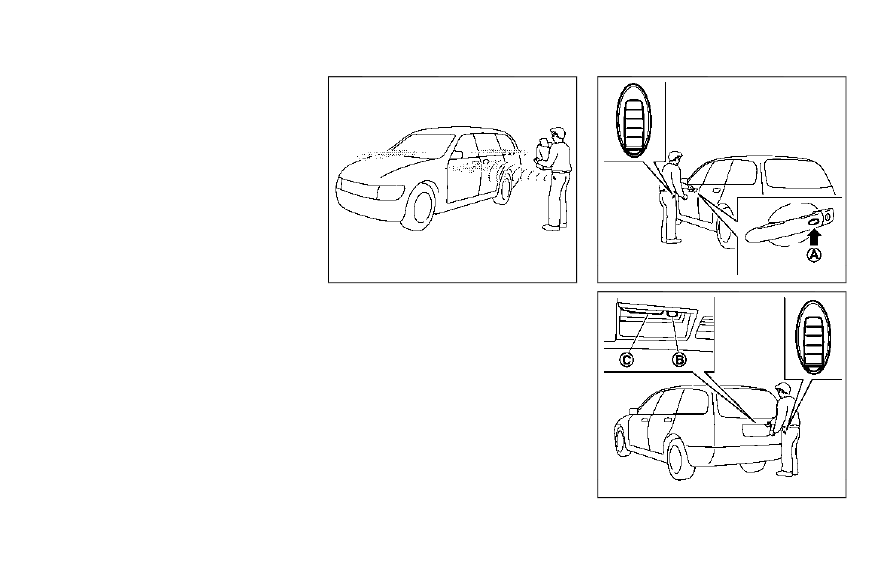

The Intelligent Key system can operate all
the door locks using the remote control-
ler function or pushing the request switch
on the vehicle without taking the key out
from a pocket or purse. The operating
environment and/or conditions may af-
fect the Intelligent Key system operation.

Be sure to read the following before using
the Intelligent Key system.

CAUTION

. Be sure to carry the Intelligent

Key with you when operating the
vehicle.

. Never leave the Intelligent Key in

the vehicle when you leave the
vehicle.

The Intelligent Key is always communi-
cating with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the opera-
tion of the Intelligent Key system under
the following operating conditions.
. When operating near a location where

strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.

. When in possession of wireless equip-

ment, such as a cellular telephone,
transceiver, and CB radio.

. When the Intelligent Key is in contact

with or covered by metallic materials.

. When any type of radio wave remote

control is used nearby.

. When the Intelligent Key is placed near

an electric appliance such as a perso-
nal computer.

. When the vehicle is parked near a

parking meter.

In such cases, correct the operating
conditions before using the Intelligent
Key function or use the mechanical key.

Although the life of the battery varies
depending on the operating conditions,
the battery’s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.

Since the Intelligent Key is continuously
receiving radio waves, if the key is left
near equipment which transmits strong
radio waves, such as signals from a TV
and personal computer, the battery life
may become shorter.

For information regarding replacement of
a battery, see “Intelligent Key battery
replacement” (P.8-21).

As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
information about the purchase and use
of additional Intelligent Keys, contact a
NISSAN dealer.

CAUTION

. Do not allow the Intelligent Key,

which contains electrical compo-
nents, to come into contact with
water or salt water. This could

Pre-driving checks and adjustments

3-7

INTELLIGENT KEY SYSTEM

3-8

Pre-driving checks and adjustments

affect the system function.

. Do not drop the Intelligent Key.
. Do not strike the Intelligent Key

sharply against another object.

. Do not change or modify the

Intelligent Key.

. Wetting may damage the Intelli-

gent Key. If the Intelligent Key
gets wet, immediately wipe until
it is completely dry.

. If the outside temperature is be-

low 14°F (−10°C), the battery of the
Intelligent Key may not function
properly.

. Do not place the Intelligent Key

for an extended period in an area
where temperatures exceed
140°F (60°C).

. Do not attach the Intelligent Key

with a key holder that contains a
magnet.

. Do not place the Intelligent Key

near equipment that produces a
magnetic field, such as a TV,
audio equipment and personal
computers.

If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID code
of that Intelligent Key from the vehicle.

This may prevent the unauthorized use of
the Intelligent Key to operate the vehicle.
For information regarding the erasing
procedure, it is recommended that you
contact a NISSAN dealer.

SPA2074

INTELLIGENT KEY OPERATING
RANGE

The Intelligent Key functions can only be
used when the Intelligent Key is within
the specified operating range from the
request switch

When the Intelligent Key battery is dis-
charged or strong radio waves are pre-
sent near the operating location, the
Intelligent Key system’s operating range
becomes narrower, and the Intelligent
Key may not function properly.

The operating range is within 31.50 in (80
cm) from each request switch

If the Intelligent Key is too close to the

door glass, handle or rear bumper the
request switches may not function.

When the Intelligent Key is within the
operating range, it is possible for anyone
who does not carry the Intelligent Key to
push the request switch to lock/unlock
the doors.

SPA2326

DOOR LOCKS/UNLOCKS PRECAU-
TION

. Do not push the door handle request

switch with the Intelligent Key held in
your hand as illustrated. The close
distance to the door handle will cause
the Intelligent Key system to have
difficulty recognizing that the Intelli-
gent Key is outside the vehicle.

. After locking with the door handle

request switch, verify the doors are
securely locked by testing them.

. To prevent the Intelligent Key from

being left inside the vehicle, make sure
you carry the key with you and then
lock the doors.

Pre-driving checks and adjustments

3-9

3-10

Pre-driving checks and adjustments

. Do not pull the door handle before

pushing the door handle request
switch. The door will be unlocked but
will not open. Release the door handle
once and pull it again to open the
door.

. The Intelligent Key system (opening/

closing doors with the door handle
request switch) can be set to remain
inactive. (See NissanConnect® Owner’s
Manual.)

SPA2408

INTELLIGENT KEY OPERATION

You can lock or unlock the doors without
taking the key out from your pocket or
bag.

JVP0196X

JVP0197X

When you carry the Intelligent Key with
you, you can lock or unlock all doors by
pushing the door handle request switch
(driver’s or front passenger’s)

or the

liftgate request switch

within the range

of operation.

When you lock or unlock the doors or the
liftgate, the hazard indicator will flash and
the horn (or the outside chime) will sound
as a confirmation. For details, see “Setting
hazard indicator and horn mode” (P.3-17).

Welcome light and farewell light
function

When you lock or unlock the doors
including the liftgate, the parking lights,
tail lights, side marker light and the
license plate light will illuminate for a
period of time. The welcome light and
farewell light function can be disabled.
For information about disabling the wel-
come light and farewell light function, it is
recommended you see a NISSAN dealer.

Locking doors and fuel-filler door

Move the shift lever to the P (Park)
position, push the ignition switch to
the OFF position and make sure you
carry the Intelligent Key with you.*1

Close all the doors.*2

Push the door handle request switch
(driver’s or front passenger’s)

or the

liftgate request switch

while carry-

ing the Intelligent Key with you.*3

4. All the doors and fuel-filler door will

lock.

5. The hazard indicator flashes twice

and the outside chime sounds twice.

*1: Doors will lock with the Intelligent Key
while the ignition switch is in the ACC or
ON position.

*2: Doors will not lock with the Intelligent
Key while any door is open.

*3: Doors will not lock by pushing the door
handle request switch with the Intelligent
Key inside the vehicle.

However, when an Intelligent Key is inside
the vehicle, doors can be locked with
another registered Intelligent Key.

CAUTION

. After locking the doors using the

request switch, make sure that
the doors have been securely
locked by operating the door
handles.

. When locking the doors using the

request switch, make sure to
have the Intelligent Key in your

possession before operating the
request switch to prevent the
Intelligent Key from being left in
the vehicle.

. The request switch is operational

only when the Intelligent Key has
been detected by the Intelligent
Key system.

Lockout protection:

To prevent the Intelligent Key from being
accidentally locked in the vehicle, lockout
protection is equipped with the Intelligent
Key system.

When the driver’s side door is open, the
doors are locked, and then the Intelligent
Key is put inside the vehicle and all the
doors are closed; the lock will automati-
cally unlock and the door buzzer sounds.

NOTE:

The doors may not lock when the
Intelligent Key is in the same hand that
is operating the request switch to lock
the door. Put the Intelligent Key in a
purse, pocket or your other hand.

Pre-driving checks and adjustments

3-11

3-12

Pre-driving checks and adjustments

CAUTION

The lockout protection may not
function under the following condi-
tions:
. When the Intelligent Key is placed

on top of the instrument panel.

. When the Intelligent Key is placed

inside the glove box or a storage
bin.

. When the Intelligent Key is placed

inside the door pockets.

. When the Intelligent Key is placed

inside or near metallic materials.

Unlocking doors and fuel-filler door

Push the door handle request switch
(driver’s or front passenger’s)

or the

liftgate request switch

once while

carrying the Intelligent Key with you.

When you approach the vehicle with
the Intelligent Key, the puddle light
and the passenger cabin illumination
will illuminate and stay on for a short
period of time (if so equipped). (See
“Welcome light” (P.2-68).)

The hazard indicator flashes once and
outside chime sounds once. The cor-
responding door will unlock.

The fuel-filler door will also unlock
when the driver’s door handle request
switch is pushed.

Push the door handle request switch
again within 60 seconds.

4. The hazard indicator flashes once and

outside chime sounds once again. All
the doors will unlock.

The liftgate can be unlocked and opened
by pushing the liftgate opener switch. See
“Liftgate” (P.3-22).

All doors will be locked automatically
unless one of the following operations is
performed within 1 minute after pushing
the request switch while the doors are
locked. If during this 1-minute time period,
the request switch is pushed, all doors will
be locked automatically after another 1
minute.
. Opening any door

. Pushing the ignition switch

Power liftgate open (if so equipped)

Carry the Intelligent Key.

Push the power liftgate opener switch

The liftgate will unlock and automati-
cally open.

4. The hazard indicator flashes 4 times

and the outside chime sounds.

BATTERY SAVER SYSTEM

When all the following conditions are met
for a period of time, the battery saver
system will cut off the power supply to
prevent battery discharge.
. The ignition switch is in the ACC

position, and

. All doors are closed, and

. The shift lever is in the P (Park)

position.

WARNING SIGNALS

To help prevent the vehicle from moving
unexpectedly by erroneous operation of
the Intelligent Key listed on the following
chart or to help prevent the vehicle from
being stolen, chime or beep sounds inside
and outside the vehicle and a warning
displays in the vehicle information display.

When a chime or beep sounds or the
warning displays, be sure to check the
vehicle and Intelligent Key.

See “Troubleshooting guide” (P.3-13) and
“Vehicle information display” (P.2-20).

Nissan Armada (2019 year). Instruction - part 11
