To shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:

– Rapidly push the push-button ignition

switch three consecutive times in less
than 1.5 seconds, or

– Push and hold the push-button ignition

switch for more than 2 seconds.

TIRE PRESSURE MONITORING
SYSTEM (TPMS)

This vehicle is equipped with TPMS. It moni-
tors tire pressure of all tires except the
spare. When the low tire pressure warning
light is lit, and the “Tire Pressure Low - Add
Air” warning appears in the vehicle infor-
mation display, one or more of your tires is
significantly under-inflated. If equipped, the
system also displays pressure of all tires
(except the spare tire) on the display screen
by sending a signal from a sensor that is
installed in each wheel. If the vehicle is be-
ing driven with low tire pressure, the TPMS
will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 mph (25 km/h). For addi-
tional information, refer to “Warning lights,
indicator lights and audible reminders” in
the “Instruments and controls” section and
“Tire Pressure Monitoring System (TPMS)” in
the “Starting and driving” section of this
manual.

WARNING

∙ Radio waves could adversely affect

electric medical equipment. Those
who use a pacemaker should contact
the

electric

medical

equipment

manufacturer for the possible influ-
ences before use.

∙ If the low tire pressure warning light

illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop
the vehicle as soon as possible. Driv-
ing with under-inflated tires may per-
manently damage the tires and in-
crease the likelihood of tire failure.
Serious vehicle damage could occur
and may lead to an accident and could
result

serious

personal

injury.

Check the tire pressure for all four
tires. Adjust the tire pressure to the
recommended COLD tire pressure
shown on the Tire and Loading Infor-
mation label to turn the low tire pres-
sure warning light OFF. If you have a
flat tire, replace it with a spare tire as
soon as possible.

EMERGENCY ENGINE SHUT OFF

FLAT TIRE

In case of emergency

6-3

∙ When replacing a wheel without the

TPMS such as the spare tire, TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately one minute. Have your tires re-
placed and/or TPMS system reset as
soon as possible. It is recommended
that you visit a NISSAN dealer for
these services.

∙ Replacing tires with those not origi-

nally specified by NISSAN could affect
the proper operation of the TPMS.

∙ Do not inject any tire liquid or aerosol

tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.

CHANGING A FLAT TIRE

If you have a flat tire, follow the instructions
below:

Stopping the vehicle

1. Safely move the vehicle off the road and

away from traffic.

2. Turn on the hazard warning flashers.

3. Park on a level surface and apply the

parking brake. Move the shift lever to P
(Park).

4. Turn off the engine.

5. Raise the hood to warn other traffic

and to signal professional road assis-
tance personnel that you need assis-
tance.

6. Have all passengers get out of the ve-

hicle and stand in a safe place, away
from traffic and clear of the vehicle.

WARNING

∙ Make sure the parking brake is se-

curely applied and the CVT is shifted
into P (Park).

∙ Never change tires when the vehicle is

on a slope, ice or slippery areas. This is
hazardous.

∙ Never change tires if oncoming traffic

is close to your vehicle. Wait for pro-
fessional road assistance.

Blocks

Flat tire

Blocking wheels

Place suitable blocks at both the front and
back of the wheel diagonally opposite the
flat tire to prevent the vehicle from moving
when it is jacked up.

WARNING

Be sure to block the wheel as the vehicle
may move and result in personal injury.

LCE2142

6-4

In case of emergency

Getting the spare tire and tools

Open the trunk. Lift the luggage floor. Re-
move the wheel nut wrench

䊊

and the

jack

䊊

from the storage cover

䊊

. Then

remove the tool storage cover

䊊

to access

the spare tire.

Type A (if so equipped)

LCE2046

Type B (if so equipped)

LCE2303

Type C (if so equipped)

LCE2379

In case of emergency

6-5

Turn the clamp to remove the spare tire.
Remove the spare tire.

Removing wheel cover (if so
equipped)

CAUTION

Do not use your hands to pry off wheel
caps or wheel covers. Doing so could
result in personal injury.

To remove the wheel cover, use the jack rod

䊊

as illustrated.

Apply cloth

䊊

between the wheel and jack

rod to prevent damaging the wheel and
wheel cover.

Type A (if so equipped)

WCE0067

Type B (if so equipped)

LCE0075

SCE0630

6-6

In case of emergency

Use caution not to scratch the wheel cover
or wheel surface.

Jacking up vehicle and removing
the damaged tire

WARNING

∙ Never get under the vehicle while it is

supported only by the jack. If it is nec-
essary to work under the vehicle, sup-
port it with safety stands.

∙ Use only the jack provided with your

vehicle to lift the vehicle. Do not use
the jack provided with your vehicle on
other vehicles. The jack is designed
for lifting only your vehicle during a
tire change.

∙ Use the correct jack-up points. Never

use any other part of the vehicle for
jack support.

∙ Never jack up the vehicle more than

necessary.

∙ Never use blocks on or under the jack.

∙ Do not start or run the engine while

vehicle is on the jack. It may cause the
vehicle to move. This is especially true
for

vehicles

with

limited

slip

differentials.

∙ Do not allow passengers to stay in the

vehicle while it is on the jack.

∙ Never run the engine with a wheel(s)

off the ground. It may cause the ve-
hicle to move.

Jack-up point

WCE0160

In case of emergency

6-7

Always refer to the illustration for the cor-
rect placement and jack-up points for your
specific vehicle model and jack type.

Carefully read the caution label attached
to the jack body and the following in-
structions.

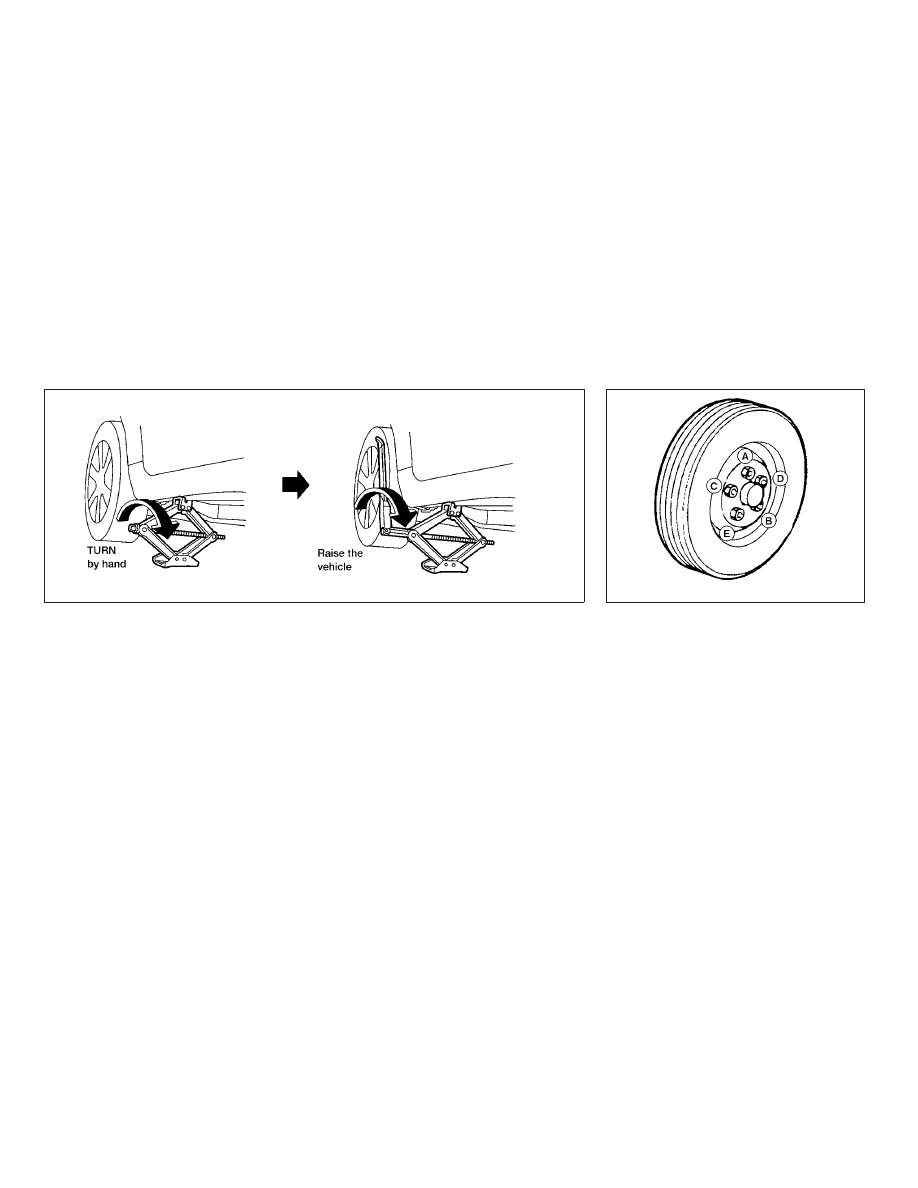

1. Loosen each wheel nut one or two

turns by turning counterclockwise with
the wheel nut wrench. Do not remove
the wheel nuts until the tire is off the
ground.

2. Place the jack directly under the

jack-up point as illustrated so the top
of the jack contacts the vehicle at the

jack-up point. Align the jack head be-
tween the two notches in the front or
the rear as shown. Also fit the groove of
the jack head between the notches as
shown.

The jack should be used on firm and
level ground.

3. To lift the vehicle, securely hold the jack

lever and rod with both hands. Carefully
raise the vehicle until the tire clears the
ground. Remove the wheel nuts, and
then remove the tire.

Installing the spare tire

The spare tire is designed for emergency
use. For additional information, refer to
“Wheels and tires” in the “Do-it-yourself ”
section of this manual.

1. Clean any mud or dirt from the surface

between the wheel and hub.

2. Carefully put the spare tire on and

tighten the wheel nuts finger tight.

3. With the wheel nut wrench, tighten

wheel nuts alternately and evenly in the
sequence illustrated (

䊊

)

until they are tight.

LCE0020

WCE0056

6-8

In case of emergency

4. Lower the vehicle slowly until the tire

touches the ground. Then, with the
wheel nut wrench, tighten the wheel
nuts securely in the sequence illus-
trated (

䊊

). Lower the ve-

hicle completely.

WARNING

∙ Incorrect wheel nuts or improperly

tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.

∙ Do not use oil or grease on the wheel

studs or nuts. This could cause the
nuts to become loose.

∙ Retighten the wheel nuts when the

vehicle has been driven for 1,000 km
(600 miles) (also in cases of a flat tire,
etc.).

As soon as possible, tighten the wheel
nuts to the specified torque with a
torque wrench.

Wheel nut tightening torque:

83 ft-lb (113 N·m)

The wheel nuts must be kept tightened
to specification at all times. It is recom-
mended that wheel nuts be tightened to
specifications at each lubrication inter-
val.

Adjust tire pressure to the COLD pres-
sure.

COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km).

COLD tire pressures are shown on the
Tire Load and Information label affixed
to the driver side center pillar.

5. Securely store the flat tire and jacking

equipment in the vehicle.

6. Place the spare tire cover and the trunk

floor carpeting over the damaged tire.

7. Close the trunk.

WARNING

∙ Always make sure that the spare tire

and jacking equipment are properly
secured after use. Such items can be-
come dangerous projectiles in an ac-
cident or sudden stop.

∙ The spare tire is designed for emer-

gency use. For additional information,
refer to “Wheels and tires” in the “Do-
it-yourself ” section of this manual.

In case of emergency

6-9

To start your engine with a booster battery,
the instructions and precautions below
must be followed.

WARNING

∙ If done incorrectly, jump starting can

lead to a battery explosion, resulting
in severe injury or death. It could also
damage your vehicle.

∙ Explosive hydrogen gas is always

present in the vicinity of the battery.
Keep all sparks and flames away from
the battery.

∙ Do not allow battery fluid to come into

contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a
corrosive sulfuric acid solution which
can cause severe burns. If the fluid
should come into contact with any-
thing, immediately flush the con-
tacted area with water.

∙ Keep battery out of the reach of

children.

∙ The booster battery must be rated at

12 volts. Use of an improperly rated
battery can damage your vehicle.

∙ Whenever working on or near a bat-

tery, always wear suitable eye protec-
tors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the battery
when jump starting.

∙ Do not attempt to jump start a frozen

battery. It could explode and cause
serious injury.

∙ Your vehicle has an automatic engine

cooling fan. It could come on at any
time. Keep hands and other objects
away from it.

JUMP STARTING

6-10

In case of emergency

WARNING

Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.

1. If the booster battery is in another ve-

hicle, position the two vehicles to bring
their batteries near each other.

Do not allow the two vehicles to
touch.

2. Apply the parking brake. Move the shift

lever to P (Park). Switch off all unneces-
sary electrical systems (lights, heater,
air conditioner, etc.).

3. Place the ignition switch in the LOCK

position.

4. Ensure the vent caps are level and

tight.

5. Connect the jumper cables in the se-

quence illustrated (

䊊

CAUTION

∙ Always connect positive (

⫹) to posi-

tive (

⫹) and negative (⫺) to body

ground (for example, strut mounting
bolt, engine lift bracket, etc.) — not to
the battery.

∙ Make sure the jumper cables do not

touch moving parts in the engine
compartment and that the cable
clamps do not contact any other
metal.

6. Start the engine of the booster vehicle

and let it run for a few minutes.

7. Keep the engine speed of the booster

vehicle at about 2,000 rpm and start the
engine of the vehicle being jump
started.

CAUTION

Do not keep the starter motor engaged
for more than 10 seconds. If the engine
does not start right away, place the ig-
nition switch in the OFF position and
wait 3 to 4 seconds before trying again.

8. After starting the engine, carefully dis-

connect the negative cable and then
the positive cable.

LCE2223

In case of emergency

6-11

CAUTION

∙ Do not push start this vehicle. The

three-way catalyst may be damaged.

∙ Continuously Variable Transmission

(CVT) models cannot be push-started
or tow-started. Attempting to do so
may cause transmission damage.

If your vehicle is overheating (indicated by
an extremely high temperature gauge
reading), or if you feel a lack of engine
power, detect abnormal noise, etc. take the
following steps.

WARNING

∙ Do not continue to drive if your vehicle

overheats. Doing so could cause en-
gine damage or a vehicle fire.

∙ To avoid the danger of being scalded,

never remove the radiator cap while
the engine is still hot. When the radia-
tor cap is removed, pressurized hot
water will spurt out, possibly causing
serious injury.

∙ Do not open the hood if steam is com-

ing out.

1. Move the vehicle safely off the road, ap-

ply the parking brake and move the
shift lever to P (Park).

Do not stop the engine.

2. Turn off the air conditioner. Open all the

windows, move the heater or air condi-
tioner temperature control to maxi-
mum hot and fan control to high
speed.

3. Get out of the vehicle. Look and listen

for steam or coolant escaping from the
radiator before opening the hood. (If
steam or coolant is escaping, turn off
the engine.) Do not open the hood fur-
ther until no steam or coolant can be
seen.

4. Open the engine hood.

WARNING

If steam or water is coming from the
engine, stand clear to prevent getting
burned.

5. Visually check drive belts for damage

or looseness. Also check if the cooling
fan is running. The radiator hoses and
radiator should not leak water. If cool-
ant is leaking, the water pump belt is
missing or loose, or the cooling fan
does not run, stop the engine.

WARNING

Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine cool-
ing fan can start at any time.

PUSH STARTING

IF YOUR VEHICLE OVERHEATS

6-12

In case of emergency

6. After the engine cools down, check the

coolant level in the engine coolant res-
ervoir tank with the engine running.
Add coolant to the engine coolant res-
ervoir tank if necessary. It is recom-
mended that you visit a NISSAN dealer
for this service.

When towing your vehicle, all State (Provin-
cial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from a
NISSAN dealer. Local service operators are
generally familiar with the applicable laws
and procedures for towing. To assure
proper towing and to prevent accidental
damage to your vehicle, NISSAN recom-
mends having a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions:

WARNING

∙ Never ride in a vehicle that is being

towed.

∙ Never get under your vehicle after it

has been lifted by a tow truck.

CAUTION

∙ When towing, make sure that the

transmission, axles, steering system
and powertrain are in working condi-
tion. If any of these conditions apply,
dollies or a flatbed tow truck must be
used.

∙ Always attach safety chains before

towing.

For additional information, refer to “Flat
towing” in the “Technical and consumer in-
formation” section of this manual.

TOWING RECOMMENDED BY
NISSAN

NISSAN recommends towing your vehicle
based upon the type of drivetrain. For addi-
tional information, refer to the diagrams in
this section to ensure that your vehicle is
properly towed.

TOWING YOUR VEHICLE

In case of emergency

6-13

2WD models with Continuously
Variable Transmission (CVT)

NISSAN recommends that your vehicle be
towed with the driving (front) wheels off the
ground or place the vehicle on a flatbed
truck as illustrated.

CAUTION

∙ Never tow CVT models with the front

wheels on the ground or four wheels
on the ground (forward or backward),
as this may cause serious and expen-
sive damage to the transmission. If it
is necessary to tow the vehicle with
the rear wheels raised always use
towing dollies under the front wheels.

∙ When towing CVT models with the

rear wheels on the ground or on tow-
ing dollies:

– Place the ignition switch in the OFF

position, and secure the steering
wheel in a straight-ahead position
with a rope or similar device. Never
secure the steering wheel by plac-
ing the ignition switch in the LOCK
position. This may damage the
steering

lock

mechanism

(for

models

with

steering

lock

mechanism).

VEHICLE RECOVERY (freeing a
stuck vehicle)

WARNING

To avoid vehicle damage, serious per-
sonal injury or death when recovering a
stuck vehicle:

∙ Contact a professional towing service

to recover the vehicle if you have any
questions

regarding

the

recovery

procedure.

∙ Tow chains or cables must be at-

tached only to main structural mem-
bers of the vehicle.

∙ Do not use the vehicle tie-downs to

tow or free a stuck vehicle.

LCE2369

6-14

In case of emergency

∙ Only use devices specifically designed

for vehicle recovery and follow the
manufacturer’s instructions.

∙ Always

pull

the

recovery

device

straight out from the front of the ve-
hicle. Never pull at an angle.

∙ Route recovery devices so they do not

touch any part of the vehicle except
the attachment point.

If your vehicle is stuck in sand, snow, mud,
etc., use a tow strap or other device de-
signed specifically for vehicle recovery. Al-
ways follow the manufacturer’s instruc-
tions for the recovery device.

Rocking a stuck vehicle

WARNING

∙ Stand clear of a stuck vehicle.

∙ Do not spin your tires at high speed.

This could cause them to explode and
result in serious injury. Parts of your
vehicle could also overheat and be
damaged.

If your vehicle is stuck in sand, snow, mud,
etc., use the following procedure:

1. Turn off the Vehicle Dynamic Control

(VDC) system.

2. Make sure the area in front and behind

the vehicle is clear of obstructions.

3. Turn the steering wheel right and left to

clear an area around the front tires.

4. Slowly rock the vehicle forward and

backward.

∙ Shift back and forth between R (Re-

verse) and D (Drive).

∙ Apply the accelerator as little as pos-

sible to maintain the rocking motion.

∙ Release the accelerator pedal before

shifting between R (Reverse) and D
(Drive).

∙ Do not spin the tires above 35 mph

(55 km/h).

5. If the vehicle cannot be freed after a

few tries, contact a professional towing
service to remove the vehicle.

In case of emergency

6-15

MEMO

6-16

In case of emergency

7 Appearance and care

Cleaning exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Cleaning interior. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Air fresheners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5
Floor mats (if so equipped) . . . . . . . . . . . . . . . . . . . 7-5
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-6

Corrosion protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

Most common factors contributing to
vehicle corrosion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Environmental factors influence the
rate of corrosion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7
Protect your vehicle from corrosion . . . . . . . . . . 7-7

In order to maintain the appearance of
your vehicle, it is important to take proper
care of it.

To protect the paint surfaces, wash your
vehicle as soon as you can:

∙ After a rainfall to prevent possible dam-

age from acid rain.

∙ After driving on coastal roads.

∙ When contaminants such as soot, bird

droppings, tree sap, metal particles or
bugs get on the paint surface.

∙ When dust or mud builds up on the sur-

face.

Whenever possible, store or park your ve-
hicle inside a garage or in a covered area.

When it is necessary to park outside, park in
a shady area or protect the vehicle with a
body cover.

Be careful not to scratch the paint sur-
face when putting on or removing the
body cover.

WASHING

Wash dirt off with a wet sponge and plenty
of water. Clean the vehicle thoroughly us-
ing a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed
with clean, lukewarm (never hot) water.

CAUTION

∙ Do not use car washes that use acid in

the detergent. Some car washes, es-
pecially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to function
properly. Always check with your car
wash to confirm that acid is not used.

∙ Do not wash the vehicle with strong

household soap, strong chemical de-
tergents, gasoline or solvents.

∙ Do not wash the vehicle in direct sun-

light or while the vehicle body is hot,
as

the

surface

may

become

water-spotted.

∙ Avoid using tight-napped or rough

cloths, such as washing mitts. Care
must

taken

when

removing

caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.

Rinse the vehicle thoroughly with plenty of
clean water.

Inside edges, seams and folds on the
doors, hatches and hood are particularly
vulnerable to the effects of road salt. There-
fore, these areas must be cleaned regularly.
Take care that the drain holes in the lower
edge of the door are open. Spray water
under the body and in the wheel wells to
loosen the dirt and wash away road salt.

A damp chamois can be used to dry the
vehicle to avoid water spots.

WAXING

Regular waxing protects the paint surface
and helps retain new vehicle appearance.
Polishing is recommended to remove
built-up wax residue and to avoid a weath-
ered appearance before re-applying wax.

It is recommended that you visit a NISSAN
dealer to assist you in choosing the proper
product.

CLEANING EXTERIOR

7-2

Appearance and care

Content .. 20 21 22 23 ..
