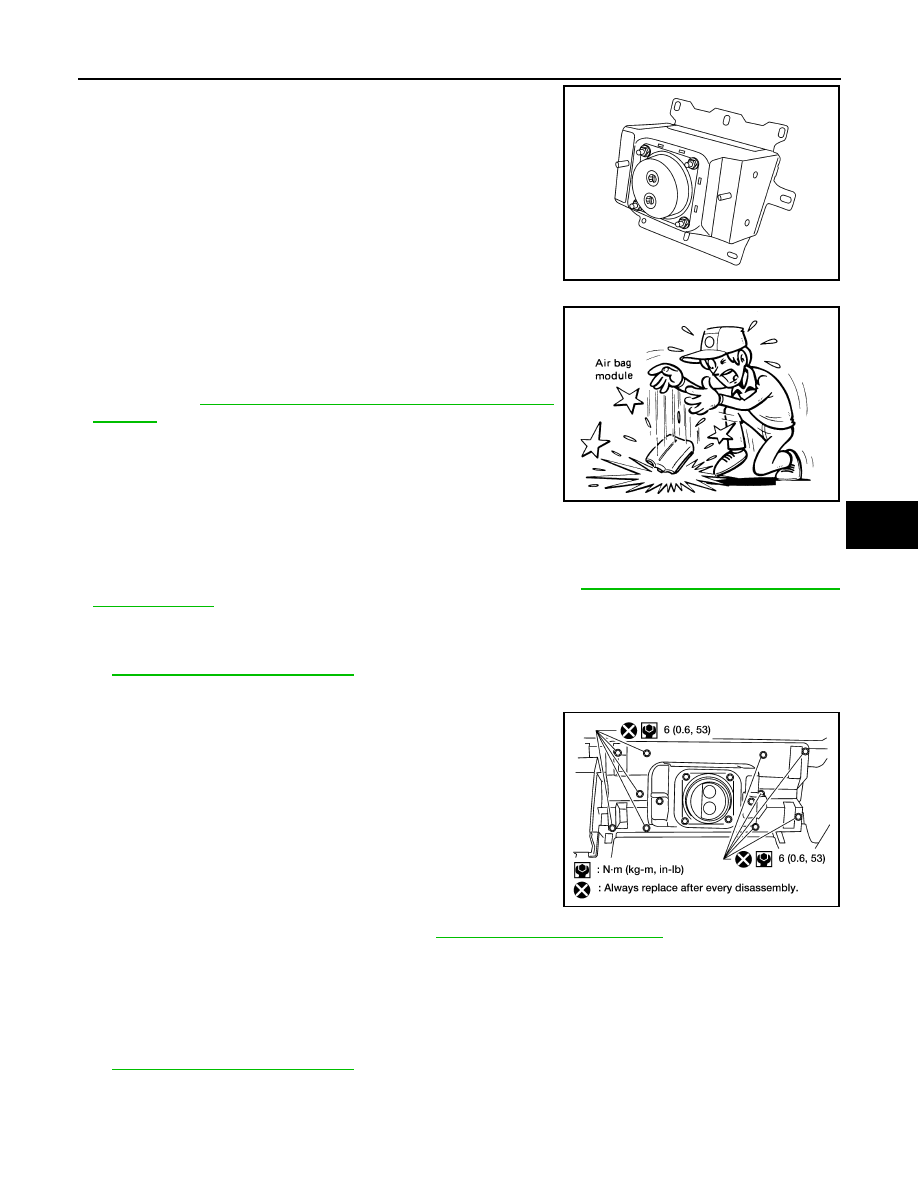

FRONT PASSENGER AIR BAG MODULE

SR-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

• When servicing the SRS, do not work from directly in front of

air bag module.

• Always place front passenger air bag module with caution

label side facing upward.

• Do not insert any foreign objects (screwdriver, etc.) into air

bag module or harness connectors.

• Do not disassemble air bag module.
• Do not use old nuts after removal; replace with new nuts.
• Do not expose the front passenger air bag module to tempera-

tures exceeding 90

°

C (194

°

F).

• Replace the air bag module if it has been dropped or sus-

tained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

• For removal/installation of the direct-connect SRS connec-

tors, refer to

SRC-9, "Direct-connect SRS Component Con-

nectors"

.

INSTALLATION

Original Passenger Air Bag Module

Installation is in the reverse order of removal.
• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

CAUTION:

• Always work from the side of or under front passenger air bag module.
• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-13, "SRS Operation Check"

.

Service Replacement Passenger Air Bag Module

1.

Install the front passenger air bag module to the instrument
panel pad assembly.

2.

Install the instrument panel assembly. Refer to

IP-11, "Removal and Installation"

.

3.

Connect the front passenger air bag module harness connector to yellow 4-pin service replacement air
bag connector and fasten connector to mounting bracket.

CAUTION:

• Always work from the side of or under front passenger air bag module.
• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-13, "SRS Operation Check"

.

WIRING HARNESS MODIFICATION

The passenger air bag module originally installed in the vehicle uses direct-connect style harness connectors.
Service replacement passenger air bag modules use tab-locking style harness connectors. If the passenger

WHIA0111E

SBF814E

WHIA0269E

SR-10

< ON-VEHICLE REPAIR >

FRONT PASSENGER AIR BAG MODULE

air bag module is replaced or if the direct-connect harness connectors are damaged, the vehicle wiring har-
ness must be modified to allow connection of the service replacement passenger air bag module.
NOTE:
The wiring harness modification is to be performed only if the vehicle is equipped with the original passenger
air bag which uses direct-connect harness connectors. If the passenger air bag is to be replaced in a vehicle
that has already had the service replacement passenger air bag installed, the wiring harness modification is
not required.

CAUTION:

• Do not attempt to repair or replace damaged direct-connect front passenger air bag module connec-

tors. If a direct-connect harness connector is damaged, the front passenger air bag must be
replaced and the wiring harness modified.

• Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3

minutes.

• Always work from the side of or under front passenger air bag module.
• After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer

to

SRC-13, "SRS Operation Check"

.

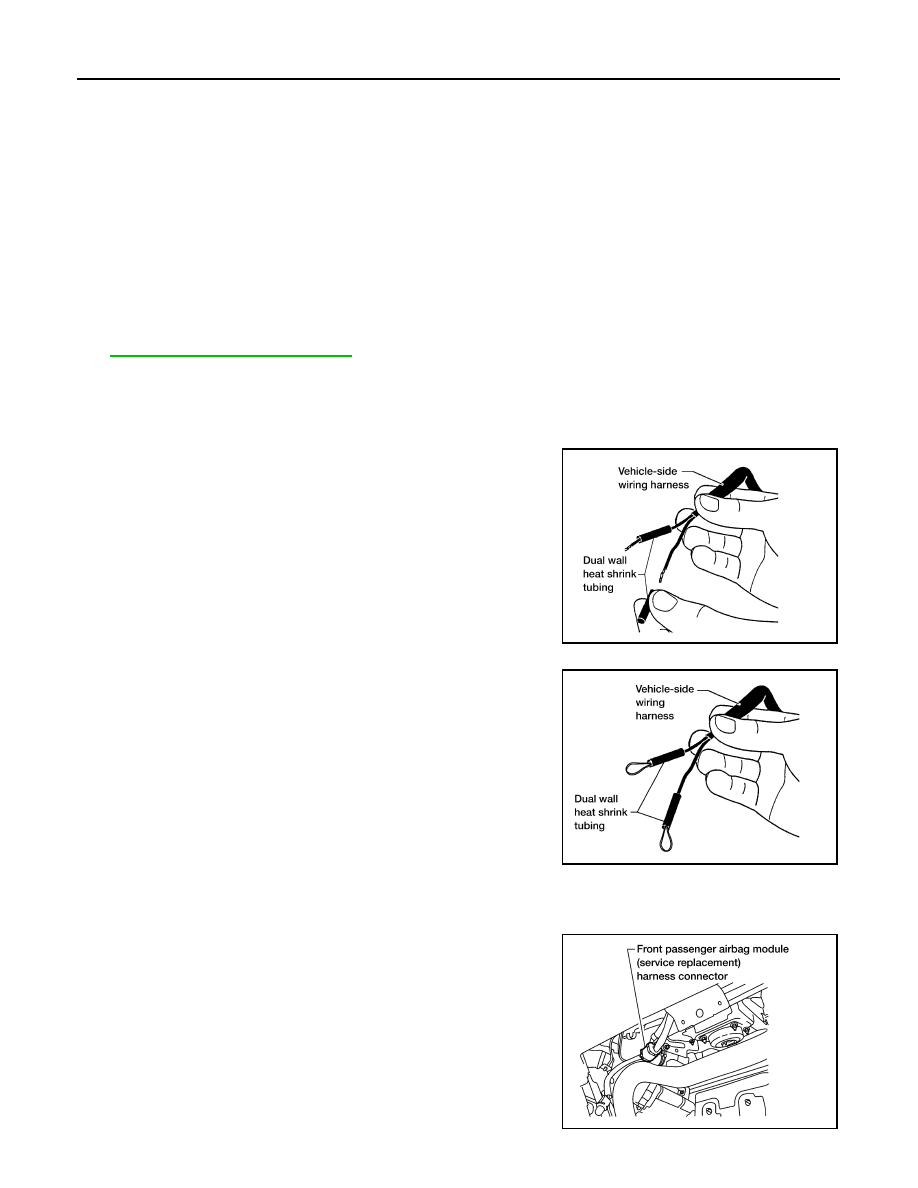

1.

Locate the yellow and orange direct-connect passenger air bag module harness connectors.

2.

Use wire cutters to cut back both previously used direct-connect passenger air bag module harness con-
nectors from the vehicle wiring harness approximately 50 mm (1.9 in) from the connectors.

3.

Remove approximately 150 mm (5.9 in) of the vehicle harness covering from the cut end.

4.

Slide a piece of dual-wall heat shrink tubing (provided in the pas-
senger air bag service kit) onto each wire of the previously used
vehicle wiring harness.

5.

Fold each wire back and insert into the end of the heat shrink
tubing so that the end of the wire is approximately centered in
the heat shrink tubing.

6.

Use a heat gun to shrink the heat shrink tubing and seal the wire.

7.

Use electrical tape to secure the modified circuits to the outside of the wiring harness.

8.

Locate the front passenger air bag service replacement connec-
tor that is taped back to the main harness. Unwrap the tape to
access the yellow service replacement connector and remove
the dust cover from the connector.

LHIA0017E

WHIA0062E

WHIA0118E

SIDE CURTAIN AIR BAG MODULE

SR-11

< ON-VEHICLE REPAIR >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

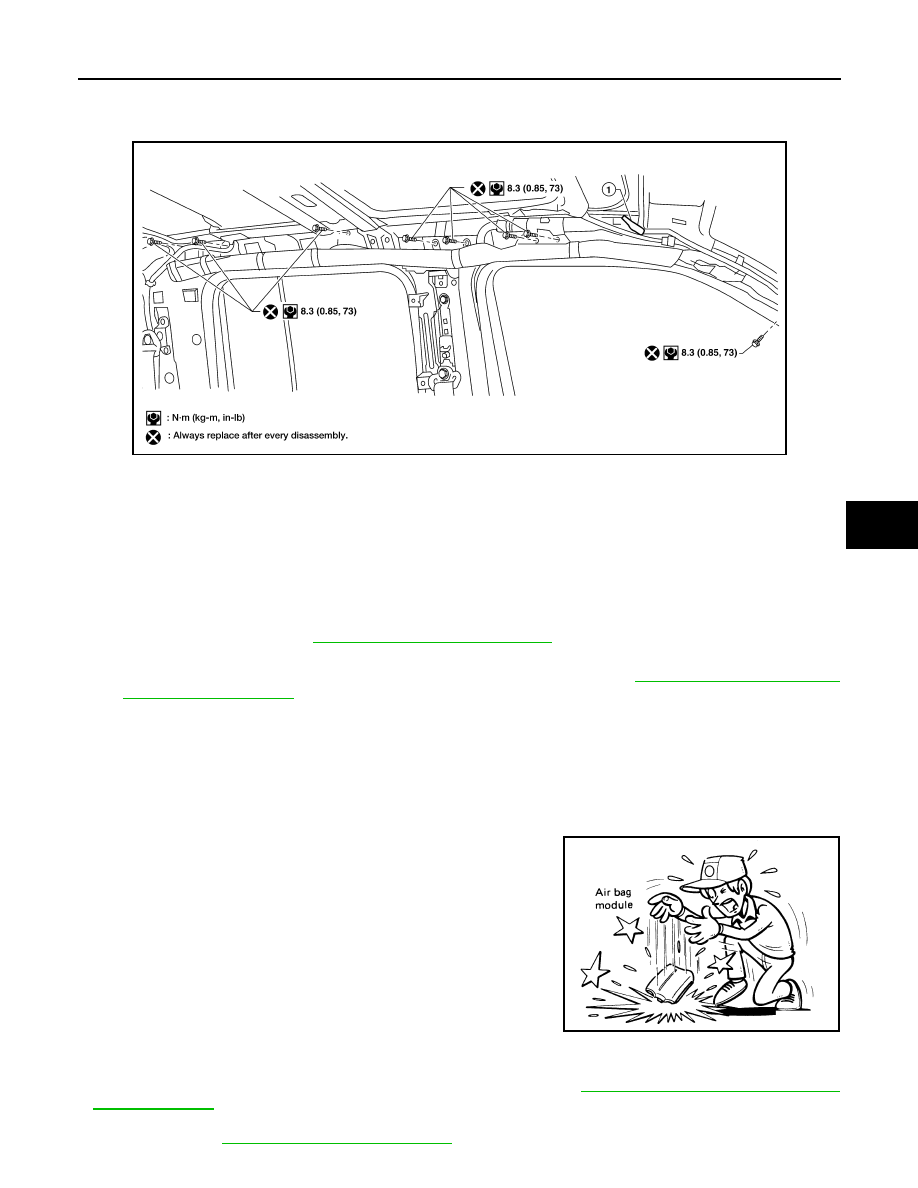

SIDE CURTAIN AIR BAG MODULE

Removal and Installation

INFOID:0000000005272899

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a direct-

connect harness connector is damaged, the harness must be replaced.

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.
1.

Remove headlining. Refer to

INT-24, "Removal and Installation"

.

2.

Disconnect front and rear side curtain air bag module connectors.
• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS

Component Connectors"

.

3.

Remove the bolts in order starting at the front or rear, and remove the side curtain air bag module.

CAUTION:

• When servicing the SRS, do not work from directly in front of air bag module.
• Do not insert any foreign objects (screwdriver, etc.) into air bag module or harness connectors.
• Do not disassemble air bag module.
• Do not expose the air bag module to temperatures exceeding 90

°

C (194

°

F).

• Replace side curtain air bag module if it has been dropped or

sustained an impact.

• Do not allow oil, grease or water to come in contact with the

air bag module.

INSTALLATION

Installation is in the reverse order of removal.
• For removal/installation of the direct-connect SRS connectors, refer to

SRC-9, "Direct-connect SRS Compo-

nent Connectors"

.

• After replacement of side curtain air bag module, perform self-diagnosis to check that no malfunction is

detected. Refer to

SRC-13, "SRS Operation Check"

.

LHIA0100E

1.

Side curtain air bag module connector

SBF814E

SR-12

< ON-VEHICLE REPAIR >

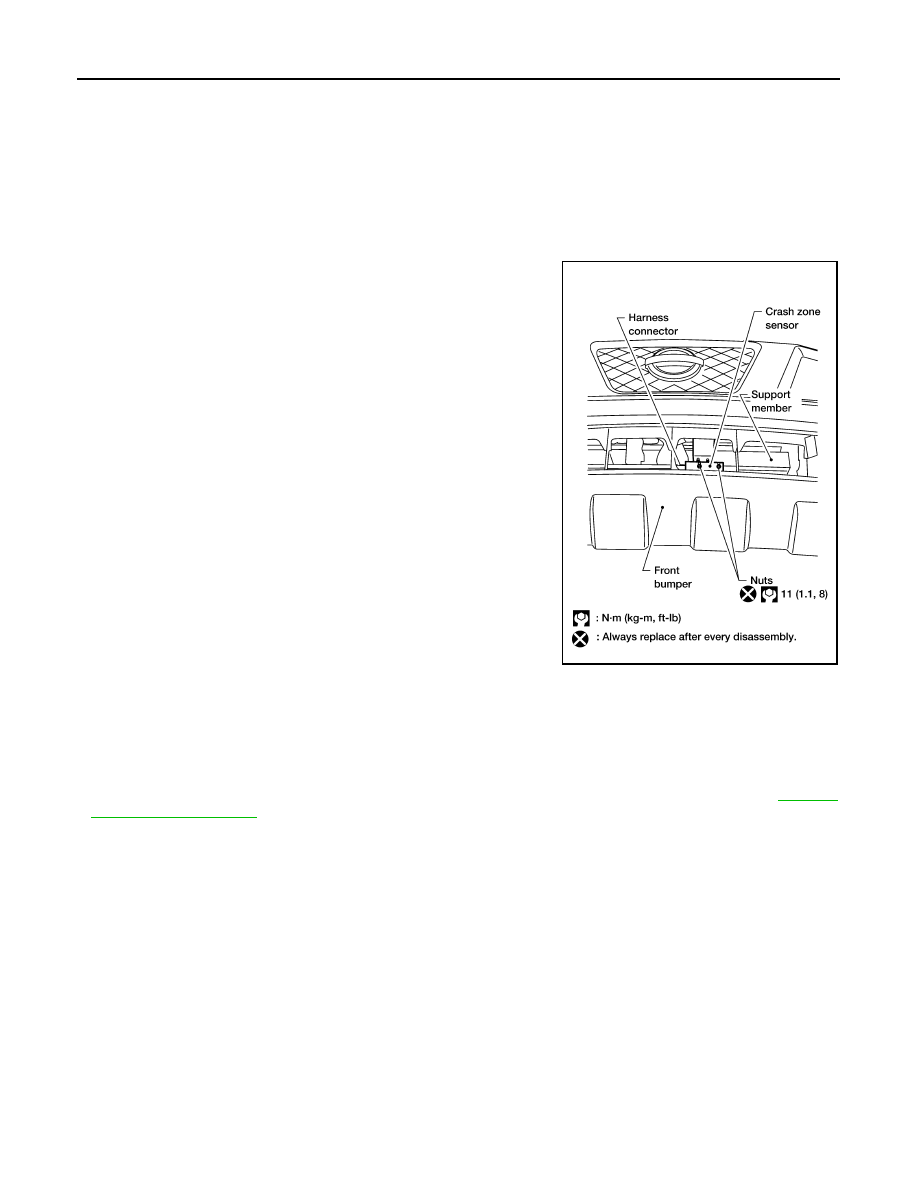

CRASH ZONE SENSOR

CRASH ZONE SENSOR

Removal and Installation

INFOID:0000000005272900

REMOVAL

CAUTION:

• Before servicing the SRS, turn the ignition switch off, disconnect both battery terminals and wait at

least three minutes.

1.

Disconnect the negative and positive battery terminals, then wait at least three minutes.

2.

Remove crash zone sensor nuts and shield from support mem-
ber.

3.

Disconnect the crash zone sensor harness connector.

4.

Remove crash zone sensor.

CAUTION:

• Replace crash zone sensor if it has been dropped or sustained an impact.
• Do not disassemble crash zone sensor.

INSTALLATION

Installation is in the reverse order of removal.
• After the work is complete, perform self-diagnosis to check that no malfunction is detected. Refer to

SRC-13,

"SRS Operation Check"

.

LHIA0090E
