CONTENTS

SRS AIRBAG

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Precaution for SRS "AIR BAG" and "SEAT BELT
PRE-TENSIONER" Service  ....................................
..

2

Occupant Classification System Precaution  .............

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Special Service Tool  .................................................

3

ON-VEHICLE REPAIR ..................................

4

DRIVER AIR BAG MODULE ...............................

4

Removal and Installation ...........................................

4

SPIRAL CABLE  ..................................................

6

Removal and Installation ...........................................

6

FRONT PASSENGER AIR BAG MODULE  ........

8

Removal and Installation  ..........................................

8

SIDE CURTAIN AIR BAG MODULE  ................

11

Removal and Installation  .........................................

11

CRASH ZONE SENSOR ...................................

12

Removal and Installation  .........................................

12

SIDE AIR BAG (SATELLITE) SENSOR  ...........

13

Removal and Installation  .........................................

13

FRONT SEAT BELT PRE-TENSIONER  ...........

14

Removal and Installation  .........................................

14

DIAGNOSIS SENSOR UNIT  .............................

15

Removal and Installation  .........................................

15

OCCUPANT CLASSIFICATION SYSTEM
CONTROL UNIT ................................................

17

Removal and Installation  .........................................

17

COLLISION DIAGNOSIS  ..................................

18

For Frontal Collision  ................................................

18

For Side and Rollover Collision  ...............................

19

SR-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000005568001

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for SRS "AIR BAG" and "SEAT BELT PRE-TENSIONER" Service

INFOID:0000000005272893

• Do not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
• Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-

utes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag and seat belt pre-
tensioner to deploy. Therefore, do not work on any SRS connectors or wires until at least 3 minutes have
passed.

• The air bag diagnosis sensor unit must always be installed with the arrow mark “

” pointing toward the front

of the vehicle for proper operation. Also check the air bag diagnosis sensor unit for cracks, deformities or
rust before installation and replace as required.

• The spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt to

turn steering wheel or column after removal of steering gear.

• Handle air bag module carefully. Always place driver and front passenger air bag modules with the pad side

facing upward and seat mounted front side air bag module standing with the stud bolt side facing down.

• Conduct self-diagnosis to check entire SRS for proper function after replacing any components.
• After air bag inflates, the front instrument panel assembly should be replaced if damaged.

Occupant Classification System Precaution

INFOID:0000000005272894

Replace control unit and passenger front seat cushion as an assembly.

PREPARATION

SR-3

< PREPARATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000005272895

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

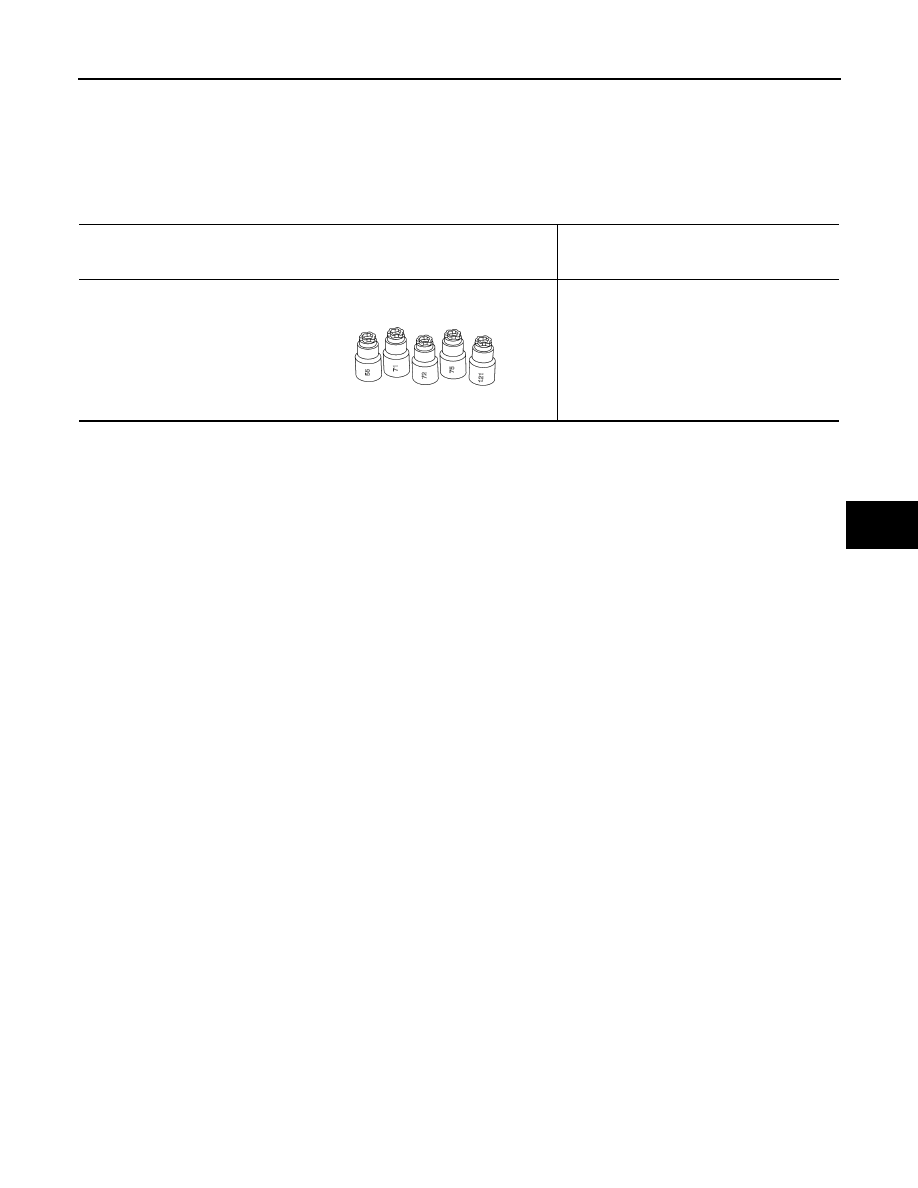

(J-42057-UPD)
Air bag key set
Part of kit (J-42057)

Removing and installing air bag lock

LRS210

SR-4

< ON-VEHICLE REPAIR >

DRIVER AIR BAG MODULE

ON-VEHICLE REPAIR

DRIVER AIR BAG MODULE

Removal and Installation

INFOID:0000000005272896

REMOVAL

CAUTION:

• Do not attempt to repair or replace damaged direct-connect SRS component connectors. If a driver

air bag direct-connect harness connector is damaged, the spiral cable must be replaced.

• Before servicing the SRS, turn ignition switch OFF, disconnect both battery terminals and wait at

least three minutes.

• When servicing the SRS, do not work from directly in front of air bag module.
1.

Disconnect the negative and positive battery terminals, then wait at least three minutes.

2.

Locate retaining clip access hole and insert suitable 4mm - 6mm blunt tool.
NOTE:
Do not use sharp edged objects such as screwdrivers to release driver air bag module from steering
wheel, SRS components may be unintentionally damaged.

1.

Steering wheel

2.

Retaining clip

3.

Driver air bag module connectors

4.

Driver air bag module

5.

Retaining clip access hole

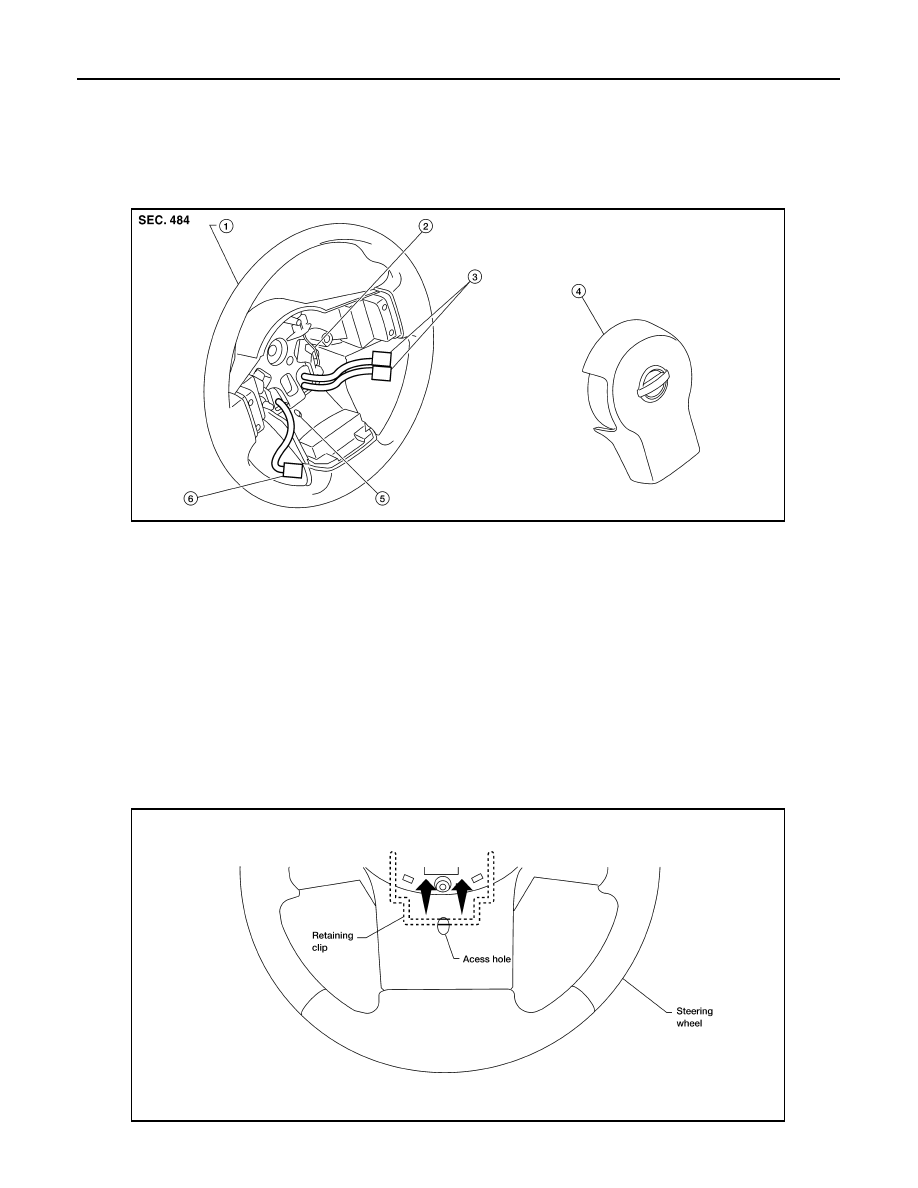

6.

Horn connector

LHIA0084E

LHIA0085E
