Nissan Frontier D40. Manual - part 977





SEC-64

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

DTC Inspection Priority Chart

INFOID:0000000005549842

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority
chart.

DTC Index

INFOID:0000000005549843

NOTE:

Details of time display

• CRNT: Displays when there is a malfunction now or after returning to the normal condition until turning igni-

tion switch OFF

 ON again.

• 1 - 39: Displayed if any previous malfunction is present when current condition is normal. It increases like 1

 2

 3...38

 39 after returning to the normal condition whenever ignition switch OFF

 ON. The counter

remains at 39 even if the number of cycles exceeds it. It is counted from 1 again when turning ignition switch
OFF

 ON after returning to the normal condition if the malfunction is detected again.

Display contents of CONSULT

Fail-safe

Cancellation

U1000: CAN COMM CIRCUIT

Inhibit engine cranking

When the BCM re-establishes communication with the other mod-
ules.

Priority

DTC

1

• U1000: CAN COMM CIRCUIT

2

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM

3

• C1729: VHCL SPEED SIG ERR
• C1735: IGNITION SIGNAL

4

• C1704: LOW PRESSURE FL
• C1705: LOW PRESSURE FR
• C1706: LOW PRESSURE RR
• C1707: LOW PRESSURE RL
• C1708: [NO DATA] FL
• C1709: [NO DATA] FR
• C1710: [NO DATA] RR
• C1711: [NO DATA] RL
• C1712: [CHECKSUM ERR] FL
• C1713: [CHECKSUM ERR] FR
• C1714: [CHECKSUM ERR] RR
• C1715: [CHECKSUM ERR] RL
• C1716: [PRESSDATA ERR] FL
• C1717: [PRESSDATA ERR] FR
• C1718: [PRESSDATA ERR] RR
• C1719: [PRESSDATA ERR] RL
• C1720: [CODE ERR] FL
• C1721: [CODE ERR] FR
• C1722: [CODE ERR] RR
• C1723: [CODE ERR] RL
• C1724: [BATT VOLT LOW] FL
• C1725: [BATT VOLT LOW] FR
• C1726: [BATT VOLT LOW] RR
• C1727: [BATT VOLT LOW] RL

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

No DTC is detected.
further testing
may be required.

U1000: CAN COMM CIRCUIT

BCS-28

BCM (BODY CONTROL MODULE)

SEC-65

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

B2190: NATS ANTTENA AMP

SEC-18

B2191: DIFFERENCE OF KEY

SEC-21

B2192: ID DISCORD BCM-ECM

SEC-22

B2193: CHAIN OF BCM-ECM

SEC-24

C1708: [NO DATA] FL

WT-14

C1709: [NO DATA] FR

WT-14

C1710: [NO DATA] RR

WT-14

C1711: [NO DATA] RL

WT-14

C1712: [CHECKSUM ERR] FL

WT-16

C1713: [CHECKSUM ERR] FR

WT-16

C1714: [CHECKSUM ERR] RR

WT-16

C1715: [CHECKSUM ERR] RL

WT-16

C1716: [PRESSDATA ERR] FL

WT-18

C1717: [PRESSDATA ERR] FR

WT-18

C1718: [PRESSDATA ERR] RR

WT-18

C1719: [PRESSDATA ERR] RL

WT-18

C1720: [CODE ERR] FL

WT-16

C1721: [CODE ERR] FR

WT-16

C1722: [CODE ERR] RR

WT-16

C1723: [CODE ERR] RL

WT-16

C1724: [BATT VOLT LOW] FL

WT-16

C1725: [BATT VOLT LOW] FR

WT-16

C1726: [BATT VOLT LOW] RR

WT-16

C1727: [BATT VOLT LOW] RL

WT-16

C1729: VHCL SPEED SIG ERR

WT-19

C1735: IGNITION SIGNAL

CONSULT display

Fail-safe

Tire pressure

monitor warning

lamp ON

Reference page

SEC-66

< ECU DIAGNOSIS >

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000005549844

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.

0 - 100 %

A/C COMP REQ

A/C switch OFF

OFF

A/C switch ON

ON

TAIL&CLR REQ

Lighting switch OFF

OFF

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

ON

HL LO REQ

Lighting switch OFF

OFF

Lighting switch 2ND HI or AUTO (Light is illuminated)

ON

HL HI REQ

Lighting switch OFF

OFF

Lighting switch HI

ON

FR FOG REQ

Lighting switch 2ND

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

LOW

Front wiper switch HI

HI

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

OFF

Front wiper stops at fail-safe opera-
tion

BLOCK

ST RLY REQ

Ignition switch OFF or ACC

OFF

Ignition switch START

ON

IGN RLY

Ignition switch OFF or ACC

OFF

Ignition switch ON

ON

RR DEF REQ

Rear defogger switch OFF

OFF

Rear defogger switch ON

ON

OIL P SW

Ignition switch OFF, ACC or engine running

OPEN

Ignition switch ON

CLOSE

DTRL REQ

Daytime light system requested OFF with CONSULT-III.

OFF

Daytime light system requested ON with CONSULT-III.

ON

THFT HRN REQ

Not operated

OFF

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

ON

HORN CHIRP

Not operated

OFF

Door locking with keyfob (horn chirp mode)

ON

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

SEC-67

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

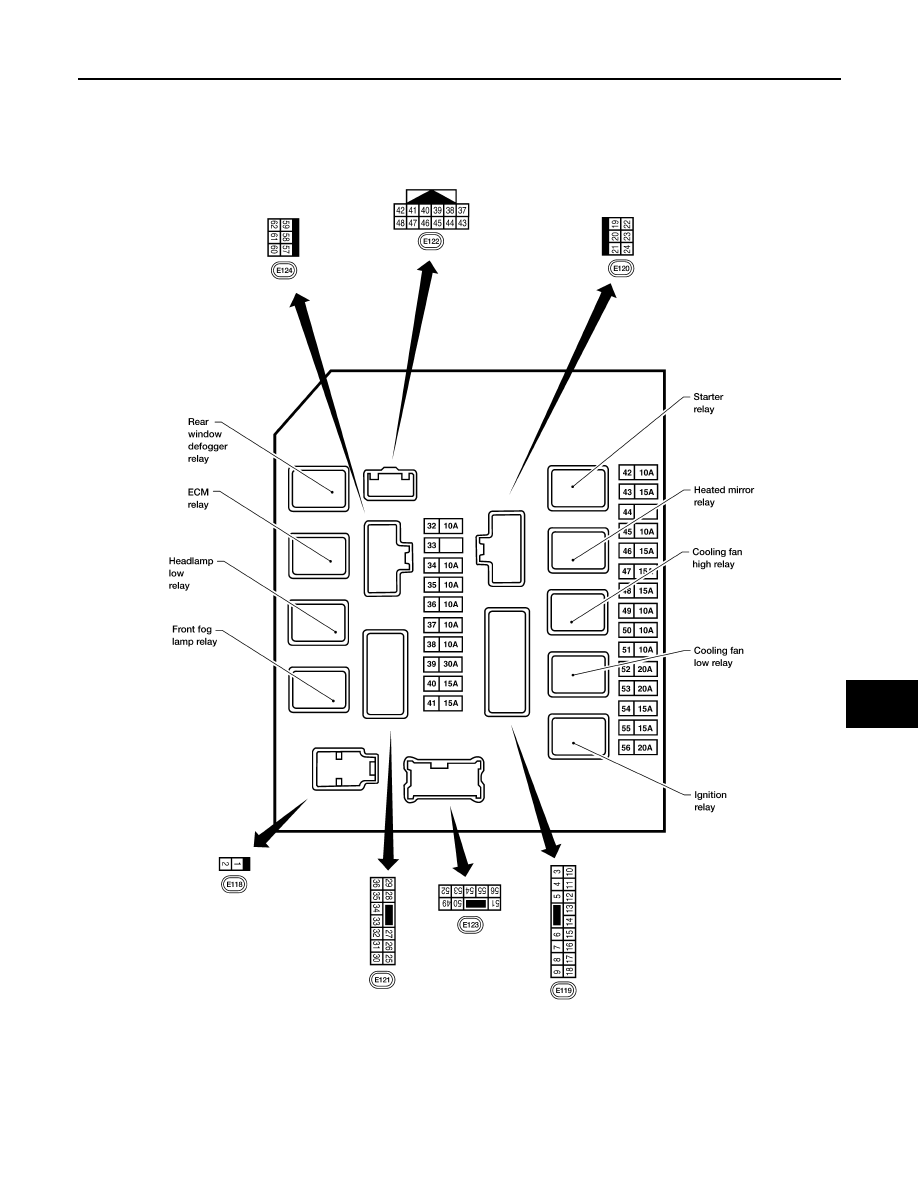

Terminal Layout

INFOID:0000000005549845

TERMINAL LAYOUT —TYPE A

WKIA5883E
