BCM (BODY CONTROL MODULE)

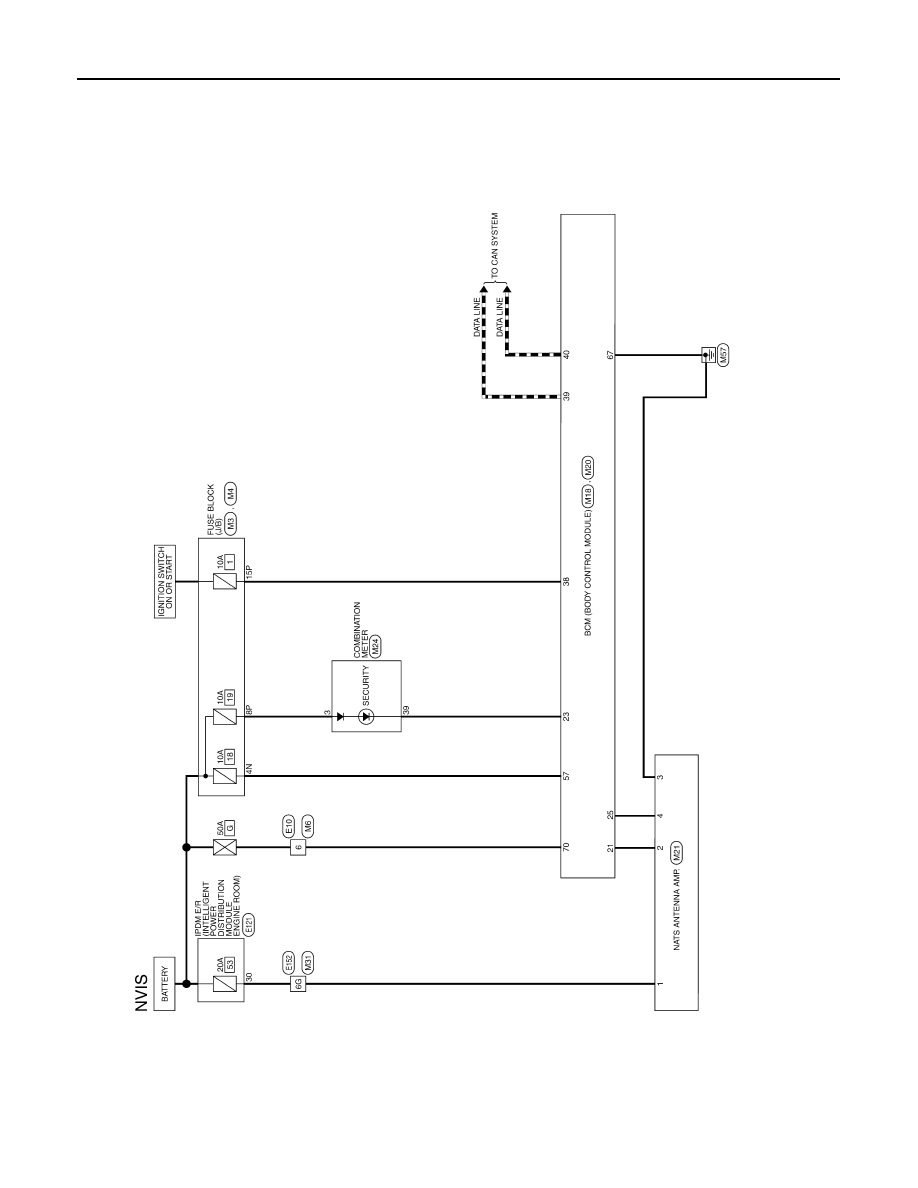

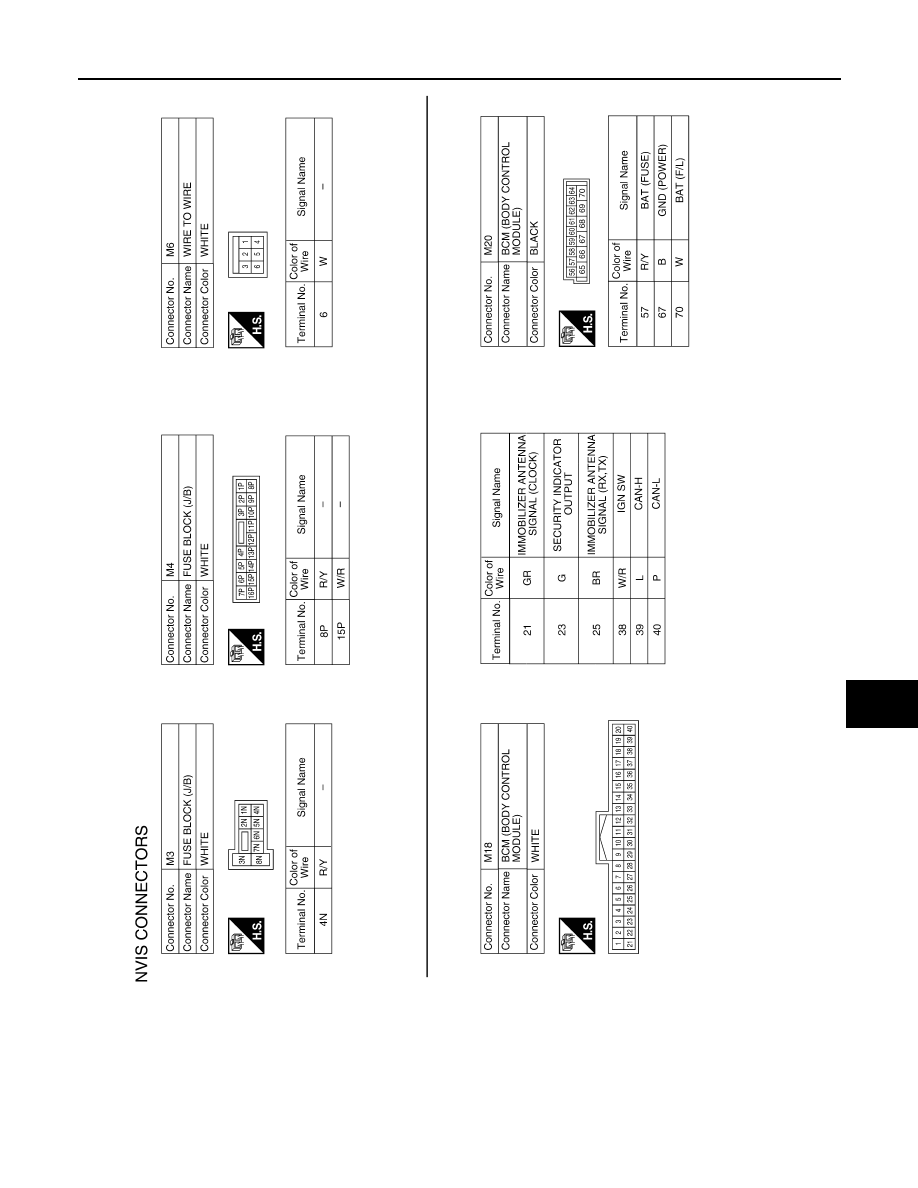

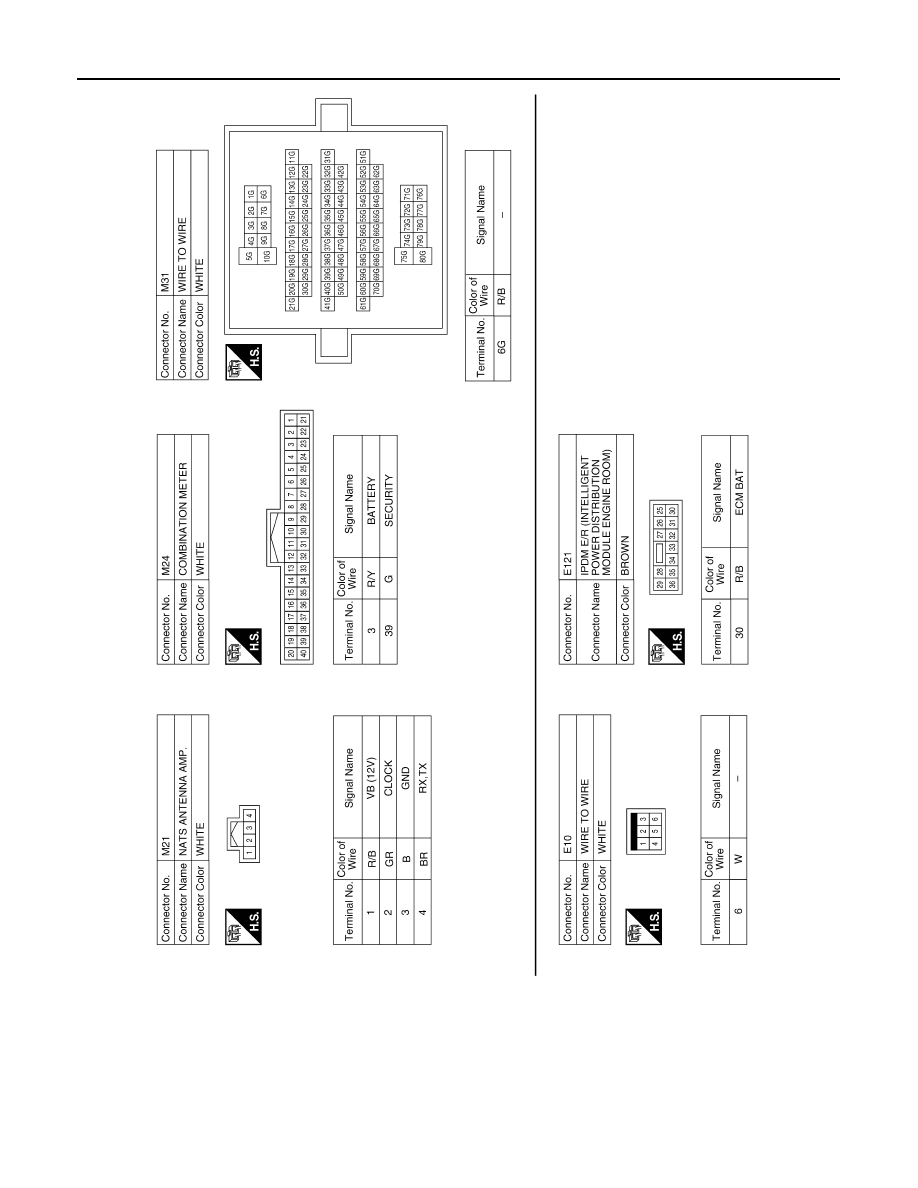

Wiring Diagram - NVIS -

INFOID:0000000005272624

ABKWA0642GB

BCM (BODY CONTROL MODULE)

SEC-61

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ABKIA1865GB

SEC-62

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

ABKIA1866GB

BCM (BODY CONTROL MODULE)

SEC-63

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Fail Safe

INFOID:0000000005549841

Fail-safe index

BCM performs fail-safe control when any DTC listed below is detected.

ABKIA1867GB
