SEC-12

< FUNCTION DIAGNOSIS >

VEHICLE SECURITY SYSTEM

Condition of Deactivating The System

When one of the following operations is performed, the armed phase is canceled.
• Unlock the doors with keyfob.
• Use the mechanical key to unlock the driver door using the door key cylinder.

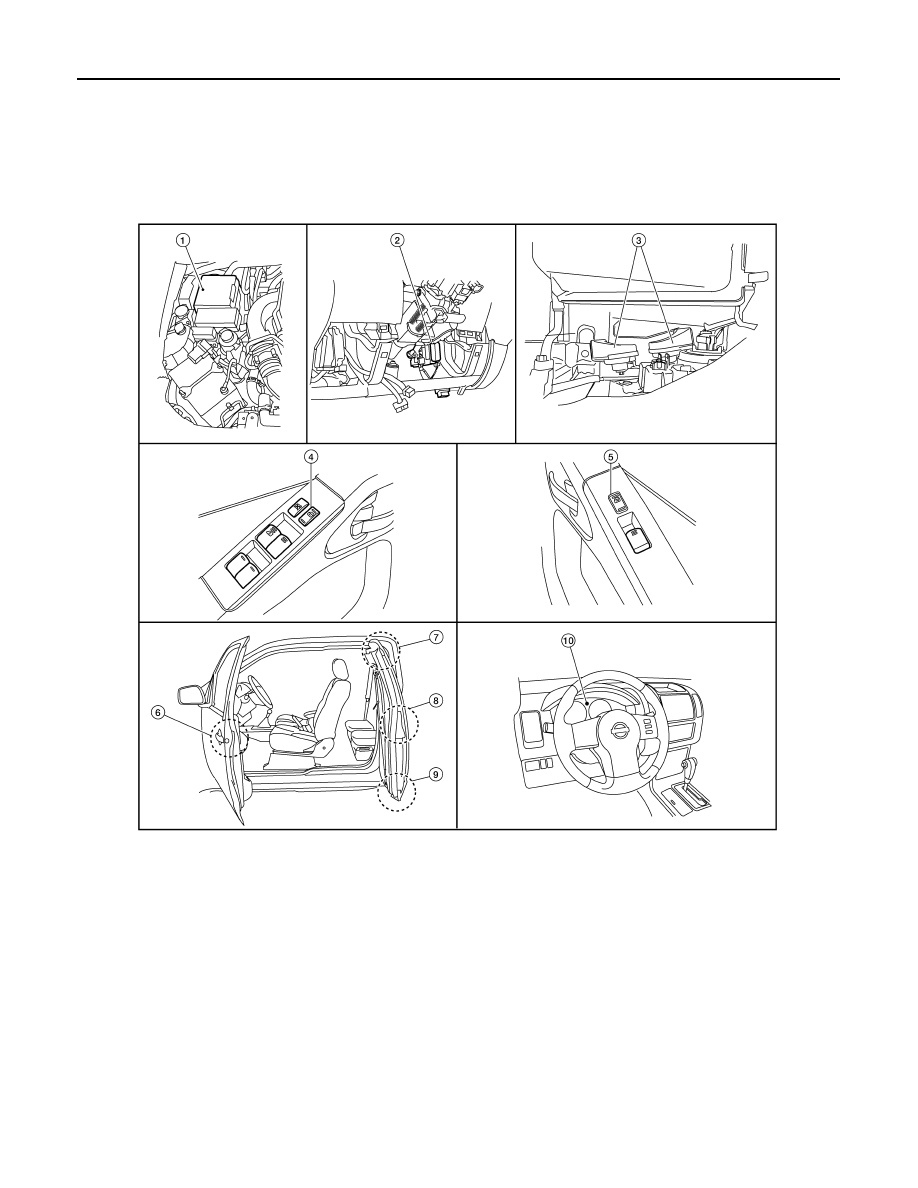

Component Parts Location - King Cab

INFOID:0000000005272583

IPDM E/R E122, E123, E124

BCM M18, M19, M20
(view with lower instrument panel LH
removed)

Horn E3
(behind front combination lamp LH)

Main power window and door lock/
unlock switch D7

Power window and door lock/unlock
switch RH D105

Front door lock assembly LH (key cylin-
der switch) D14

Rear door switch upper
LH D211
RH D312

Front door switch
LH D213
RH D314

Rear door switch lower
LH D212
RH D313

10. Combination meter M24

ALKIA1387ZZ

VEHICLE SECURITY SYSTEM

SEC-13

< FUNCTION DIAGNOSIS >

SEC

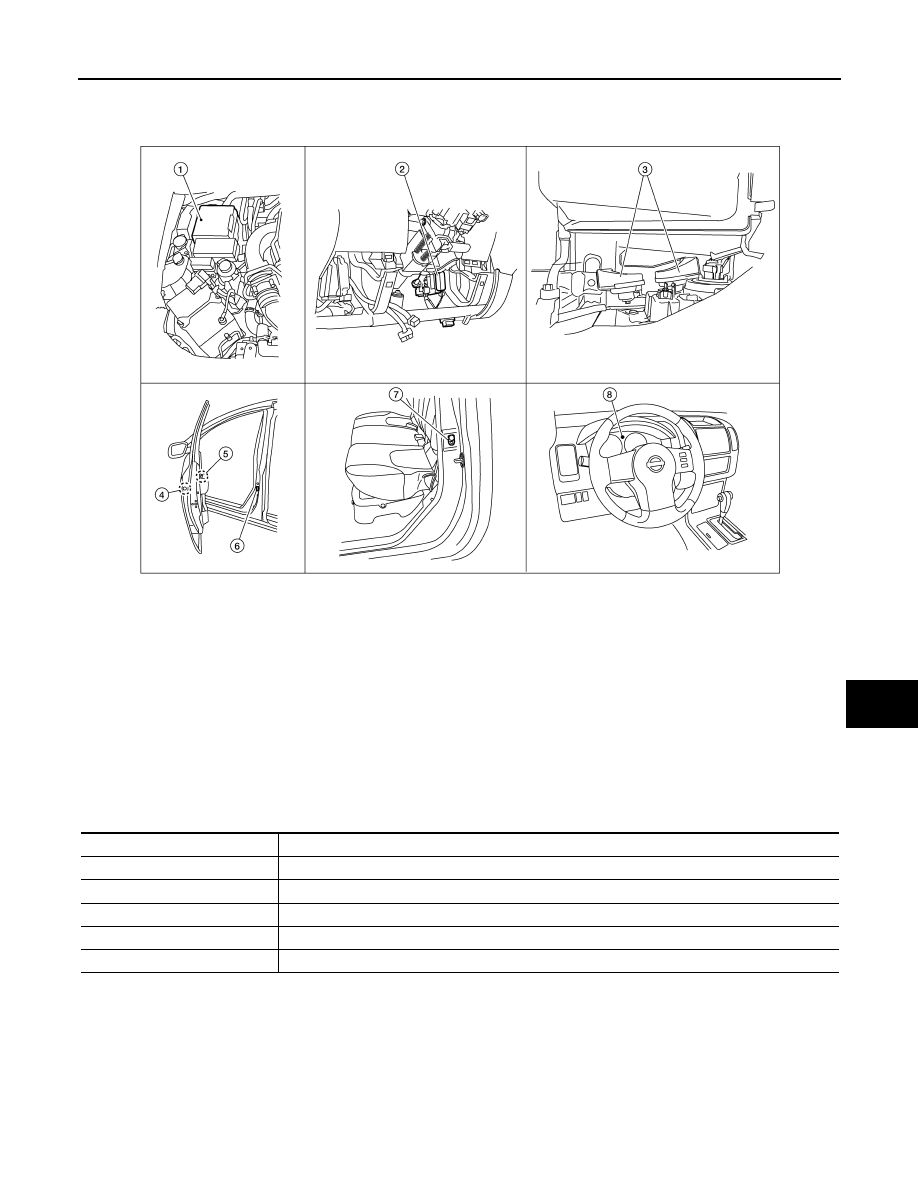

Component Parts Location - Crew Cab

INFOID:0000000005272584

Component Description

INFOID:0000000005272585

IPDM E/R E122, E123, E124

BCM M18, M19, M20
(view with lower instrument panel LH
removed)

Horn E3
(behind front combination lamp LH)

Front door lock assembly LH (key
cylinder switch) D14

Main power window and door lock/un-
lock switch D7
Power window and door lock/unlock
switch RH D105

Front door switch
LH B8
RH B108

Rear door switch
LH B18
RH B116

Combination meter M24

ALKIA1388ZZ

Item

Function

BCM

Verifies the received signal from ignition key, then informs ECM whether to allow engine start.

Door switch

Provides the BCM with the status of each monitored door.

Security indicator

Indicates the status of the security system.

IPDM E/R

Controls the horn and headlamps operation.

Horn

Sounds when the vehicle security system is triggered.

SEC-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000005549834

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

IMMU

IMMU : CONSULT-III Function (BCM - IMMU)

INFOID:0000000005549835

DATA MONITOR

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

SEC-64, "DTC Index"

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Remote keyless entry system

MULTI REMOTE ENT

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

Air conditioner

AIR CONDITONER

Combination switch

COMB SW

Immobilizer

IMMU

Interior room lamp battery saver

BATTERY SAVER

Vehicle security system

THEFT ALM

RAP (retained accessory power)

RETAINED PWR

Signal buffer system

SIGNAL BUFFER

TPMS (tire pressure monitoring sys-
tem)

AIR PRESSURE MONITOR

Panic alarm system

PANIC ALARM

DIAGNOSIS SYSTEM (BCM)

SEC-15

< FUNCTION DIAGNOSIS >

SEC

ACTIVE TEST

THEFT ALM

THEFT ALM : CONSULT-III Function (BCM - THEFT ALM)

INFOID:0000000005549836

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates condition of ignition switch in ON position.

Test Item

Description

THEFT IND

This test is able to check security indicator operation [ON/OFF].

Test Item

Description

SECURITY ALARM SET

This mode is able to confirm and change security alarm ON-OFF setting.

THEFT ALM TRG

The switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR” on
CONSULT-III screen.

Monitor Item

[Unit]

Description

IGN ON SW [ON/OFF]

Indicates ignition switch (ON) status judged from IGN signal (ignition power supply)

ACC ON SW [ON/OFF]

Indicates ignition switch (ACC) status judged from ACC signal (accessory power supply)

KEYLESS LOCK [ON/OFF]

Indicates lock signal status received from remote keyless entry receiver (integrated in the BCM)

KEYLESS UNLOCK [ON/OFF]

Indicates unlock signal status received from remote keyless entry receiver (integrated in the BCM)

DOOR SW-DR [ON/OFF]

Indicates switch status input from front door switch LH

DOOR SW-AS [ON/OFF]

Indicates switch status input from front door switch RH

DOOR SW-RR [ON/OFF]

Indicates switch status input from rear door switch RH

DOOR SW-RL [ON/OFF]

Indicates switch status input from rear door switch LH

KEY CYL LK-SW [ON/OFF]

Indicates lock switch status from door key cylinder switch

KEY CYL UN-SW [ON/OFF]

Indicates unlock switch status from door key cylinder switch

CDL LOCK SW [ON/OFF]

Indicates lock switch status from door lock and unlock switch

CDL UNLOCK SW [ON/OFF]

Indicates unlock switch status from door lock and unlock switch

Test Item

Description

THEFT IND

This test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-III screen is touched.

VEHICLE SECURITY HORN

This test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-III screen is touched.

HEADLAMP(HI)

This test is able to check vehicle security lamp operation. The headlamps will be activated for 0.5
seconds after “ON” on CONSULT-III screen is touched.
