Nissan Frontier D40. Manual - part 896

PG

HARNESS

PG-51

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

E3

F7

GR/3

: Ignition coil No. 3 (with power
  transistor)

C5

F46

B/3

: Power steering pressure sensor

E3

F8

GR/3

: Ignition coil No. 4 (with power
  transistor)

F3

F50

B/6

: Electric throttle control actuator

C2

F9

G/10

: A/T assembly

A4

F52

B/81

: ECM

E4

F10

—

: Engine ground

E5

F53

B/6

: Mass air flow sensor

E3

F11

B/3

: Crankshaft position sensor (POS)

E5

F61

GR/2

: Intake valve timing control solenoid valve

D2

F13

G/4

: Heated oxygen sensor 2

F3

F65

GR/6

: Air fuel ratio (A/F) sensor 1

B4

F14

W/24

: To E5

C1

F66

B/2

: Park/neutral position (PNP) switch

E3

F15

L/2

: EVAP canister purge volume control
   solenoid valve

B1

F69

W/2

: Back-up lamp switch

E4

F16

—

: Engine ground

Injector sub-harness

E3

F18

L/2

: Knock sensor

D4

F202

GR/2

: Fuel injector No. 1

D3

F21

W/2

: Condenser-1

D3

F203

GR/2

: Fuel injector No. 2

D2

F23

B/3

: Camshaft position sensor (PHASE)

D3

F204

GR/2

: Fuel injector No. 3

D2

F24

GR/2

: Engine coolant temperature sensor

D3

F205

GR/2

: Fuel injector No. 4

B4

F32

W/16

: To E2

D4

F210

B/6

: To F45

PG-52

< COMPONENT DIAGNOSIS >

HARNESS

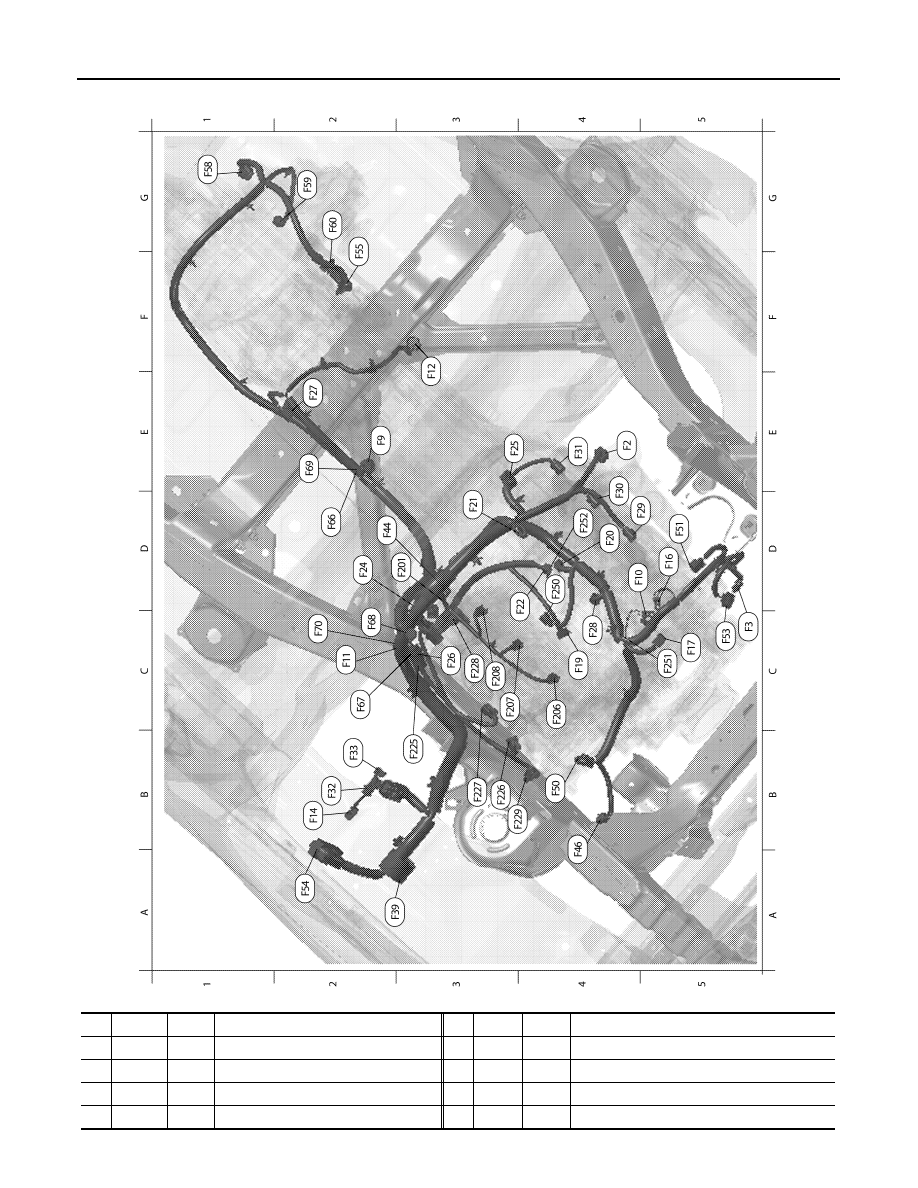

ENGINE CONTROL HARNESS (VQ40DE MODELS)

ABMIA0401GB

C5

F3

B/1

: A/C Compressor

C5

F53

B/6

: Mass air flow sensor

E2

F9

G/10

: A/T assembly

A2

F54

B/81

: ECM

C5

F10

—

: Engine ground

F2

F55

B/2

: ATP switch

C2

F11

B/3

: Crankshaft position sensor (POS)

G1

F58

B/8

: Transfer control device

F3

F12

G/4

: Heated oxygen sensor 2 (bank 2)

G2

F59

GR/2

: Wait detection switch

PG

HARNESS

PG-53

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B2

F14

W/24

: To E5

F2

F60

GR/2

: 4LO switch

D5

F16

—

: Engine ground

D2

F66

B/2

: Park/neutral position (PNP) switch

C5

F17

L/2

: EVAP canister purge volume control
  solenoid valve

C2

F67

L/4

: To F250

C4

F19

B/2

: VIAS control solenoid valve

C2

F68

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 1)

D4

F20

GR/2

: Fuel injector No. 4

E2

F69

W/2

: Back-up lamp switch

D3

F21

W/2

: Condenser-1

C2

F70

G/3

: Camshaft position sensor (PHASE)(bank 1)

D4

F22

GR/2

: Fuel injector No. 6

Injector sub-harness

D3

F24

GR/2

: Engine coolant temperature sensor

D3

F201

G/4

: To F44

E3

F25

B/3

: Camshaft position sensor (PHASE)
  (bank 2)

C4

F206

GR/2

: Fuel injector No. 1

C3

F26

G/8

: To F225

C3

F207

GR/2

: Fuel injector No. 3

E2

F27

L/4

: Heated oxygen sensor 2 (bank 1)

C3

F208

GR/2

: Fuel injector No. 5

C4

F28

GR/2

: Fuel injector No. 2

Ignition coil sub-harness

D5

F29

GR/3

: Ignition coil No. 2 (with power
  transistor)

B3

F225

G/8

: To F26

D4

F30

GR/3

: Ignition coil No. 4 (with power
  transistor)

B3

F226

GR/3

: Ignition coil No. 1 (with power transistor)

E4

F31

GR/3

: Ignition coil No. 6 (with power
  transistor)

B3

F227

GR/3

: Ignition coil No. 3 (with power transistor)

B2

F32

W/16

: To E2

C3

F228

GR/3

: Ignition coil No. 5 (with power transistor)

A2

F33

W/16

: To E19

B4

F229

G/2

: Intake valve timing control solenoid valve
  (bank 1)

D3

F44

G/4

: To F201

Knock sensor sub-harness

B4

F46

B/3

: Power steering pressure sensor

D4

F250

L/4

: To F67

B4

F50

B/6

: Electric throttle control actuator

C5

F251

B/2

: Knock sensor (bank 1)

D5

F51

G/2

: Intake valve timing control solenoid
   valve  (bank 2)

D4

F252

B/2

: Knock sensor (bank 2)

PG-54

< COMPONENT DIAGNOSIS >

HARNESS

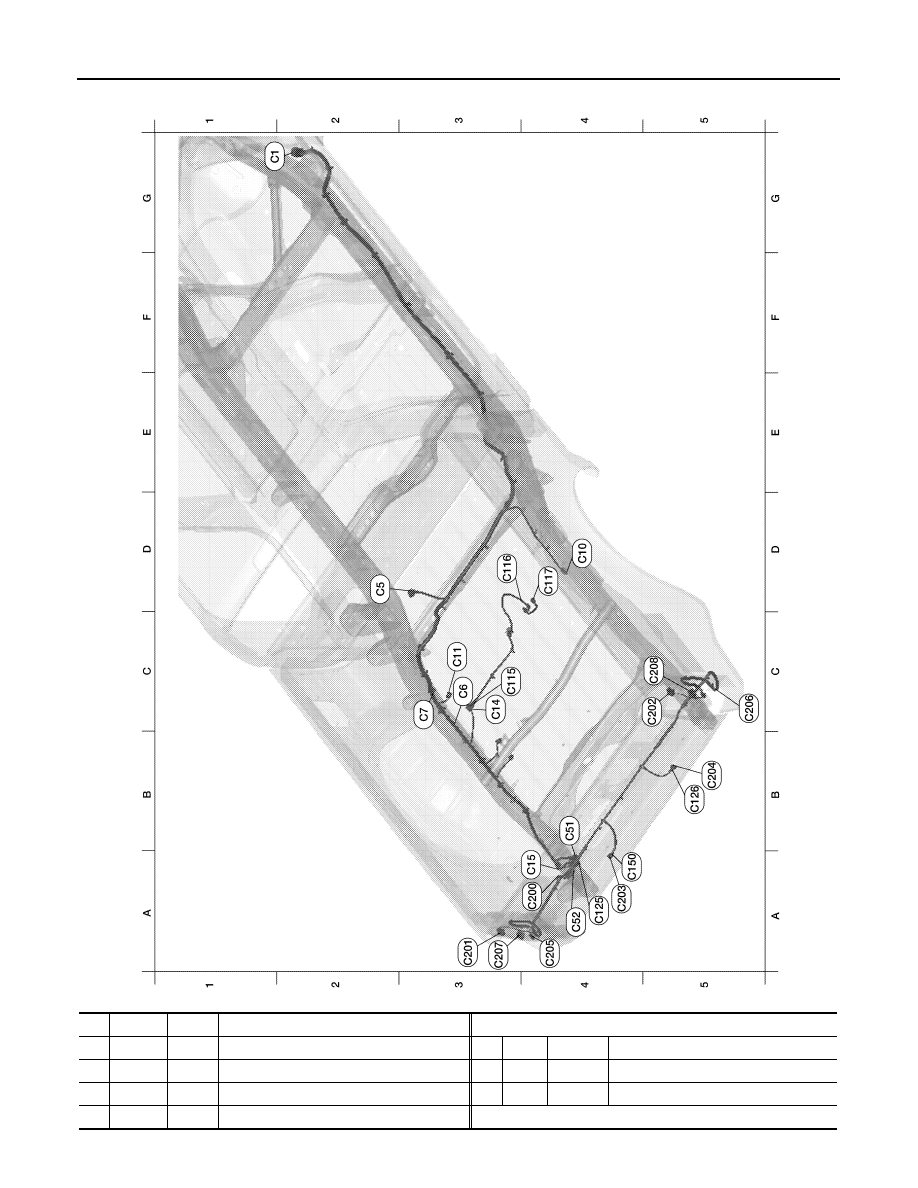

CHASSIS HARNESS

AWMIA0456GB

G2

C1

SMJ

: To E41

Trailer sub-harness

D2

C5

GR/5

: Fuel level sensor unit and fuel pump

A4

C125

GR/8

: To C51

C3

C6

B/2

: EVAP canister vent control valve

B5

C126

B/7

: Trailer

C3

C7

GR/3

: EVAP control system pressure sensor

A4

C150

B/2

: To C52

D4

C10

GR/2

: Rear wheel sensor RH

Tail lamp sub-harness
